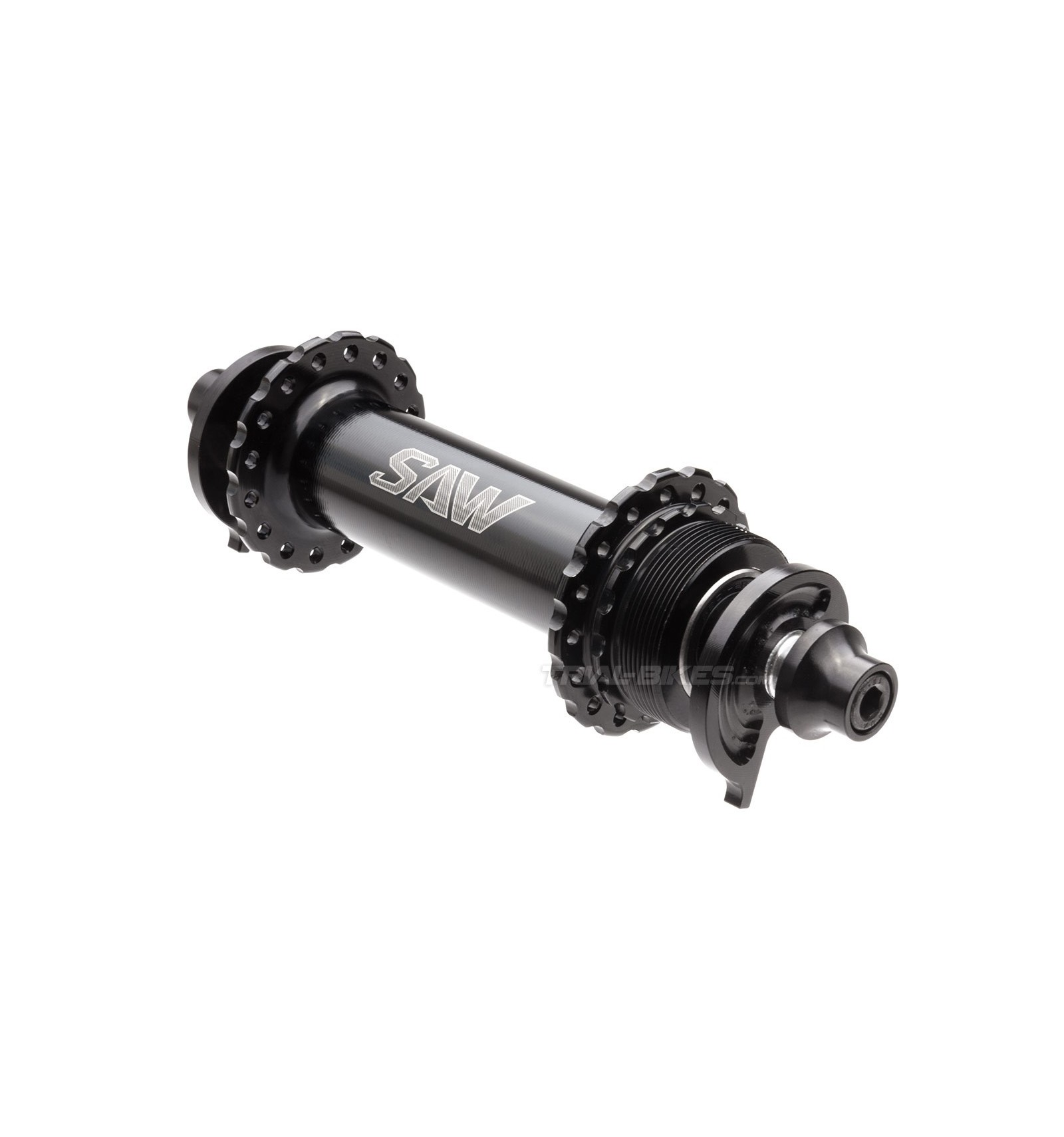

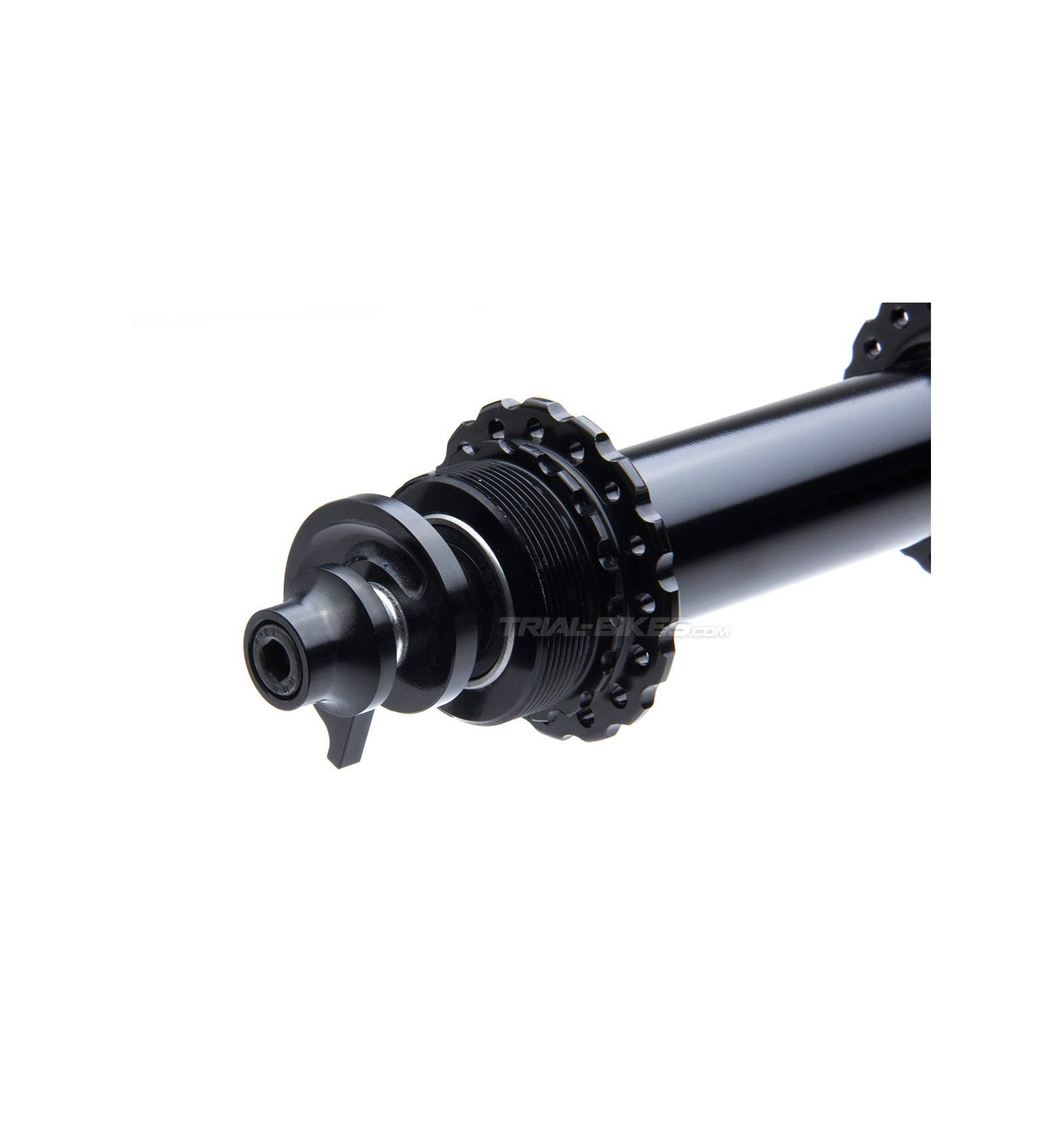

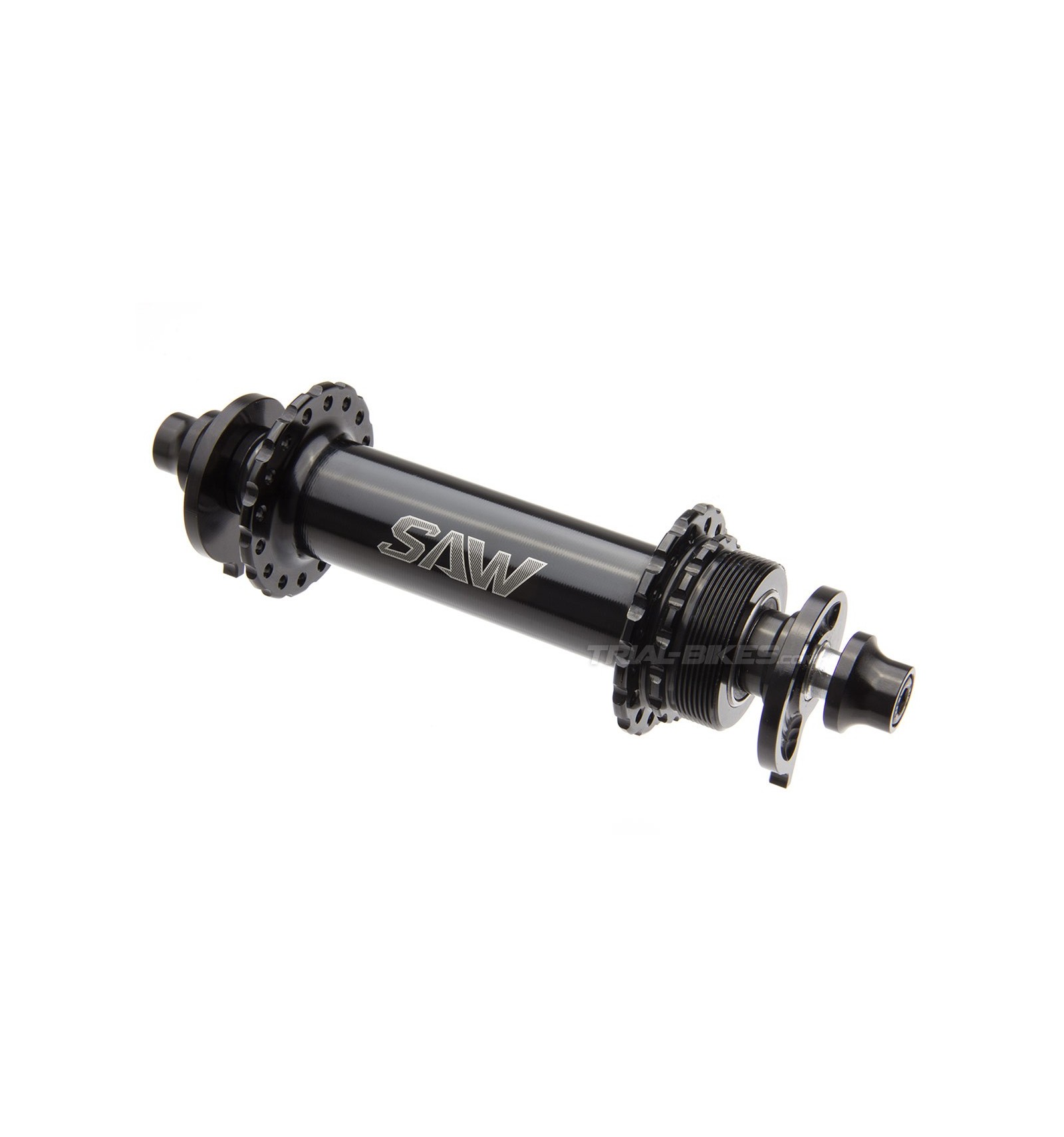

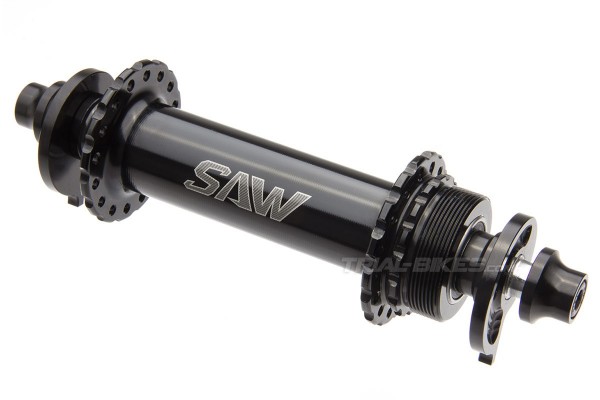

Saw Rear Hub 135mm

Description and materials
- New 135mm rear hub from SAW, for using with rim brakes.
- 126mm spacing needs some 4mm snail cams (like the 2014 SAW snail cams, included with this hub), for a total of 134mm.
- The hub shell is CNC mechanized from high quality 6061 T6 aluminium, with drilled wings to remove unnecessary weight.
- High quality 7075-T6 aluminium hollow axle, anodized in silver colour. It’s 12mm in diameter at the centre (to improve its strength) and 10mm in diameter at the end, as standard in almost all Trials hubs.
- Includes the new 4mm SAW snail cams (needed to obtain the 134mm spacing in the 2014 SAW rear hubs).
- Features high quality replaceable NBK 6901-2RS sealed bearings, which ensure a smooth running while keeping out all the dirt (mud, water, dust, etc.).
- Standard 1.37” x 24 tpi thread fits almost all freewheels and sprockets.
- Its high number of threads means a reliable, safe and durable hub.
- Please note: only 4mm snail cams must be used with this hub, or at least some 3mm snail cams with a 1mm spacer.
- Includes 4mm SAW snail cams, as well as 2x M6x25mm steel bolts and high quality serrated washers, that ensure the rear wheel stays tight.
- 32 holes only.


Dimensions
- Spacing: 134mm (by adding the 4mm SAW snail cams, included with the hub)
- Axle diameter: 12mm at the centre, 10mm at the ends
- 32 holes

Finishes
- Anodized gloss black hub shell
- Anodized silver axle
- Laser etched grey SAW graphics

Weight
- 139.2g (+14.2g of  snail cams and 23g of bolts and washers)
