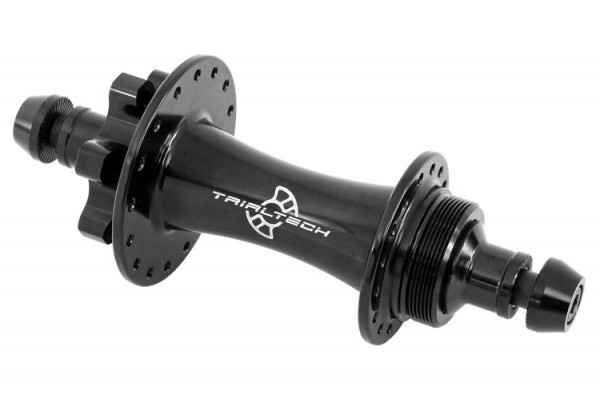

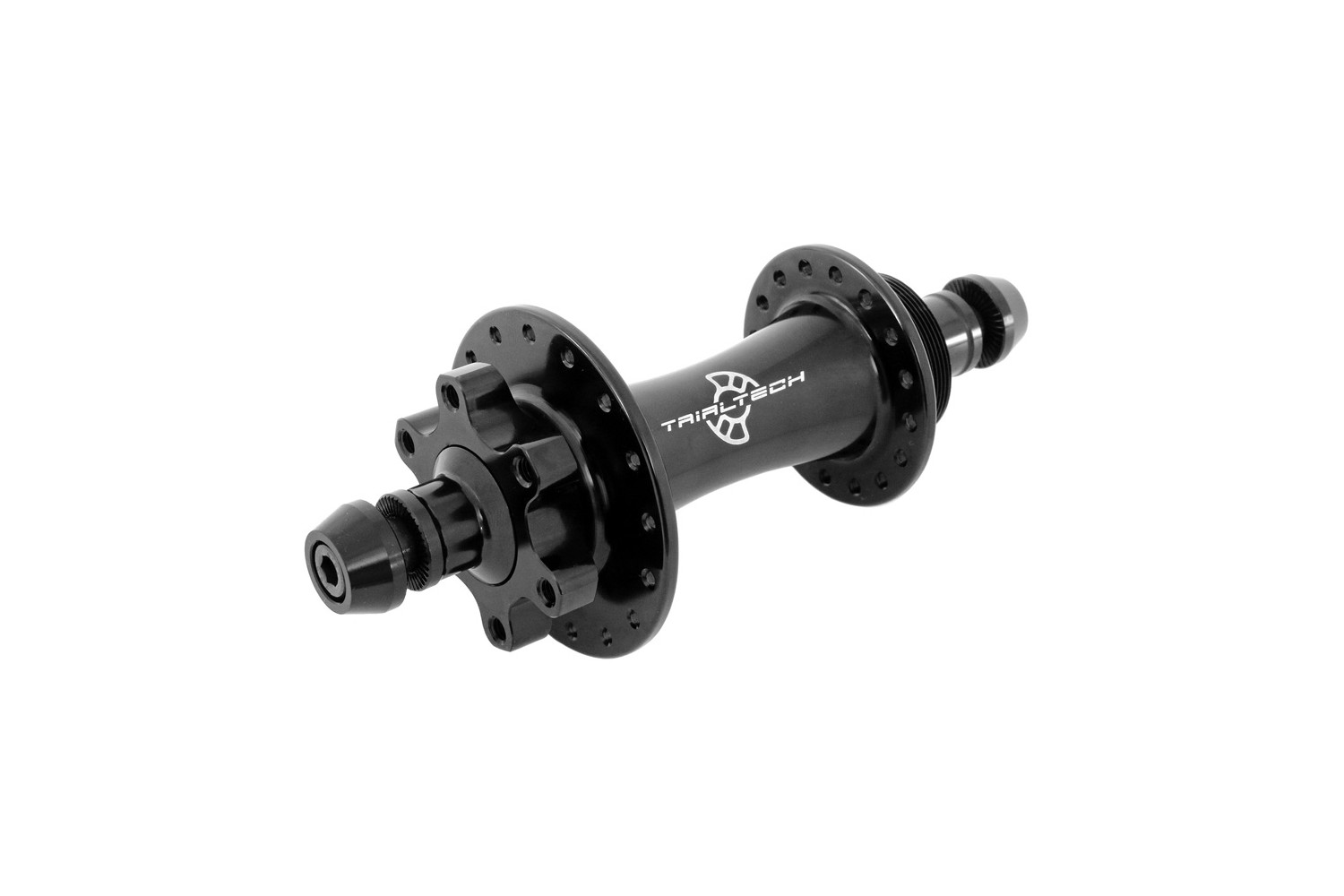

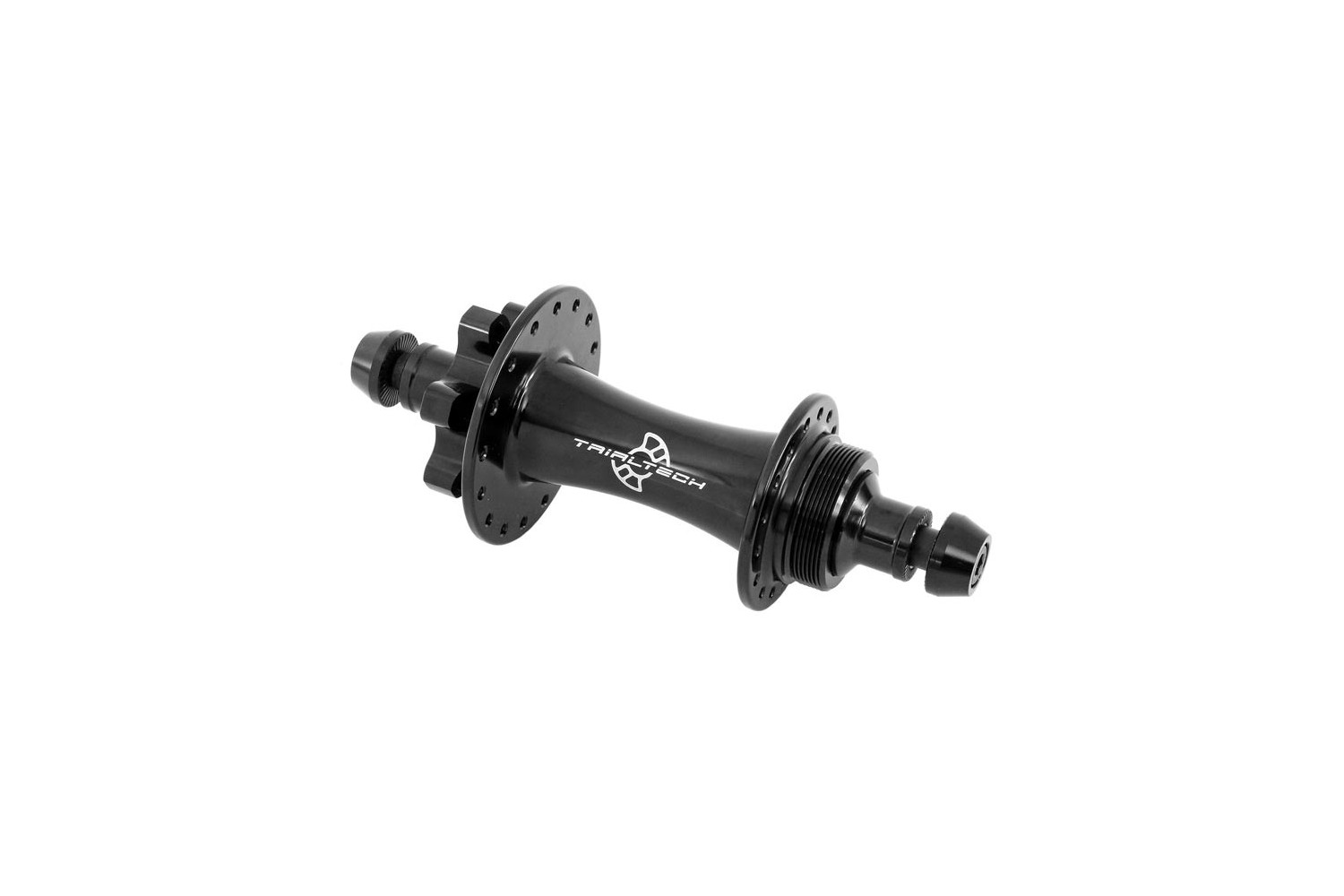

Trialtech Sport 135mm Disc Rear Hub

Trialtech Sport 135 mm Disc Rear Hub

- Trialtech Sport rear disc hub, for frames with 135 mm spacing.
- Hollow 10 mm axle with internal threads to take allen key bolts (the axle may also be used with a traditional quick release skewer for easy removal of the wheel, but bolts and washers supplied as standard)
- The shell is made of CNC machined aluminium alloy.
- High-quality, replaceable sealed bearings ensure a smooth spin and long lifespan.
- Standard 1.37”x24tpi thread, compatible with most screw-on freewheels and sprockets.
- 32 spoke holes (32H).
- Strong, international standard 6-bolt ISO rotor fitting.
- Supplied with M6x30mm Cr-Moly axle bolts and Trialtech serrated washers.
Compatibility
- Frames with 135 mm spacing for the rear hub.
- Rims with 32 spoke holes (32H).
- 6-bolt disc brake rotors.

Dimensions
- Axle spacing: 110 mm
- Axle diameter: Ø10 mm
- Thread: 1.37”x24tpi, Ø35 mm
- Number of spoke holes: 32 (32H)

Colour
- Anodized matt black hub shell, with white laser etched Trialtech Sport logos.

Weight
- 235 g (+ bolts and washers at 28 g)
