➤ 100% Carbon fiber construction, in one piece.
➤ Includes 3 inserts to achieve different geometries.
➤ Compatible with 1-1 / 8" forks.
Ver la opinión

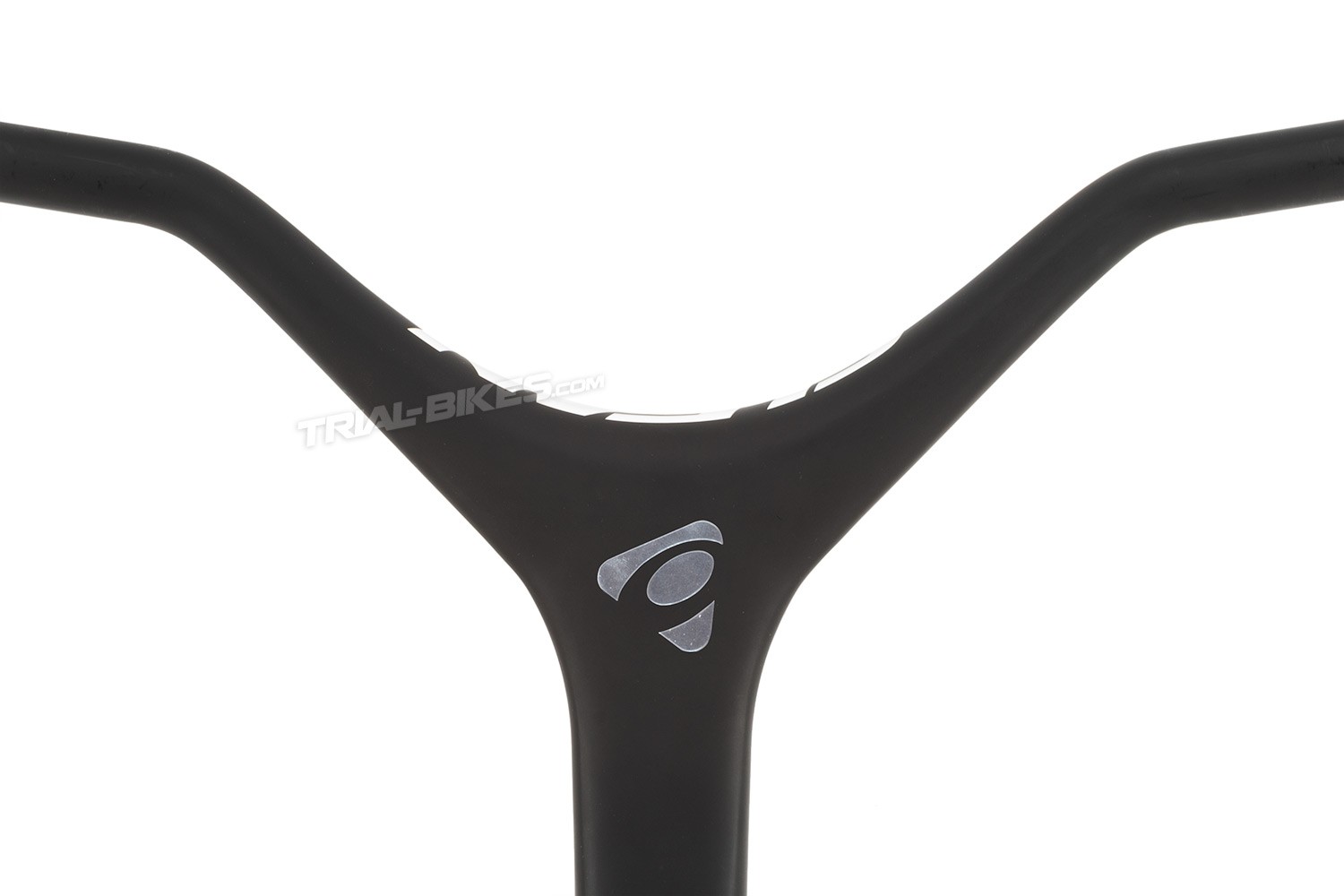

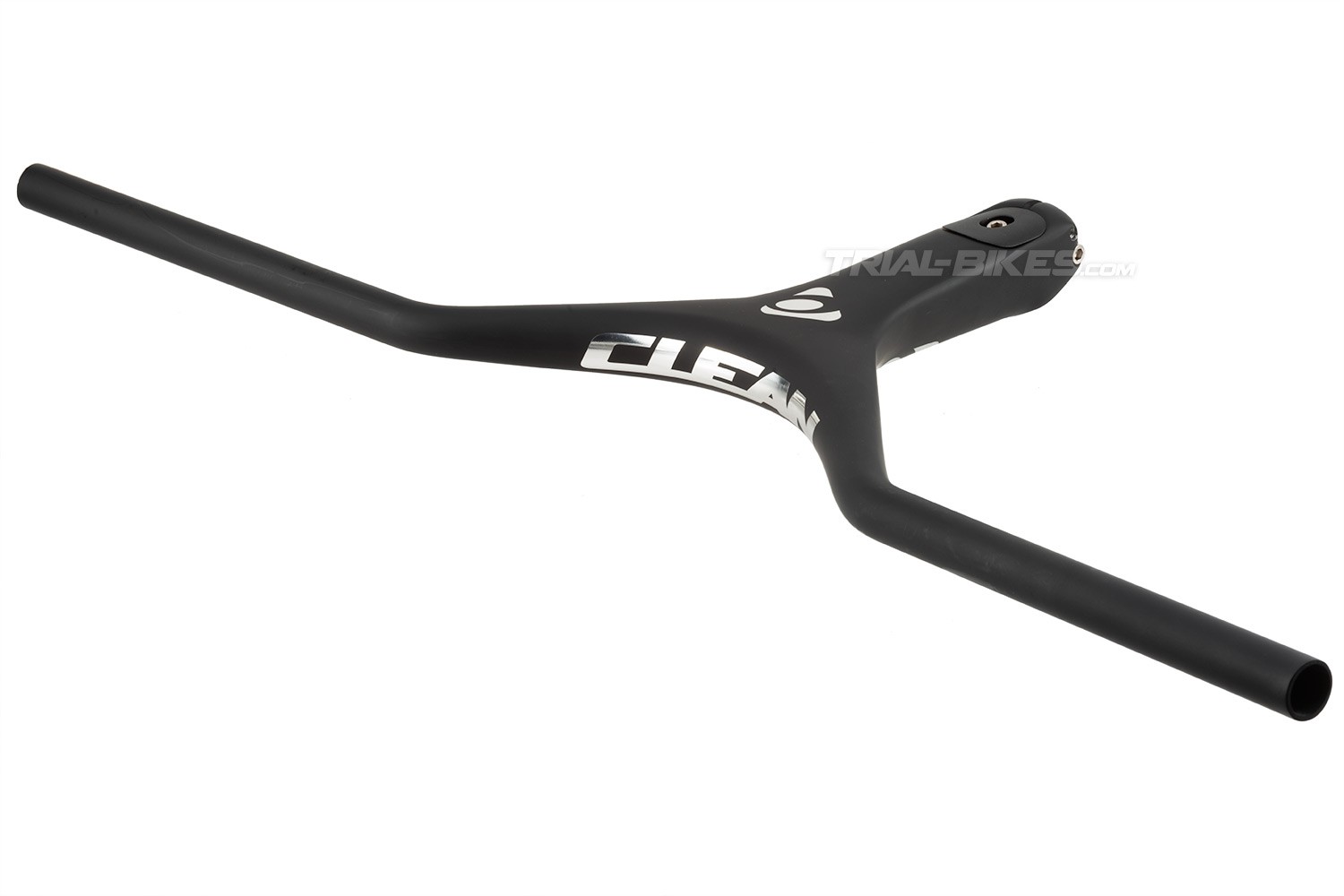

✅ New and improved version of the handlebar and stem combo from the prestigious Spanish brand, Clean Trials.
✅ Now featuring new aluminum inserts to prevent typical crunch seen in previous versions.
✅ The base height has been updated with increased elevation to provide more contact surface with the fork.
- The Clean trials Combo is the last revolution in the trials bike, a high range model for the most demanding trials bikers.
- Developed and tested to the highest level by Abel Mustieles itself, World multichampion of trials bike
- This is the first integrated handlebar and stem mix, designed exclusiely for trial bikes
- Made 100% in carbon fiber UD and in one piece to achieve the best possible stiffness
- With the new combo the problems with the handlebar moves are removed, typical crunches or the perfect alineation with the stem middle.

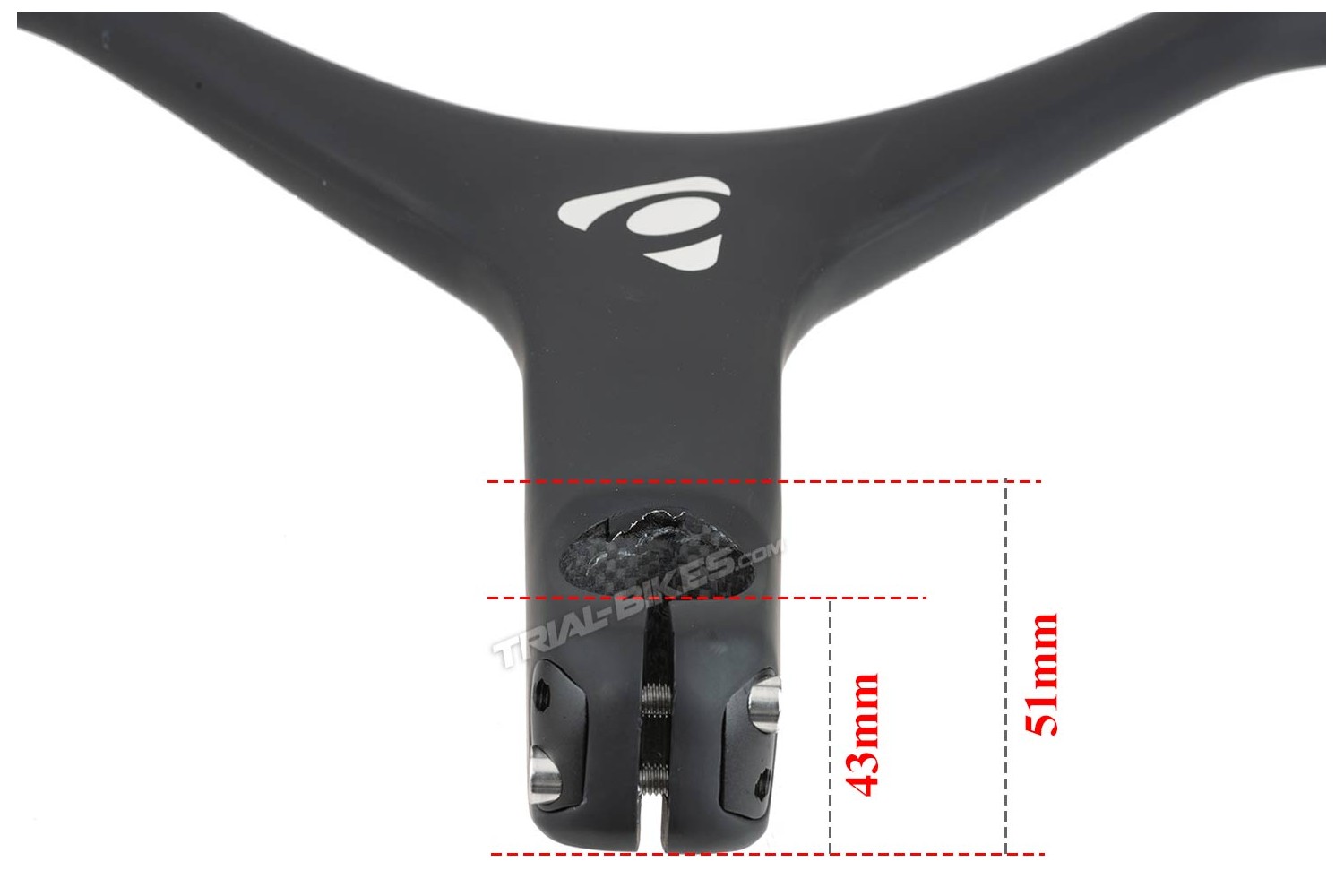

- The base of the stem that support the steerer tube is designed in angle, with only 43 mm in the rear part and 51 mm in the front one, for avoid possible frictions in the knee it is attached with the tube through 2 steel screws M6x30(allen nº5)

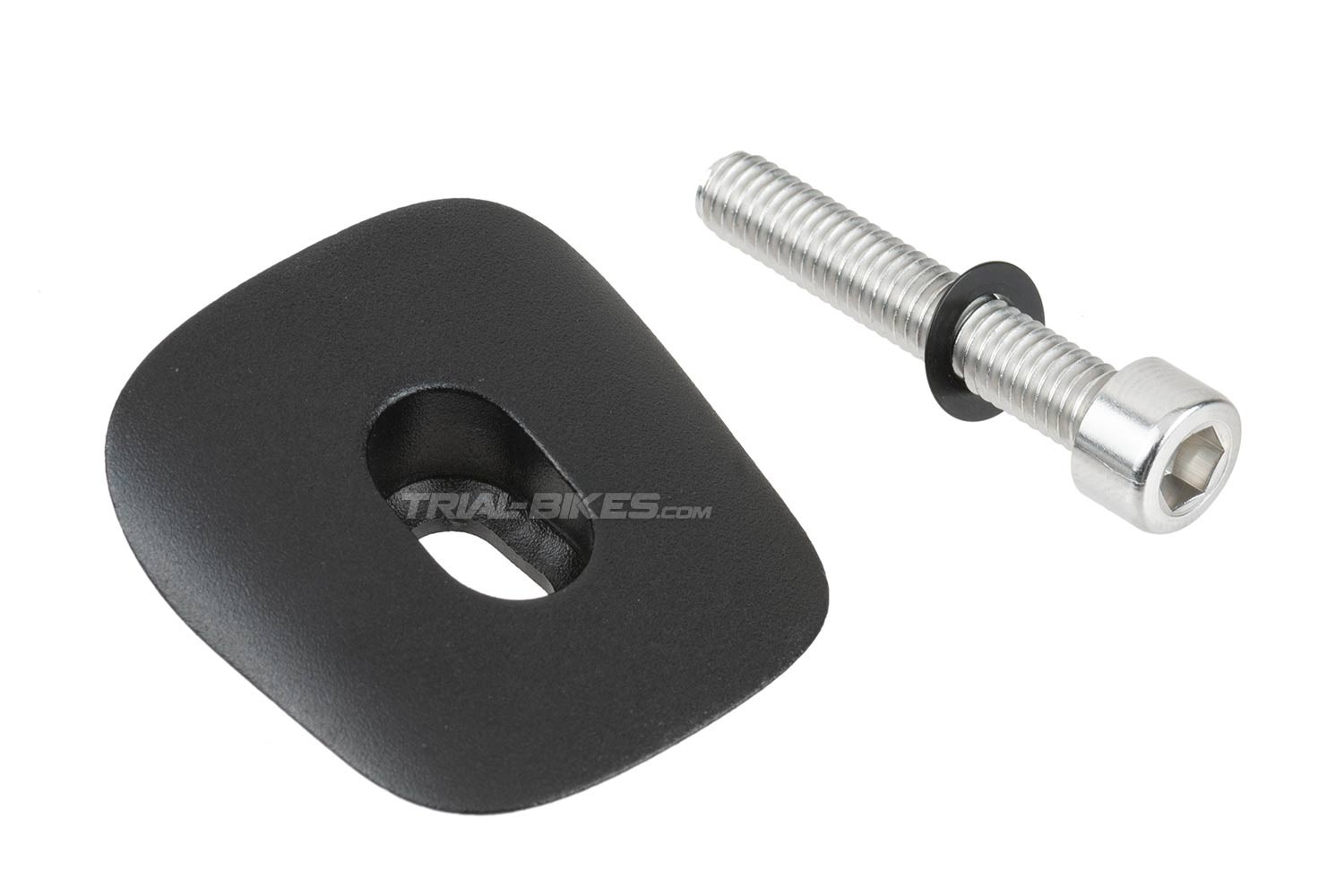

- Includes aluminium stem cap and steel screws M6x35 (allen nº5)
Measurements
- Handlebar length: 720mm.

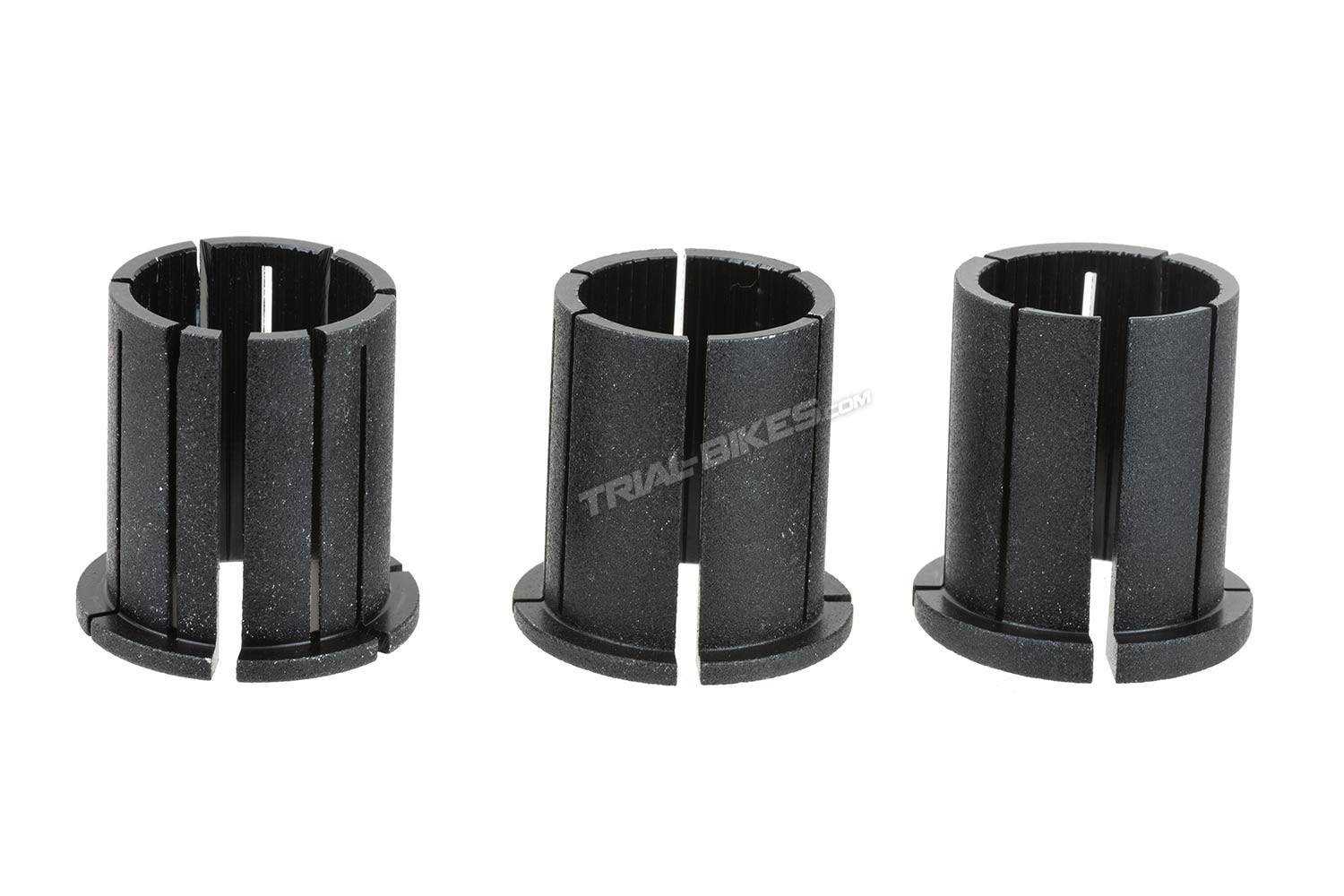

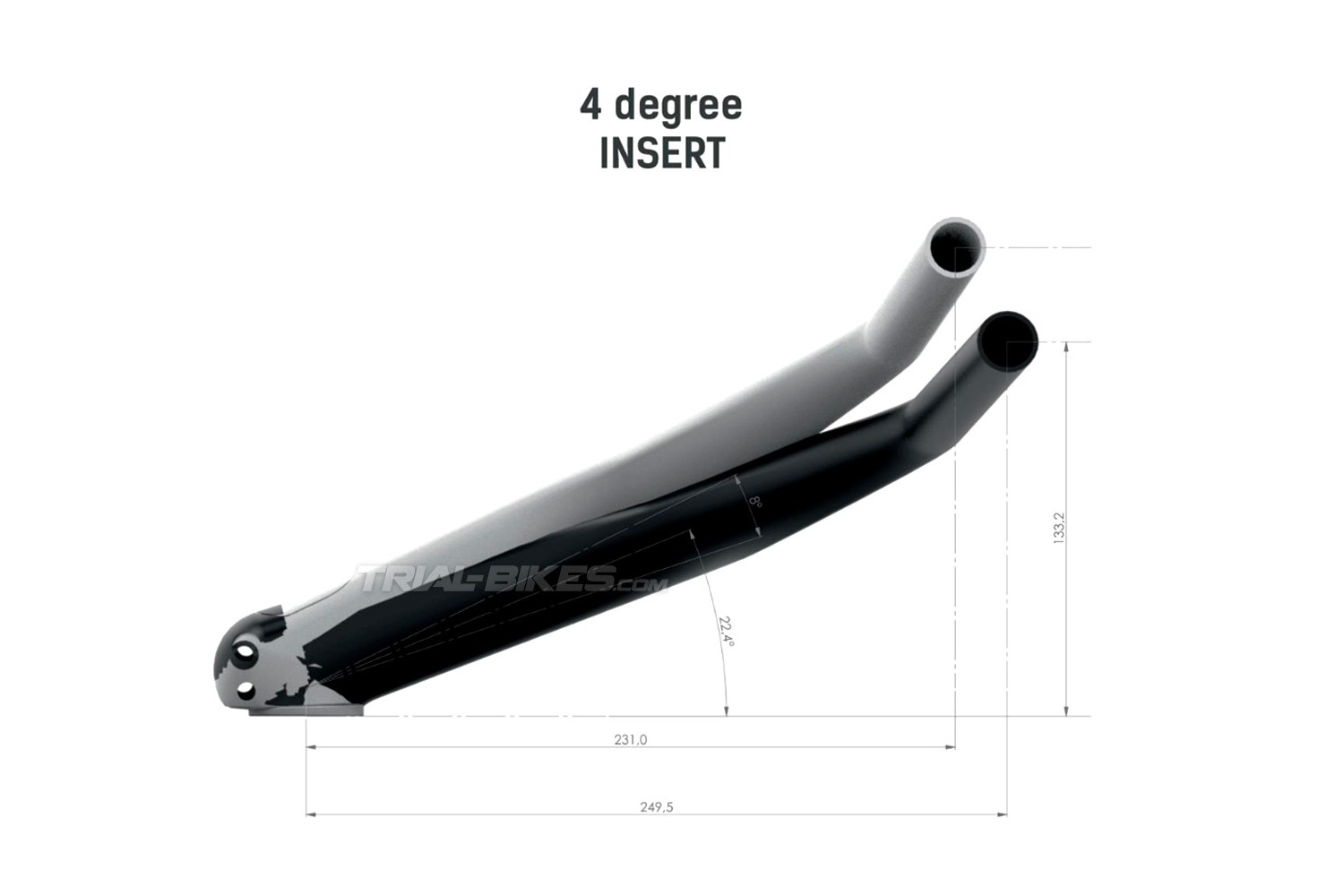

- Supplied with 3 inserts made of aluminum, with different angles (0º, 2º and 4º) to allow the handlebar to be placed in the most suitable position.
Depending on the chosen insert and its position (highest part facing forward or backward), different geometries can be obtained.
- The maximum adjustment range for the length (measured from the center of the head tube to the center of the handlebar) is 18.5mm, with a minimum length of 231mm to 249.5mm.
- The maximum adjustment range for the handlebar height (measured from the base of the stem, including the insert to the center of the handlebar) is 33.60mm, with a minimum height of 133.2mm to 166.8mm.

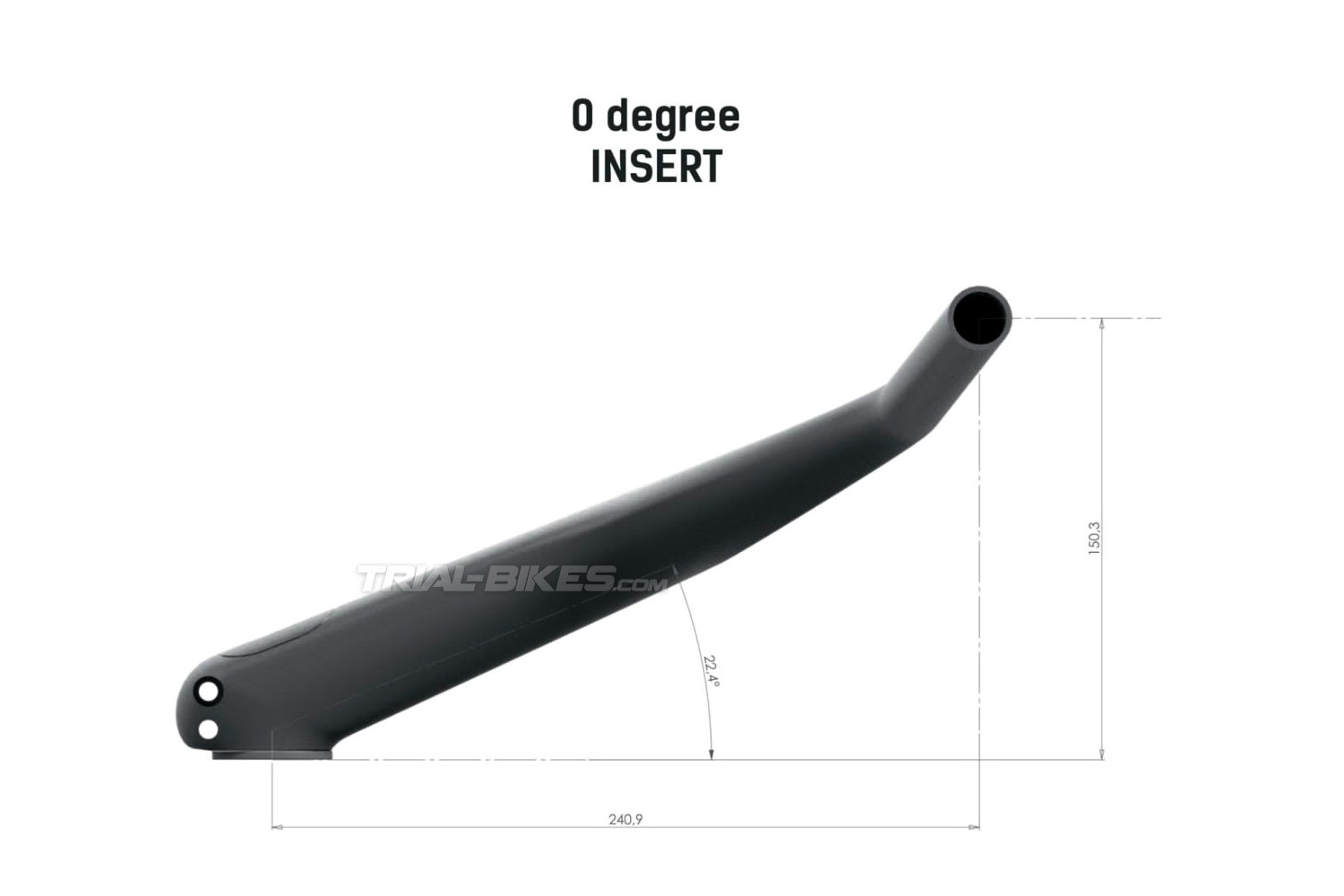

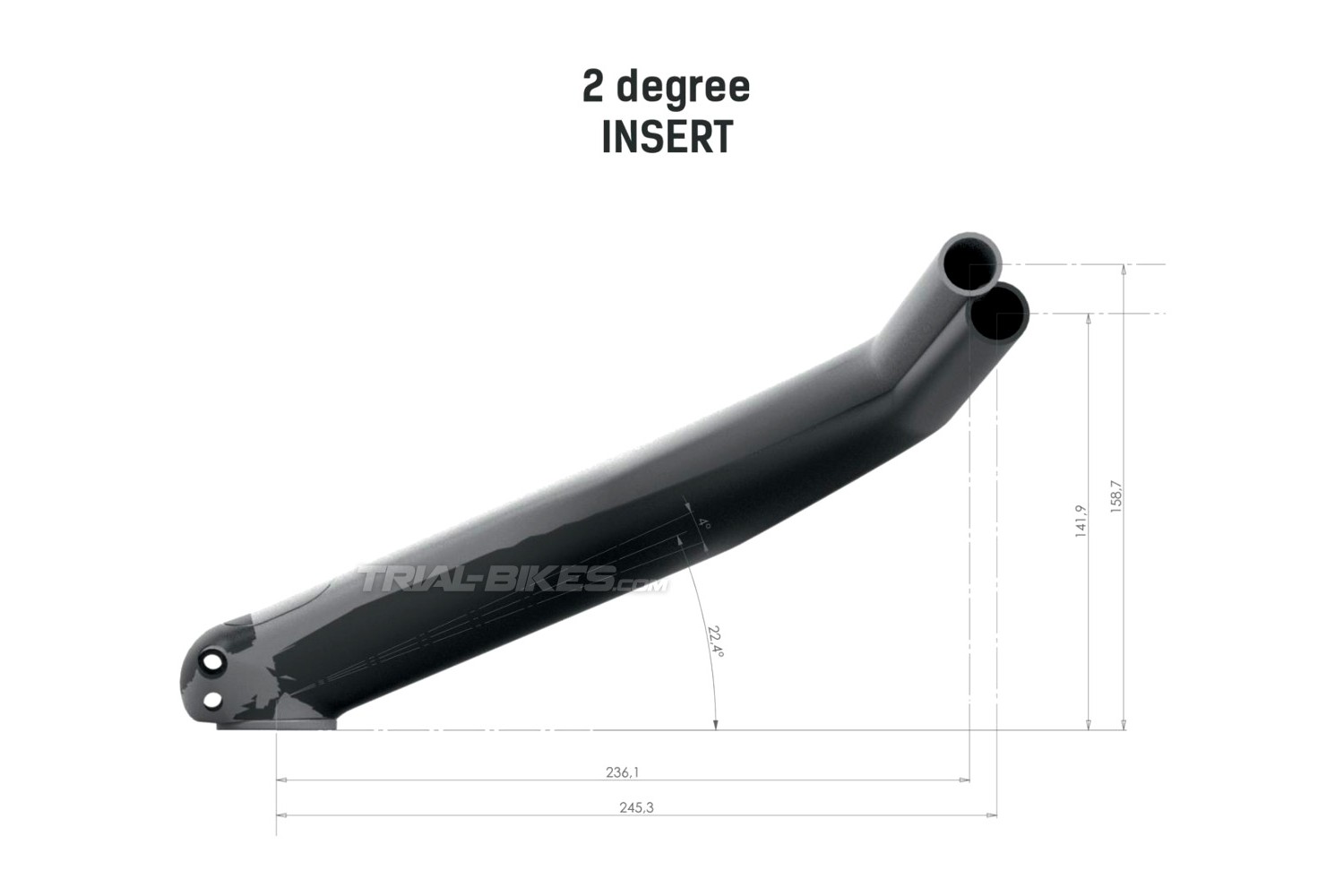

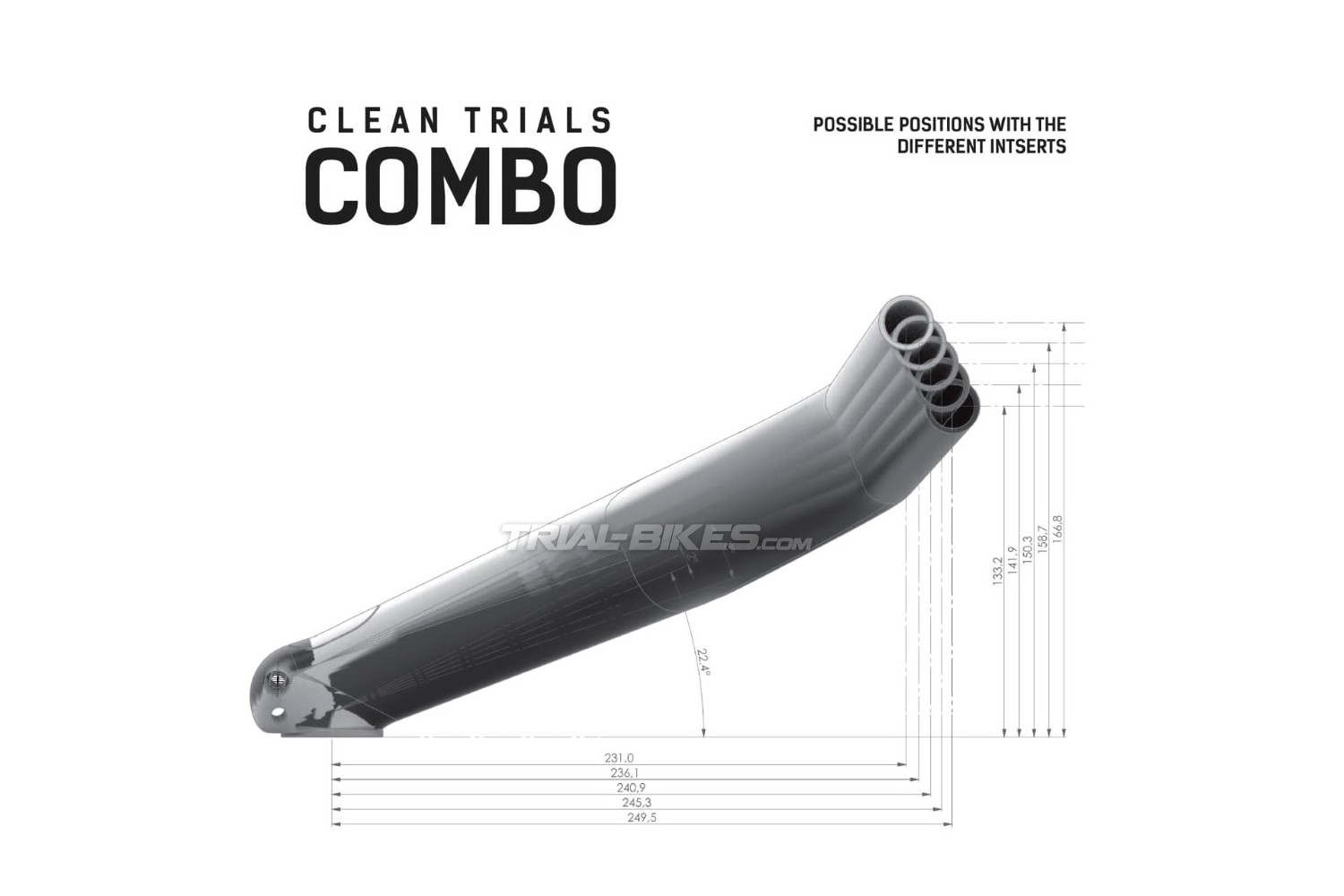

In the following drawing you can check all the possible geometries that can be achieved depending on the chosen insert and its position.
Compatible with:
- Forks with 1-1 / 8 inch steerer tube, which equates to a 28.6mm diameter.
- Grips with a standard inner diameter of 22.2mm.
- Note: This stem requires that the excess length of the fork tube be a minimum of 31mm, in order for the bolts to tighten it safely.
The significant improvements of the Clean Cockpit V2 handlebar and stem combo compared to the previous version are as follows:
Finishes
- UD matte black, with Clean graphics in shiny silver.
Weight
- 407.22 g (+ an additional 20.30 g of the head cap and bolt and 29.68 g of the insert).
