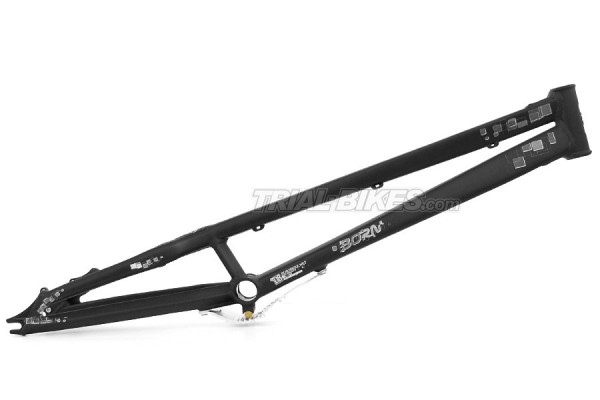

Born Light Frame 20''

Description and materials
- New lightweight 20" disc frame from Asian brand Born.
- Made from high quality 6061 T6 aluminium.
- Triangular tubing increases frame strength and gives a greater weld area.
- Top and down tubes welded separately to the headset, improving the resistance.
- 115mm long, 1 1/8 headtube, with Born 3D logo.
- 68mm bottom bracket shell, suitable for both 122 and 128mm bottom brackets.
- 116mm hub-spaced frame.
- CNC mechanized international standard 160mm disc mount.
- 4-bolt mounts, for HS33 rim brakes.
- Stunning anodised black finish with laser etched, grey and white Born graphics
- Silver bashplate included.
- 2 versions available: 4-bolt only or disc only frames.

Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 115mm, 1 1/8"
- Wheelbase: 1020mm (measured with Neon fork)
- Chainstay Length: 350mm
- BB Rise: 80mm
- Head Angle: 72º

Finishes
- Anodised black
- Grey and white Born graphics.

Weight
- 1341g (Disc version) y 1371g (HS33 version), Plus bashplate and rubber at 118g.

Additional information
 This frame comes with a 6 month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
 If you have any doubts, please contact us on info@trial-bikes.com .
