Description and materials

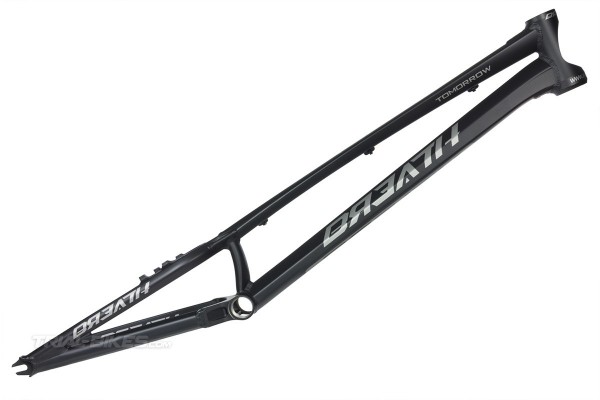

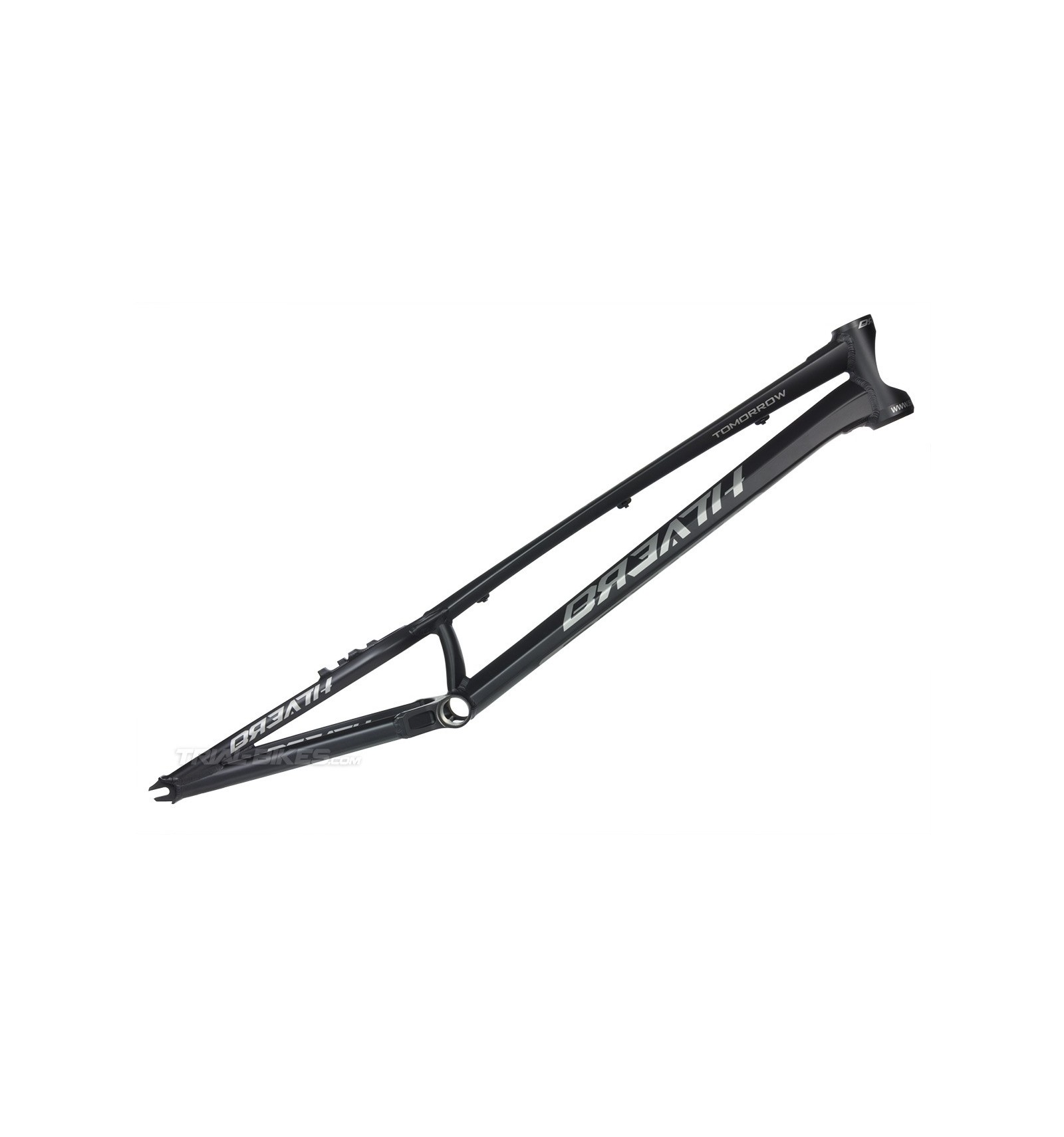

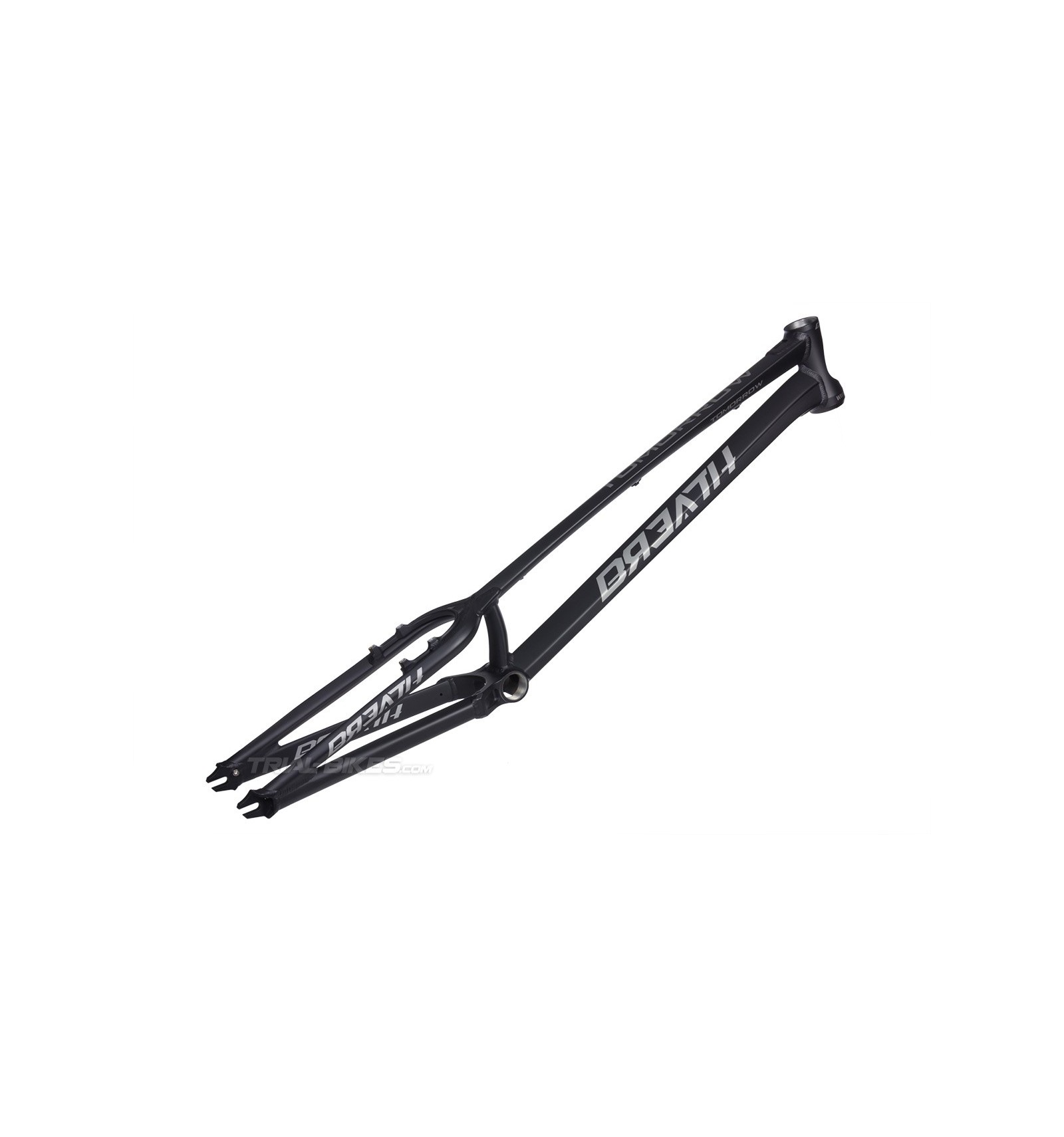

- New Breath Tomorrow 26”, the top-of-the-range 26” frame from Asian manufacturer Breath for the 2015 season.
- Tested and developed for the last few months by multi-time UCI World Champion Gilles Coustellier.
- Made from high quality 6069 aluminium, which keeps the weight down and still offers great strength.
- Innovative, exclusive design by Breath, with 3D hydro-formed tubing for increased stiffness and strength.

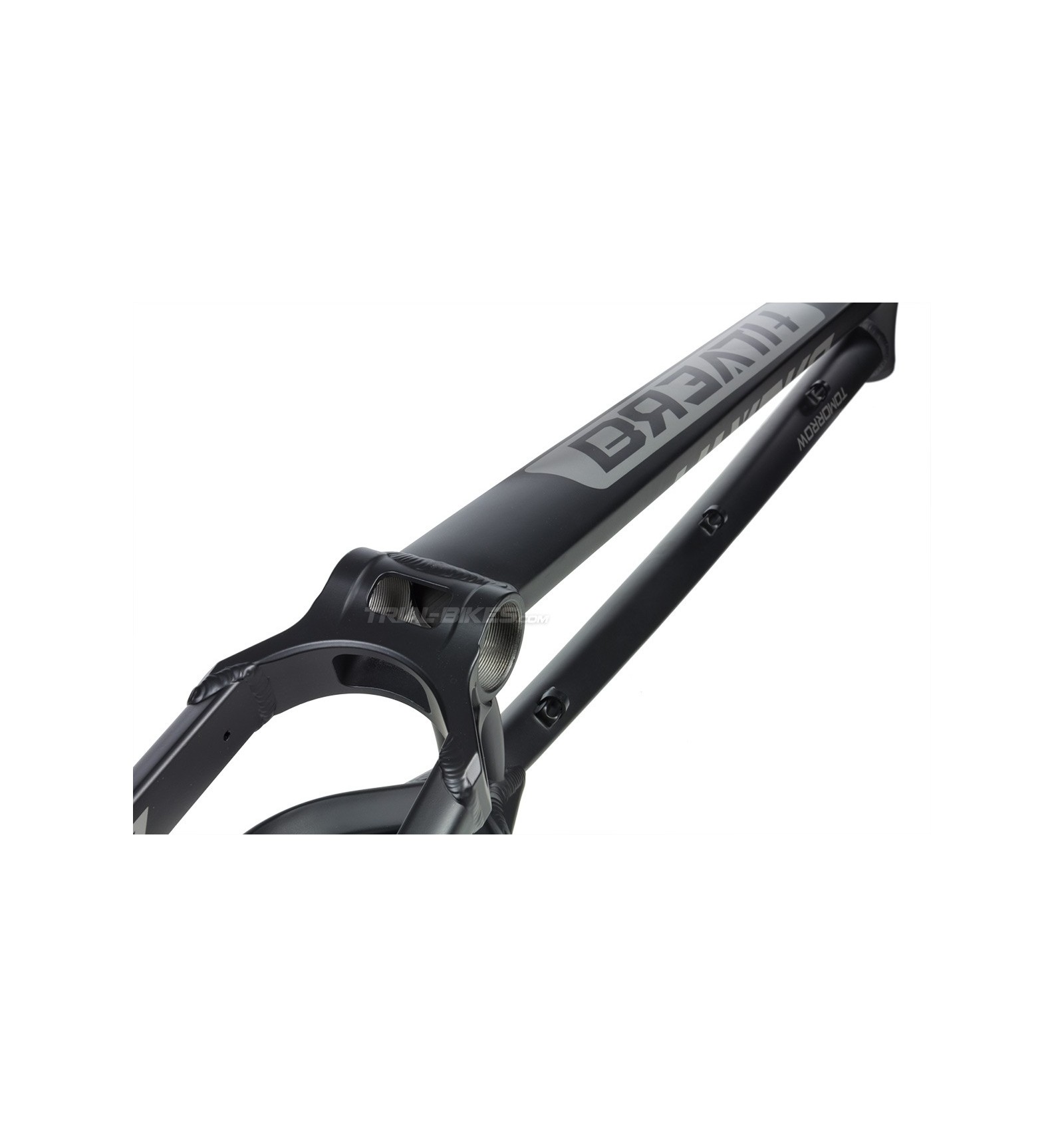

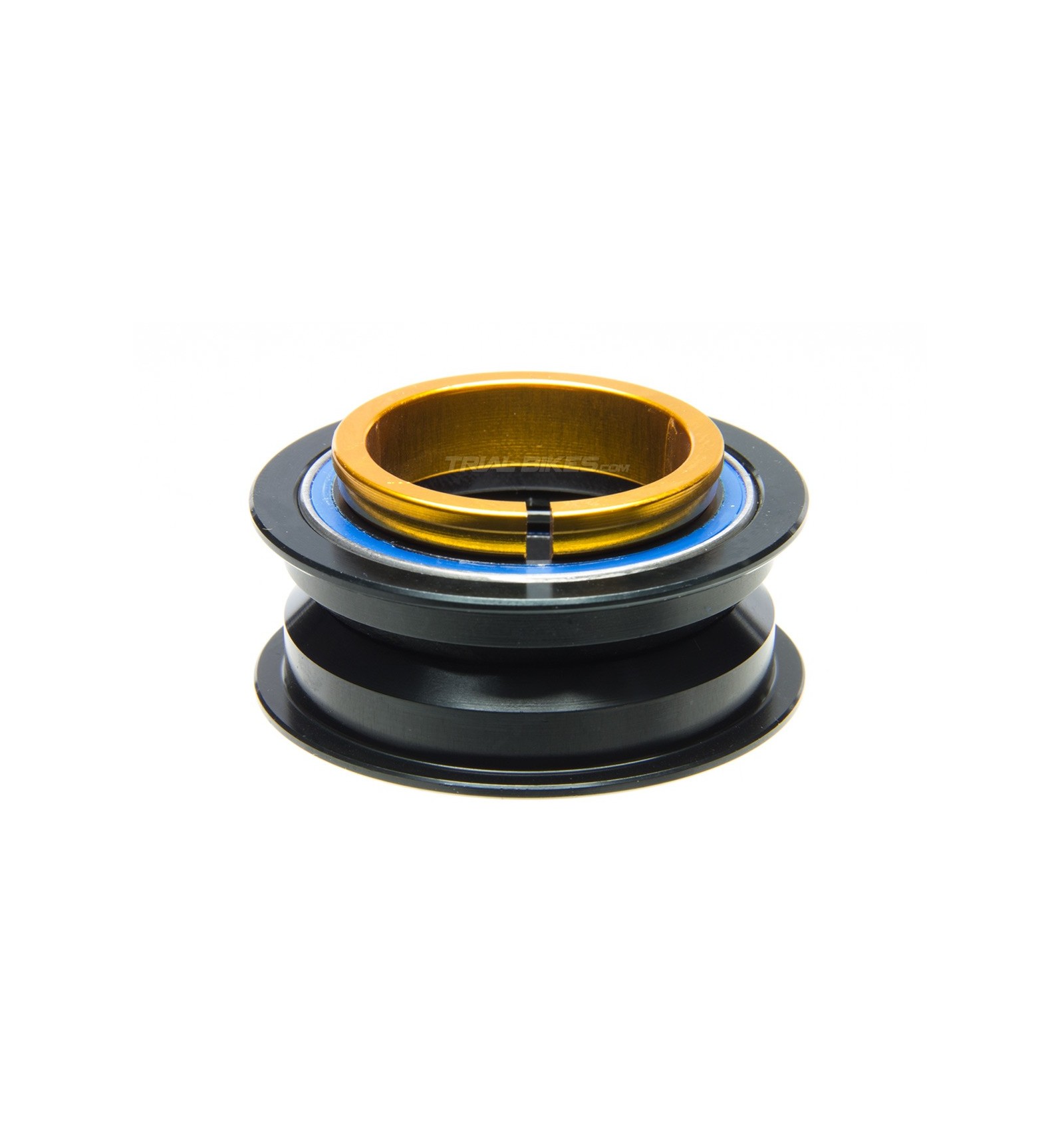

- Features a newly designed 130mm head tube, with a CNC-machined window that helps save unnecessary weight, for using with an internal headset (supplied with the frame).

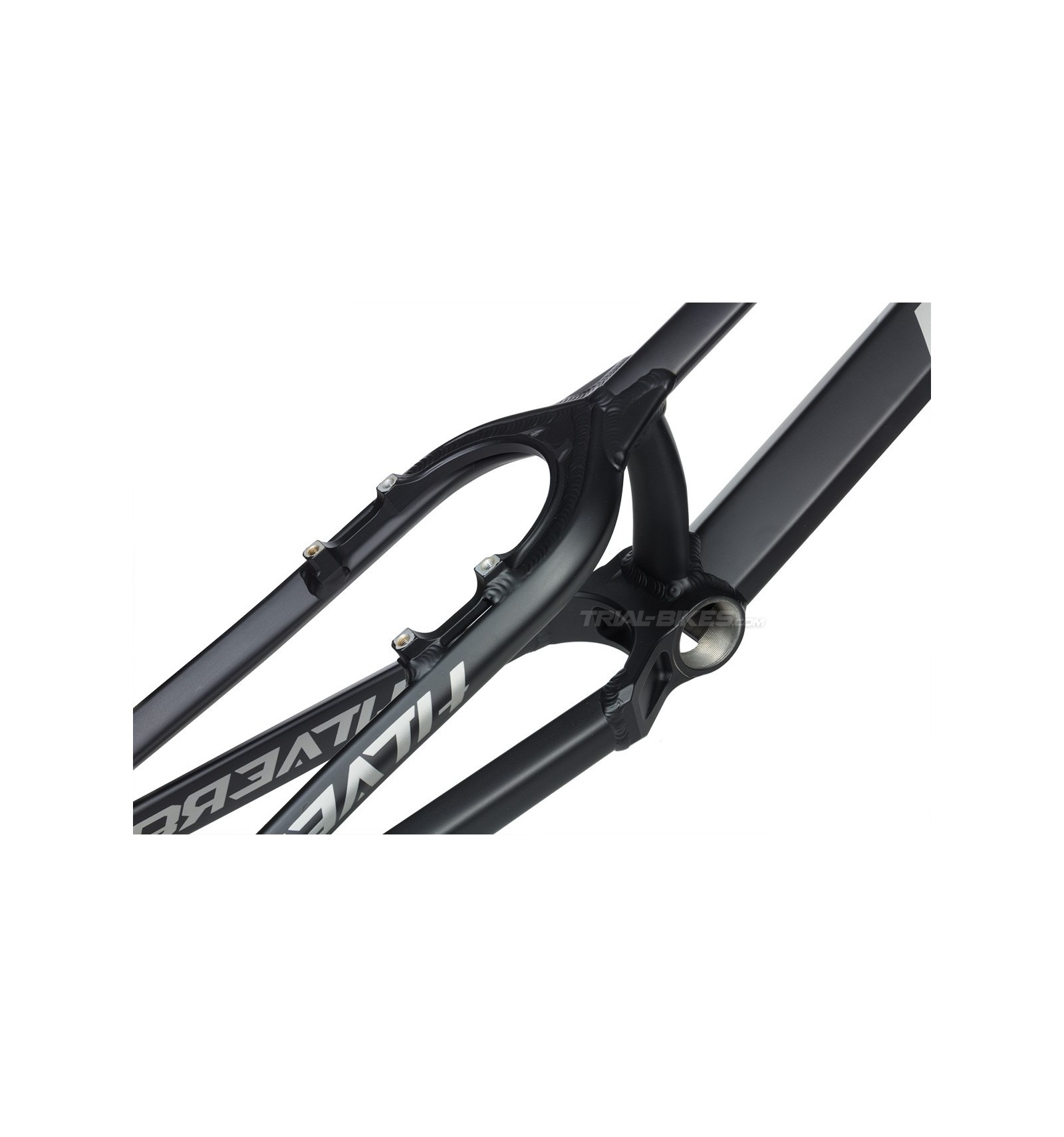

- The bottom bracket tube is CNC machined in a single piece along with the chain-stays joint, which guarantees increased stiffness and strength.
- The head tube is gusseted to the top and down tubes to increase its strength.
- Features CNC mechanized 4-bolt rim brake mounts, machined in a single piece along with the built-in brake booster and welded to the frame to improve braking performance.
- CNC-machined dropouts, spaced at 116mm, for using with 3mm-thick snail cams.
- Three finishes available: electric blue and dark grey, with cool Breath Tomorrow graphics that add a nice racing touch.
Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 130mm
- Wheelbase: 1095mm
- Chainstay Length: 380mm
- BB Rise: +70mm
- Head Angle: 71.5º
Finishes
- Dark grey, with silver Breath Tomorrow graphics.

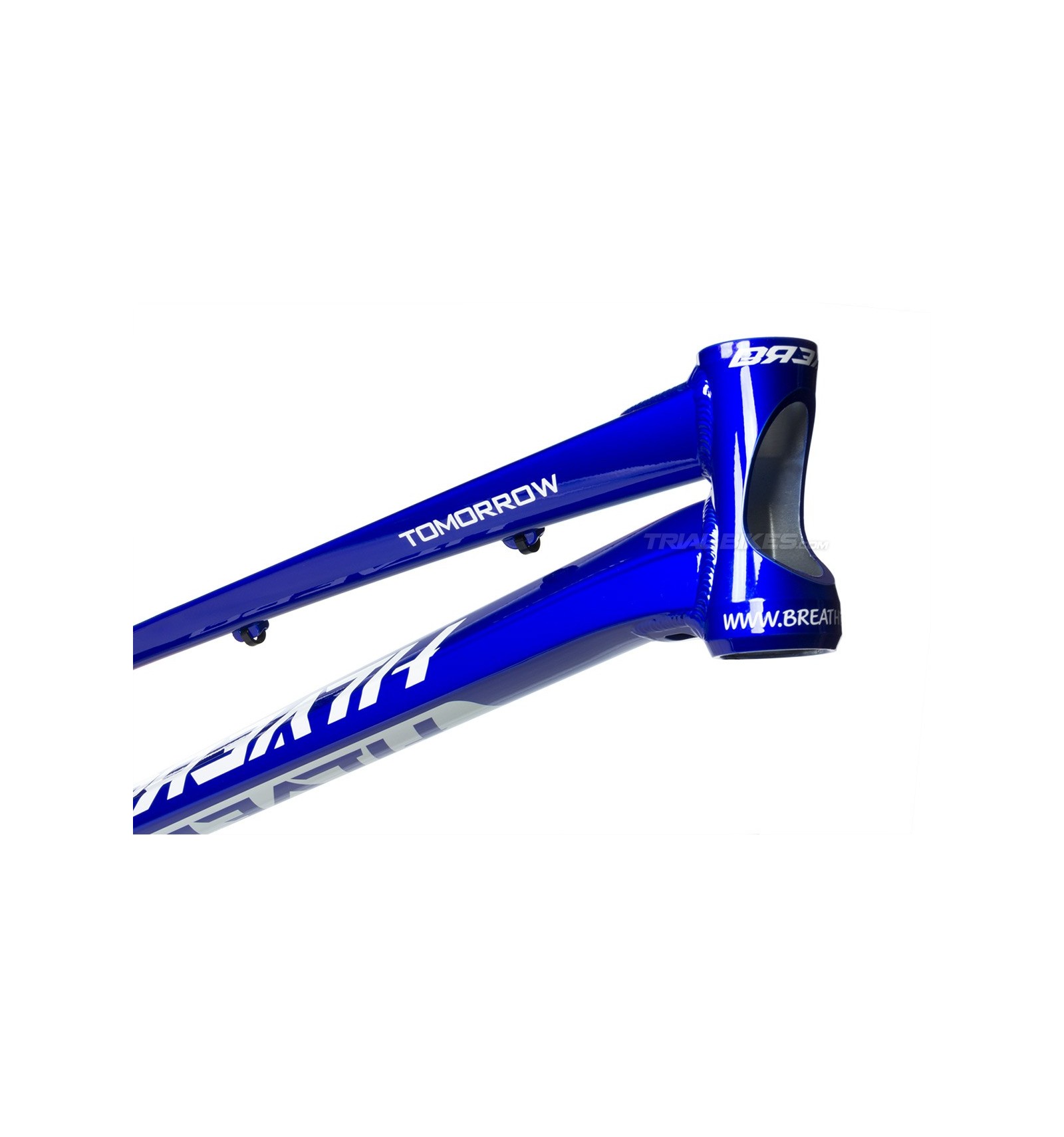

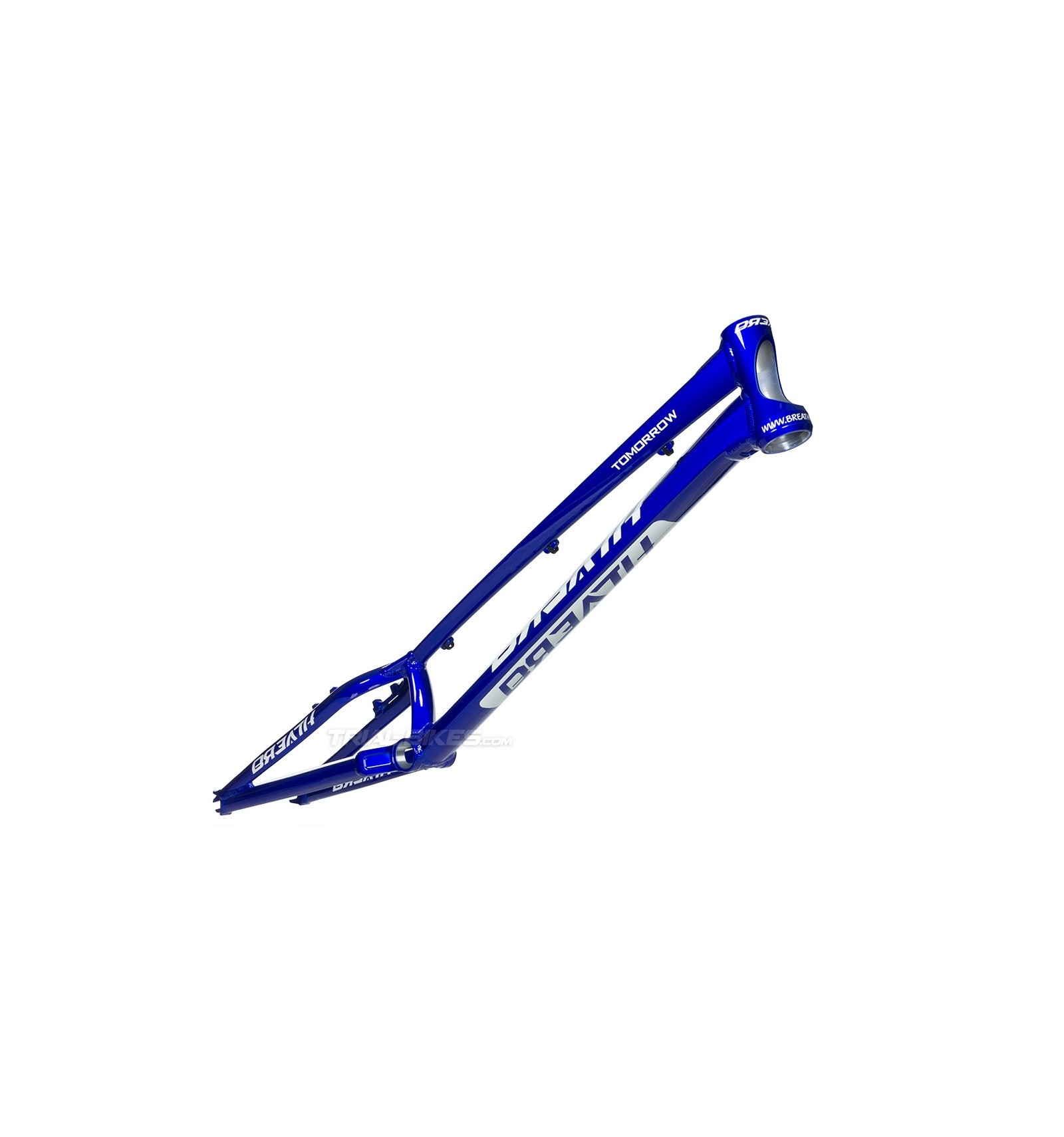

- Electric blue, with white Breath Tomorrow graphics.
Weight
- 1,604kg (+ 65g Headset)
Additional information
This frame comes with a 6-month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
WEIGHT | 1.604 |
TYPE OF HEADSET | Standard 1 1/8" |
