Description and materials
- New Breath YES 20D, the second update of the popular Yes model from Asian manufacturer Breath for the 2015 season.
- Tested and developed for the last few months by Breath team rider Zhaoxuan Zhao.
- Based on last season’s successful Breath Yes frame, now with several updates and new finishes.

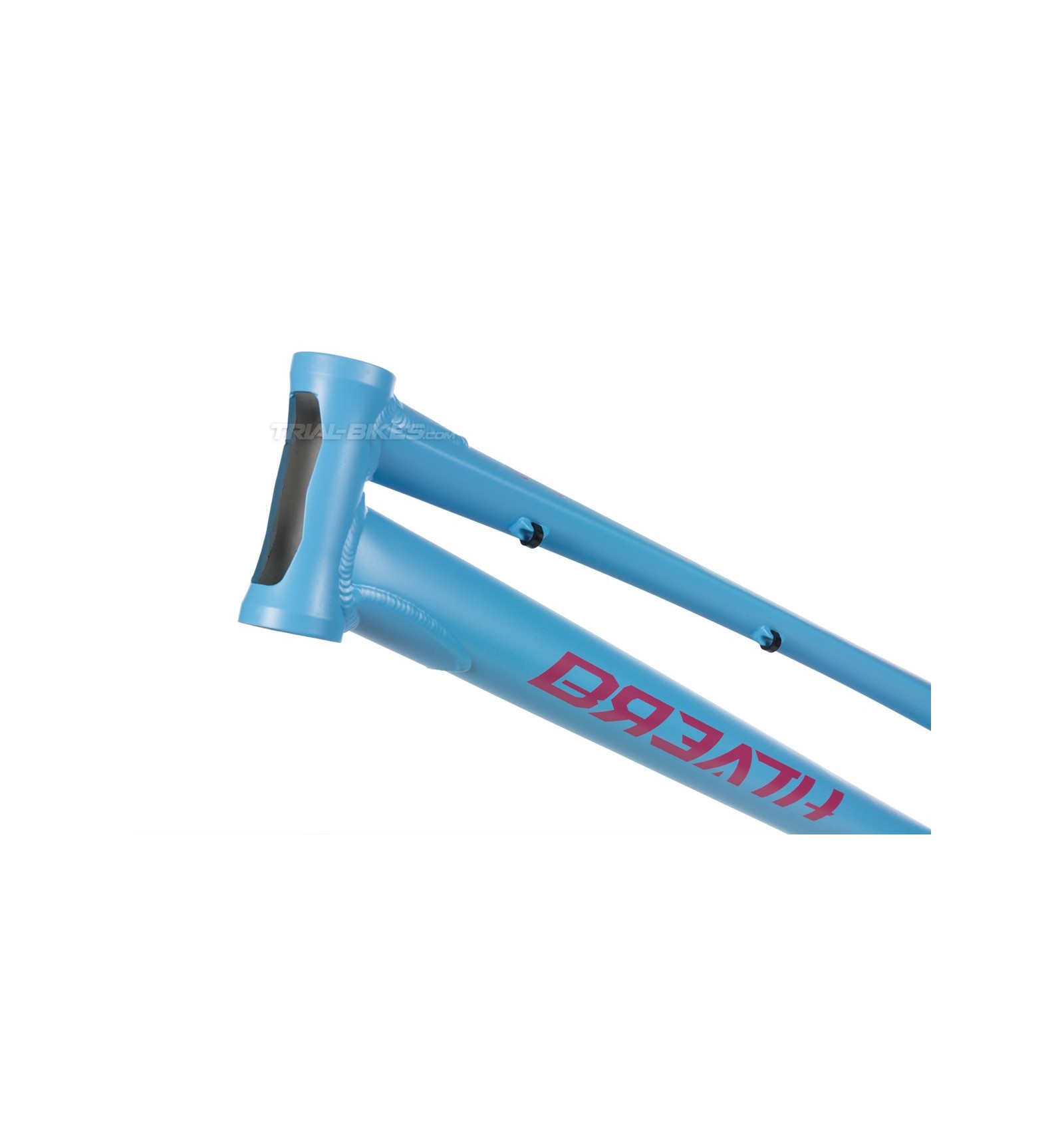

- Features a newly designed 128mm head tube, with a CNC-machined window that helps save unnecessary weight, for using with an internal headset (supplied with the frame).
- The head tube is gusseted to the top and down tubes to increase its strength.

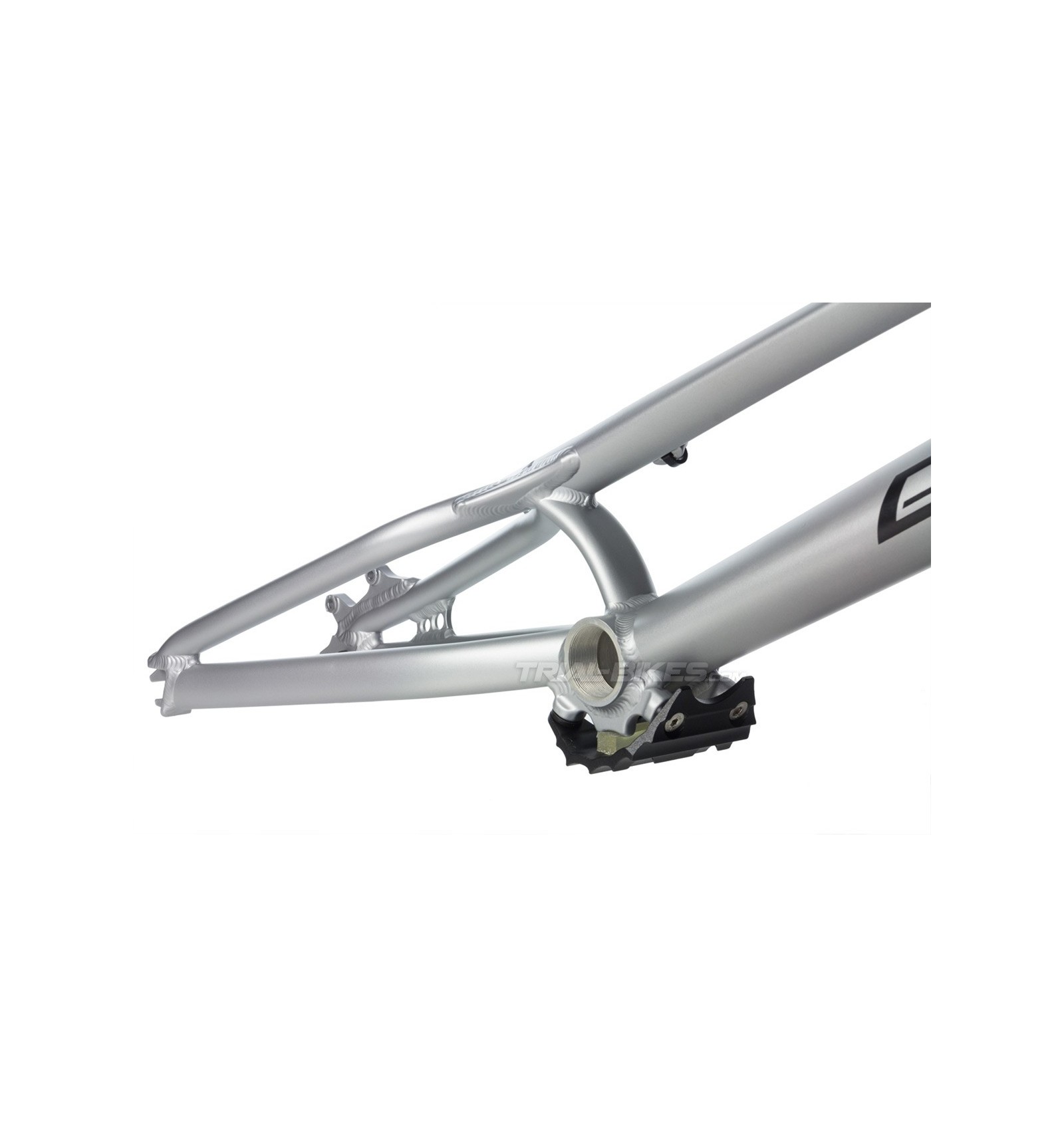

- Supplied with a 4-bolt mini-bash plate in anodized black finish, simpler and more compact (also available at our website here).

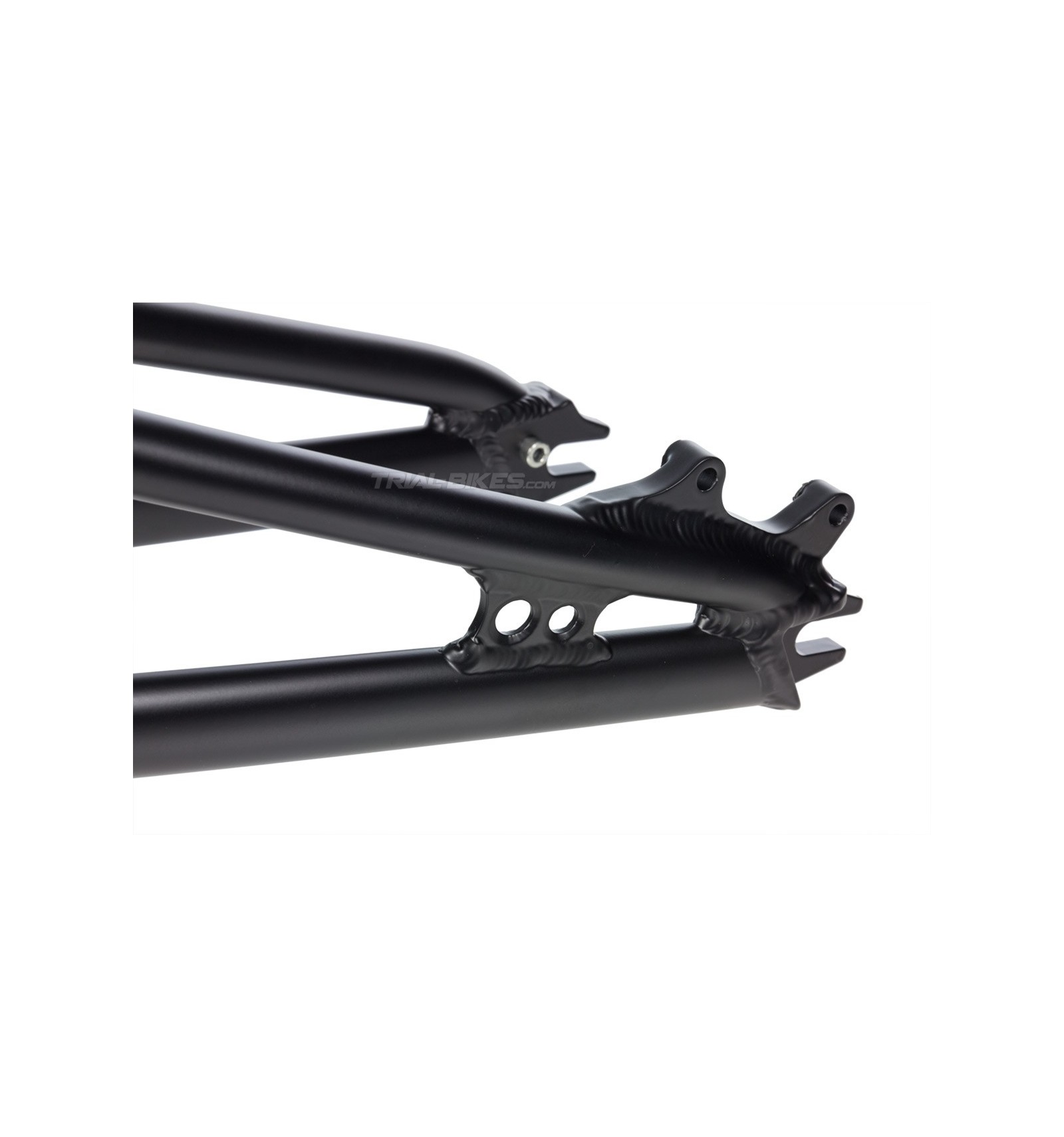

- Features IS (International Standard) disc brake mounts, with a large weld to help spread stress.
- CNC-machined dropouts, spaced at 116mm, for using with 3mm-thick snail cams.
- The left stays are joined together with a little gusset for increased stiffness.

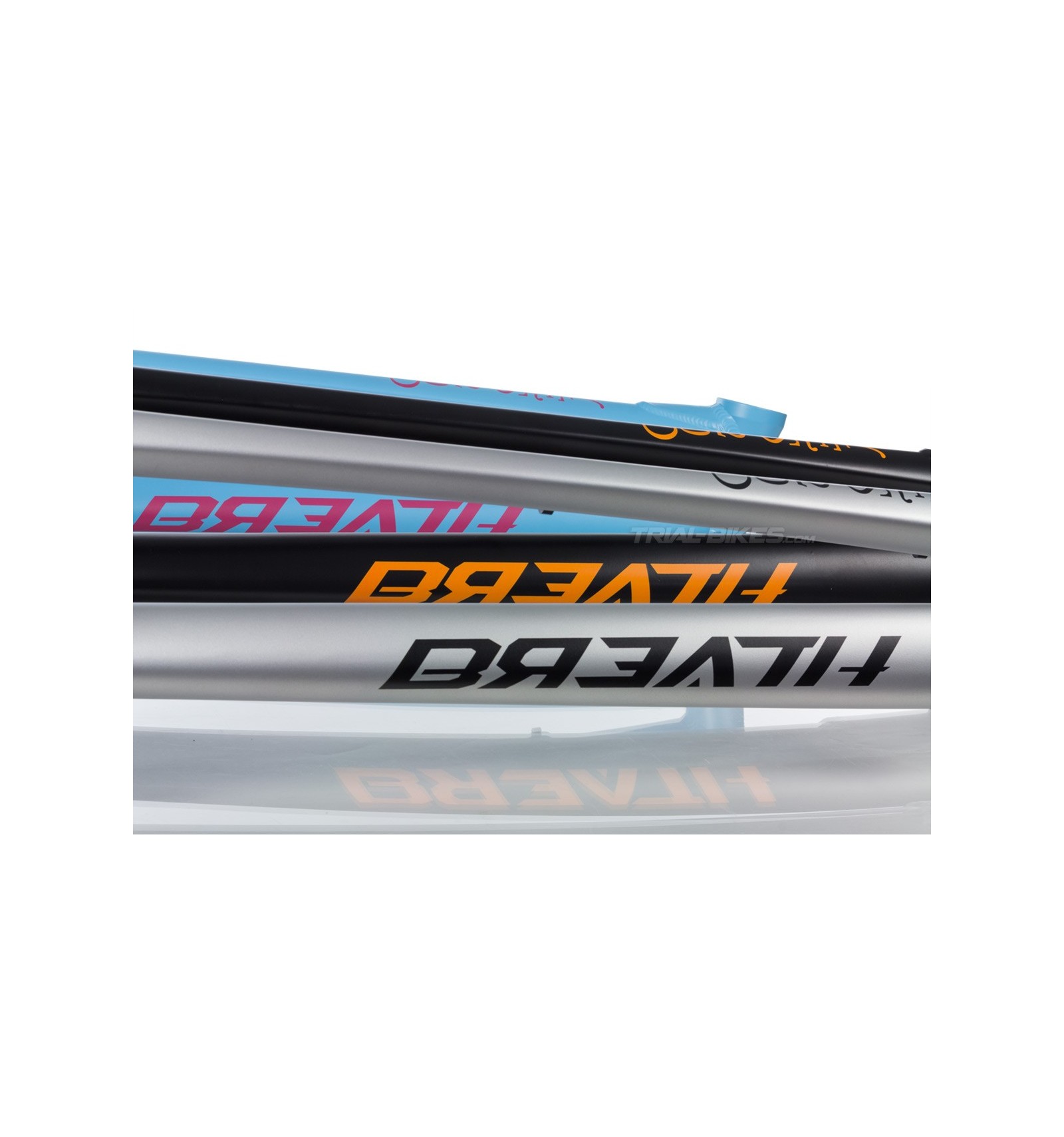

- Three finishes available: sky blue, silver and black, with cool Breath Yes 20D graphics.
Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 128mm
- Wheelbase: 1005mm
- Chainstay Length: 350mm
- BB Rise: +90mm
- Head Angle: 72º
Finishes

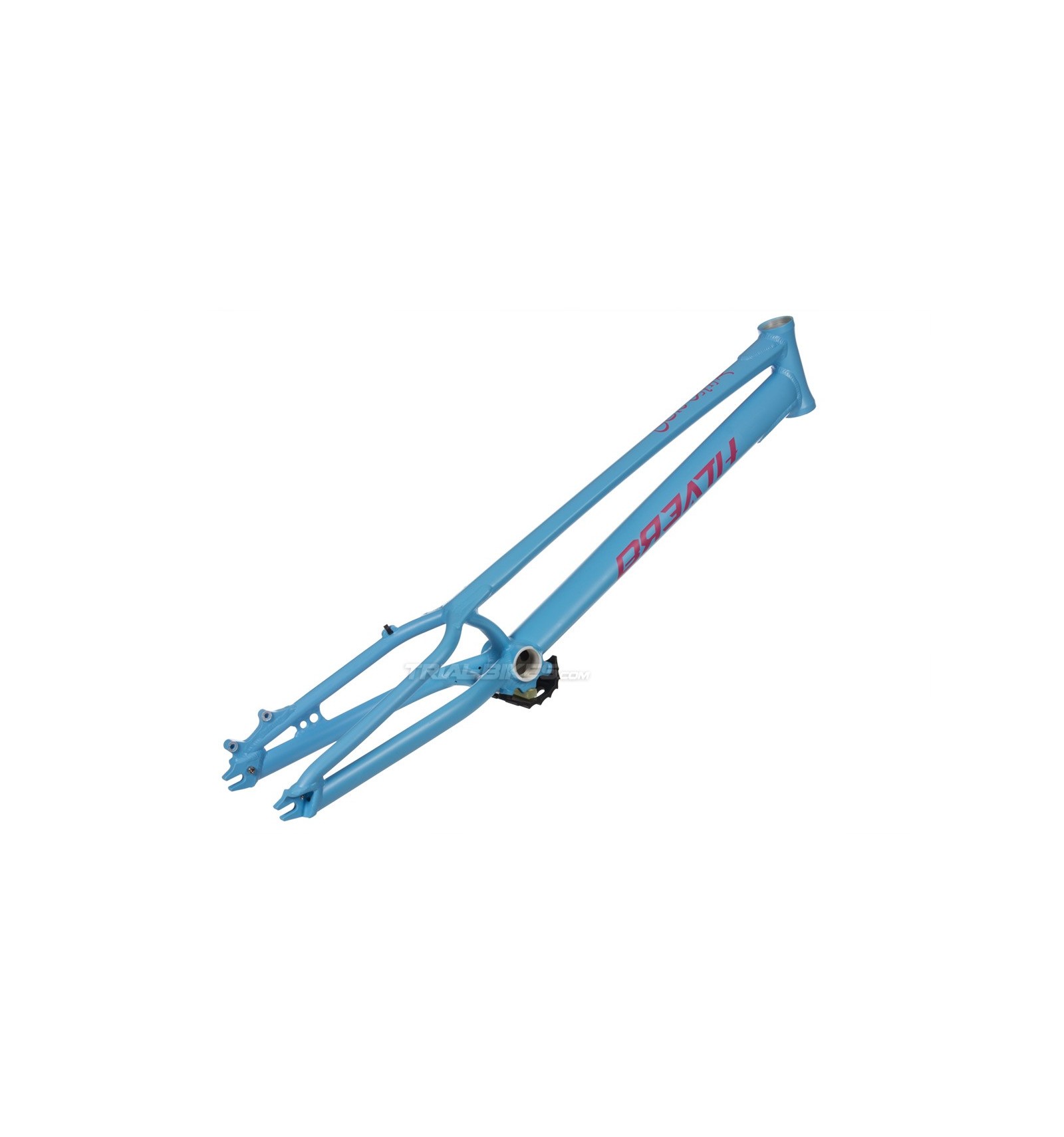

- Sky blue, with fuchsia Breath Yes 20D graphics.

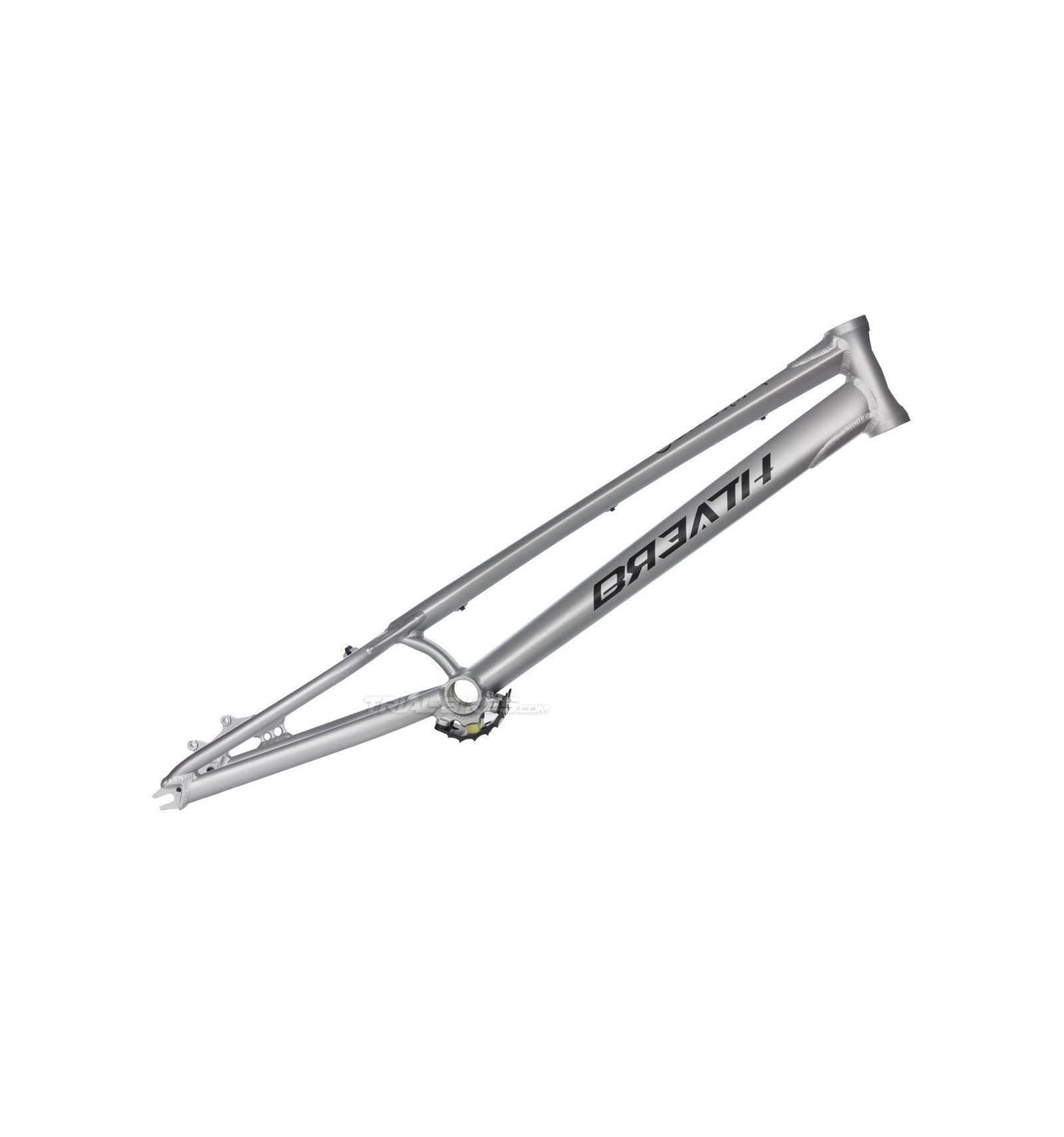

- Silver, with black Breath Yes 20D graphics.

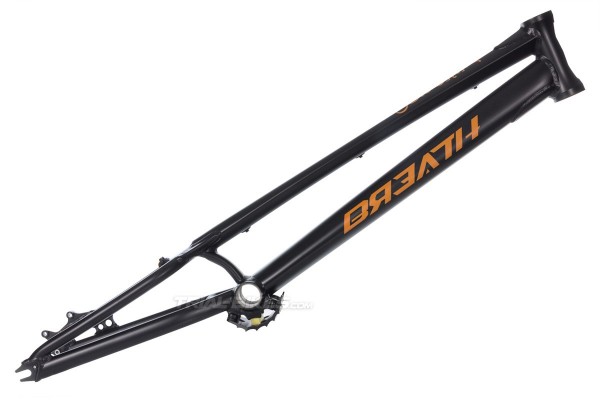

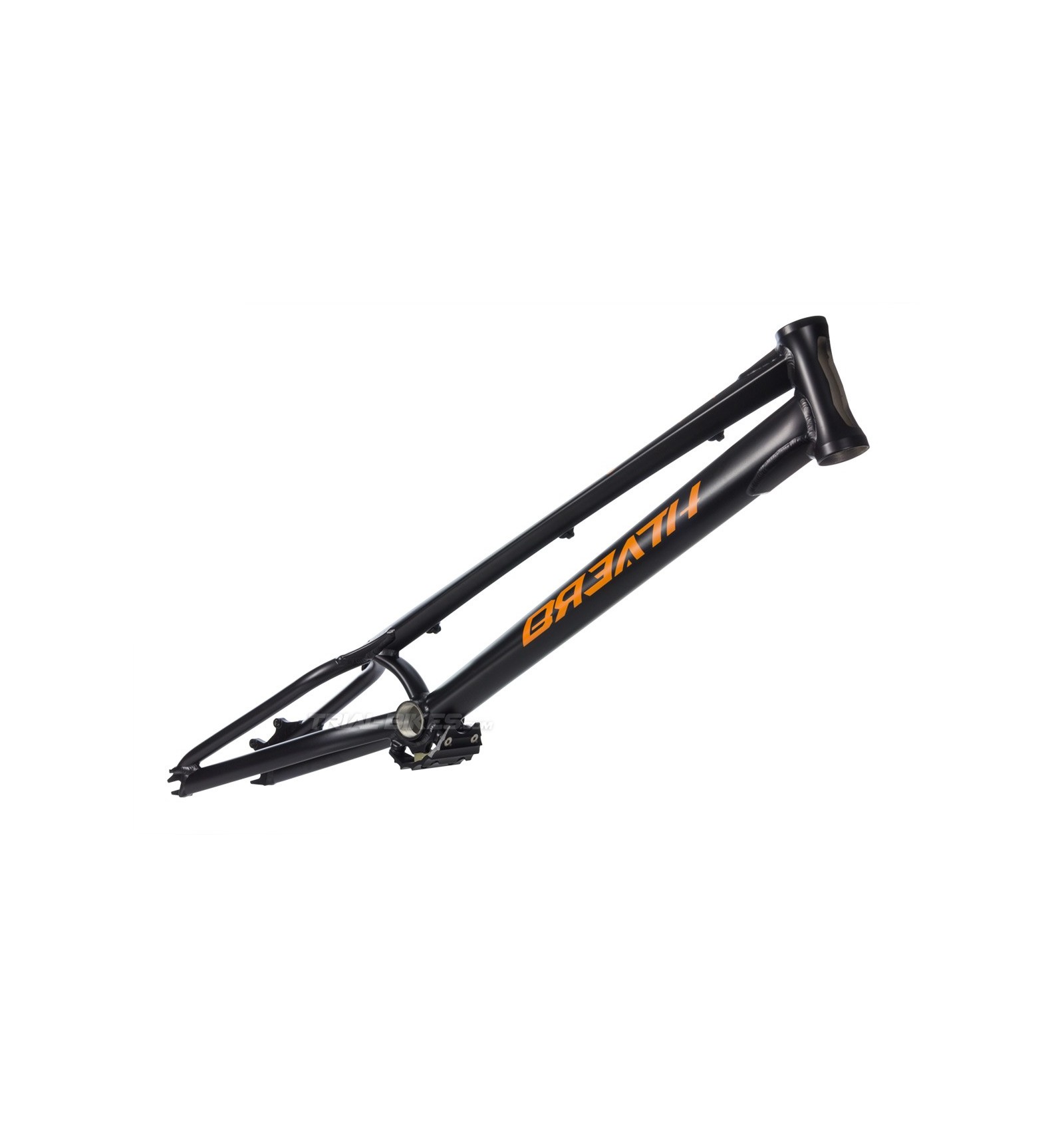

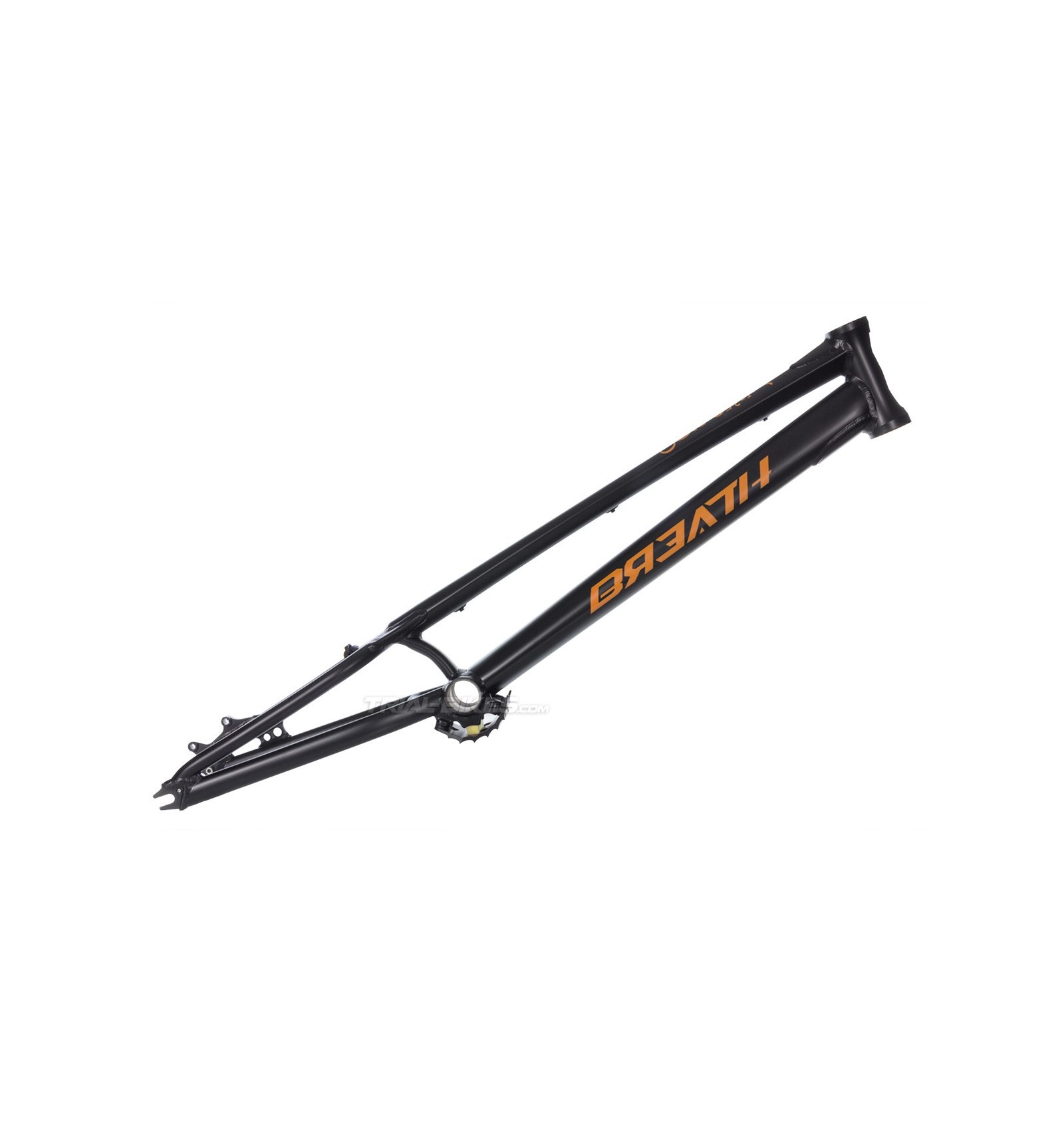

- Black, with orange Breath Yes 20D graphics.
Weight

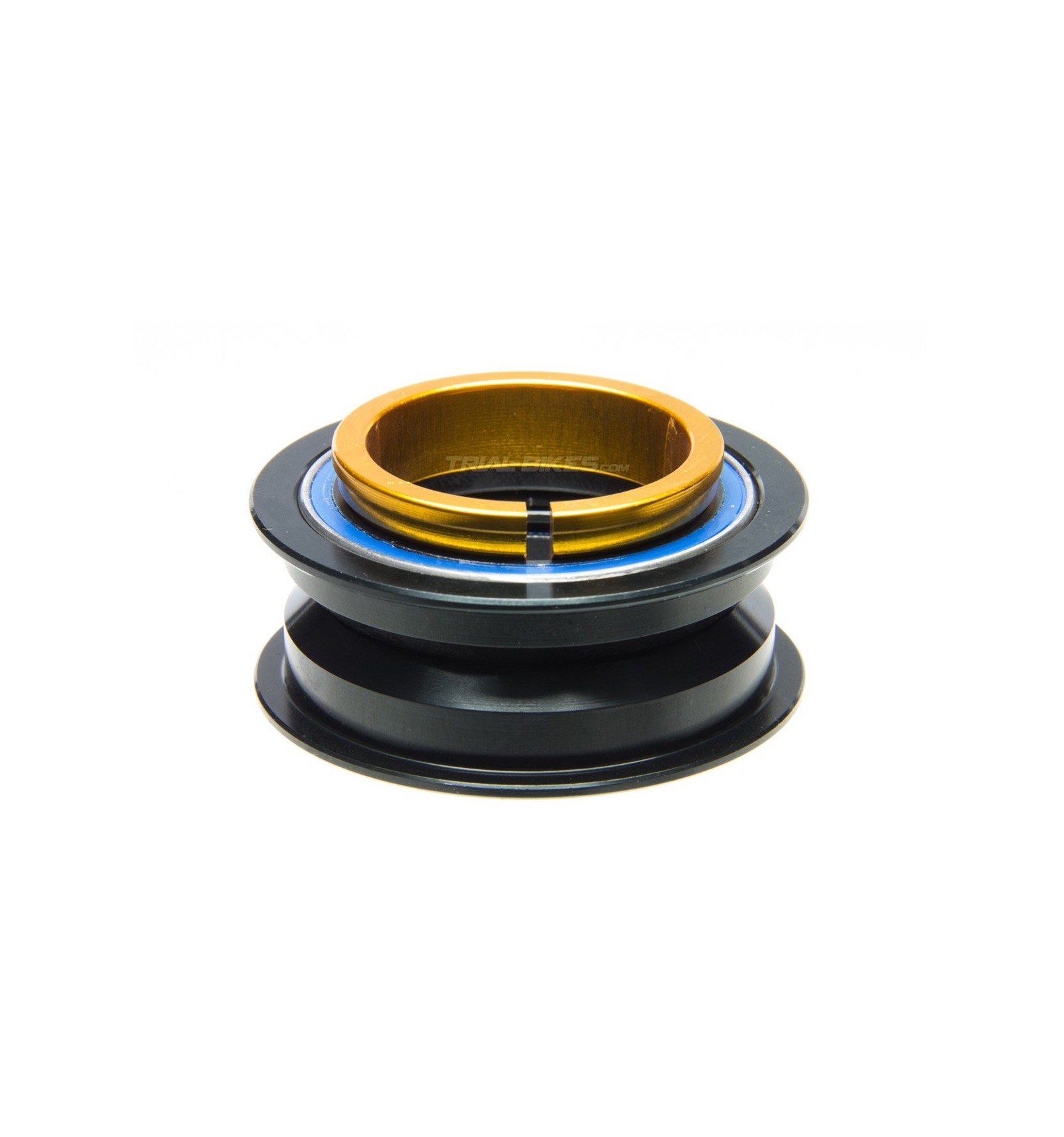

- 1,558kg + 113g ( bashplate, bolts and rubber), + 61.6g (headset)
Additional information
This frame comes with a 3-month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
WEIGHT | 1.558 |
BRAKE MOUNTS | IS Disc |
TYPE OF HEADSET | Standard 1 1/8" |
Hola Quique,
Gracias por escribirnos. Este cuadro tiene un tubo de dirección de diámetro 1 1/8”, por lo que requiere una horquilla de dicho diámetro. Si quisieras instalar una horquilla cónica (tapered) de 1 1/8” – 1.5”, sería necesario instalar también un adaptador para la dirección.
Si tienes cualquier otra duda, cuenta con nuestra ayuda.
Gracias de nuevo.
