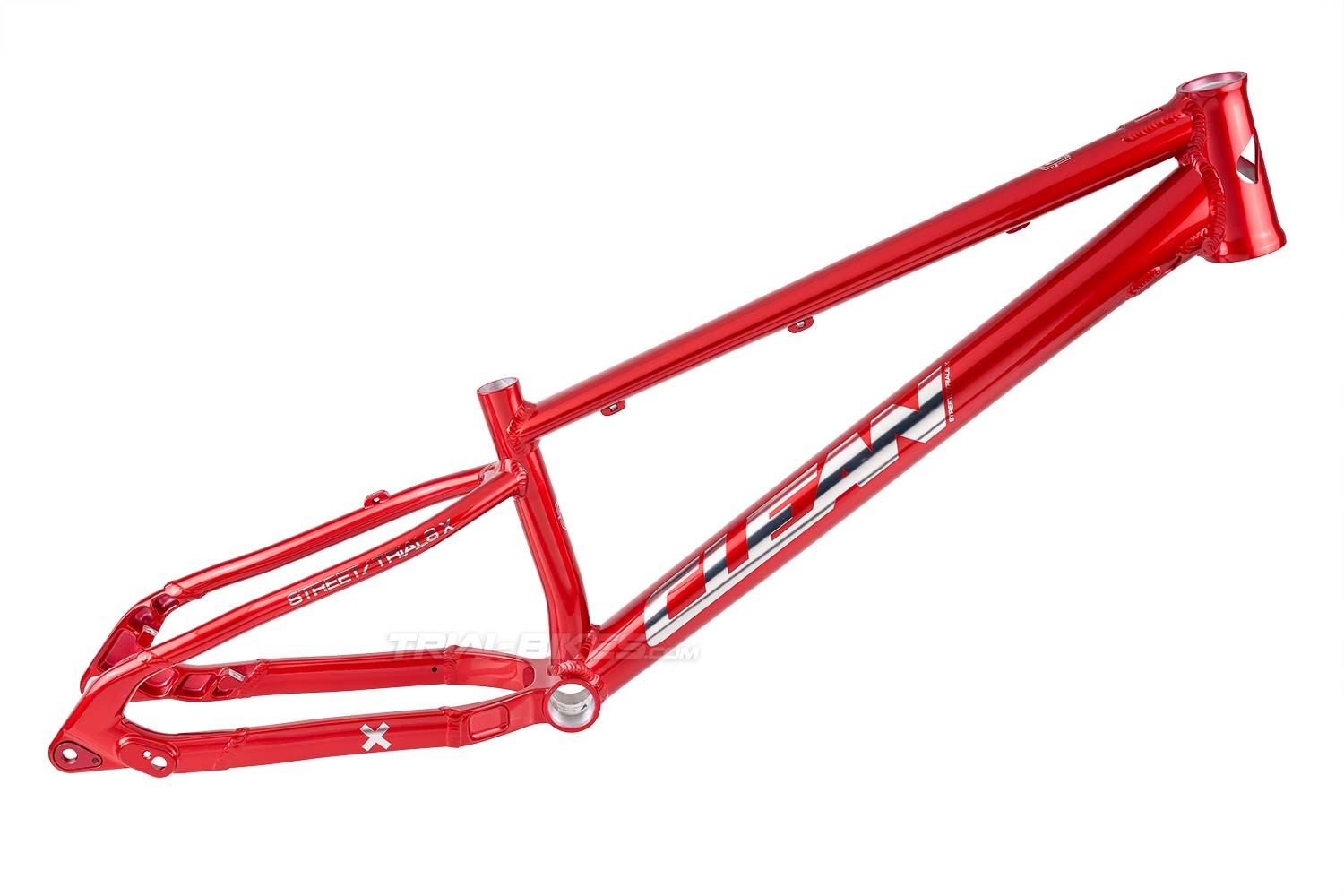

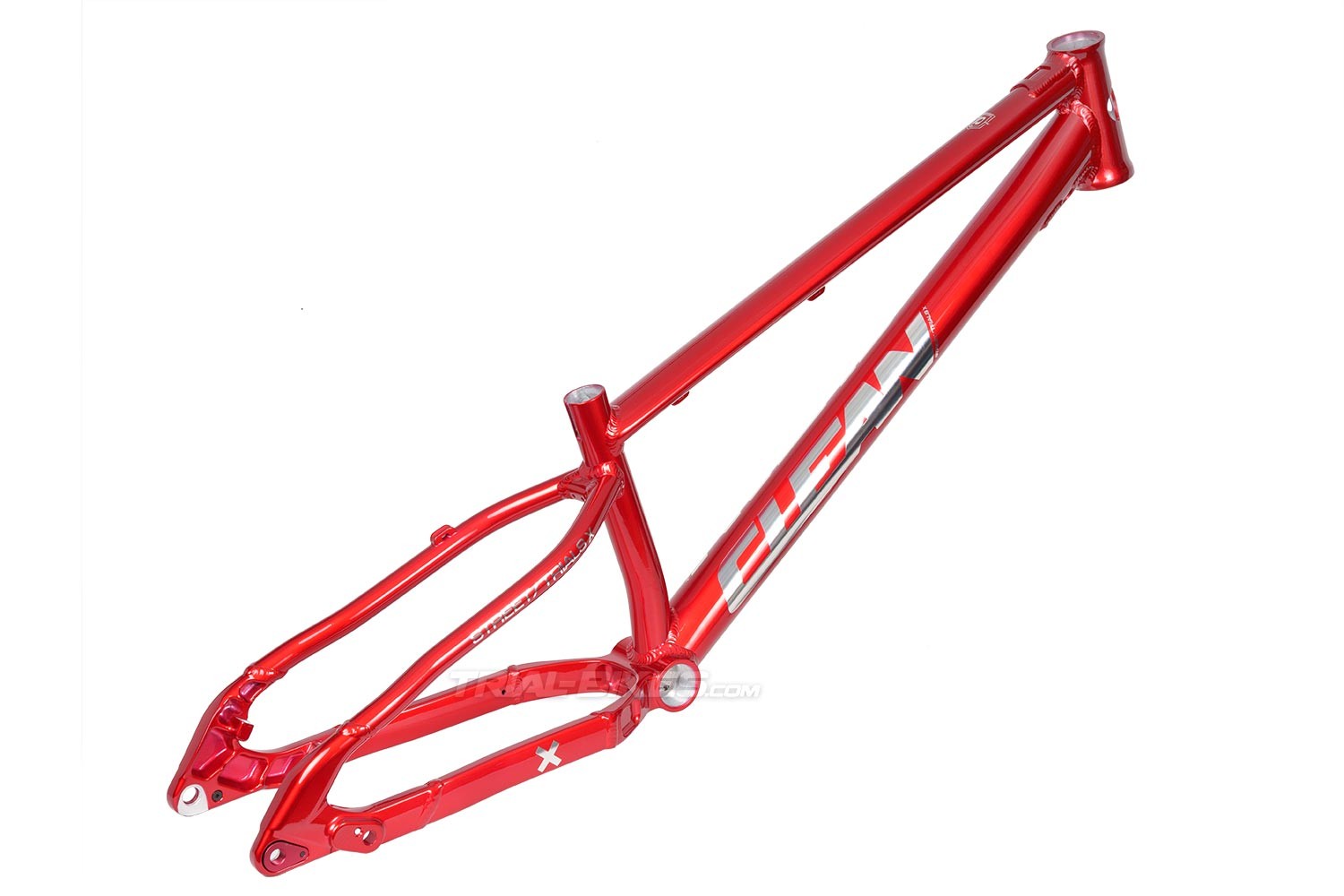

Clean Street 24" Frame

Clean Trials Street 24" Frame

High-end Clean 24” street trials frame. Designed to offer maximum quality and performance for 24” street bike trials.

- Extensively tested by the Clean Trials team
- Manufactured with high-quality aluminum tubing.

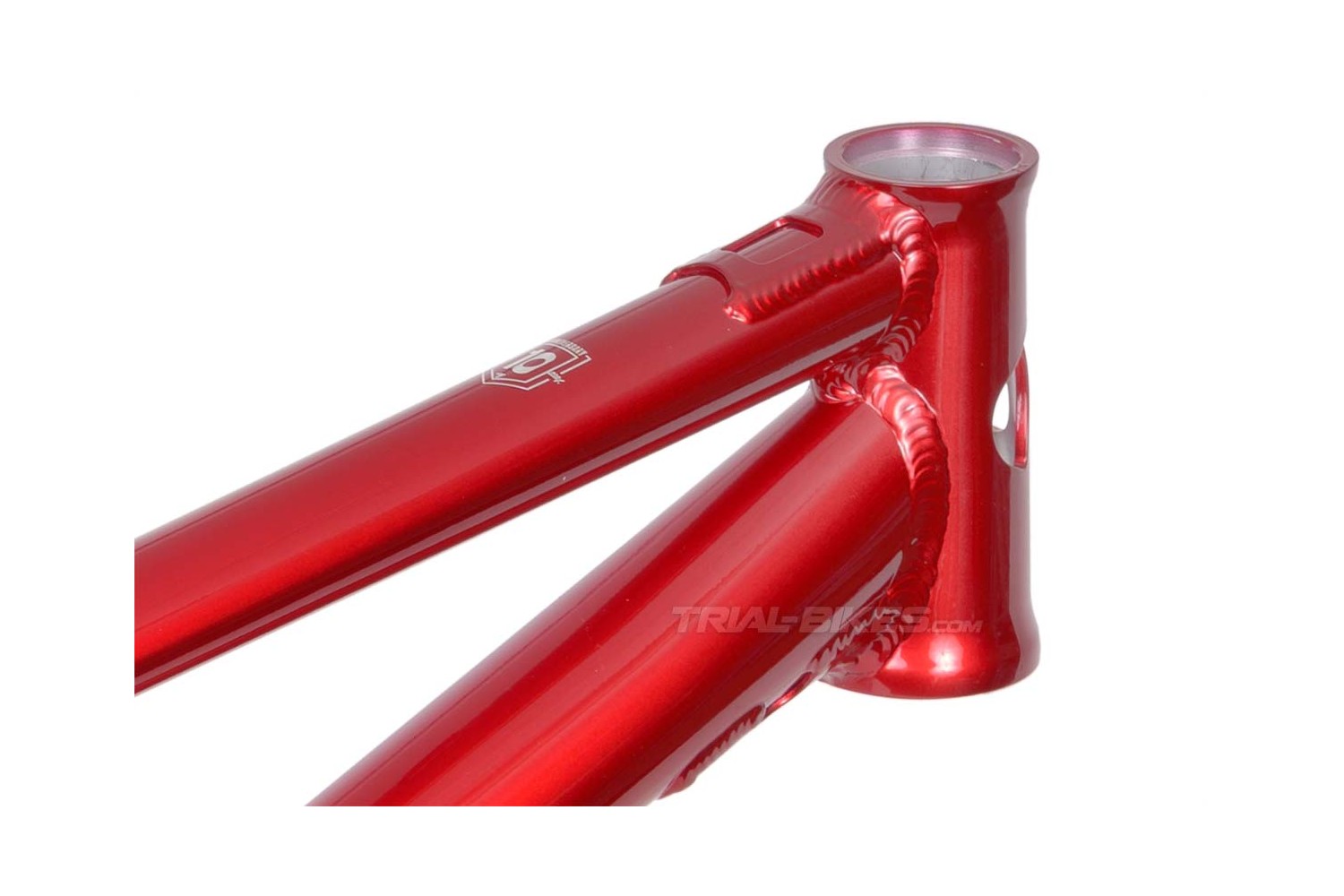

- Tapered head tube, compatible with semi-integrated headsets, with a top diameter of 1 1/8” and a larger 1.5” lower diameter.- The head tube features an opening to reduce unnecessary weight.
- The main tubes are welded to each other and the head tube with reinforcement welding, along with additional bottom plates to ensure maximum stiffness and strength in the front area.
- Threaded bottom bracket shell, 68 mm wide with a 1.37" x 24tpi thread, without bashplate mounts.
- Integrated Post Mount disc brake mounts on the left dropout, for 180 mm brake rotors.

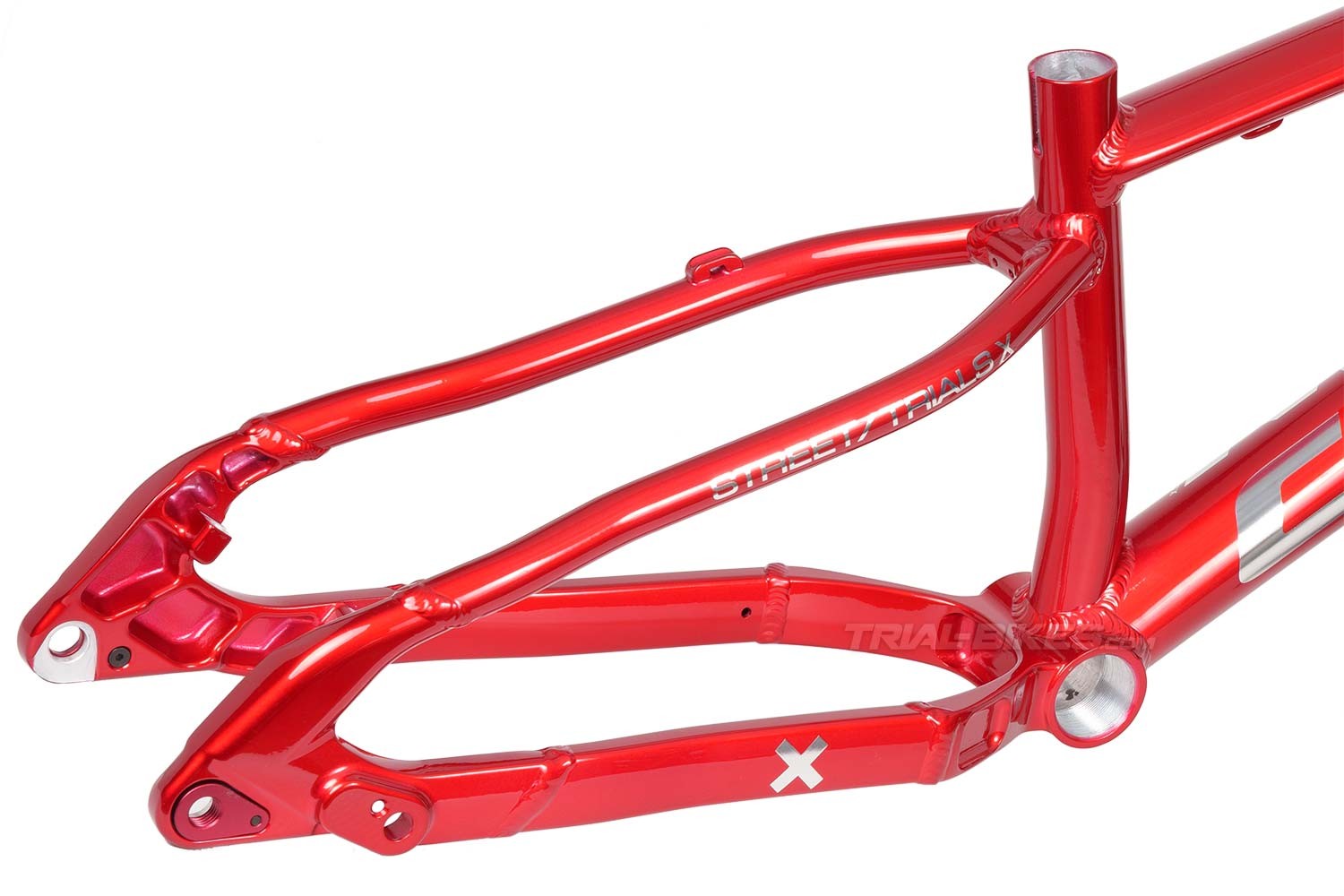

- The dropout integrates a closed mount for a tru-axle and a mount for a double jockey wheel chain tensioner (not included with the frame). This system ensures the wheel is perfectly centered at all times.
- Includes 12 mm tru-axle inserts.
- Note: headset, bashplate, and chain tensioner are not included, available separately.

The 7 Key Compatibility Points

Below are the main details to consider when building up this frame:

- 1) Headset. Since the head tube of this frame is tapered, with a top diameter of 1 1/8" and a lower diameter of 1.5", it is compatible with semi-integrated headsets of 1 1/8" – 1.5".

- 2) Bashplate. This frame does not feature bashplate mounts. Therefore, it is recommended to install a ring-type protector on the crank.

- 3) Bottom Bracket. A standard threaded bottom bracket of 1.37x24T must be used for this frame, so both traditional and BB30 threaded bottom brackets (Clean, Try-All, Hashtagg, Bonz, etc.) can be used.

- 4) Rear Brake. This frame features Post Mount disc brake mounts, so a rear disc brake of this type must be used. Post Mount calipers are those that rest vertically on the mount, instead of laterally (as with IS calipers).

- 5) Chain Tensioner.  A double jockey wheel chain tensioner from Crewkerz, Clean, or one with identical dimensions should be used.

- 6) Rear Hub. This frame has a dropout spacing of 120 mm, and allows for the use of:

• 12 mm tru-axle rear hubs.

- 7) Fork. Since the head tube of this frame is tapered, with a top diameter of 1 1/8” and a lower diameter of 1.5”, it is compatible with tapered forks of 1 1/8” – 1.5”. If you wish to use a standard fork with a 1 1/8” diameter, an adapter ring can be installed on the lower cup.

Measurements (with a Clean Street 24” Fork)

- Rear spacing: 120 mm.
- Bottom bracket: 68 mm.
- Head tube: 125 mm.

- Wheelbase: 990 mm.
- Rear length: 365 mm
- Bottom bracket height: +26 mm.
- Head angle: 73.2º.

Finishes
- Red with silver Clean Street graphics.

Weight
- 1.98 kg, verified by TrialBikes!

Additional Information
This frame comes with a 1-year warranty covering manufacturing and material defects. Any damage caused by improper use or impacts against obstacles will void the warranty.

If you have any questions, please contact us at info@trial-bikes.com.
