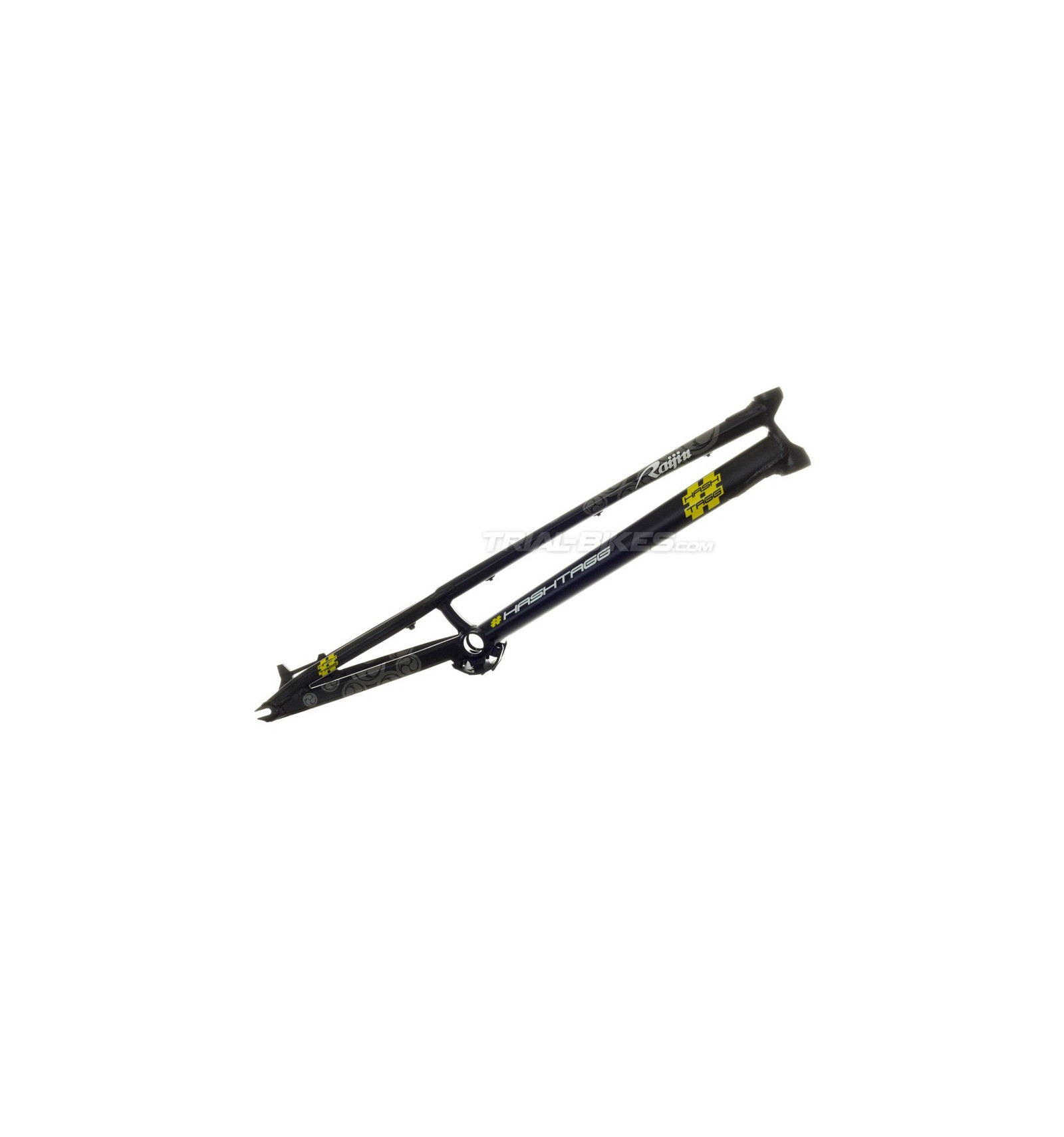

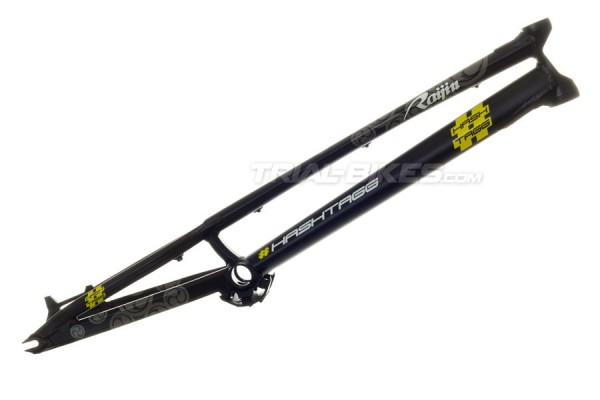

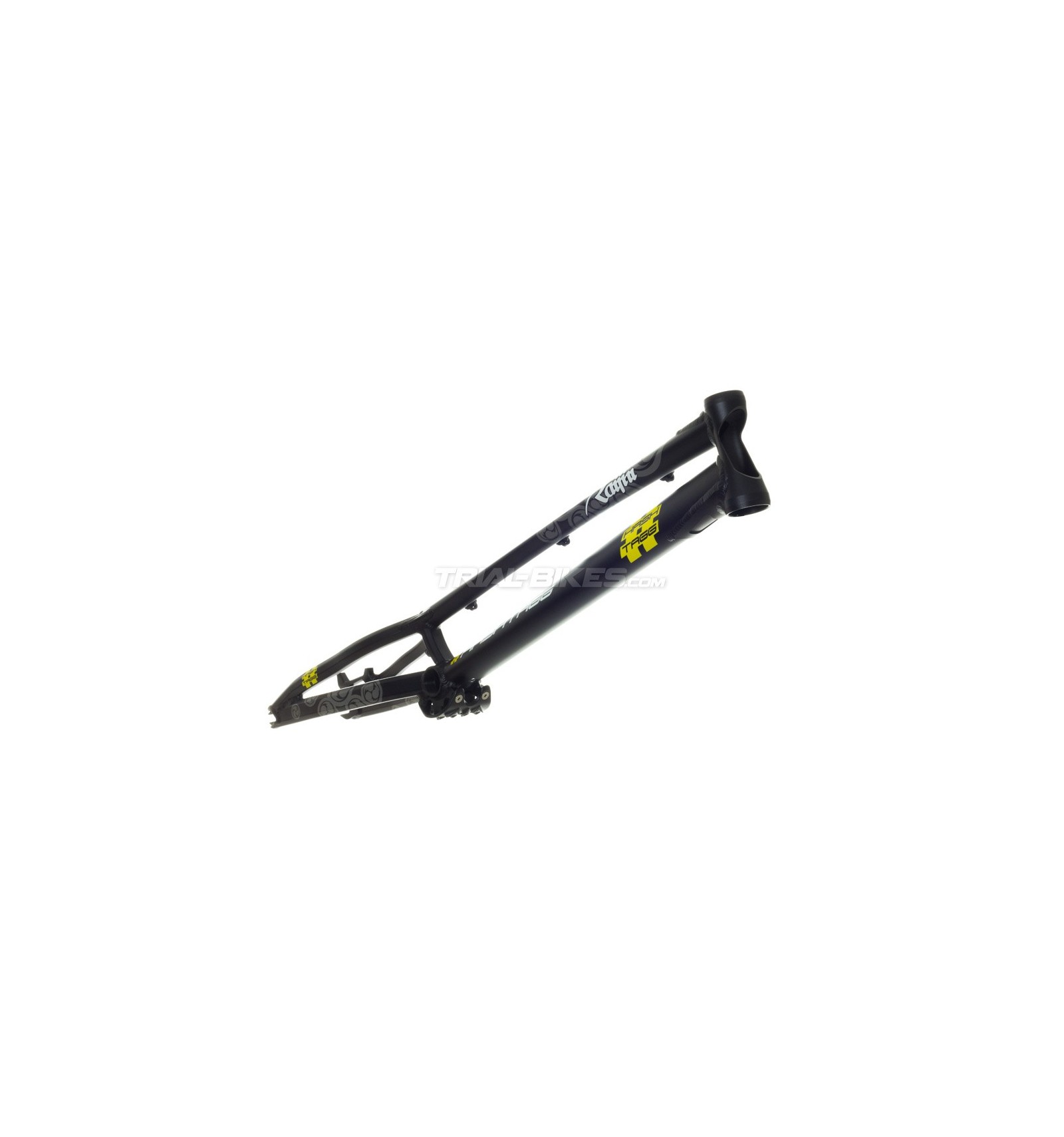

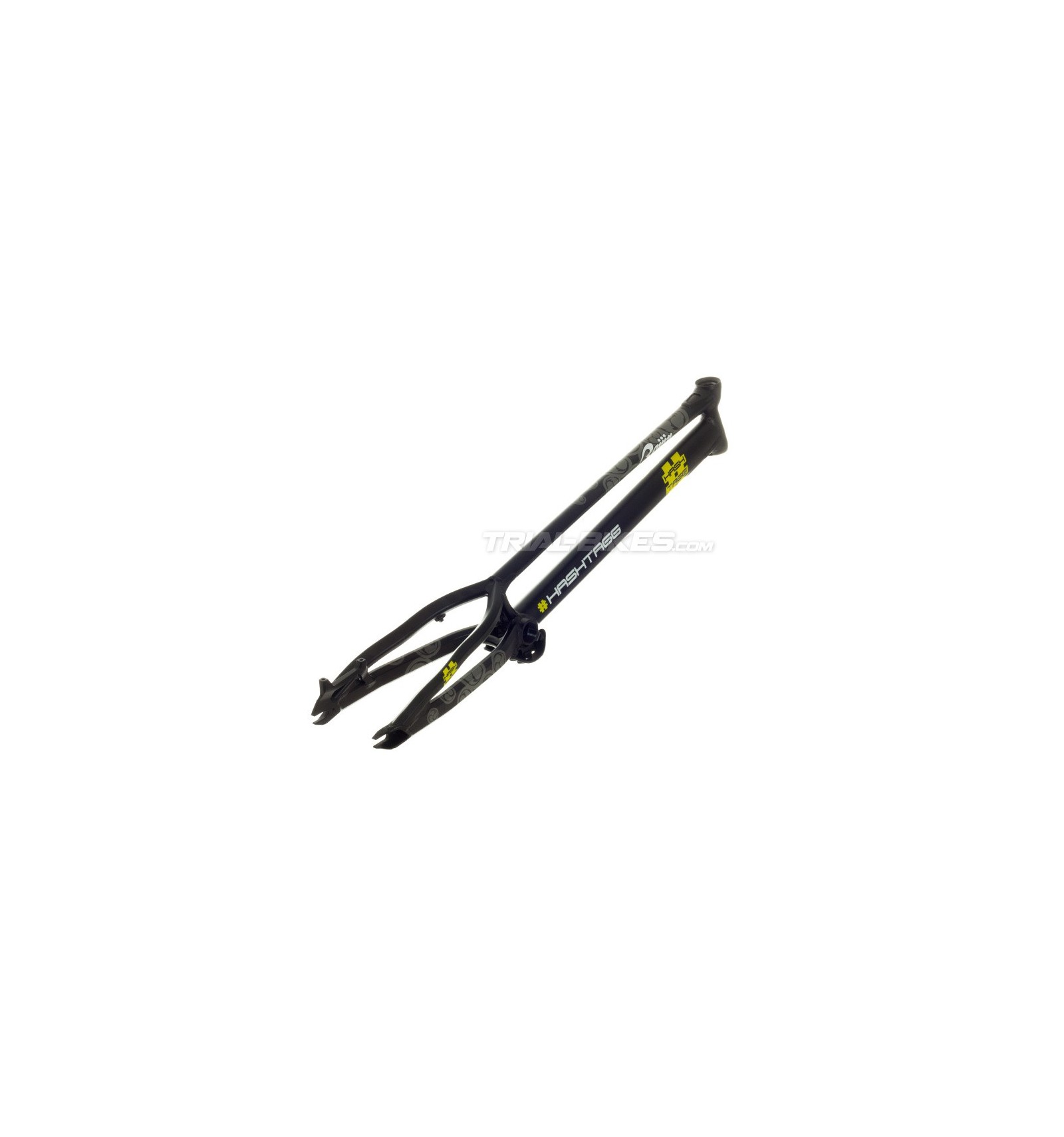

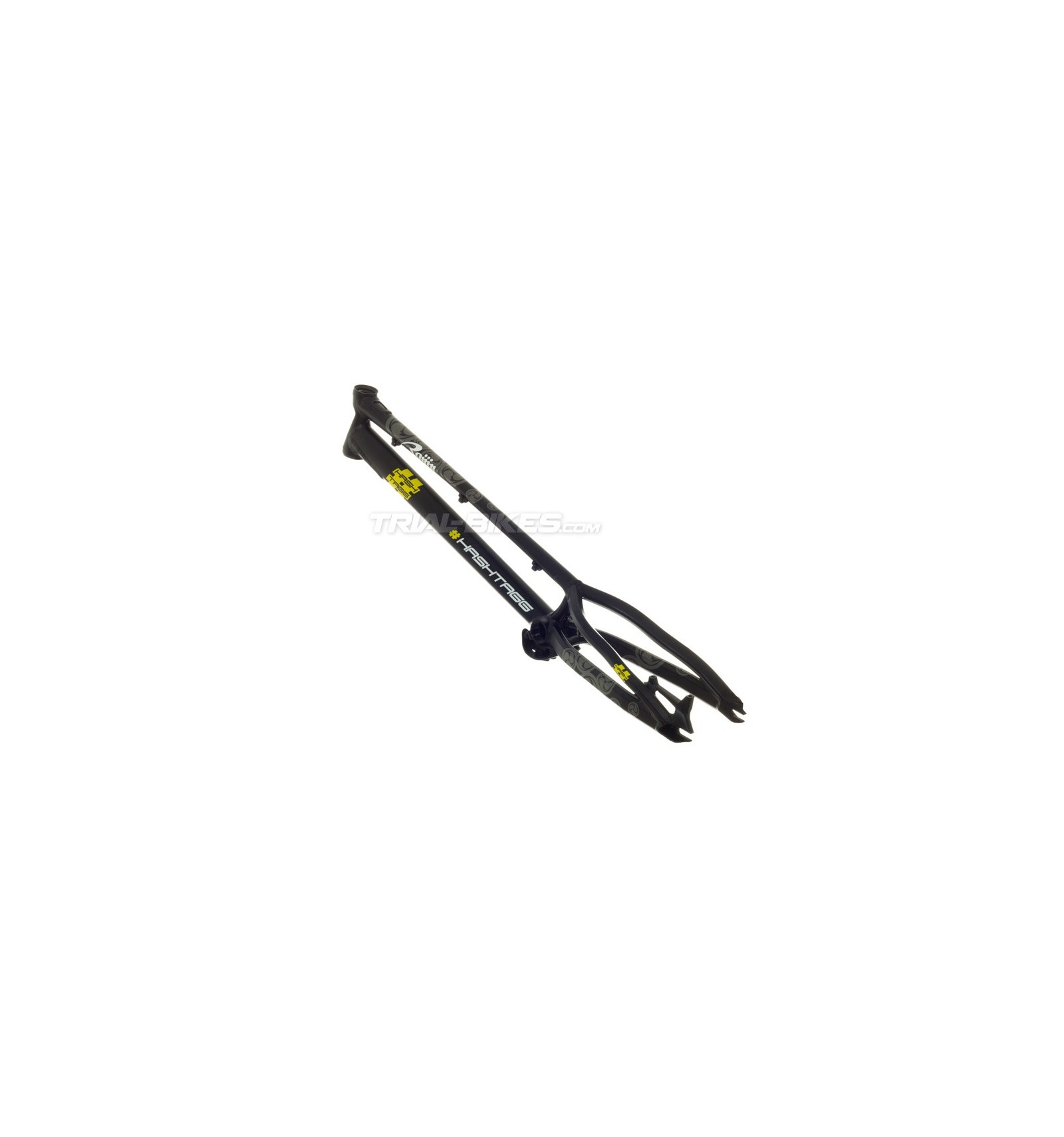

Hashtagg Raijin 20" Frame

Description and materials
- New Hashtagg Raijin 20” 2014 frame, the first frame of this newly created brand for 2014.
- Unique design introduces Hydro-forming and a exclusive geometry, with a 74.5º head angle.
- Made from a high quality, Hashtagg-specific 7005 T6 aluminum alloy.
- Designed to use a 41.8mm integrated top bearing (not supplied, but available here), suitable for Koxx Sky’s headsets.
- Post Mount disc mount, reinforced and redesigned, improving overall strength.
- The head tube is gusseted to the top and down tubes to increase its strength.

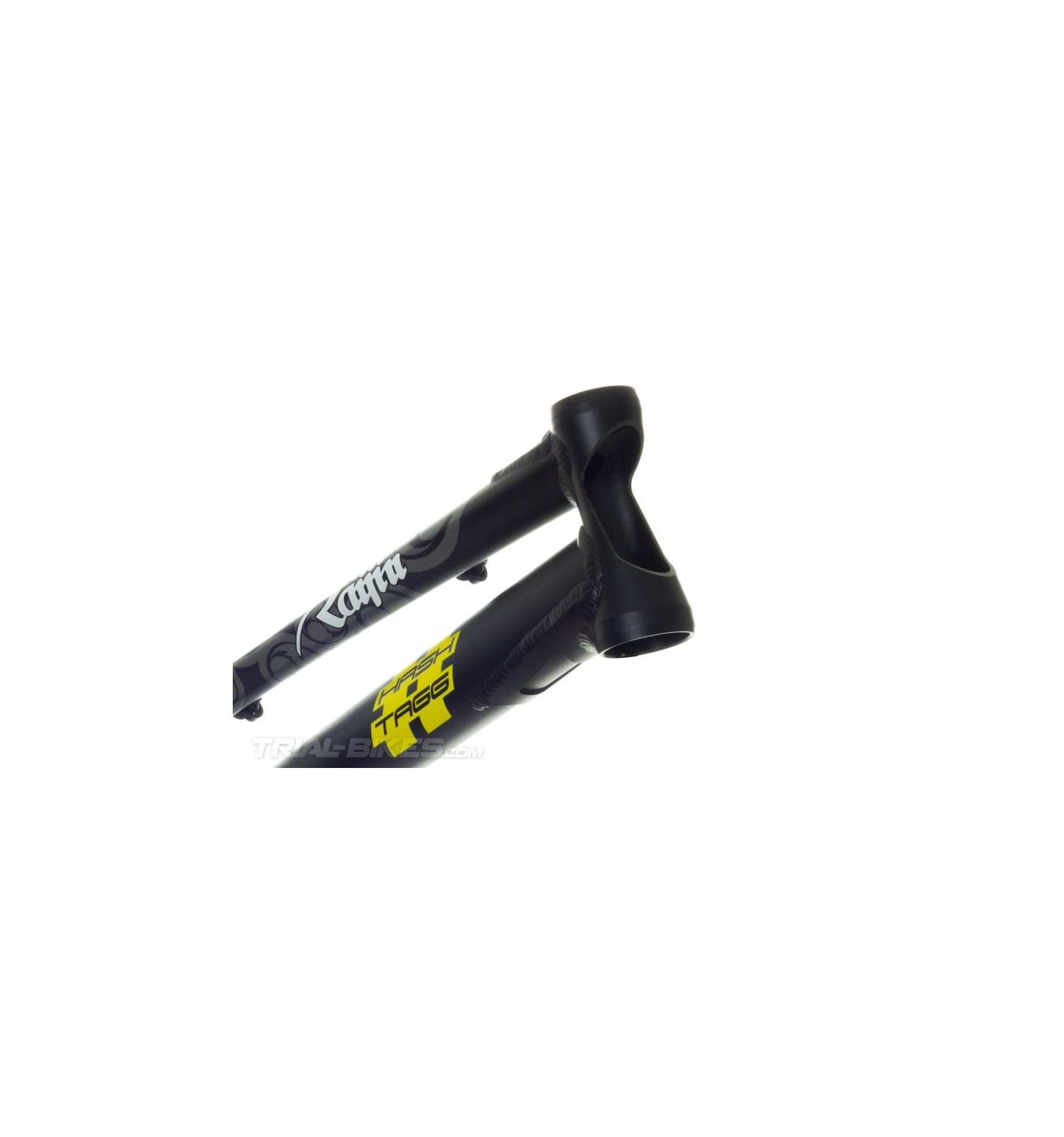

- 130mm CNC’d head tube, designed to use an integrated bearing at the top, and internal lower bearing (not supplied with the frame).
- 68mm bottom bracket shell, suitable for all 122.5mm and 128mm bottom brackets.

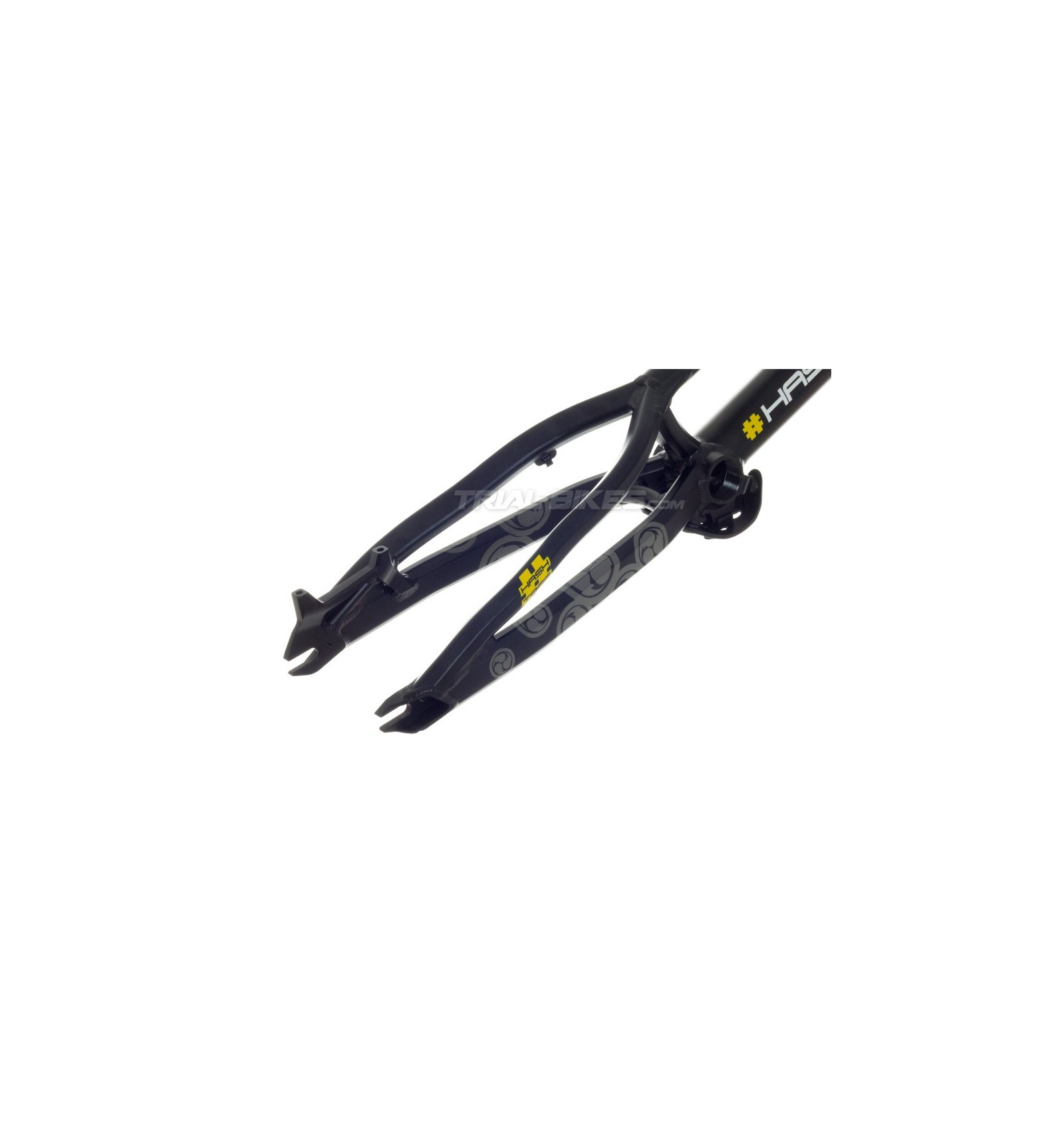

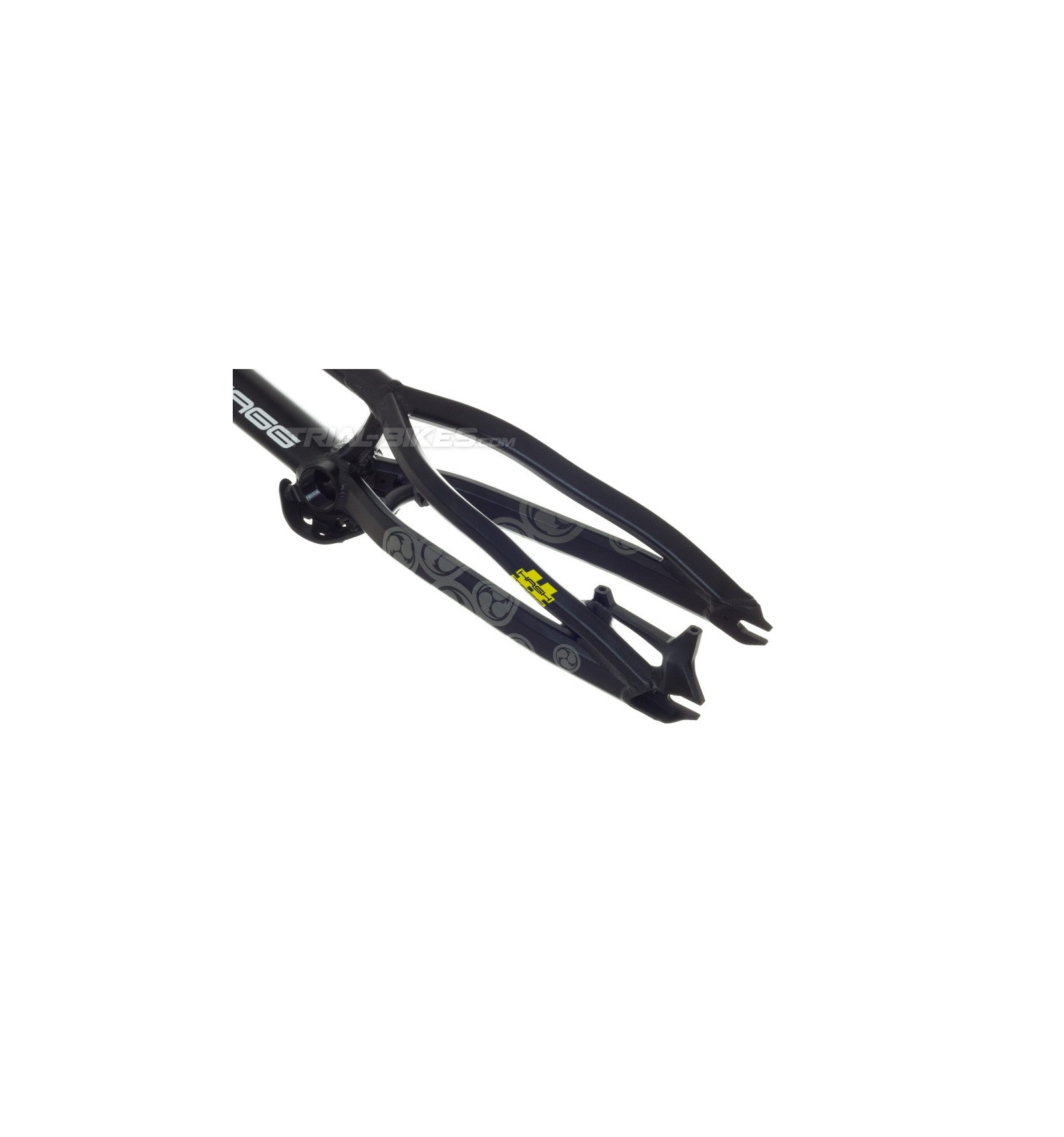

- CNC machined dropouts, designed to use snail cams.

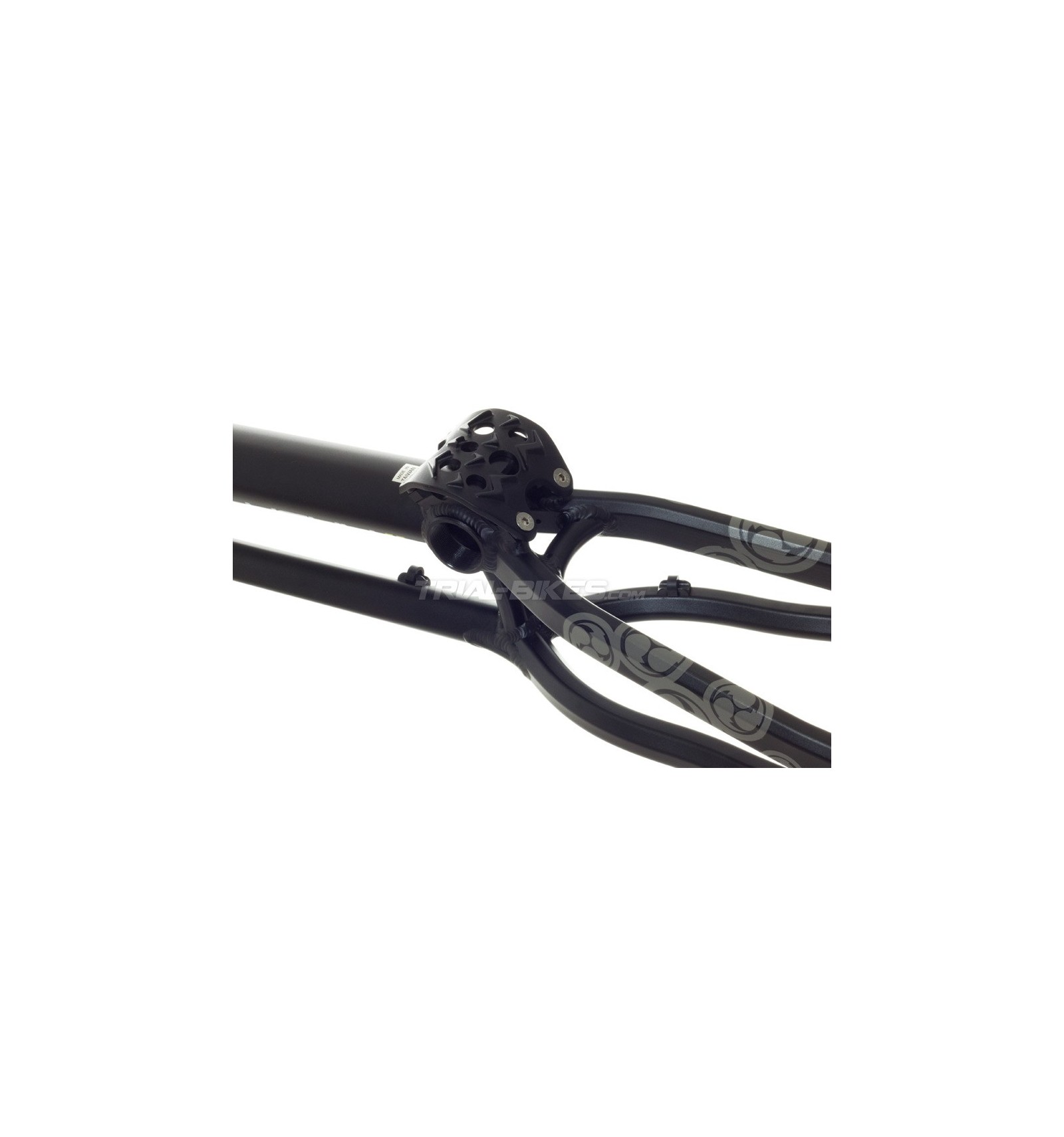

- New bashplate design (supplied with the frame), now more compact, and with a 4-bolt mounting system.
- Designed for 116mm rear hubs.
- Post Mount disc version only.
- High quality anodized matt black finish, with white, yellow and silver Hashtagg Raijin graphics.

Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 130mm, 1 1/8"

- Wheelbase: 1010mm
- Chainstay Length: 349mm
- BB Rise: 90mm
- Head Angle: 74.5º

Finishes
- Anodized matt black.
- White, yellow and silver Hashtagg Raijin graphics.

Weight
-1401g (+89.5g bash plate and bolts)

Additional information
This frame comes with 12 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
