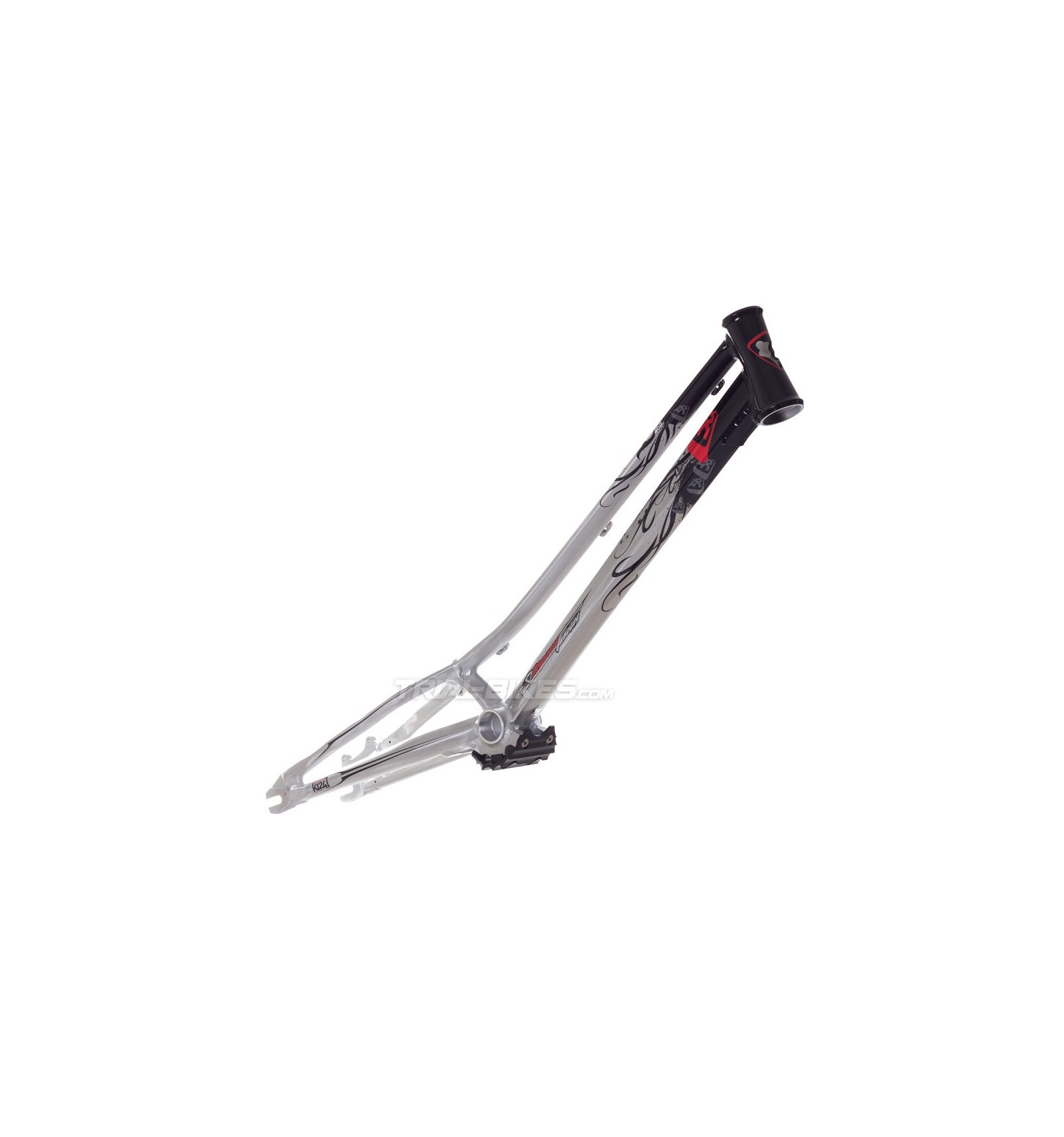

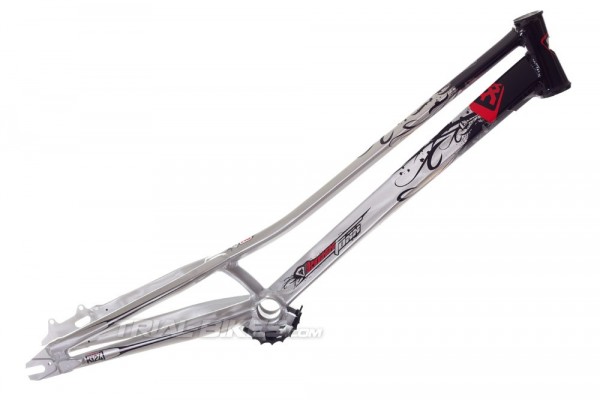

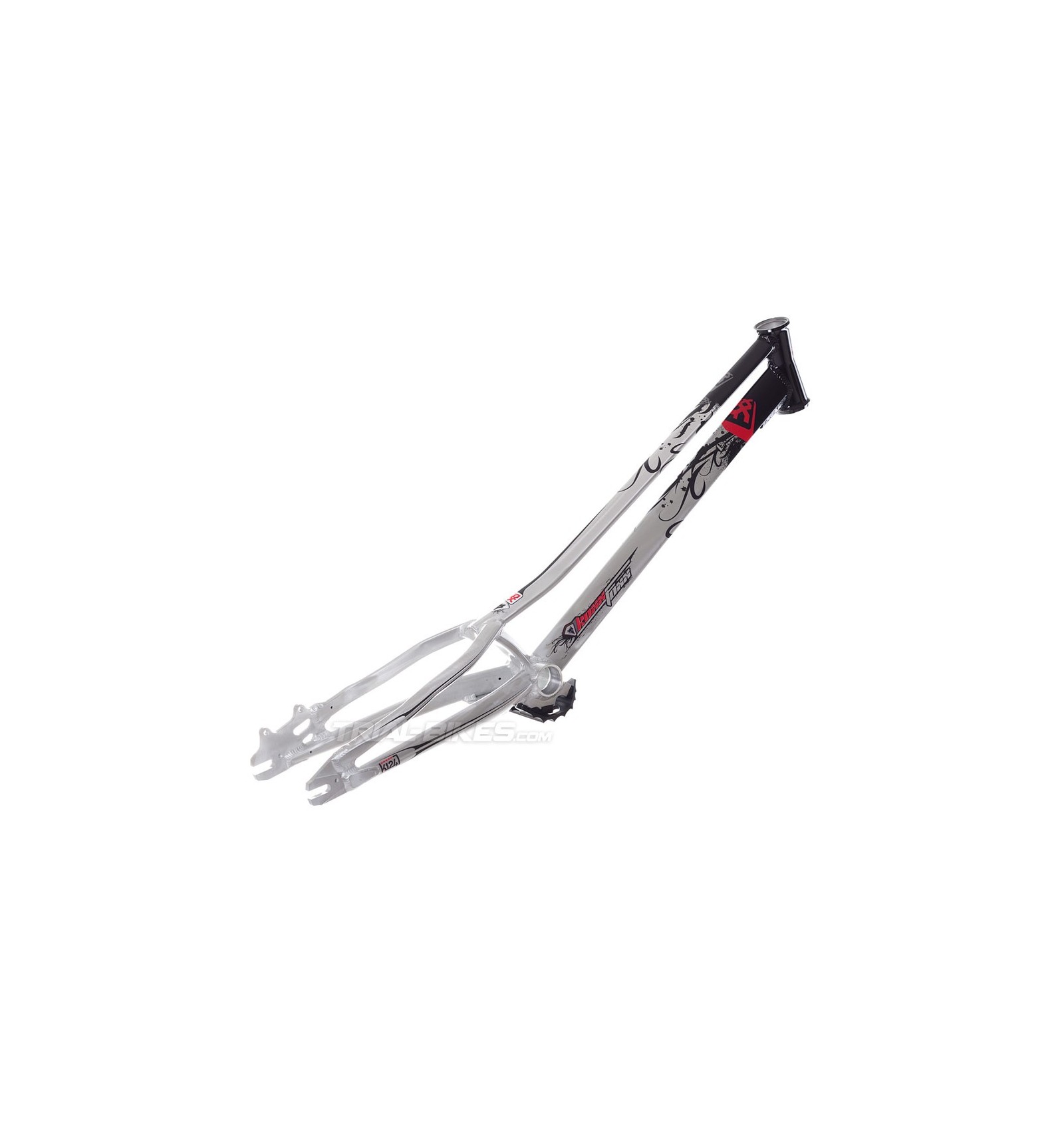

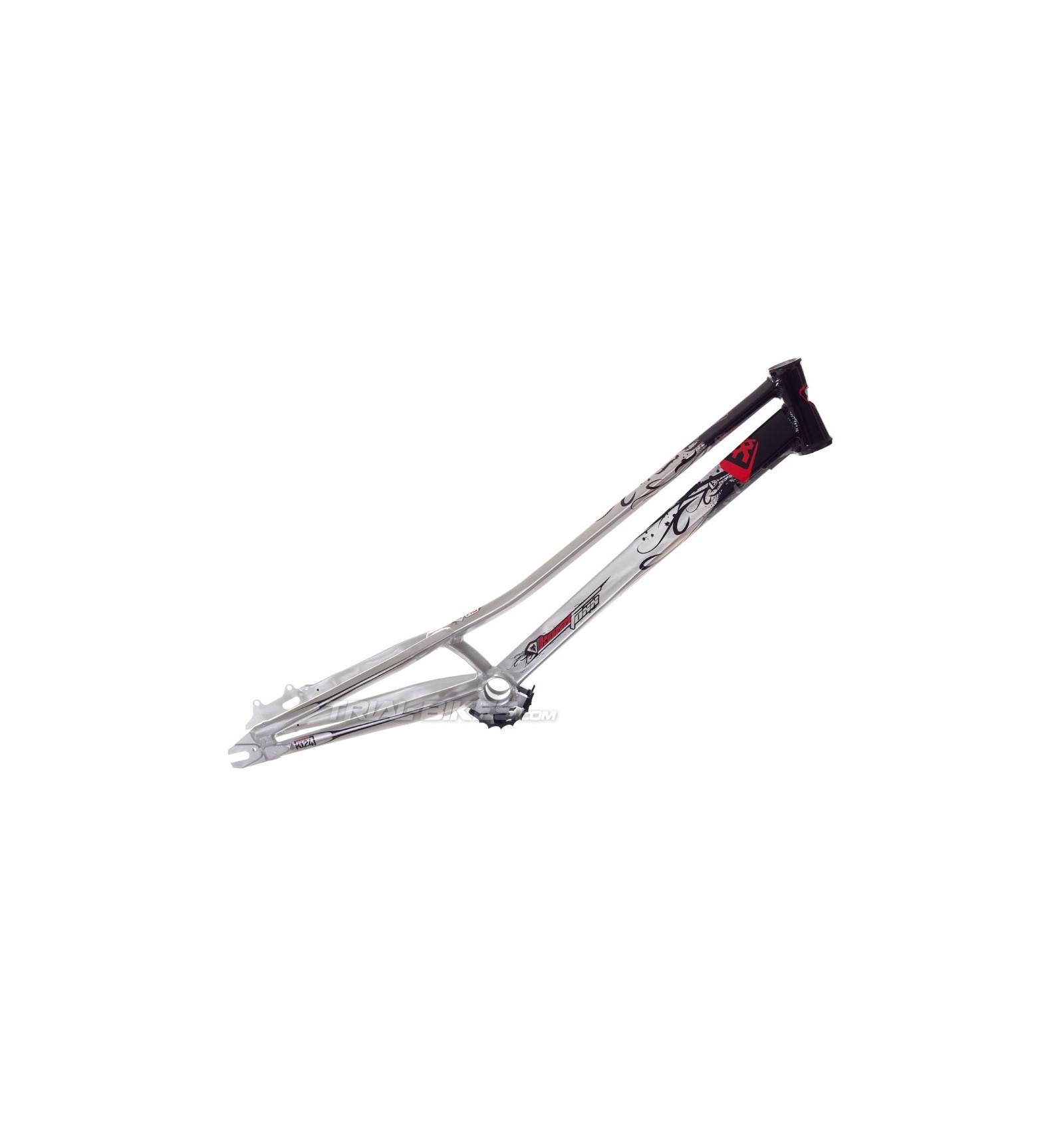

Koxx Foxx 20" Kid Frame

Description and materials
- New 20’’ Foxx frame from French manufacturer Koxx, ideal for the youngest riders, based on the previous popular Foxx models but now with many updates and improvements.
- Made from high quality 7005 T6 aluminium.
- Curved down tube helps gain weld contact area.

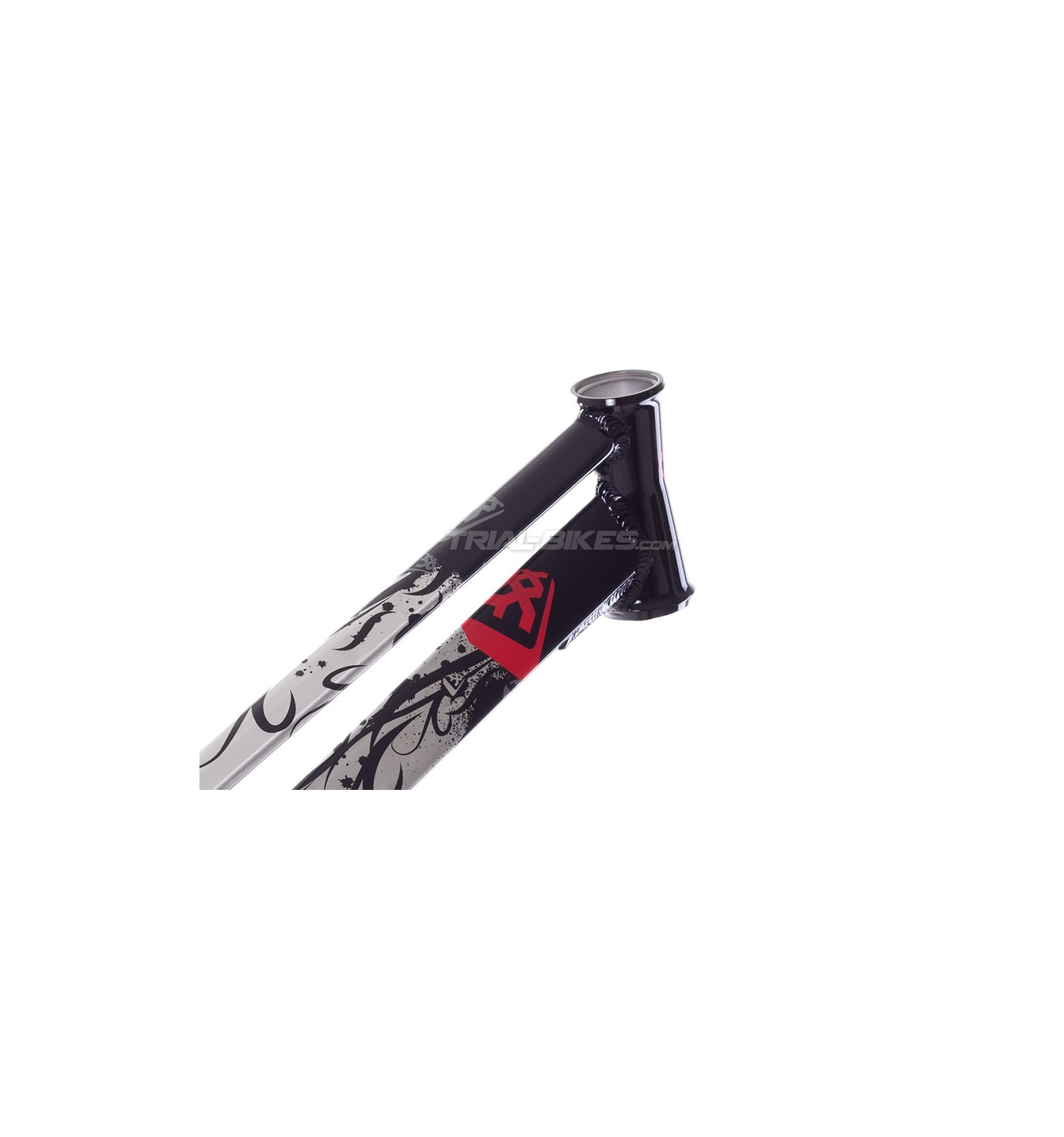

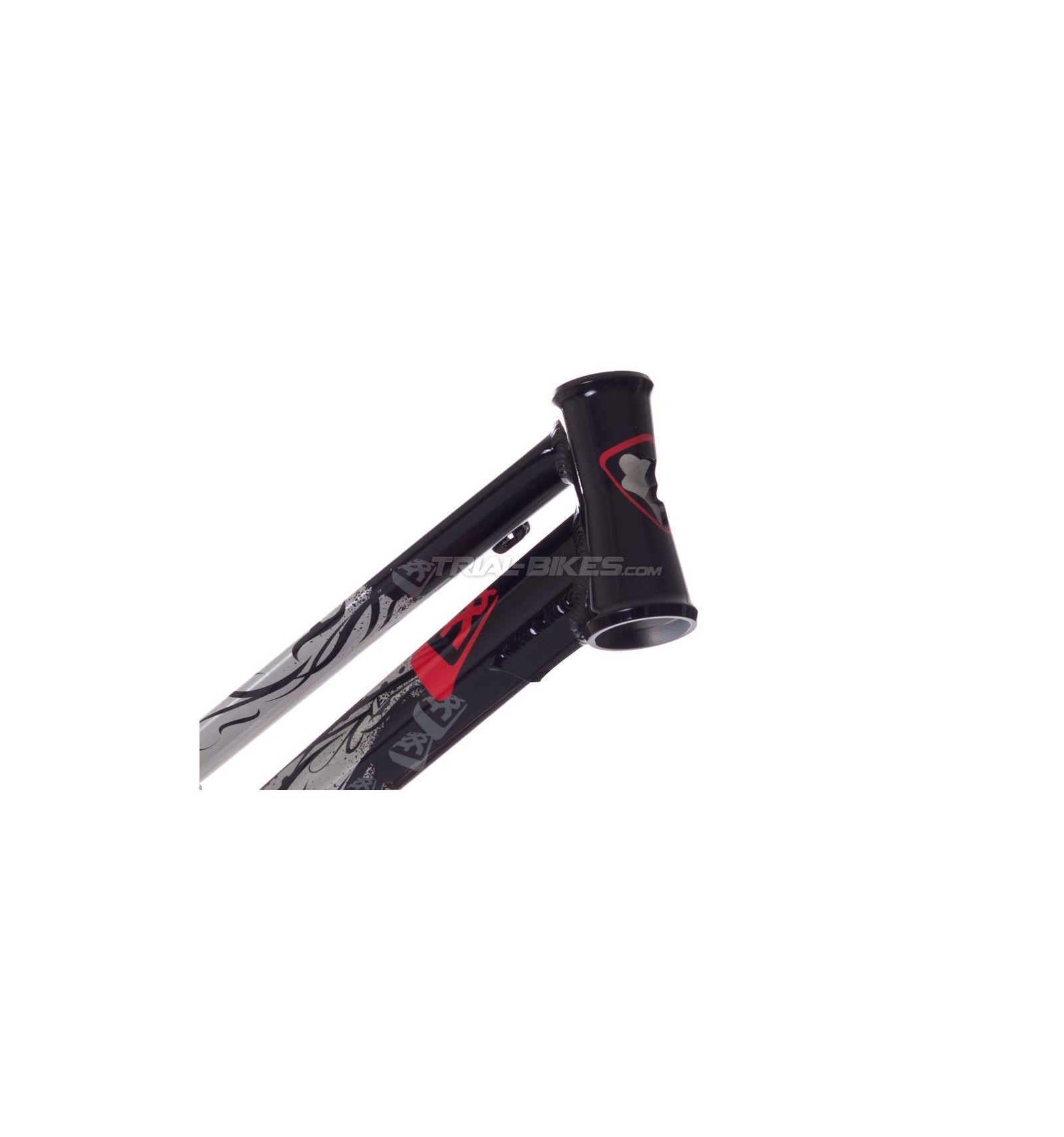

- 120mm CNC’d head tube, designed to use the new Koxx Sky headset (supplied without the frame).
- 68mm bottom bracket shell, with standard 1.37x24T thread.
- The head tube is gusseted to the down tube to increase its strength.

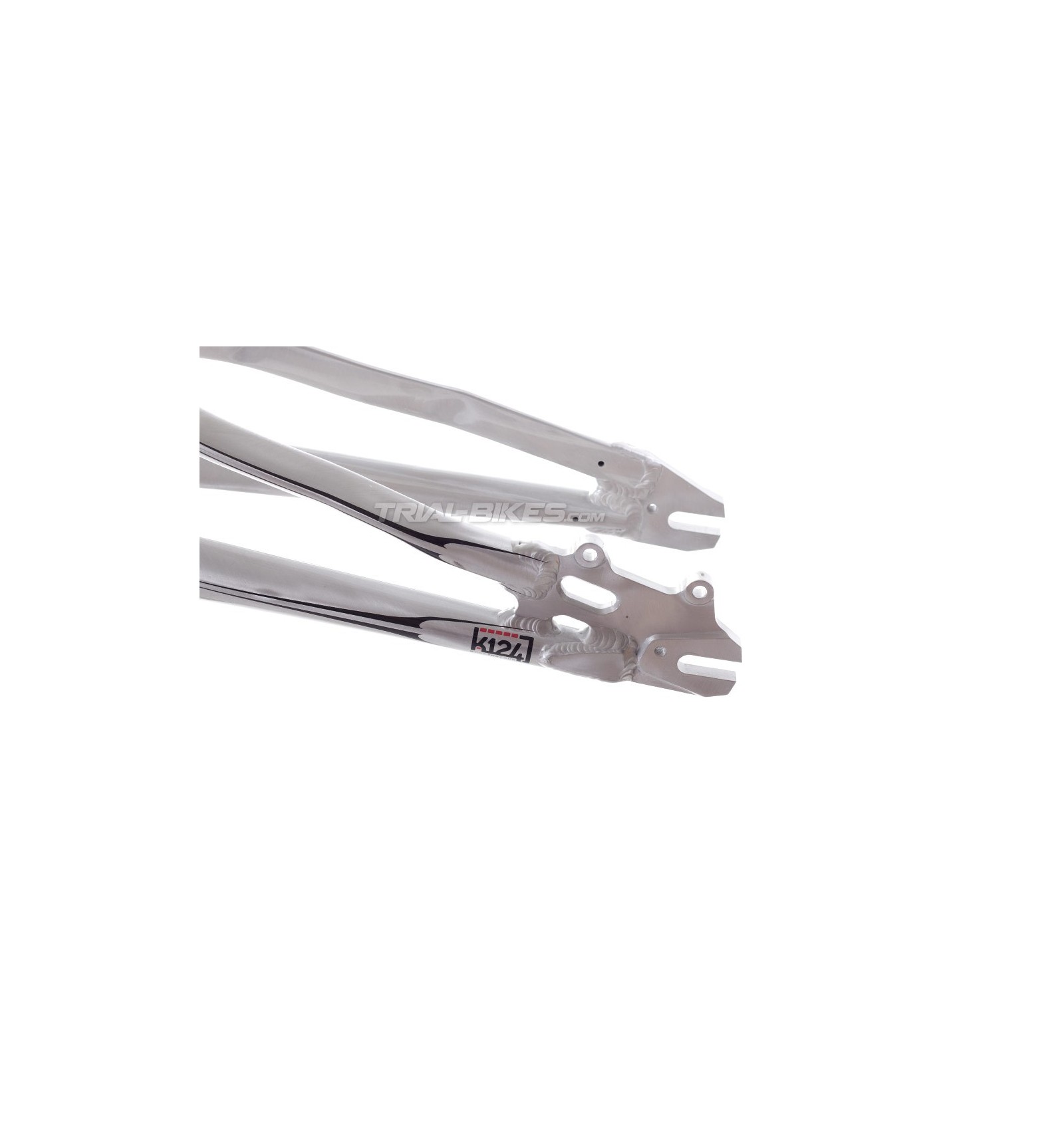

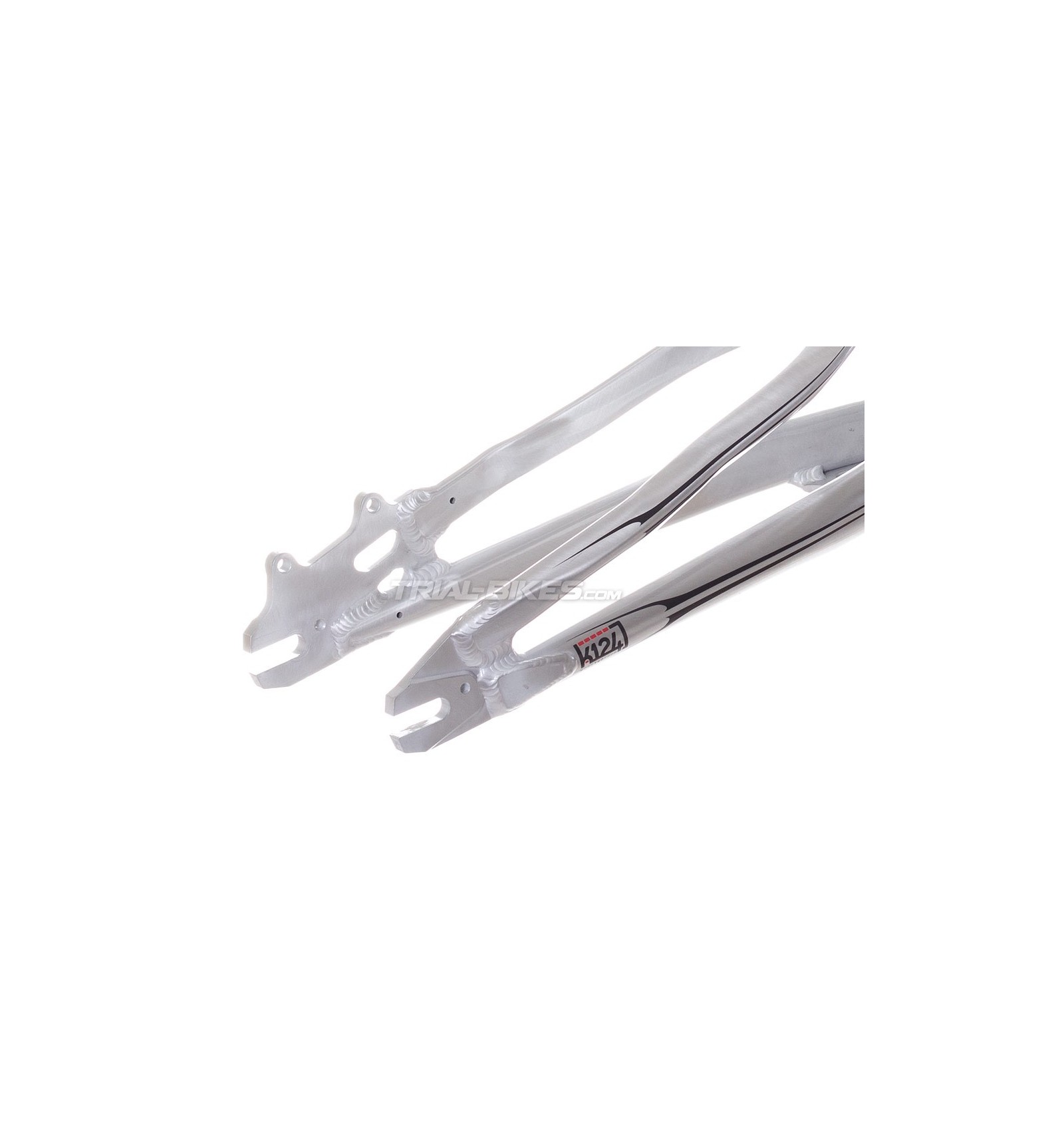

- CNC machined dropouts, designed to use snail cams.
- Designed for 116mm hubs.

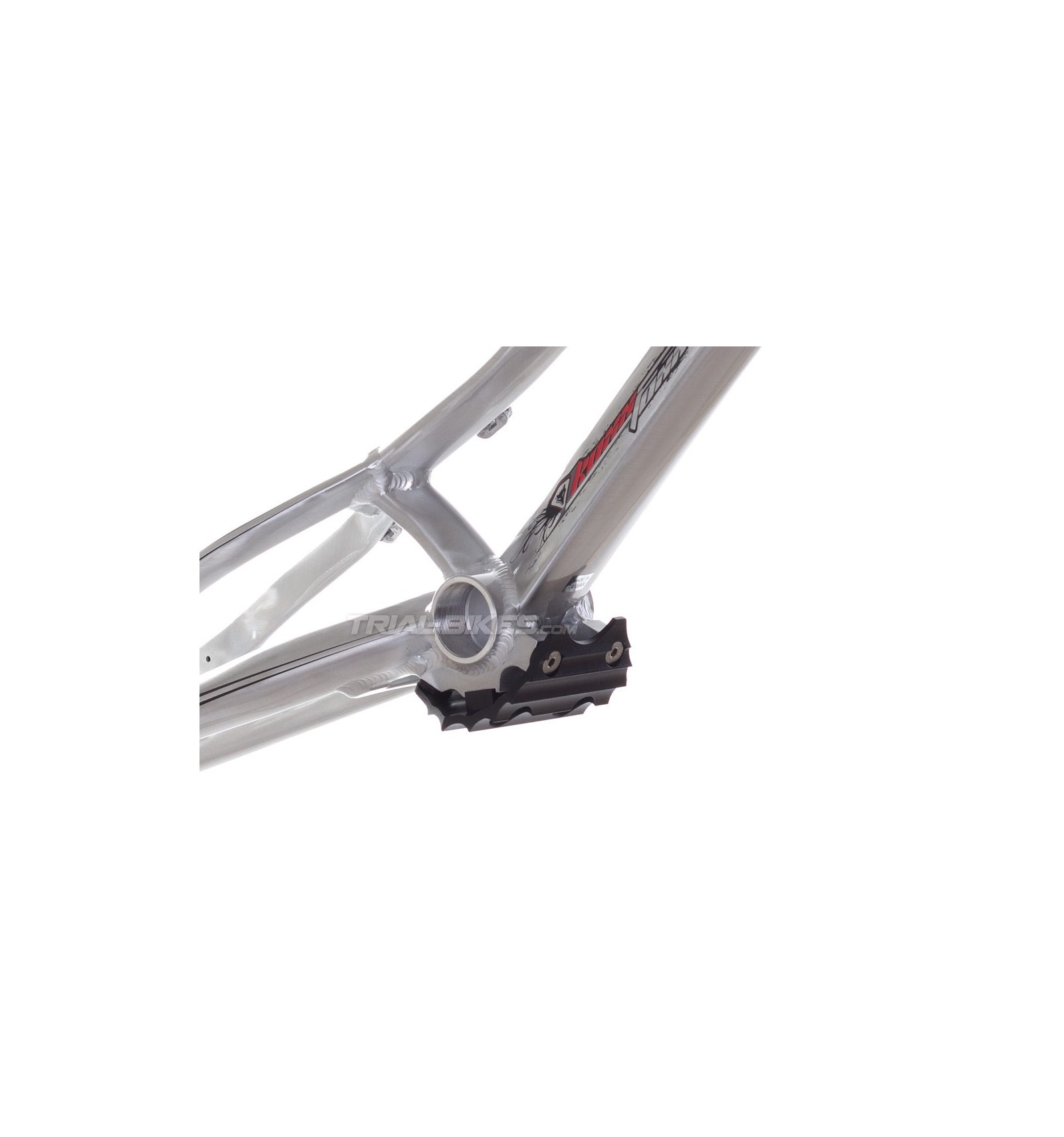

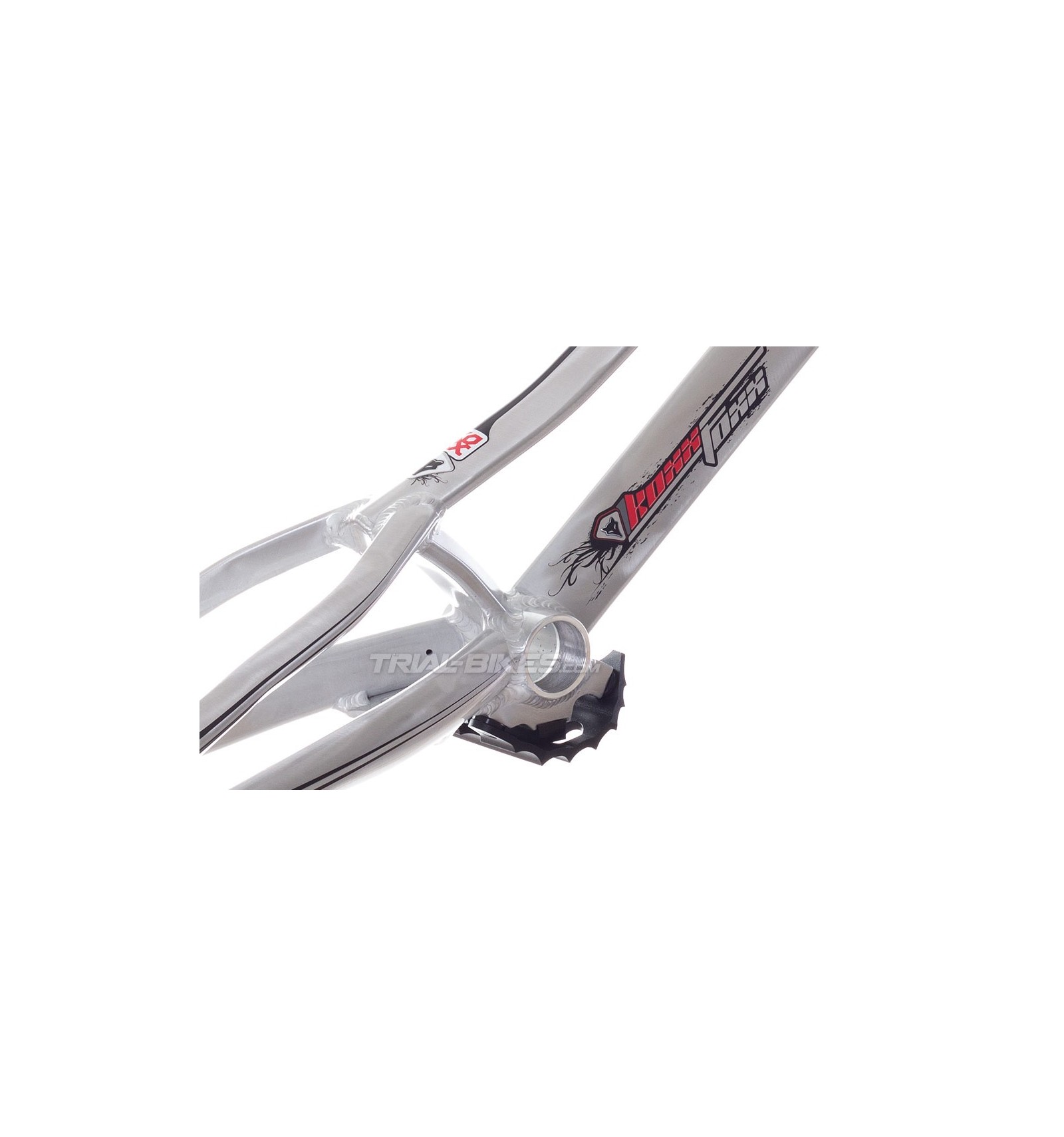

- New bashplate design (supplied with the frame), now more compact, and with a 4-bolt mounting system unique to Koxx (as featured in all new Sky frames).
- International Standard IS disc mount, now reinforced and redesigned, improving overall strength.
- 85mm spaced 4-bolt brake mounts
- Supplied with bashplate.
- 2 options available: disc only or 4-bolts only.
- Silver finish, with high quality black and red Koxx Foxx graphics.

Geometry (with 360mm / +45mm fork)
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 120mm

- Wheelbase: 940mm
- Chainstay Length: 350mm
- BB Rise: +55mm
- Head Angle: 71.5º

Finishes
- Anodised silver finish.
- Black and red Koxx Foxx graphics.

Weight
-1349g (only frame)

Additional information
This frame comes with 12 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
