Description and materials

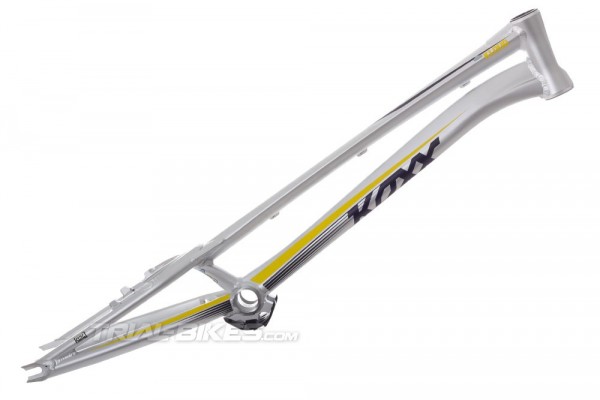

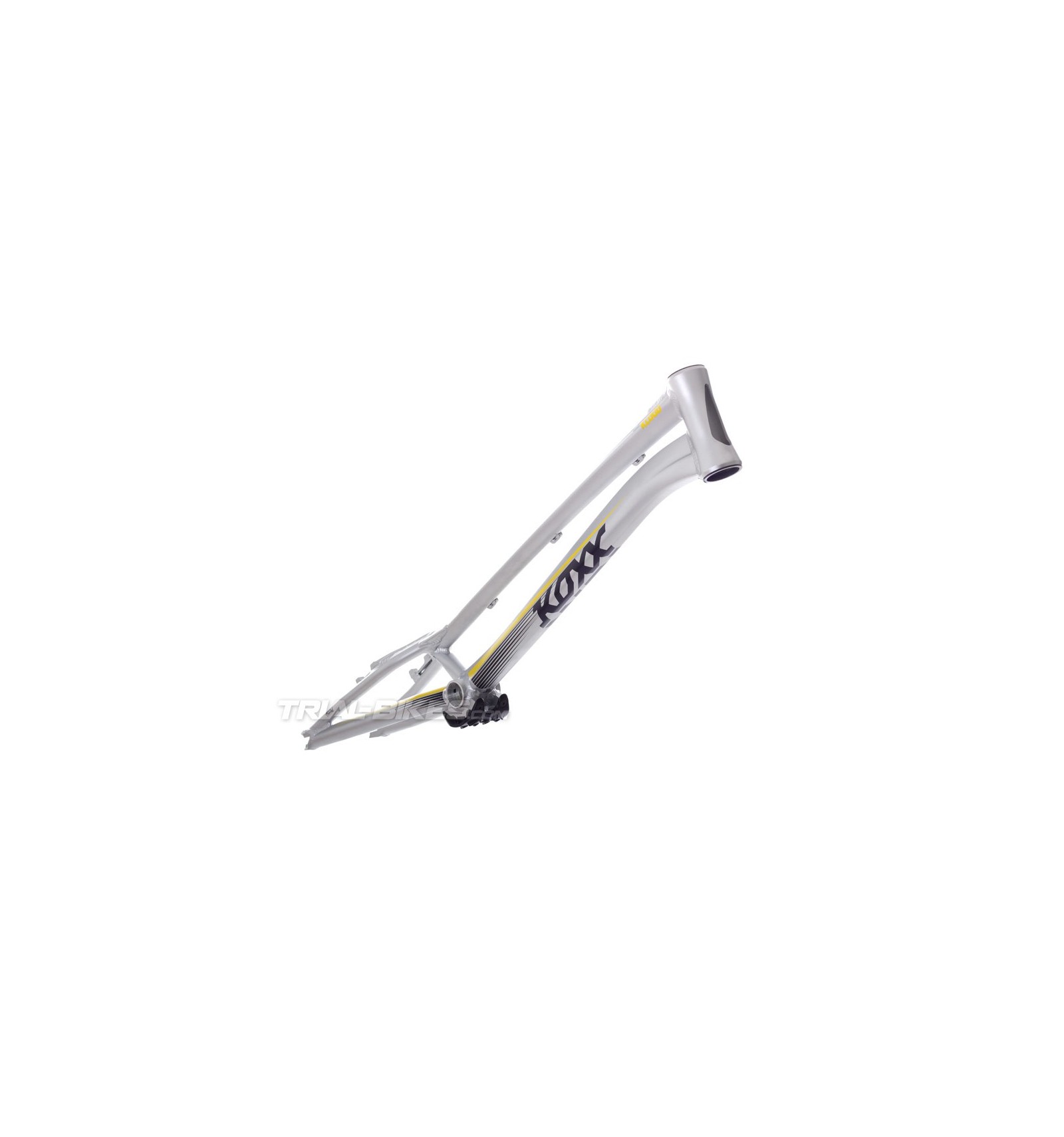

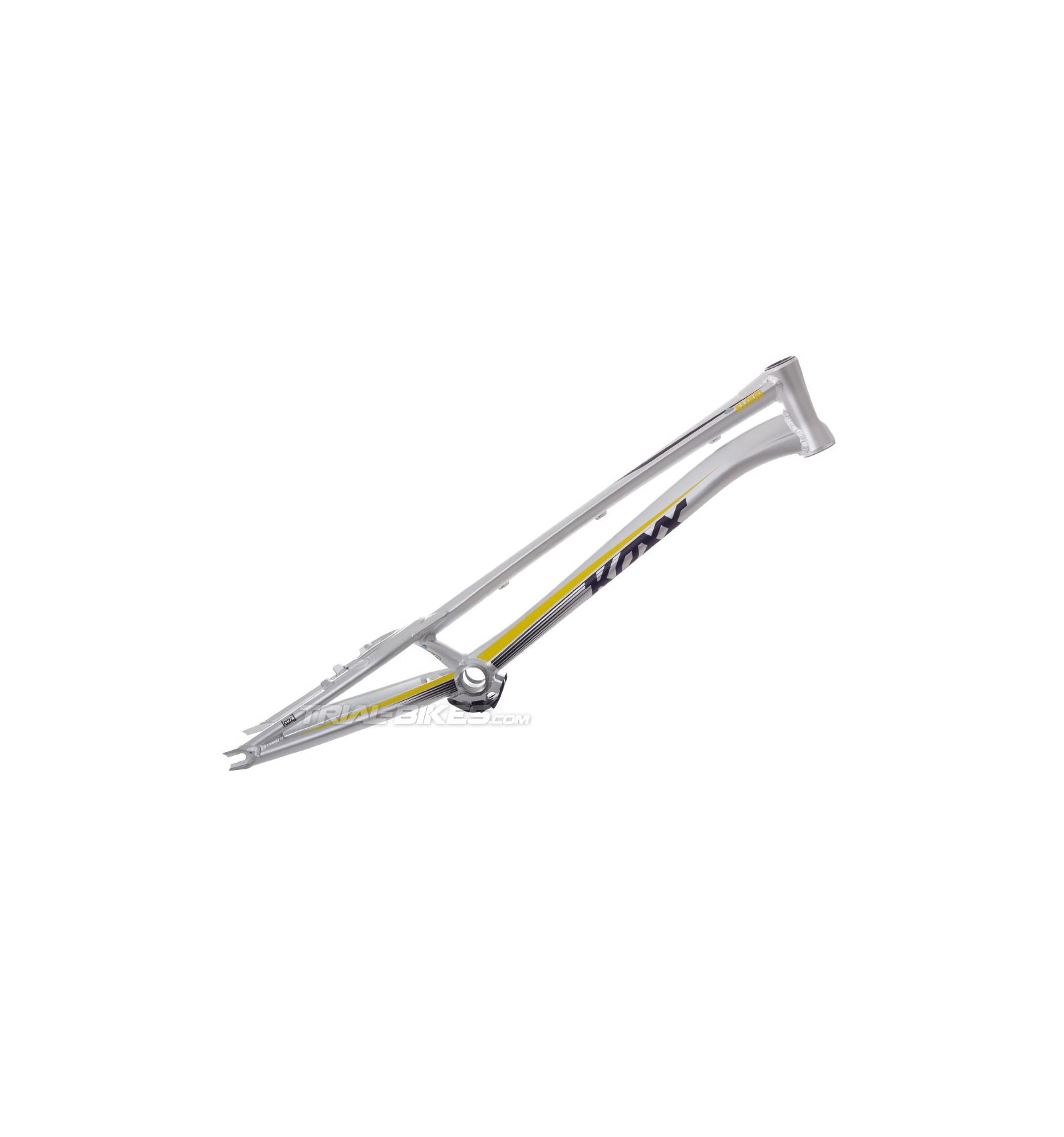

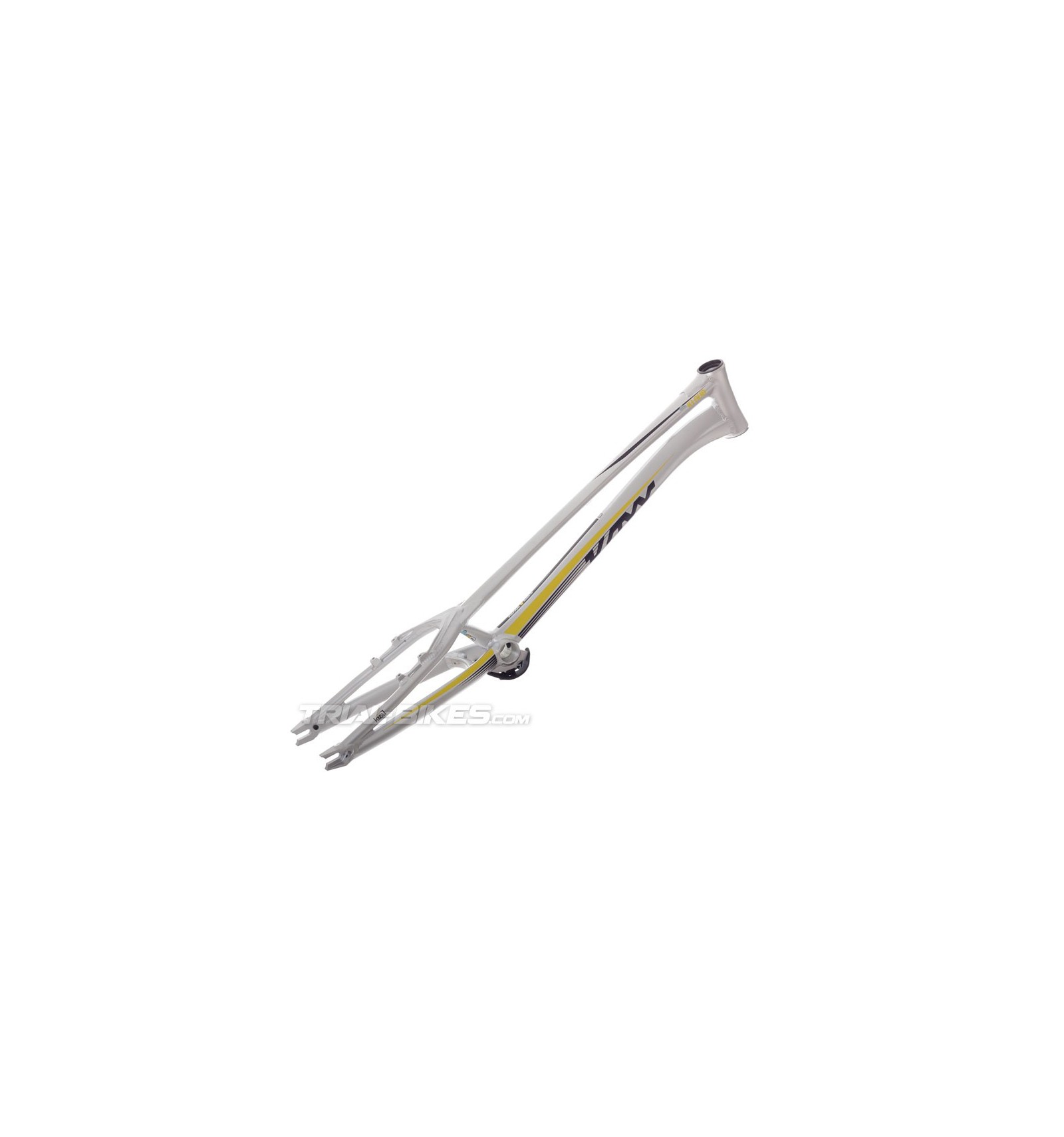

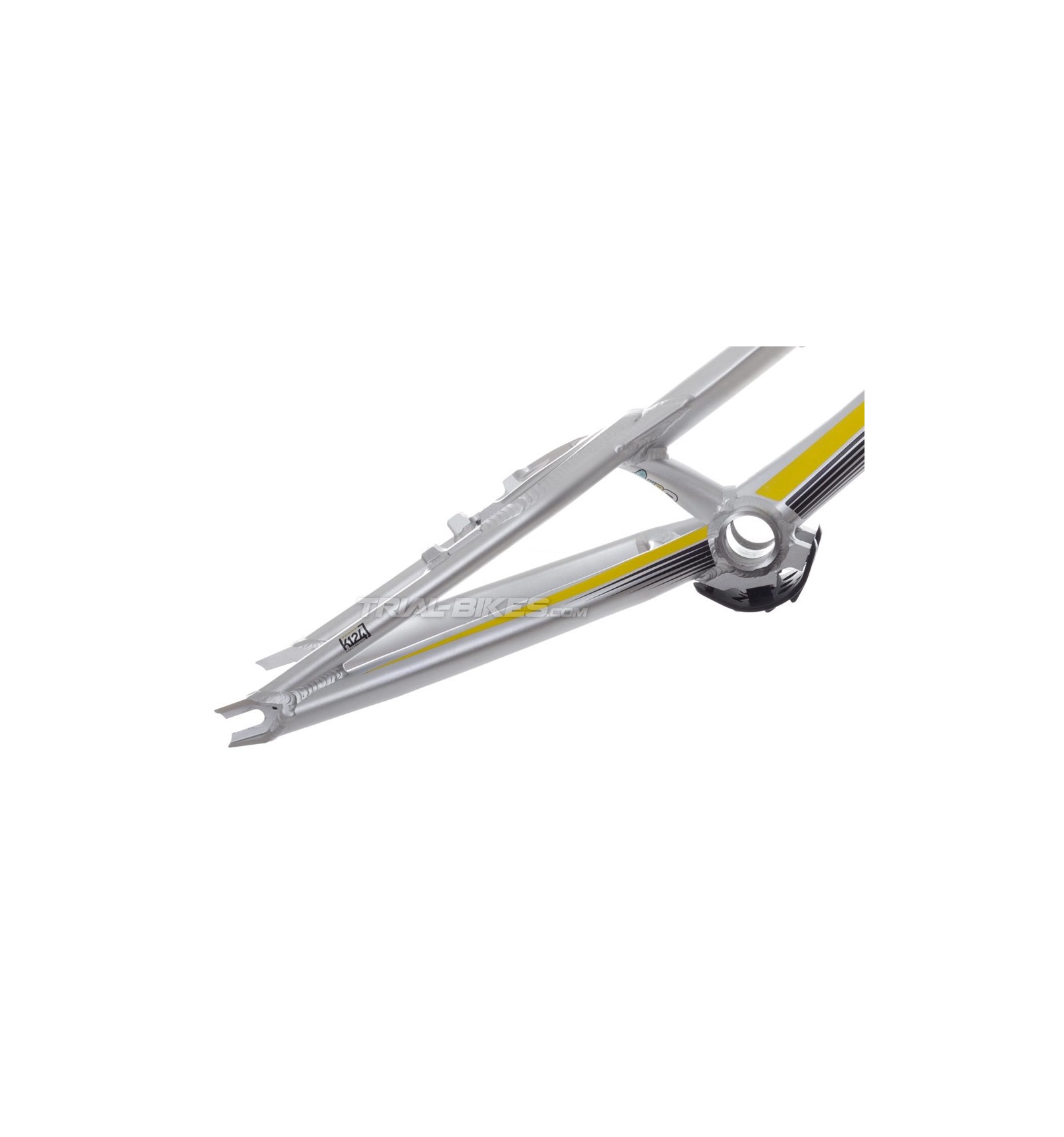

- New superlight 20’’ Kloud frame from French manufacturer Koxx, brand new into Koxx’s range.
- Its neutral geo, with a medium-high BB rise is great for riders who usually ride both competitions, rocks and street.
- Made from high quality 7005 T6 aluminium.

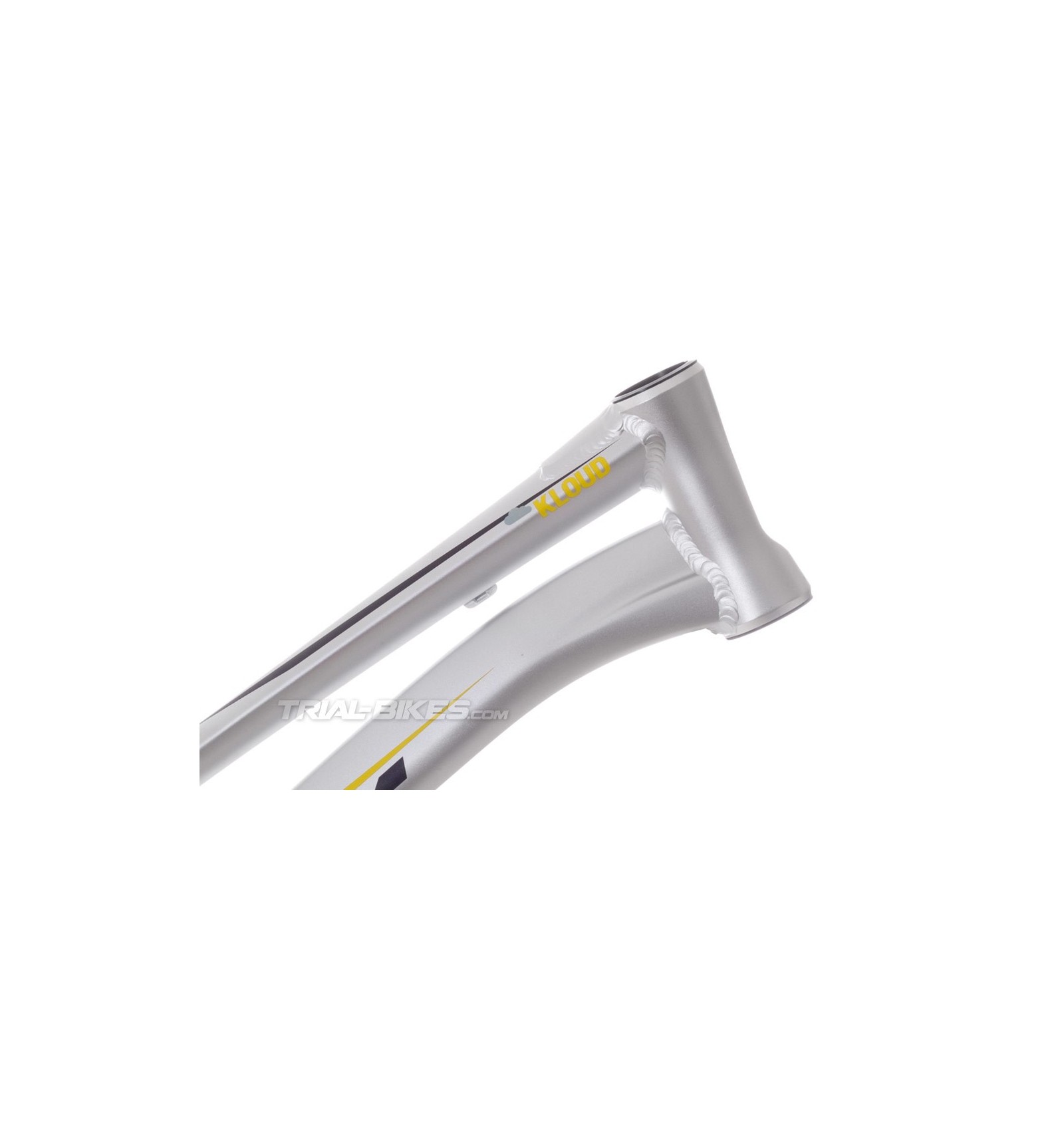

- The head tube is gusseted to the top tube to increase its strength.
- Hydro-formed down tube features a noticeable curve that helps gain weld contact area.
- 135mm CNC’d head tube, designed to use an internal headset (supplied with the frame), with a large hole at the front to save weight.
- 68mm bottom bracket shell, suitable for all 128mm bottom brackets.

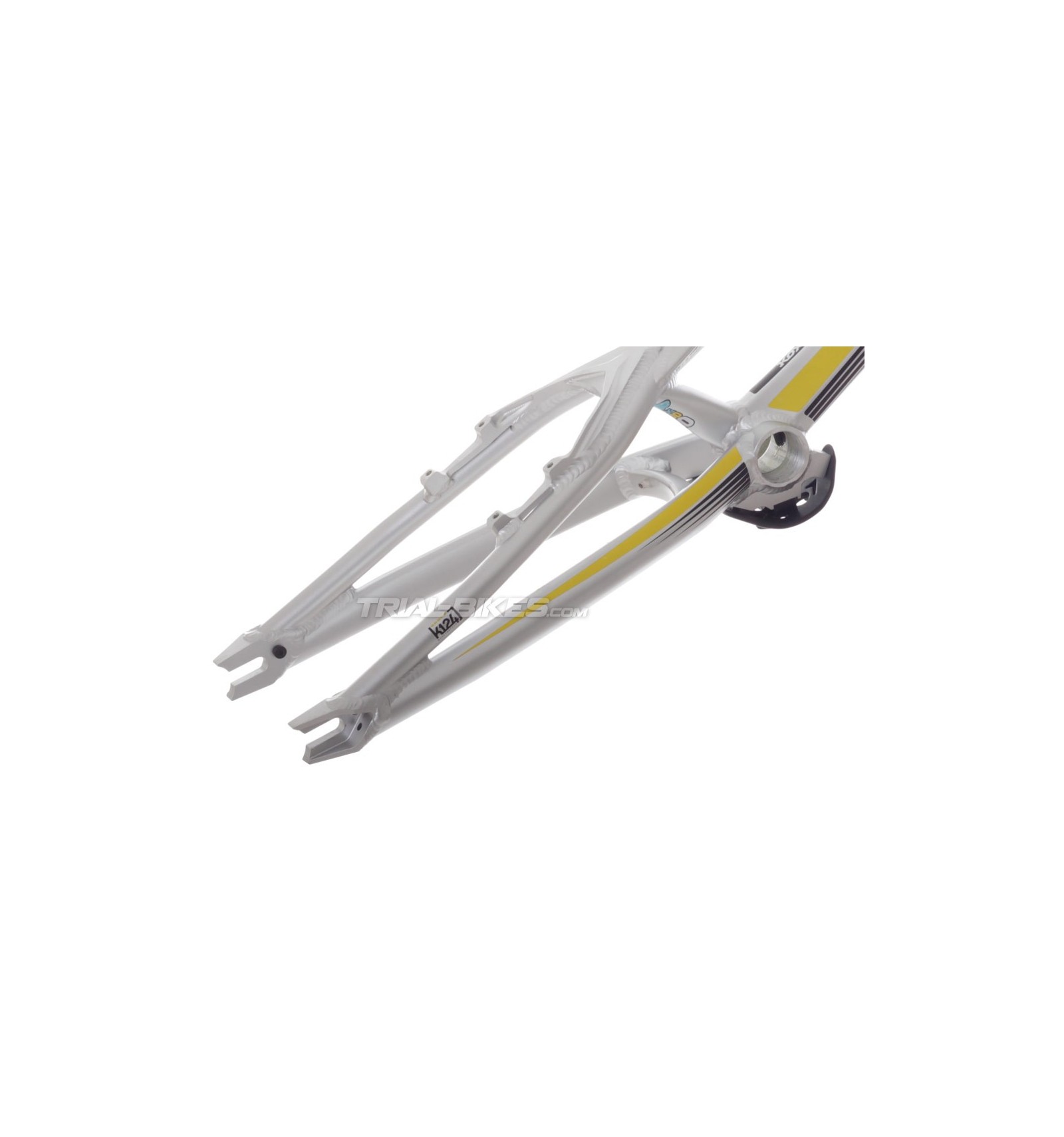

- CNC machined dropouts spaced at 116mm, designed to use snail cams.
- Designed for 116mm hubs.

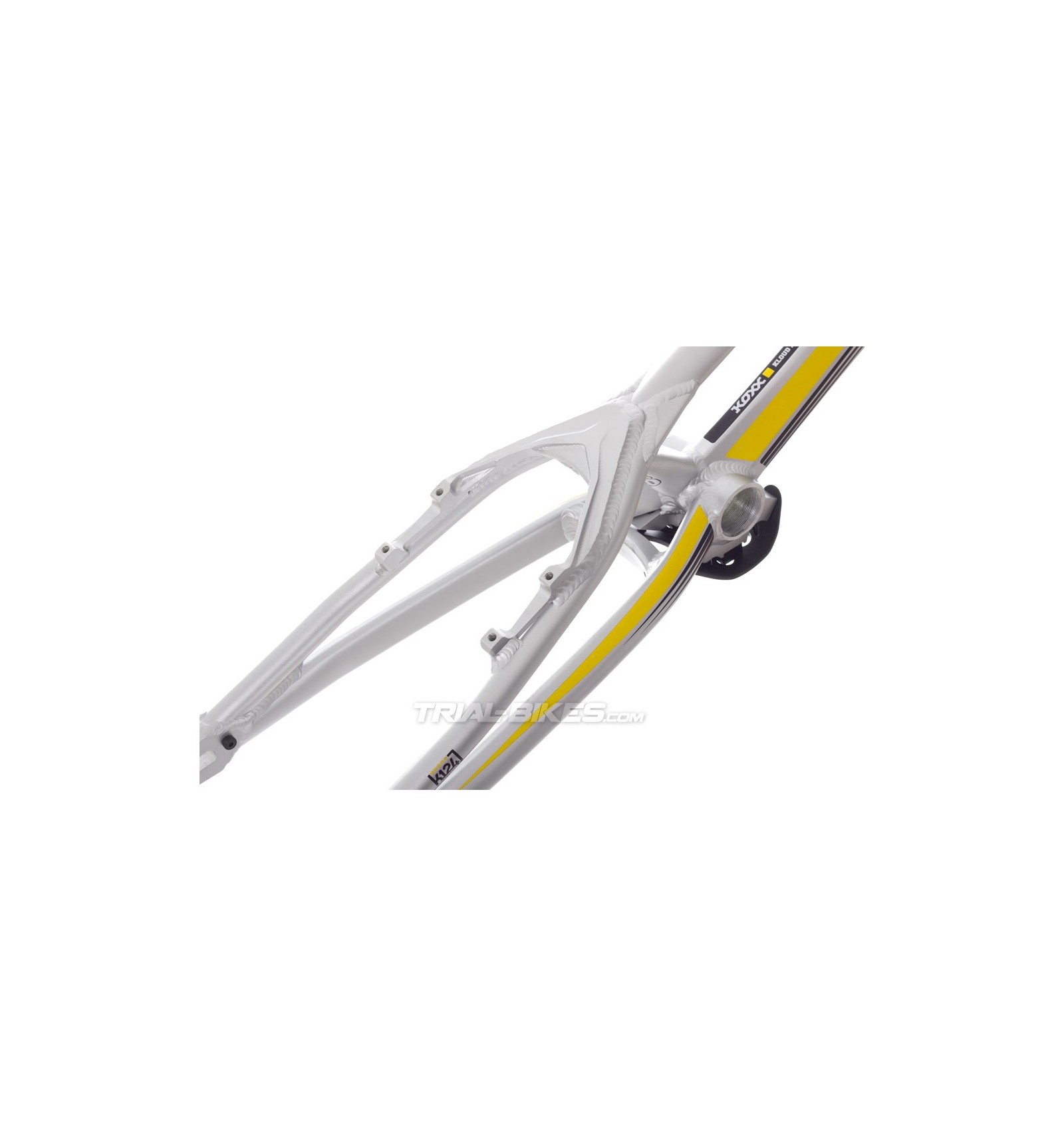

- 4-bolt mounts spaced at 101mm with an integrated CNC brake booster, to improve braking performance.

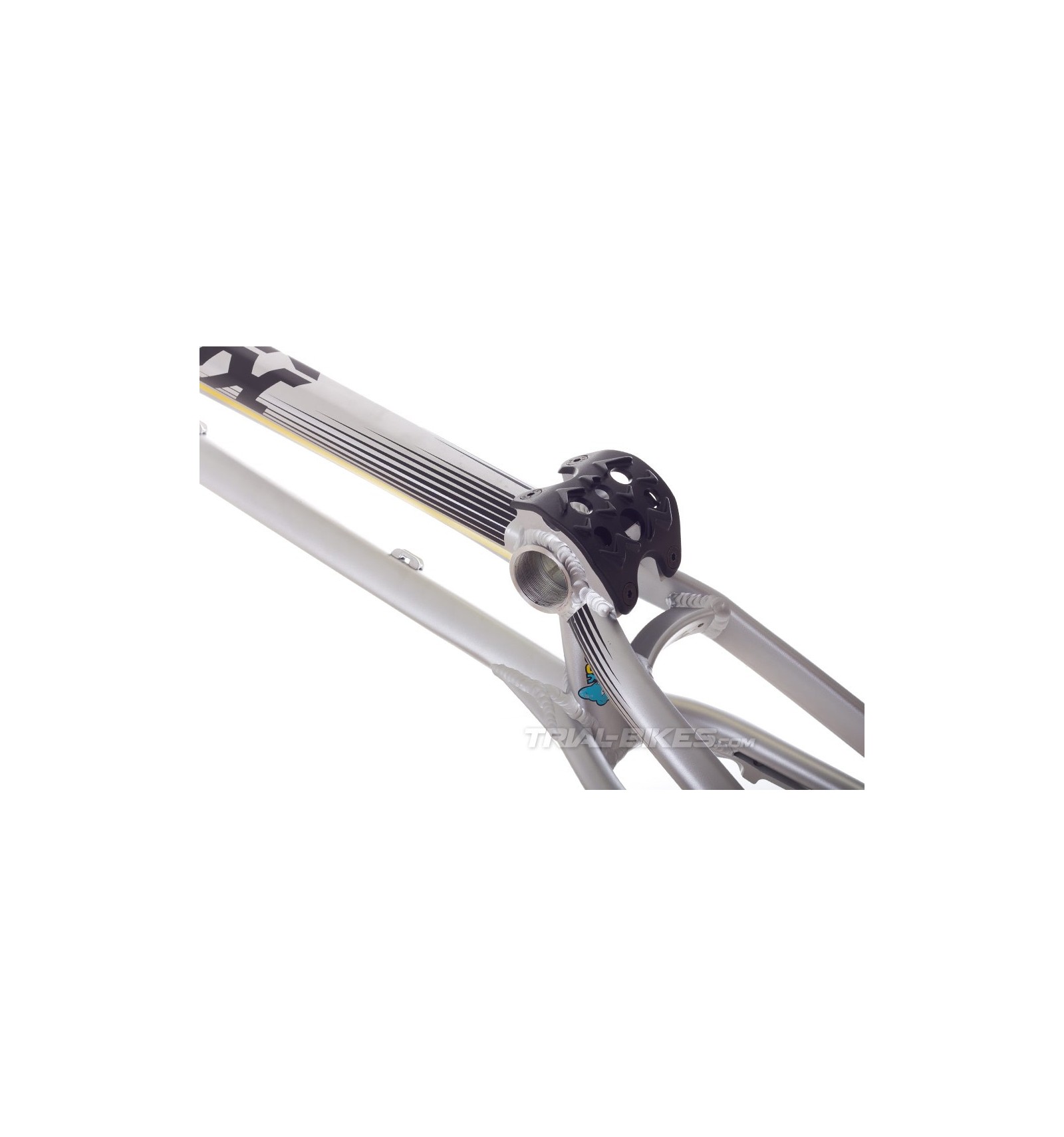

- New bashplate design (supplied with the frame), now more compact, and with a 4-bolt mounting system unique to Koxx.
- 4-bolt version version only.
- High quality shot-blasted and then anodized finish.
Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 135mm
- Wheelbase: 1015mm
- BB Rise: 70mm
- Head Angle: 71.5º
Finishes
- Natural anodized finish
- Black and yellow Koxx Kloud graphics
Weight
-1621g
Additional information
This frame comes with 12 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
Â
| WEIGHT | 1.621 |
| BRAKE MOUNTS | HS |
| TYPE OF HEADSET | Standard 1 1/8" |
