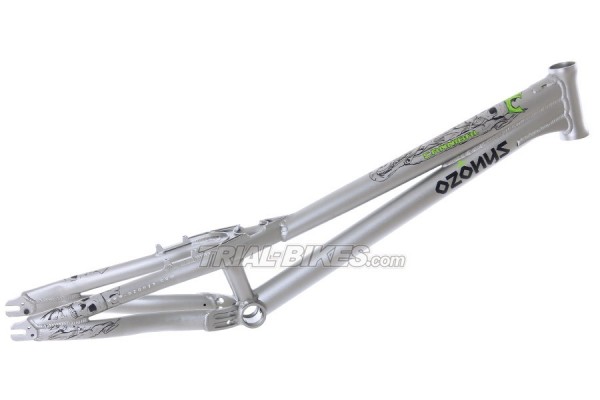

Ozonys Cannibal V4 26’’ Frame

Reduced price! Ozonys Cannibal V4 26’’ Frame Expand

Ozonys Cannibal V4 26’’ Frame

OZONYS OZONYS

536534

New

Description and materials

More details

This product is no longer in stock

247,60€

487,60€

-240,00€

Ask a question

Description and materials
- New Ozonys Cannibal V4 26’’ frame.
- Made from high quality 6061 T6 aluminium.

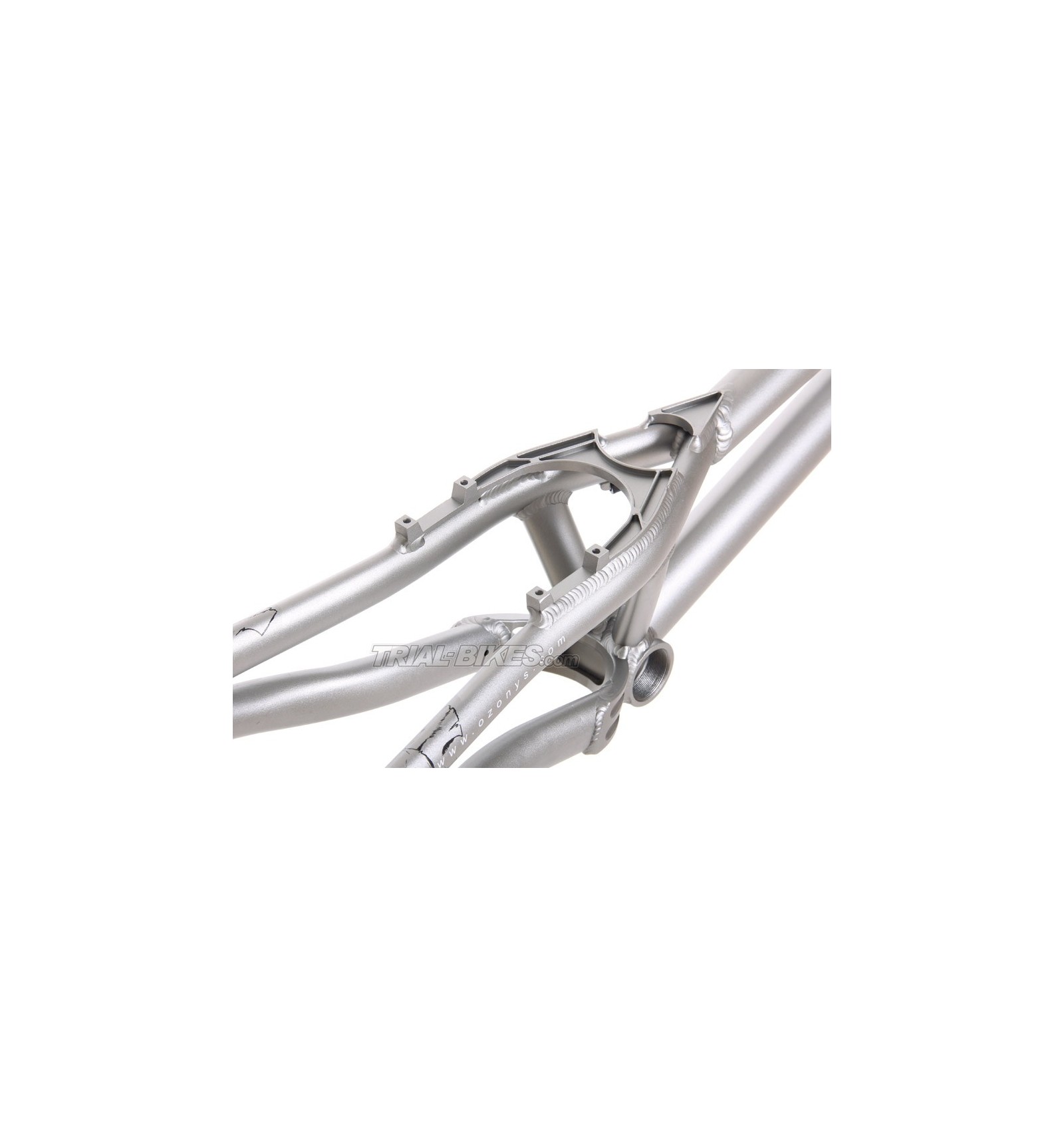

- Twin seat tubes help stiffen the rear end of the frame, as seen on the previous V2 version.
- 100mm spaced 4-bolt brake mounts, with CNC built in brake booster for a better brake performance.
- 68mm bottom bracket shell with a double seat tube, suitable for all 128mm bottom brackets, which gives a huge stiffness when pedalling.
- 135mm horizontal dropouts, suitable for all 135mm hubs.
- Stunning matt grey finish, with black graphics and a nice little fluro-green touch, which is cool!
- HS33 mounts only.

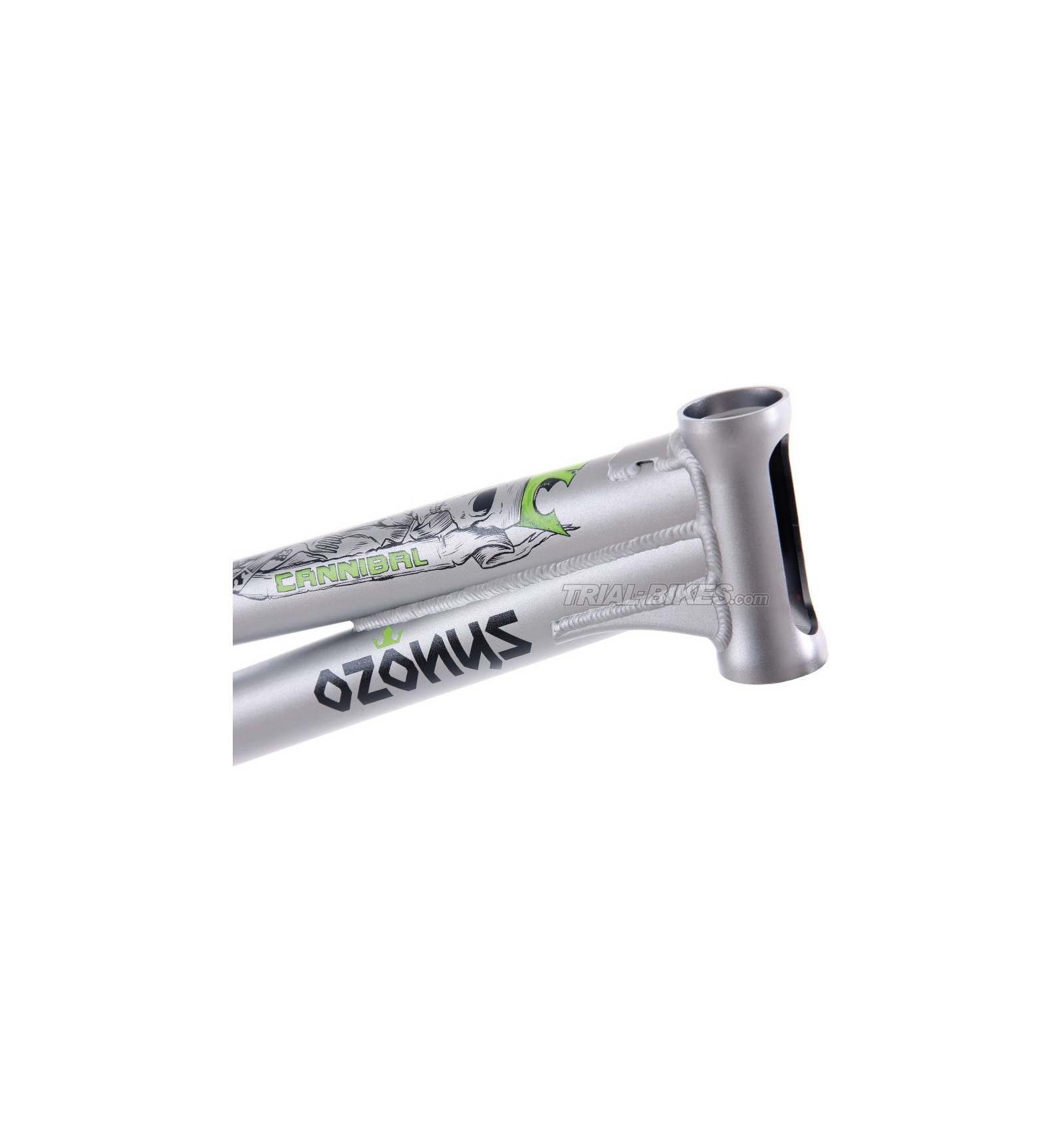

- 125mm, 1 1/8 head tube (44mm), with a big hole at the front which saves a good few grams.
- Machined gussets at the top and down tubes, to help strengthen the head tube area.

Geometry
- Space between dropouts: 135mm
- Bottom bracket shell: 68mm
- Head tube: 125mm, 1 1/8" (44mm)

- Wheelbase: 1075mm
- Chainstay Length: 378mm
- BB Rise: 40mm
- Head Angle: 71,5º

Finishes
- Matt anodised grey.
- Black and green Ozonys graphics.

Weight
- 1640g

Additional information
This frame comes with 1 year warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.

If you have any doubts, please contact us on info@trial-bikes.com

WEIGHT 1.640
TYPE OF HEADSET Standard 1 1/8"
