Description and materials

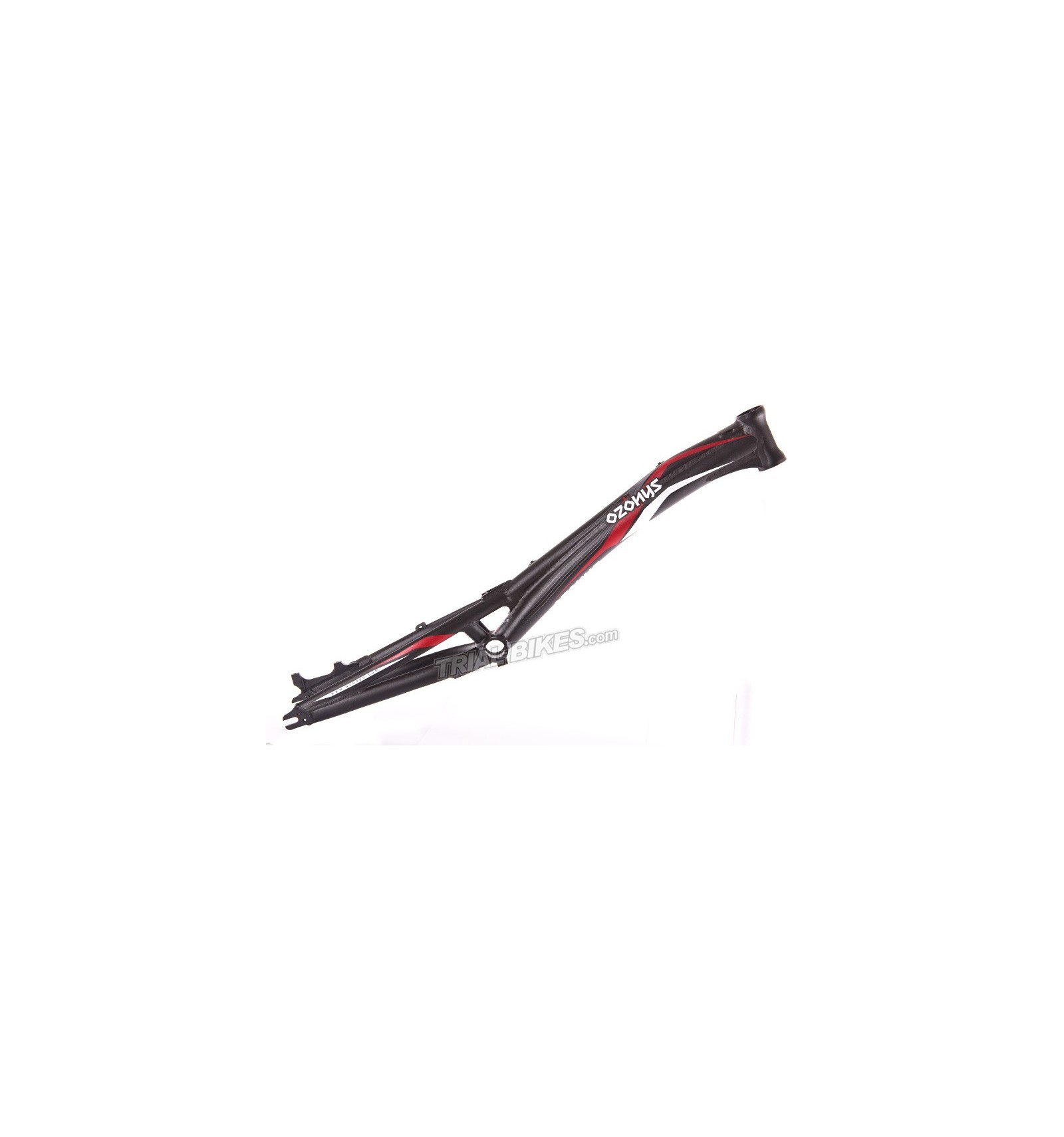

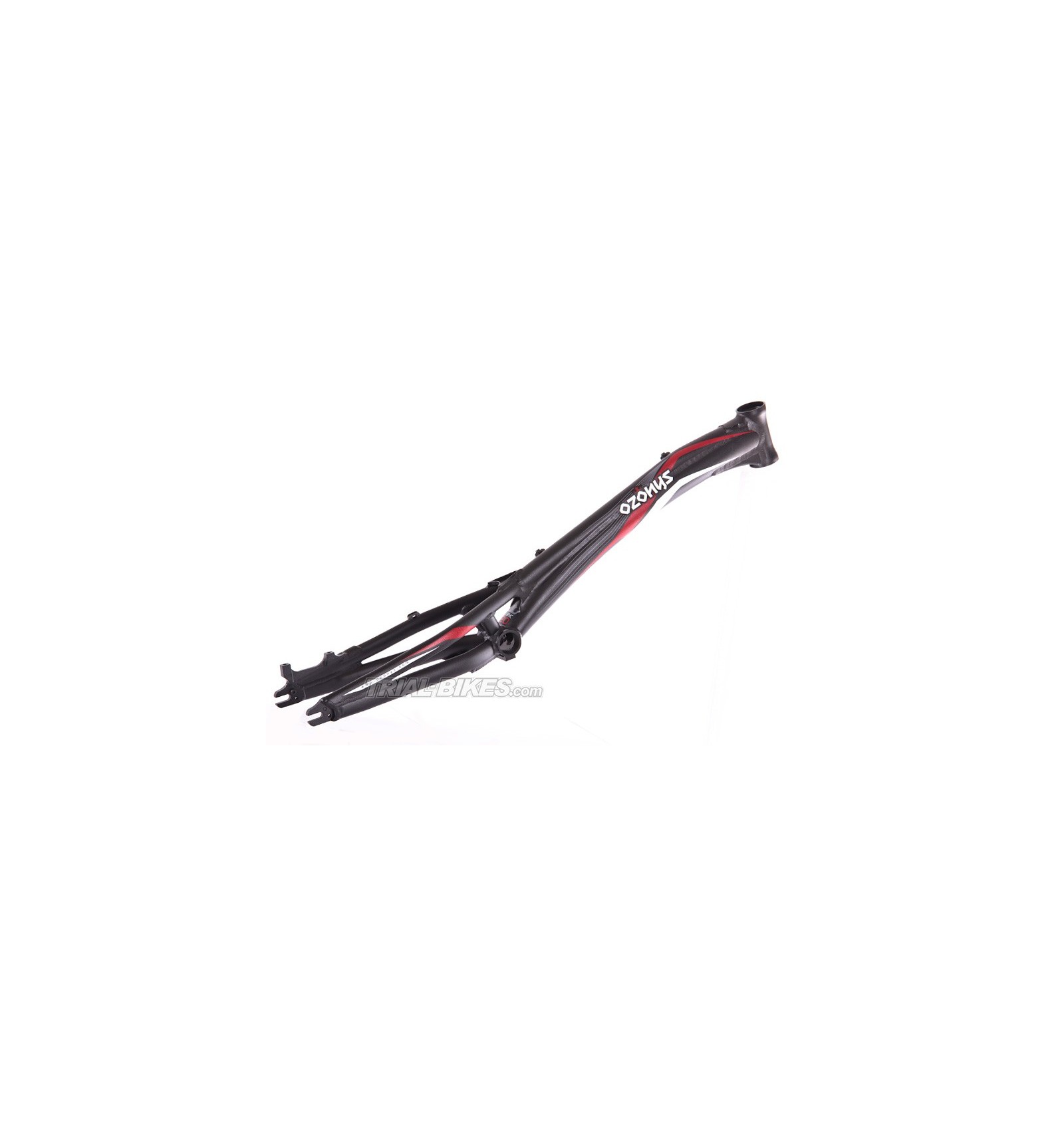

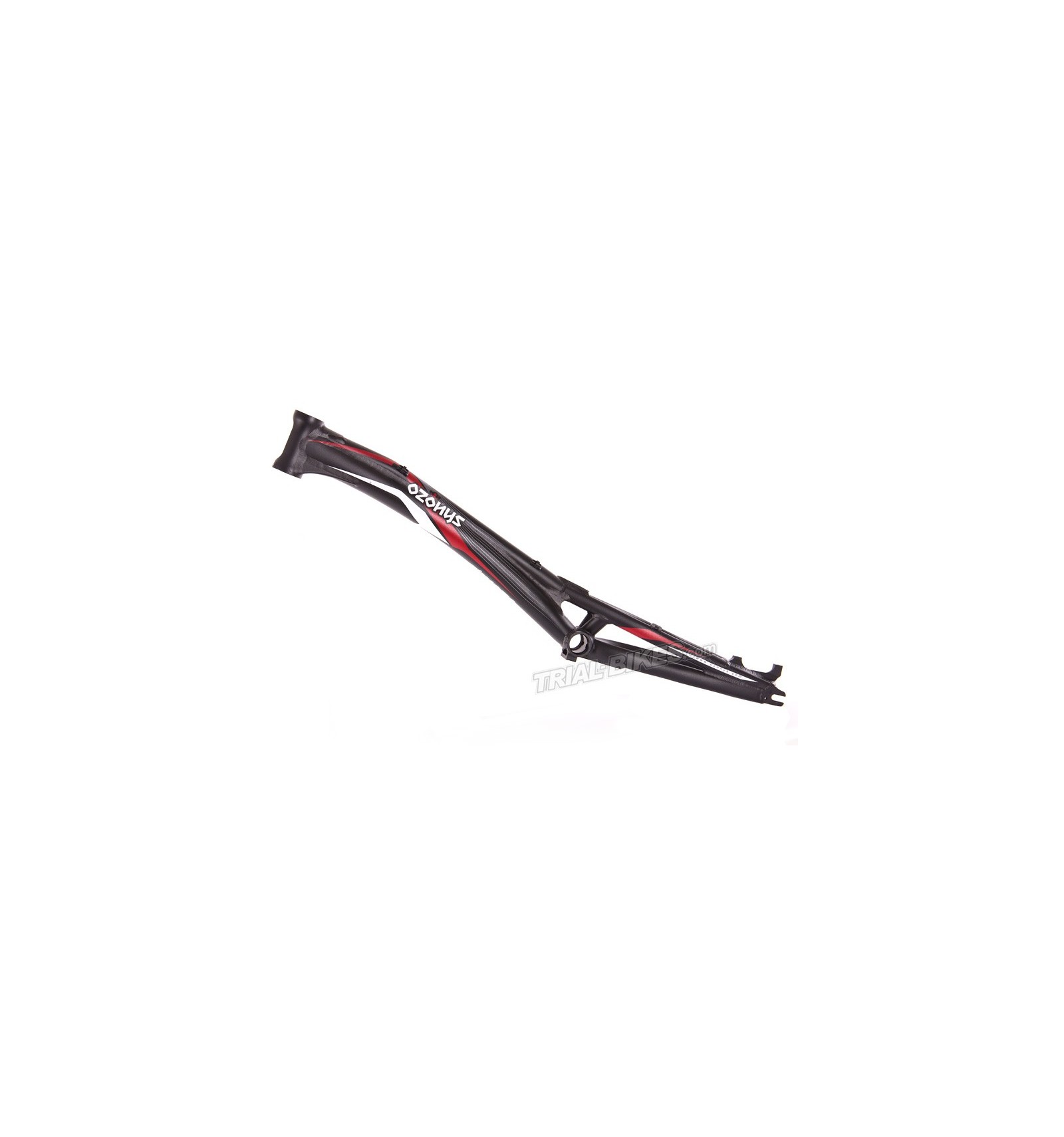

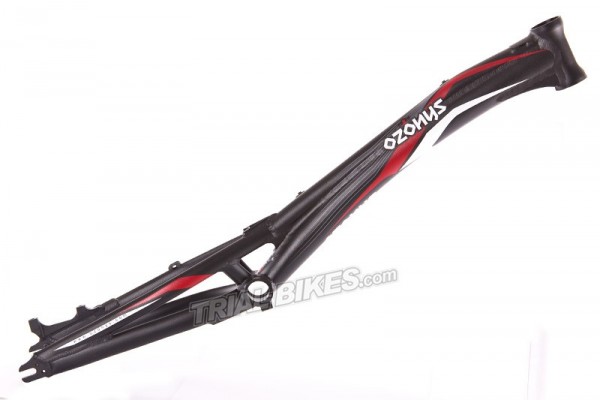

- New Ozonys Curve v3 20" superlight frame for 2012, based on the previous, successful editions.
- Made from high quality 6061 T6 aluminium.
- Again, the frame features unique top and down tube arrangement, if we cut it we would see an "8" with empty holes and a re-designed tubing thickness saving weight but without compromising resistance.

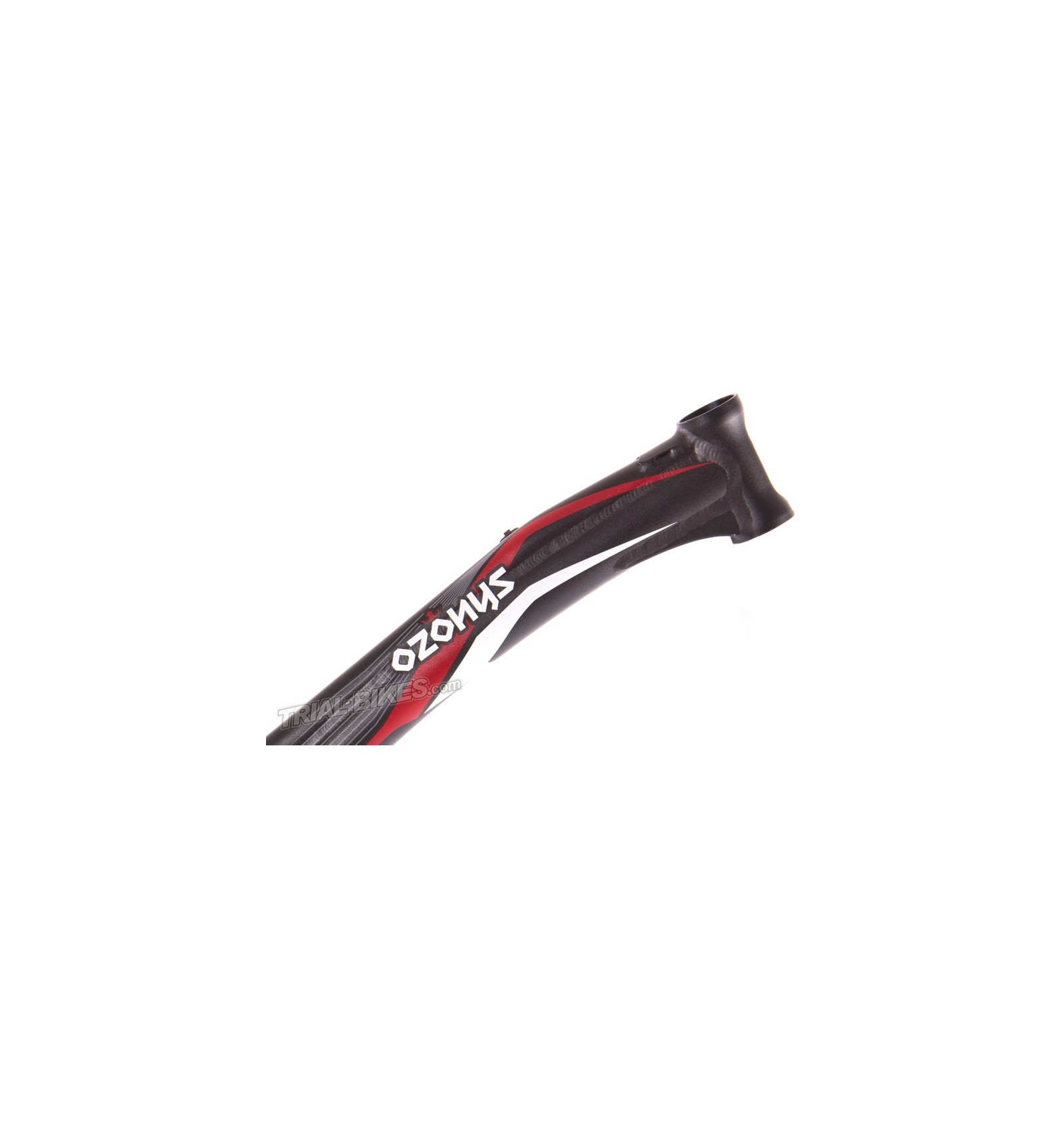

- 100mm long, 1 1/8 head tube is made from CNC aluminium, suitable for all internal headtubes.
- New reinforcement gussets where the top and down tubes join the headtube, which increase strength and overall stiffness.

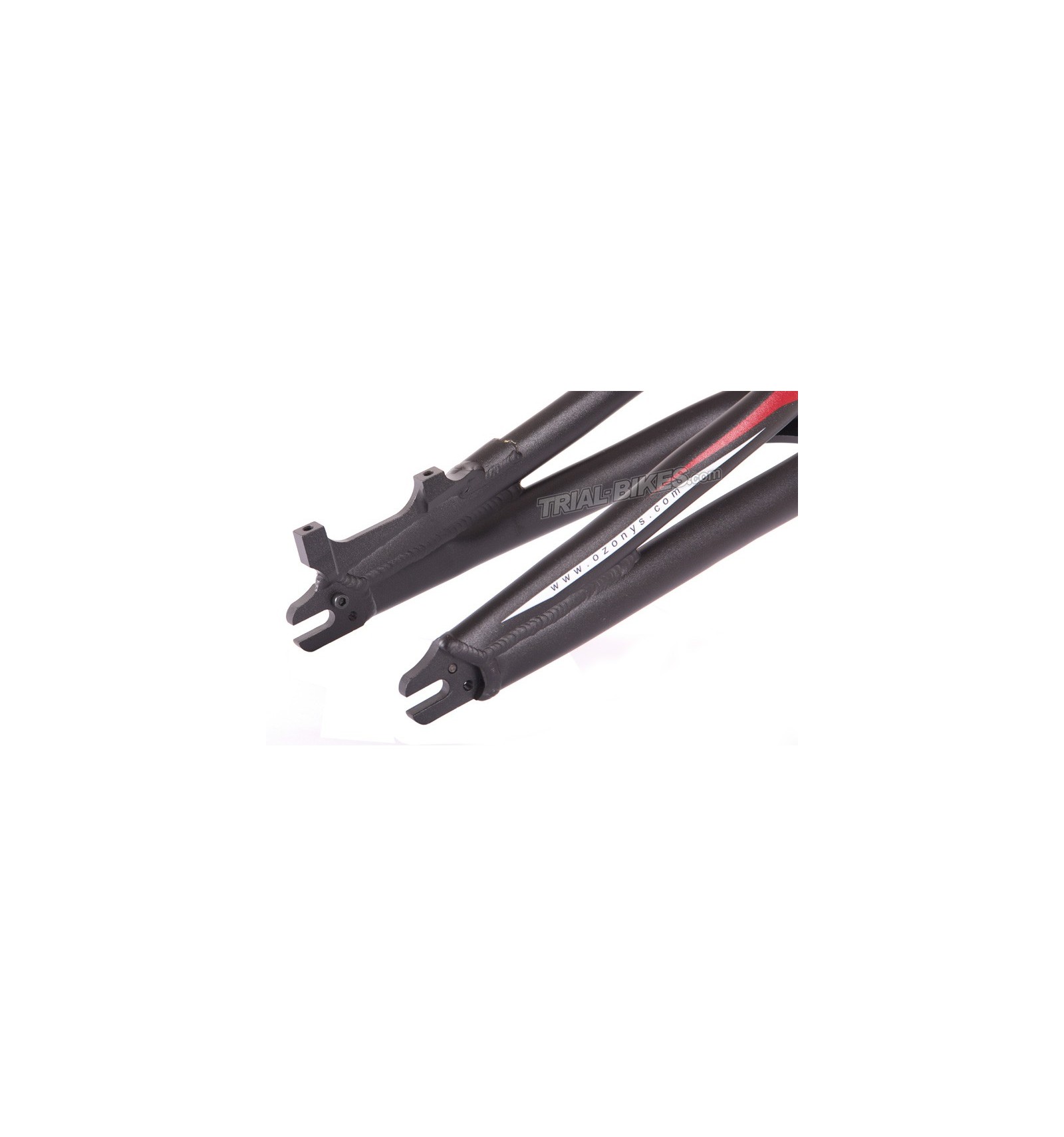

- Flat dropouts for a perfect chain tension, avoiding any chain rubbing.

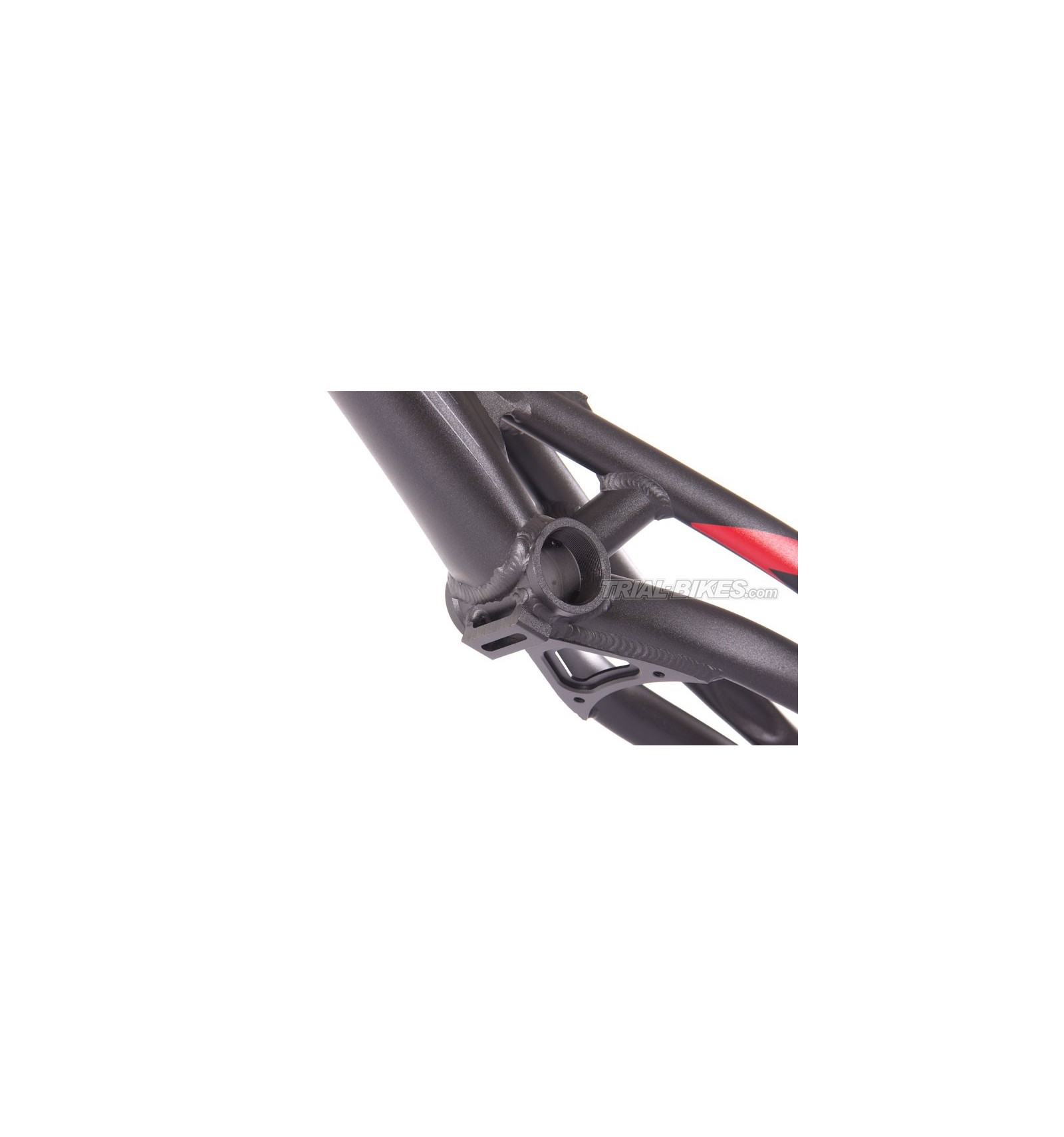

- 68mm bottom bracket shell is suitable for 122mm and 128mm bottom brackets.
- 116mm horizontal dropouts, suitable for all 116mm hubs.
- Features new 2012 design, in black anodized colour with white, grey and red graphics.
- Also, the frame comes with 160mm Post-Mount disc brake mounts.
- 2 options available: disc only or 4-bolts only.
Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 100mm, 1 1/8"
- Wheelbase: 1005mm
- Chainstay Length: 350mm
- BB Rise: 79mm
- Head Angle: 72 º
Finishes
- Anodised black.
- Red/grey/white Ozonys graphics.
Weight
- 1364g
Additional information
This frame comes with 1 year warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
WEIGHT | 1.364 |
BRAKE MOUNTS | HS |
TYPE OF HEADSET | Standard 1 1/8" |
