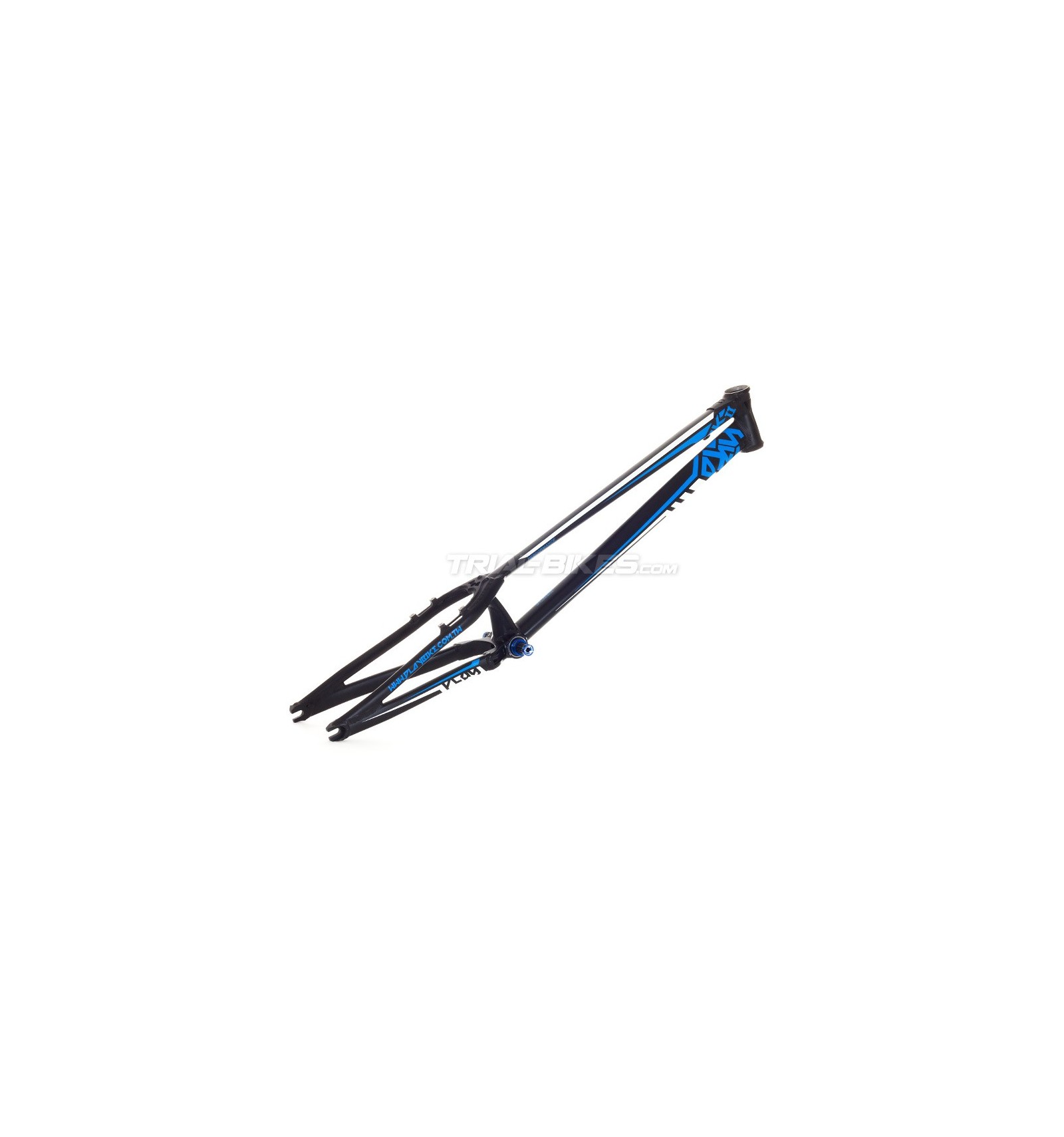

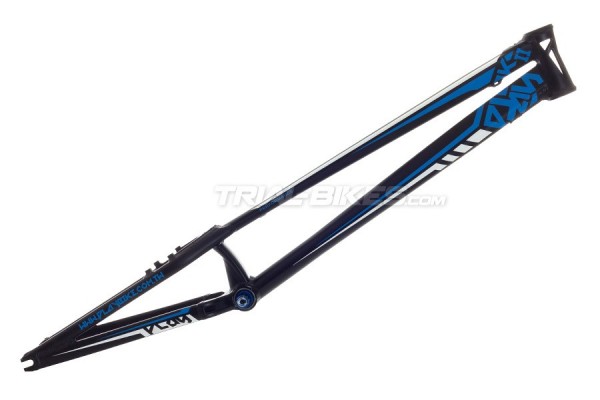

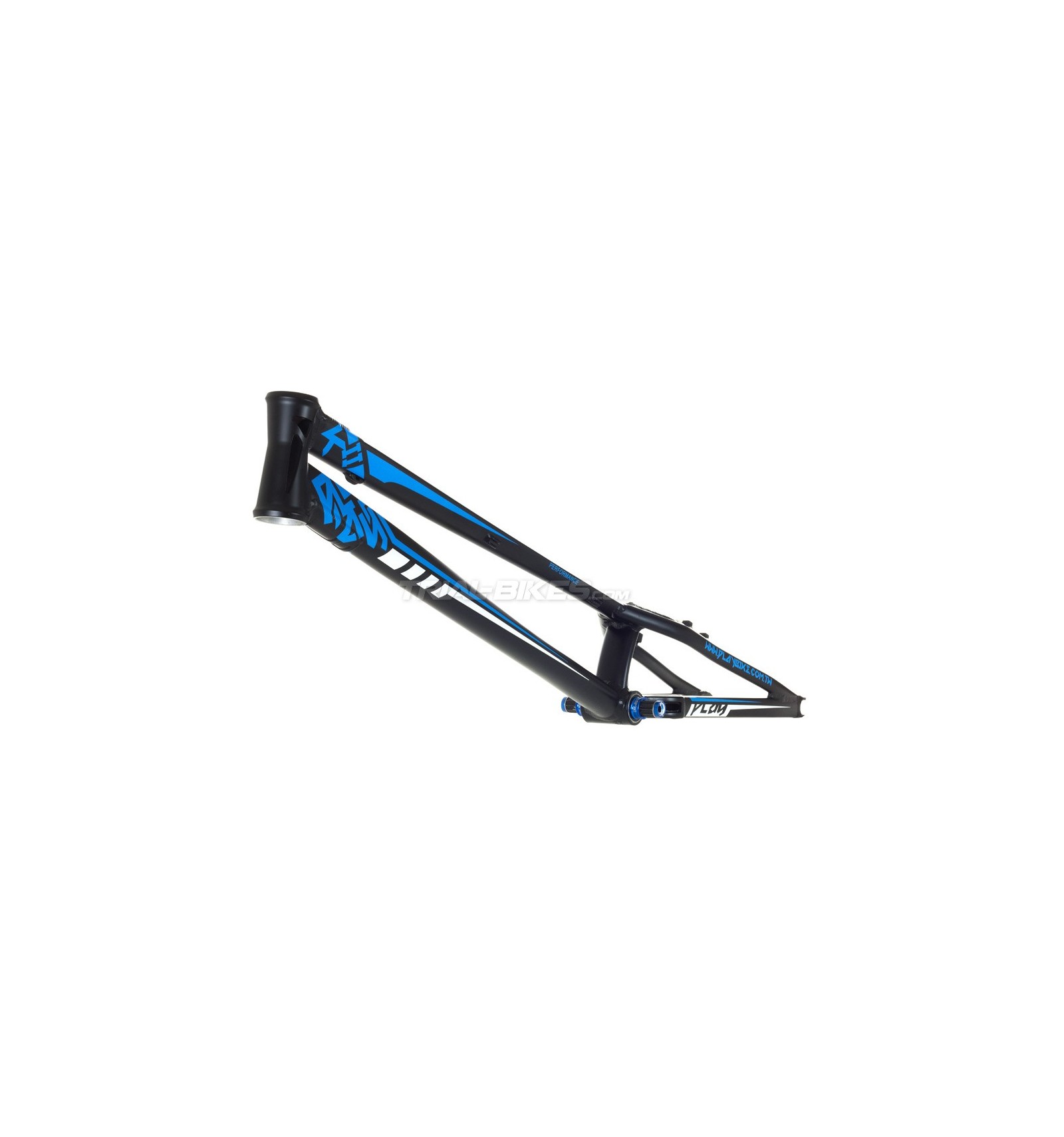

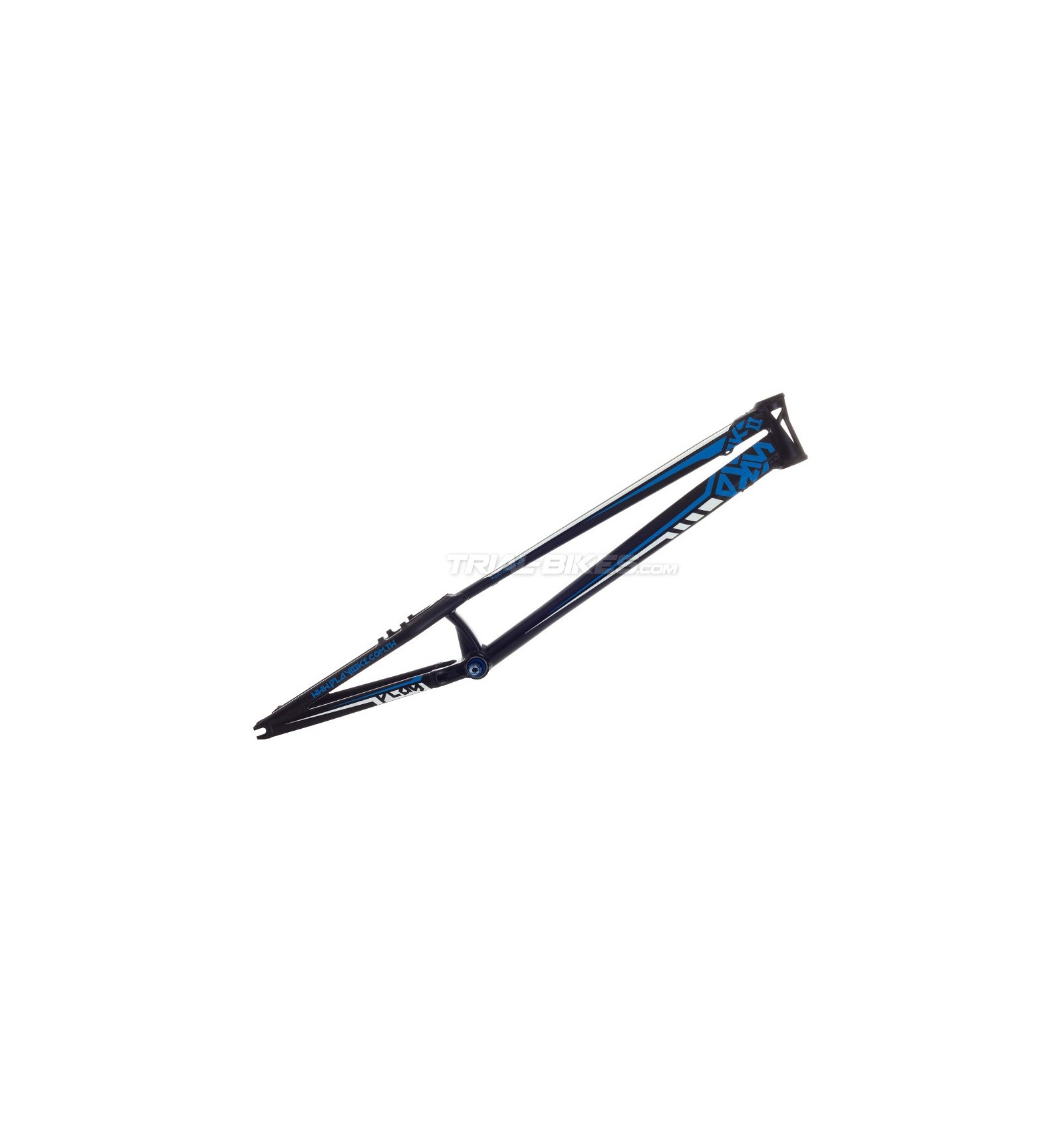

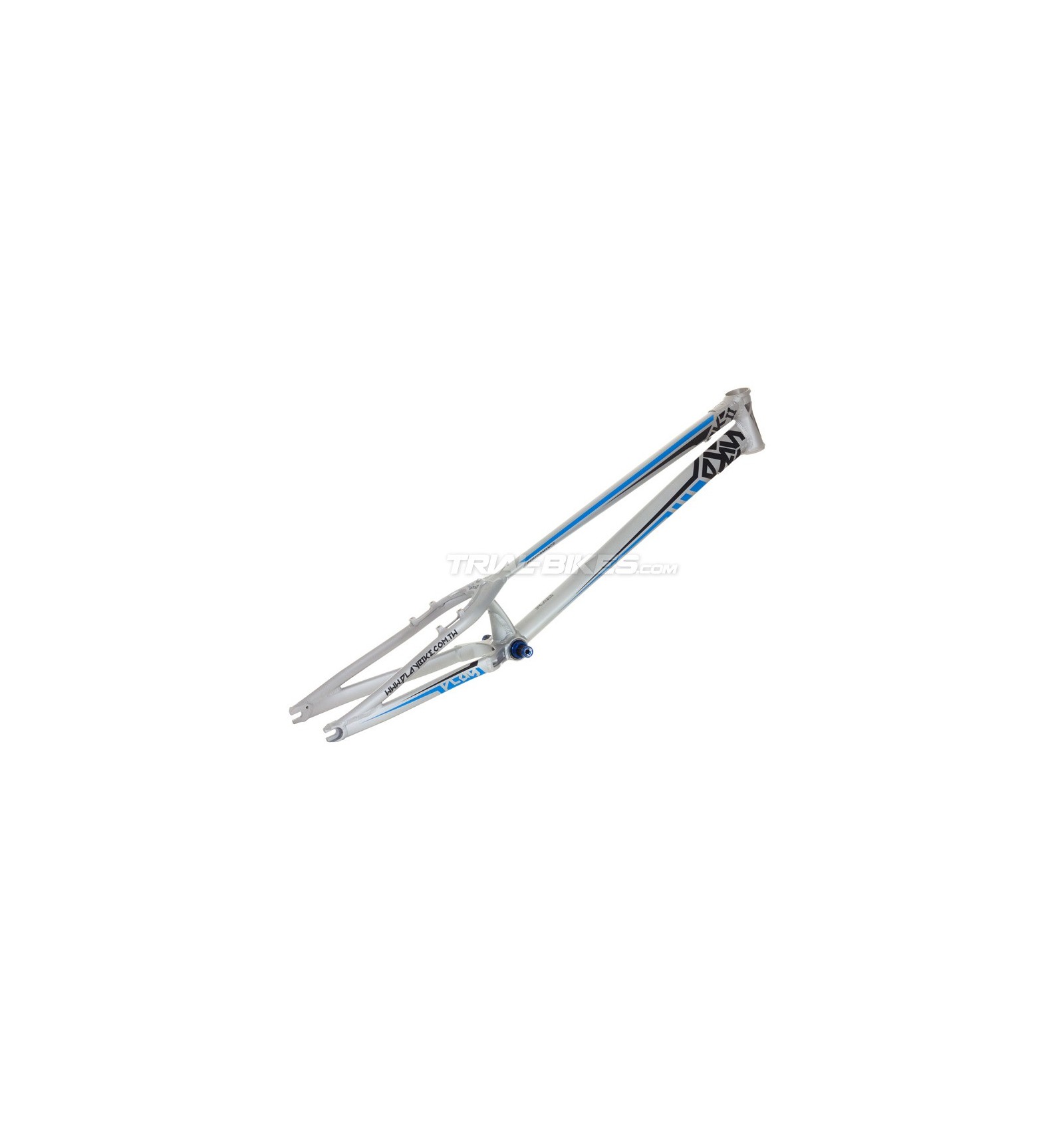

Play KII 24'' Frame (with BB)

Description and materials
- New Play KII 24” 2014.
- This frame uses the experience gained from the 20” and 26” KII frames to hit the 24” market with a reliable design and the best value for money.
- New hydro-formed 6061 T6 aluminium tubes.

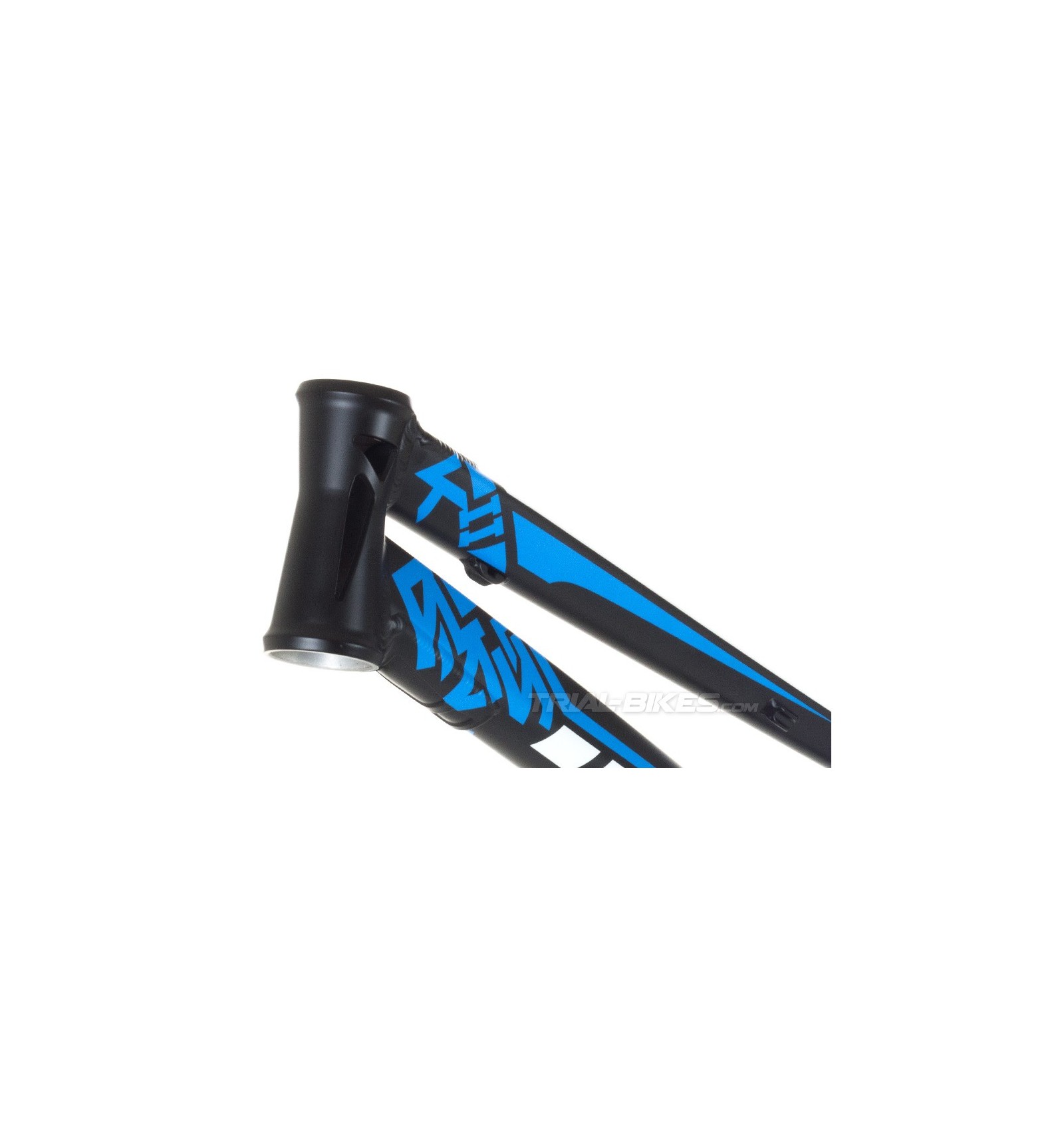

- 120mm CNC’d head tube, designed to use an integrated headset and with 2 large holes machined out to save unnecessary weight. It’s gusseted to the top and down tubes to increase its strength.
- Semi-hollow gussets in the top and down tubes joints help strengthen stiffen the frame.

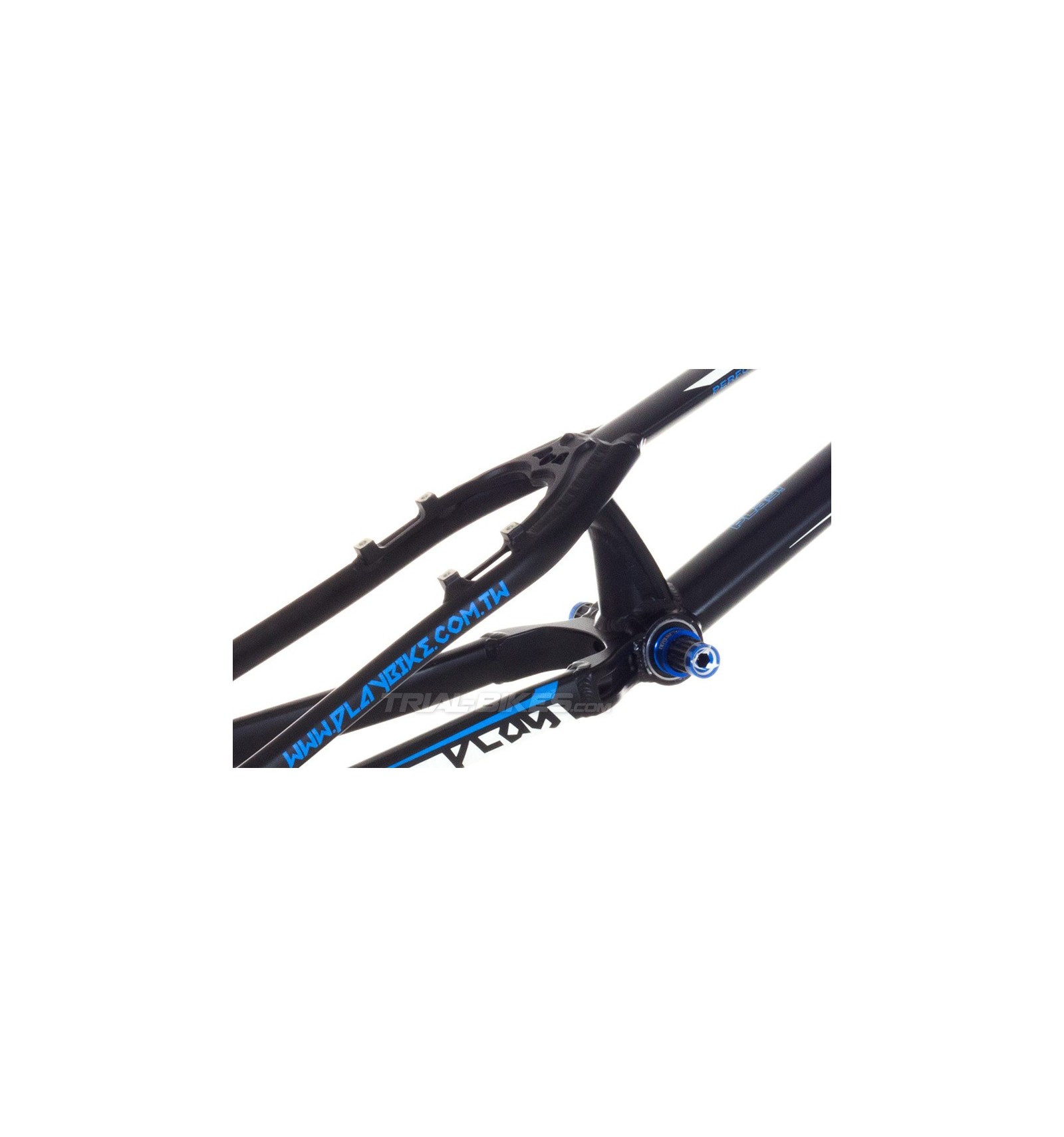

- New Spanish-type 127mm bottom bracket, which gives longer BB life and improves stiffness and strength (supplied with the frame).
- CNC machined 135mm dropouts, designed to use 135mm hubs with 3mm snail cams.
- 4-bolt mounts spaced at 99mm with an integrated CNC brake booster to improve braking performance.
- Please note: Because of the geometry and design of this frame, a half-link chain must be used, or at least a half-link with an standard chain.

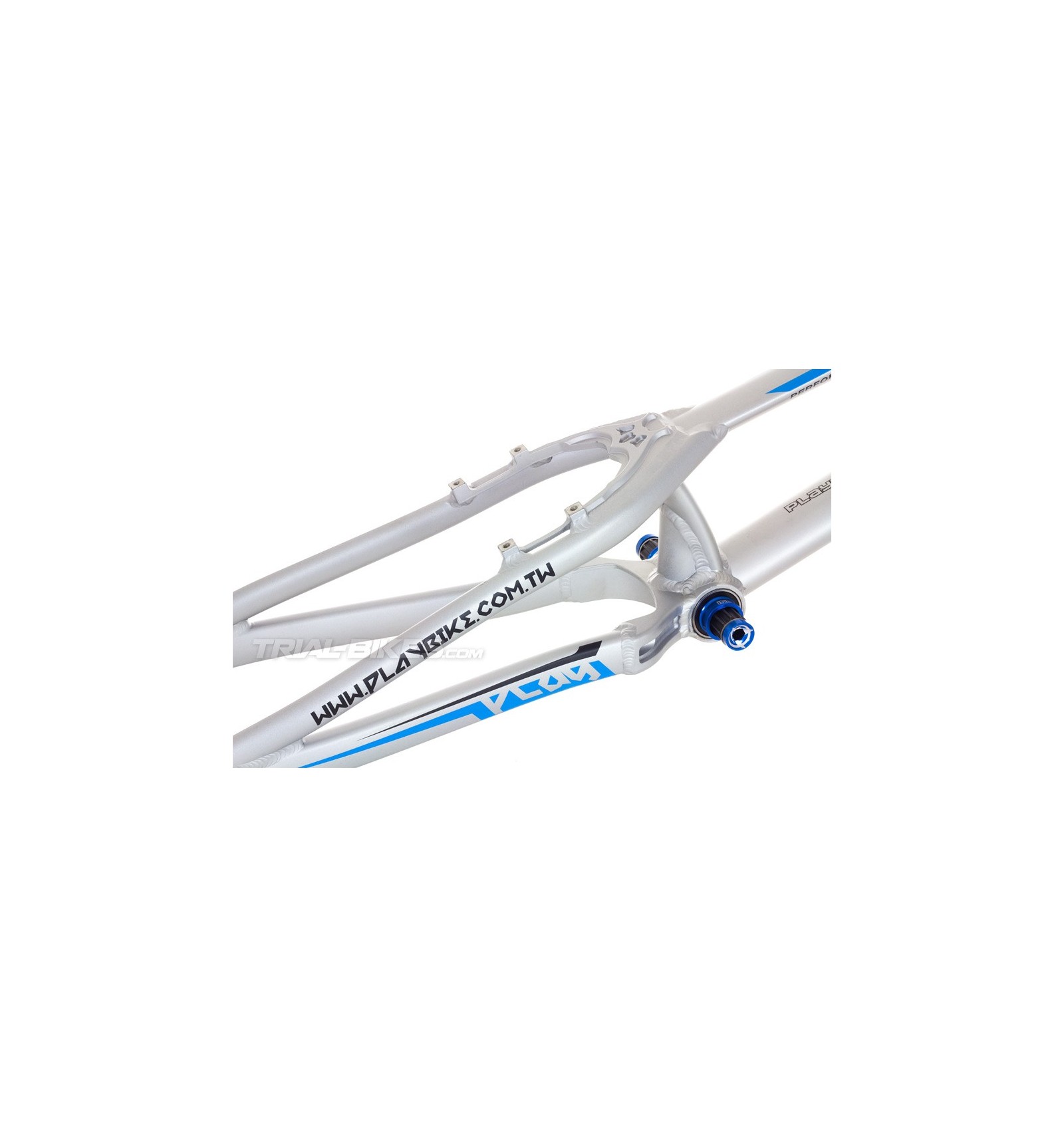

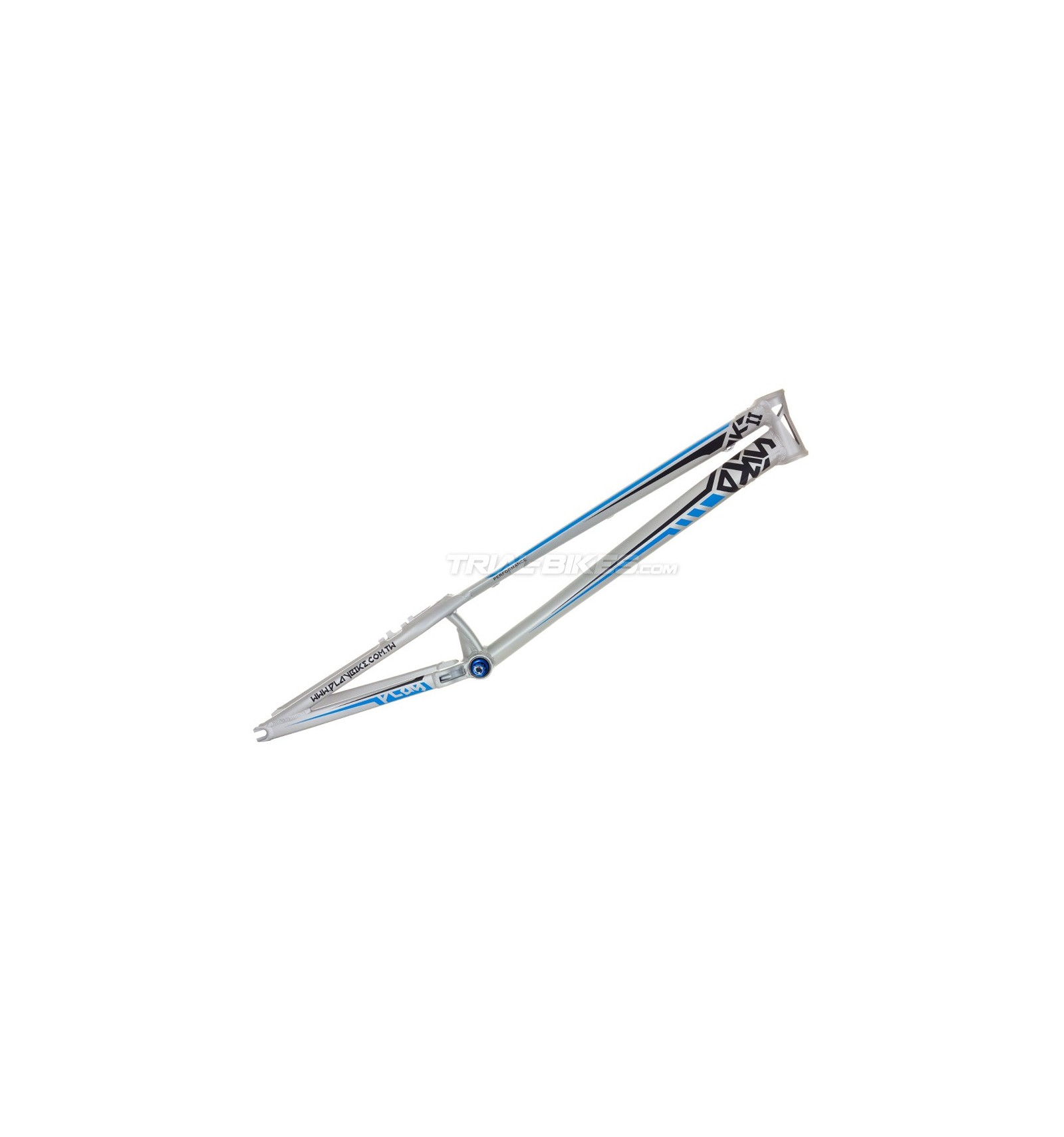

- High quality finishes, in matt black with white and blue Play graphics or silver with black and blue Play graphics.

Geometry
- Space between dropouts: 135mm
- Bottom bracket shell: 68mm (for 127mm bottom brackets)
- Head tube: 120mm, 1 1/8’’ (for internal headsets)

- Wheelbase: 1055mm
- Chainstay Length: 360mm
- BB Rise: +70mm
- Head Angle: 72º

Finishes
- Two finishes available: matt black with white and blue Play graphics or silver with black and blue Play graphics.

Weight
- 1.610kg frame only. 1.858kg complete  kit (Steel bottom bracket, including bolts and washers: 248.1g)

Additional information
This frame comes with a 6 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
