Description and materials

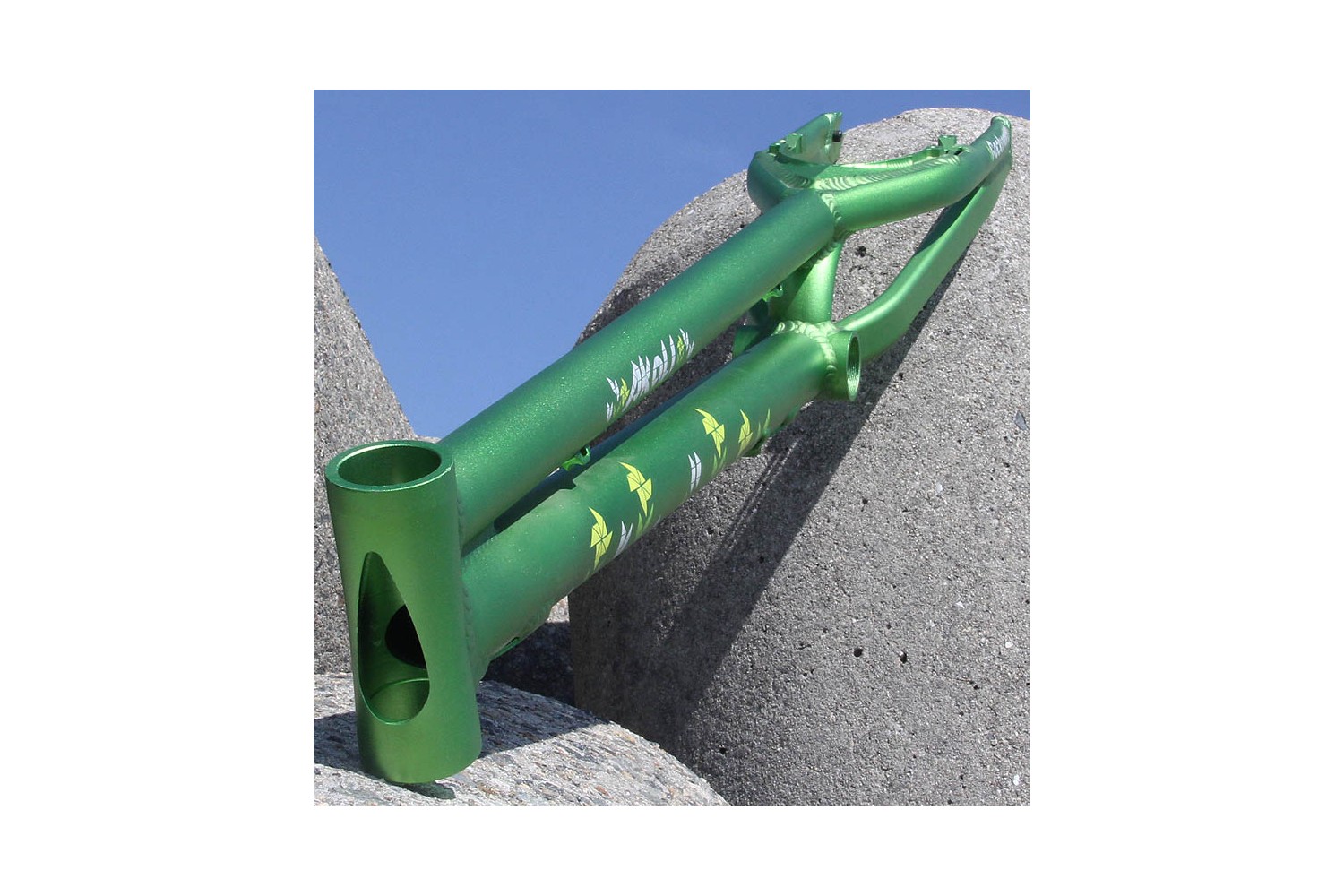

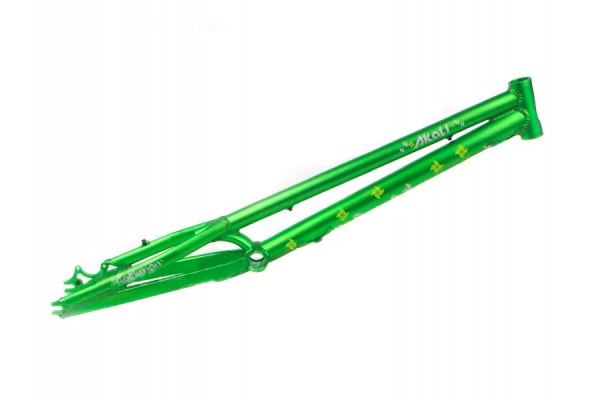

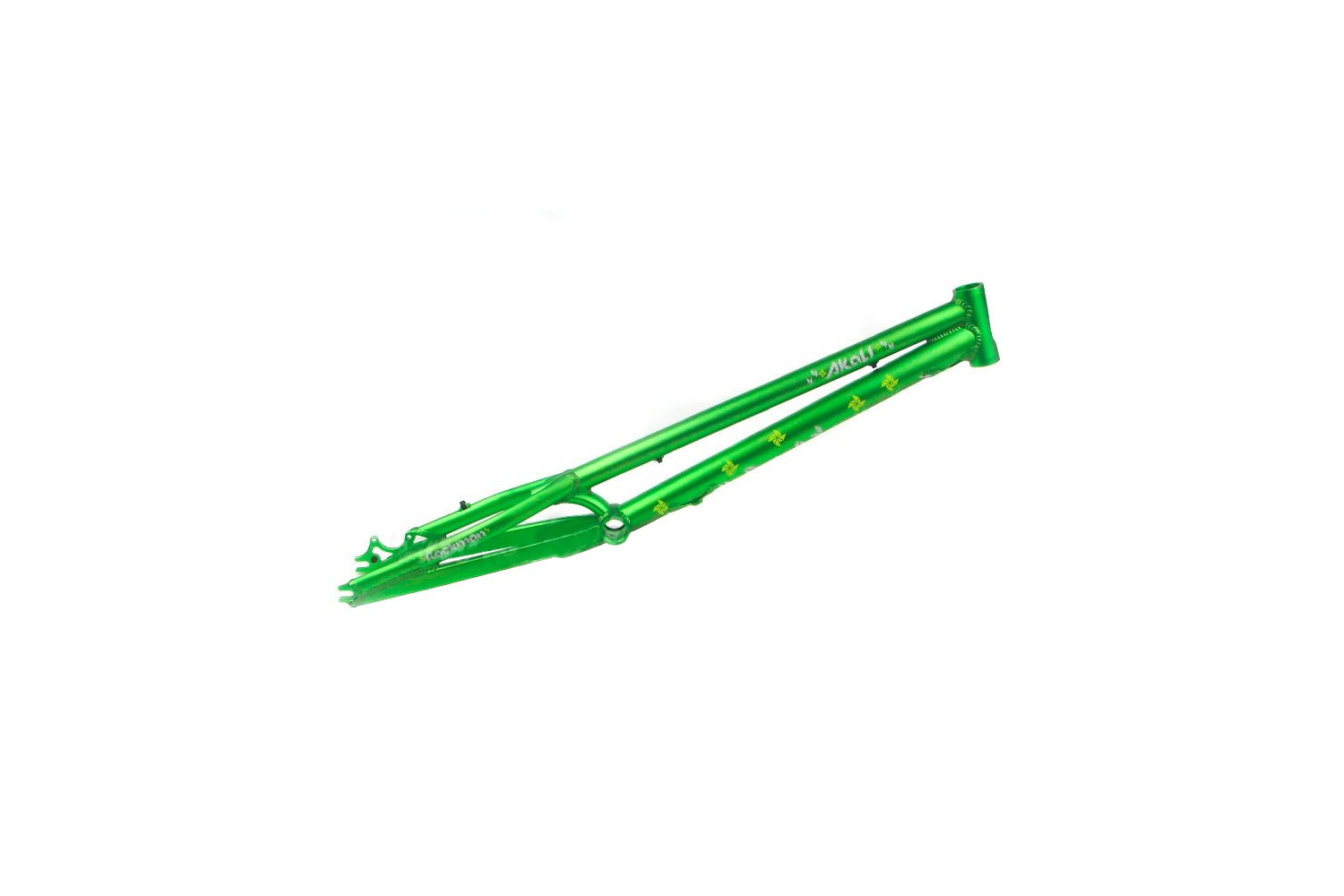

- New Rockman Akali 20" disc frame, with an exclusive design and stunning finish.
- Made from U6 aluminium, the lightest and toughest available.

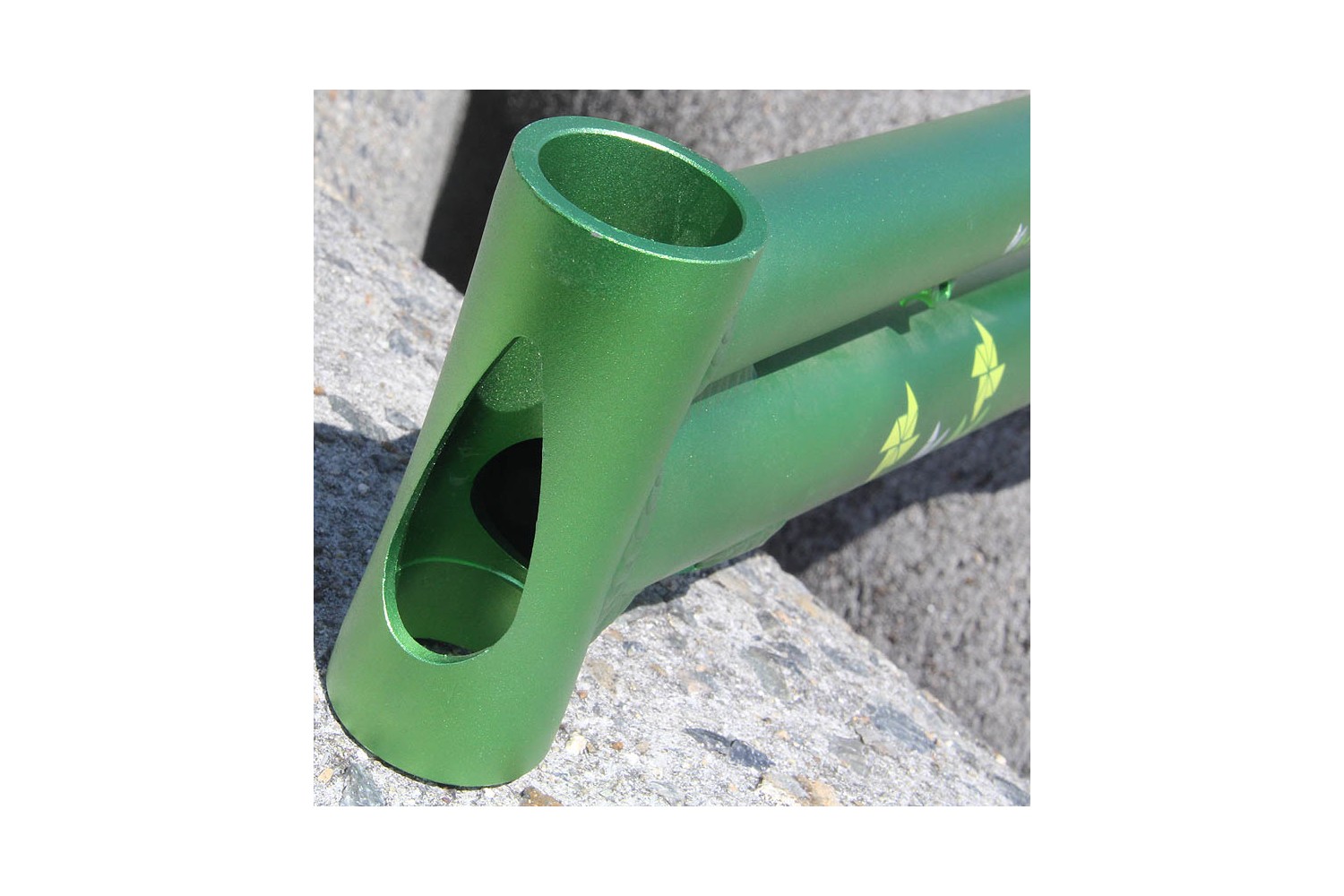

- Hole in the front of the headtube with an innovative shape, to save weight to the maximum
- CNC mechanized international standard 160mm disc mount.
- Re-designed tubing thickness keeps the weight down, to 1,370kg.
Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 115mm, 1 1/8"
- Wheelbase: 1035mm
- Chainstay Length: 375mm
- BB Rise: 85mm
- Head Angle: 71,5º
Finishes
- Anodised green.

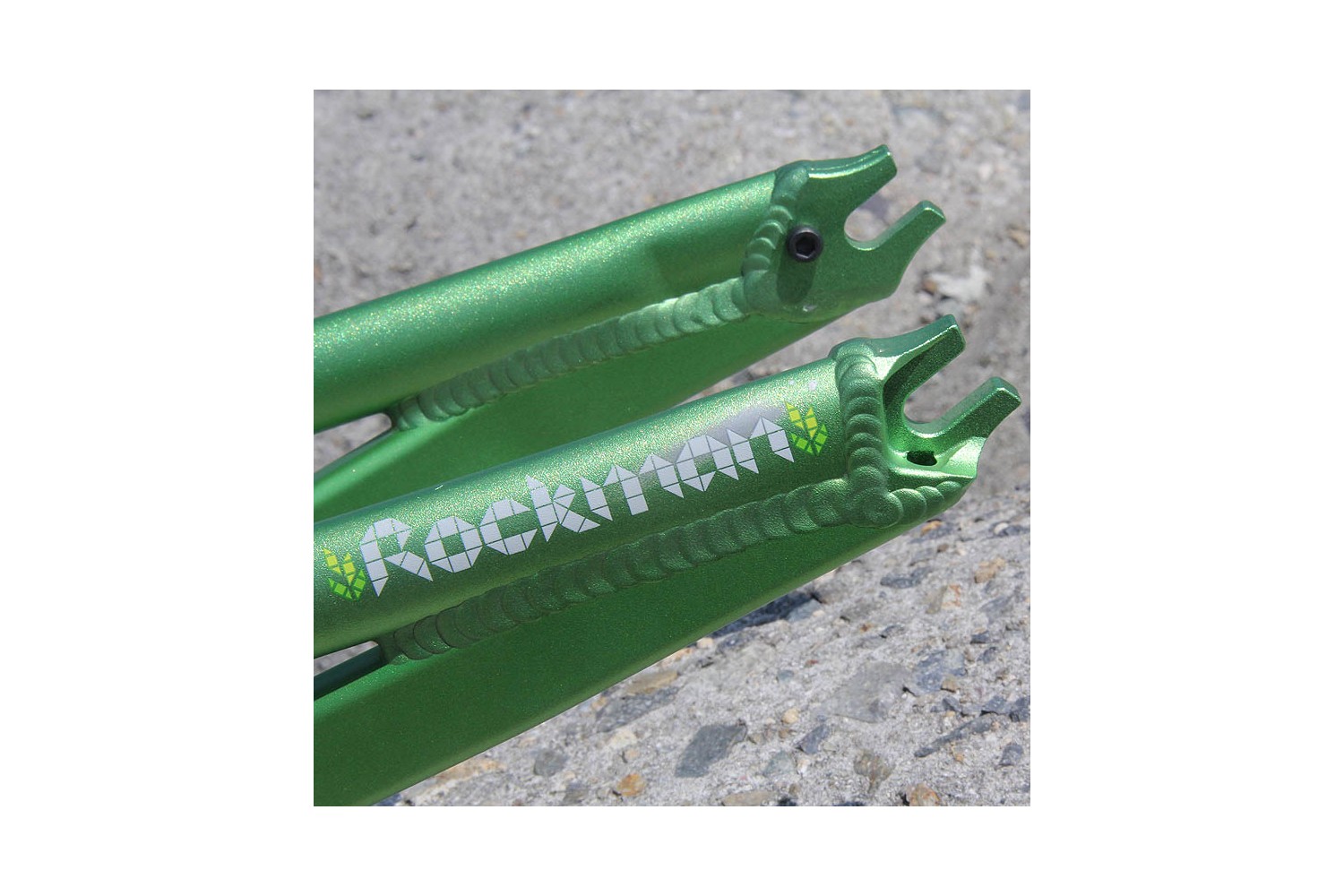

- White Rockman graphics.
Weight
- 1367g
Additional information
 This frame comes with a 3 month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
Â
Bashplate not included. Either the Ozonys, Echo Sl, Echo Tr, Echo Lite, or Koxx XTP models will fit.
 If you have any doubts, please contact us on info@trial-bikes.com .
| WEIGHT | 1.360 |
| BRAKE MOUNTS | IS Disc |
| BRAKE MOUNTS | HS |
| TYPE OF HEADSET | Standard 1 1/8" |
