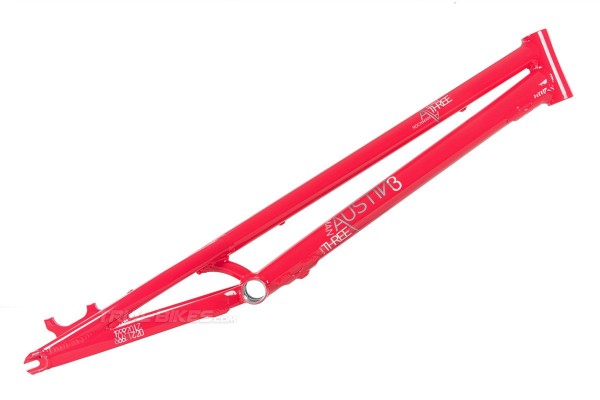

Rockman Austin V3 20” Frame

 Description and materials
- New edition of the popular Rockman Austin 20” frame for the 2015 season.
- This is the V3 version, that features a new geometry and thicker tubing to improve strength and stiffness.
- The Austin frame is based around the Manus and Flint models, but with a minimalistic, simpler approach that allows for a low-cost frame.
- Made from high quality 6061-T6 aluminium alloy.
- Exclusive bashplate design requires the use of a Rockman PVC bashplate.

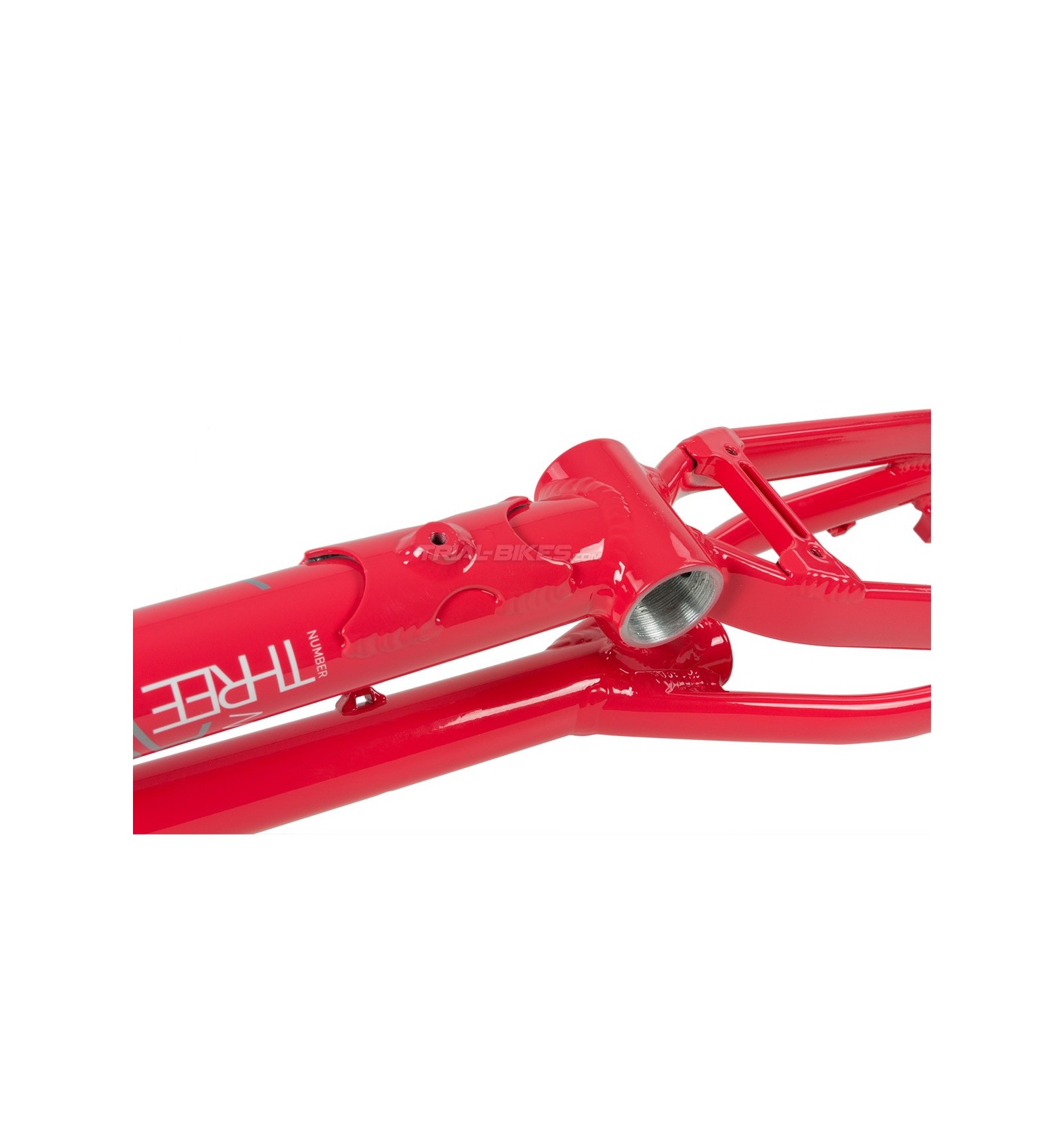

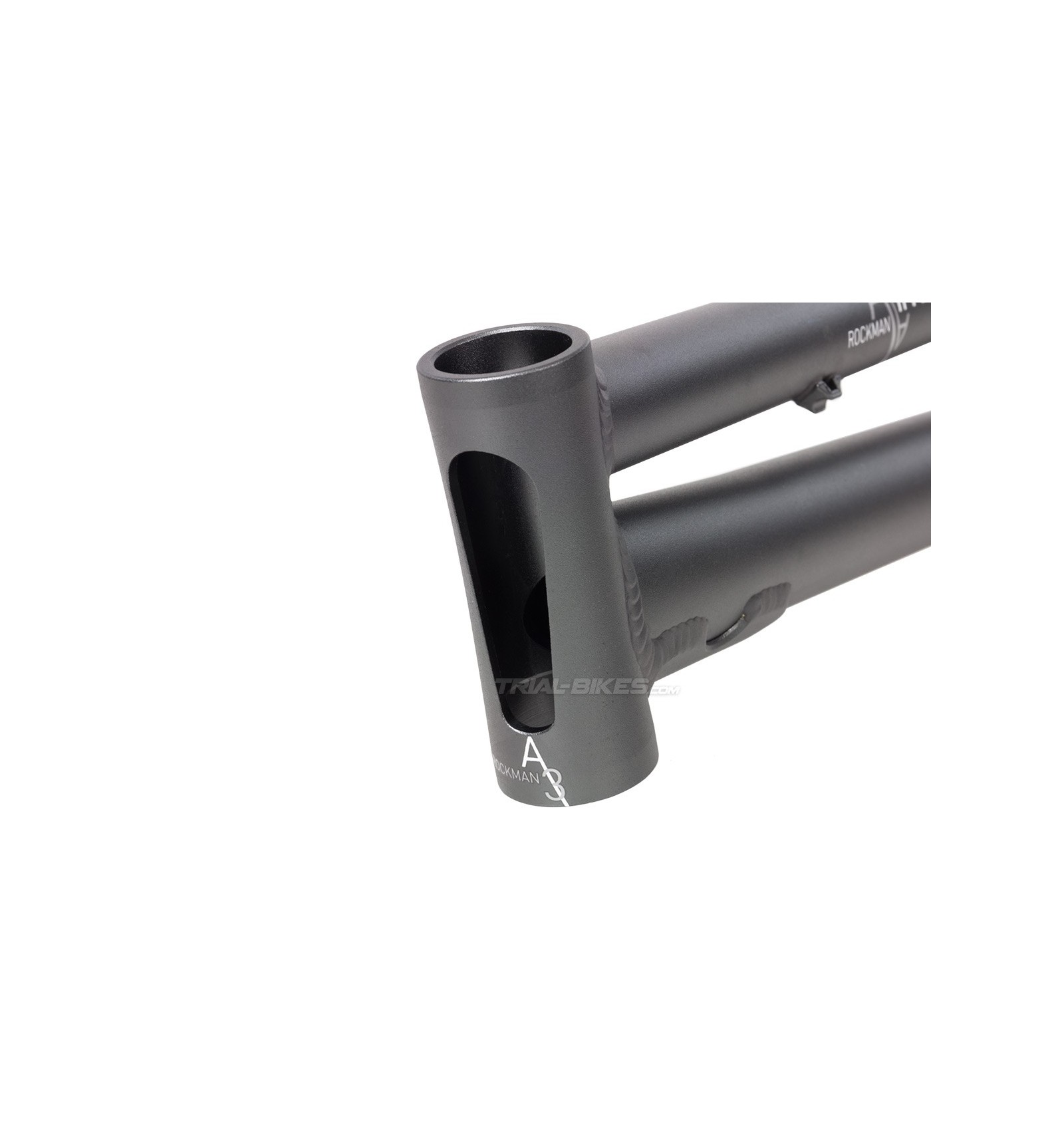

- Innovative head tube hole helps save some unnecessary weight.
- 1 1/8” head tube (for standard headsets), 115mm long, gusseted to the down tube to improve the front-end stiffness.

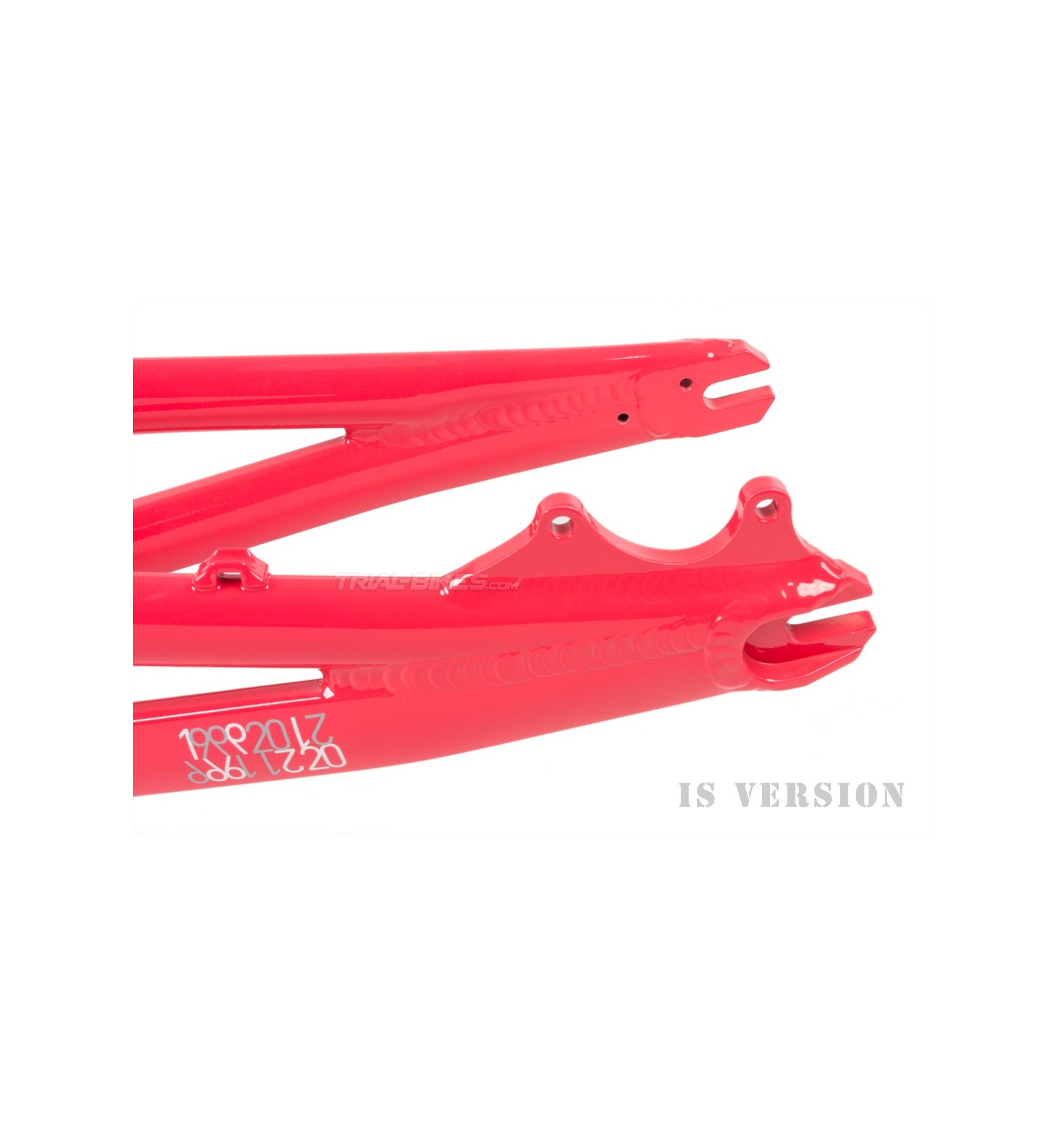

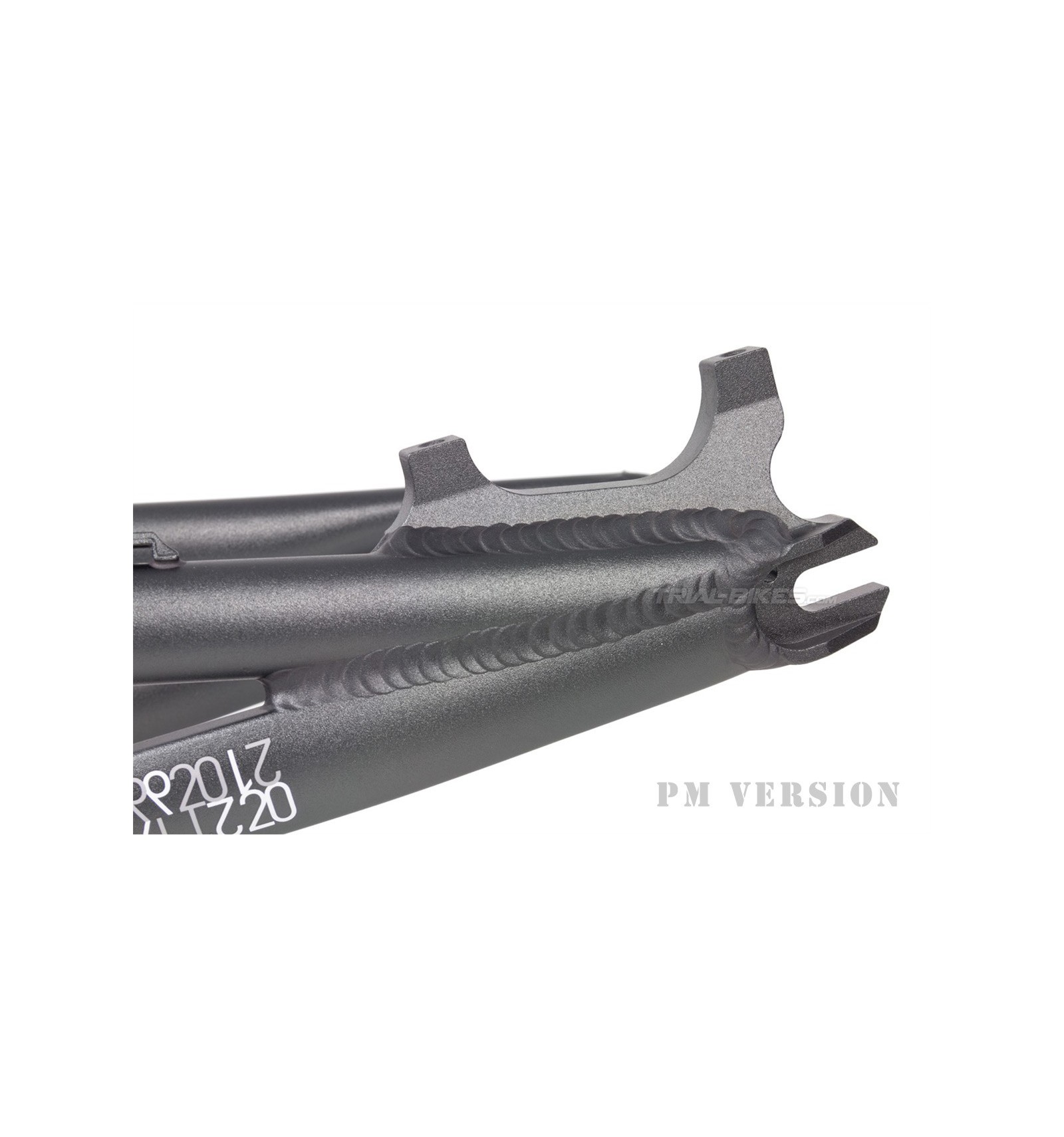

- CNC-machined dropouts, spaced at 116mm, now with a neater, cleaner design, for using with snail cams.

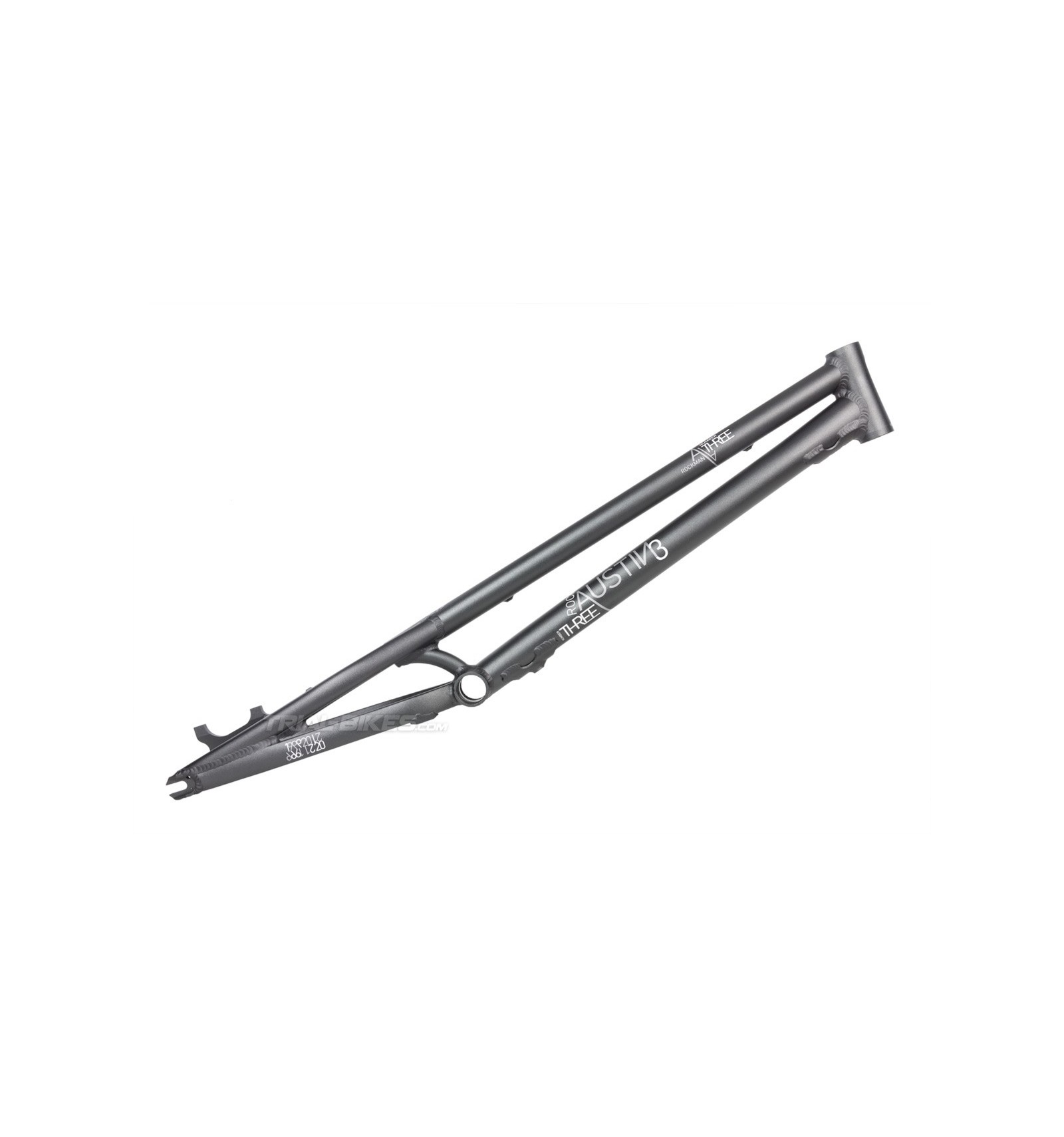

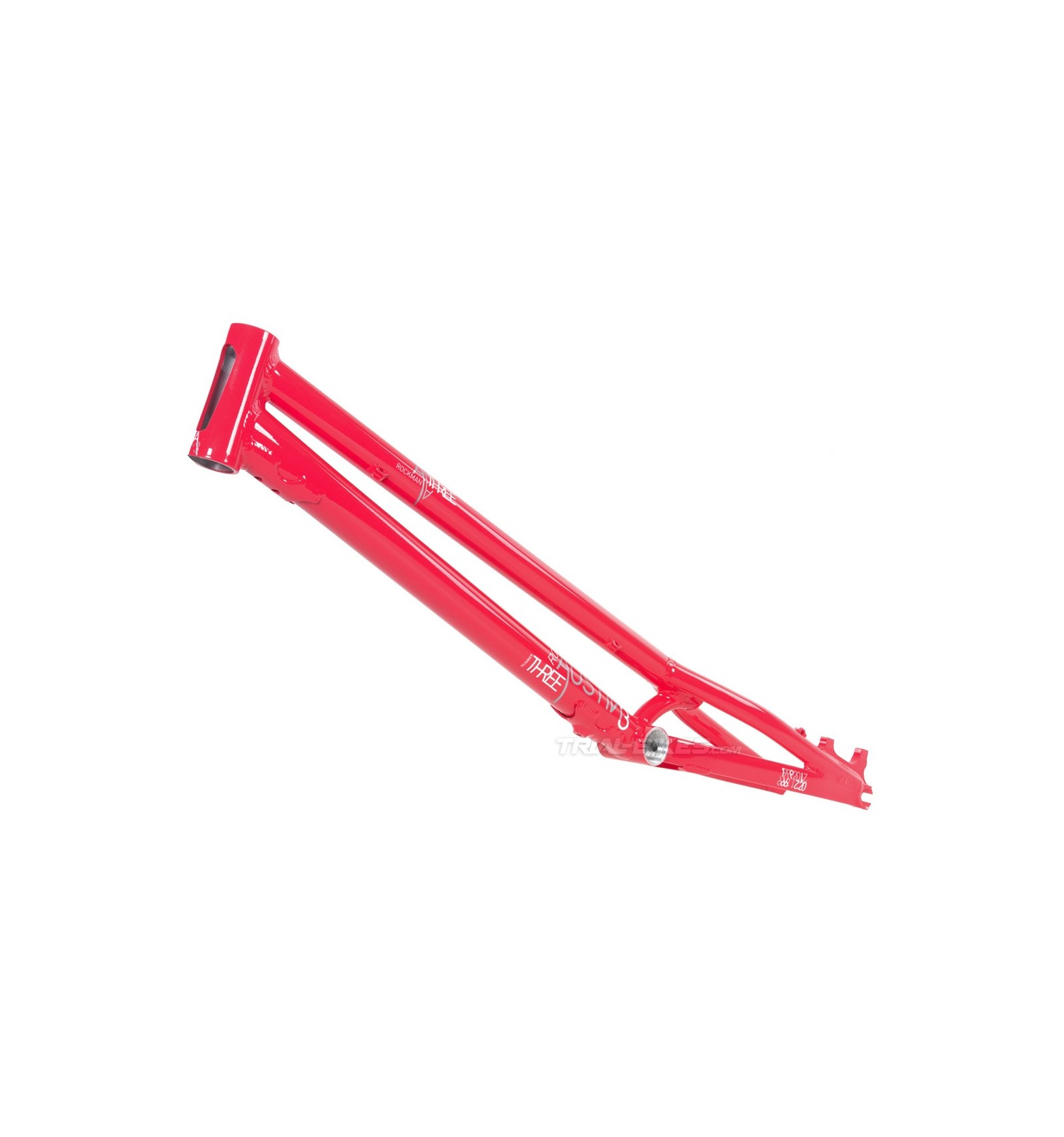

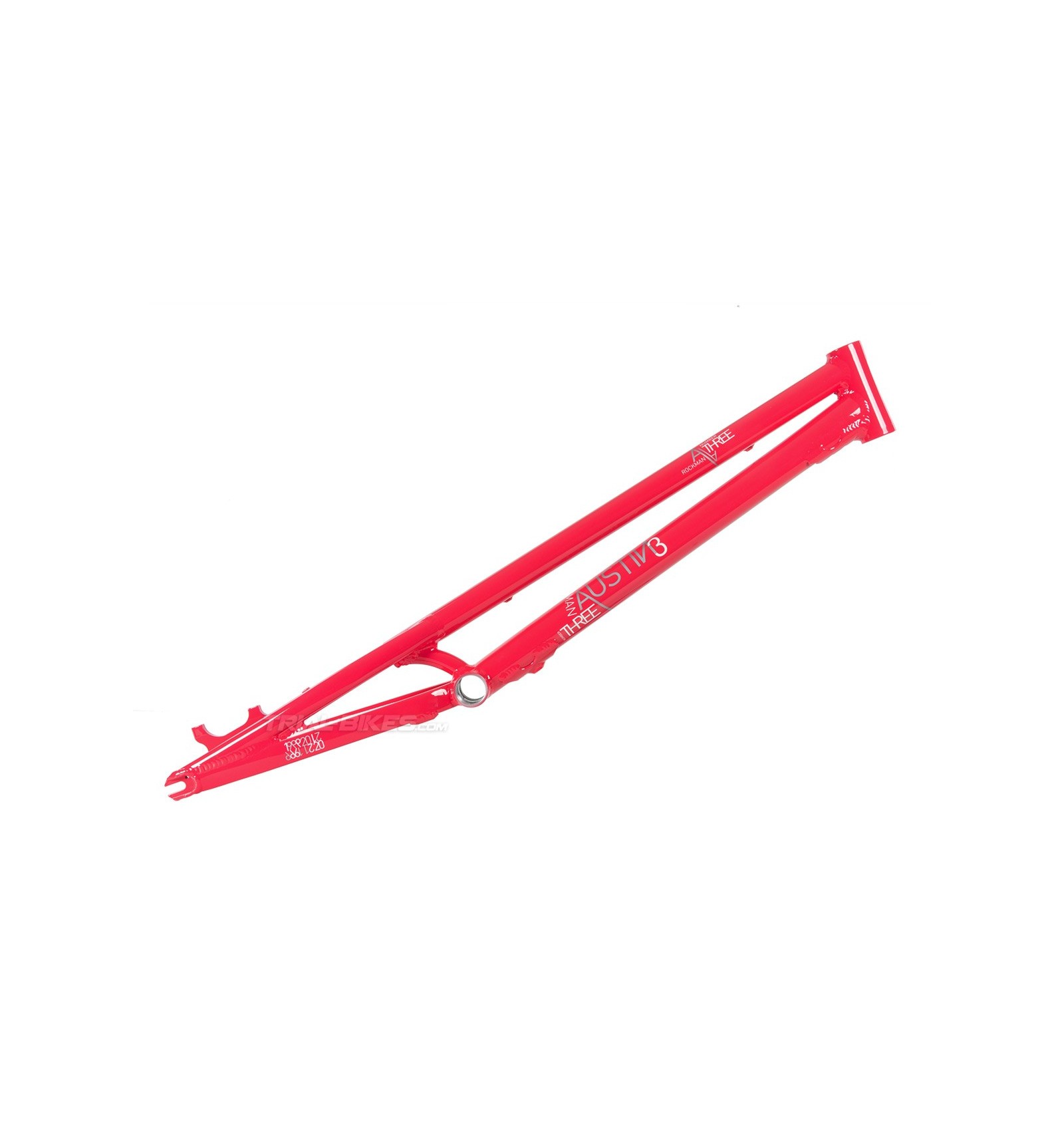

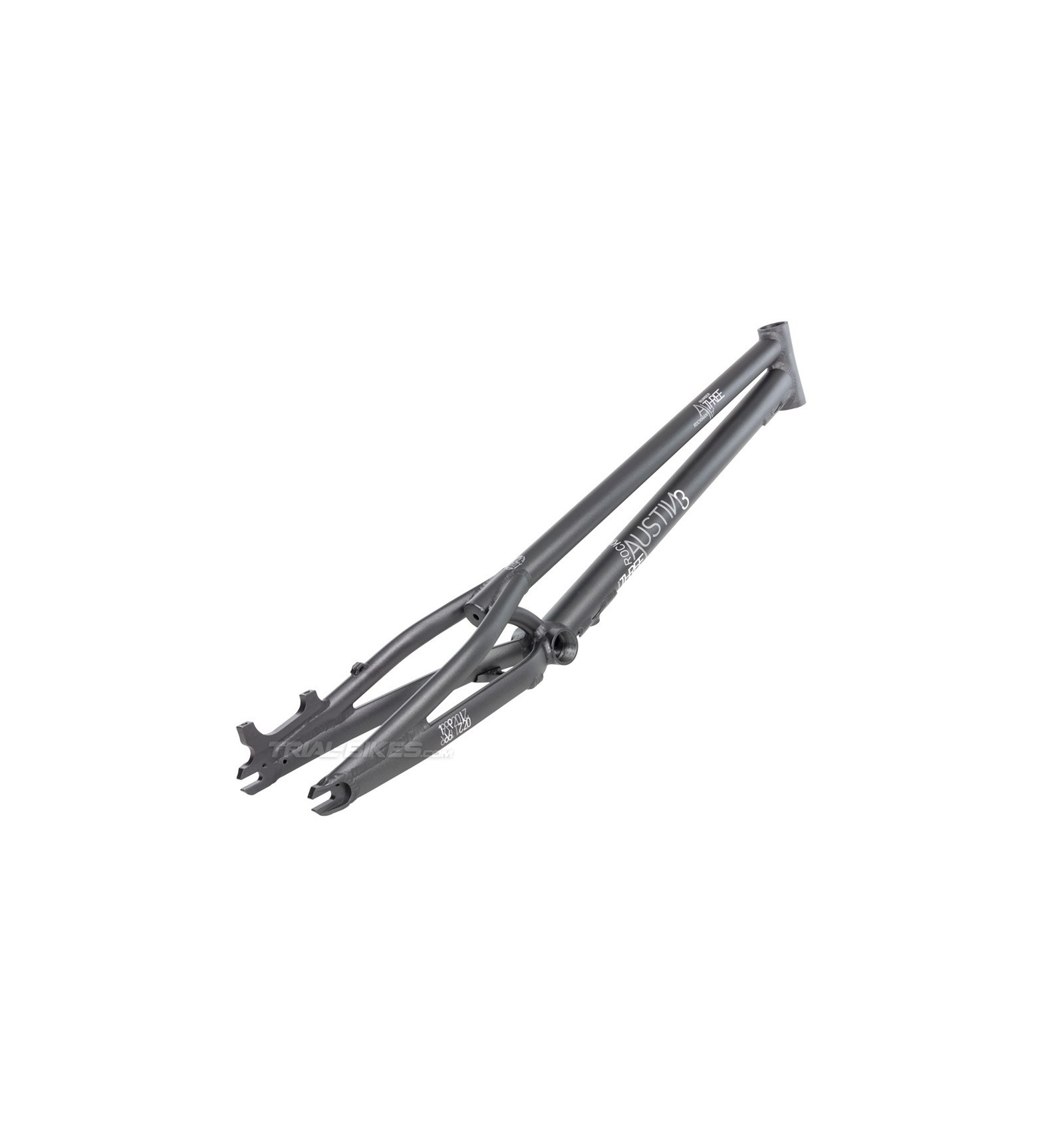

- Available in dark grey or bright red finish, with white Rockman Austin V3 graphics.

Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 115mm, 1 1/8”

- Wheelbase: 990mm
- Chainstay Length: 350mm
- BB Rise: 85mm
- Head Angle: 72.5º

Finishes
- Available in dark grey or bright red finish, with white Rockman Austin V3 graphics.

Weight
- 1460g

Additional information
Does not include a bashplate. A Rockman PVC bashplate must be used.

If you have any doubts regarding this issue, don’t hesitate to ask.
