Rockman Manus 3 20" Frame

Rockman Manus 3 20" Frame

Description and materials

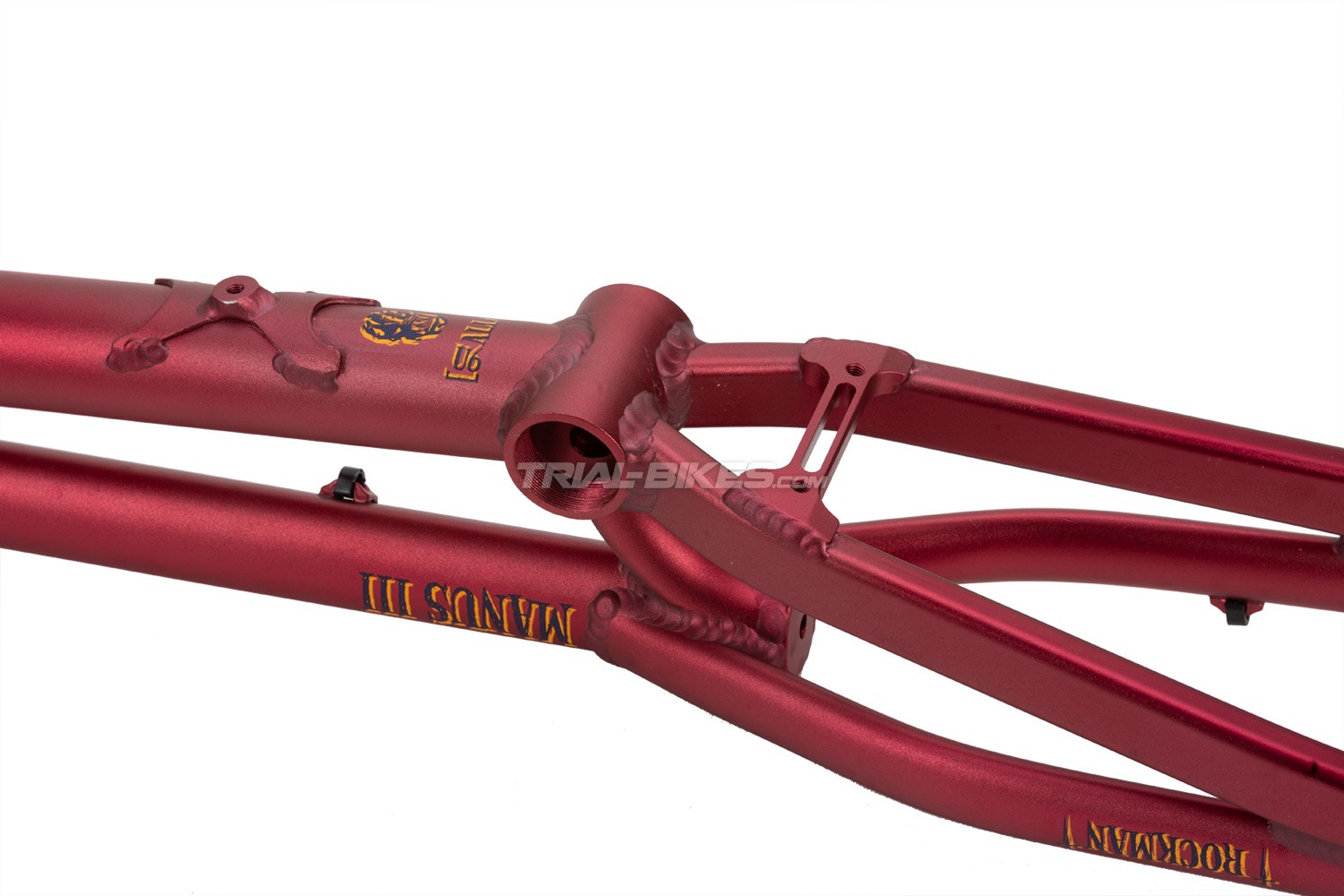

- New Rockman Manus V3 20" disc frame, with an exclusive design and stunning finish.
- Made from U6 aluminium, the lightest and toughest available.
- 1 1/8” head tube (for standard headsets), 110mm long, gusseted to the down tube to improve the front-end stiffness.

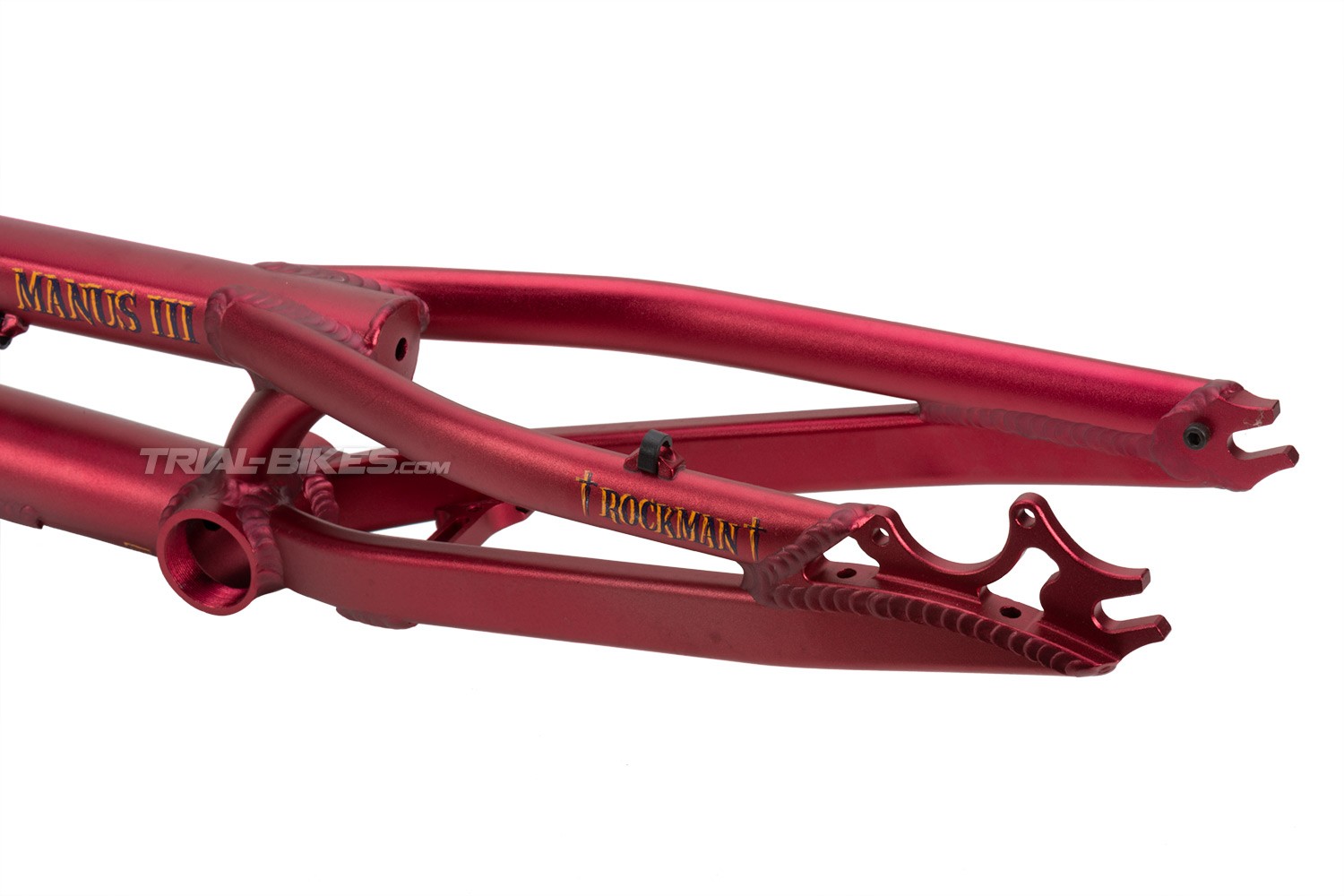

- CNC-machined dropouts, spaced at 116mm, now with a neater, cleaner design, for using with snail cams.
- CNC mechanized international standard 160mm disc mount.
- Re-designed tubing thickness keeps the weight down, to 1,211kg.

Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 110mm, 1 1/8"

- Wheelbase: 1005mm
- Chainstay Length: 350mm
- BB Rise: 90mm
- Head Angle: 71.5º

Finishes

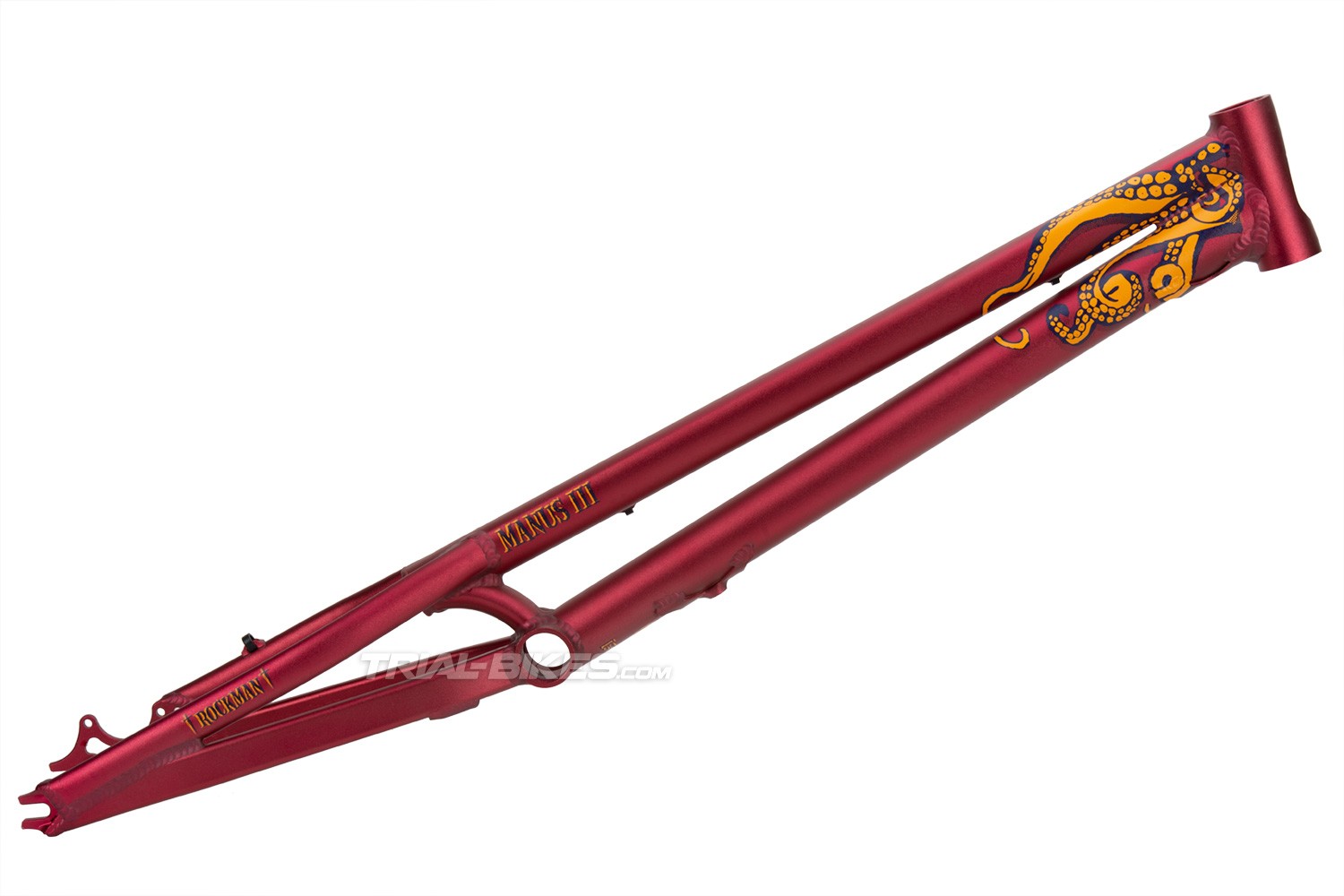

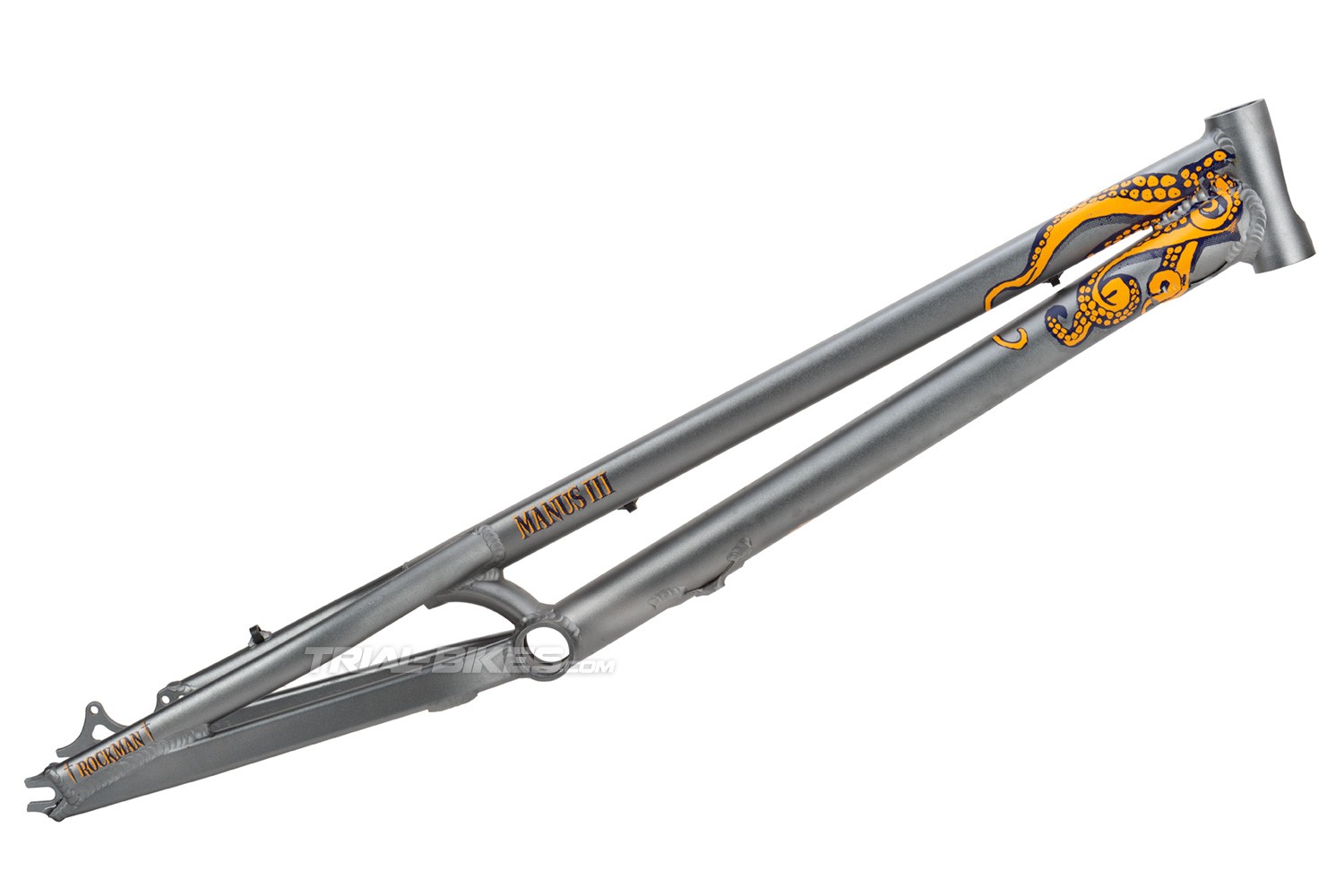

- Anodised red and grey.
- Yellow Rockman graphics.

Weight
- 1211g

Additional information
This frame comes with a 3 month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.

Bashplate not included. Either the Ozonys, Echo Sl, Echo Tr, Echo Lite, or Koxx XTP models will fit, and all bashplates with horizontal rear fixing with a length between front and rear hole of 198mm.

If you have any doubts, please contact us on info@trial-bikes.com .
