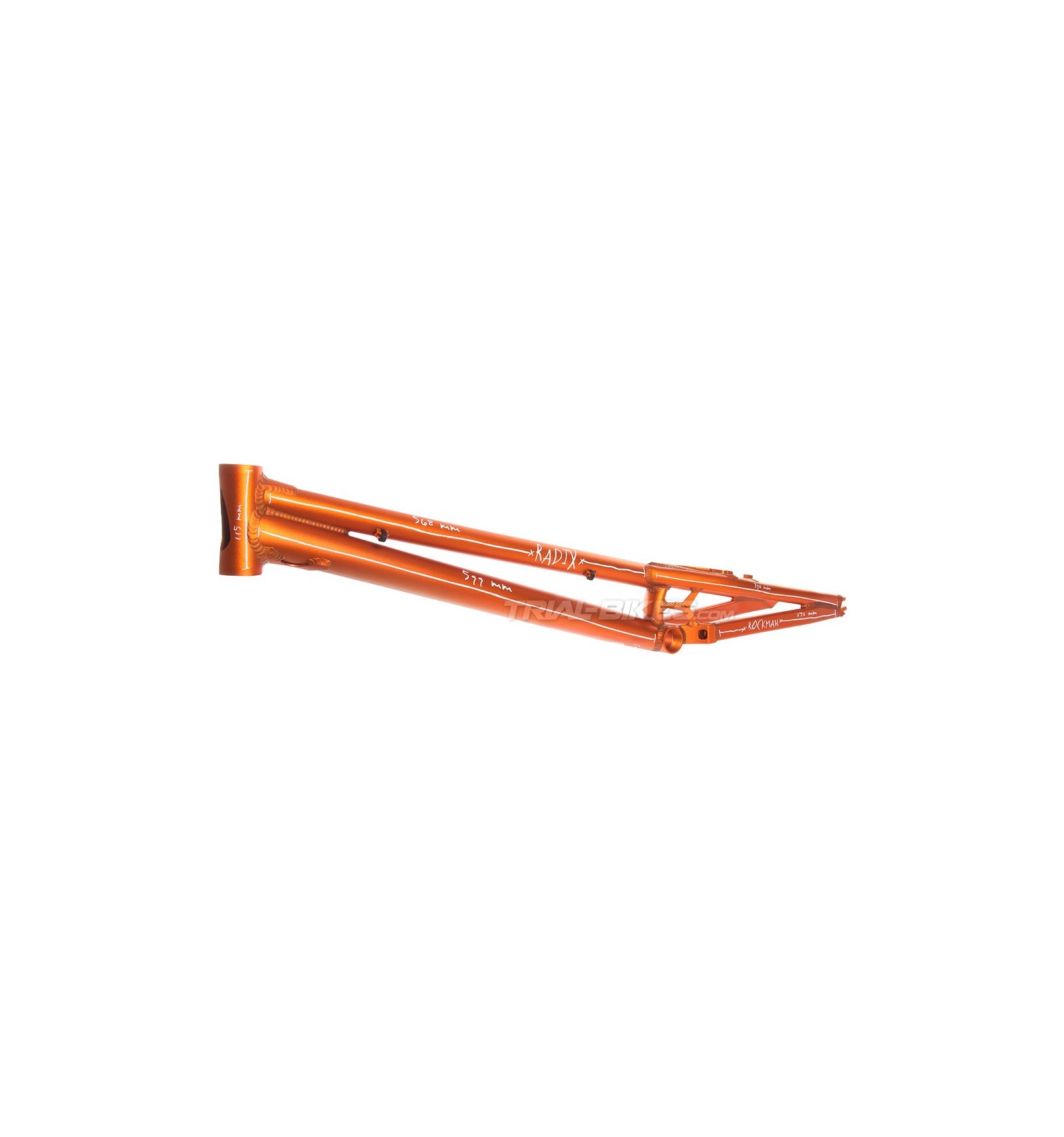

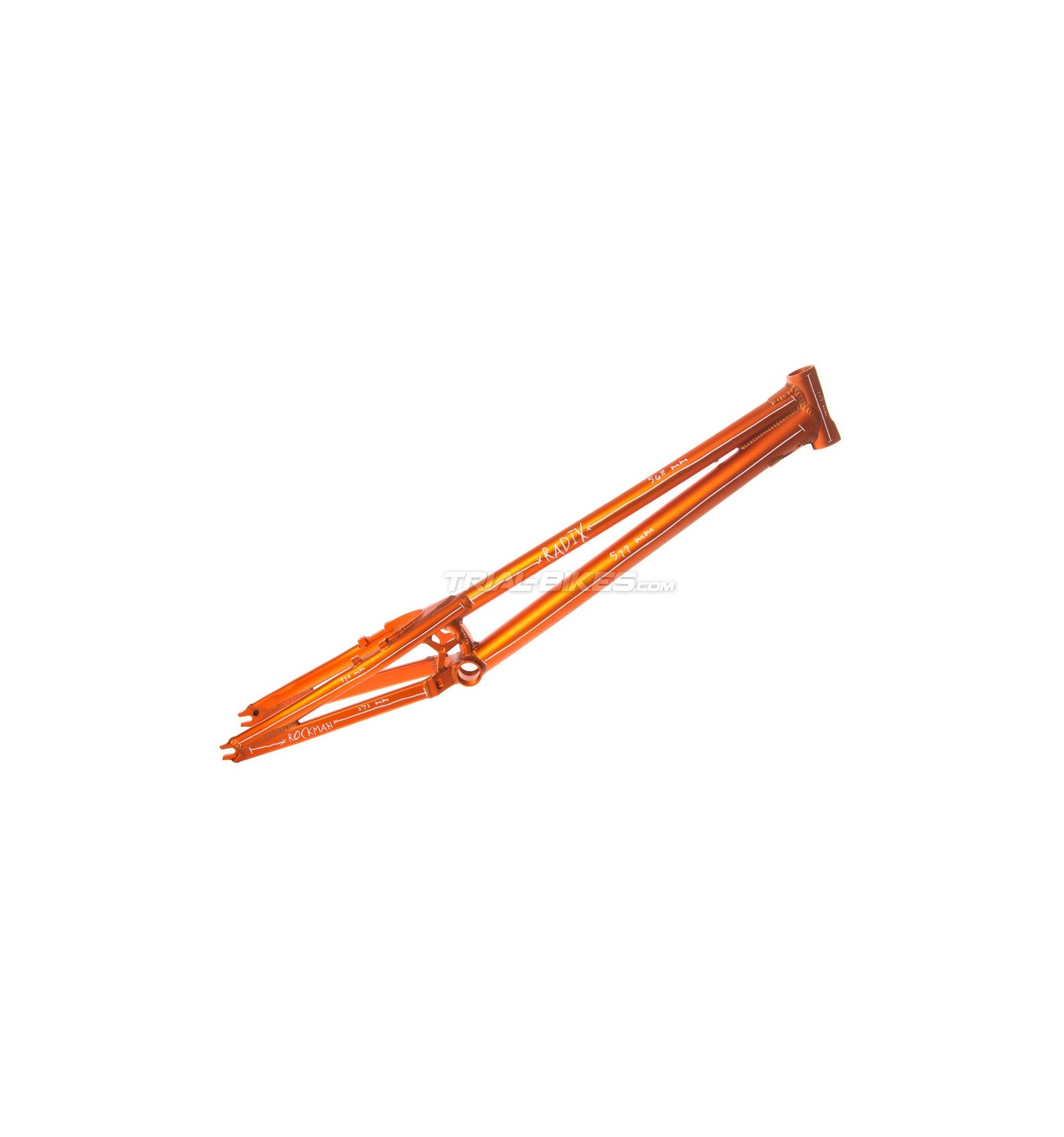

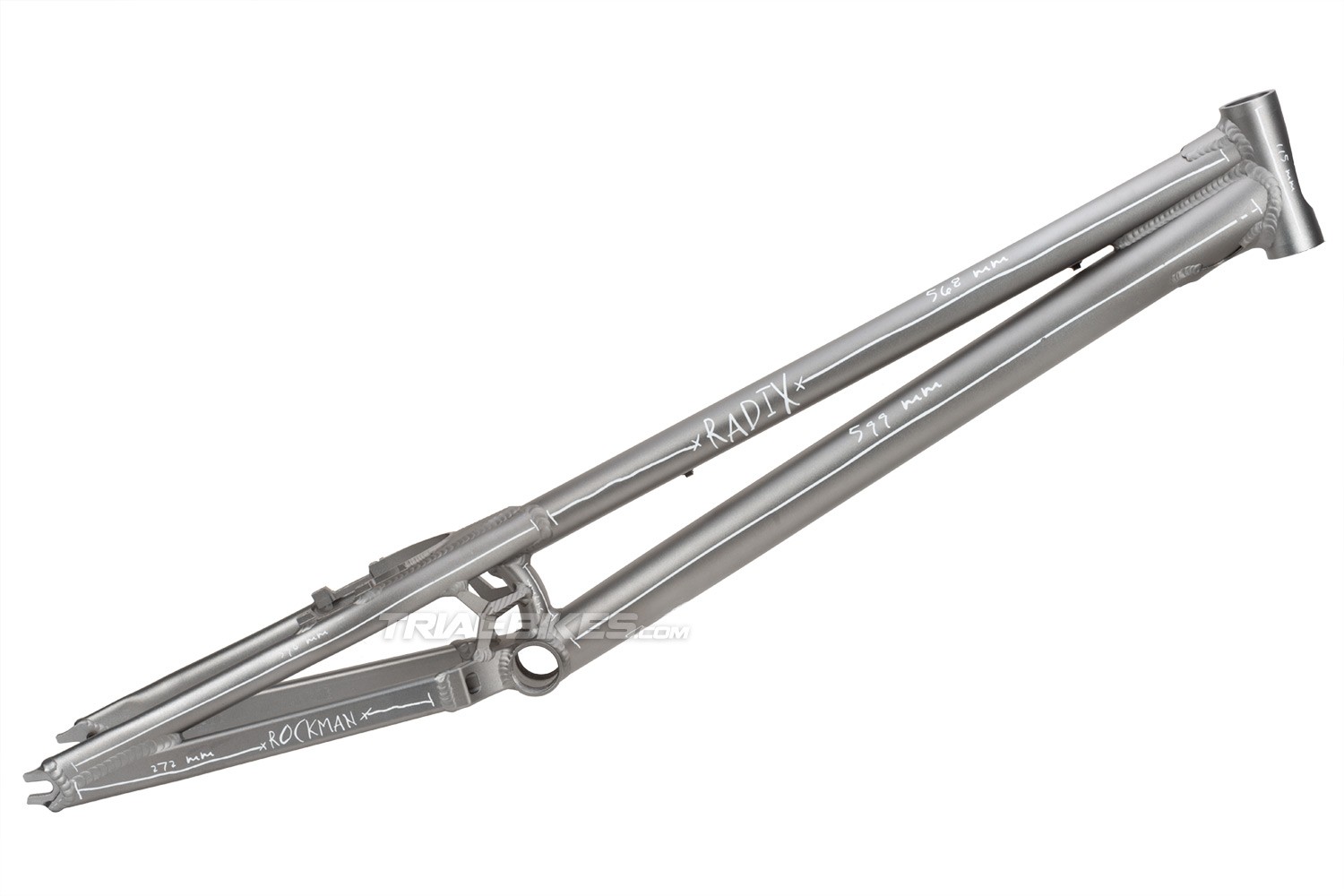

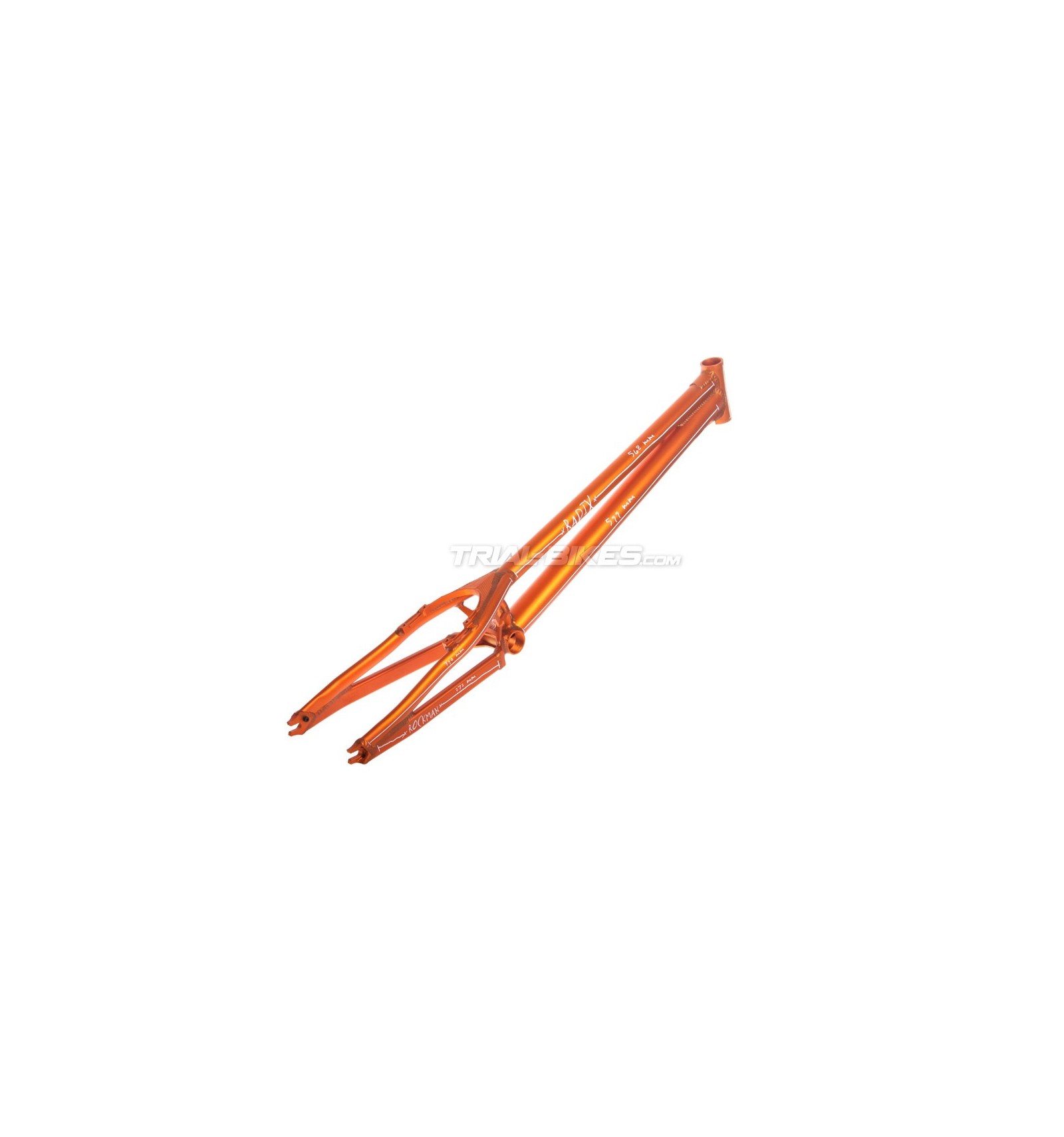

Rockman Radix 24'' Frame

Description and materials
- New Rockman Radix 24" frame for 2013.
- This new frame has been designed with a completely new geometry, slightly competition-inspired.
- Made from high quality U6 aluminium.
- 4-bolt mounts spaced at 99mm, with built-in brake booster for a stiffer braking performance.

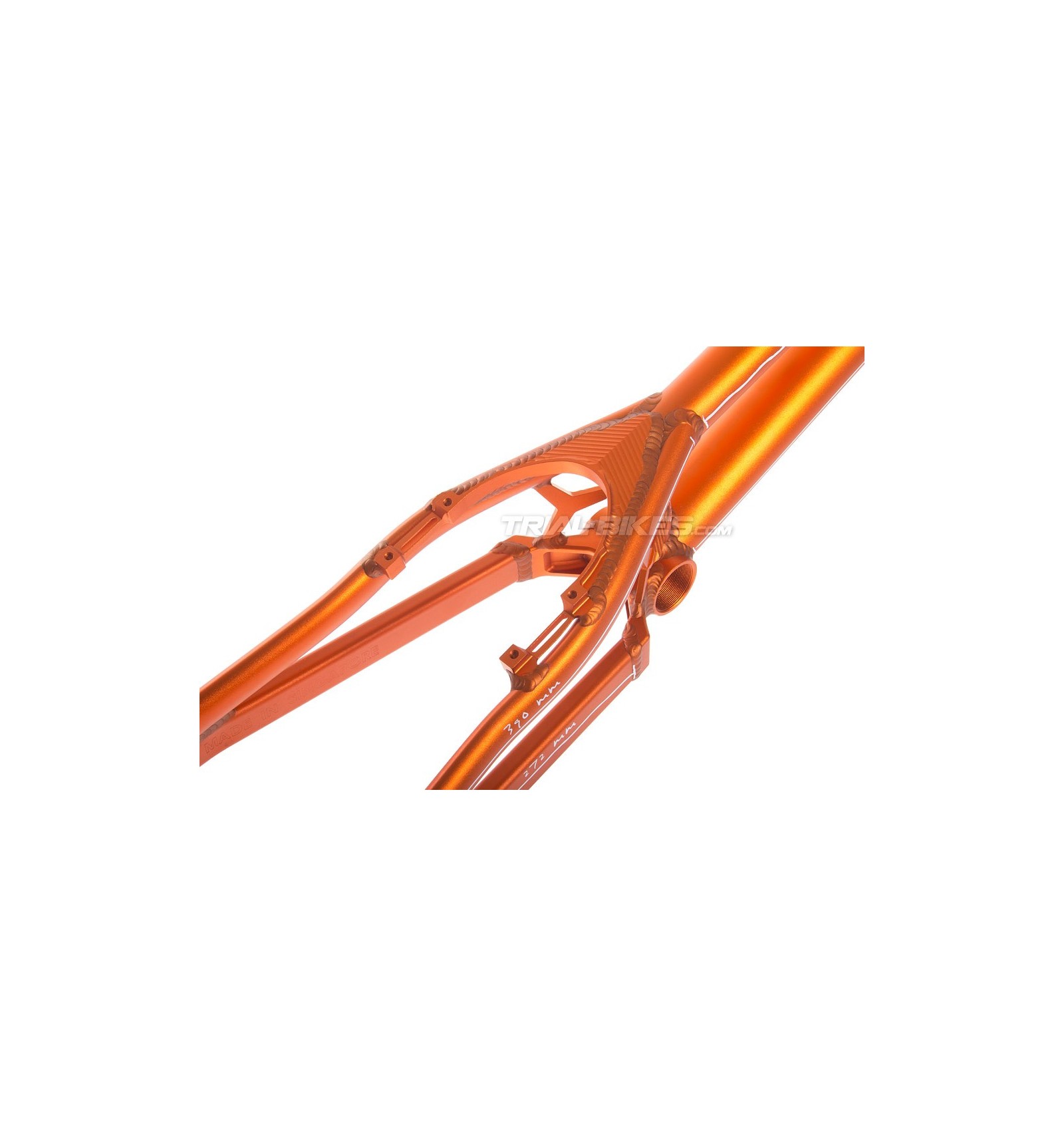

- A unique reinforcement gusset joins the seat tube to the chain and seat stays.
- 68mm bottom bracket shell is joined to the chain stays with a CNC-machined yoke, which provides more stiffness, strength and tyre clearance.
- Neat, clean-design dropouts spaced at 135mm (includes snail cam bolts).
- Anodized orange version, with cool graphics showing the frame tubes’ lengths.

Geometry
- Space between dropouts: 135mm
- Bottom bracket shell: 68mm

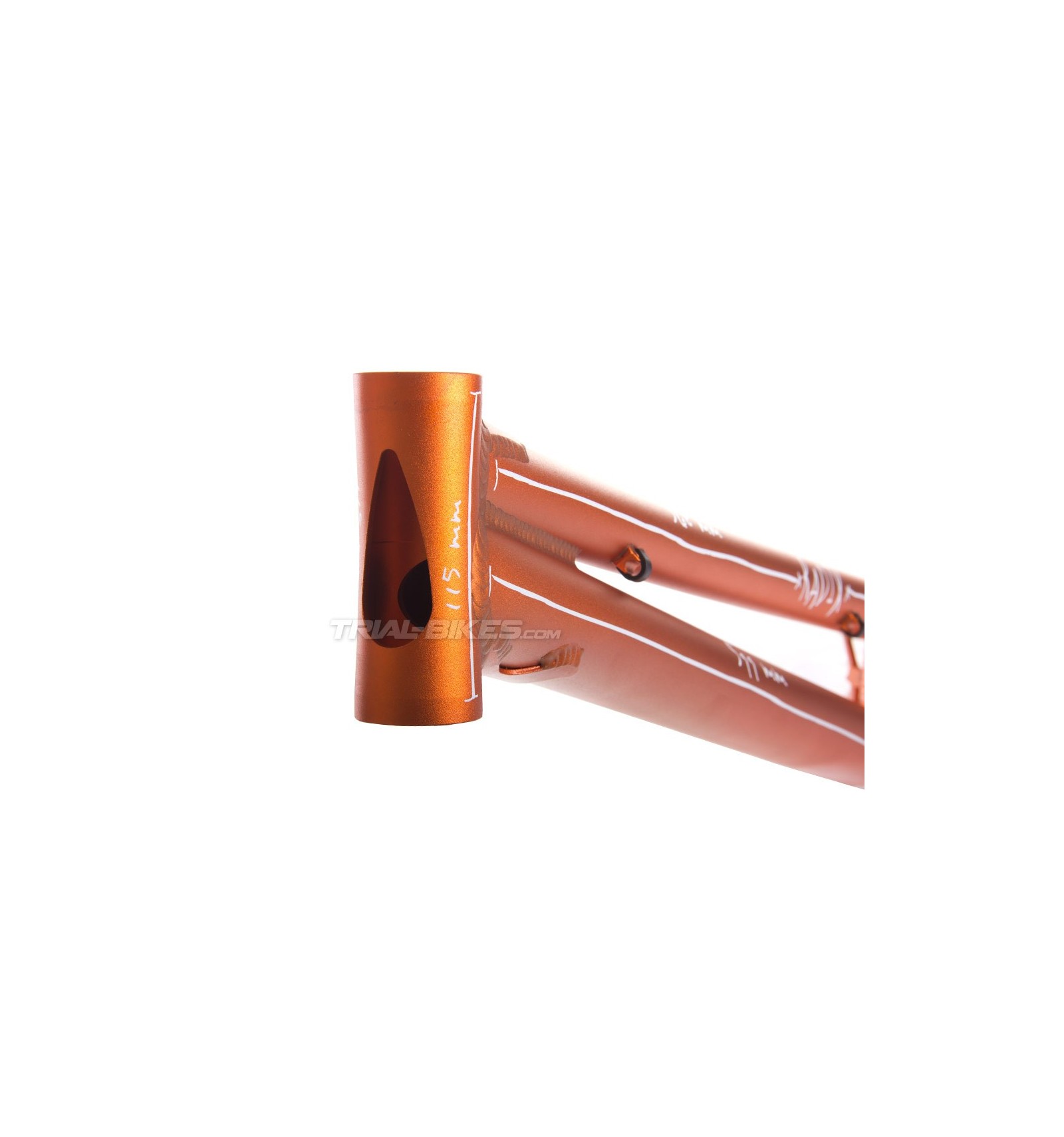

- Head tube: 115mm

- Wheelbase: 1075mm
- Chainstay Length: 368mm
- BB Rise: 88mm
- Head Angle: 71º

Finishes
- Anodized orange
- White Rockman logo with cool graphics showing the frame tubes’ lengths.

Weight
- 1430g

Additional information
 This frame comes with 6 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles will immediately void any guarantee claim.
