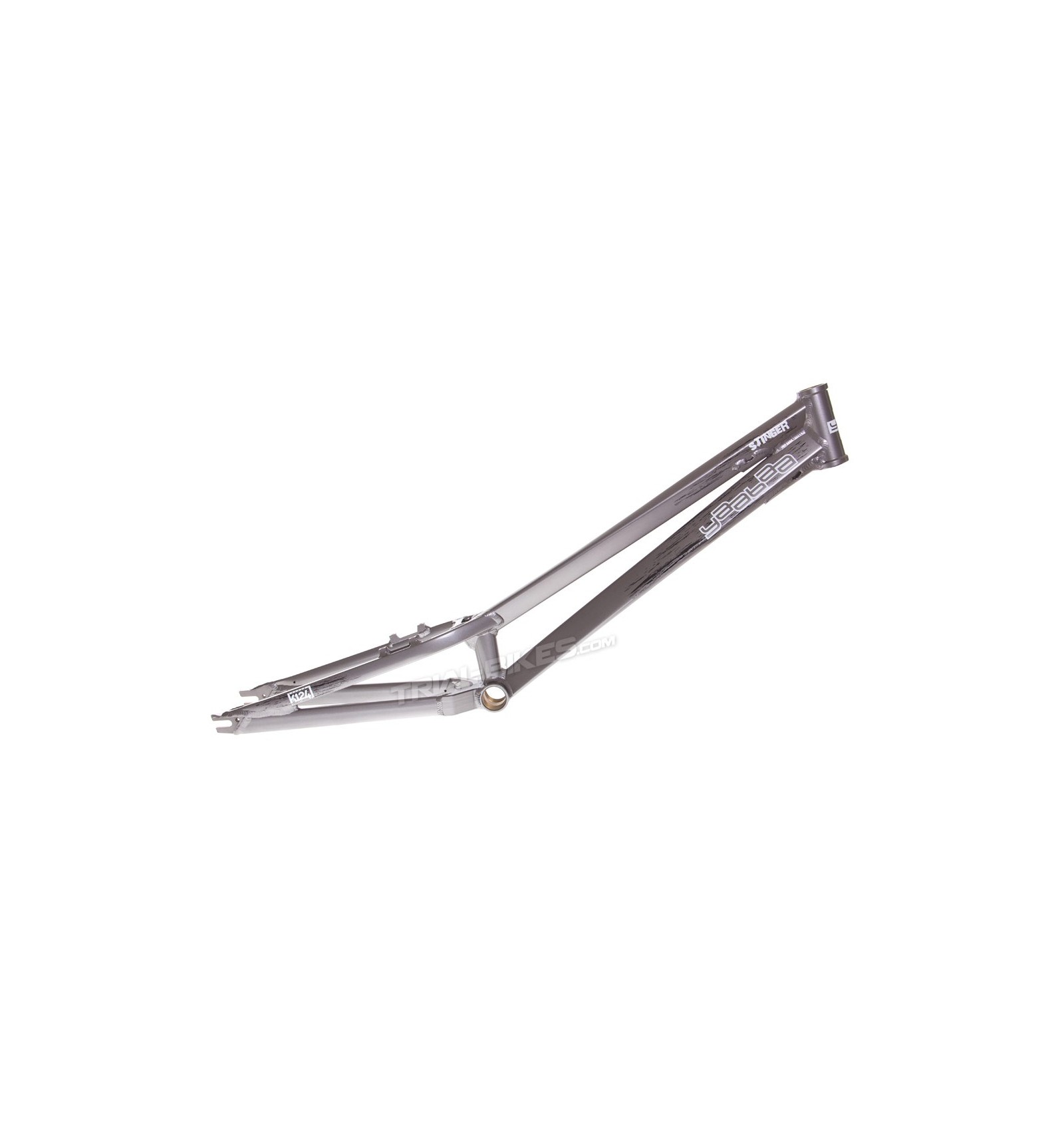

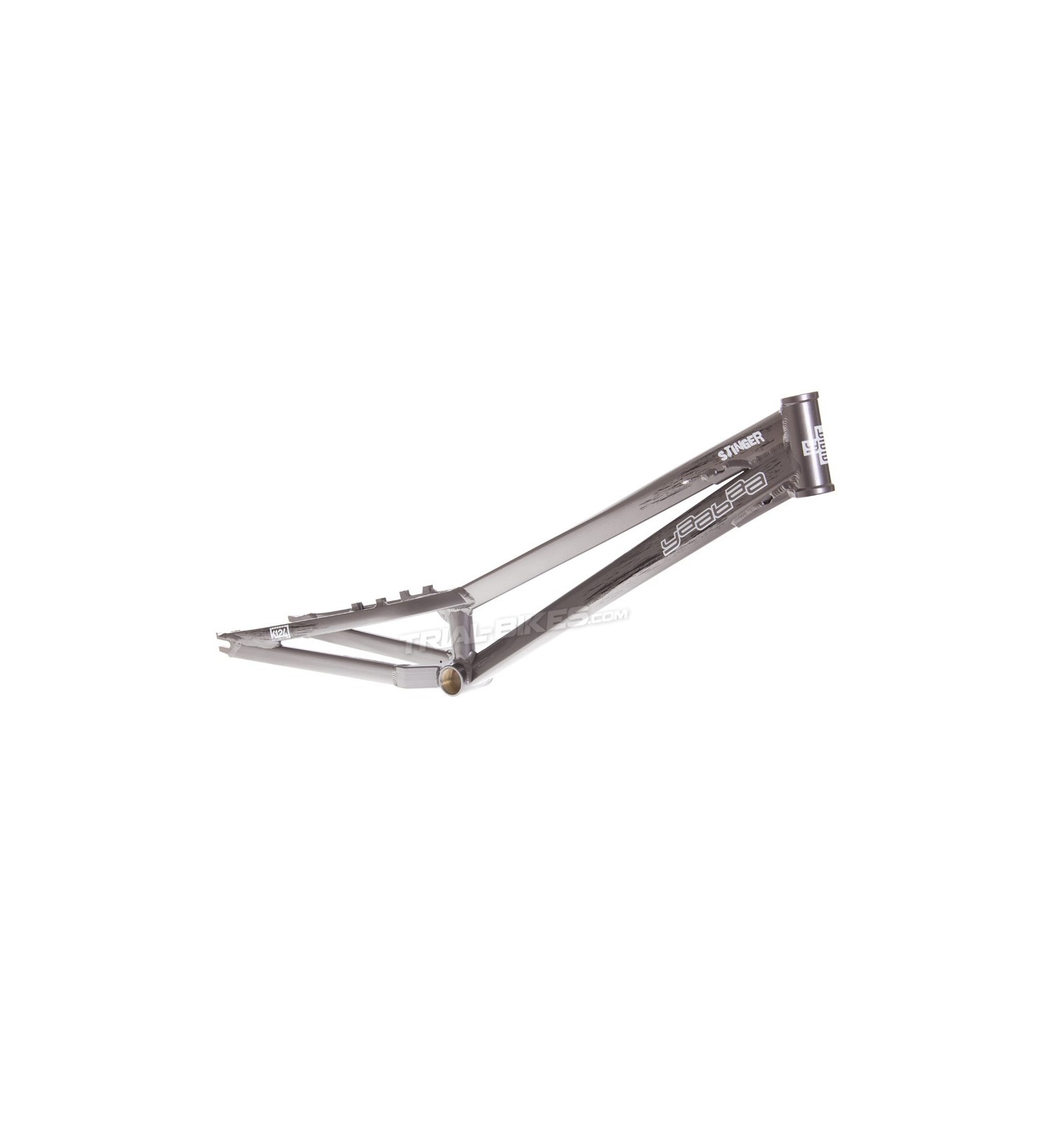

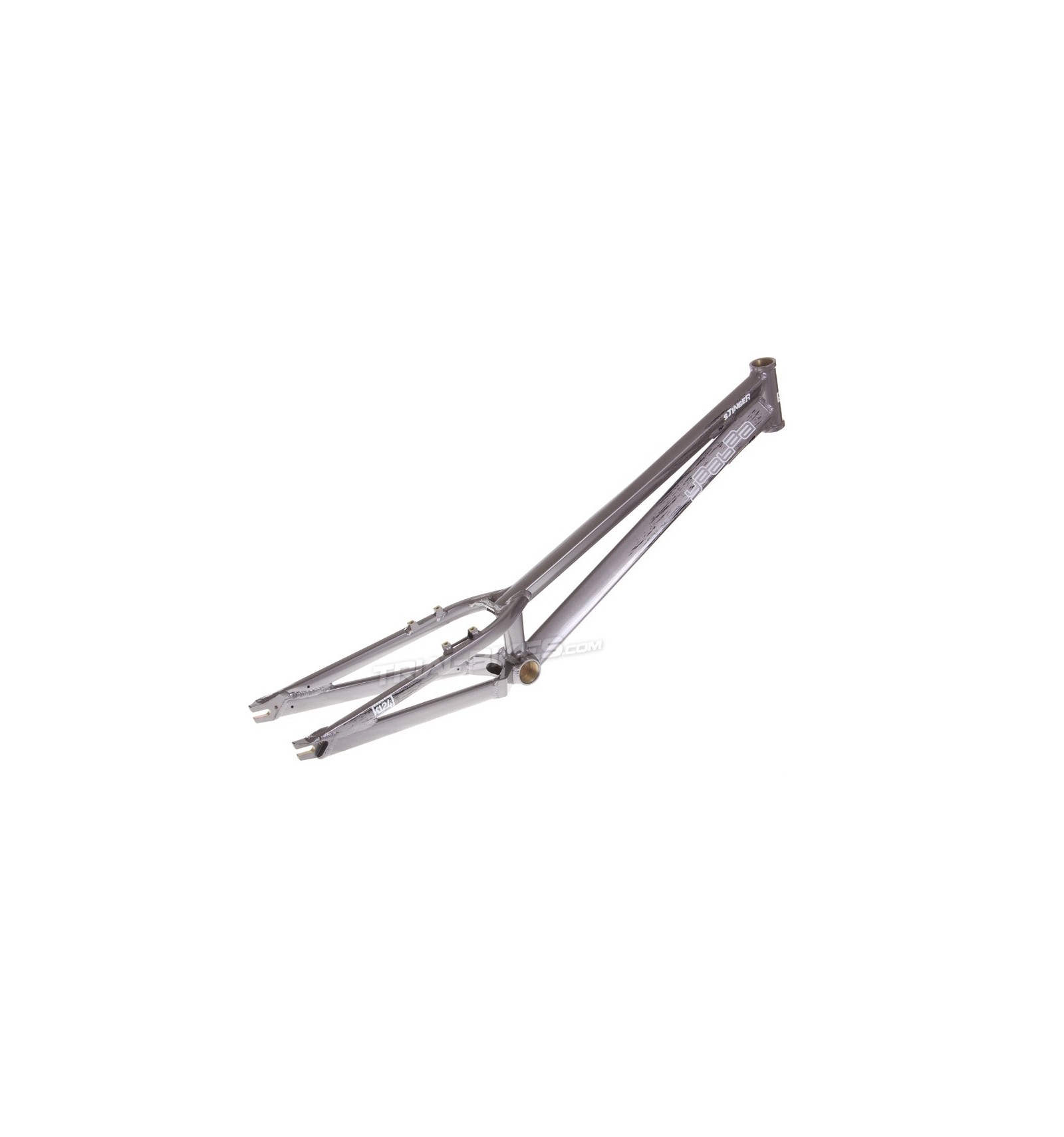

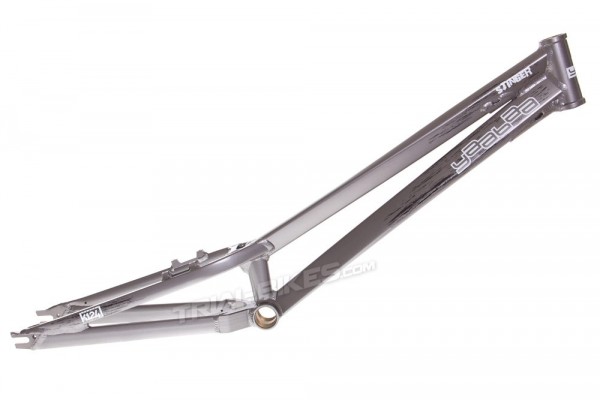

Yaabaa Stinger 26” Frame

Description and materials
- New 26’’ frame from Yaabaa, the prestigious ‘’Low Cost’’ Koxx brand.
- Ideal for those riders who search a great value for money frame.
- Made from high quality 6061 T6 aluminium.
- Triangular tubes help reinforce the frame and improve its strength against dents.

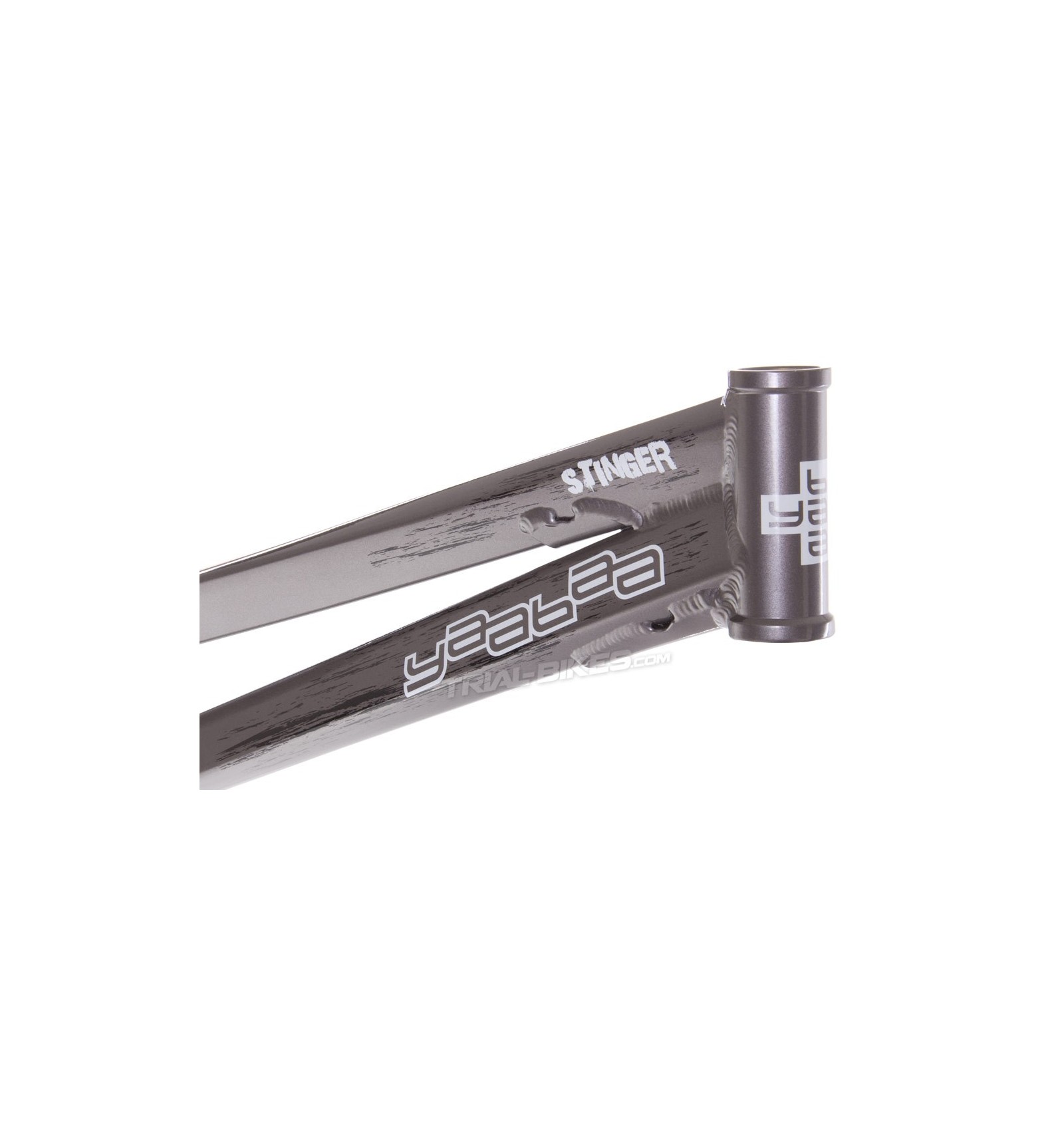

- 115mm long head tube, Ø 1 1/8, for external headsets.
- The head tube is gusseted to the down tube so as to increase its strength.
- 68mm bottom bracket shell, suitable for all 128mm bottom brackets.

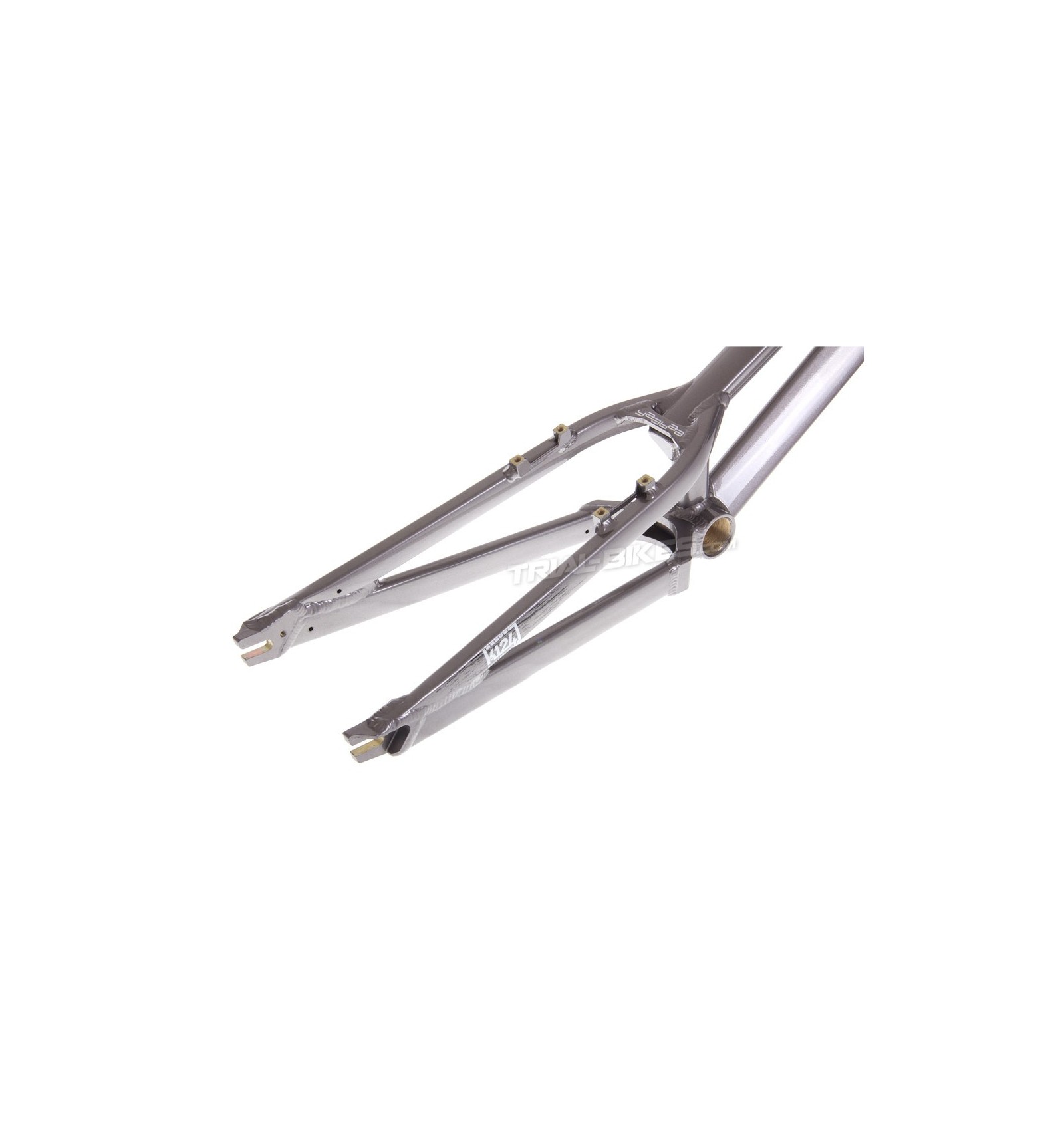

- 135mm horizontal dropouts, suitable for all 135mm hubs.
- 100mm spaced 4-bolt brake mounts, great for wide rims.
- Dark grey finish, with black and white Yaabaa graphics.

Geometry
 - Space between dropouts: 135mm
 - Bottom bracket shell: 68mm
 - Head tube: 120mm, 1 1/8"
 - Wheelbase: 1095mm
 - Chainstay Length: 390mm
 - BB Rise: 60mm
 - Head Angle: 71.5º

Finishes
- Dark grey finish, with black and white Yaabaa graphics.

Weight
 - 1.850kg

Additional information
This frame comes with 12 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
