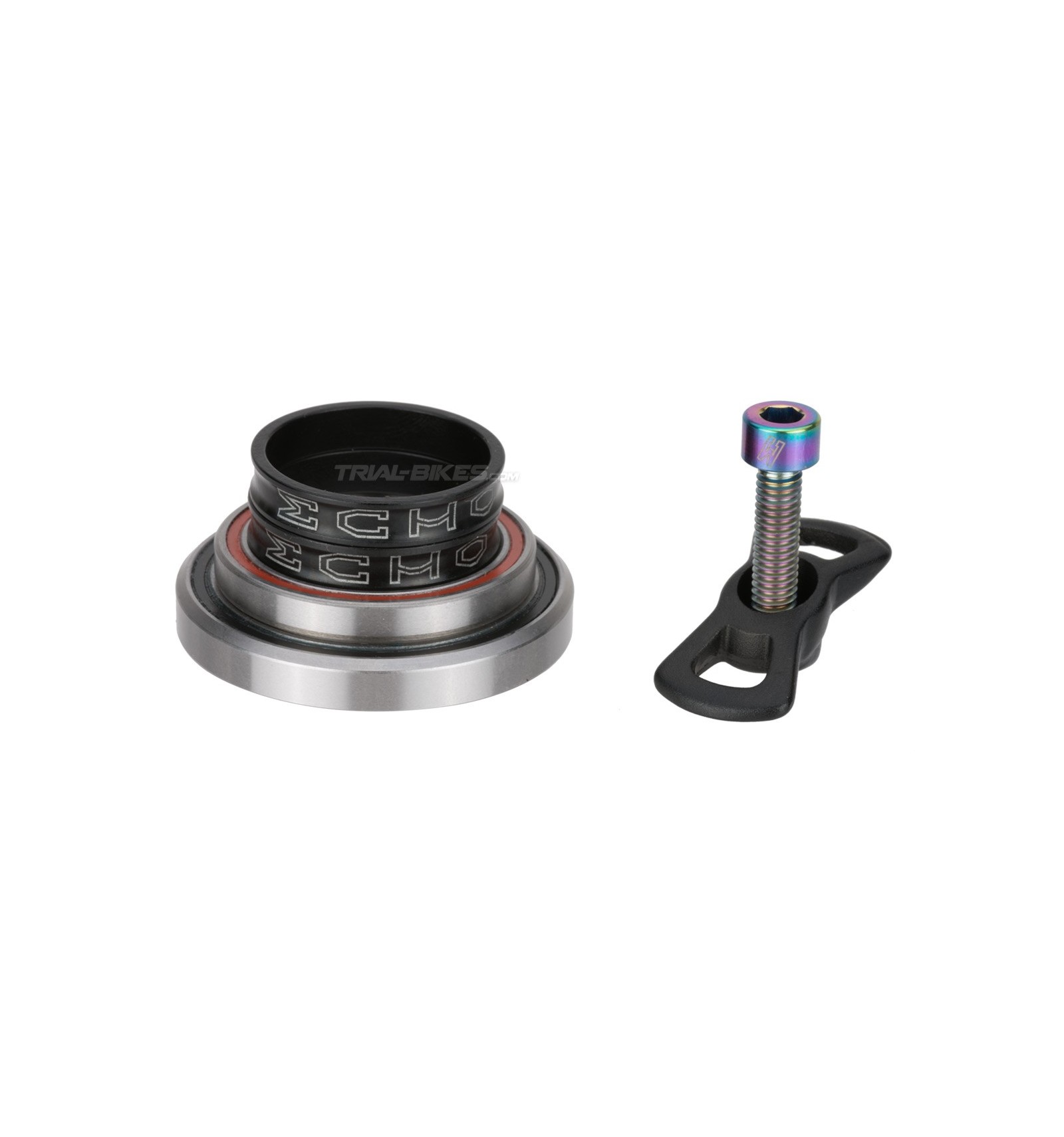

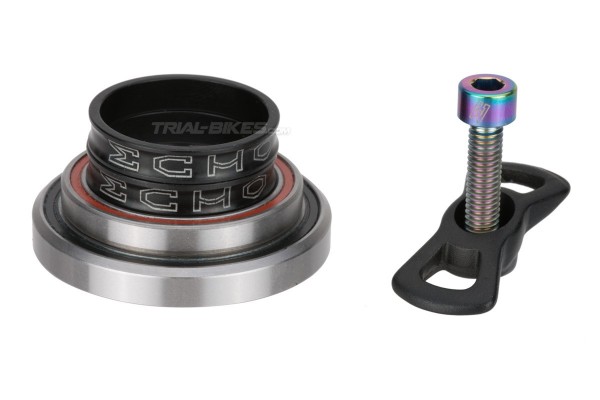

Echo 1 1/8” Integrated Headset (w/ CNC Top Cap)

Description and materials
- New high-quality integrated headset from Asian brand Echo.
- This is an integrated headset, which means it doesn’t need any cups for the bearings, but they sit directly onto the frame’s head tube.
- This means this headset can only be used with those frames designed to use an integrated headset, like the new Echo frames.
- Standard 1 1/8” diameter.
- High quality sealed bearings ensure reliability and minimize maintenance.
- Comes with 2x 6mm headset spacers, a top cap and its M6x28mm top cap bolt, made of titanium!
- Silver bearings, black spacers and top cap, and rainbow bolt.
- Note: does not include a crown race, you can purchase one separately on our website.

Compatibility
- This headset is compatible with those frames designed to use an integrated headset (without cups), like the new Echo frames.
- Compatible with standard 1 1/8” diameter forks.

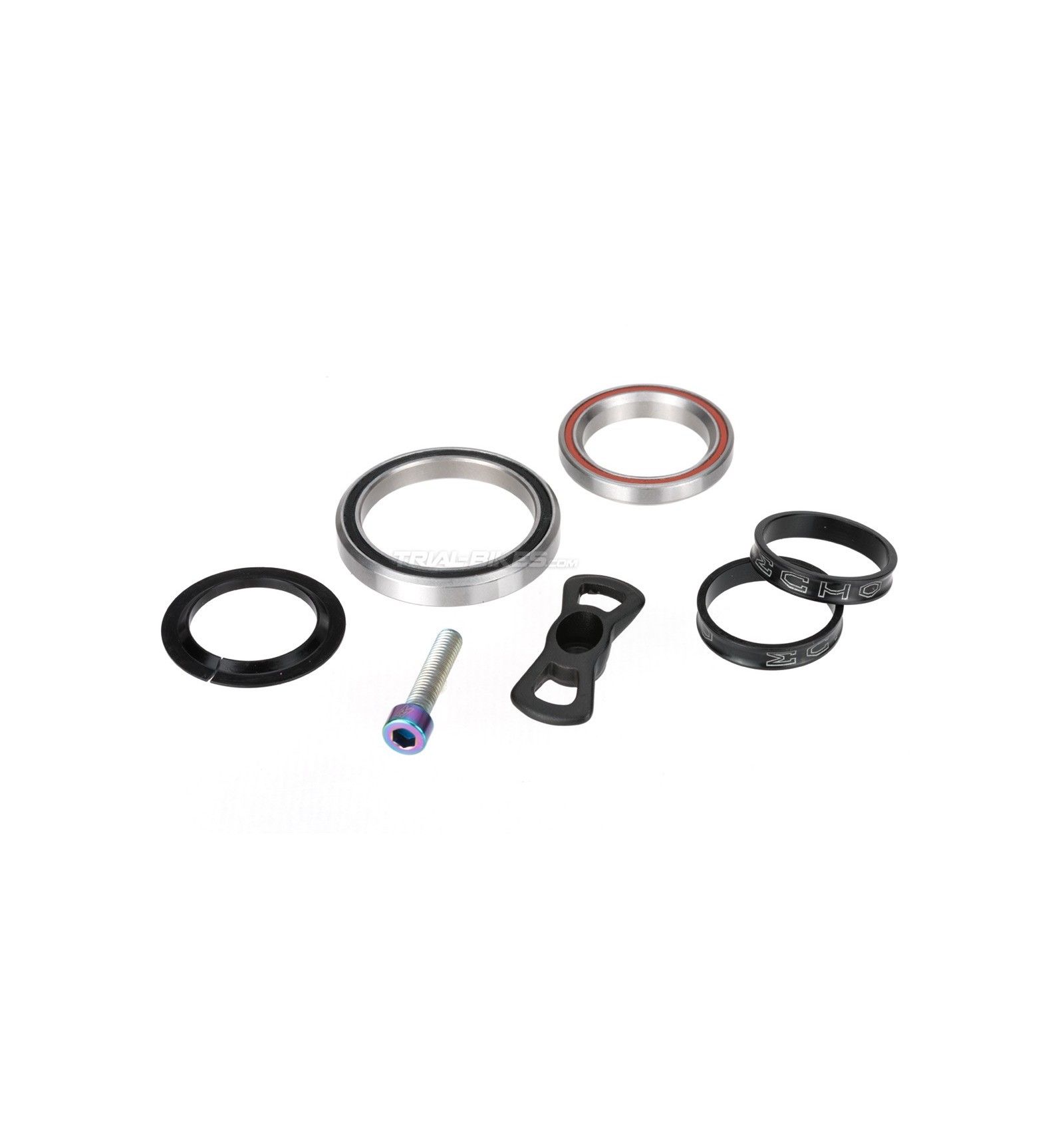

Includes
- This product includes the following:
          · 2x sealed bearings for 1 1/8” integrated headset.
          · 2x 6mm headset spacers made of aluminium.
          · 1x sloping top cap made of aluminium.
          · 1x M6x28mm top cap bolt made of titanium.

- Does not include a crown race, you can purchase one separately on our website.

Dimensions
- Ø 1 1/8”
- Integrated headset
- Top/Bottom bearing dimensions:
          · Outer diameter: 42mm
          · Inner diameter: 7mm
          · Height: 7mm

Finishes
- Silver bearings, black spacers and top cap, and rainbow bolt.

Weight
- 53.84g (+ CNC top cap and bolt at 9.64g)
