Neco Tapered Headset 1 1/8" - 1.5"

Neco Integrated Headset 1 1/8" - 1.5"

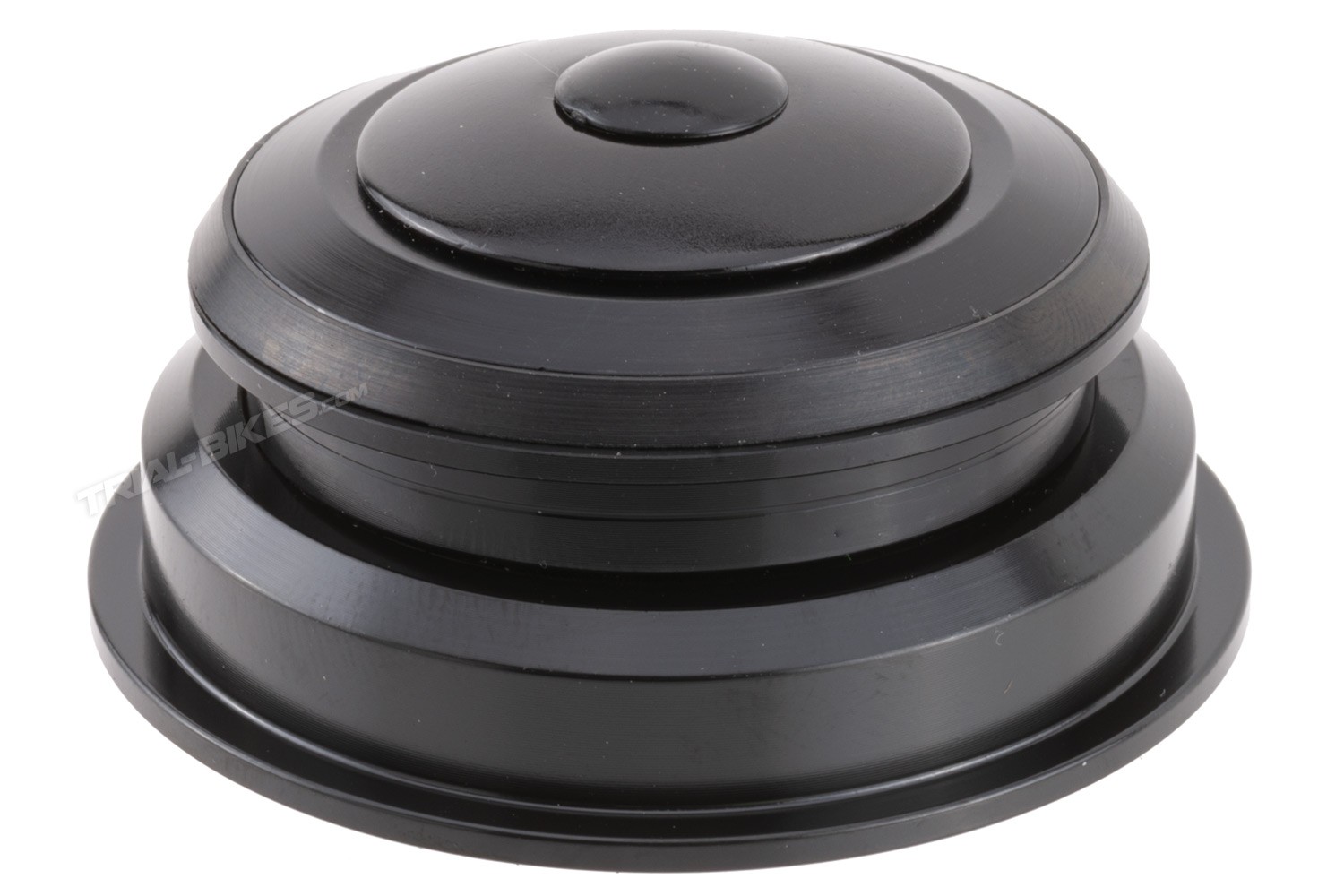

- This is a tapered headset, designed to fit frames with a headtube that has a 1 1/8” (28.575mm) top diameter and 1.5” (38.1mm) bottom diameter.
- This means the lower bearing has a larger diameter, which helps increase the stiffness and strength of the front of the bike considerably.

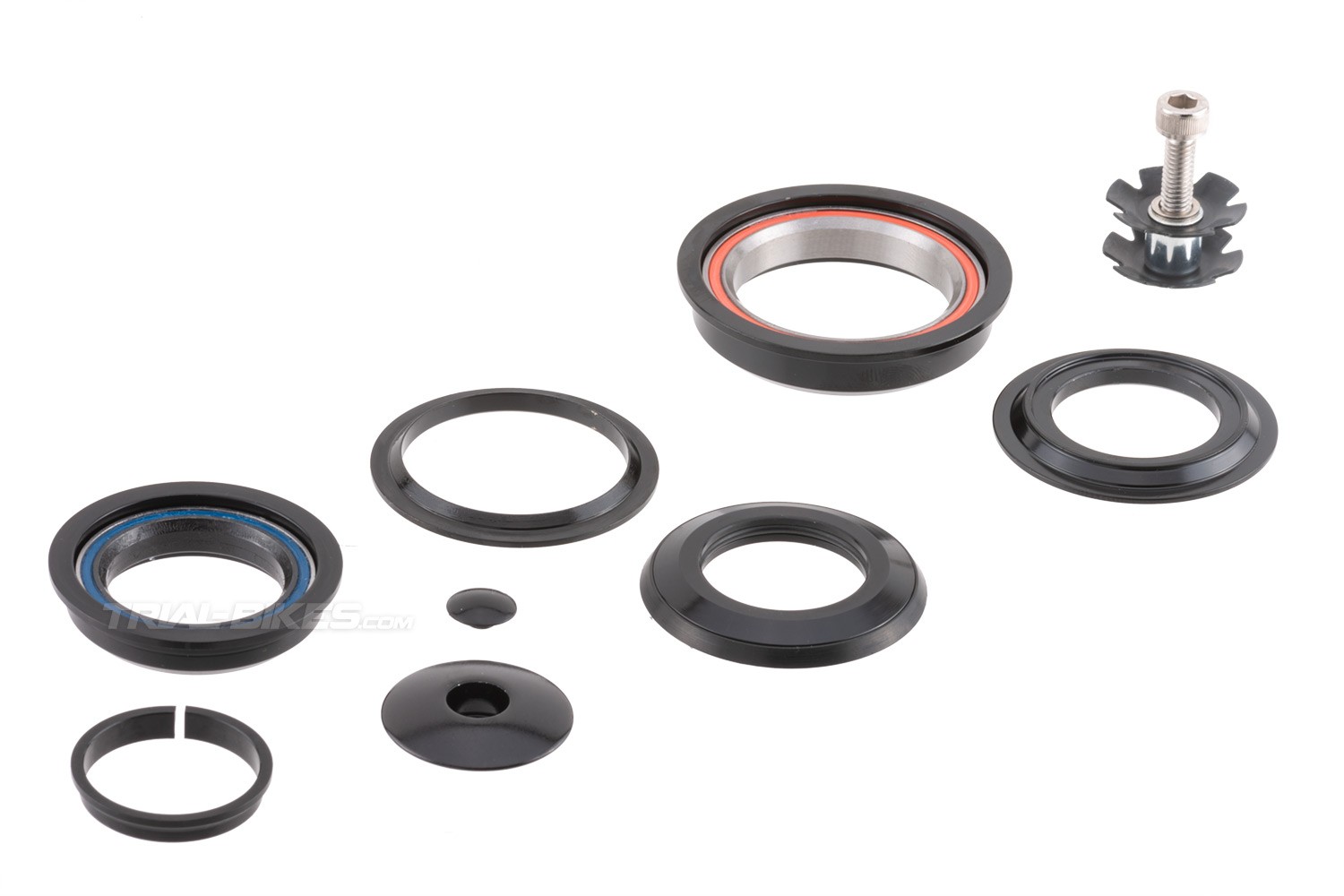

- The cups are made from high quality aluminium alloy, with a lower profile than most headsets to help save weight, the top cup being even slimmer than the bottom one.
- High quality sealed bearings ensure reliability and minimize maintenance.
- Supplied with a reducer crown race, that allows you to install a standard 1 1/8” steerer tube.
- Includes an M6x30mm preload bolt, along with a star nut and top cap for flat stem.

Compatibility
- Frames designed to use a 1 1/8” – 1.5” tapered internal headset.
- A 1 1/8” – 1.5” tapered fork must be used with this headset. In case you’d like to install a standard 1 1/8” fork, you must install a reducer crown race (included).

Trials Frames: Clean X1/X2/K1, Comas R1/R2, TMS Evo6, Rockman ASH, Crewkerz, Ozonys...

Dimensions
- Top cup: 1 1/8" (Ø 44-28.6mm)
- Bottom cup: 1.5" (Ø 56-40mm)

Finishes
- Black

Weight
- 113.62g, + M6x30mm preload bolt, star nut and top cap at 27.20g
