Breeth Carbon Pro Ti 20” Bike

Breeth Carbon Pro Ti 20" Bike

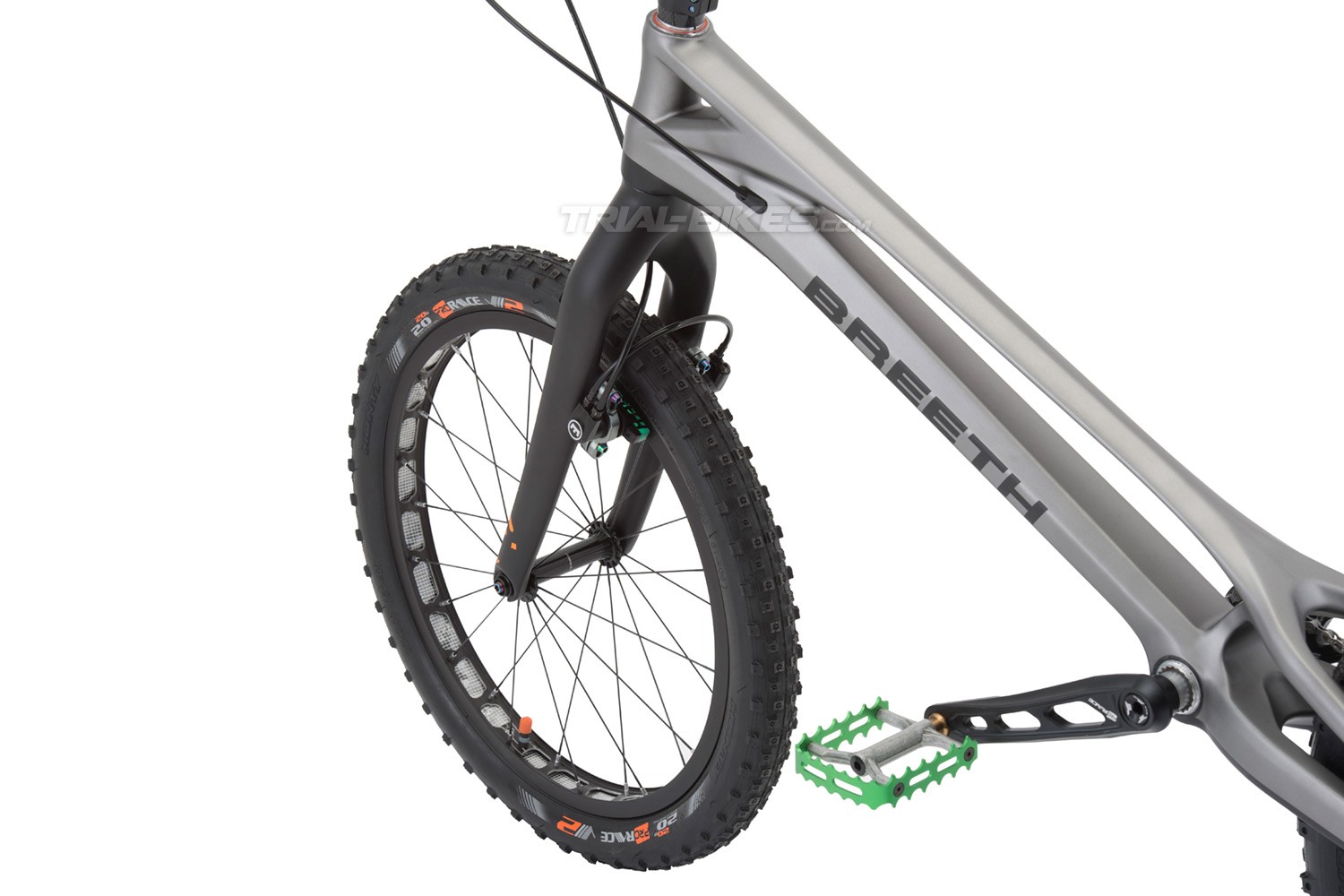

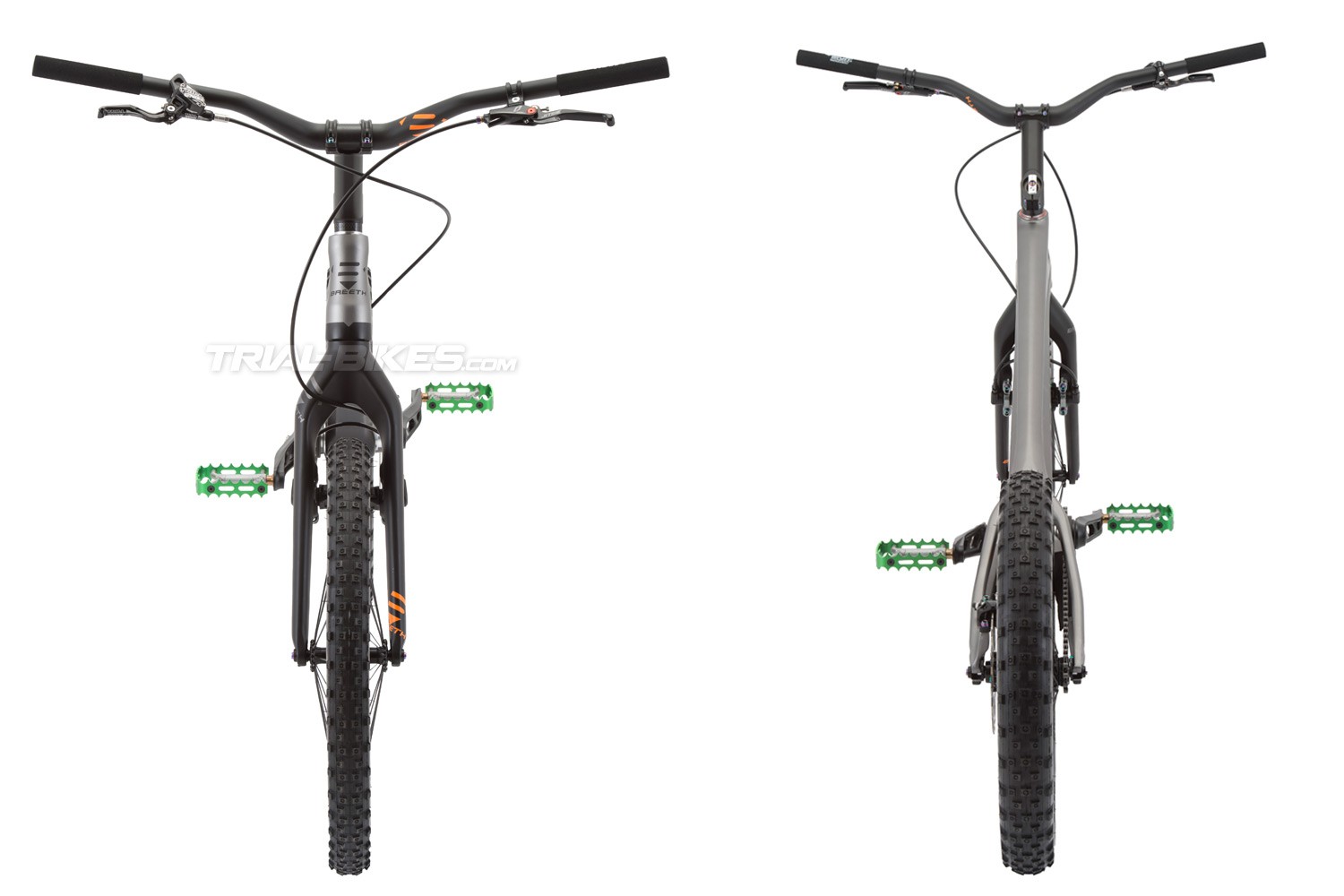

High-performance Breeth Carbon Pro Ti 20” trials bike, carefully built at TrialBikes with the best quality parts and ultralight titanium bolts! Featuring the new Breeth Carbon frame and fork, Jitsie Race HS front brake, Hope Trial Zone rear brake, Hashtagg rims, Sapim Laser double-butted spokes…

There are two options available:
· Without brakes.
· With Jitsie Race HS front brake and Hope Trial Zone rear brake.

Frame and fork
- Frame: Breeth Carbon 20”, with Post Mount disc brake mounts, in champagne colour with silver Breeth graphics
- Forks: Breeth Carbon 20”, with rim brake mounts, black with white Breeth graphics

Wheels

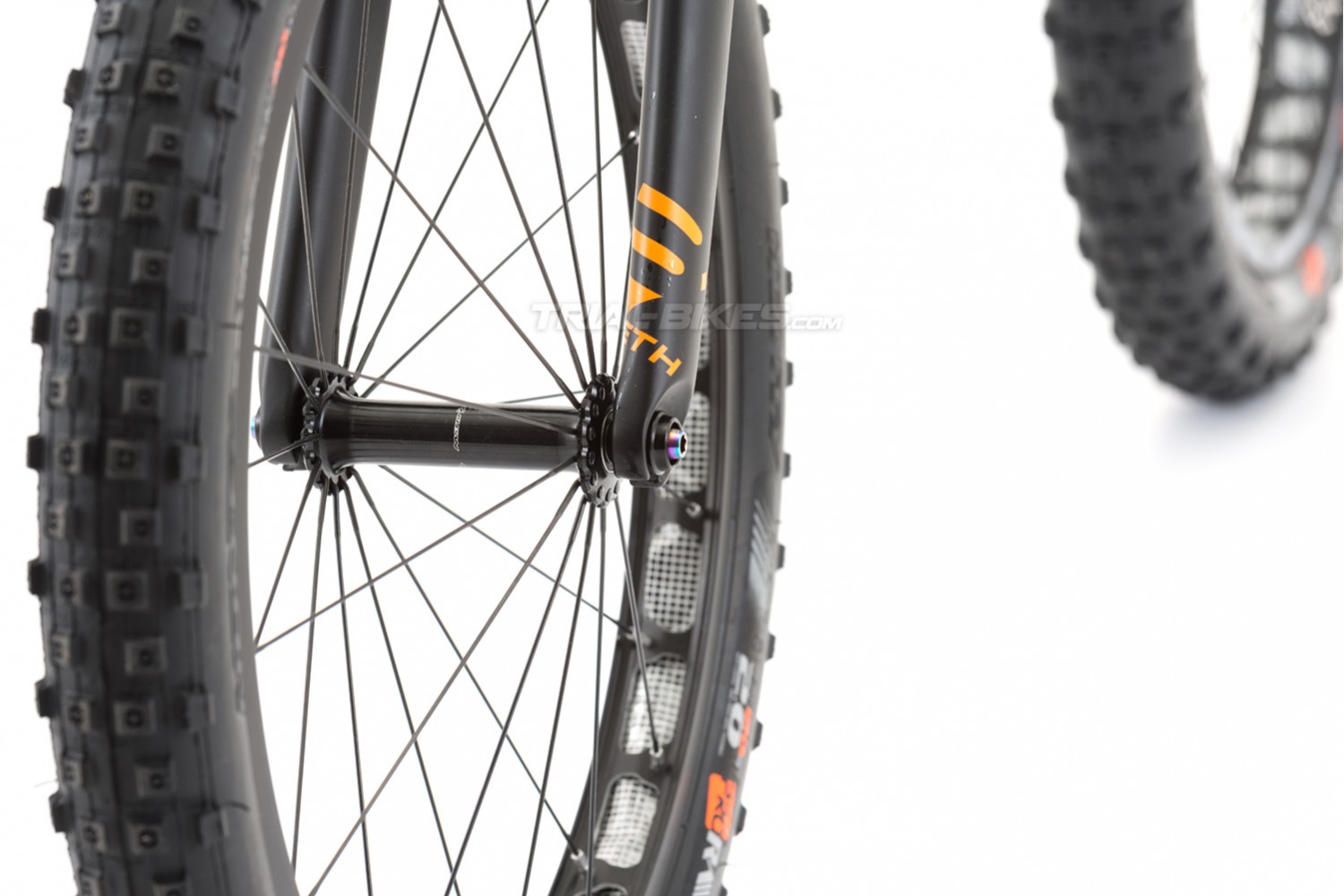

- Front hub: Clean X2 HS 28H 100mm, anodized black, with rainbow titanium bolts
- Rear hub: Clean X2 Disc 32H 116mm, anodized black, with rainbow titanium bolts
- Chain tensioner: Monty snail cams, black, with rainbow titanium bolts
- Front rim: Hashtagg 20”, single wall, 32mm wide, 28 spoke holes, black
- Rear rim: Hashtagg 19”, single wall, 47mm wide, 32 spoke holes, black
- Spokes: Sapim Laser 2/1.5/2mm, black
- Spoke nipples: Sapim 14G Alu Polyax, anodized silver
- Rim tape: TrialBikes Reinforced Ultralight
- Front inner tube: Maxxis Ultralight 20”
- Rear inner tube: Maxxis Ultralight 20”
- Front tyre: Monty Pro Race V2 20”x2.00”
- Rear tyre: Monty Pro Race V2 19”x2.60”

Brakes
- Front brake: Jitsie Race HS
- Rear brake: Hope Trial Zone Post Mount, with rainbow titanium caliper bolts

- Front brake pads: Coustellier 8mm
- Front brake clamps: Hashtagg, with rainbow titanium bolts
- Rear rotor: Hope TrialZone 160mm, with rainbow titanium bolts

Drivetrain
- Cranks: Monty Pro Race 162mm ISIS, black
- Bottom bracket: Jitsie ISIS 123mm (new change)
- Freewheel: Rockman 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, black
- Chain: KMC X9-73
- Rear sprocket: Racing Line 12T Screw-on, made of aluminium, black
- Pedals: Breeth Titanium, with Ti-6Al-4V titanium axle and 7075-T6 aluminium cage, green
- Bashring: Trialtech Sport Lite, black

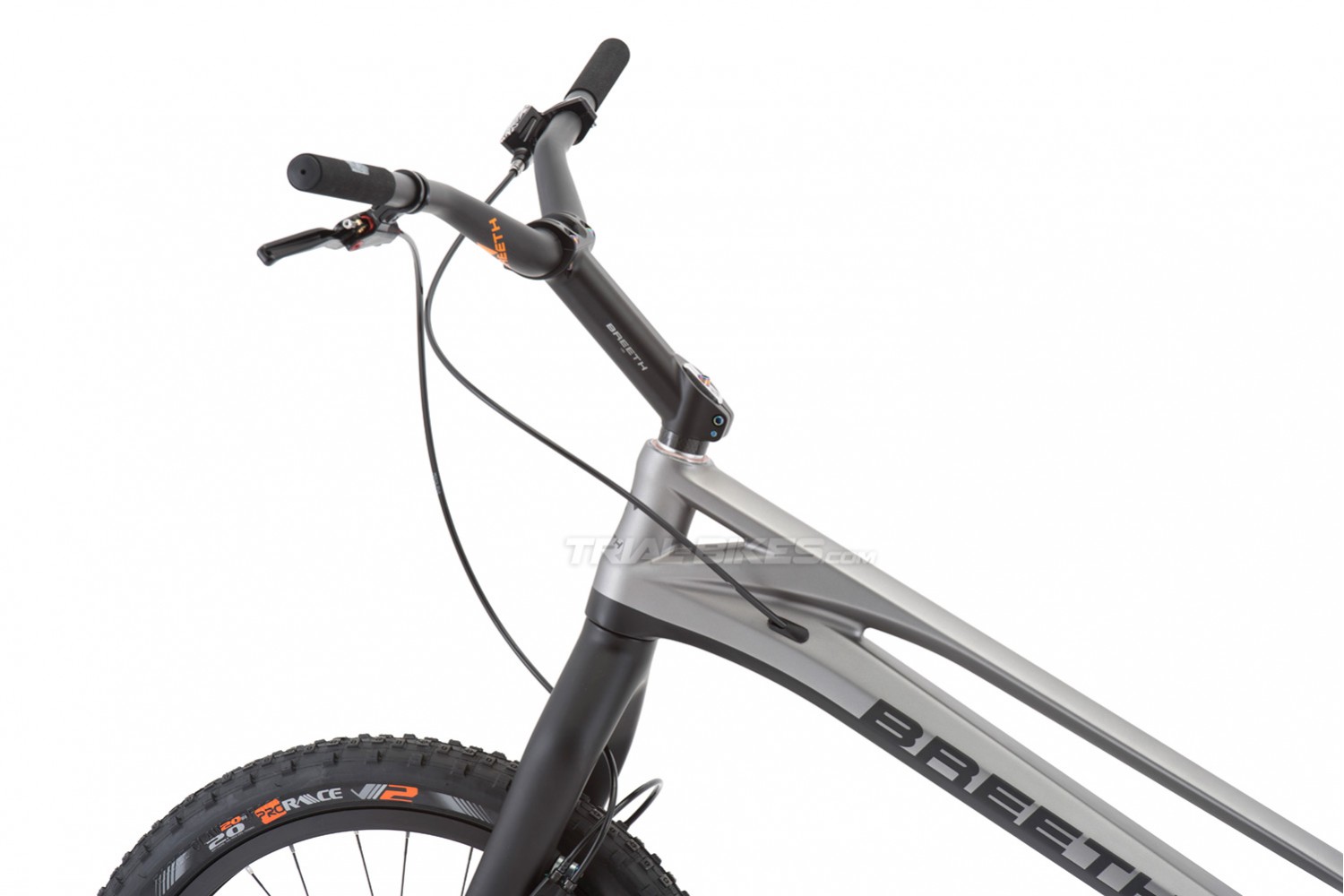

Steering
- Headset: Breeth Integrated Tapered 1 1/8” – 1 3/8”, with sealed bearings
- Stem: Breeth 150mm x 35º, black, with rainbow titanium bolts
- Grips: TrialBikes super-thin foam, black

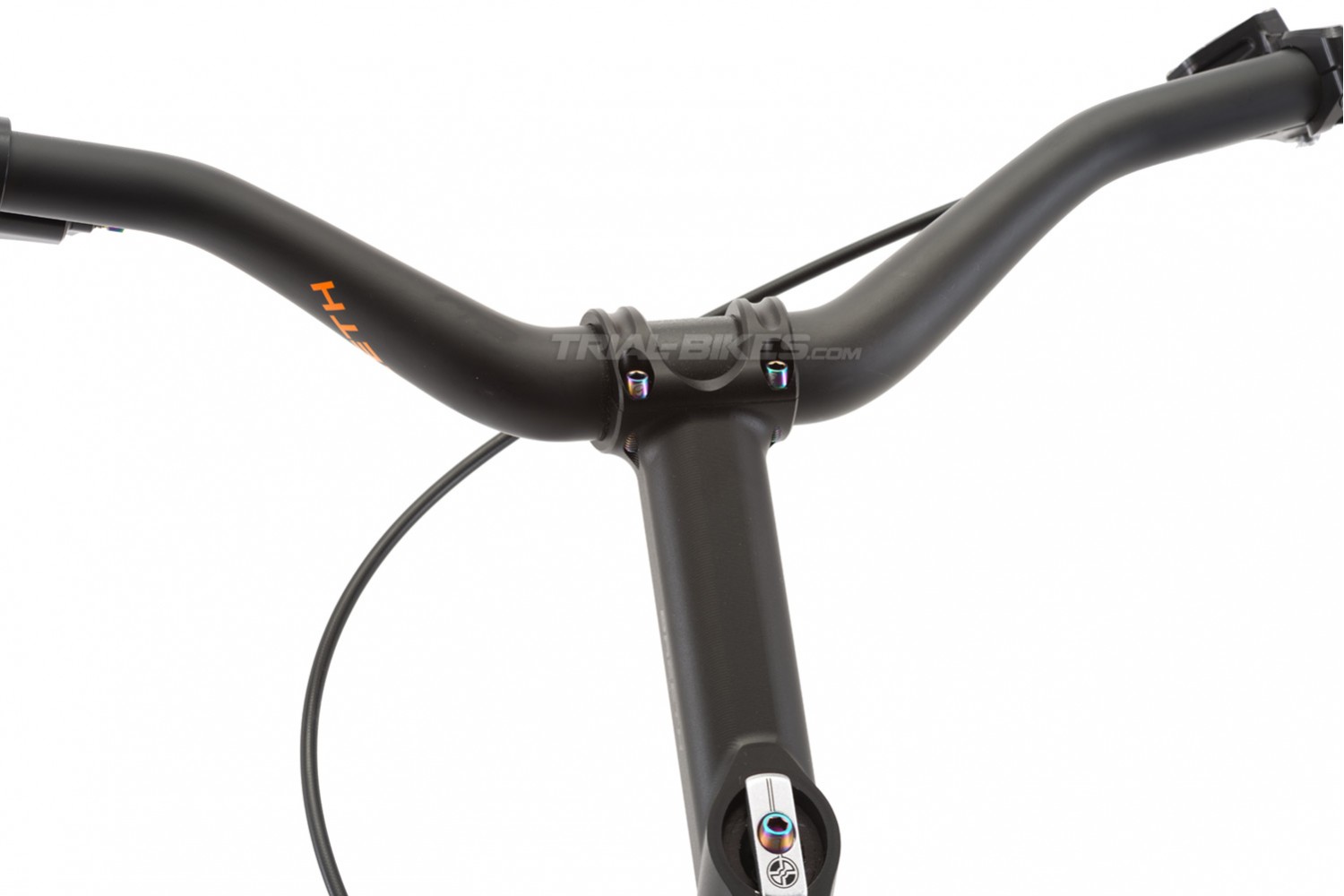

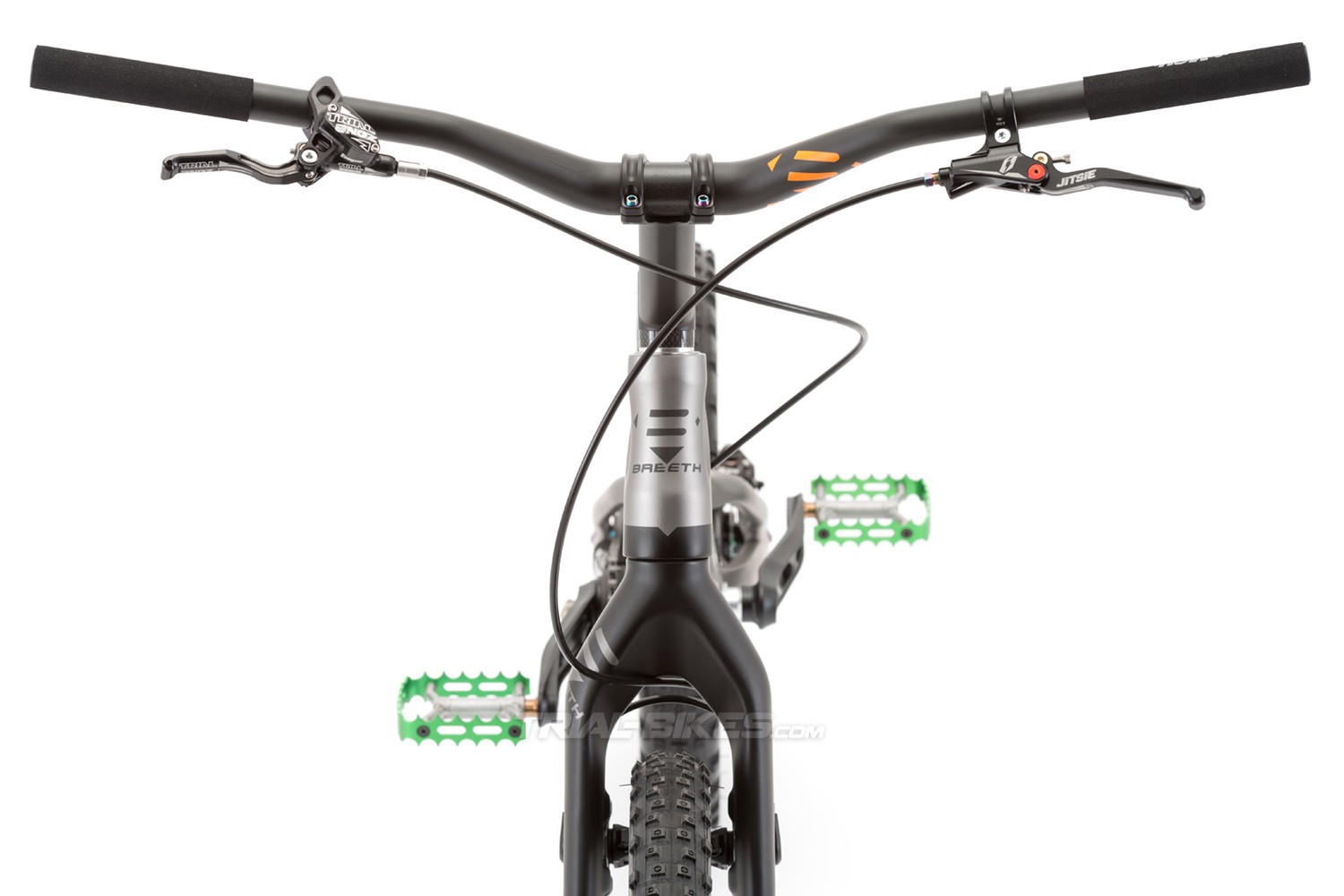

- Handlebar: Breeth Carbon, 720mm long, 105mm rise, black/orange

Titanium bolts
- Front hub: 2 rainbow titanium M6x20mm bolts
- Rear hub: 2 rainbow titanium M6x25mm bolts
- Brake clamps: 4 rainbow titanium M5x25mm bolts
- Rotor: 6 rainbow titanium M5x10mm bolts
- Disc brake caliper: 2 rainbow titanium M6x18mm bolts
- Chain tensioner: 2 rainbow titanium M5x10mm bolts
- Top cap: 1 rainbow titanium M6x25mm bolts
- Stem: 6 rainbow titanium M5x18mm bolts

Geometry (based on a Breeth Carbon fork of 375mm and +45mm offset)
- Wheelbase: 1005mm
- Chainstay length: 350mm
- Bottom bracket rise: +90mm
- Head angle: 72º

Weight
- 6.350Kg

Modifications
This bike is built with top-quality parts, but if you’d still like to modify some of them, just get in touch and we will customize the setup for you!

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any further doubts, please get in touch at info@trial-bikes.com .

Watch the video below to see the key points of this new bike:
