Bonz Power-H hub axle for bike trials

Bonz Power-H 2016-18 hub axle Expand

Bonz Power-H 2016-18 hub axle

BONZ BONZ

New

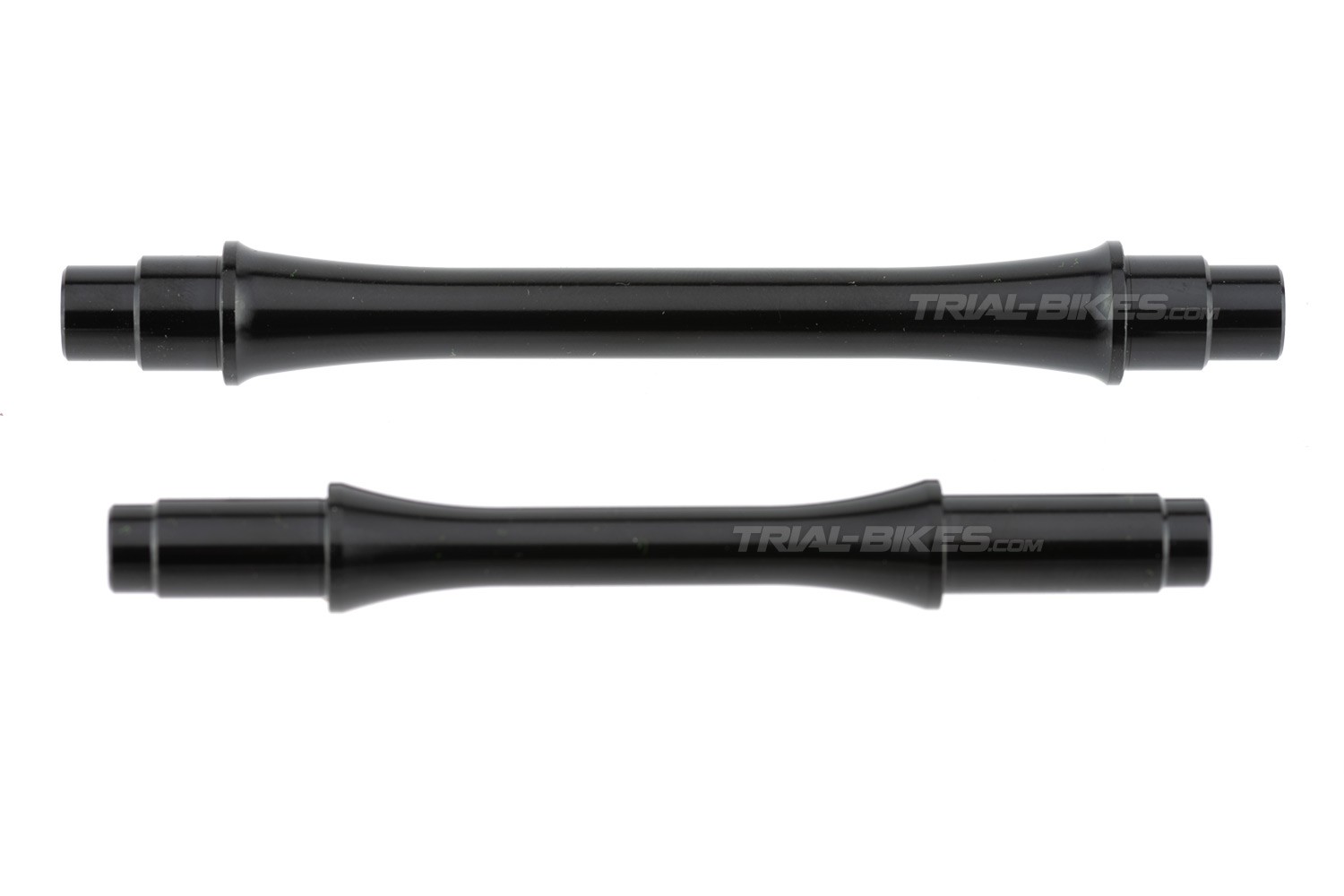

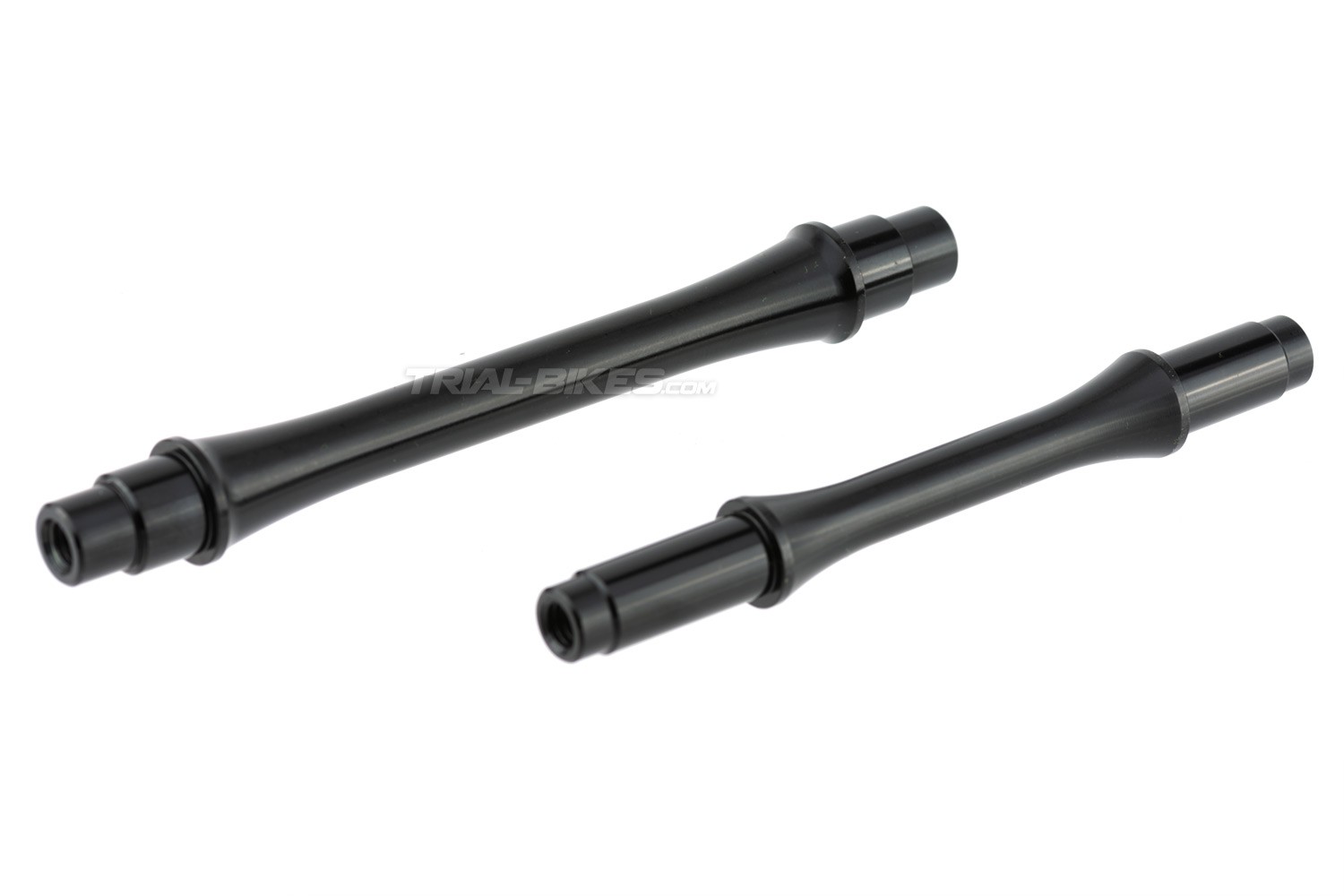

Replacement Bonz axle for 2016-18 Bonz Power-H hubs. Two versions available: front disc, rear non-disc.

More details

16,53€

Model .
 Front, disco (100DISC)

 Rear, non-disc (116HS)

Ask a question

Bonz Power-H 2016-18 hub axle

Description and materials.
- Replacement Bonz axle for Bonz Power-H 2016-18 hubs.
- Each axle is CNC-machined from a single piece of 7075-T6 aluminium alloy.
- Tapered centre helps save weight without compromising strength and stiffness.
- Four versions available:
· Front, disc.
· Rear, non-disc.
- Standard M6 thread.
- Ideal to replace a broken or damaged axle.
- Sold separately.

Dimensions
- Front, disc: 9mm dropout diameter, 99mm dropout spacing, 10mm bearing diameter, centre length 60mm, 108mm total length.
- Rear, non-disc: 10mm dropout diameter, 110mm dropout spacing, 12mm bearing diameter, centre length 92mm, 125mm total length.

Compatible with:
- Bonz Power-H 2016-18 hubs and those hubs that require an axle with the dimensions described.

Colour
- Anodized black.

Weight
- 14.84g (front disc axle), 23.58g (rear non-disc axle).
