Description and materials

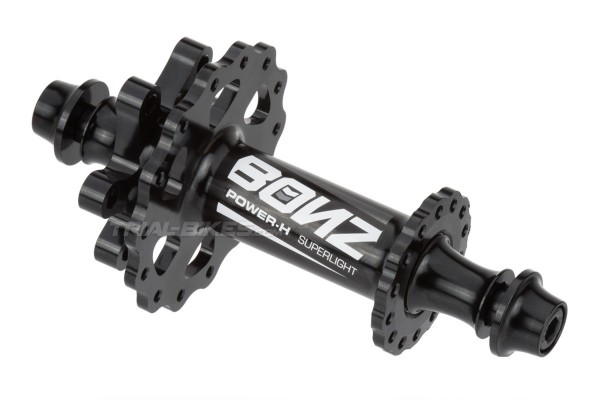

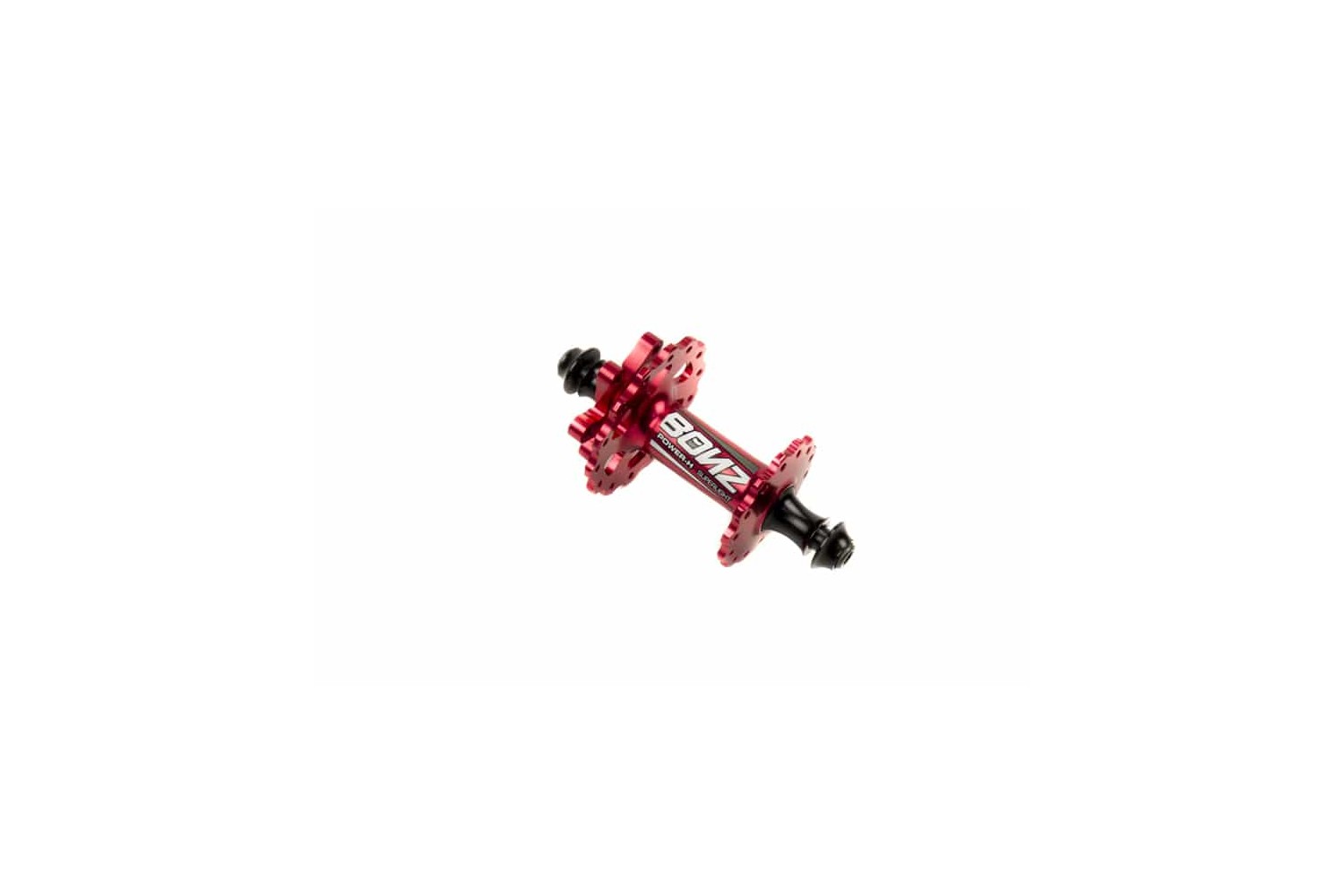

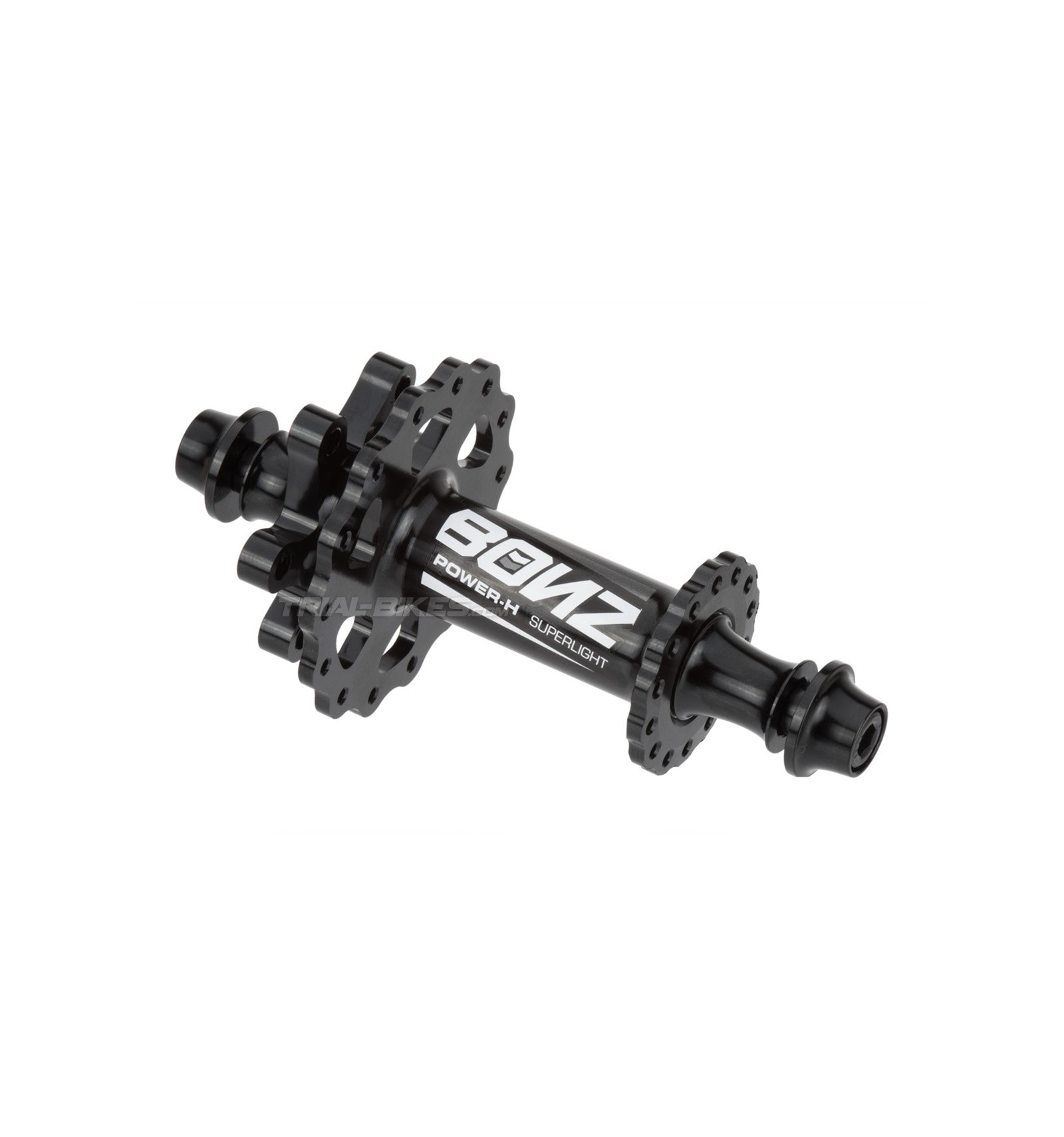

- New Bonz Power-H SuperLight HS 28H front hub, manufactured by French bike trials brand Bonz.
- Developed and tested for the last few months by Ozonys team riders Dominik Oswald, Theau Cortes and Noah Cardona.
- New minimalistic design manages to save even more weight, while still keeping a high strength to guarantee its durability.
- Both the axle and shell are CNC machined from high quality 7075-T6 aluminium alloy, which ensures extraordinary mechanical properties.
- Uses a hollow 9mm-diameter axle, with M6 internal thread and 100mm width, therefore it’s compatible with most forks available.
- 28 spoke holes, compatible with most front rims designed for bike trials.
- High quality replaceable sealed bearings ensure a smooth, reliable, durable running.
- Standard IS 6-bolt disc rotor fitting.

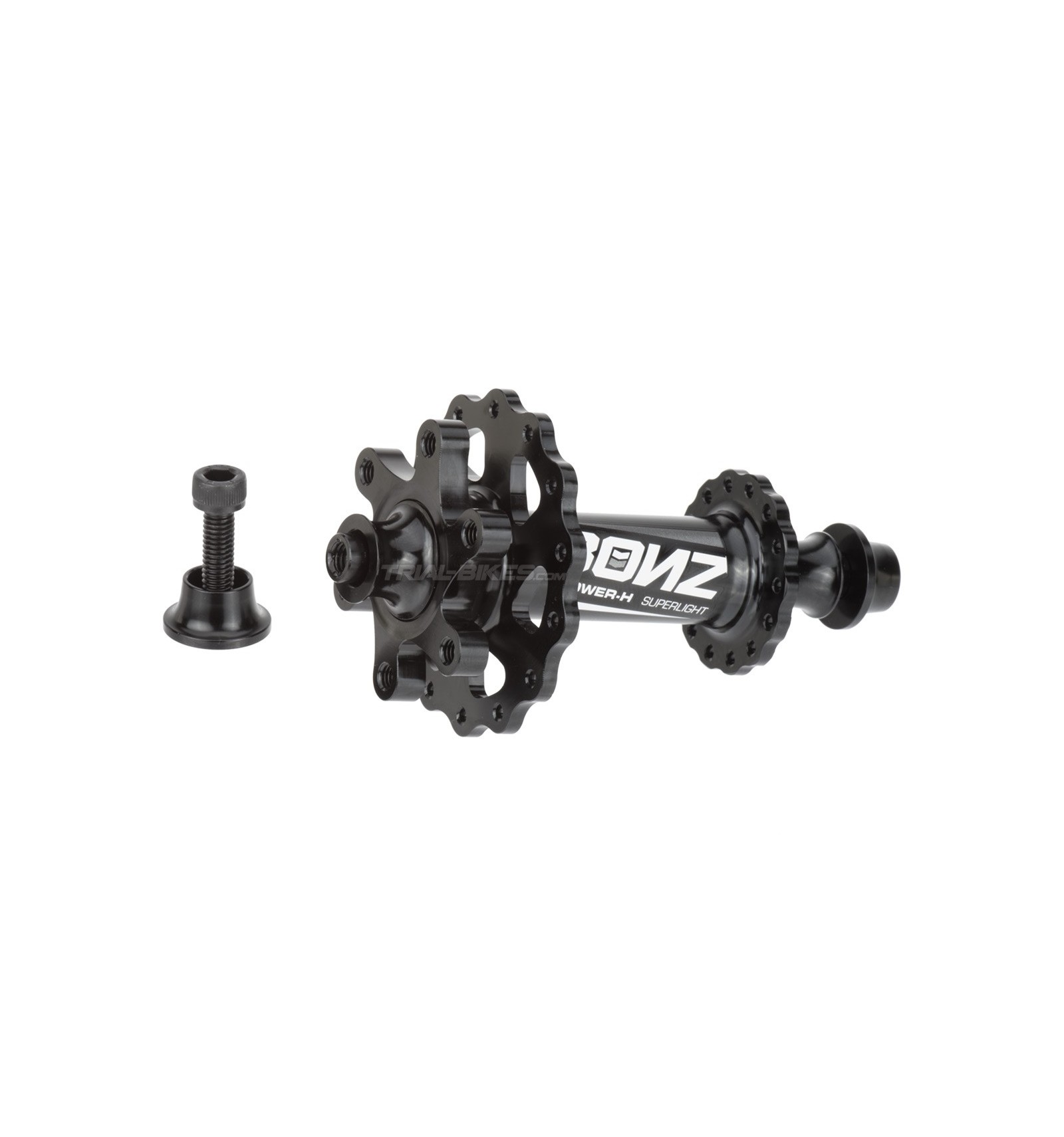

- Includes M6x25mm steel bolts and serrated conical washers.
- Uses 11.5mm (disc side) and 17.5mm (non-disc side) spacers, with an O-ring on the inner side.
- Gloss black finish, with white and grey laser etched Bonz Power-H SuperLight graphics.
Compatibility
- Compatible with those forks that have 100mm spacing between the inner side of the dropouts.
- Compatible with rims that have 28 spoke holes.
- Compatible with those disc brake rotors with standard IS 6-bolt fitting.
- Bearings reference: 6800-2RS (non-disc side) and 6900-2RS (disc side).
Dimensions
- Axle length: 100mm
- Axle diameter: 9mm
- Spacers width: 11.5mm (disc side) and 17.5mm (non-disc side)
- Number of spoke holes: 28 (28H)
- M6x25mm Allen bolts
Finishes
- Gloss black finish, with white and grey laser etched Bonz Power-H SuperLight graphics.
Weight
- Only 86.20g!! (+21.02g of bolts and washers)
| WEIGHT | 0.086 |
| COLOR | Black |
| SPOKE HOLES | 28 spokes |
| BRAKE MOUNTS | Disc |
