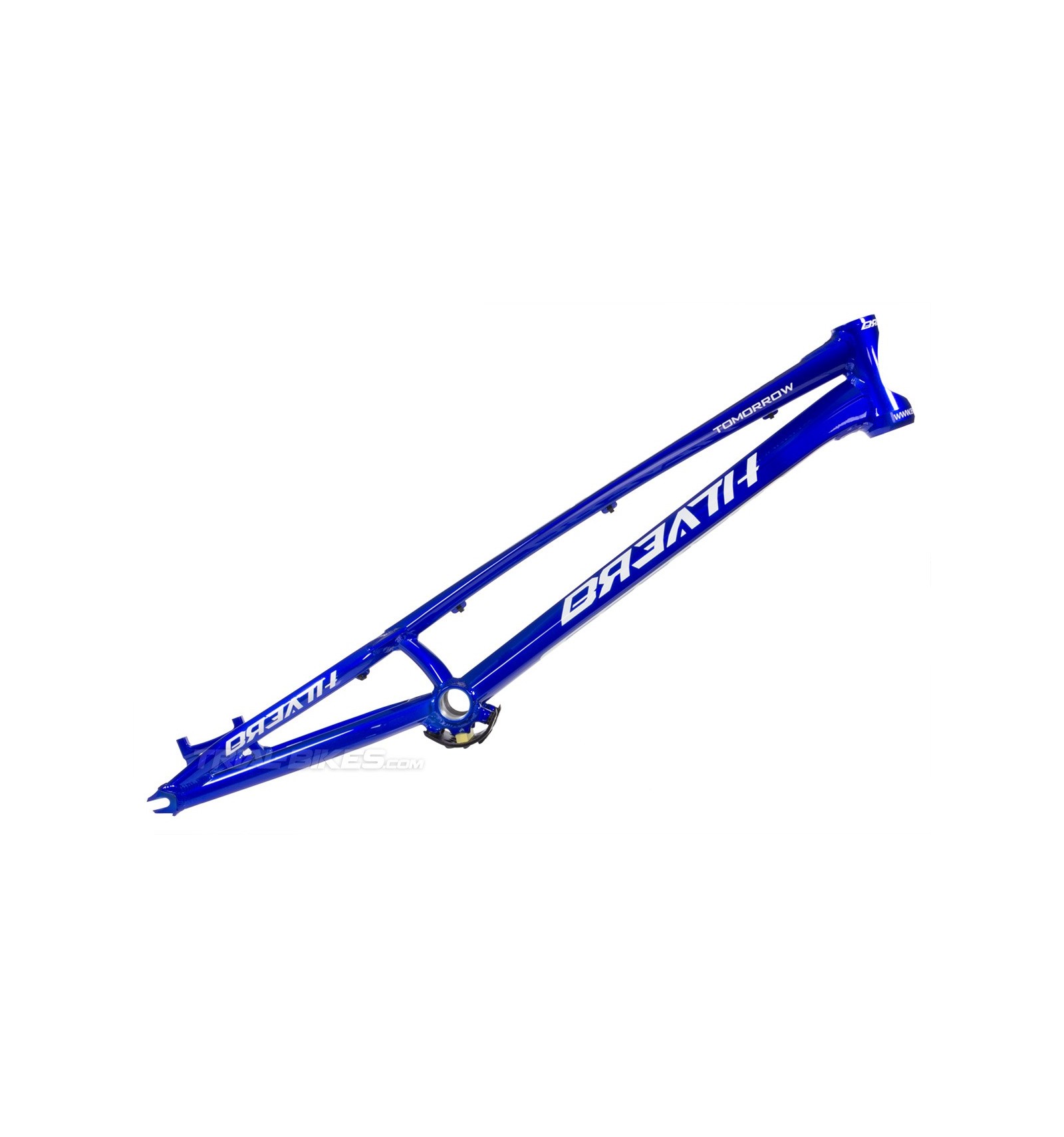

Breath Tomorrow 20'' Frame (With Basplate and Headset)

Description and materials
- New Breath Tomorrow 20”, the top-of-the-range 20” frame from Asian manufacturer Breath for the 2015 season.
- Tested and developed for the last few months by Breath team rider Zhaoxuan Zhao.
- Made from high quality 6061 T6 aluminium, which keeps the weight down and still offers great strength.
- Innovative, exclusive design by Breath, with 3D hydro-formed tubing  for increased stiffness and strength.

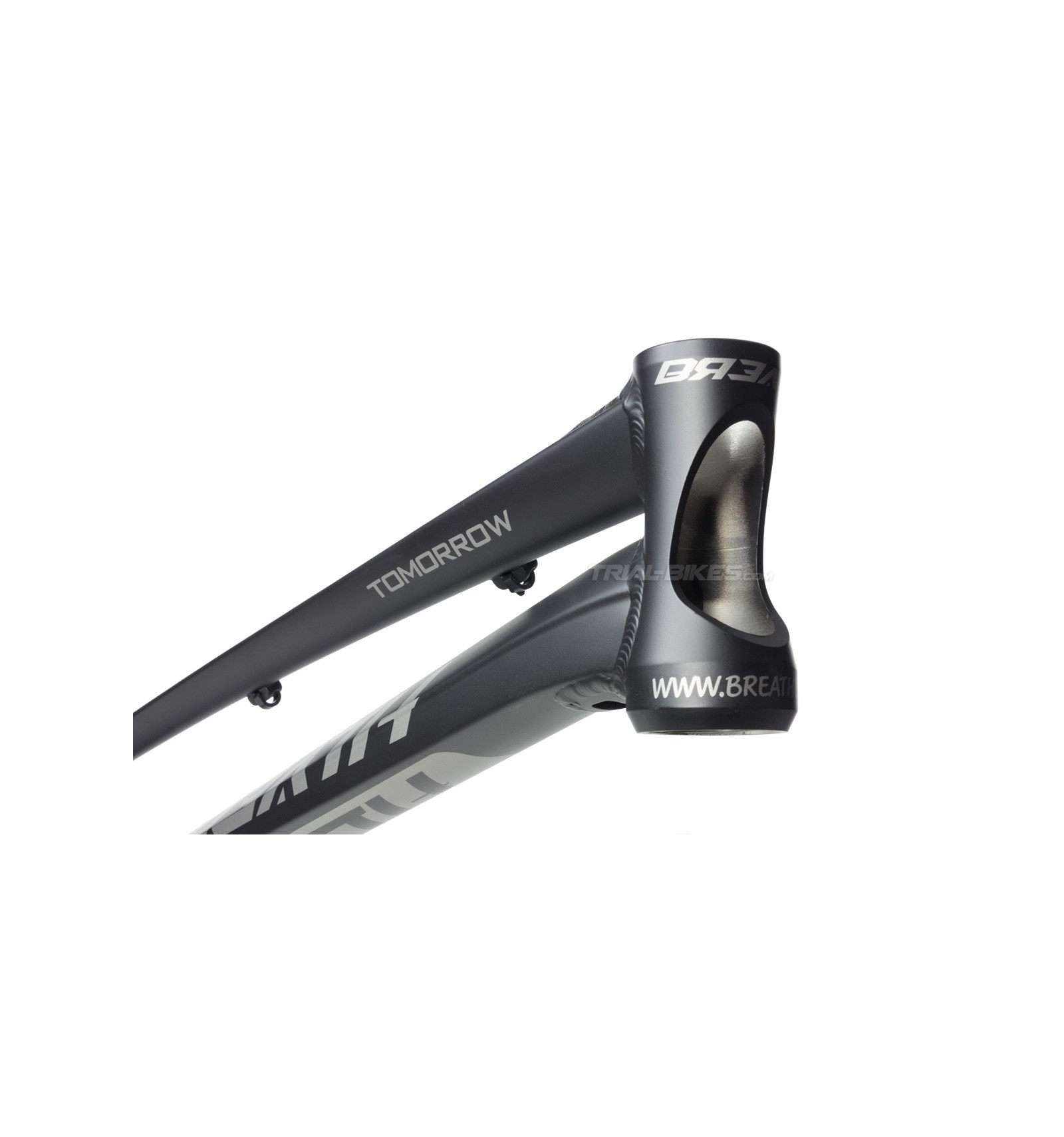

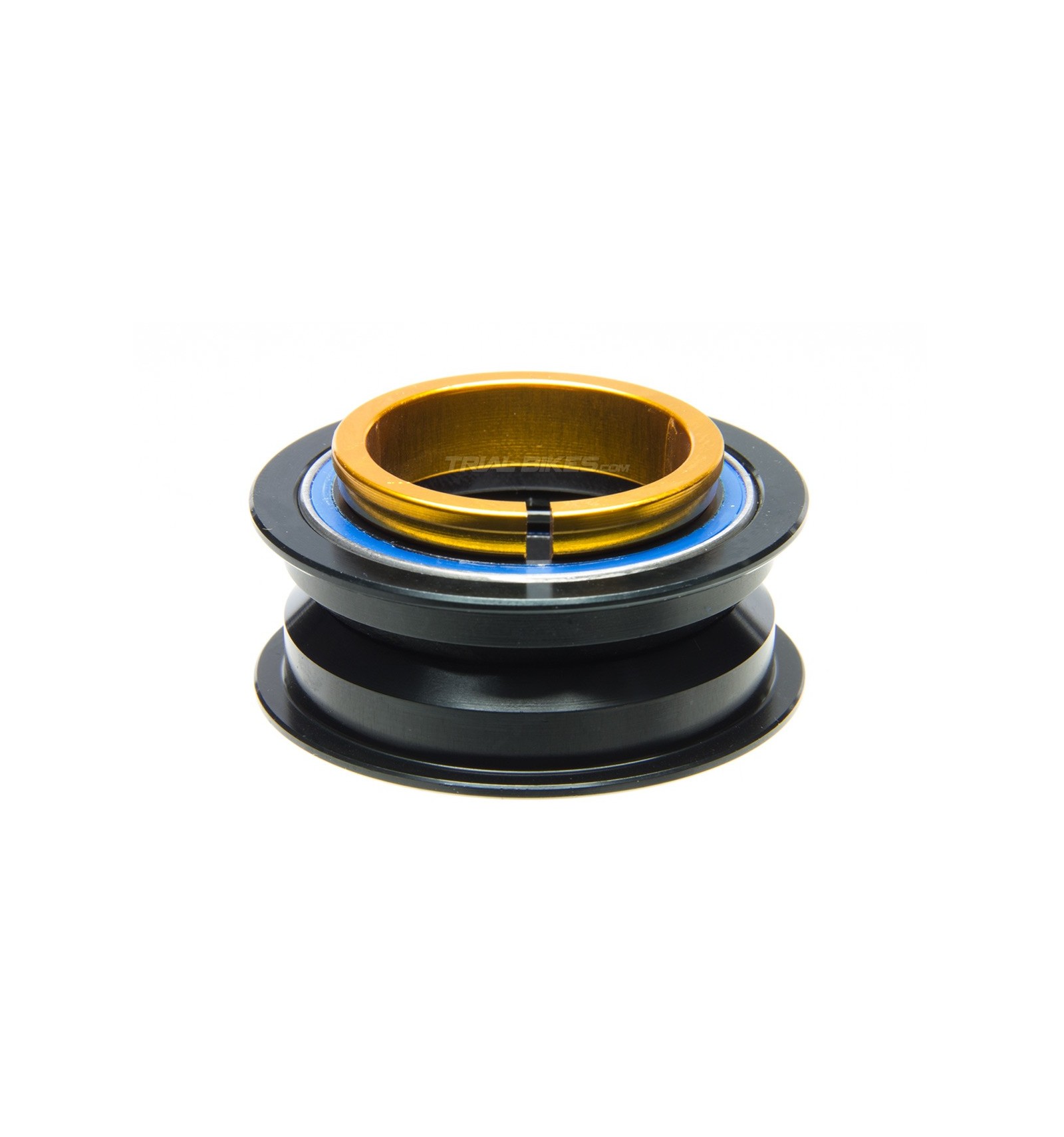

- Features a newly designed 130mm head tube, with a CNC-machined window that helps save unnecessary weight, for using with an internal headset (supplied with the frame).
- The head tube is gusseted to the top and down tubes to increase its strength.

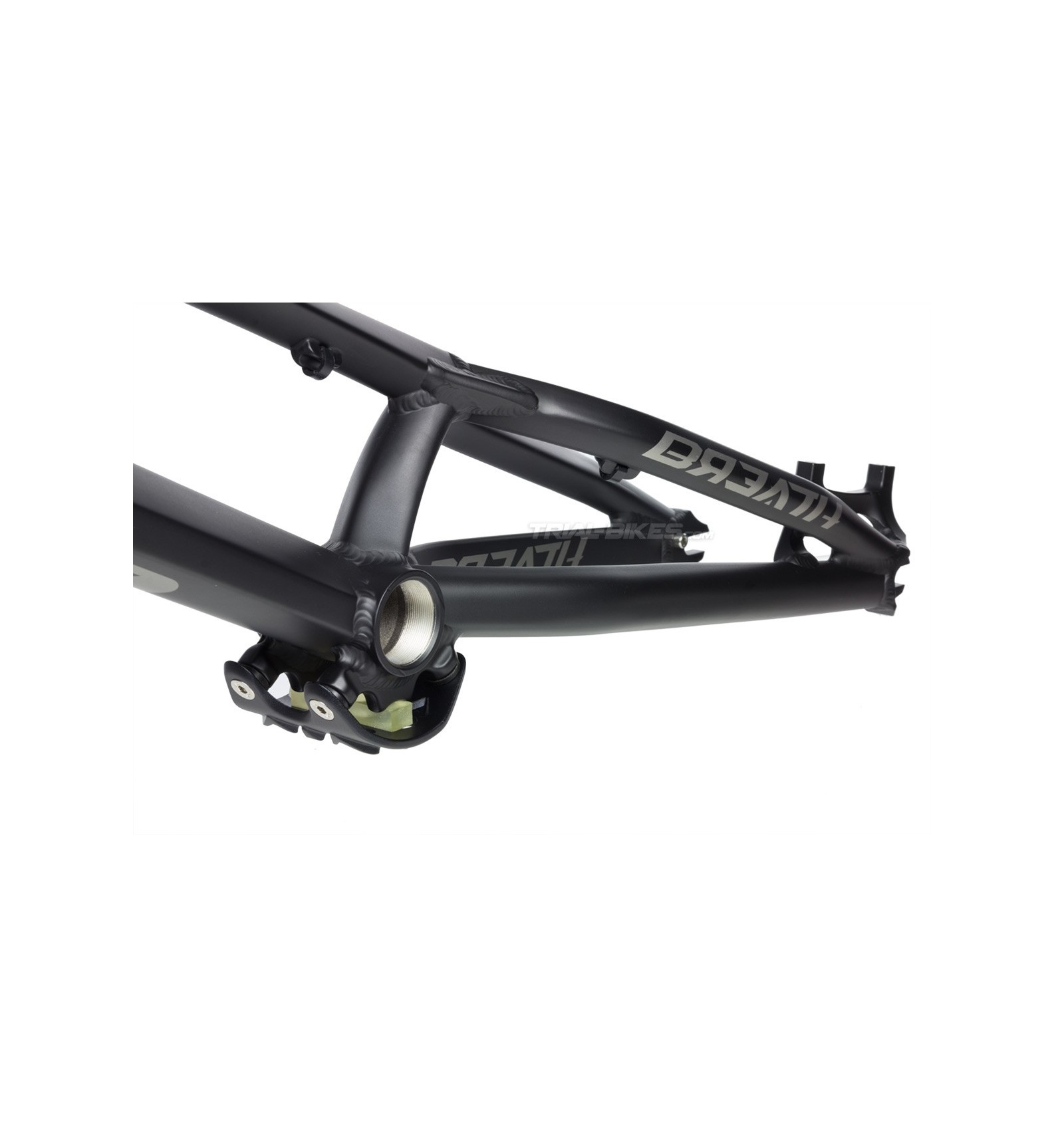

- Supplied with a 4-bolt mini-bash plate in anodized black finish, simpler and more compact (also available at our website here).

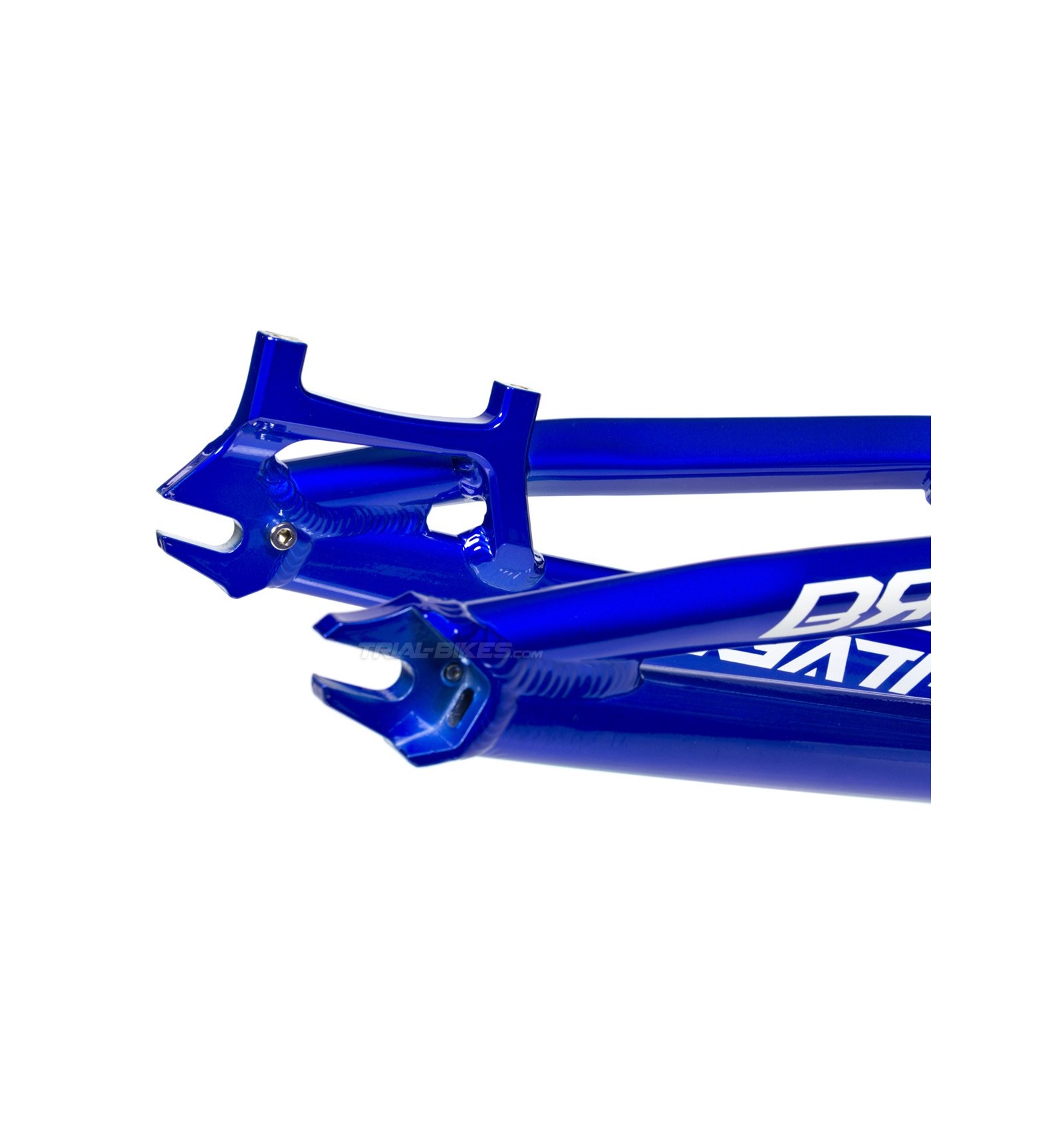

- Features Post Mount disc brake mounts, mechanized in a single piece along with the left dropout and welded to both left stays to help spread stress.
- CNC-machined dropouts, spaced at 116mm, for using with 3mm-thick snail cams.
- Three finishes available: electric blue, white and dark grey, with cool Breath Tomorrow graphics that add a nice racing touch.

Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 130mm

- Wheelbase: 990mm
- Chainstay Length: 350mm
- BB Rise: +85mm
- Head Angle: 75º

Finishes

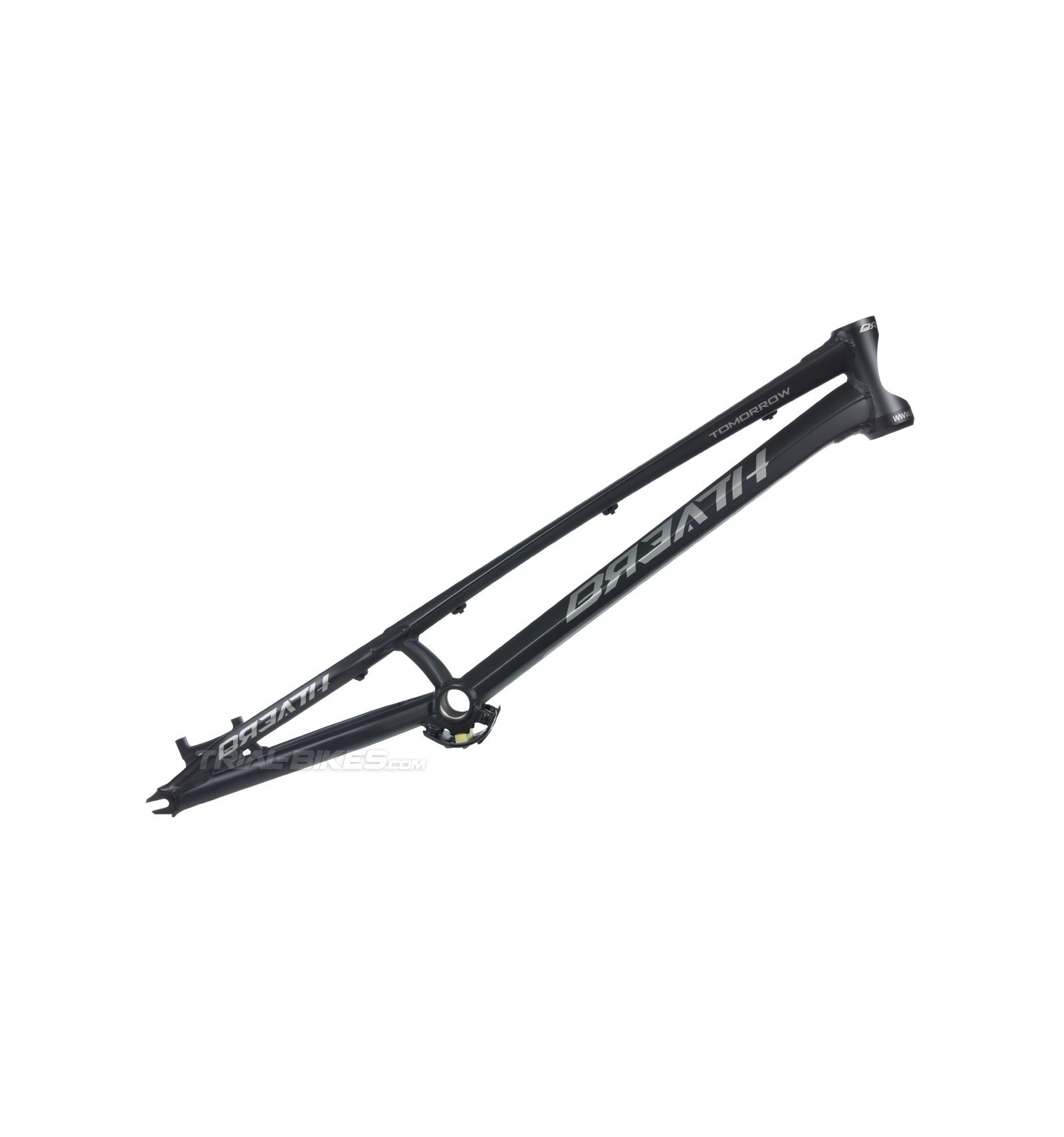

- Dark grey, with silver Breath Tomorrow graphics.

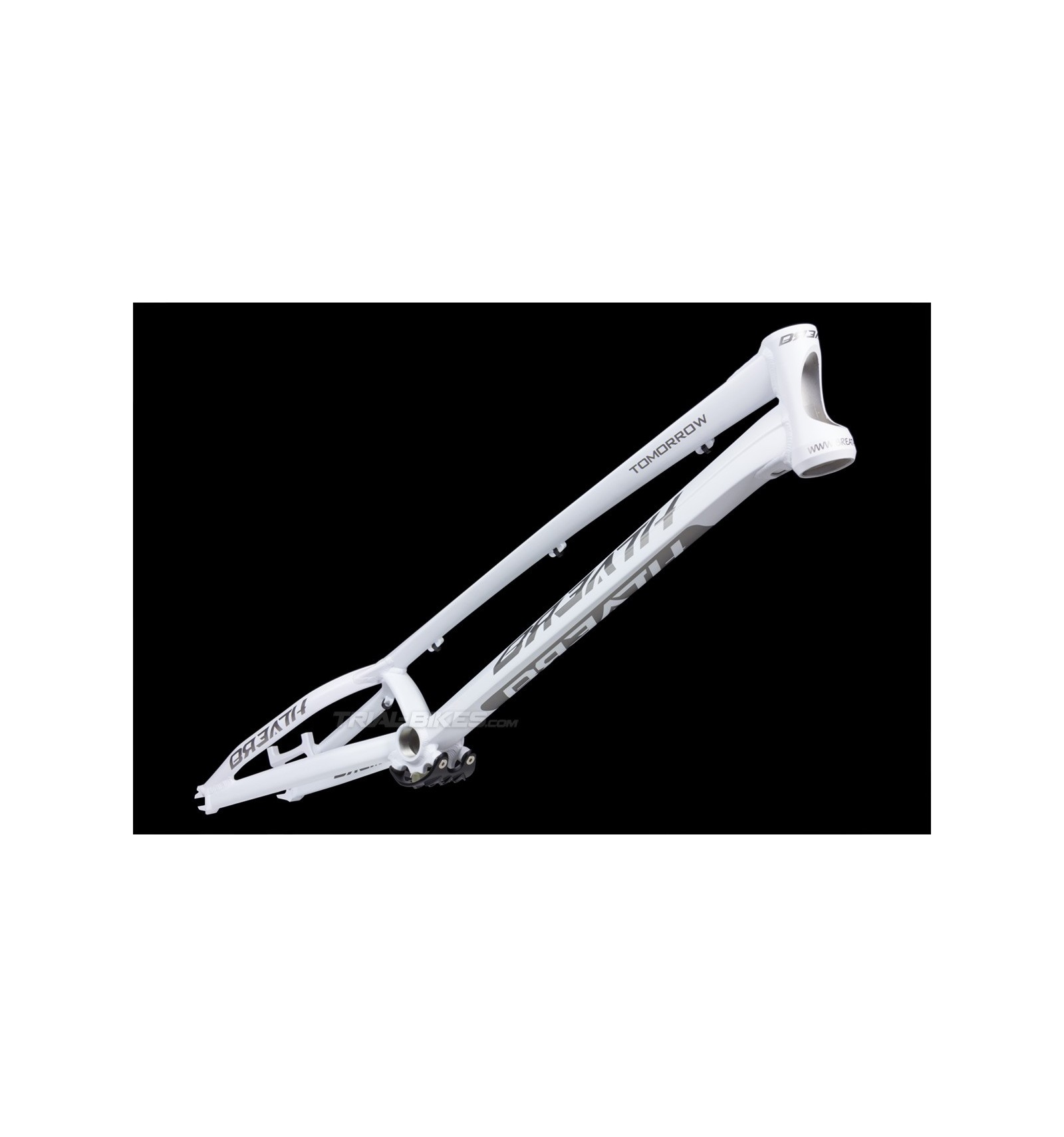

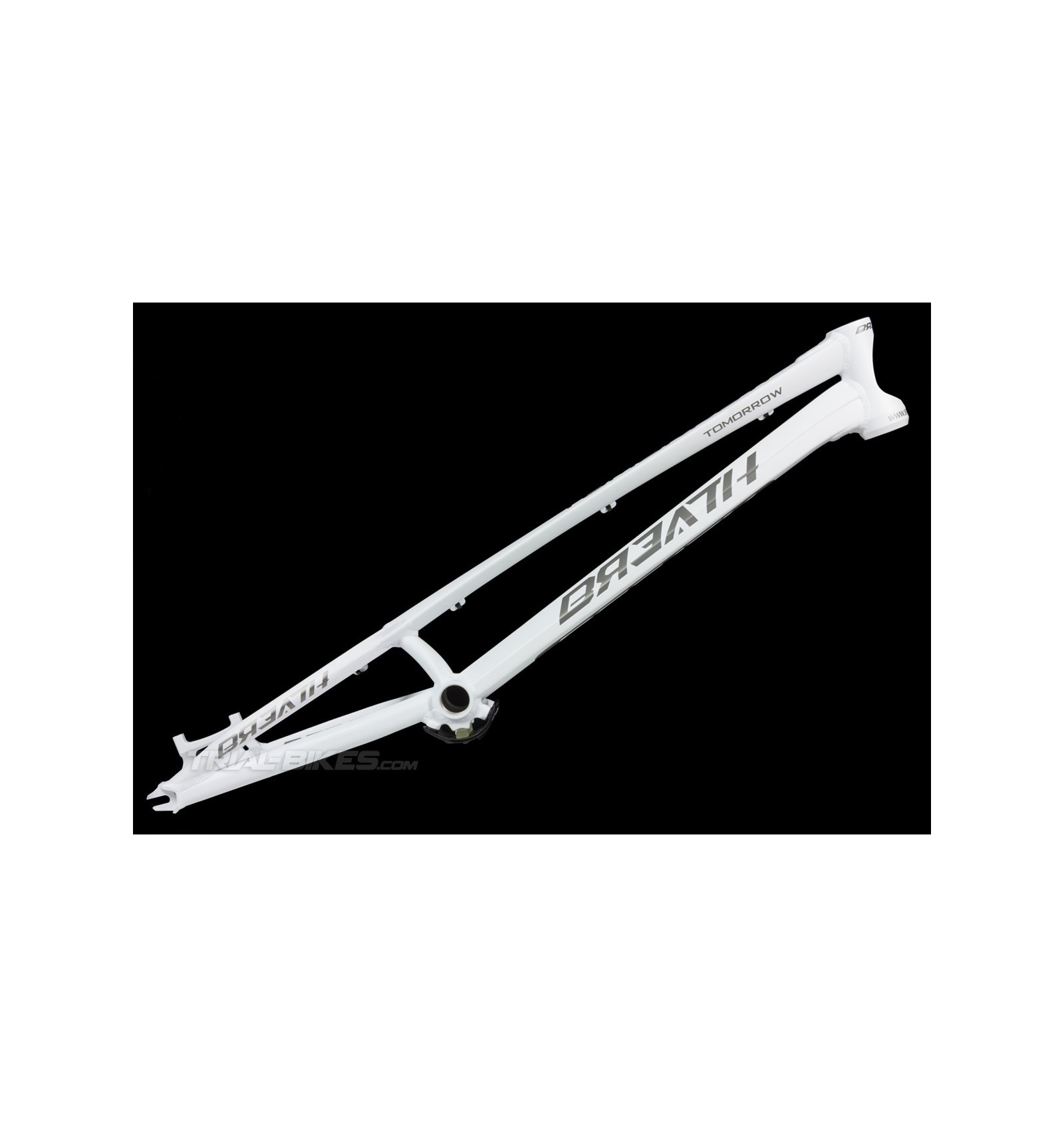

- White, with silver Breath Tomorrow graphics.

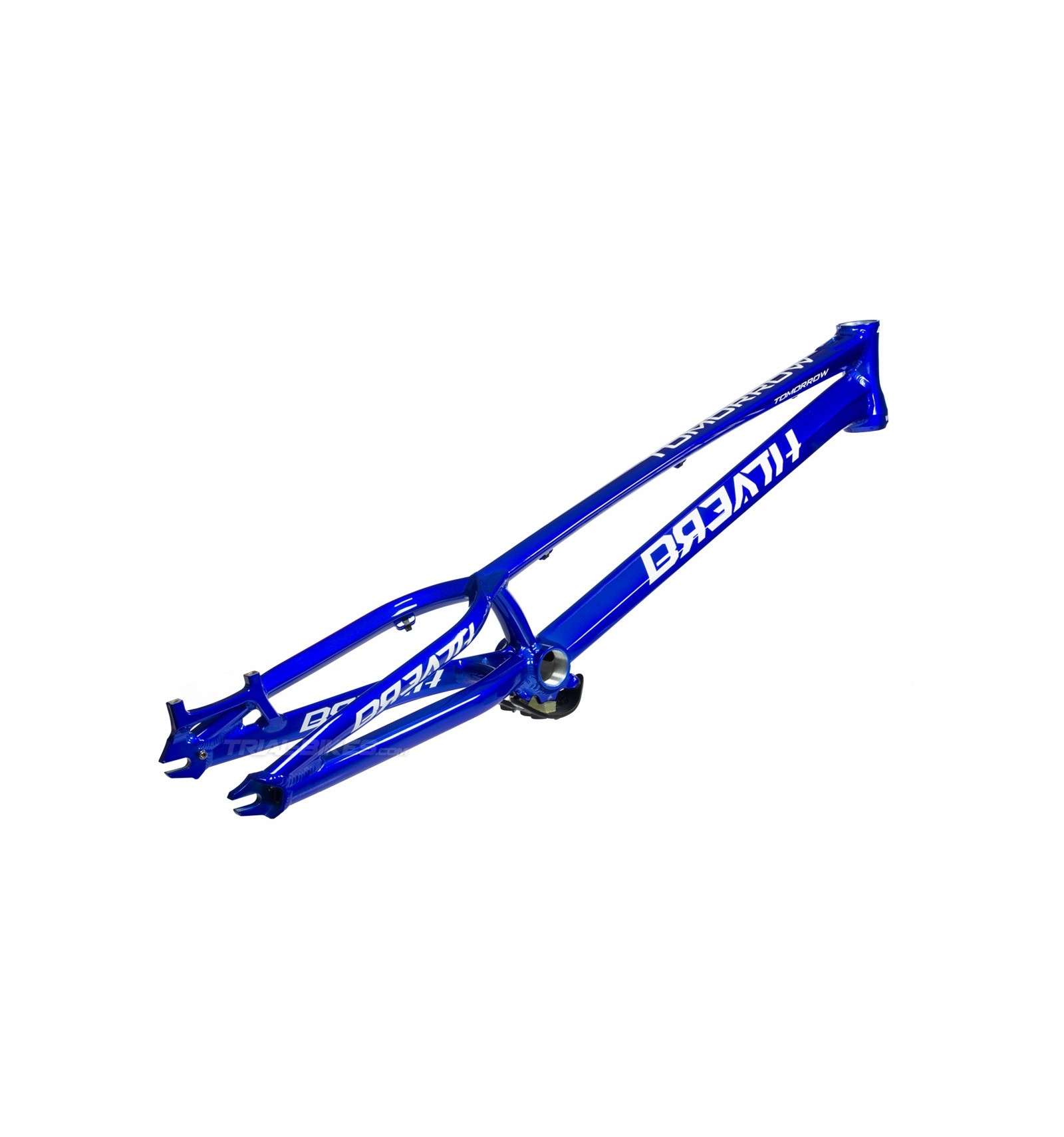

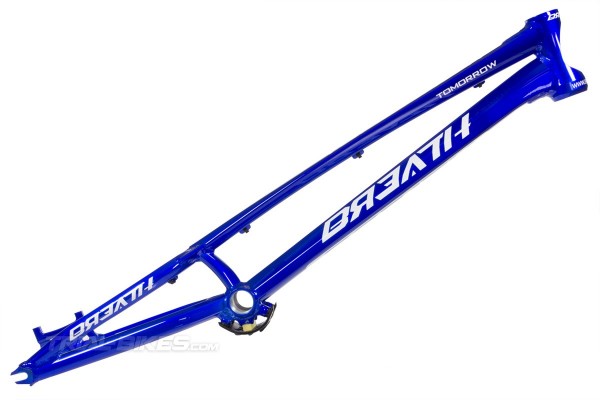

- Electric blue, with white Breath Tomorrow graphics.

Weight
- 1,450kg (frame only), 1,605kg (frame + headset + mini-bash plate)

Additional information
This frame comes with a 6-month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
