Description and materials

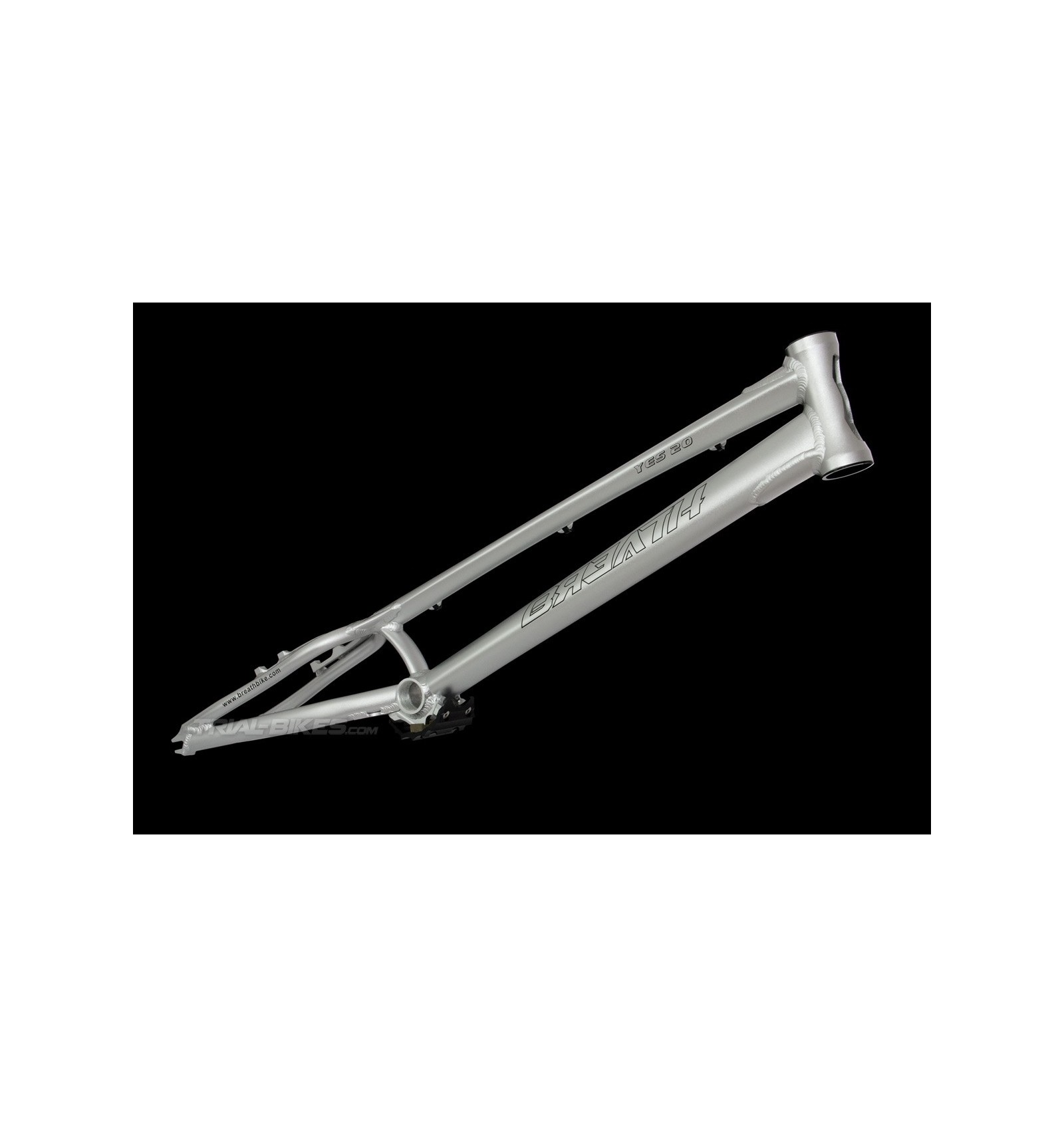

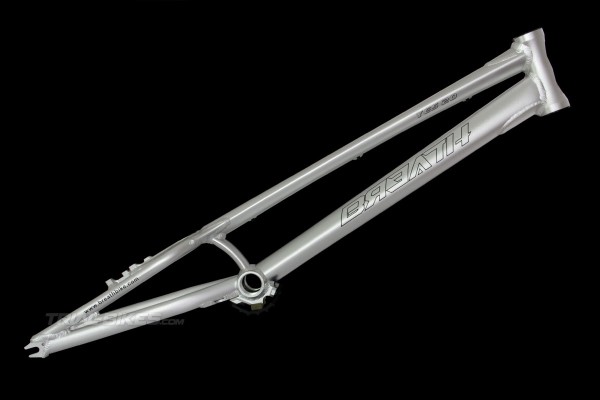

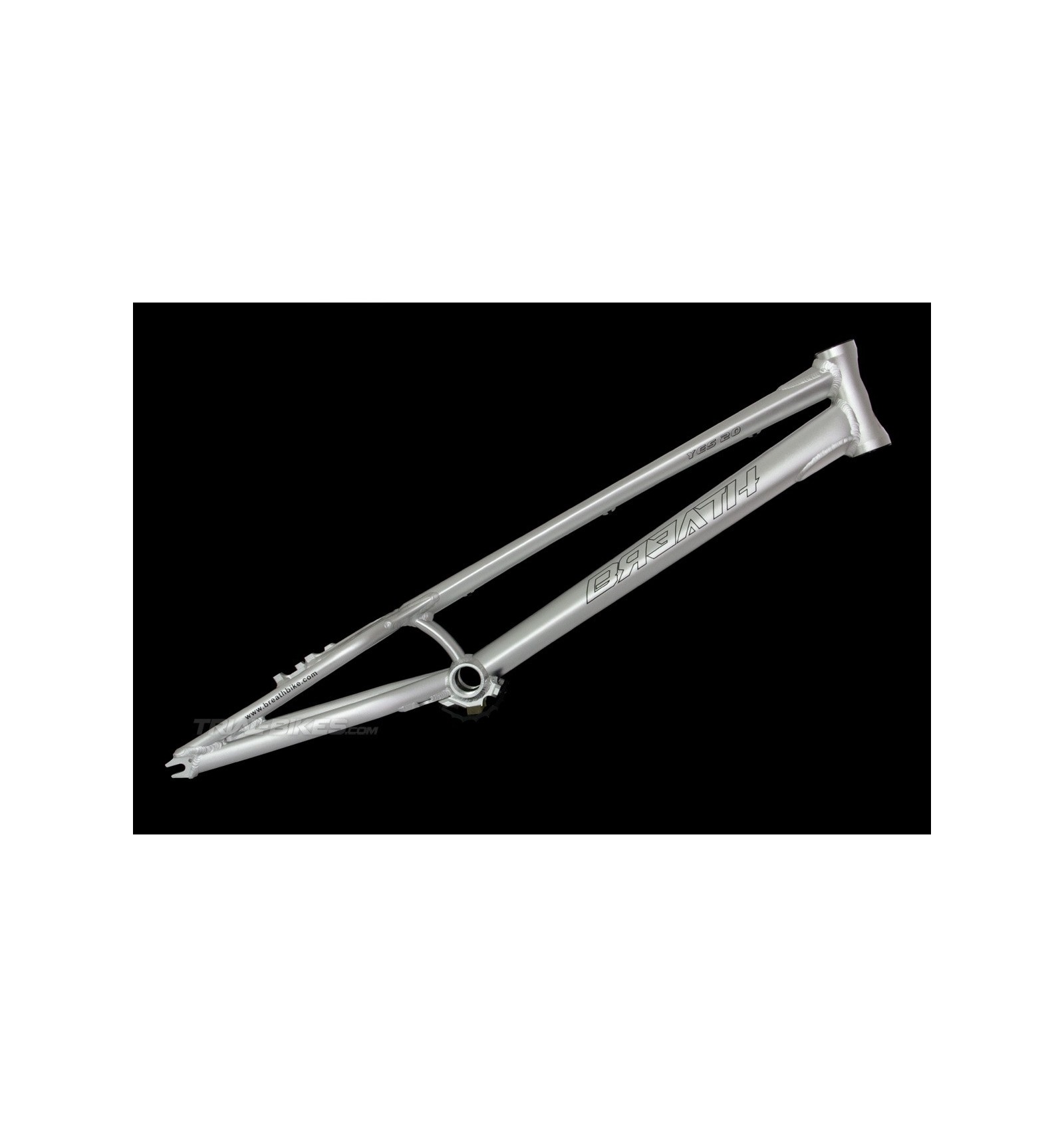

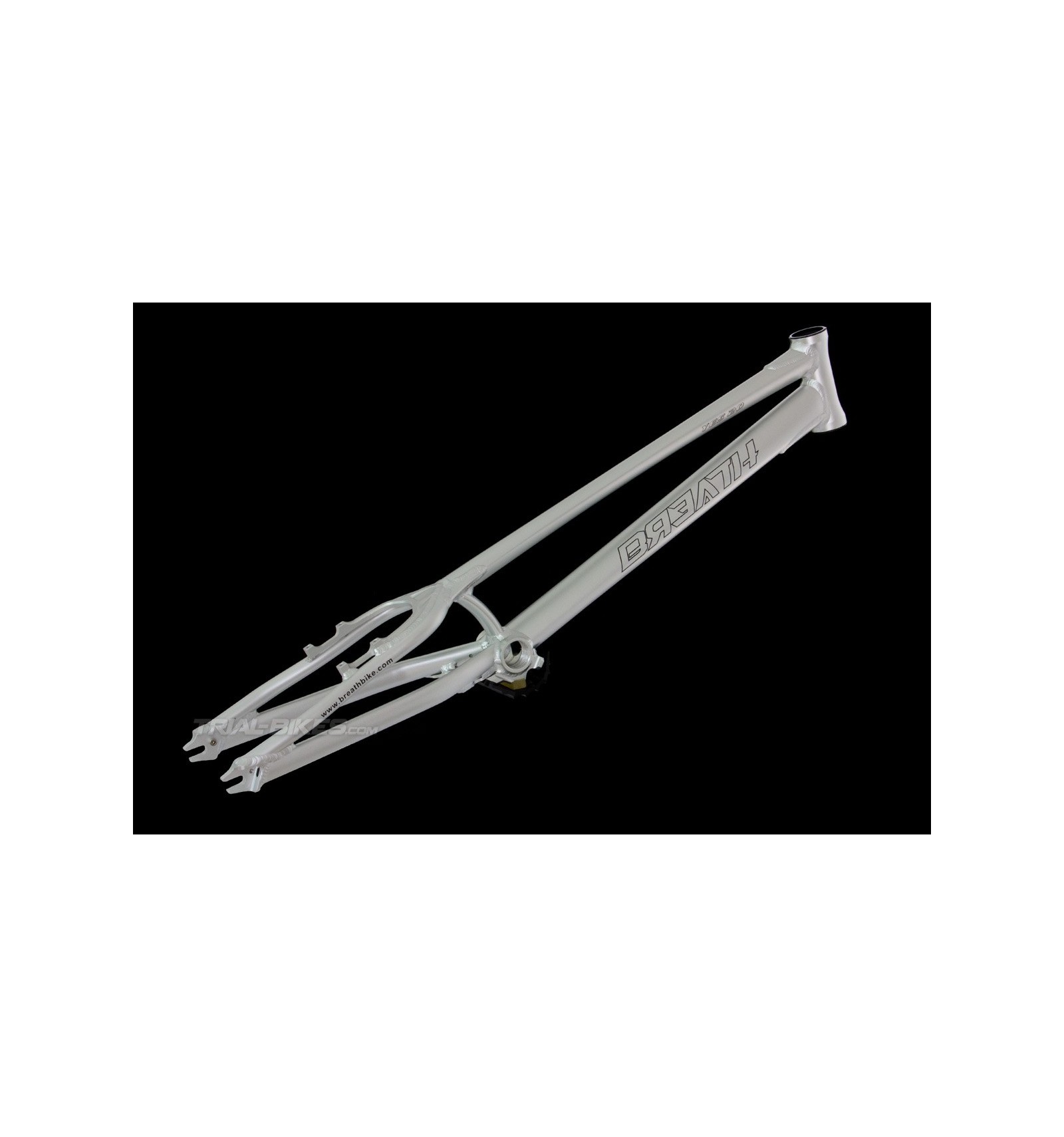

- New Yes 20” frame from Asian brand Breath, tested and developed by top Chinese rider Zao Xuan.
- Made from high quality 6061 T6 aluminium.
- Hydro formed main tubes offer better strength and stiffness than traditional tubes.

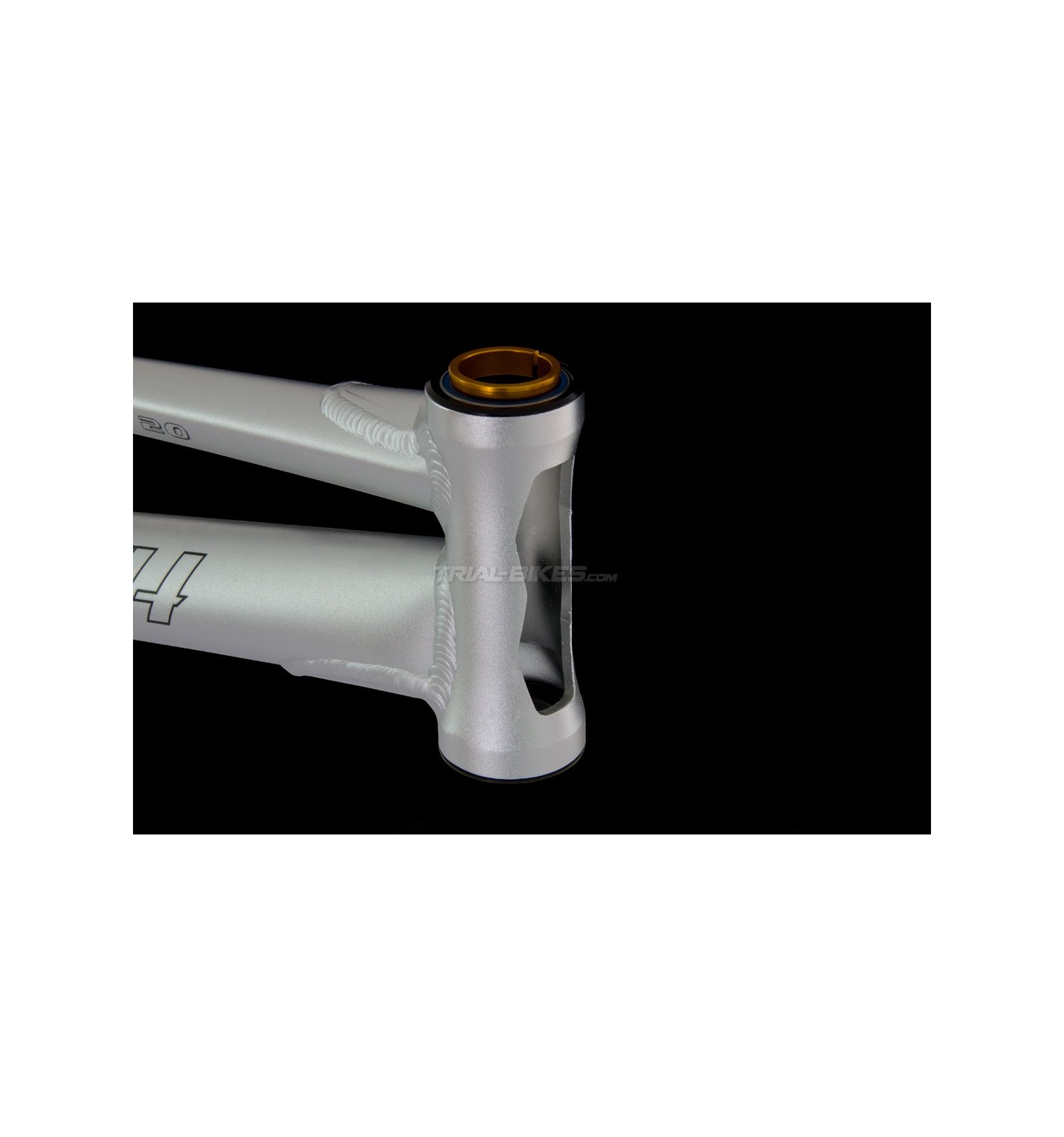

- 129mm CNC’d head tube, designed to use an internal headset (supplied with the frame) and with a large hole to save unnecessary weight.
- The head tube is gusseted to the top and down tubes to increase its strength.
- 68mm bottom bracket shell, suitable for all 122.5mm and 128mm bottom brackets.
- 4-bolt mounts spaced at 100 mm with an integrated CNC brake booster, to improve braking performance.

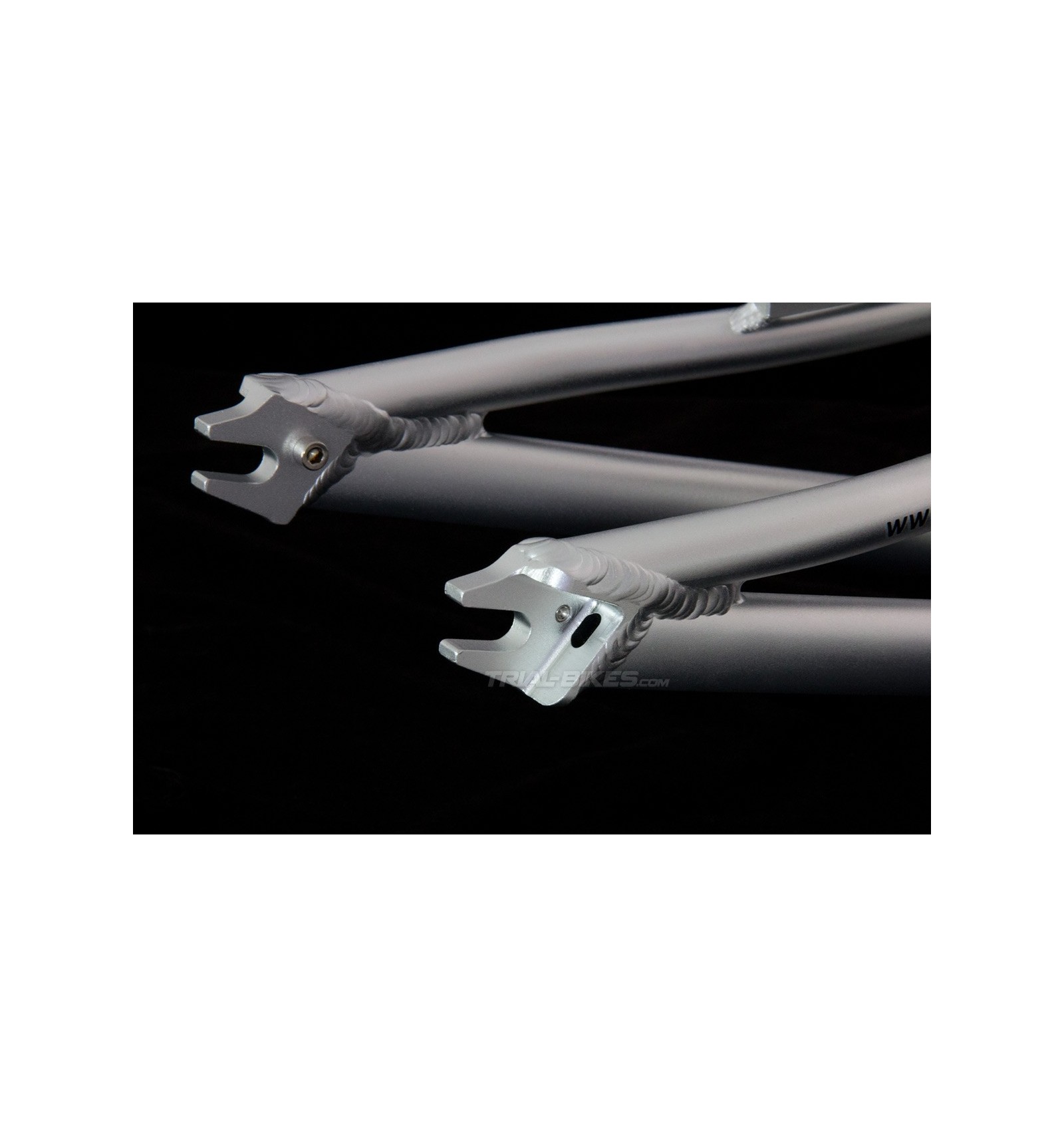

- CNC machined dropouts, designed to use snail cams.
- Designed for 116mm hubs (snail cams are supplied too).

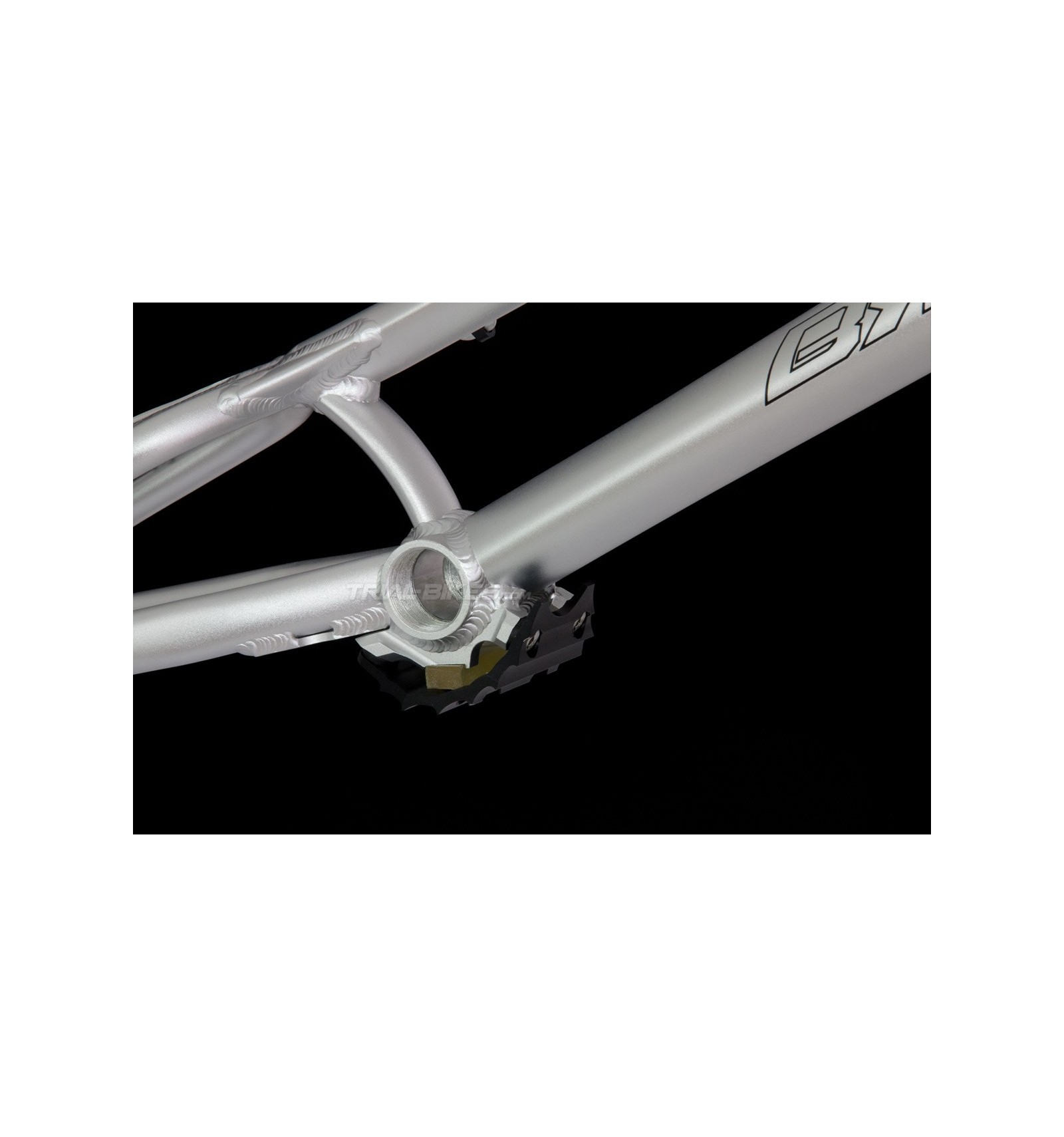

- New bashplate design (supplied with the frame), now more compact, and with a 4-bolt mounting system.
- Supplied with sealed bearing headset and bashplate, both already set up.
- 4-bolt version version only.
- High quality shot-blasted and then anodized finish.
Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 129mm
- Wheelbase: 1010 mm
- Chainstay Length: 362mm
- BB Rise: +90 mm
- Head Angle: 71.5º
Finishes
- Natural anodized finish
- Black BREATH logo
Weight
- 1558 g + 113g ( bashplate, bolts and rubber), + 61.6g (headset)
Additional information
This frame comes with 6 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
WEIGHT | 1.558 |
BRAKE MOUNTS | HS |
TYPE OF HEADSET | Standard 1 1/8" |
