Breeth Carbon Frameset

Breeth Carbon Frameset (with headset)

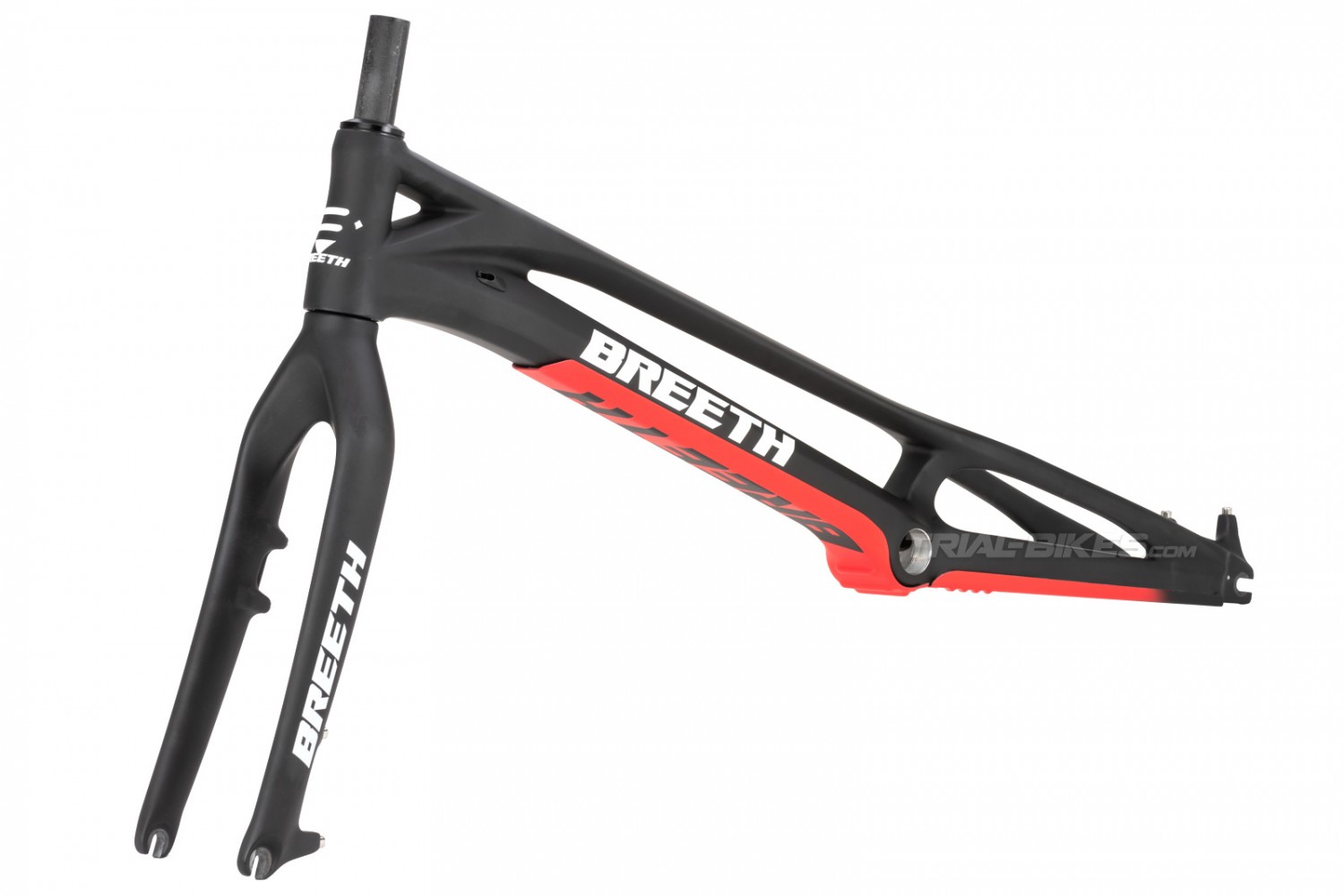

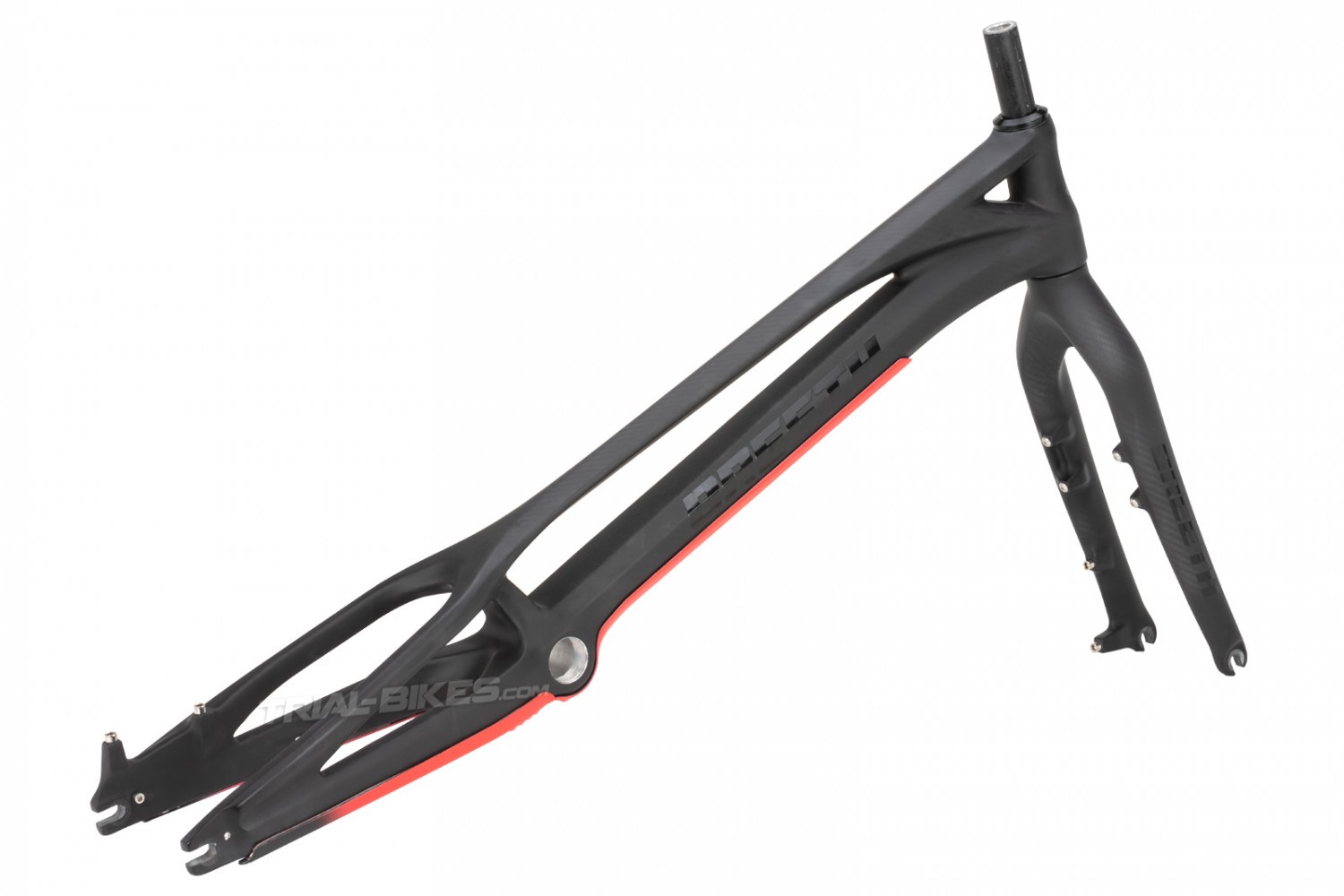

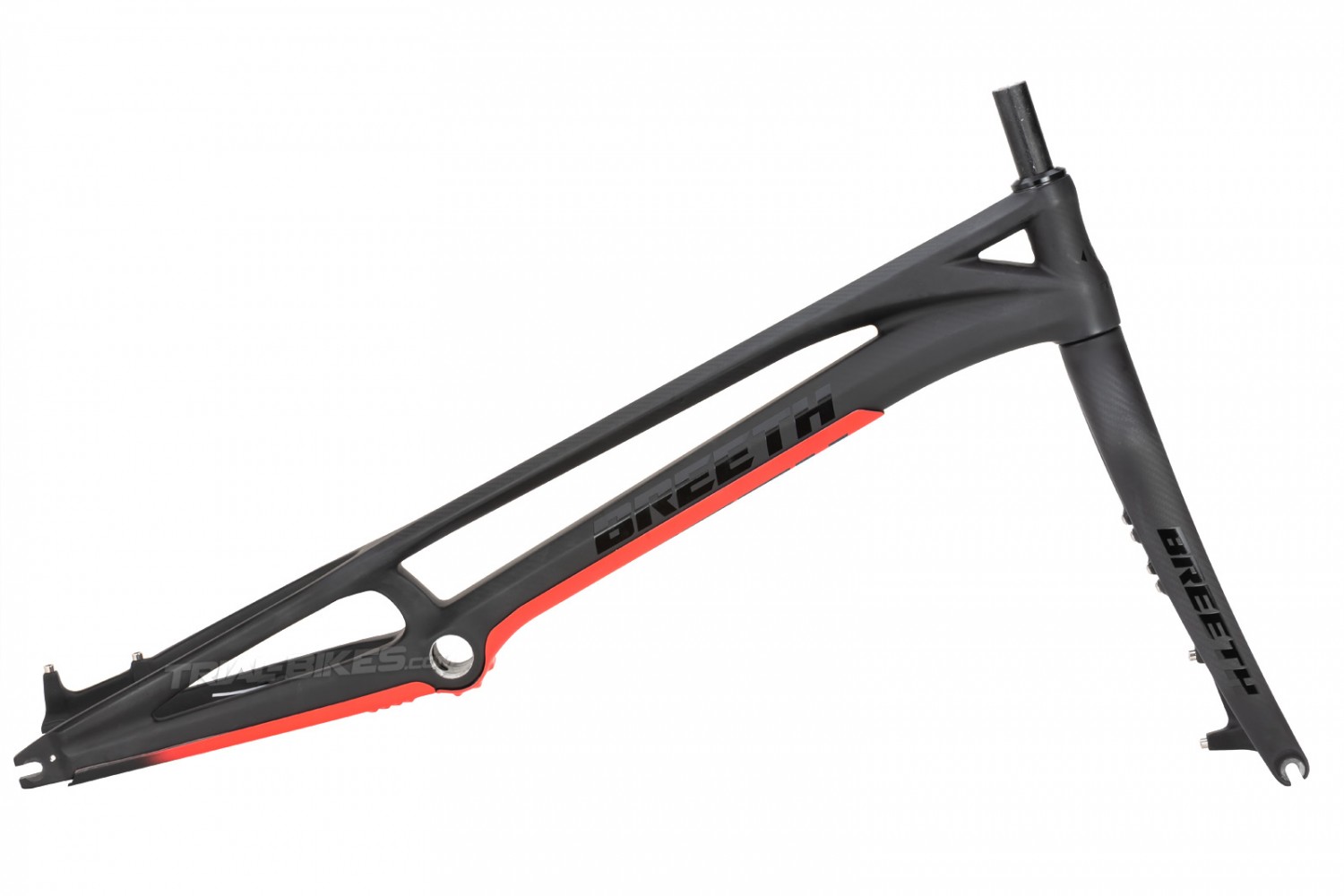

New Breeth Carbon 20” frameset (frame, fork and headset). Featuring the new Breeth 20” high quality carbon frame, reliable and ultralight (only weighs 1052g!), tested for more than a year by Breeth team rider Zhao Xuan.

Includes

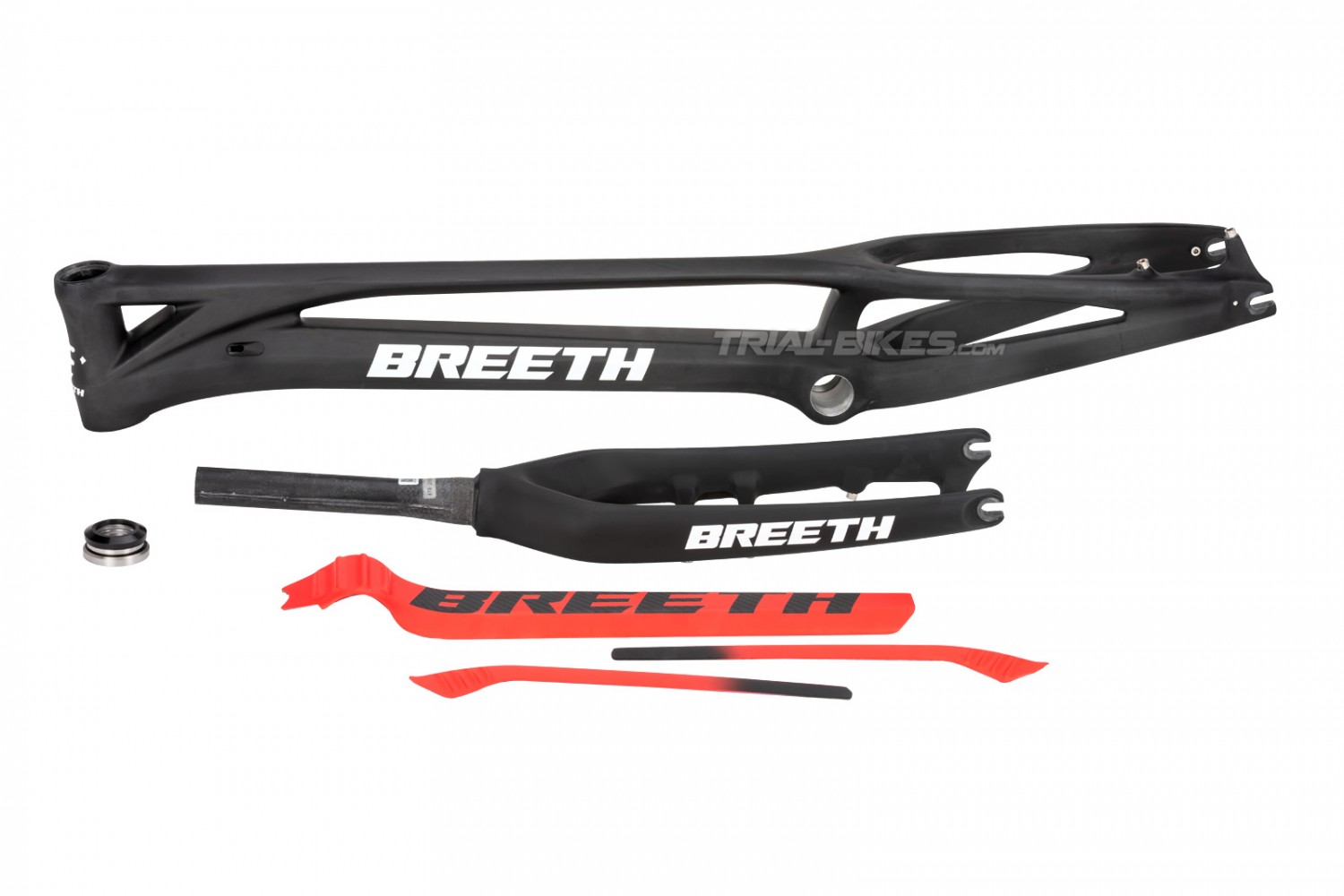

This kit consists of the following products:
- 1x Breeth Carbon Disc 20” frame.
- 1x Breeth Carbon 20” fork, with 4-bolt HS rim brake mounts.
- 1x Breeth integrated 1 1/8” – 1 3/8” headset.
- 1x Auto-adhesive carbon protector for the downtube and BB (not installed).
- 2x Auto-adhesive carbon protectors for the chain stays (not installed).

Description and materials
- Kit composed of a Breeth 20” carbon frame, carbon fork, headset and protectors.
- Featuring the new, top-of-the-range Breeth 20” carbon frame and fork, tested and developed for more than a year by Breeth team rider Zhao Xuan.
- The frame has Post Mount disc brake mounts and the fork comes with 4-bolt HS rim brake mounts and disc mount Post mount.
- Available in 2 versions: 1005mm and 1018mm long.

Main features of the Breeth Carbon 20” Frame
- This frame is made of ultra-light, high-quality carbon fibre.
- 100% exclusive design by Breeth, with special fibre layers configuration to optimize strength and stiffness in all riding conditions.

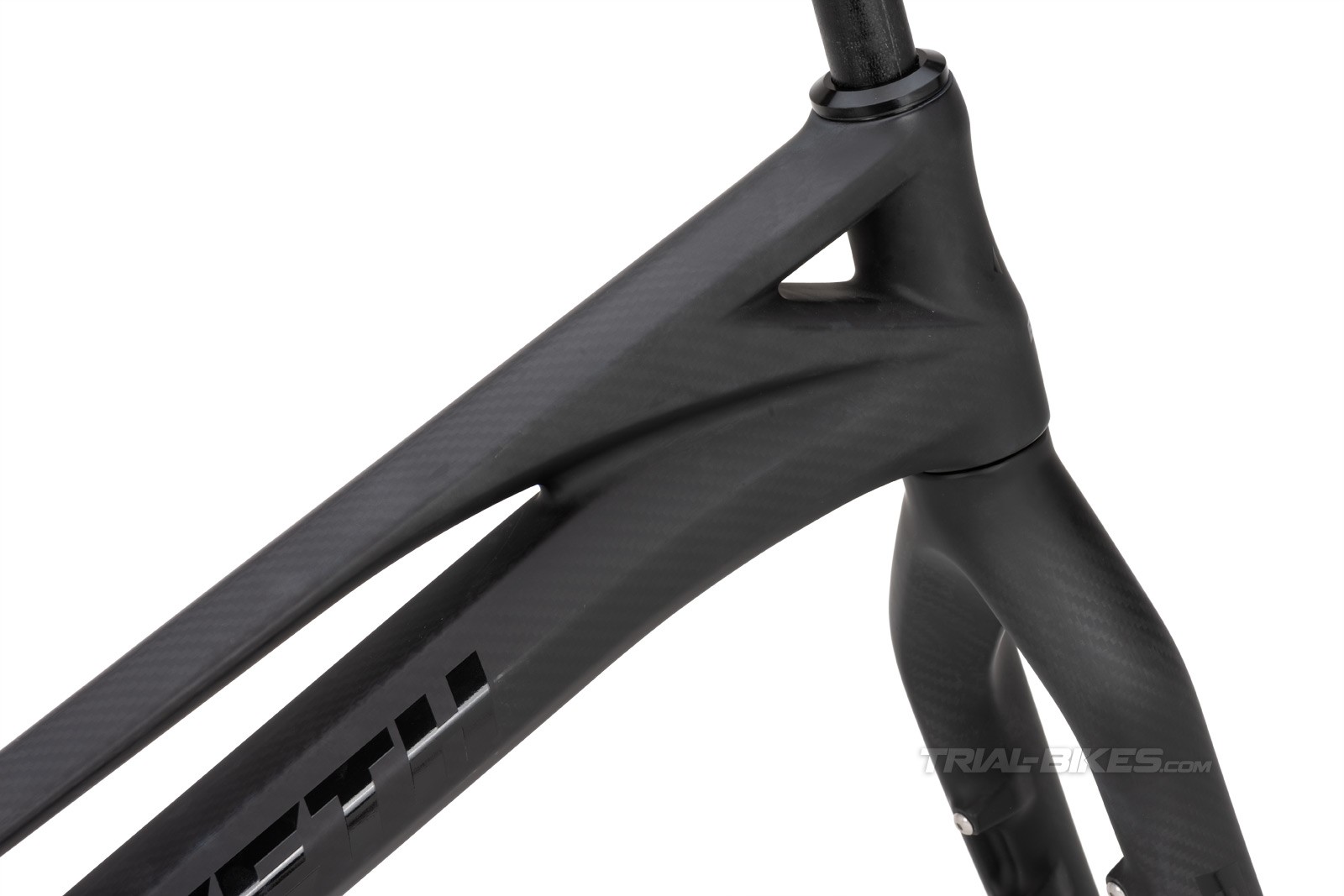

- Tapered head tube 1 1/8” top (41.8mm) and 1 3/8” bottom (49mm), 125mm long, for integrated headsets (without cups).

- Over-dimensioned main tubes in order to ensure high strength and stiffness.
- The BB shell features a 68mm-wide threaded aluminium insert, which is compatible with standard 1.37” x 24tpi threaded BBs.
- The frame doesn’t have any bashplate mounts, therefore it’s recommended to install a bashring on the crank.
- The stays have been optimized in design and dimensions to minimize flexion at the back of the frame.
- Features Post Mount disc brake mounts (for 160mm rotor), neatly integrated with the left stay.
- Chain tension can be adjusted via snail cam chain tensioners (not included).

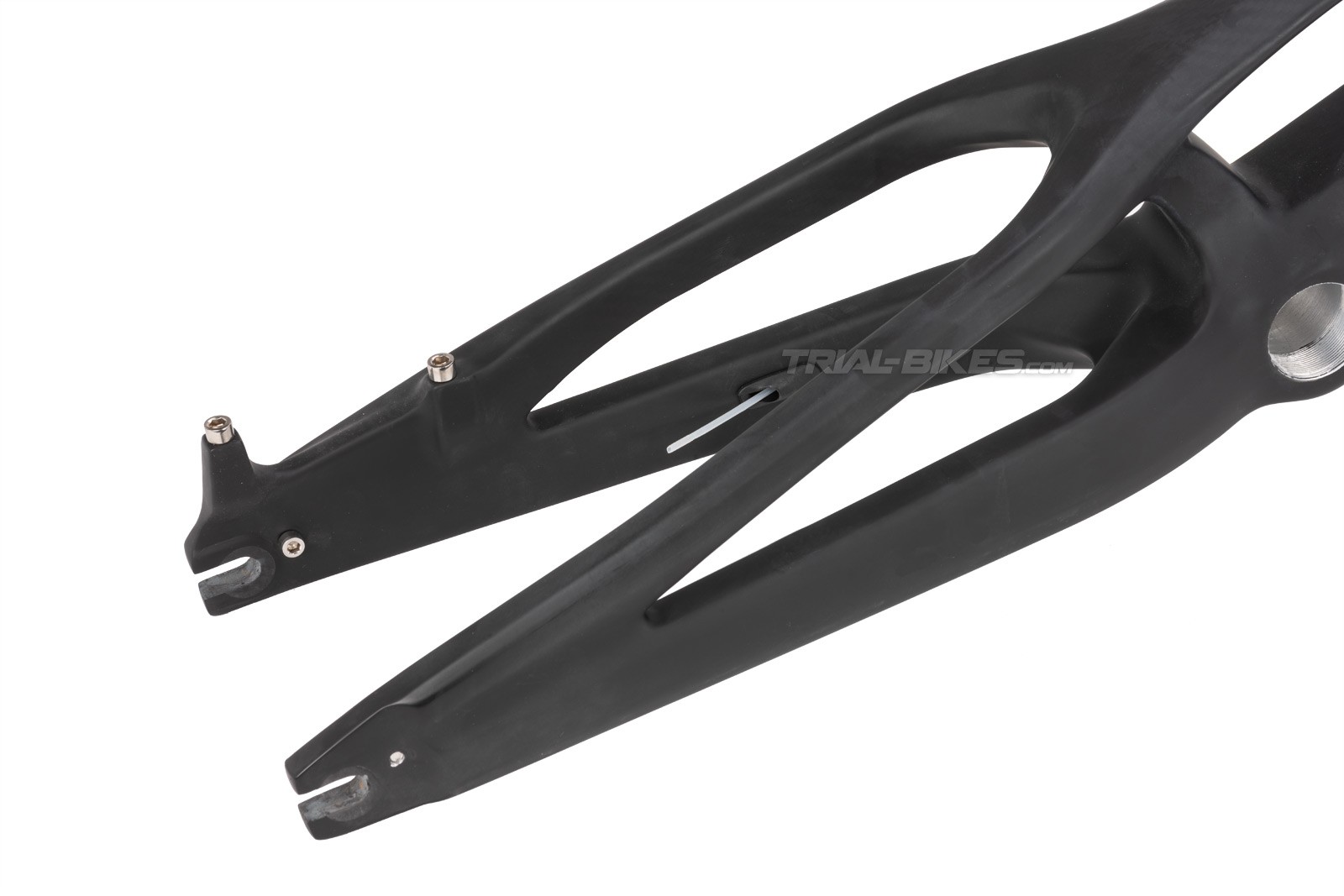

- Horizontal dropouts spaced at 116mm.

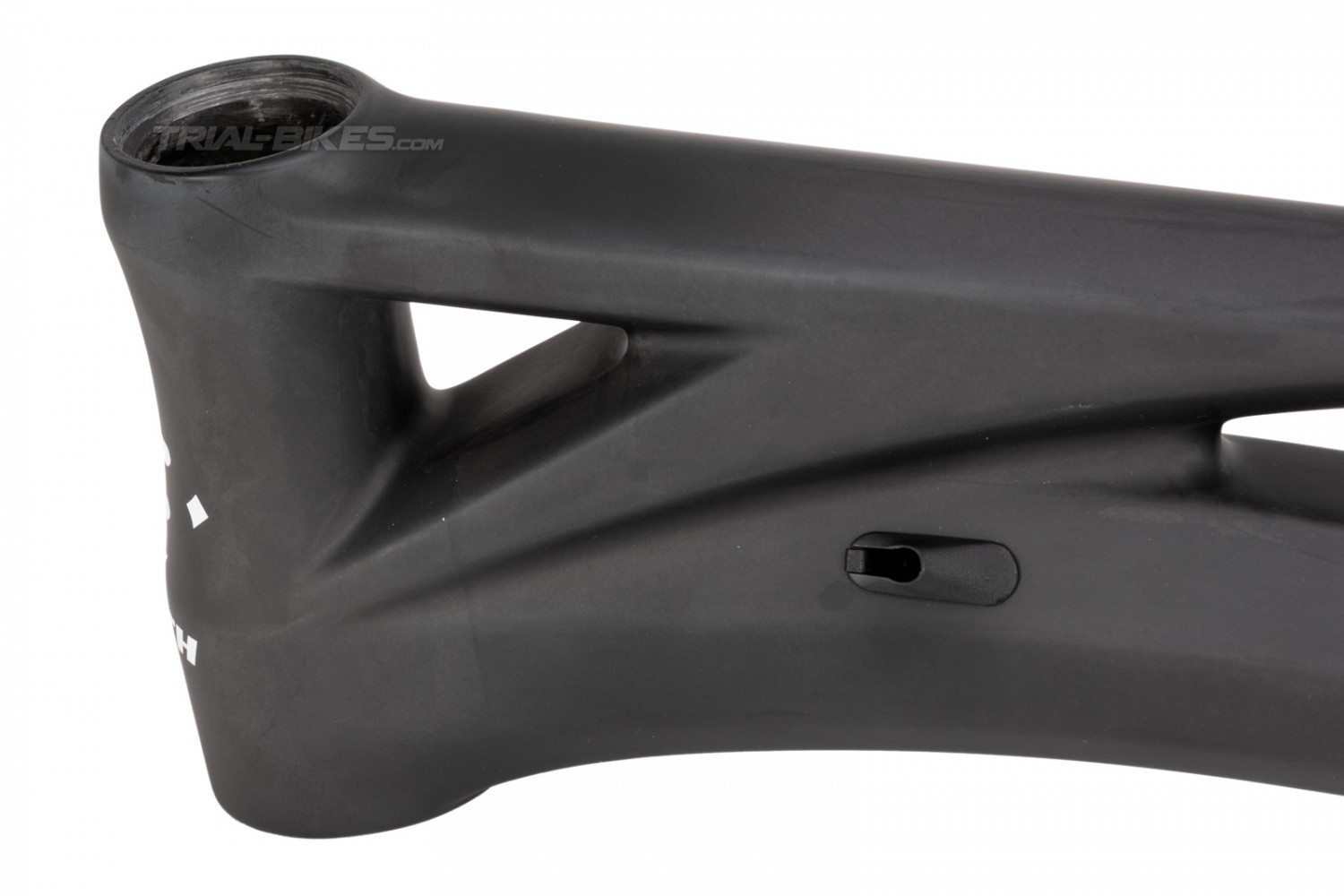

- Features a small opening on the main tube and another one on the inside of the left chain stay, which allow the main hose to be internally routed easily.
- Note: this frame is only compatible with the Breeth 20” headset and Breeth Carbon 20” 1 3/8” fork (49mm). In case you’d like to install a 1 1/8” or 1.5” fork, you’d also need to use the corresponding adaptor.

Main features of the Breeth Carbon 20” Fork
- This fork is made of ultra-light, high-quality carbon fibre.
- 100% exclusive mono-block design by Breeth, with special fibre layers configuration to optimize strength and stiffness in all riding conditions.

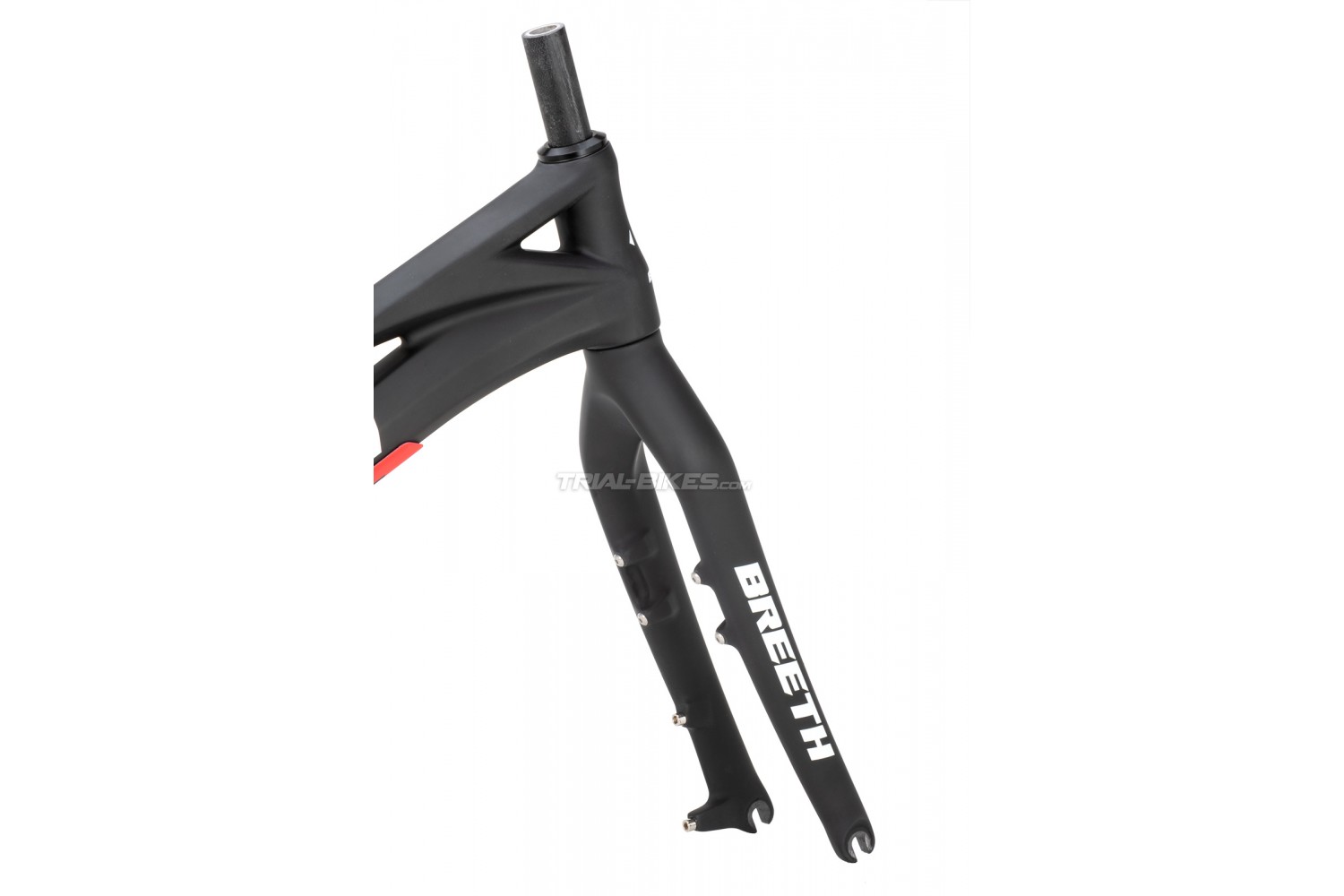

- 210mm long, tapered steerer tube, 1 1/8” top (41.8mm) and 1 3/8” bottom (49mm).
- Moreover, the steerer tube combines carbon fibre and Kevlar and features a 2.5mm aluminium insert to increase strength.
- This fork comes with 4-bolt rim brakes mounts, neatly integrated at the back of the legs and spaced at 88mm and disc mount.
- The dropouts are designed for 10mm diameter and 100mm wide axles, so most front hubs for bike trials are compatible.
- Note: this fork is only compatible with the Breeth Carbon 20” frame and Breeth 20” headset.

The 7 Compatibility Keys
Below you can find the main aspects to consider when building this frame:

- 1) Headset. Compatible with the Breeth Tapered 1 1/8” – 1 3/8” integrated headset, included with this kit, whose dimensions are:
- Top bearing diameter: 1 1/8” (41.8mm)
- Top bearing width: 6.5mm
- Bottom bearing diameter: 1 3/8” (49mm)
- Bottom bearing width: 7mm

- 2) Bashplate.
The frame doesn’t have any bashplate mounts, therefore it’s recommended to install a bashring on the crank.
Moreover, it’s highly recommended to install the auto-adhesive carbon protectors supplied with the frame to prevent damage from scratches and impacts.

- 3) Bottom Bracket. A 68mm-wide bottom bracket with standard 1.37x24T thread must be used on this frame, therefore you can install conventional and BB30 threaded BB’s (Try-All, Hashtagg, Bonz, etc.).
In order to avoid the cranks from rubbing the seat stays, which may happen due to specific crank offsets for each brand, it’s recommended to install a 127,5mm or 128mm wide bottom bracket.

- 4) Rear Brake. A Post Mount rear disc brake must be used. Post Mount brake calipers sit onto the brake mounts, instead of being bolted sideways (as is the case on IS calipers).

- 5) Chain tensioner. Snail cams must be used.

- 6) Rear hub. A 116mm wide rear hub must be used. In case you’d like to install a rear hub with 110mm spacing (common in most 20” bikes), then you must add 3mm snail cams to each side of the hub, in order to result in the total of 116mm this frame requires.
Also, since this frame only has disc brake mounts, the rear hub must feature disc brake mounts too.

- 7) Fork. The steerer tube on the Breeth fork supplied is 210mm long, which is more than enough so that you can cut it down to the desired length. In case you’d like to install a 1 1/8” or 1.5” fork, you’d also need to use the corresponding adaptor.

Frame geometry (Measured with Breeth Carbon 20” fork with 375mm x 45mm offset)

Available in 2 versions:

- Wheelbase: 1005mm
- Chain stay length: 350mm
- BB Rise: +90mm
- Head Angle: 72º

- Wheelbase: 1018mm
- Chain stay length: 363mm
- BB Rise: +90mm
- Head Angle: 72º


- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 125mm long, 1 1/8” – 1 3/8” tapered design

Colour

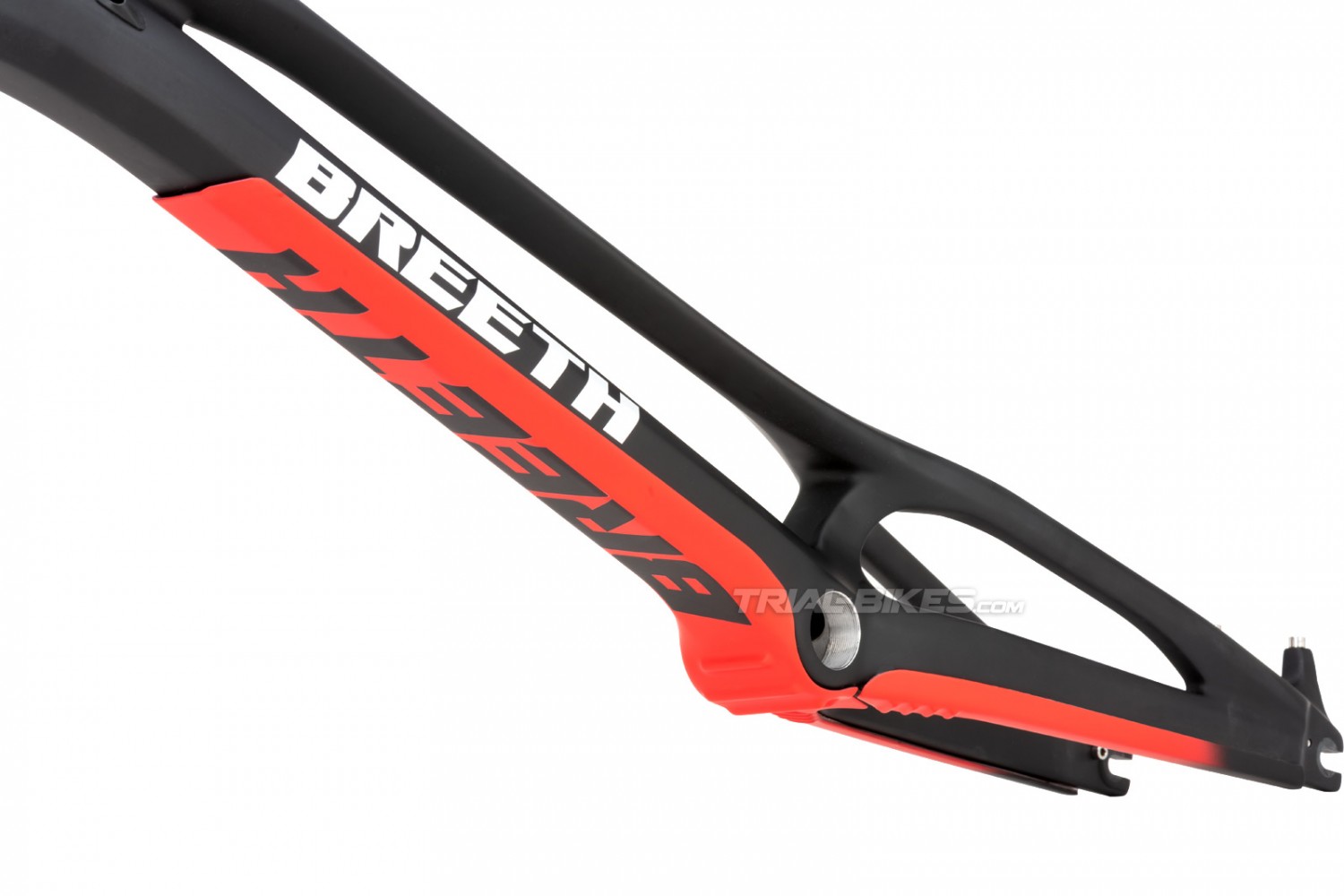

- Black frame with white Breeth graphics, black fork with white Breeth graphics.

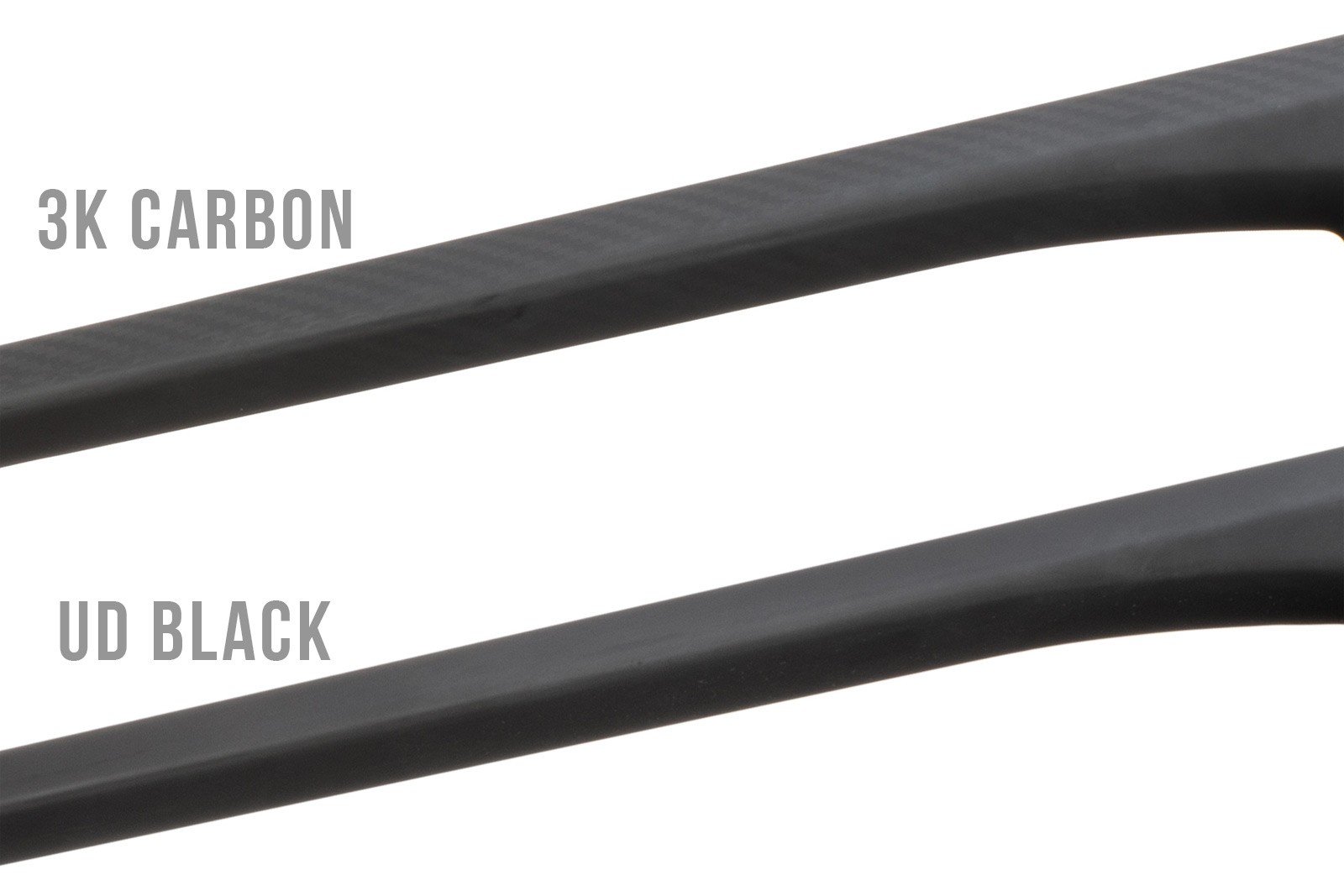

- 3K Carbon frame with white Breeth graphics, 3K carbon fork with white Breeth graphics (only 1018mm version).
- 3K Carbon frame with black Breeth graphics, 3K carbon fork with black Breeth graphics (only 1005mm version)

Weight
- Frame: 1052g (1005mm) and 1069g (1018mm)
- Fork: 622.24g (with 205mm steerer tube. You can remove 24g by cutting it down to 170mm)
- Headset: 64.28g

Additional information
This frame comes with a 6-month warranty covering manufacturing and materials defects. Damage incurred from inadequate use, collisions and impacts with obstacles will have a negative effect on the outcome of any guarantee claim. Moreover, it’s highly recommended to install the auto-adhesive carbon protectors supplied with the frame to prevent damage from scratches and impacts.

If you have any doubts, please contact us on info@trial-bikes.com.
