Clean E.Series Rear Disc Freehub

Reference: CL0499.E

Condition: New

Ask a question

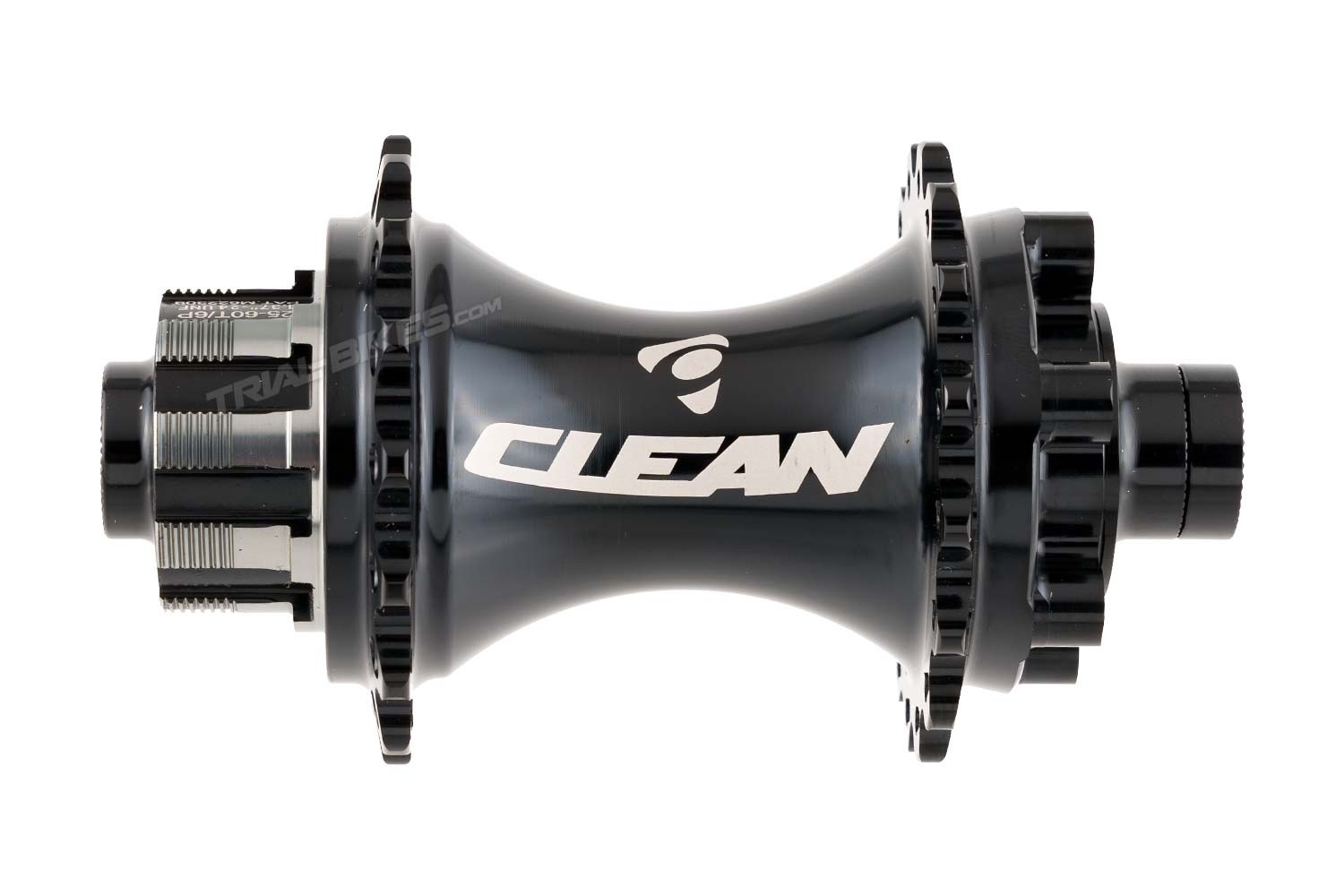

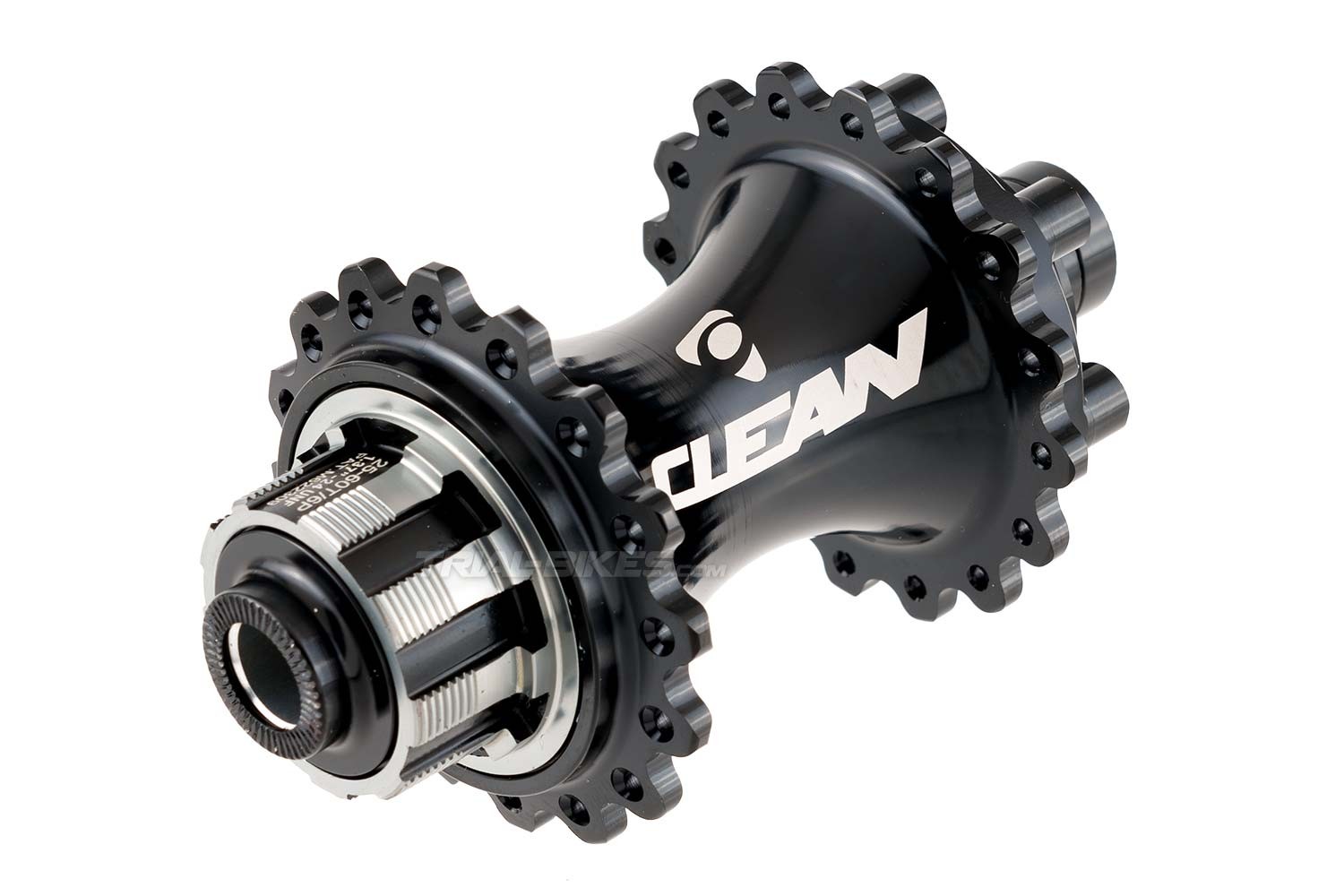

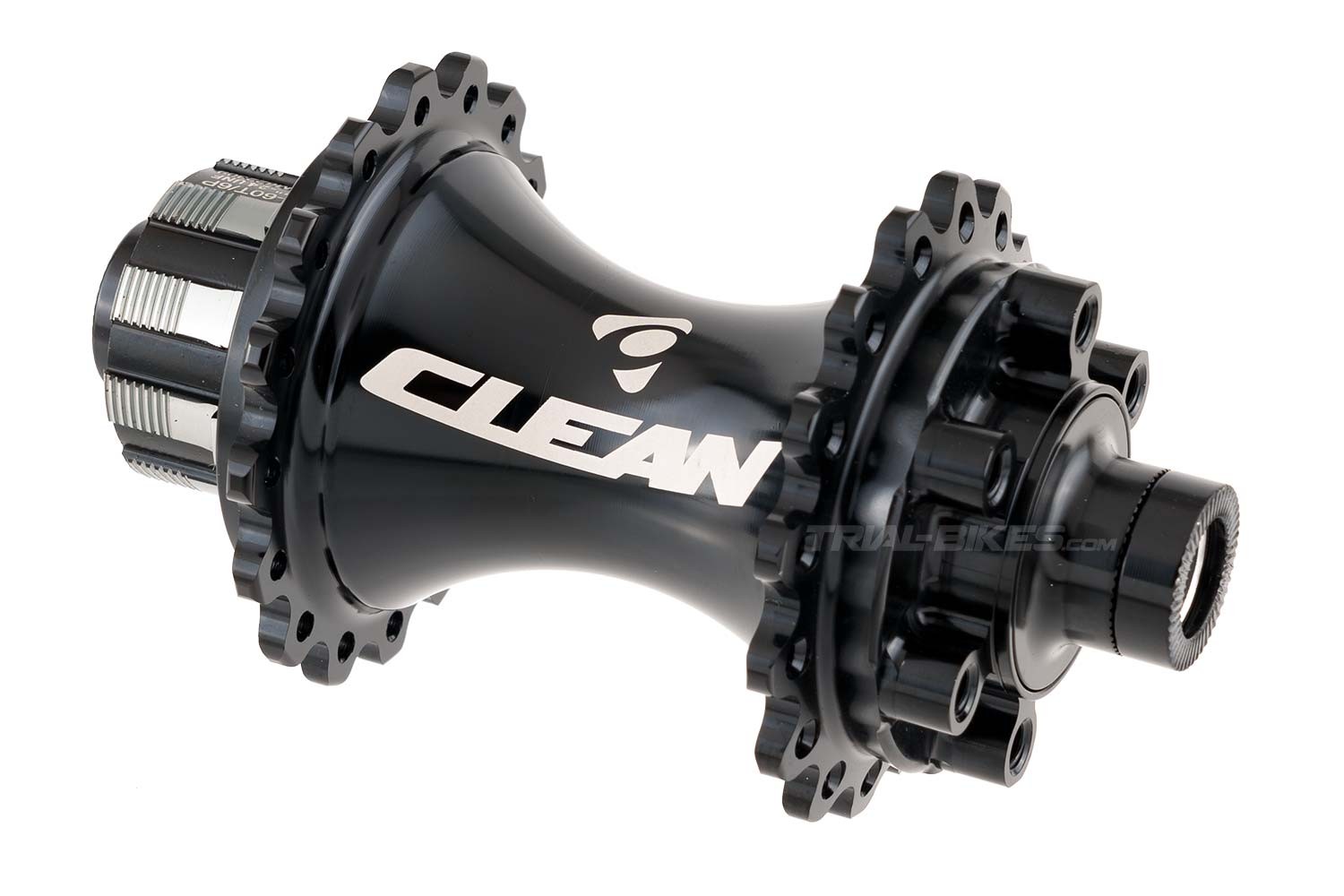

Clean E.Series Rear Freehub Disc

- The new E.SERIES rear freehub has been developed after months of testing and refinement, achieving unprecedented efficiency. Its integrated rolling system eliminates unnecessary friction and optimises each pedal stroke, providing an immediate response and a smoother riding experience.
- With an exclusive design and high-quality materials, this freehub redefines reliability and precision standards, making it the best choice for the most demanding riders.

Description and Materials
- Manufactured from aerospace-grade anodised aluminium, with an optimised body for greater rigidity and strength.
- Integrated toothed driver, featuring 6 pawls in two groups of three, ensuring a precise and constant engagement.
- High-response, low-friction springs designed to minimise energy loss and maximise power transfer.

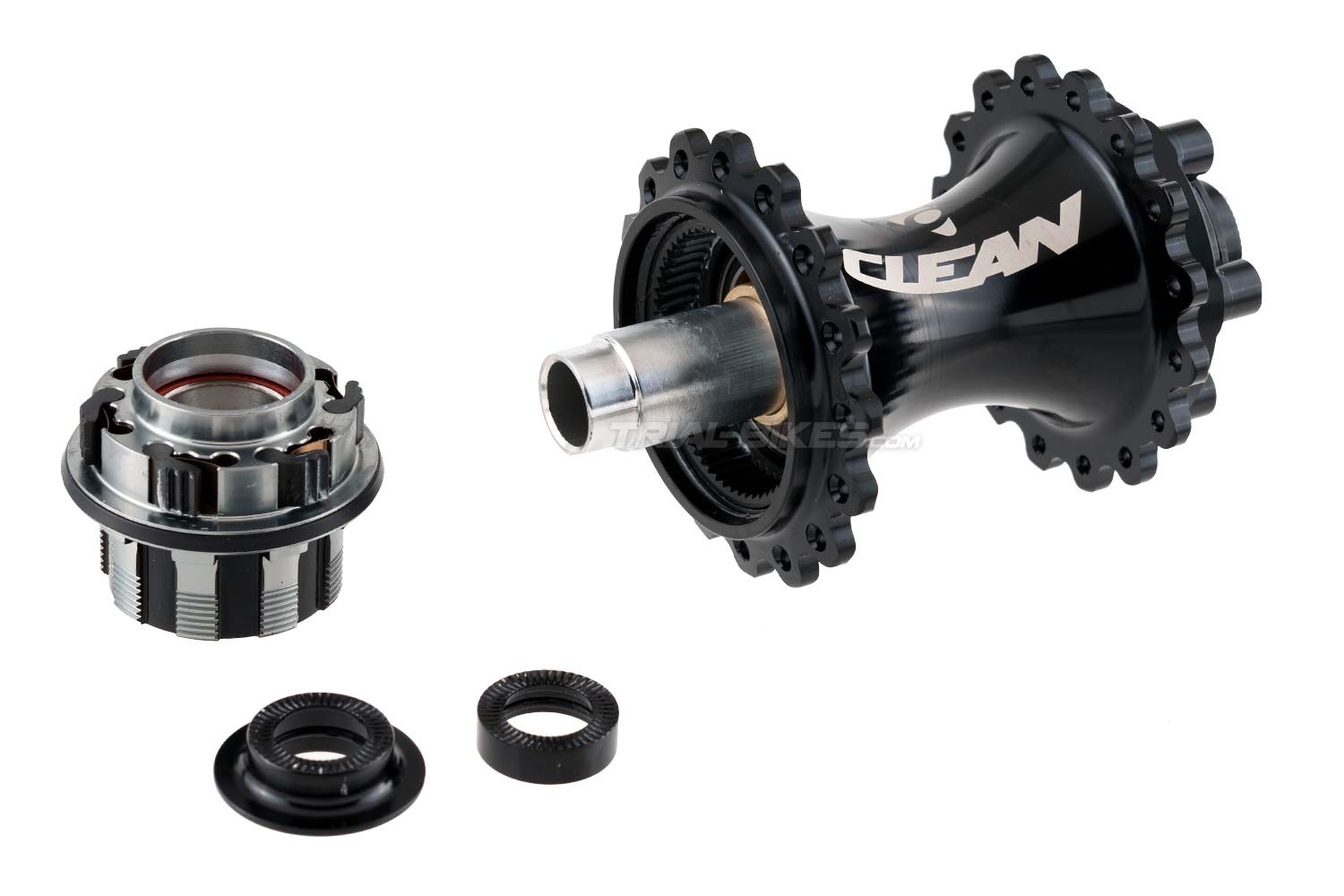

- 4 sealed bearings strategically placed (2 in the body and 2 in the driver) to ensure smooth and durable operation.

Dimensions and Compatibility
- 120 mm width, designed for Clean frames with a 12 mm tru-axle.
- 6-bolt disc mount system, ensuring compatibility with most brakes on the market.
- 32 spoke holes rims.
- 12 mm tru-axle (not included).
- Clean X3 rear hub lock ring, thread diameter: 35 mm (not included).

180 Engagement Points Technology
- Equipped with a 60-tooth drive ring and a triple-pawl system, achieving 9 simultaneous engagement points in each coupling.
- Thanks to its optimised structure, this freehub reaches 180 engagement points (e.p), ensuring an immediate connection with each pedal stroke.

- Depending on the gear ratio used, the number of e.p varies to adapt to the rider's needs:
- Gear ratio 18:12 → 180 e.p (2 groups x 60 teeth x 1.5).
- Gear ratio 18:15 → 144 e.p (2 groups x 60 teeth x 1.2).
