Clean X1 20" 2020 Frame

Clean X1 20” 2020 Frame

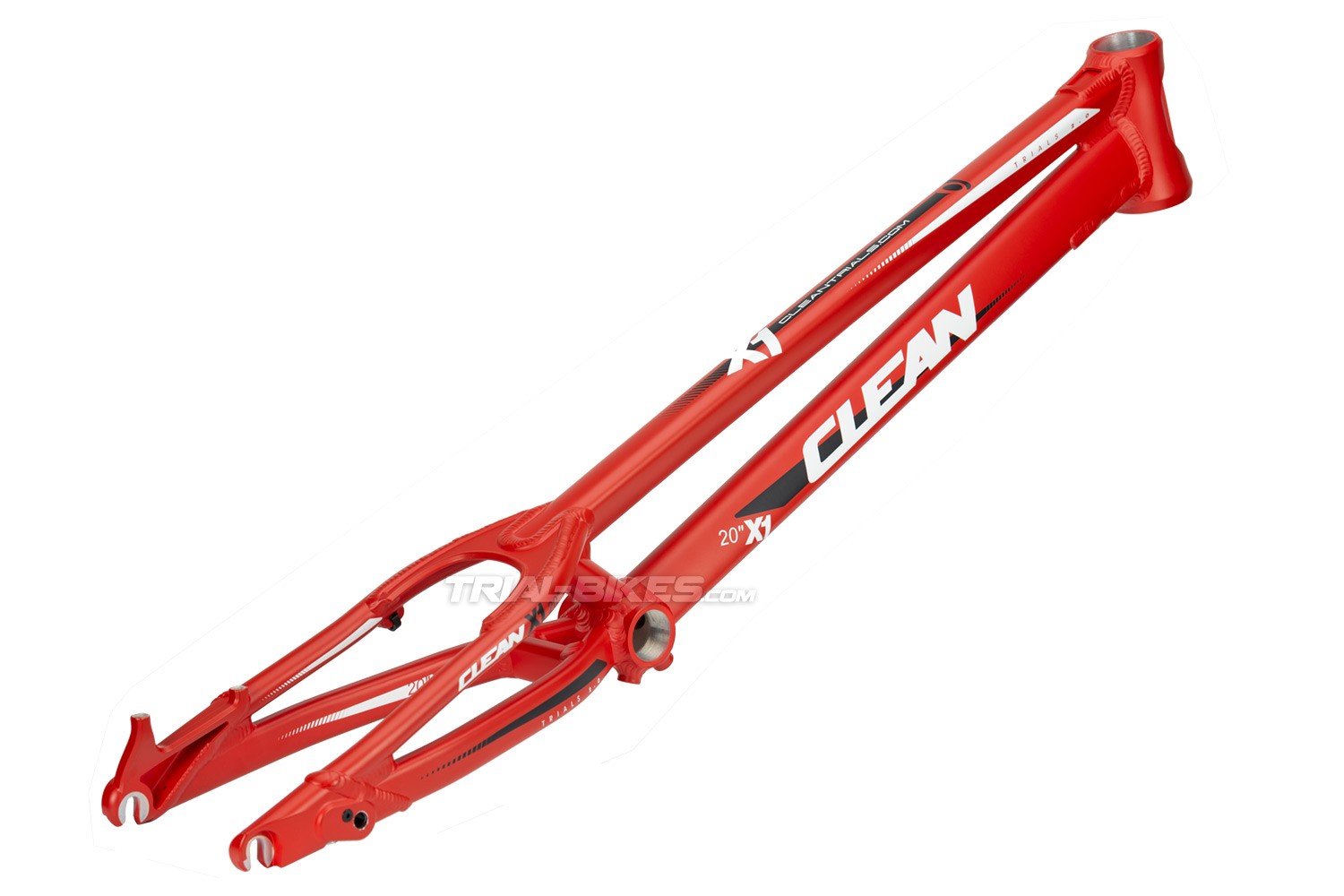

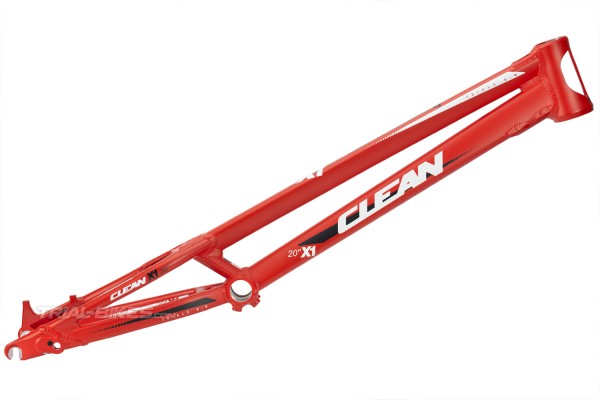

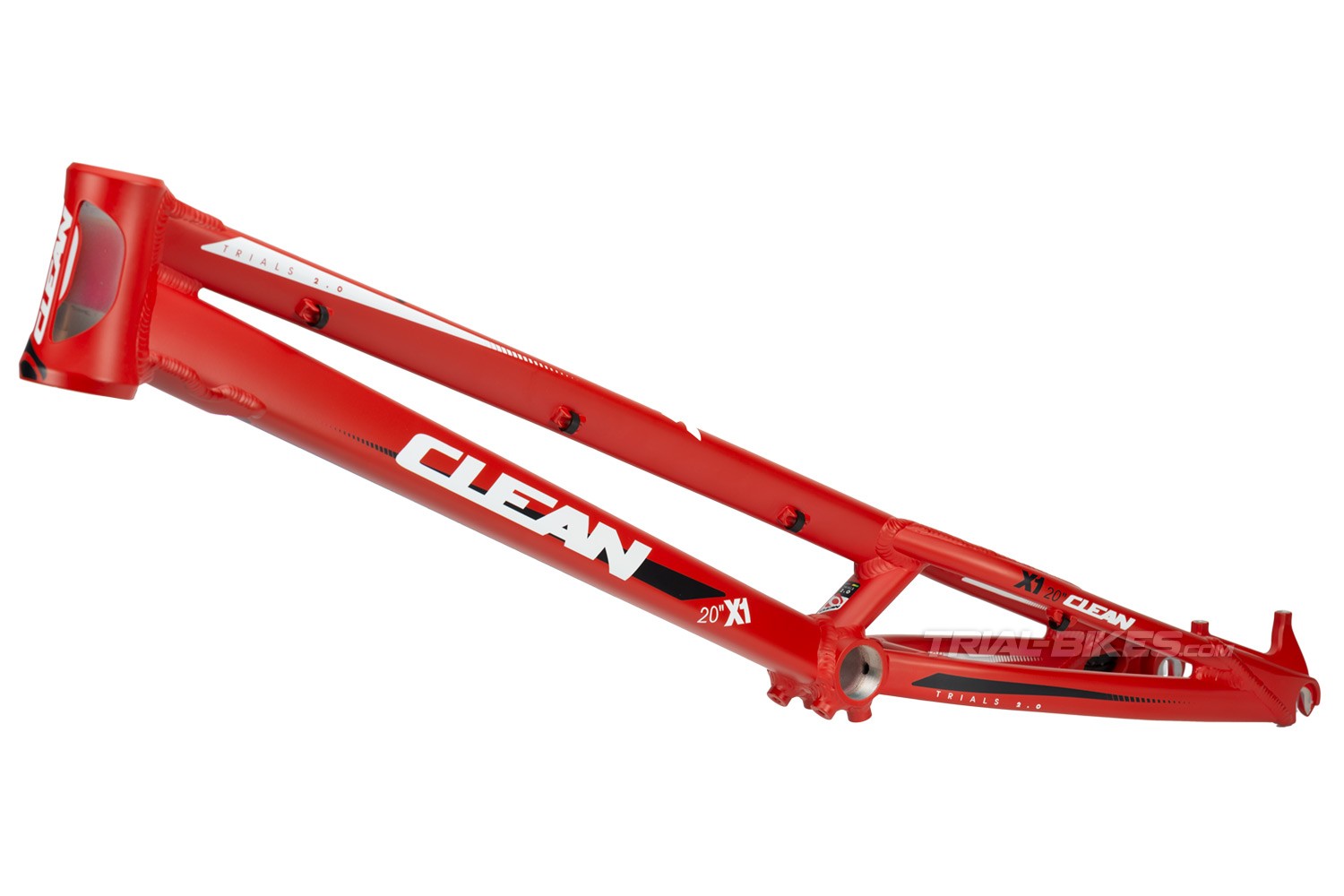

New 2020 version of the popular Clean X1 20” frame, updated, revised and with new 2020 graphics: one year more, the Clean X1 trials frame reigns in value for money!

Description and materials
- Clean X1 20” 2020 bike trials frame.
- Based around the original Clean X2 20” frame design, optimizing tube thickness and featuring new graphics.
- Now, the frame features a new insert for the chain tensioner, more reliable and durable than previous versions.
- Made from 6061-T6 aluminium alloy, with 7075-T6 machining in order to achieve the perfect balance between low weight and high strength.
- Features a tapered headtube, for 1 1/8” – 1,5” tapered headsets.

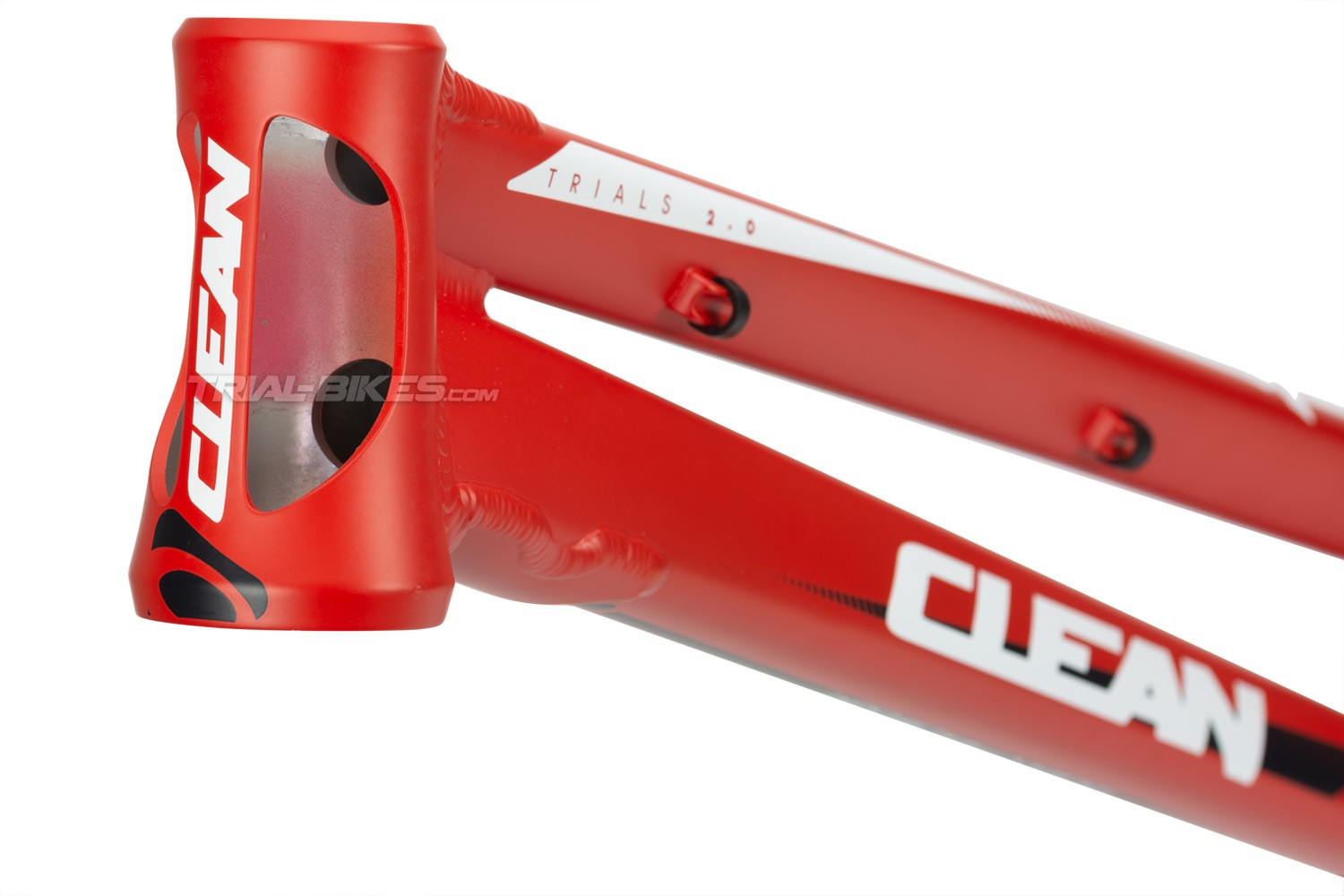

- The headtube has two large holes that remove unnecessary material.
- Each one of the main tubes is gusseted to the head tube in order to increase this critical area’s strength and stiffness.
- Threaded 68mm wide BB tube, with mounts for the 2-piece Clean mini bashplate.

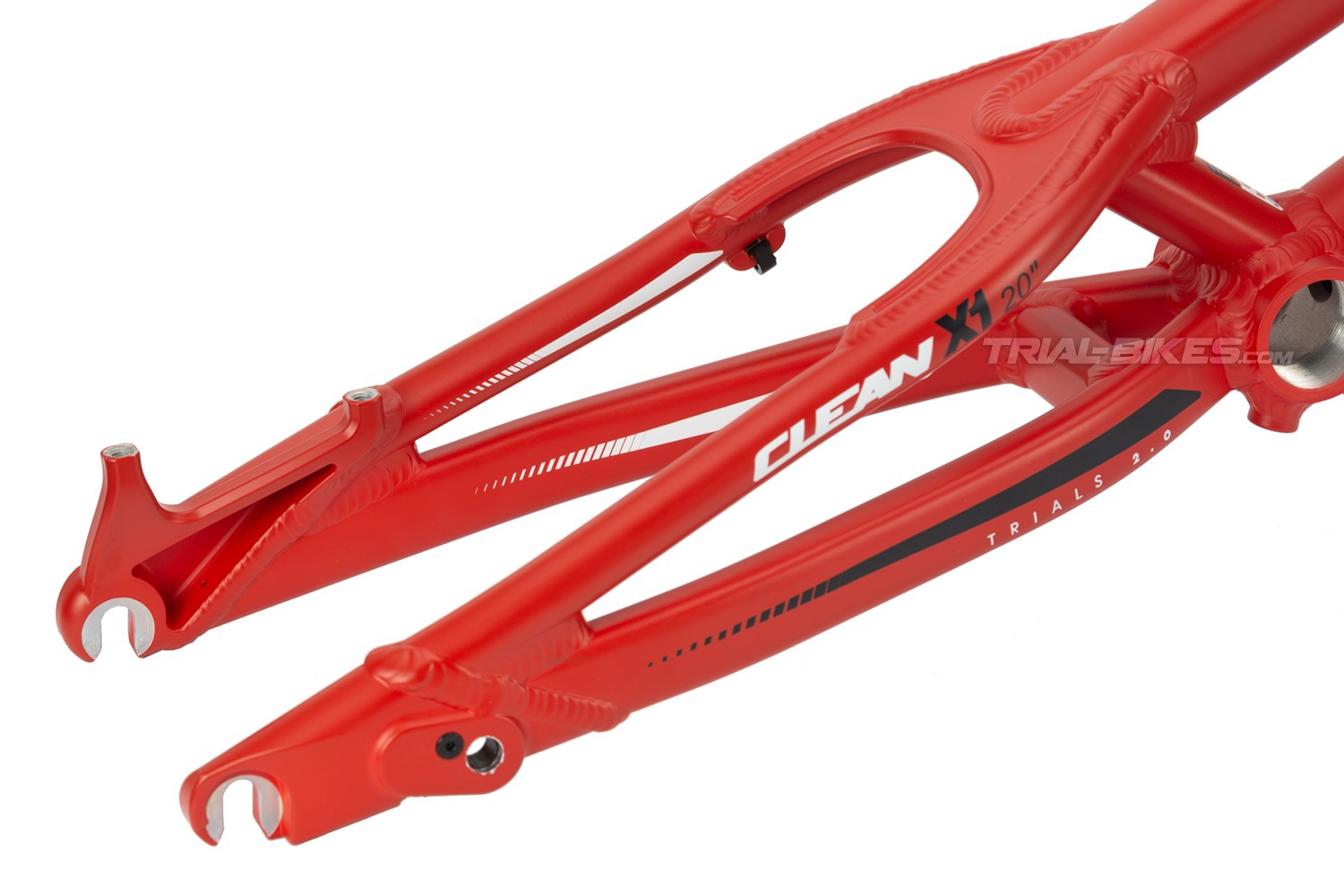

- The seat stays are joined to the top tube with a gusset, similar to a brake booster, essential to avoid rear-end flexion.
- Contoured chain and seat stays provide extra clearance to prevent tyre or crank rubbing.
- The chain stays are joined together with a reinforcement tube that increases this area’s stiffness.
- Integrated Post Mount disc brake mounts on the left dropout, machined in one piece and designed to ensure top strength and durability.
- Features vertical dropouts and uses a double-wheel sprung tensioner (not included with the frame). Thank to this system, the wheel is always placed in the exact same position.
- With the double-wheel tensioner, you can adjust the chain tension directly and instantly, without needing to loosen the hub bolts or moving the wheel.
- The inner sides of the dropouts have large machined pockets that remove unnecessary material to save some weight.
- The right dropout has an insert to install the chain tensioner, which is kept in place with an M5x16mm slave bolt.

The 7 Compatibility Keys
Below you can find the main details you need to consider when installing different components on this frame:

- 1) Headset. Since the headtube on this frame is tapered, with 1 1/8” top and 1,5” bottom diameters, it’s compatible with 1 1/8” – 1,5” tapered forks. If you’d like to use a standard 1 1/8” diameter fork, you can install an adaptor for the bottom cup, as in the one supplied with Clean’s 1 1/8” – 1,5” tapered headset, available on our catalogue.

- 2) Bashplate. This frame has 4-bolt bashplate mounts on the bottom bracket shell. Due to the spacing between mounts, it’s compatible with the 2-piece Clean Light or similar bashplates.

- 3) Bottom Bracket. A threaded BB with standard 1.37”x24tpi thread must be used, therefore any traditional or BB30 threaded BBs can be used (Try-All, Hashtagg, etc.).

In order to prevent the cranks from rubbing the seat stays, which may happen due to varying crank offsets for each model, it’s recommended to install a 127,5mm or 128mm wide bottom bracket.

- 4) Rear Brake. This frame has Post Mount rear disc brake mounts, so be sure to use a rear brake of that type. Post Mount brake calipers sit onto the brake mounts, instead of sideways (as is the case on IS calipers).

- 5) Chain tensioner. This frame features double-wheel chain tensioner mounts, so other additional tensioners aren’t needed.

- 6) Rear hub. Since this frame features double-wheel chain tensioner mounts, a 116mm wide rear hub must be used. In case you’d like to install a rear hub with 110mm spacing (common in most 20” bikes that use snail cams), then you must add 3mm spacers to each side of the hub, in order to result in the total of 116mm this frame requires.
Also, since this frame only has disc brake mounts, the rear hub must feature disc brake mounts too.

- 7) Fork. The steerer tube on your fork must be long enough so that at least 2mm of it remain above the top bolt of your stem’s steerer tube clamp.
To ensure this, you must add the length of the headtube (120mm for this frame), plus the cups bits that sit outside the headtube, plus the headset spacers (if any) and/or dust cover sitting under the stem, plus the length of your stem’s steerer tube clamp. Once you’ve done this, you’ll be ready to know if your fork is long enough so that at least 2mm of it remain above the top bolt of your stem’s steerer tube clamp.

Geometry (measured with a 370mm x 40º fork)
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube length: 120mm, 1 1/8” – 1,5” tapered

- Wheelbase: 1005mm
- Chainstay Length: 350mm
- BB Rise: +84mm
- Head Angle: 72º

Colour
- Painted red, with 2020 Clean X1 graphics in black and white.

Weight
- 1.74Kg
