Clean X1 930mm 20" Bike

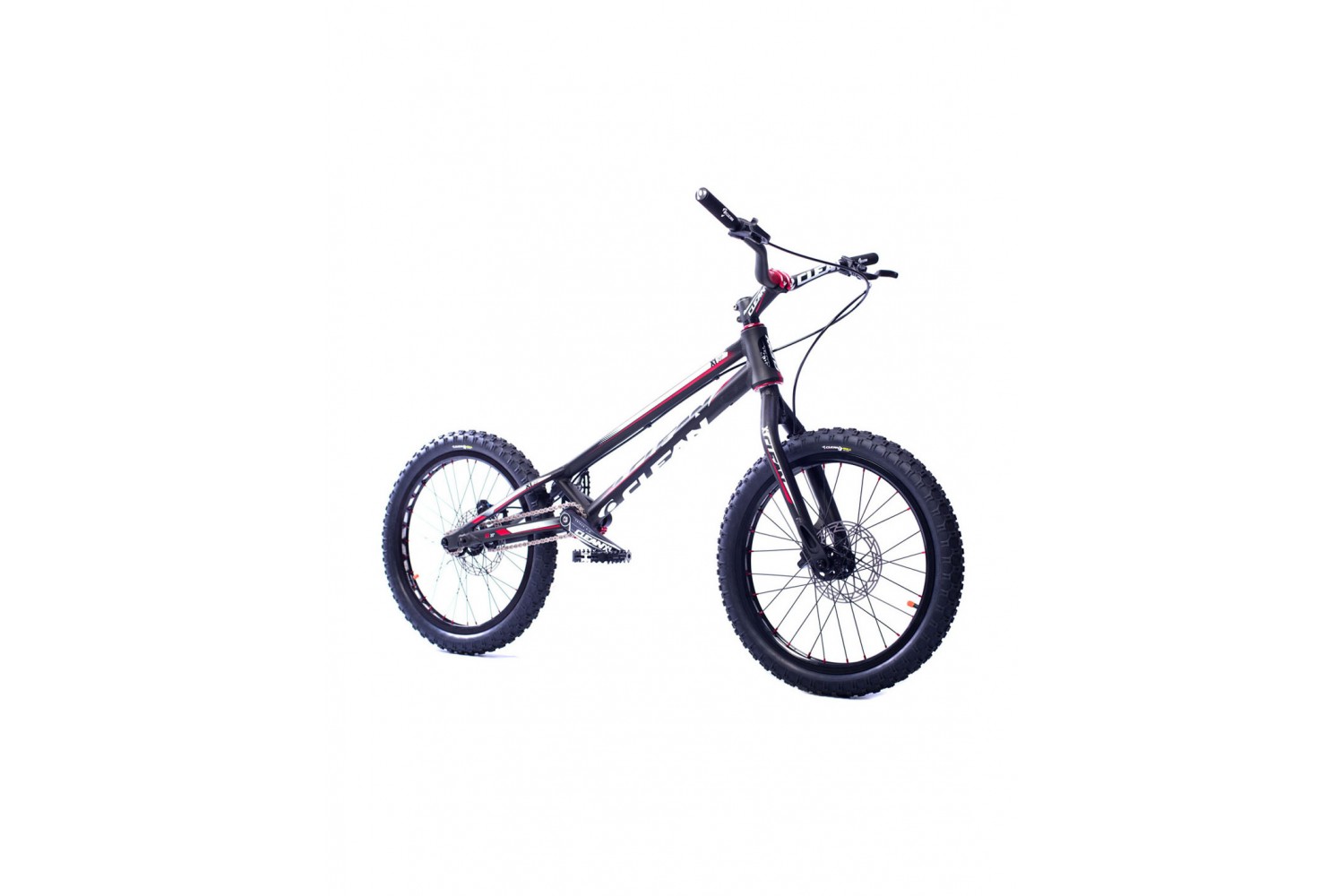

Clean X1 930mm 20” 2019 Trials Bike

The Clean X1 930mm 20” 2019 trials bike is Clean’s kids trials bike for kids between 6 and 10 years old (120cm to 140cm tall). It’s built with lightweight, high quality parts to ease learning: 108.9 freewheel, Magura MT2 or Hope Tech3 disc brakes, Clean Koala tyres…

It’s available in two different setup options:
· Option 1: Magura MT2 front and rear disc brakes (MT2/MT2).
· Option 2: Hope Tech3 front and rear disc brakes (Hope/Hope).

Check the following list to see the components of each setup option.

Frame and fork
- Frame: Clean X1 930mm 20” 2019, made from 6061-T6 + 7075-T6 aluminium alloys, with Post Mount disc brake mounts
- Forks: Clean X1 930mm 20” tapered 1 1/8” – 1.5”, made from 7005-T6 aluminium alloy, with Post Mount disc brake mounts

Wheels
- Front hub: Clean Expert 28 spoke holes, with rotor mounts, 100mm spacing, anodized black
- Rear hub: Clean Expert 32 spoke holes, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Clean sprung tensioner, with two 11T jockey wheels made of plastic, black
- Front rim: Clean High Profile 20”, single wall, 34mm wide, 28 spoke holes
- Rear rim: Clean High Profile 19”, single wall, 48mm wide, 32 spoke holes
- Spokes: Clean 1.8mm spokes, black
- Rim tape: Clean, grey
- Front tyre: Clean Koala 20”x2.00”
- Rear tyre: Clean Koala 19”x2.60”

Brakes
- Front brake: Magura MT2 or Hope Trial Zone Post Mount
- Rear brake: Magura MT2 or Hope Trial Zone Post Mount

- Rotors: Clean RS, 160mm (front), 162.5mm (rear)

Drivetrain
- Cranks: Clean X1 ISIS
- Bottom bracket: Clean ISIS 128mm
- Freewheel: Clean 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth
- Chain: KMC 610HX
- Rear sprocket: Clean Screw-on 15T, made from 7075-T6 aluminium alloy
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Light 2-piece mini-bashplate

Steering
- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Clean 90mm x 25º, 31.8mm Oversized handlebar diameter, black with silver Clean graphics
- Grips: Clean foam, black
- Handlebar: Clean 7075 103mm, 31.8mm Oversized handlebar diameter, black finish with white and red Clean graphics

Geometry:
- Wheelbase: 930mm
- Chainstay length: 344mm
- Bottom bracket rise: +63mm
- Head angle: 72º

Weight
- To be confirmed

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.

Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.

If you have any doubts, please contact to info@trial-bikes.com.
