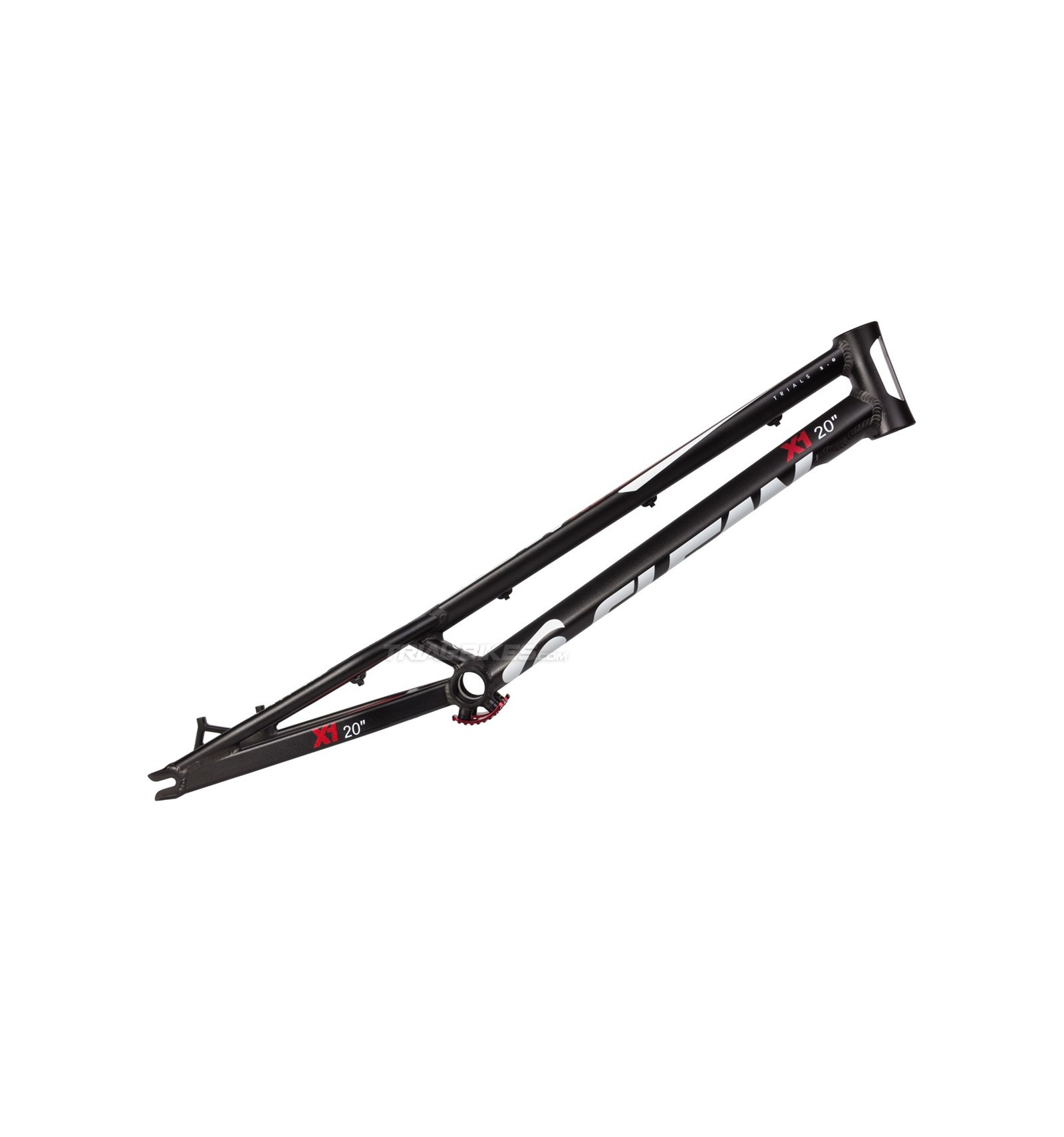

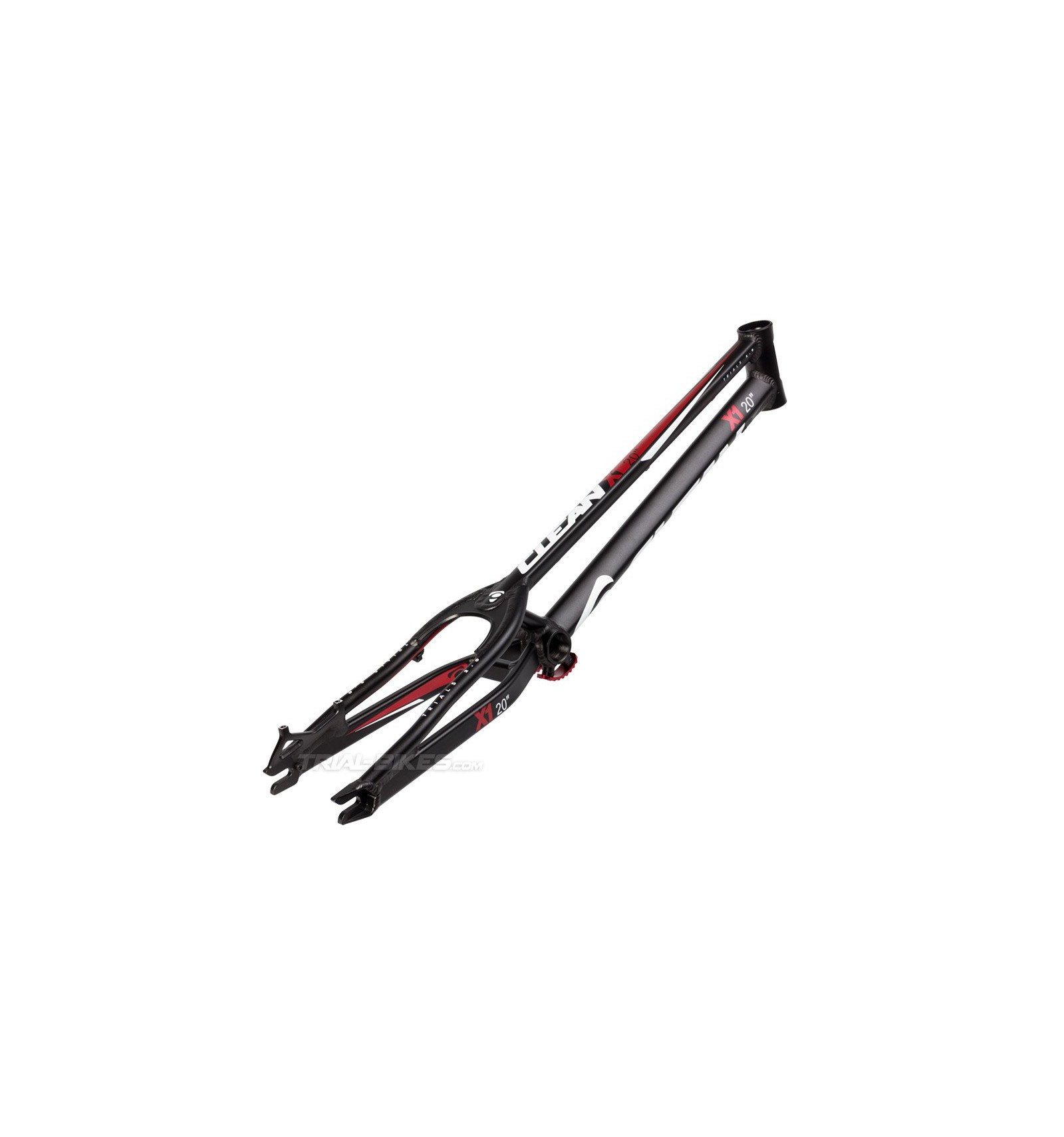

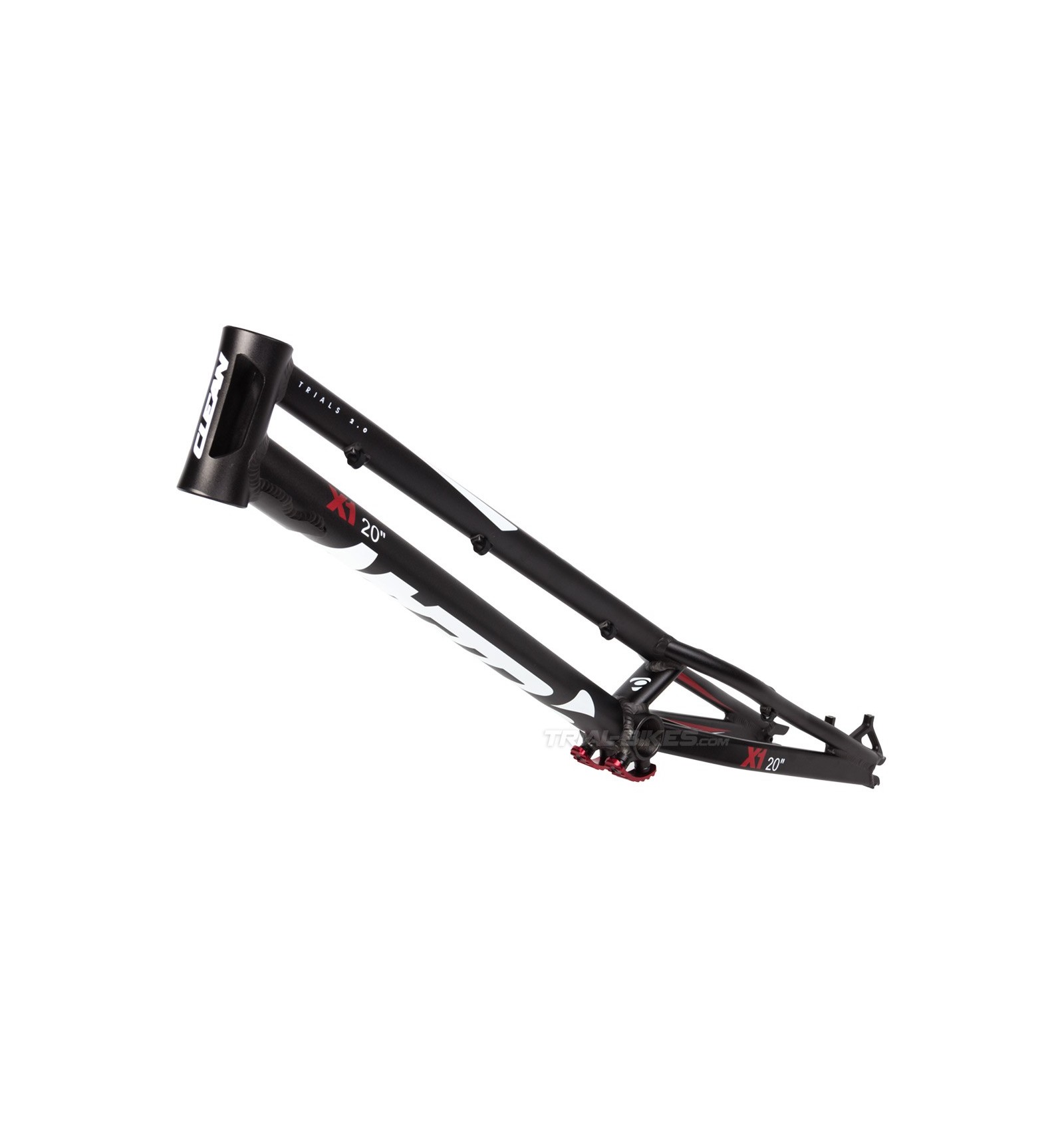

Clean X1 V2 970mm 20'' V2 Frame Expand

Clean X1 V2 970mm 20'' V2 Frame

CLEAN CLEAN

537606

New

Description and materials

More details

This product is no longer in stock

404,96€

Ask a question

Description and materials
- New version of the popular Clean X1 20” frame, exclusively developed and tested for months by Multi-time UCI World Champion Abel Mustieles.

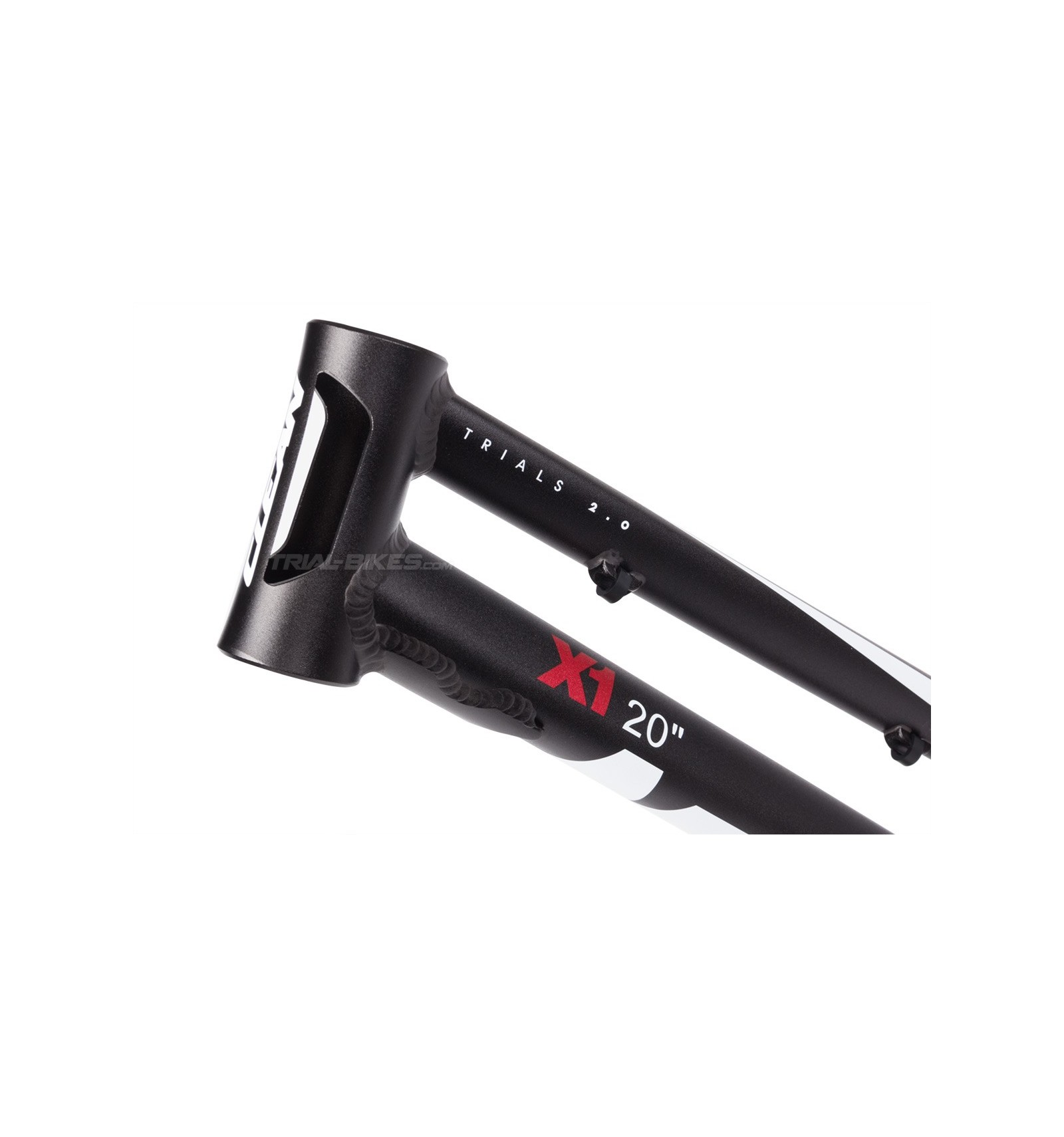

- The main update is a completely re-designed head tube, that no longer requires last version’s tube insert and allows for increased stiffness.
- An additional gusset has been added between the downtube and headtube, to avoid any reliability issues at this area.
- Main tubes’ thicknesses have also been modified, in order to achieve a compromise between low weight and maximum strength and stiffness.
- Made from high quality 6061 T6 aluminium alloy, with 7075 T6 machining.
- 120mm long head tube, CNC machined with 2 side holes, for use with 1 1/8” internal headsets.
- High quality CNC machined dropouts, spaced at 116mm and with the snail cam bolts already included.
- Euro-style 68mm BB tube, compatible with 122,5mm and wider bottom brackets.

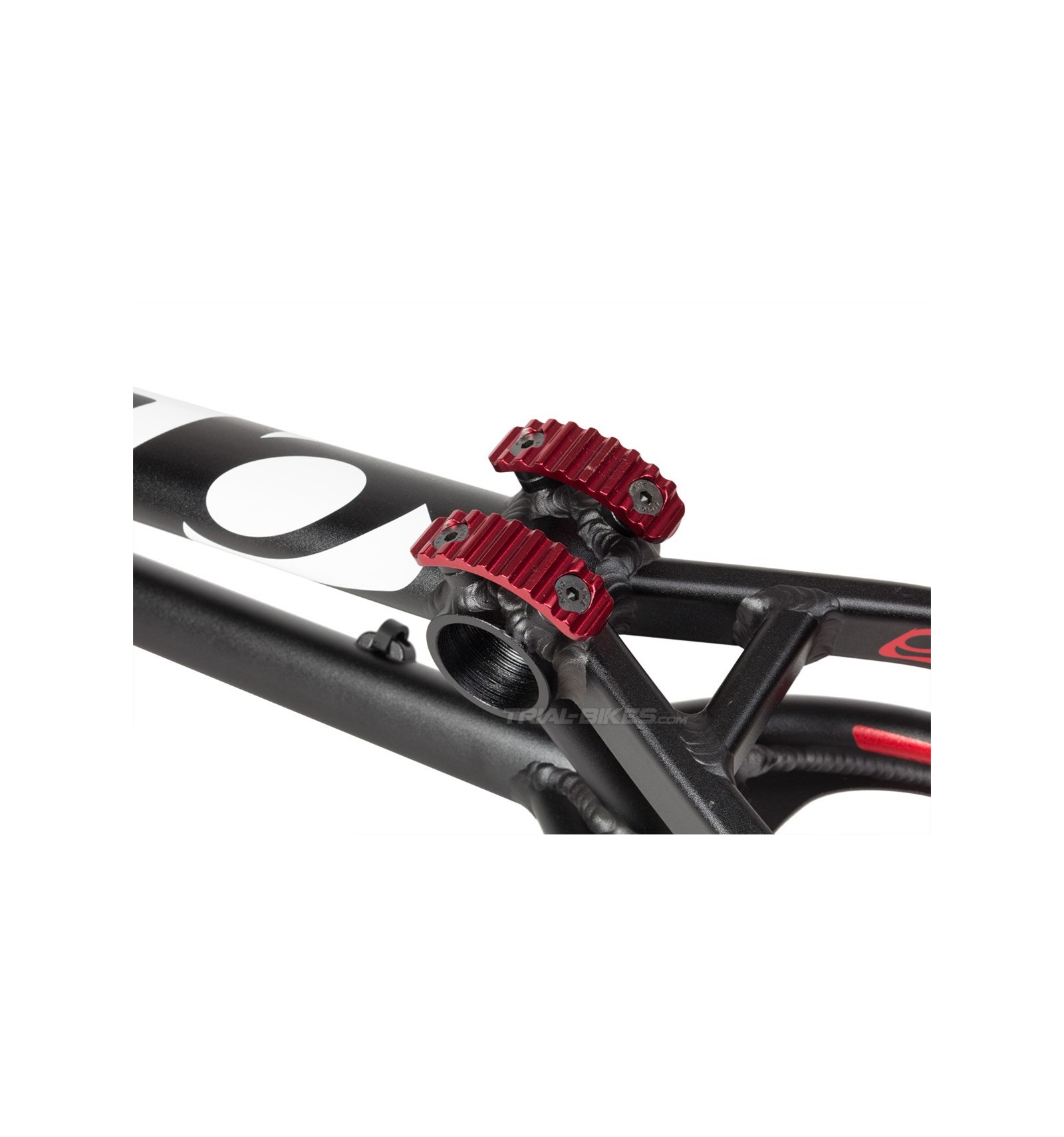

- The frame is supplied with a Clean Light 2-piece mini-bashplate.

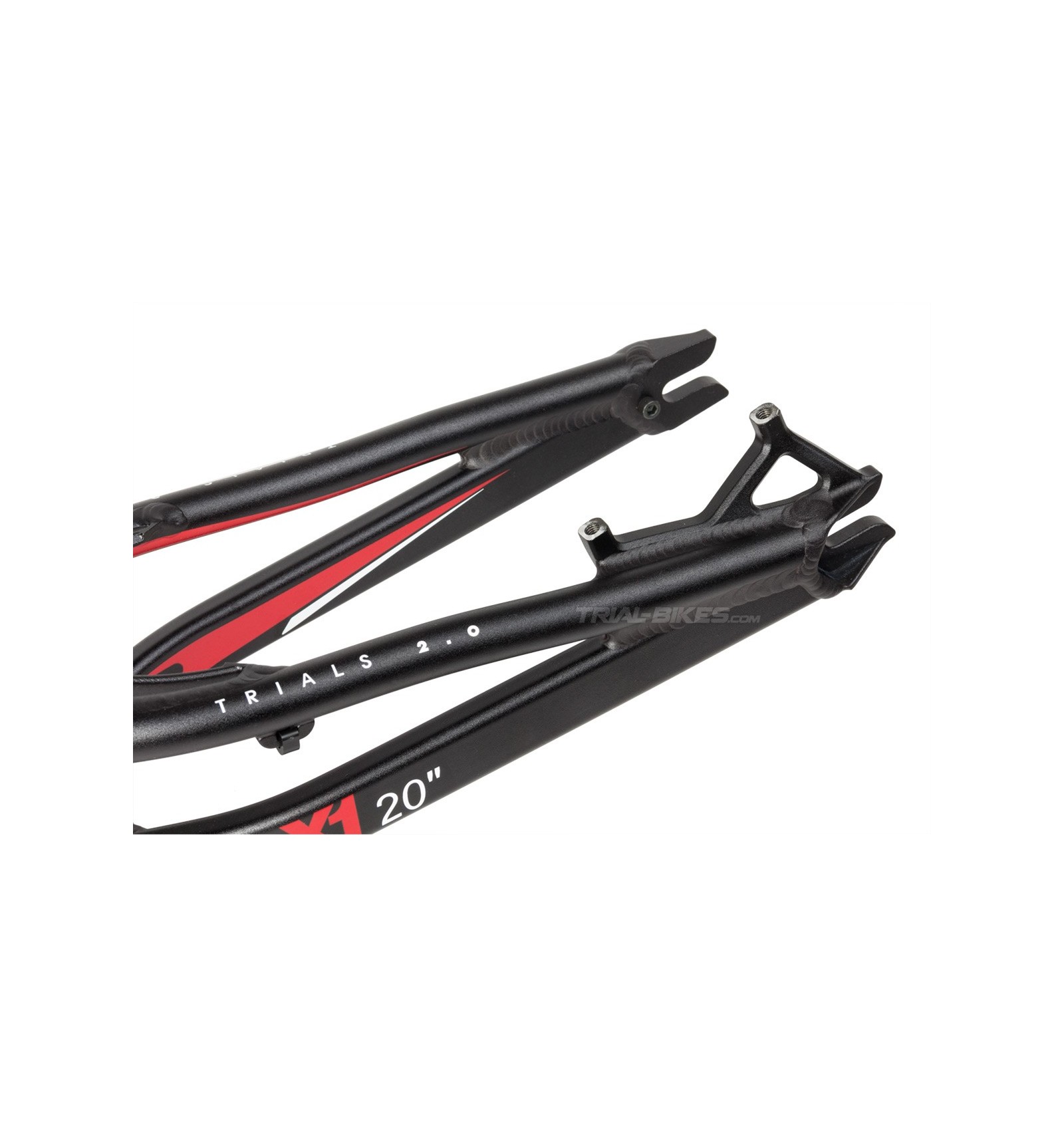

- Features Post Mount disc brake mounts, integrated via CNC machining in a single piece with the left dropout, then welded to both left stays to spread stress and increase the frame life.
- The seat stays join are joined to the top tube with a reinforcement built-in brake booster, that helps increase stiffness and strength of the rear triangle of the frame.

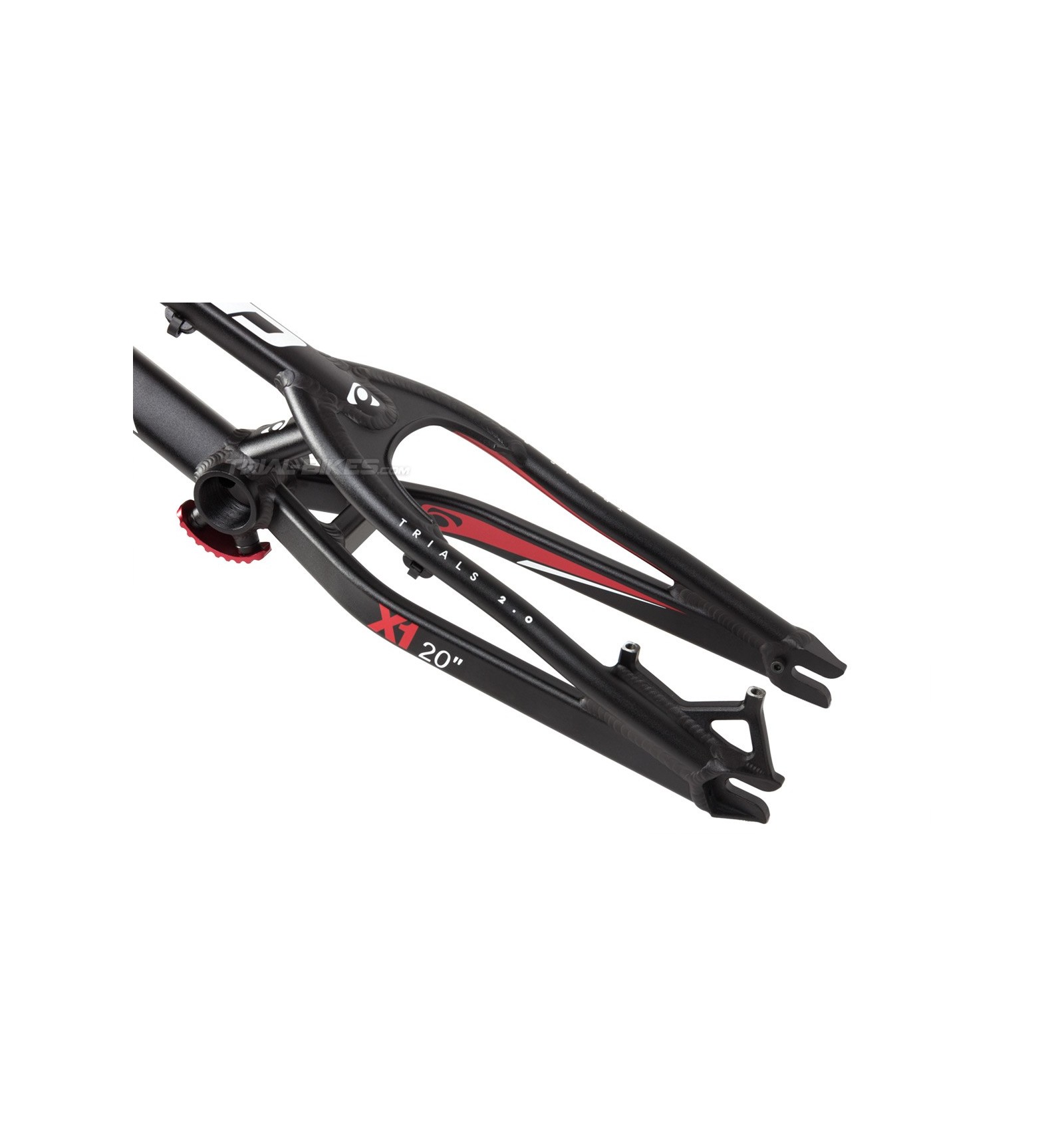

- Both chain stays have a rectangular section, and are joined together near the BB area with a neat gusset.
- Anodized black finish, with white and red Clean X1 laser etched graphics.

Geometry (measured with a 370mm x 45mm fork)
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube length: 120mm

- Wheelbase: 970mm
- Chainstay Length: 350mm
- BB Rise: 85mm
- Head Angle: 72º

Finishes
- Anodized black finish, with white and red Clean X1 laser etched graphics.

Weight
- 1390g (+42g of bashplate and bolts)

Additional information
This frame comes with a 1 year warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com

WEIGHT 1.390
BRAKE MOUNTS Post Mount Disc
TYPE OF HEADSET Standard 1 1/8"
