Clean X2 26" WC Edition 2019

Clean X2 26" WC Edition 2019

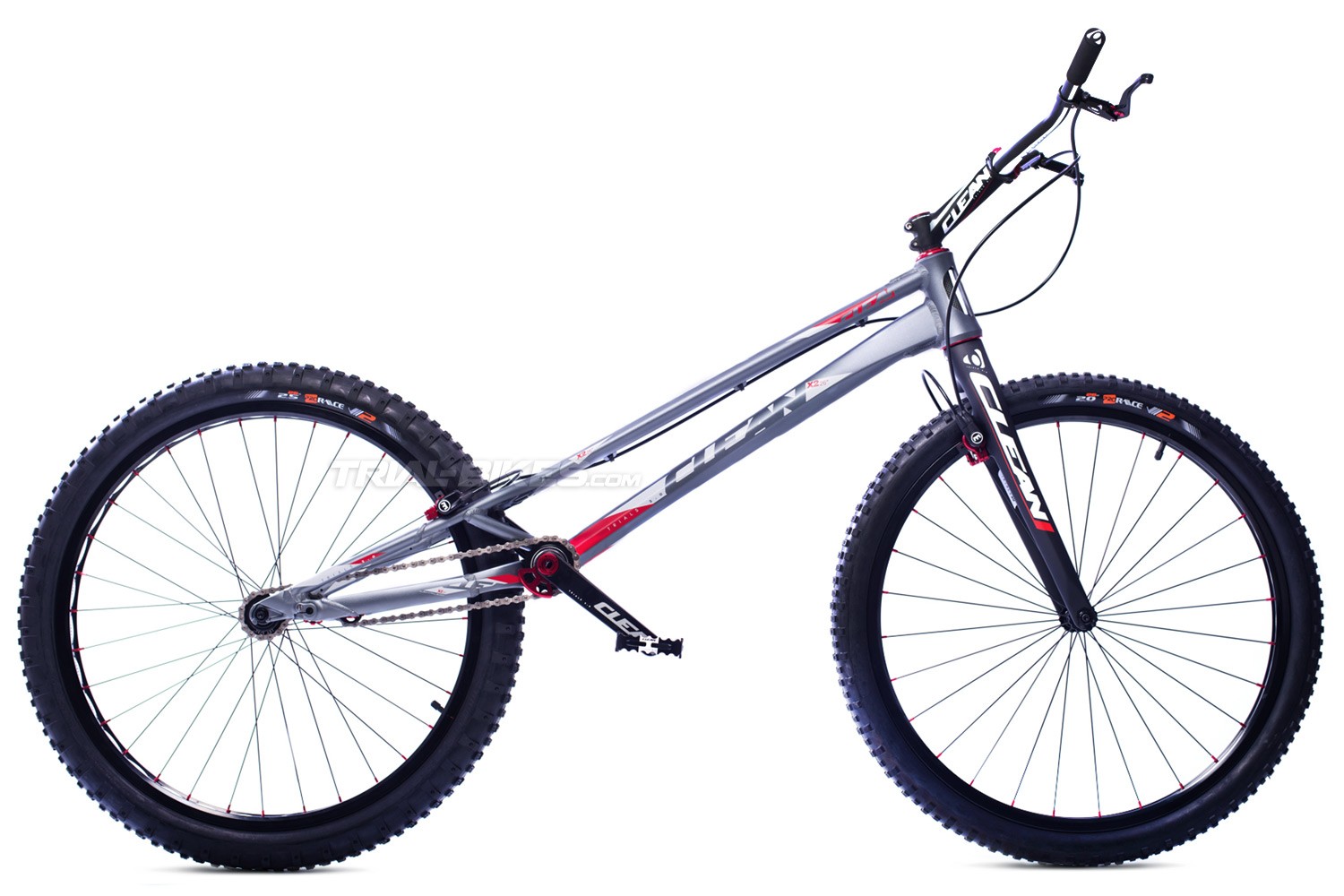

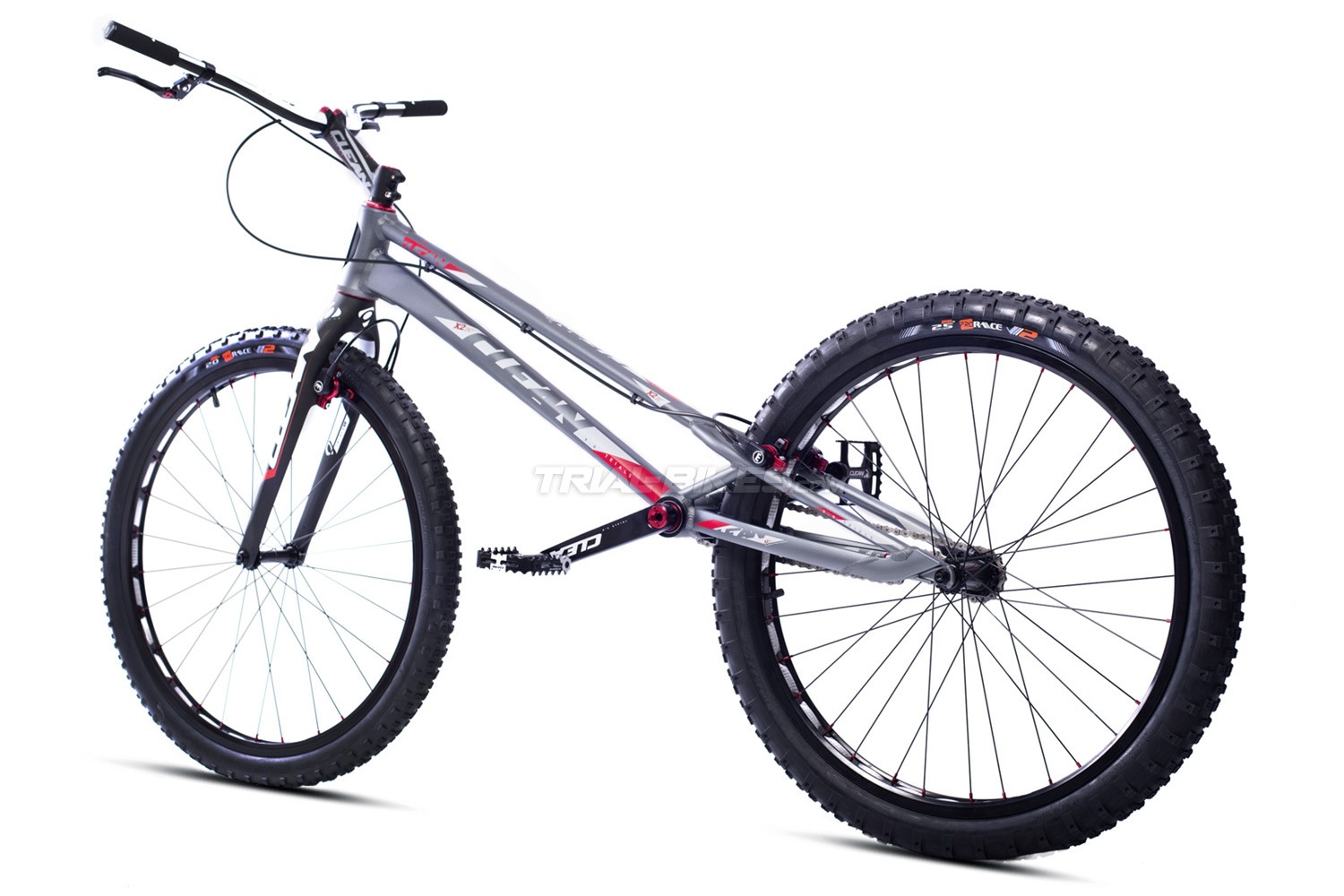

The new Clean X2 26” WC Edition is the top of the range 26” aluminium bike made by Clean. The X2 frame has been updated and now features a hydro formed downtube, which provides extra stiffness and strength. Furthermore, it’s built with the best Clean parts, like the new carbon fibre handlebar and fork, asymmetric Press-Fit BB30 3P bottom bracket, 2-wheel sprung tensioner, tapered headset, etc.

Frame and fork
- Frame: Clean X2 26”, made from 6061-T6 + 7075-T6 aluminium alloys, with 4-bolt rim brake mounts

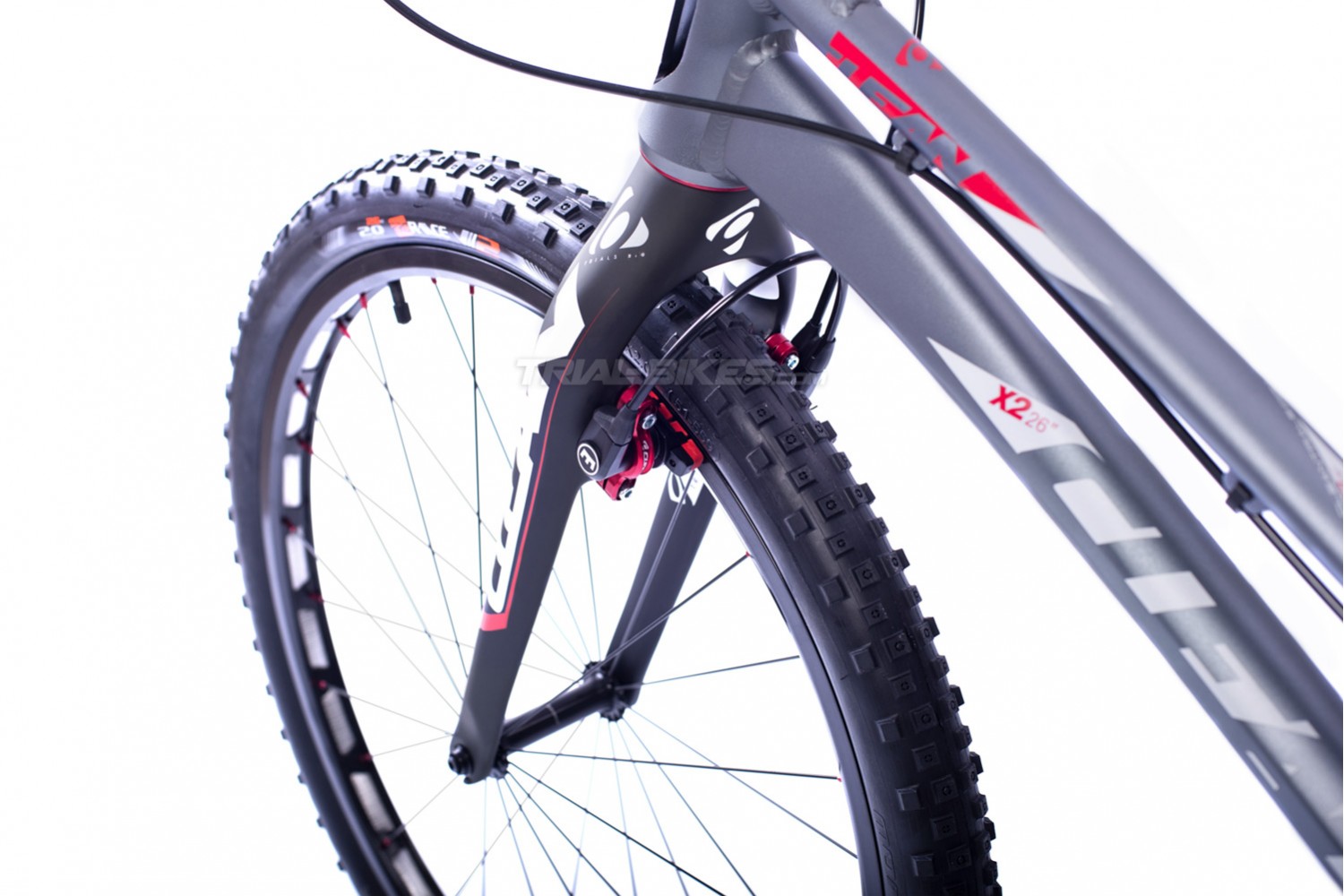

- Forks: Clean X2 26” Carbon tapered 1 1/8” – 1.5”, made from carbon fibre, with 4-bolt rim brake mounts

Wheels
- Front hub: Clean X2 28 spoke holes, without rotor mounts, 100mm spacing, anodized black
- Rear hub: Clean X2 32 spoke holes, without rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Clean X2 integrated, with two 11T jockey wheels made of plastic, black
- Front rim: Clean X2 High Profile 26”, single wall, 31mm wide, 28 spoke holes, anodized black
- Rear rim: Clean X2 High Profile 26”, single wall, 49mm wide, 32 spoke holes, anodized black
- Spokes: Stainless lightweight spokes, black
- Rim tape: Clean, grey
- Front inner tube: Maxxis Extra Light
- Rear inner tube: Maxxis Extra Light
- Front tyre: Monty Pro Race V2 26”x2.00”
- Rear tyre: Monty Pro Race V2 26”x2.60”

Brakes
- Front brake: Clean T13 or Trialtech Sport rim brake
- Rear brake: Clean T13 or Trialtech Sport rim brake

- Rim brake pads: Clean X2
- Brake clamps: Clean X2 Washerless

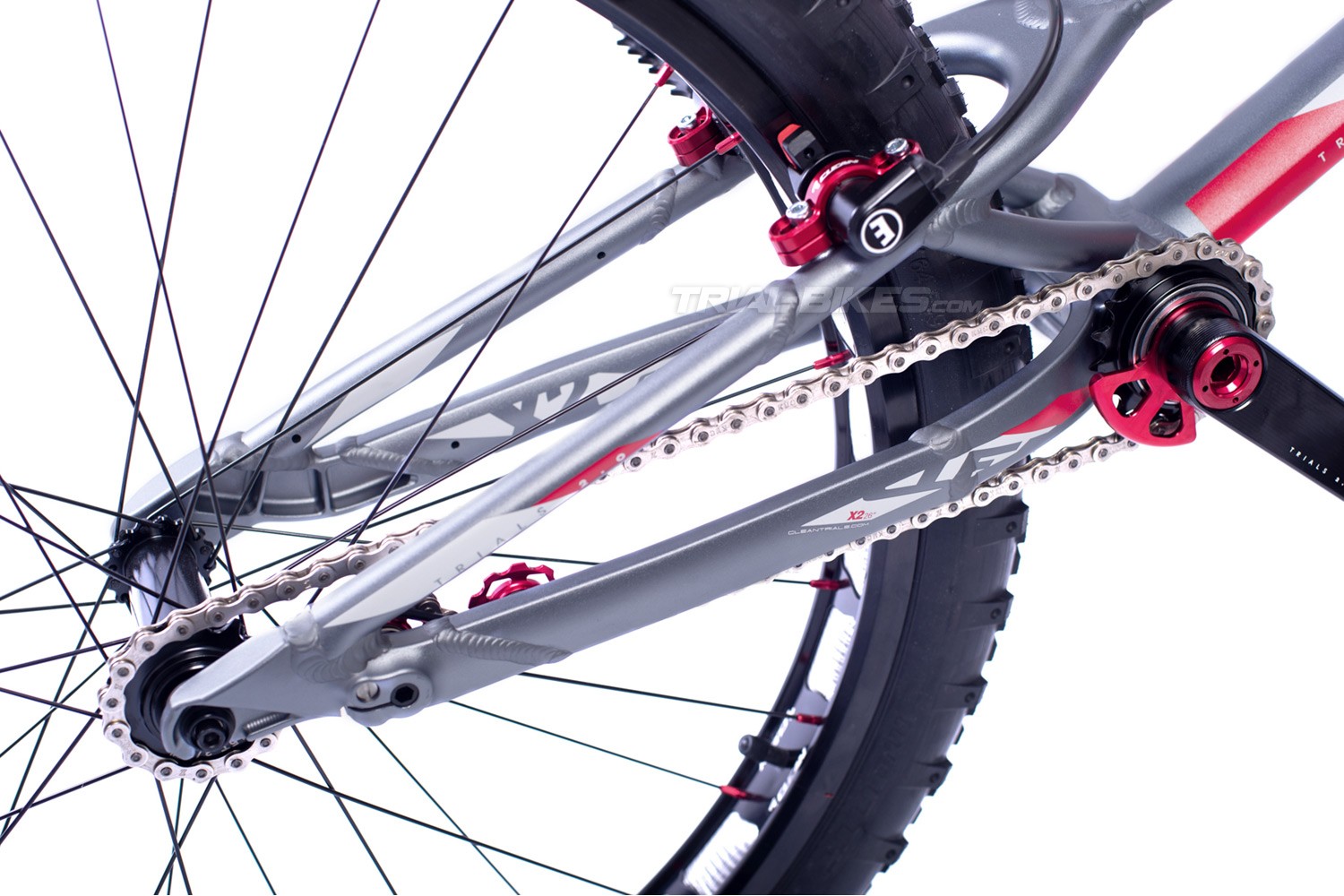

Drivetrain
- Crankset: Clean X2 3-piece set, with Press Fit BB30 30mm diameter BB axle, CNC machined. 170mm long cranks, for Cassette Shimano HG-type freewheel, available in black with Clean silver graphics
- Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC K810SL, silver
- Rear sprocket: Clean 15T Screw-on, made from 7075-T6 aluminium alloy, anodized black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Ring, anodized red

Steering
- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Clean 145mm x 25º, 31.8mm Oversized handlebar diameter, black with silver Clean graphics
- Grips: Clean foam, black
- Handlebar: Clean X2 107mm carbon fibre, 730mm long, 31.8mm Oversized handlebar diameter, black finish with white Clean graphics

Geometry:
- Wheelbase: 1085mm
- Chainstay length: 380mm
- Bottom bracket rise: +65mm
- Head angle: 72º

Weight
- 8.550kg

Additional information:
This bike is available for reserve. The list of components may change. Any change on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com .
