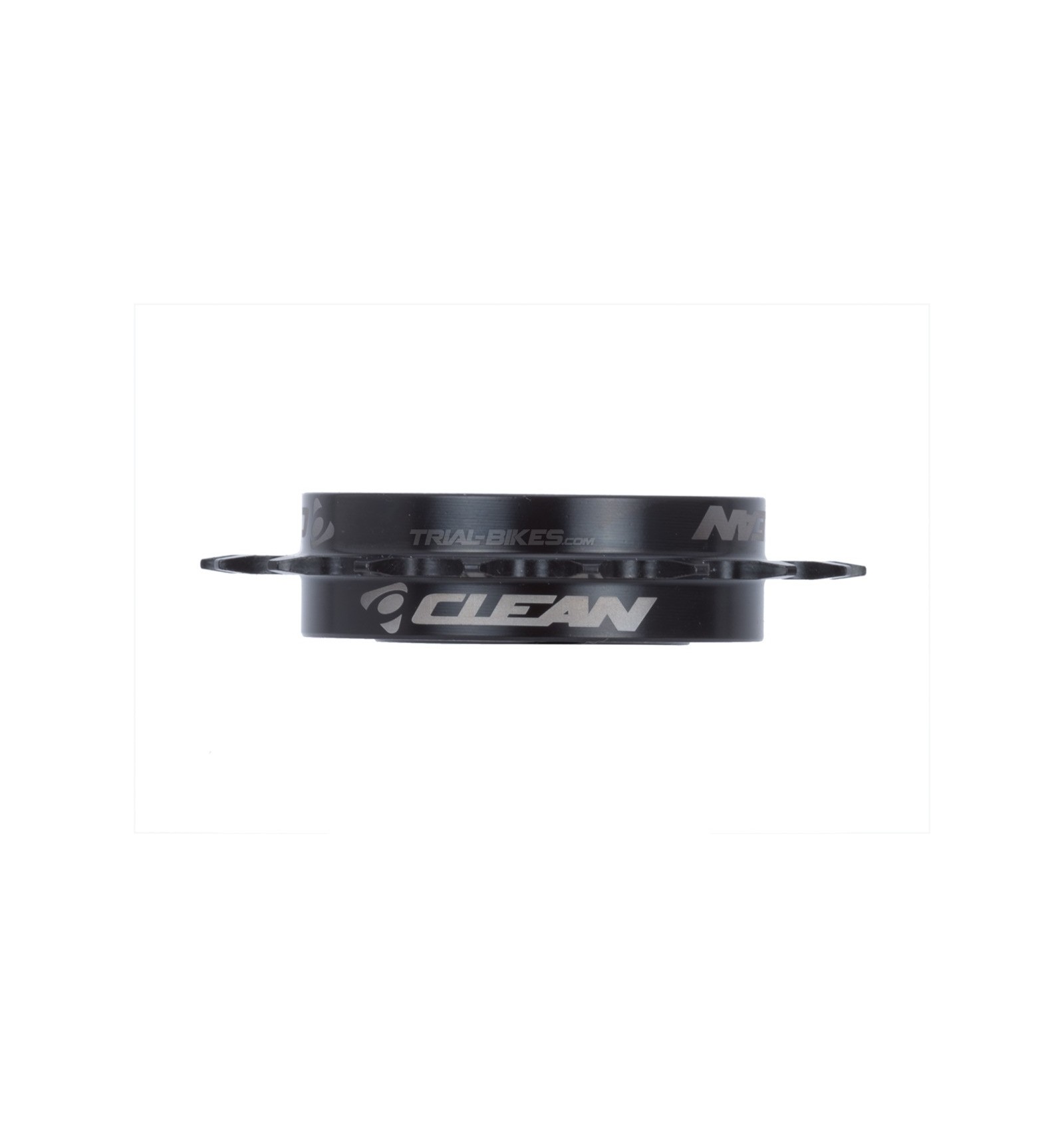

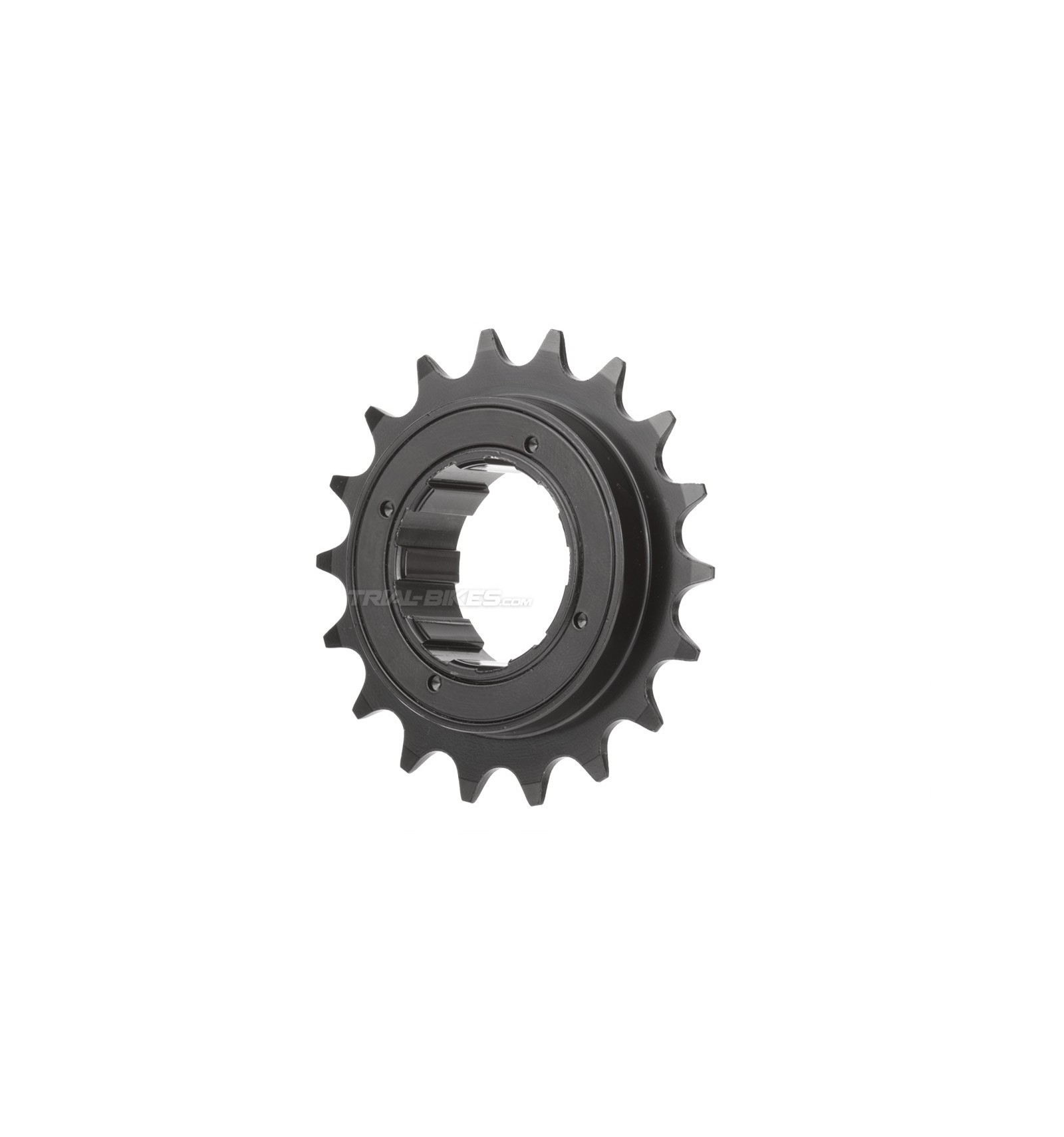

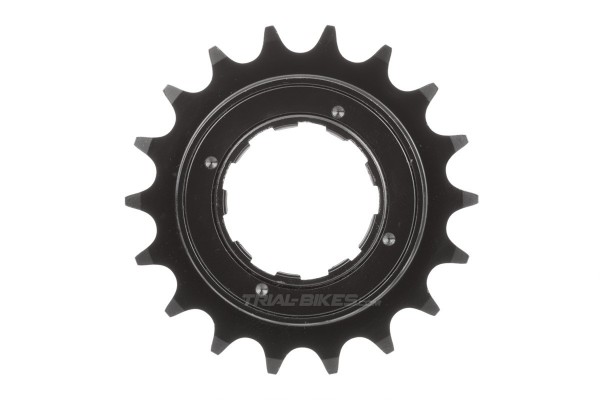

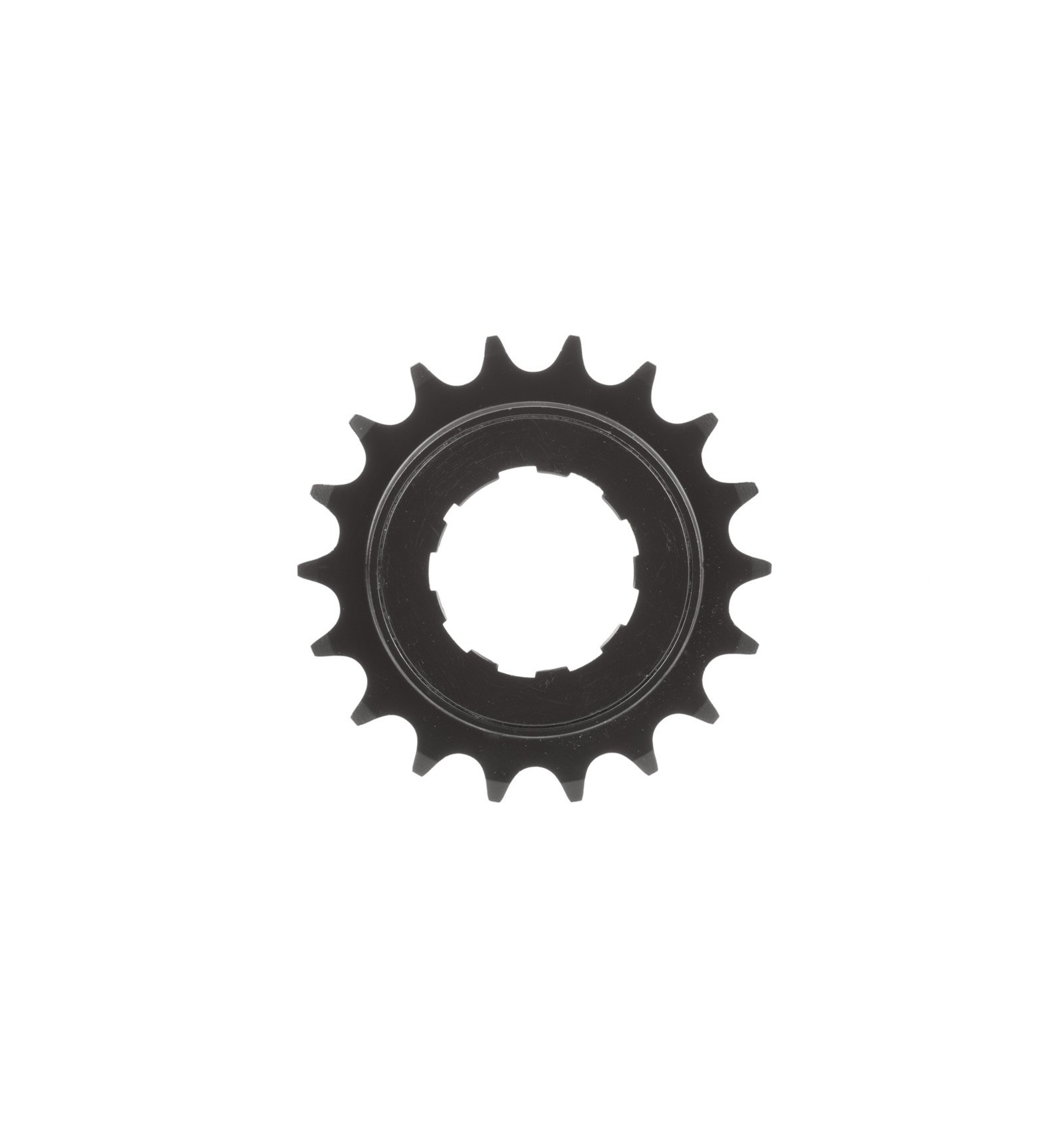

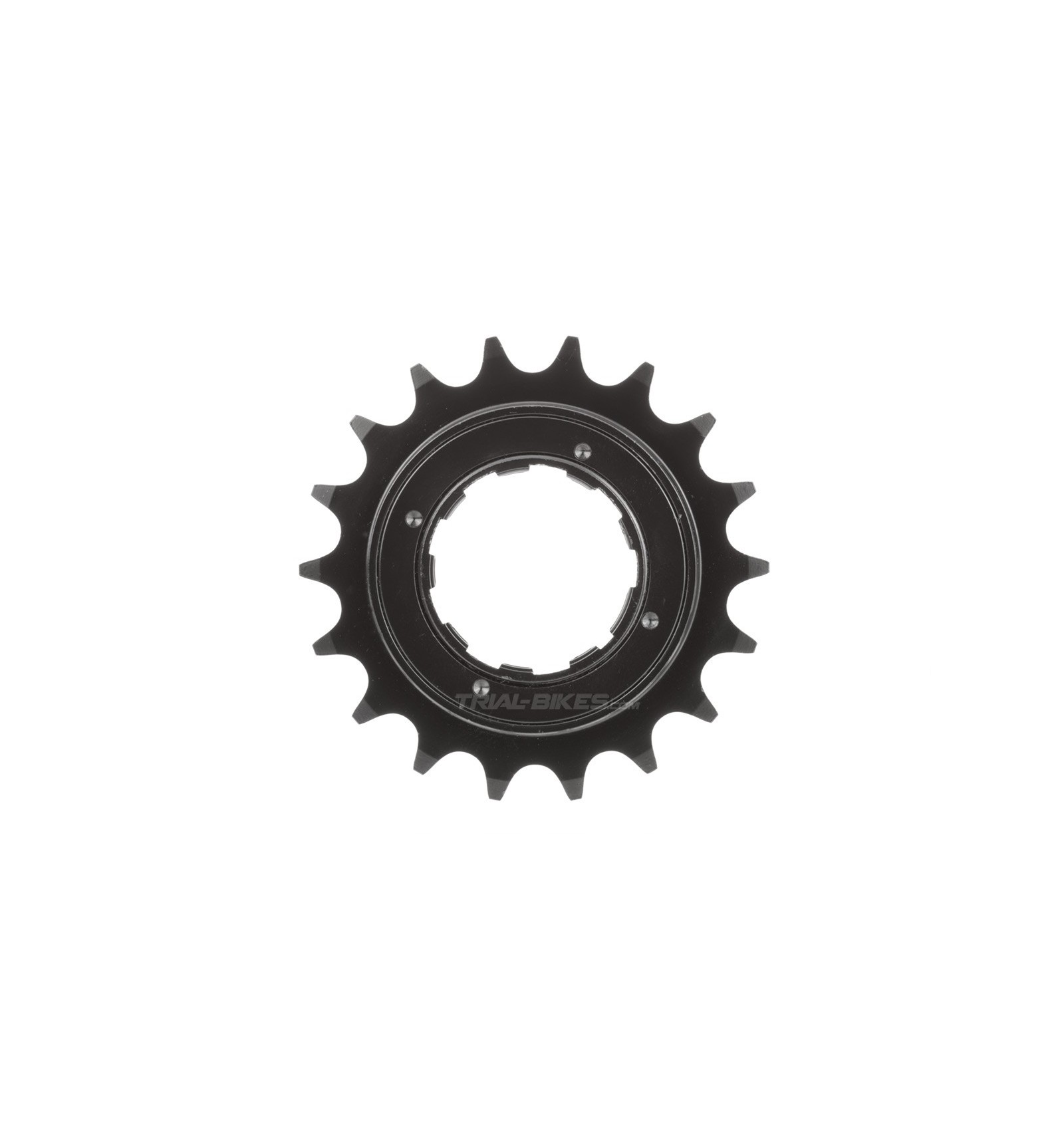

Clean X2 BB30 108.9 Splined Freewheel

Description and materials
- New Clean X2 BB30 108.9 splined freewheel, as a novelty on the components catalogue of Spanish brand Clean.
- This is a splined freewheel, which means it isn’t threaded onto the crack, but it sits on the crank’s base splines.
- The splines on the freewheel are standard Shimano HG splines, a very popular system that’s been used for decades in Mtb and compatible with Clean, Bonz and similar cranks.
- Both the main body and outer ring are made of high-strength hardened steel to ensure maximum wear and impact resistance.
- Features 9 high-strength treated steel pawls, with 3 offset groups of 3 pawls into a 36 teeth ratchet, providing a total of 108 engagement points.
- High quality sealed bearing keeps the dirt out of the inner mechanism of the freewheel.
- Standard 4-pocket removal system.
- Oversized springs guarantee increased reliability and durability.
- Available in black, with white laser etched Clean logo.

Compatibility
- This freewheel only fits cranks and BBs with standard Shimano HG type splines on the freewheel base, like Clean’s X2 BB and BB30 cranks from Crewkerz, the new Bonz BB24 cranks, etc.
- Compatible with both 1/8” and 3/32” chains.

Dimensions
- Available in 18 teeth version (18T)
- It has 9 pawls and 108 engagement points (108.9)
- Tooth width: 2.2mm
- Overall thickness: 17.5mm

Finishes
- Available in black, with white laser etched Clean logo.

Weight
- 189.44g

Additional Information
It is highly recommended to bed in the freewheel for a few hours before trials use to make sure any excess grease works away from the freewheel and the pawls work correctly.
If you want to speed up the process, just apply some oil between the outer teeth and the centre of the freewheel.
If you don’t bed in the freewheel before trials use, it won’t work correctly and will skip, therefore damaging the pawls and ratchet.
Damage occurred to the freewheel because of inappropriate use will void the guarantee.
