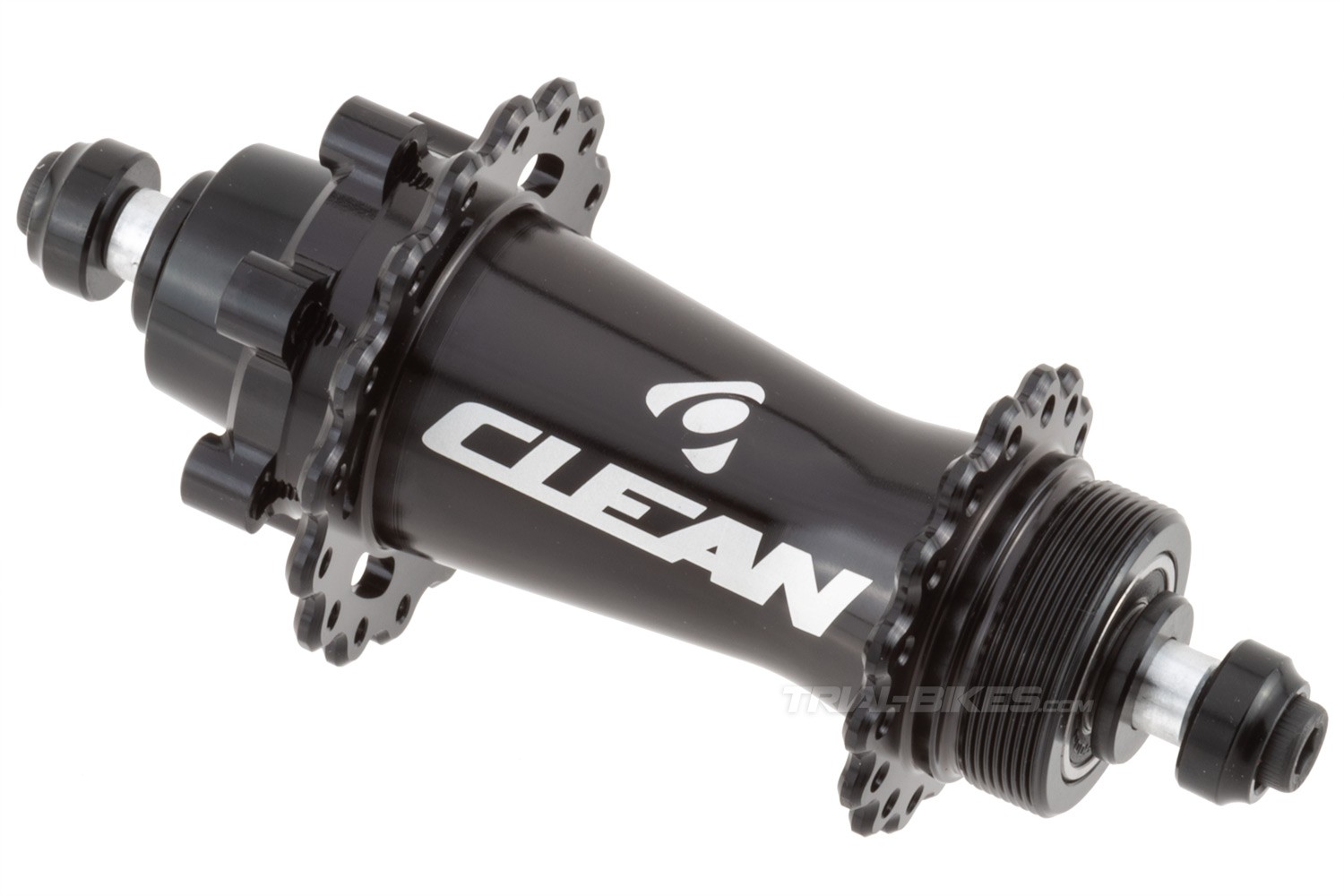

Clean X2 Disc Rear Hub Expand

Clean X2 Disc Rear Hub

CLEAN CLEAN

CL0461

New

Description and materials

More details

81,82€

Ask a question

Description and materials
- New high quality Clean X2 disc hub manufactured by Spanish brand Clean, owned by UCI World Champion Abel Mustieles.
- Developed and tested for the last few months by Clean team riders Sebas Ruiz, Joacin Nymann and Abel Mustieles himself!
- Exclusive Clean design, with a tapered hub shell that reduces its diameter from the disc side to the opposite to remove some unnecessary weight.
- Both the axle and shell are CNC machined from high quality 7075-T6 aluminium alloy, which ensures outstanding mechanical properties.
- Uses a hollow 10mm-diameter axle, with M6 internal thread and 116mm width.
- Comes with 4mm spacers on each side of the shell.
- This hub has 116mm spacing, so it’s compatible with frames that don’t require snail cam chain tensioners. If you’d like to install some snail cams on it, you must replace the 4mm spacers by some 1mm ones, and then you’ll be able to add 3mm snail cams.
- 32 spoke holes, compatible with most rear rims designed for bike trials.
- Standard IS 6-bolt disc rotor fitting, with a minimalistic design that removes unnecessary material around the bolts holes.
- High quality replaceable sealed bearings ensure a smooth, reliable, durable running.
- 12mm wide threaded base, with standard 1,37”x24tpi thread, so it’s compatible with most screw-on sprockets and freewheels available.
- Includes M6x25mm steel bolts and serrated conical washers.
- Gloss black finish, with white laser etched Clean graphics.

Compatibility
- Compatible with those frames that have 116mm spacing and don’t require snail cams. If you’d like to install some snail cams on it, you must replace the 4mm spacers by some 1mm ones, and then you’ll be able to add some 3mm snail cams.
- Compatible with rims that have 32 spoke holes.
- Compatible with those disc brake rotors with standard IS 6-bolt fitting.
- Compatible with screw-on sprockets and freewheels with standard 1,37”x24tpi thread.
- Note: the bearings in this hub are NBK 6000-2RS on both sides.

Dimensions
- Axle length: 116mm
- Axle diameter: 10mm

- Spacers width: 4mm
- Number of spoke holes: 32 (32H)
- M6x25mm Allen bolts

Finishes
- Gloss black finish, with white laser etched Clean graphics.

Weight
- 146.90g (+17.66g of M6x25mm bolts and washers)

WEIGHT 0.146
COLOR Black
SPOKE HOLES 32 spokes
BRAKE MOUNTS Disc
