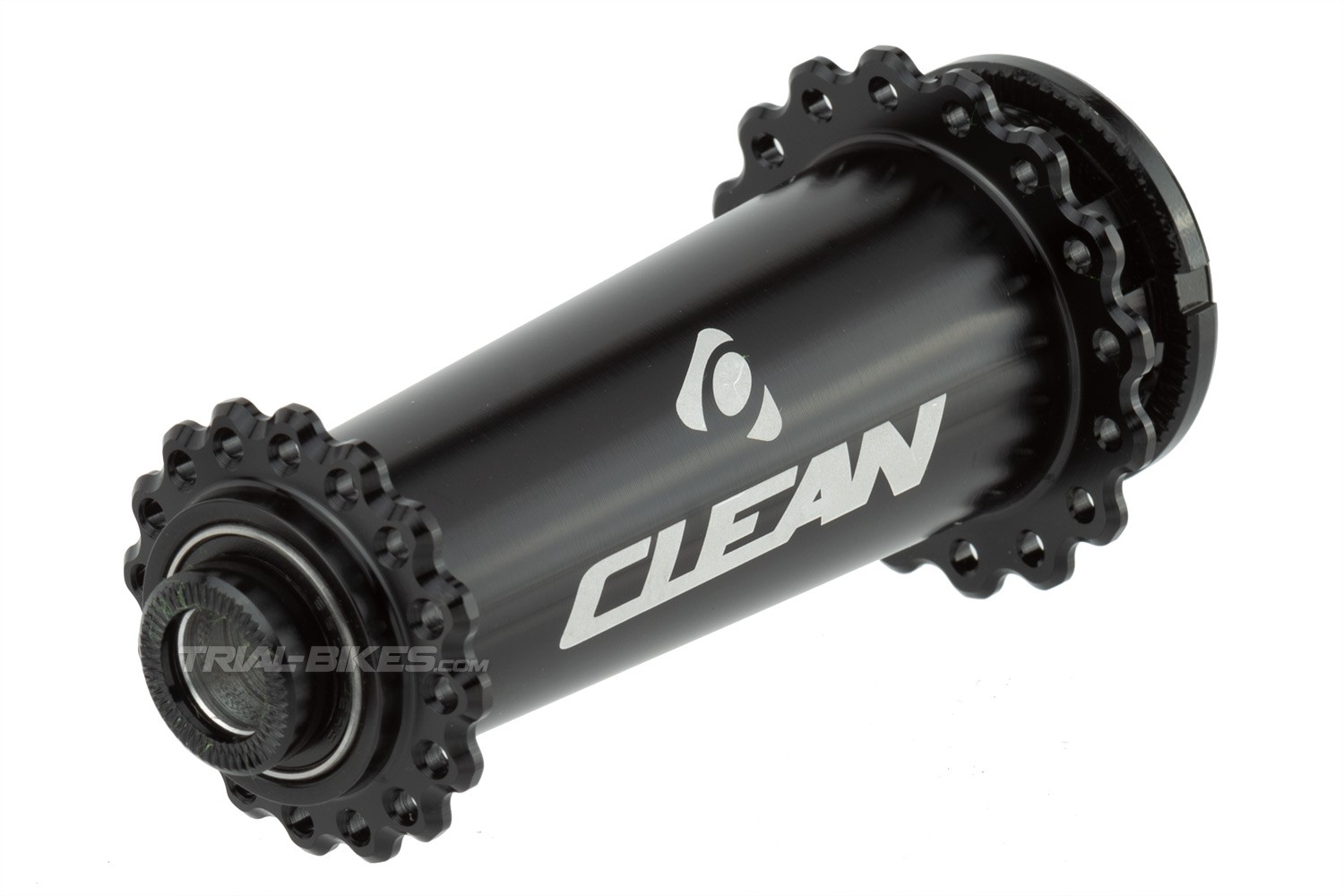

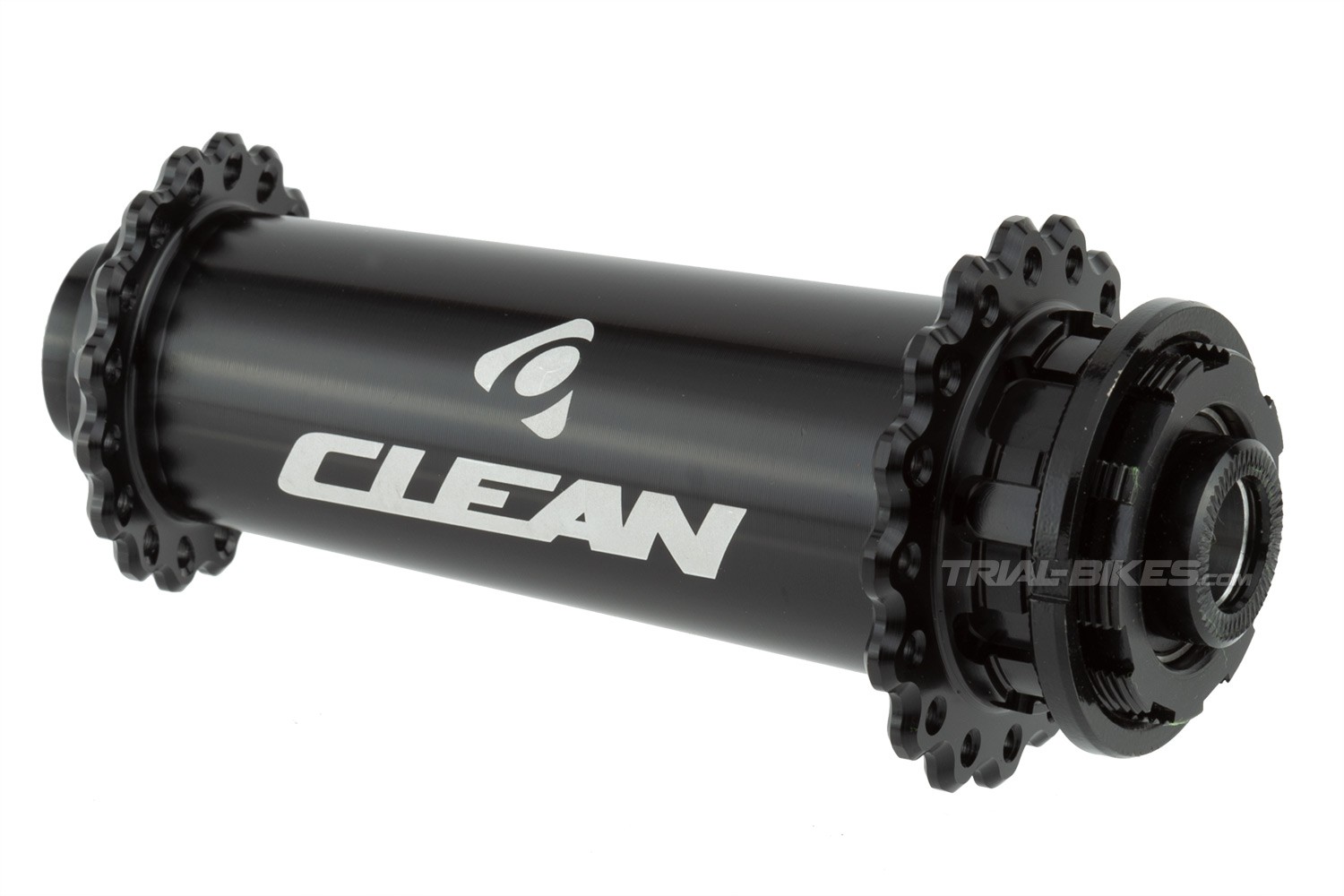

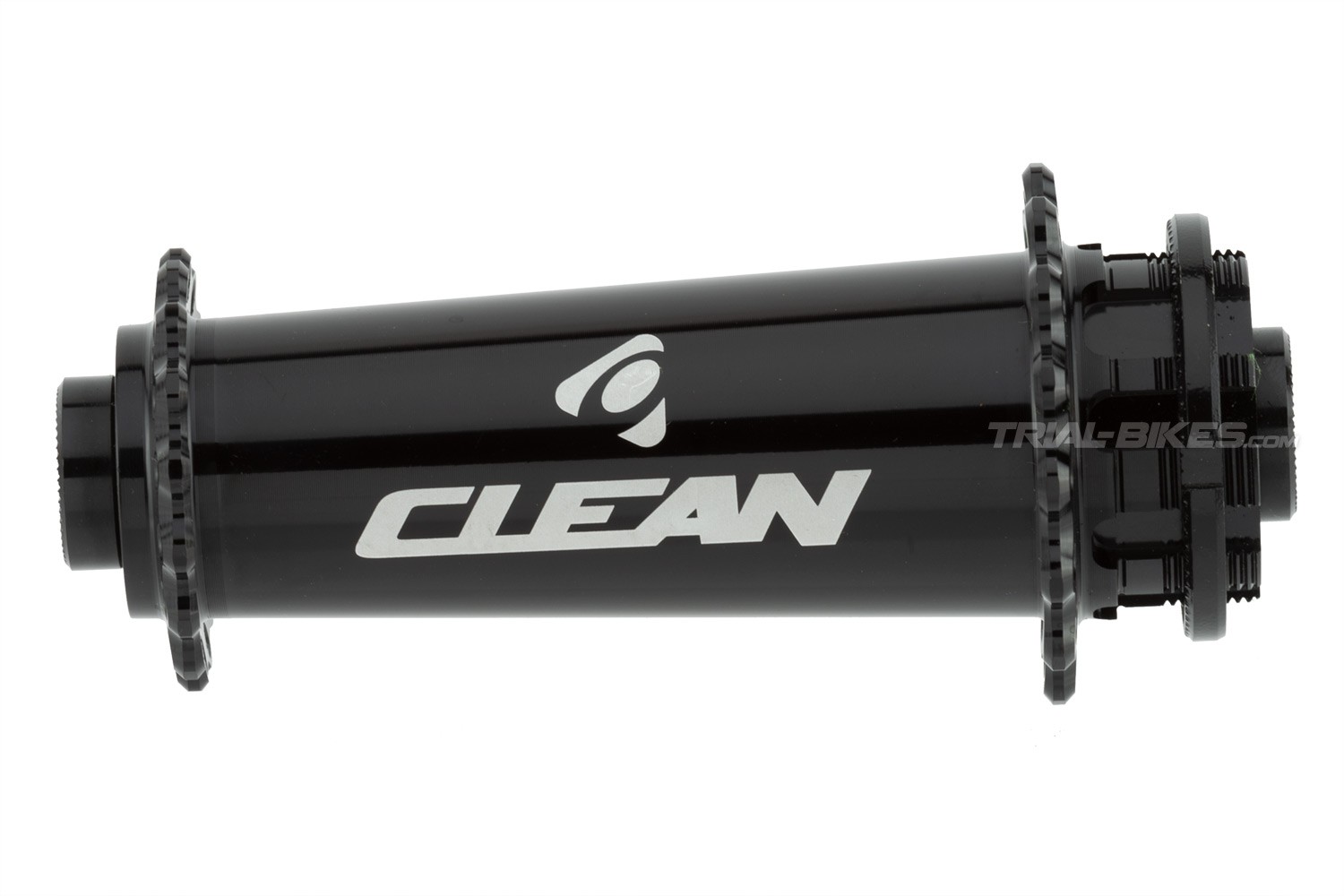

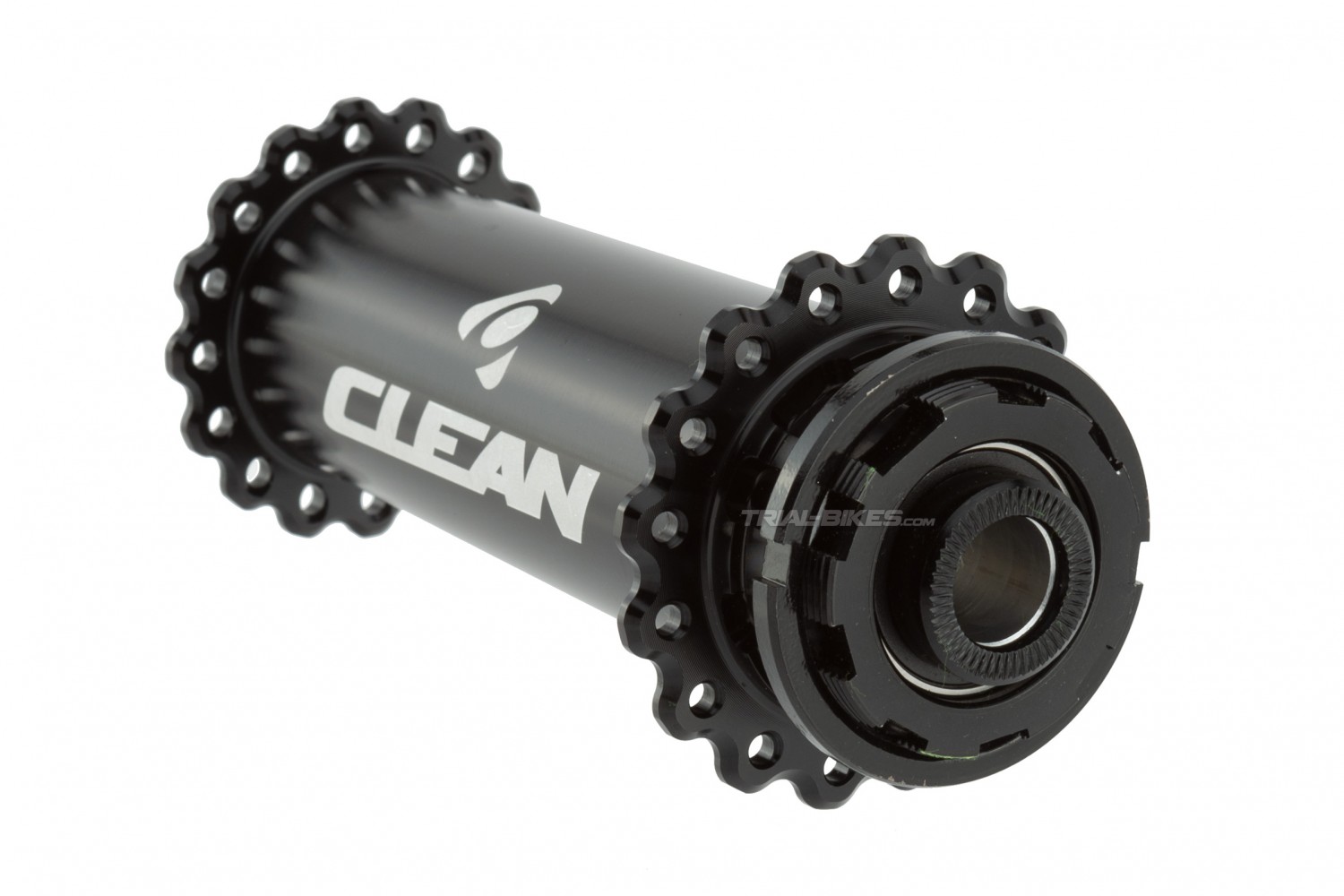

Clean X3 HS 32H Rear Hub

Clean X3 HS 32H rear Hub

Description and materials
- Clean X3 rear non-disc hub, developed specifically for bike trials by Spanish brand Clean.
- Tested and currently used by Clean Trials Factory Team riders.
- Features a 12mm through-axle, specially designed for Clean’s K1.2 26” carbon frame.
- The 12mm axle is inserted from the side and bolted with an 8mm Allen key to the threaded inserts of the frame (available here).
- Both the axle and shell are CNC 3D machined from high quality 7075-T6 aluminium alloy, which ensures extraordinary mechanical properties.
- The hub flanges have machined edges between the spoke holes, removing unnecessary weight without reducing strength.
- 32 spoke holes (32H).
- Shimano HG splines, requiring a 4mm Lock Ring (included) to keep the sprocket in place.
- Sealed bearings ensure smooth spinning and prevent dust, mud and dirt from getting into the axle.
- Note: we recommend using this tool to fit the Lock Ring onto the hub.

Compatibility
- Frames designed for a 12mm thru-axle with 120mm spacing, like Clean’s K1.2 26” carbon frame (requires these inserts).
- Rims with 32 spoke holes (32H).
- Bearings reference: 6902 2RS (disc side), 6802 2RS (non-disc side).

Dimensions
- Axle spacing: 120mm
- Axle diameter: 12mm
- Number of spoke holes: 32 (32H)
- Flange Diameters: 44mm (Sprocket Side) and 36mm (Non Sprocket Side)

Colour
- Anodized black hub shell and axle, with white laser etched 360º Clean graphics.

Weight
- 153.38g (+ thru-axle at 27.62g)
