Comas 3D 20º Stem

Comas 3D 20º Stem

Description and materials

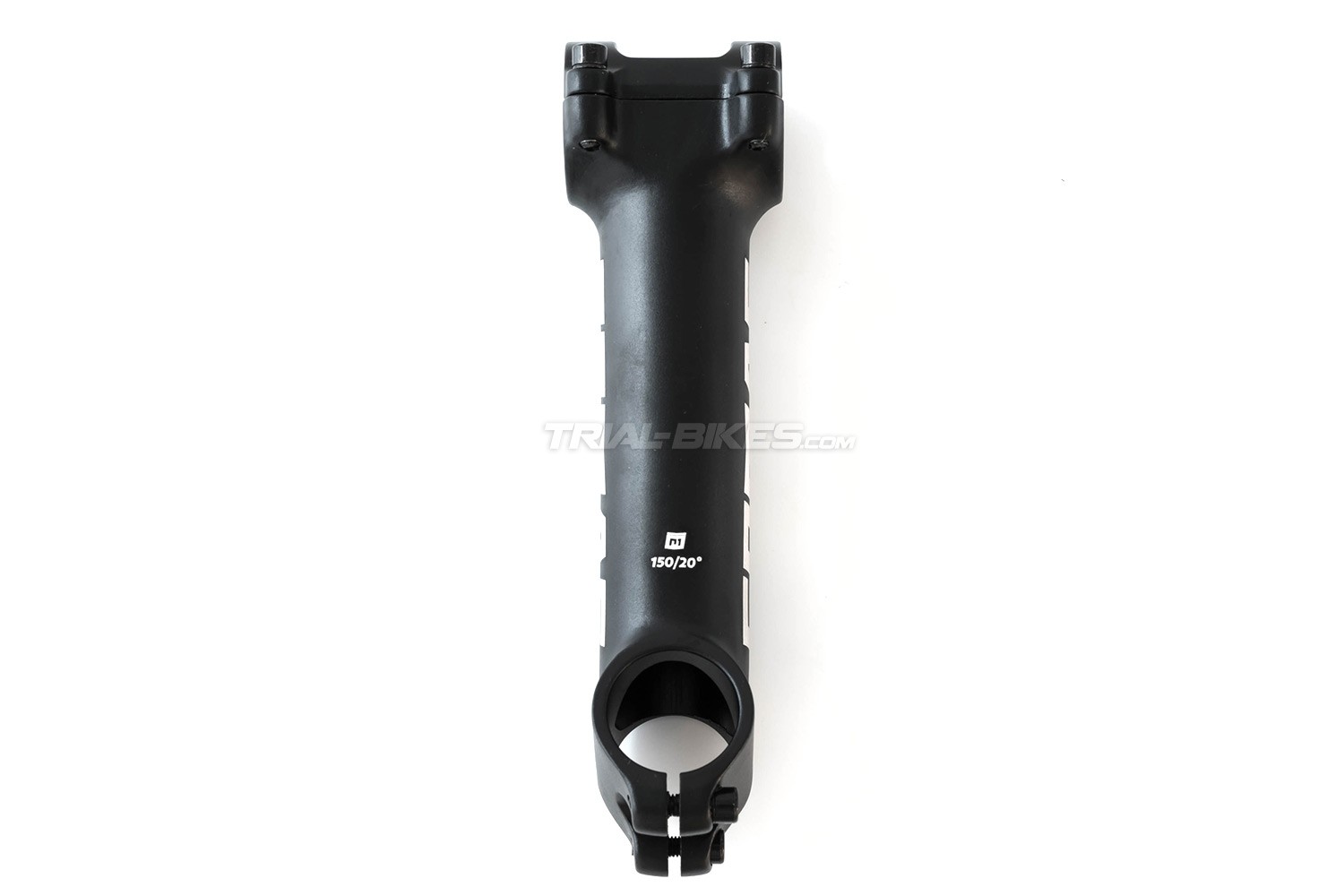

- Bike trials flat stem from young brand Comas, created by Biketrial World Champion Dani Comas.
- Developed and tested by Comas team riders Sergi Llongueras, Vincent Hermance and Eloi Palau.
- This stem is a pioneer for introducing the 20º rise instead of the common 25º or 30º.
- This allows for a riding position that best suits current frames and handlebars’ geometries.
- The stem body is 3D forged in one piece of 7050-T6 aluminium, without welds, which increases strength, stiffness and overall reliability.
- The front clamp is made in one piece and uses 4 bolts, for even and dependable clamping.
- Compatible with Ø31.8mm Oversized handlebars (most trials handlebars).
- Flat steerer clamp, with each bolt at the very end of it for uniform tightening.
- Two sizes available:
· 130mm long and 20º rise (130mm x 20º).
· 140mm long and 20º rise (140mm x 20º).
· 150mm long and 20º rise (150mm x 20º).
- Supplied with all 6 steel bolts: 4x M5x18mm for the handlebar clamp and 2x M5x16mm for the steerer tube clamp.

Sizes
- Two sizes available:
· 130mm long and 20º rise (130mm x 20º).
· 140mm long and 20º rise (140mm x 20º).
· 150mm long and 20º rise (150mm x 20º).
- Handlebar diameter: Ø 31.8mm
- Steerer clamp height: 40mm

Recommended use
- 130mm x 20º: ideal for kids bikes (high position) and 26” bikes (low position).
- 140mm x 20º: ideal for 20” bikes (low position) and 26” bikes (mid position).
- 150mm x 20º: ideal for 20” bikes (mid position) and 26” bikes (high position).

Colour
- Anodized black, with white laser etched Comas graphics.

Weight
- 196g (130mm x 20º), 200g (140mm x 20º), 206g (150mm x 20º) including all 6 steel bolts

Additional Information
Maximum torque for the bolts is 4Nm. Any damage to the handlebar clamp or threads because of excessive tightening won’t be covered under warranty.
