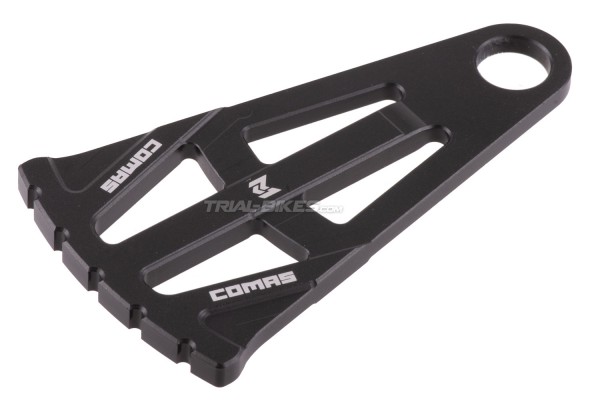

Comas Disc Protector (12mm axle)

Reference: CB24-CODISCPRT12

Condition: New

Ask a question

Comas Disc Protector (12 mm Axle)

The Comas Disc Protector, manufactured by the renowned Spanish brand Comas Trials, offers optimal protection for 12 mm tru-axle hubs.

- Comas disc protector, made by the Spanish brand Comas Trials for 12 mm tru-axle hubs.
- Made from CNC-machined 7075-T6 aluminium, providing high strength and reduced weight.

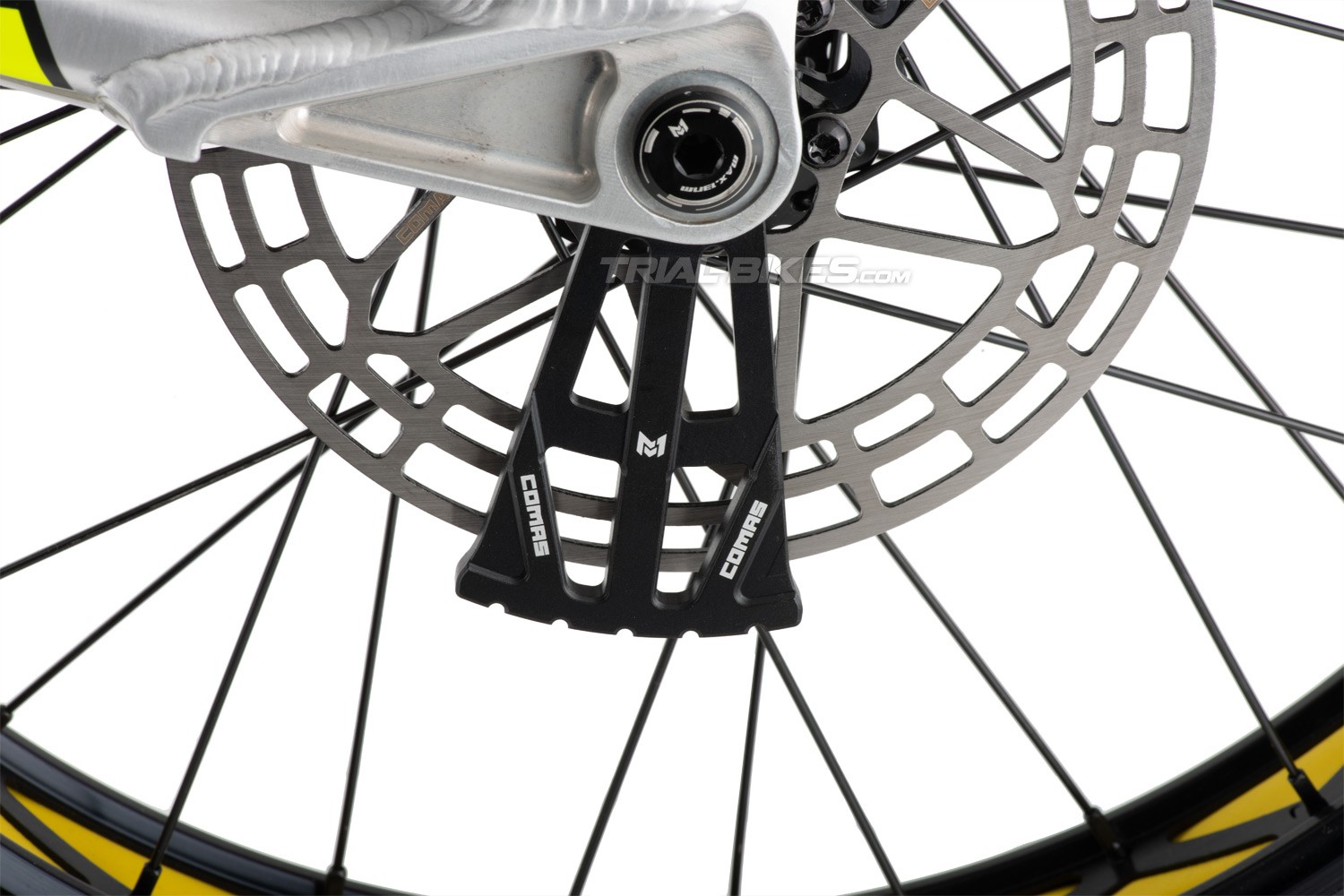

- Placed between the frame and the rear disc, this protector shields the disc from potential impacts against obstacles.
- With a thickness of 4 mm around the axle, it offers greater strength and a perfect fit to the Comas hub.
- Incorporates an X-shaped central rib that increases its rigidity and impact resistance.
- Installs directly onto the bearing, without the need for intermediate washers.
- Provides protection for brake rotors of 160/165 mm diameter or smaller.

Mounting Instructions

Remove the rear wheel from the bike.
Replace the hub spacer sleeve with the protector, ensuring the same thickness as before. No need to install any washers between the bearing and the protector.
Reinstall the wheel on the bike.
