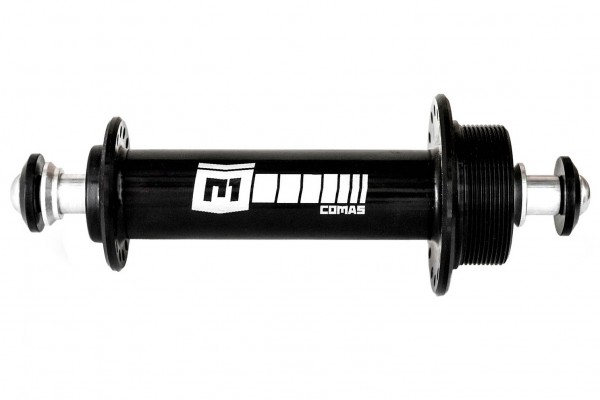

Comas HS 32H 116mm Rear Hub

Comas HS 32H 116mm Rear Hub

Description and materials
- New ultralight Comas HS 116mm rear hub, specially developed for trials bikes.
- Used and developed by Comas trials team riders.
- Hollow axle, machined to remove any unnecessary material.
- The axle and shell are CNC machined from 7075-T6 and 6082-T6 aluminium alloy respectively, to ensure exceptional mechanical properties.
- Leaning flanges ease spoke installation, and their minimalistic design helps save weight without compromising strength.
- High-quality, replaceable sealed bearings ensure a smooth spin and long lifespan.
- Standard 1.37”x24tpi thread, compatible with most screw-on freewheels and sprockets.
- 32 spoke holes (32H), with Ø2.5mm diameter.
- Uses 4mm spacers to each side of the hub shell.
- Supplied with M6x25mm axle bolts and washers.

Compatibility
- Frames with 116mm spacing for the rear hub (3mm snail cams must be added).
- Rims with 32 spoke holes (32H).
- Bearings reference: 6000RS and 6900RS

Dimensions
- Axle spacing: 110mm
- Axle diameter: Ø10mm
- Spacer thickness: 4mm
- Thread: 1.37”x24tpi

- Number of spoke holes: 32 (32H)
- Spoke hole diameter: Ø2.5mm
- Flange diameter: Ø38mm and Ø50mm

Colour
- Anodized black hub shell, with white Comas graphics.
- Silver axle and hub ends.

Weight
- 100g (+ bolts and washers at 16g)
