Comas Kala 1070 mm 26" Bike

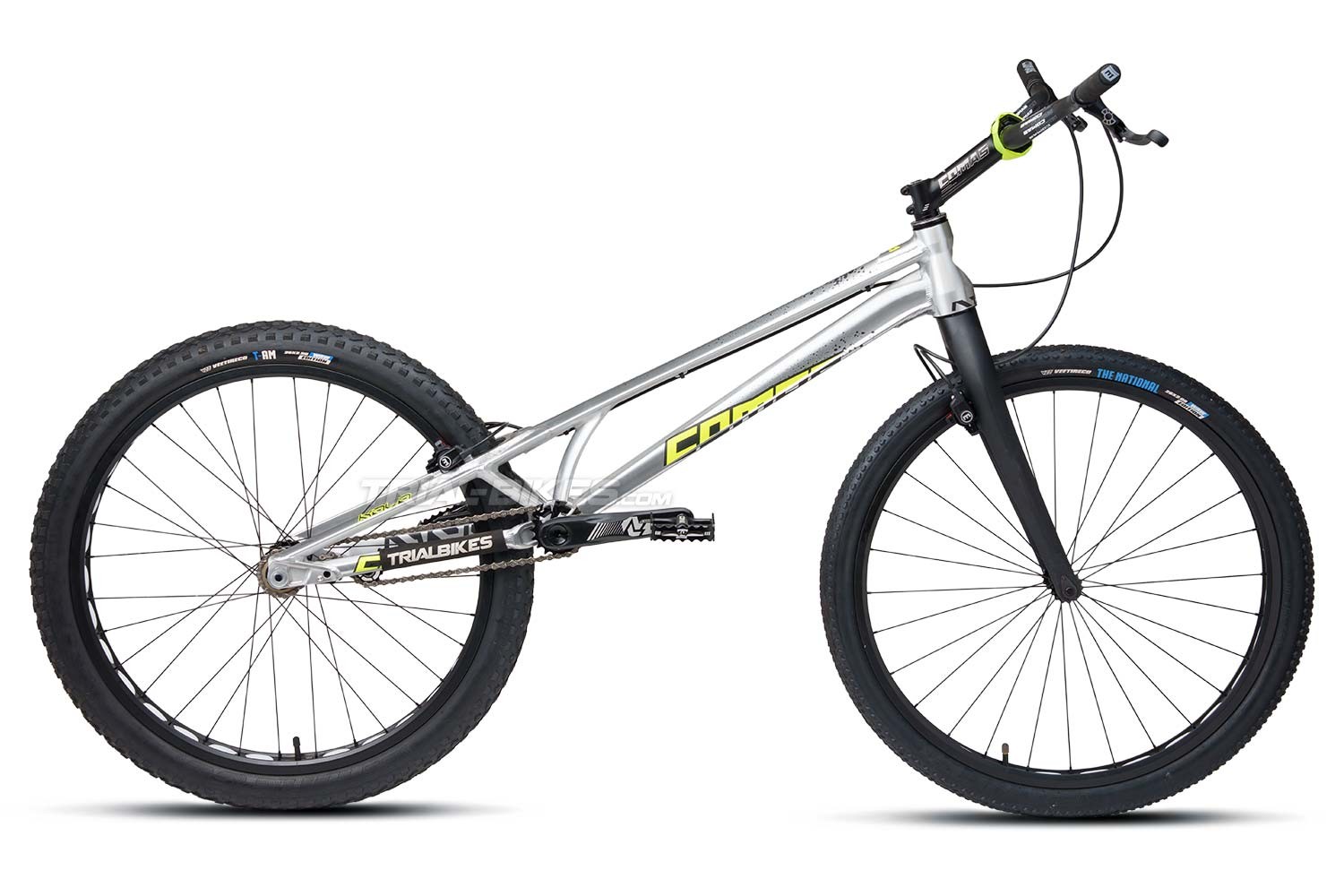

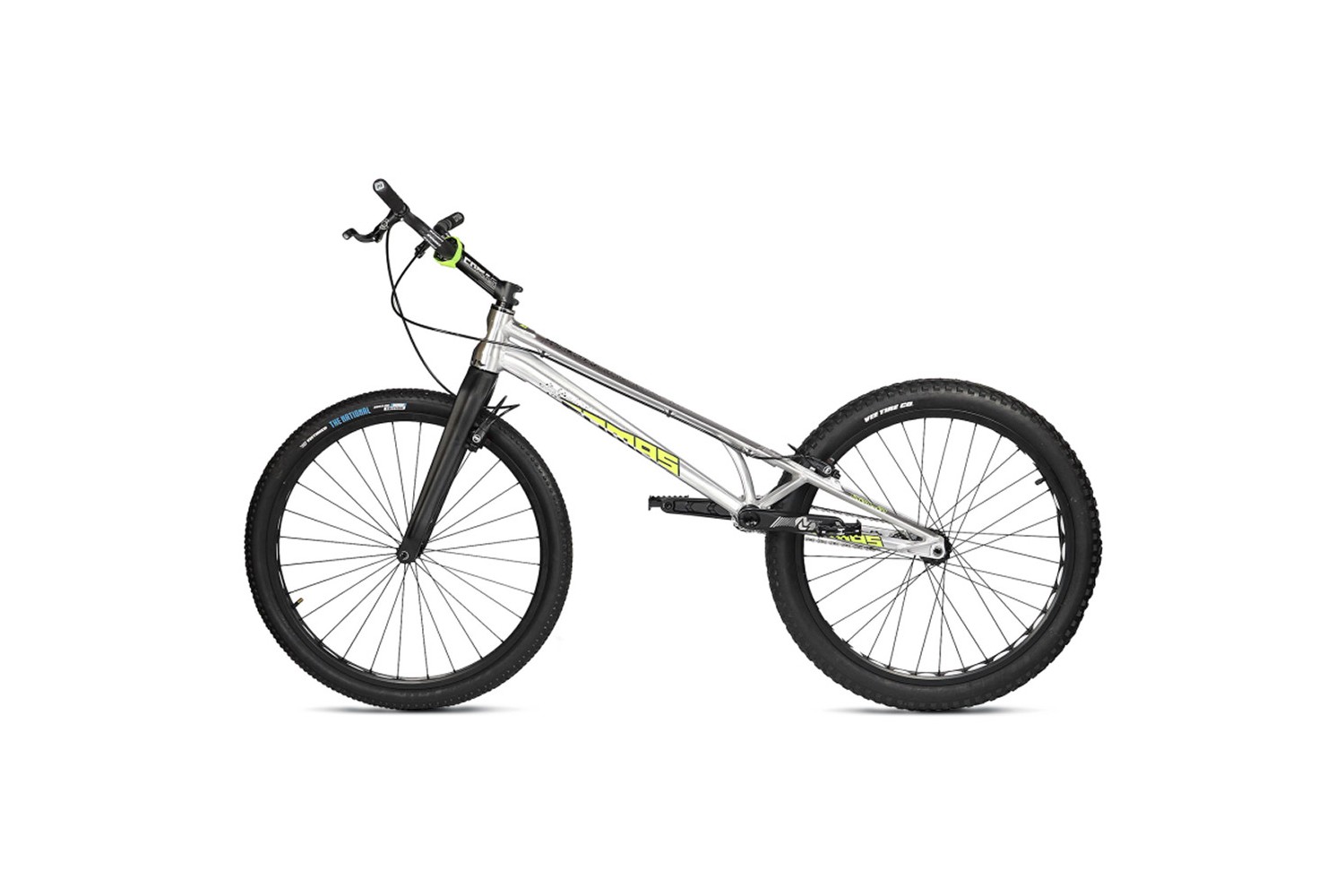

Comas Kala 26” Trials Bike

The high-end Trial Comas bike, tested in the last season by Junior World Champion Dani Cegarra, features an aluminum 6061-T6 frame with 12 mm thru-axles, BB30 bottom bracket, and Comas free rear hub. Equipped with carbon handlebars and fork, and a chain tensioner with aluminum pulleys and ceramic bearings, it is ideal for the most demanding riders.

Frame and fork

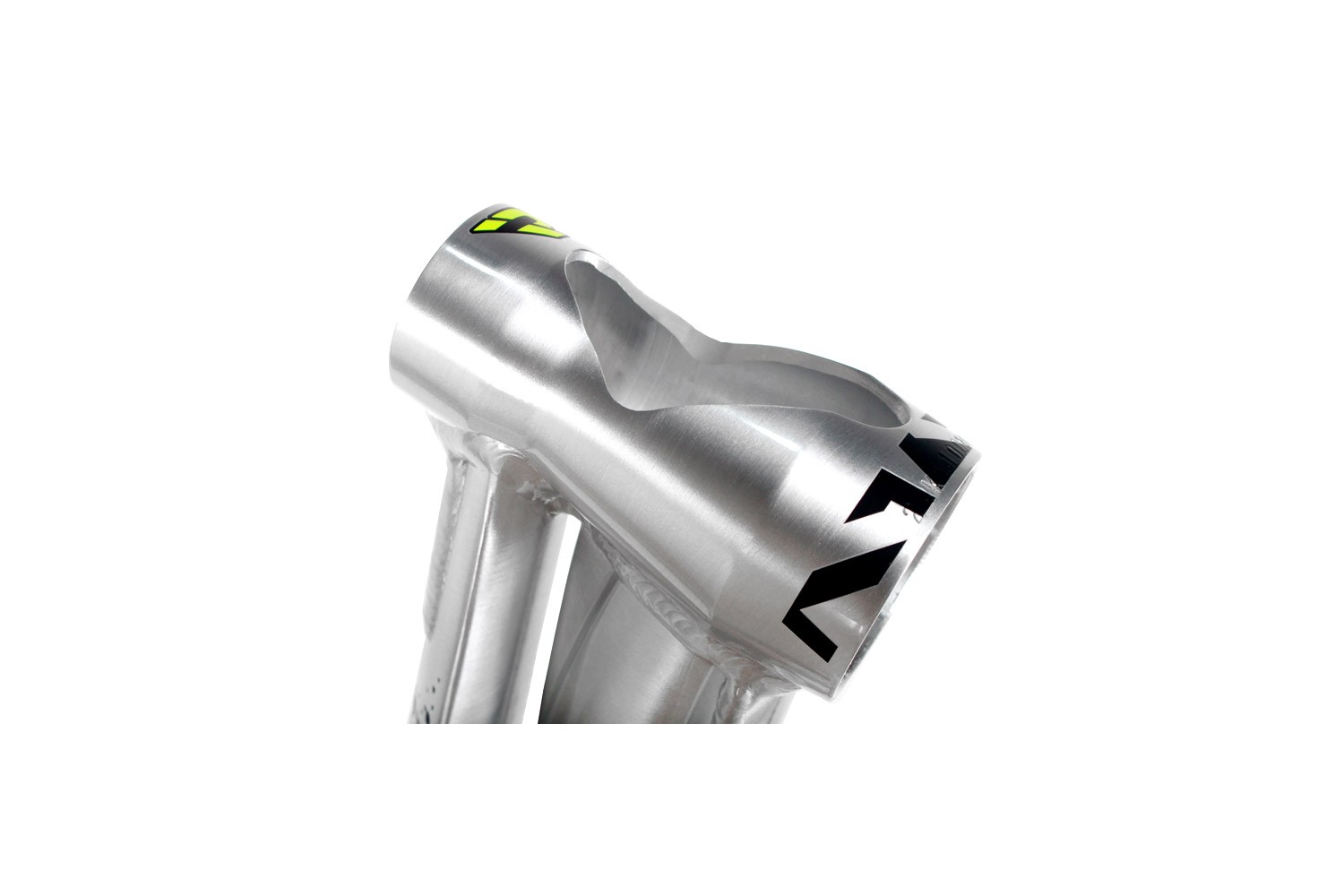

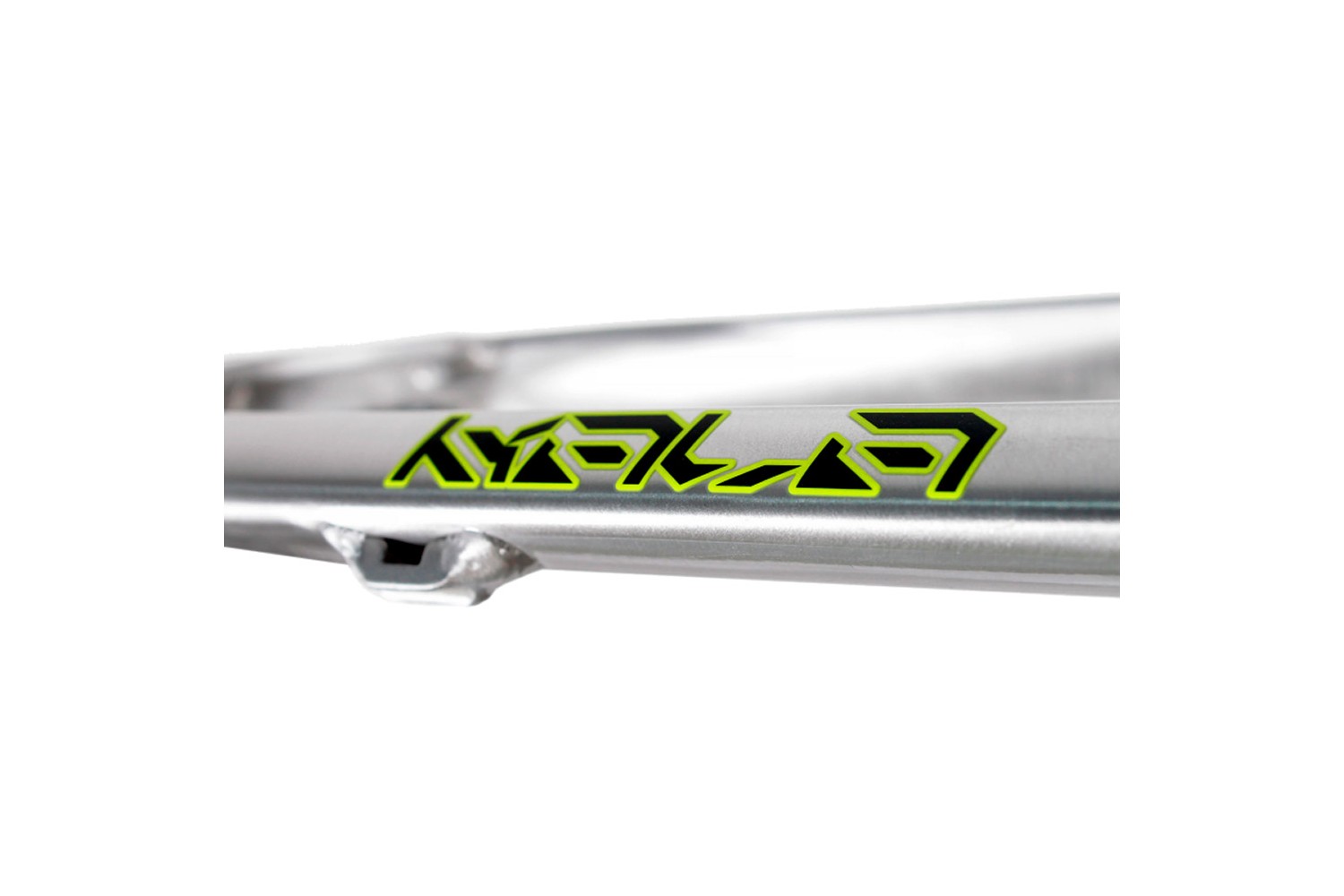

- Frame: Comas Kala 26”, tapered 1 1/8” – 1.5”, with 4-bolt rim brake mounts (M6), 116 mm spacing, silver finish.
- Forks: Clean K1 26”, made of high-modulus carbon fibre, tapered 1 1/8” – 1.5”, with 4-bolt rim brake mounts and 12K carbon finish, black, without logos.

Wheels

- Front hub: Comas HS, 12 mm through-axle, 28 spoke holes, without rotor mounts, 100 mm spacing, anodized black.
- Rear hub: Comas Rear Disc Freehub 116/120 mm, 12 mm through-axle, 32 spoke holes, without rotor mounts, 120 mm spacing, anodized black.
- Chain tensioner: Comas sprung chain tensioner , with two 10T aluminium jockey wheels and ceramic bearings.
- Front rim: Comas 26”, single wall, 32 mm wide, 28 spoke holes, anodized black.
- Rear rim: Comas 26”, single wall, 48 mm wide, 32 spoke holes, anodized black.
- Spokes: Comas inox, black
- Rim tape: Comas, white.
- Front inner tube: Comas 26”, 0.8 mm.
- Rear inner tube: Comas 26”, 0.8 mm.
- Front tyre: Vee Rubber Waw Edition 26” x 2.00”.
- Rear tyre: Vee Rubber Waw Edition 26” x 2.50”.

Brakes

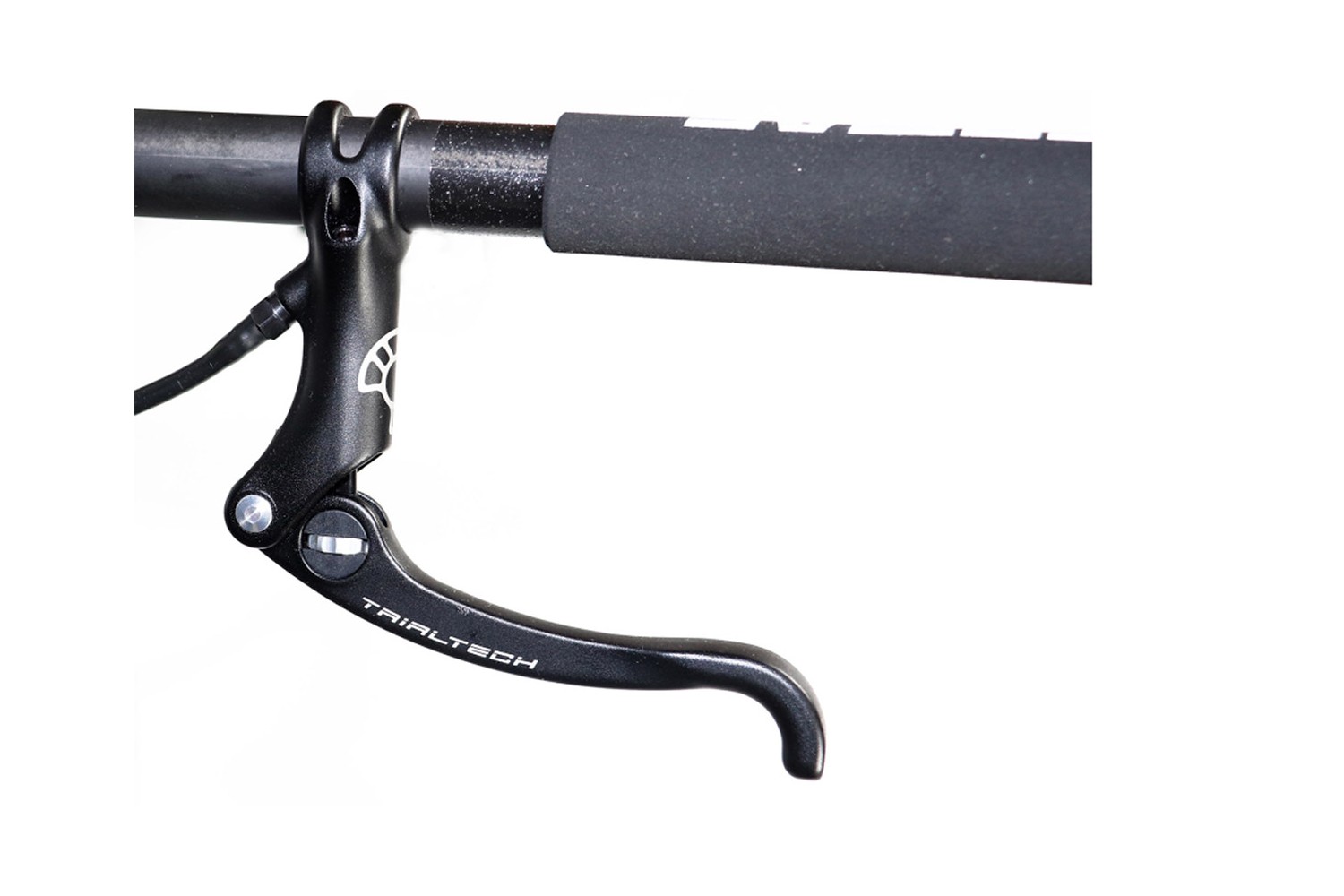

- Front brake: Trialtech Sport, with Magura HS slave cylinder, black, left hand (If you prefer the brake on the right hand, let us know).
- Rear brake: Trialtech Sport, with Magura HS slave cylinder, black color, right hand (If you prefer the brake on the left hand, let us know).
- Rim brake pads: Magura HS, red.
- Brake clamps: Comas M6.

Drivetrain

- Crankset: Comas 3-piece set, with Press Fit BB30 30 mm diameter BB axle, CNC machine, 170 mm long cranks, for Cassette Shimano HG-type freewheel
- Freewheel: Comas 18-tooth fixed aluminum cassette sprocket in black.
- Chain: KMC X9, silver.
- Rear sprocket: Comas 15T Shimano HG splined, made of 7075-T6 aluminium alloy.
- Pedals: Comas 7075 single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashring: Comas Ring, anodized black.

Steering

- Headset: Tapered Comas 1 1/8" – 1.5", with aluminum cups. Sealed bearings, black.
- Stem: Comas 3D 140 mm x 20°, 31.8 mm Oversized handlebar diameter
- Grips: Comas foam grips, 2 mm.
- Handlebar: Comas 105 mm carbon fibre, 730 mm long, 31.8 mm Oversized handlebar diameter, black finish.

Geometry ( with fork 400 mm, offset +35 mm).

(1) Wheelbase: 1070 mm.
-----------------------------------------------
(2) Rear End: 383 mm.
-----------------------------------------------
(3) Bottom Bracket Height: +70 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------

Weight

- 8.56 kg, verified by TrialBikes!

Additional information:

The list of components may change. Any change on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.

This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
