Crewkerz Desire Kid 920mm 20" Bike 2024

Crewkerz Desire Kid 920 mm 20" Bike 2024

The French brand Crewkerz has created the new Desire range to offer unbeatable value for money.

Designed especially for riders up to 10 years old or with a height of approximately 1.40 m or less.

This bike introduces the new Crewkerz Desire 20” 2024 frame and fork, designed with reliability and stiffness as the main premises, and geometry specifically developed for younger riders. It uses high-quality components: Magura MT5 disc brakes, tapered headset, dual jockey wheel chain tensioner, CNC-machined cranks, 108.9
freewheel, etc.

Frame and Fork
- Frame: Crewkerz Desire 20”, with Post Mount disc brake support.
- Fork: Crewkerz Jealousy 20”, tapered design 1 1/8” – 1.5", with Post Mount disc brake support.

Wheels
- Front hub: Crewkerz WAW 28 spokes, with disc mounts, 9 mm thru axle and 100 mm wide.
- Rear hub: Crewkerz WAW 28 spokes, with disc mounts, 12 mm thru axle and 135 mm wide.
- Chain tensioner: Crewkerz tensioner, with two jockey wheels.
- Front rim: Hashtagg 20", single-wall design, 32 mm wide, 28 spoke holes.
- Rear rim: Hashtagg 20'', single-wall design, 32 mm wide, 28 spoke holes.
- Spokes: Crewkerz 1.8 mm.
- Rim tape: Crewkerz.
- Front inner tube: Vee Rubber 20”.
- Rear inner tube: Vee Rubber 20”.
- Front tire: Monty Pro Race 20”x2.00”.
- Rear tire: Monty Pro Race 19”x2.50”.

Brakes

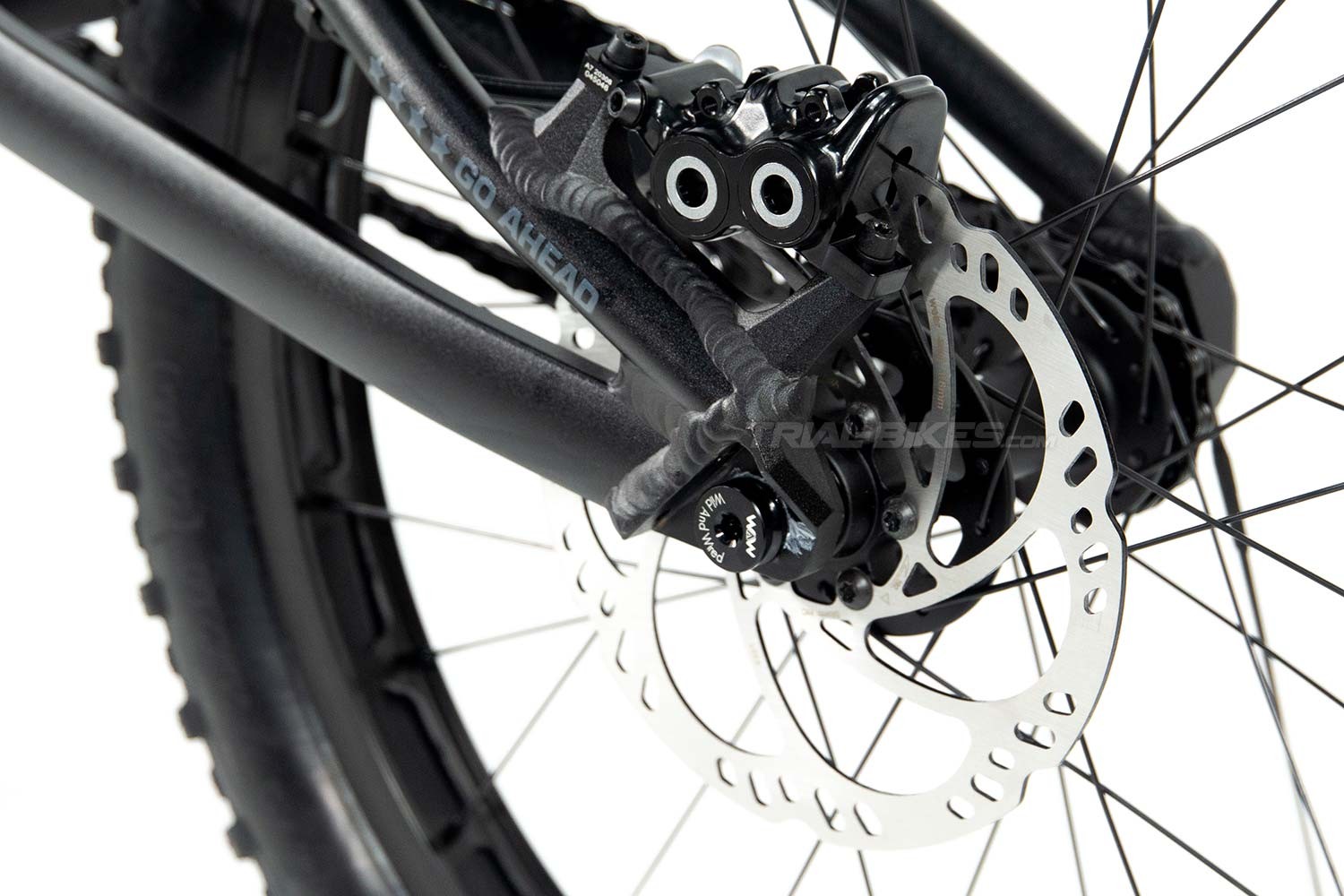

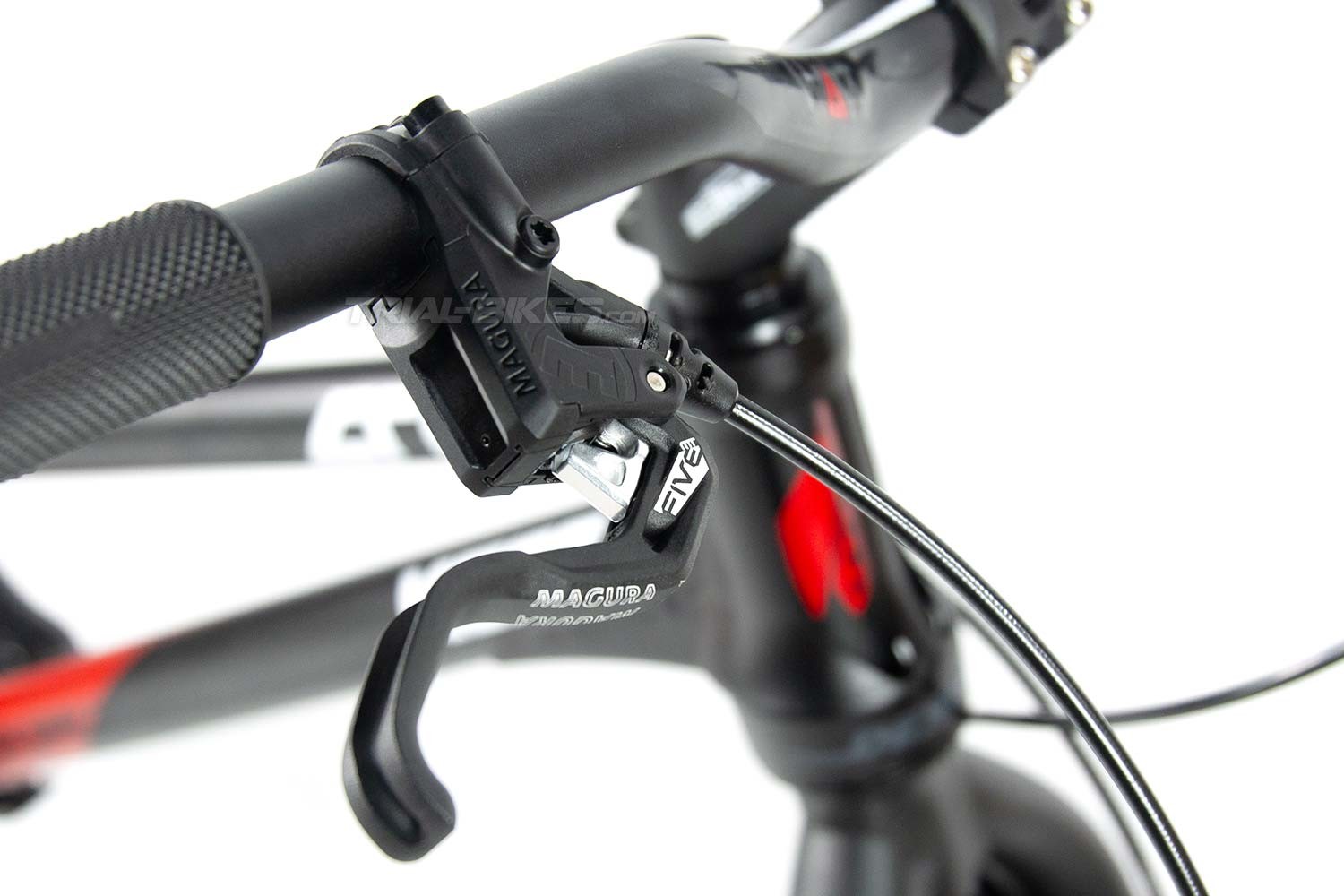

- Front brake: Magura MT5, with ergonomic HC 1-finger brake lever or Magura HS33 rim brake.
- Rear brake: Magura MT5, with ergonomic HC 1-finger brake lever or Magura HS33 rim brake.

- Brake rotors: Magura 160 mm.

Drivetrain

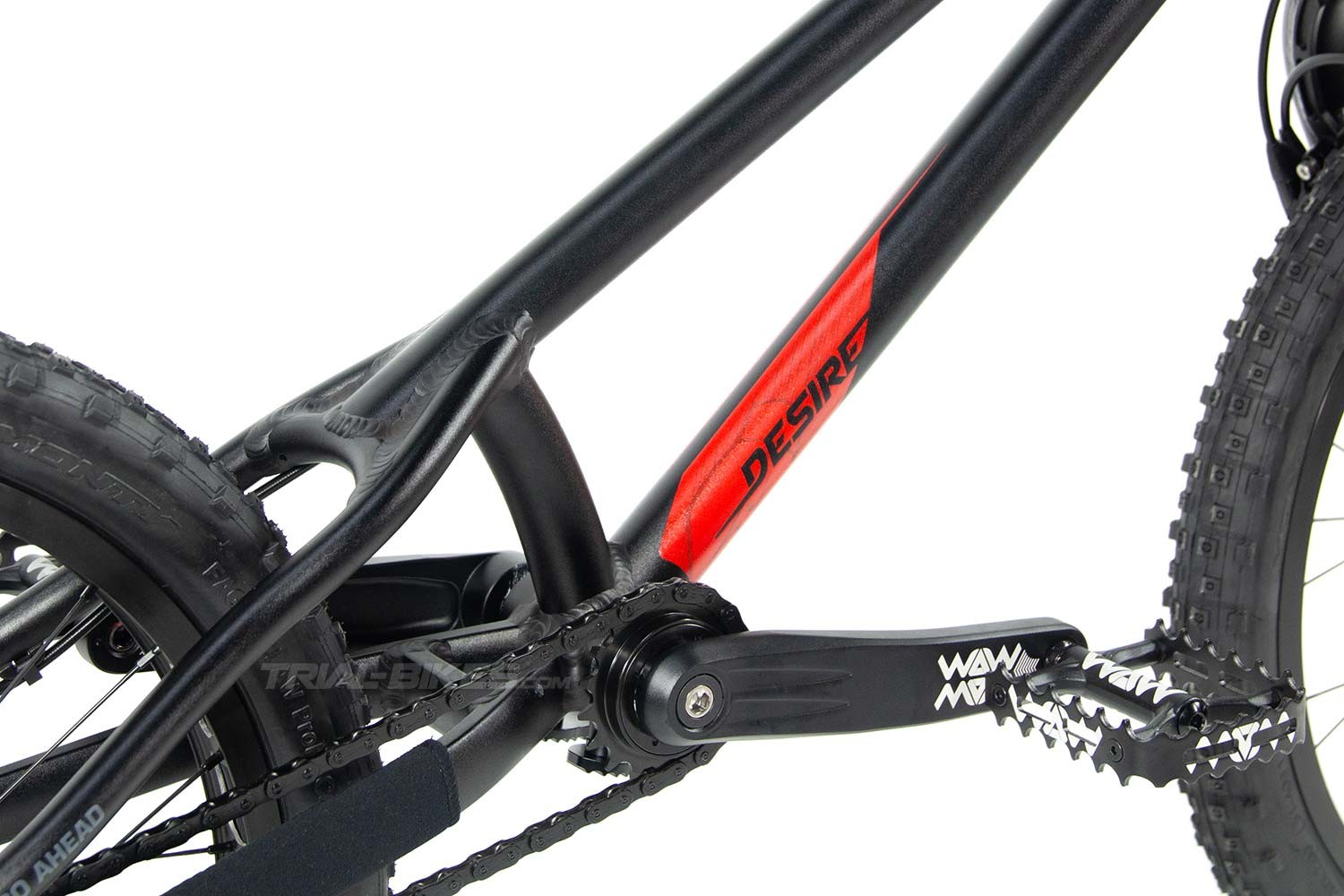

- Cranks: Crewkerz ISIS CNC 165 mm, standard 1.37”x24tpi thread.
- Bottom Bracket: Crewkerz ISIS threaded, 128 mm wide.
- Freewheel: Crewkerz 108.9 18T, with 108 engagement points, 9 pawls, and 18 teeth.
- Chain: KMC K710, black.
- Rear sprocket: Crewkerz 13T 3/32” Screw-On.
- Pedals: Crewkerz single cage 7075-T6.
- Bashring: Crewkerz Mini with 4 bolts.

Steering
- Headset: Crewkerz Semi-integrated Tapered 1 1/8” - 1.5”, with 7075-T6 aluminum cups, sealed bearings.
- Stem: Crewkerz, 120 mm length and 25º angle, Oversized handlebar diameter of 31.8 mm.
- Grips: Kraton rubber grips.
- Handlebar: Crewkerz WAW 103 mm, 720 mm length, 31.8 mm Oversized diameter.

Geometry

(1) Wheelbase: 920 mm.
-----------------------------------------------
(2) Rear end: 355 mm.
-----------------------------------------------
(3) Bottom bracket height: +60 mm.
-----------------------------------------------
(4) Head angle: 71.5°.
-----------------------------------------------
(5) Bottom bracket to top center of head tube: 537 mm.
-----------------------------------------------
(6) Reach: 370 mm.
-----------------------------------------------
(7) Stack: 389 mm.
-----------------------------------------------

Weight
- To be confirmed.

Additional Information:
Some images may not match the product description, so please read the features carefully.

This bike is supplied partially assembled; the customer will only need to fit the front wheel and the headset.

For any questions or additional modifications, contact us at info@trial-bikes.com .
