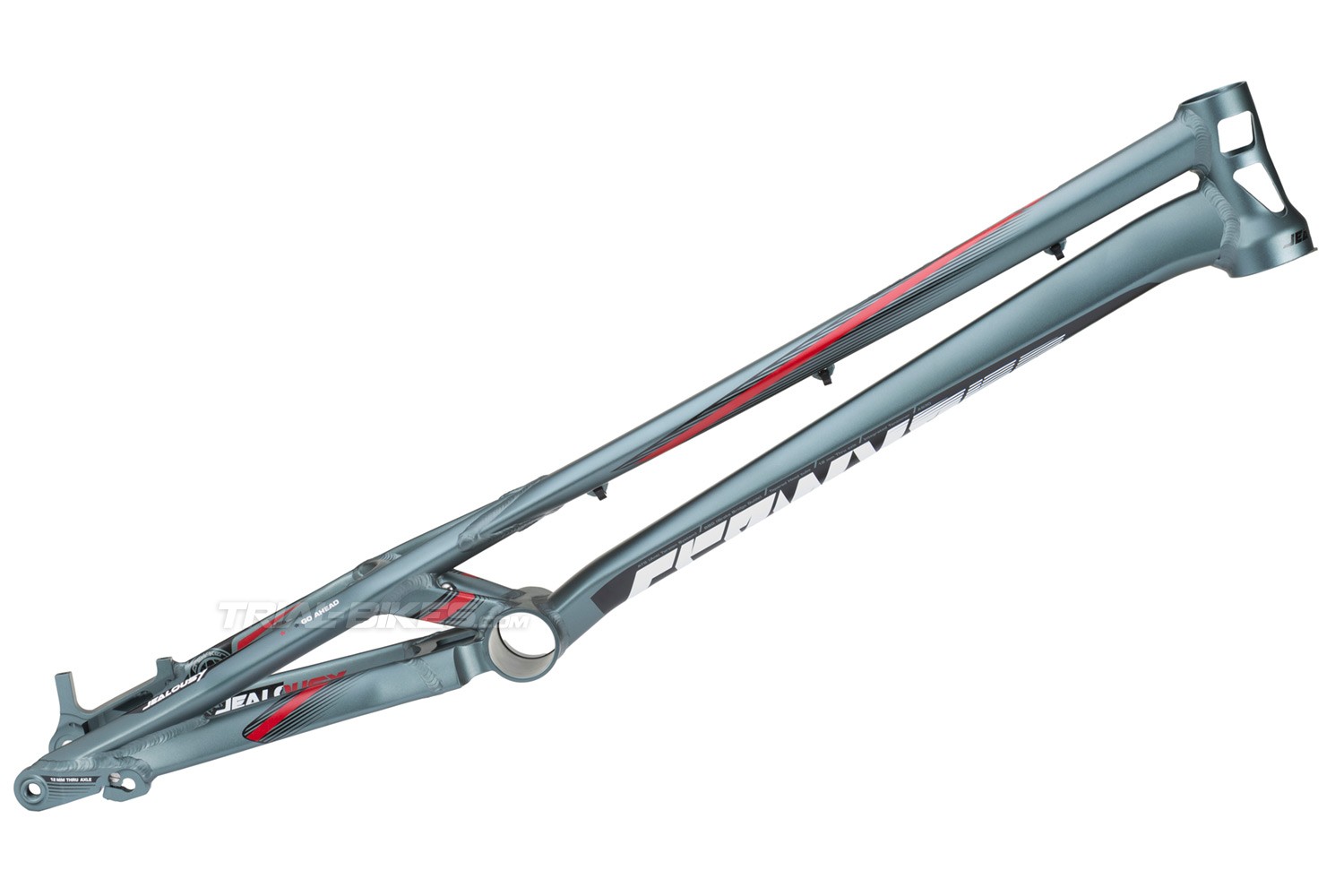

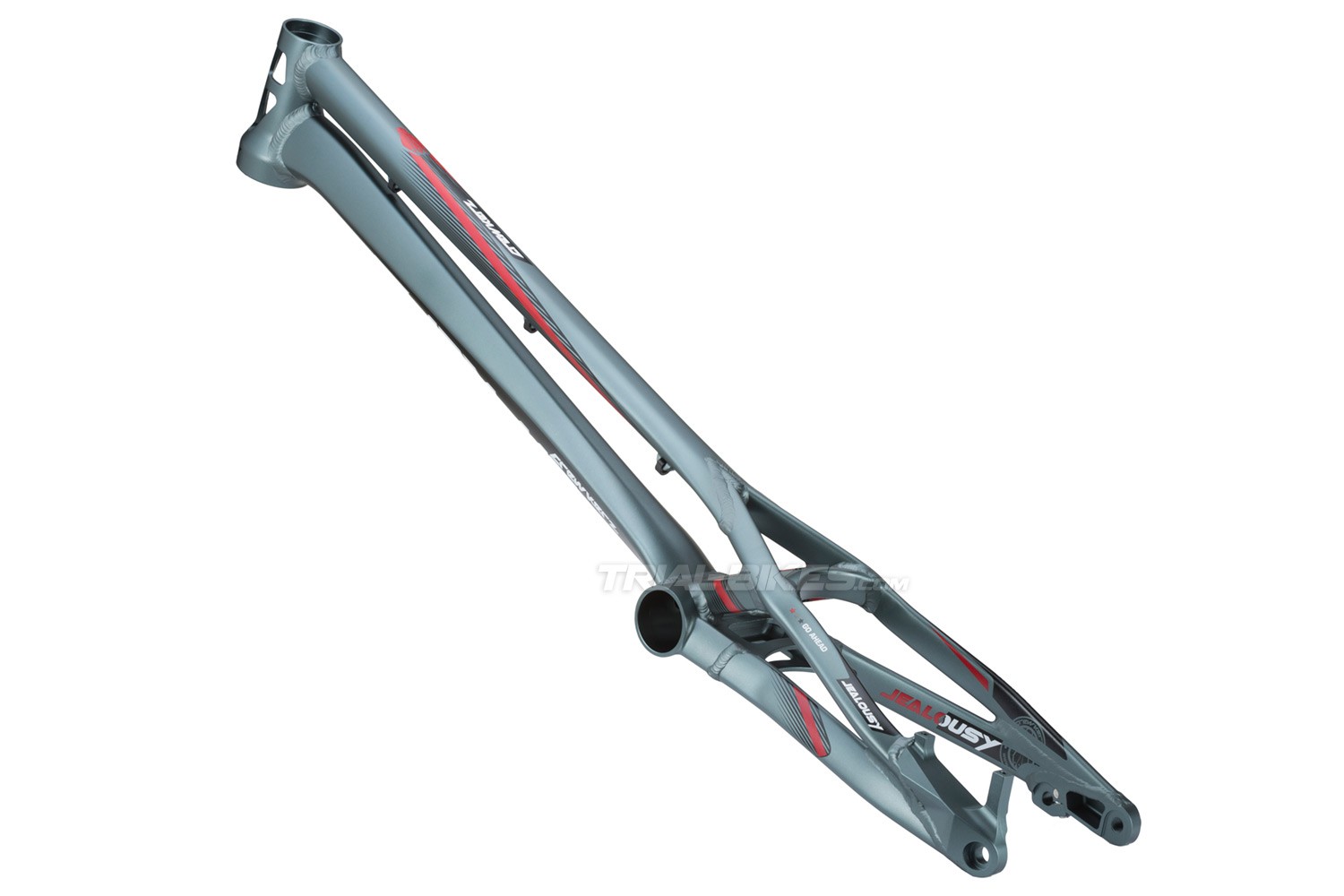

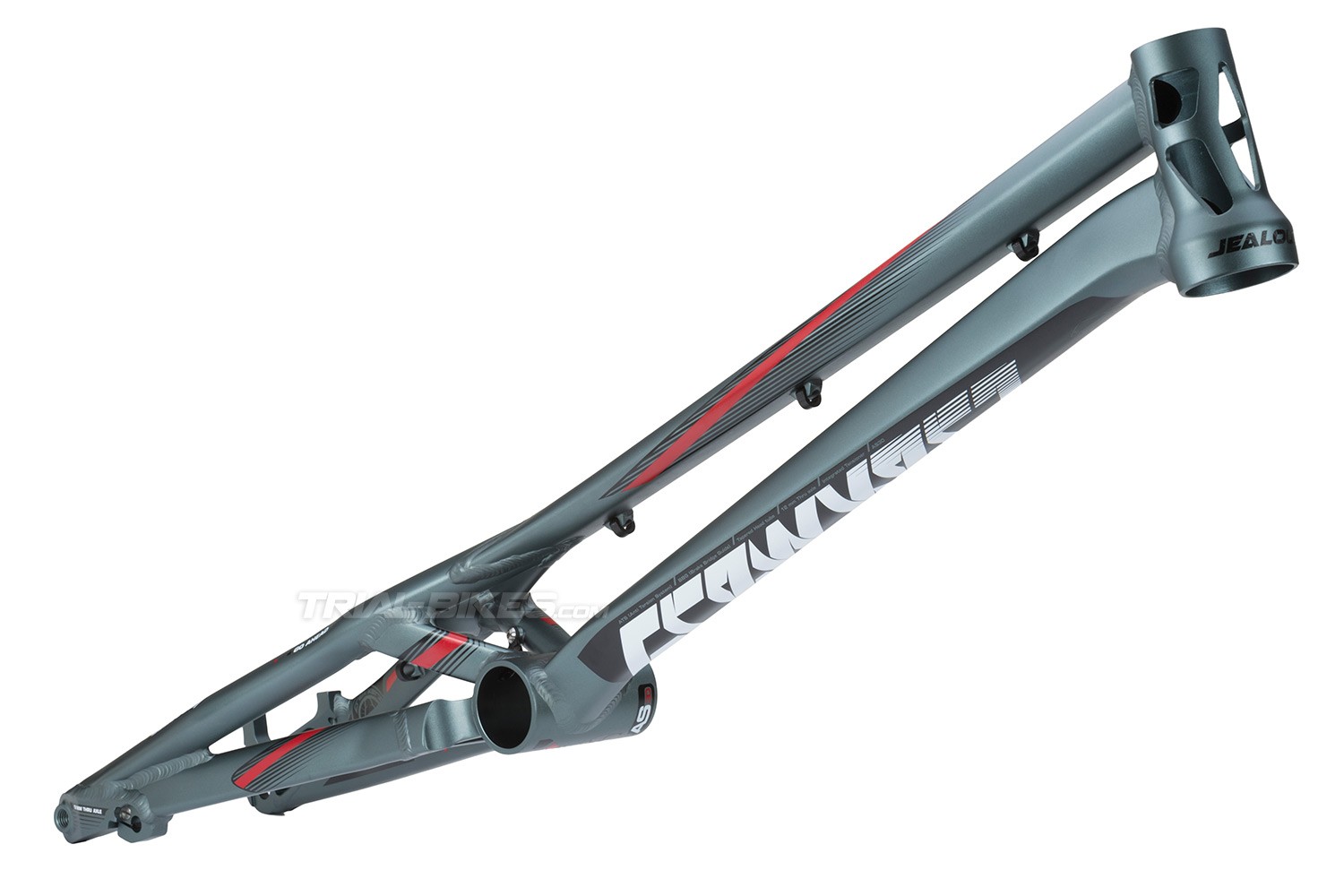

Crewkerz Jealousy 20” high-end trials frame. This frame is a pioneer in introducing the rear thru-axle, apart from using the latest technology for the design of every tube and reinforcement: this is the most advanced aluminium frame in the world!
This product is no longer in stock
Description and materials
- Crewkerz Jealousy 20” bike trials frame, developed with state-of-the-art technology.
- 100% exclusive design, with every tube and reinforcement optimized for a specific function.
- This frame is a pioneer in introducing the rear thru-axle, an important leap that eases wheel installation and stiffens the frame’s rear end.

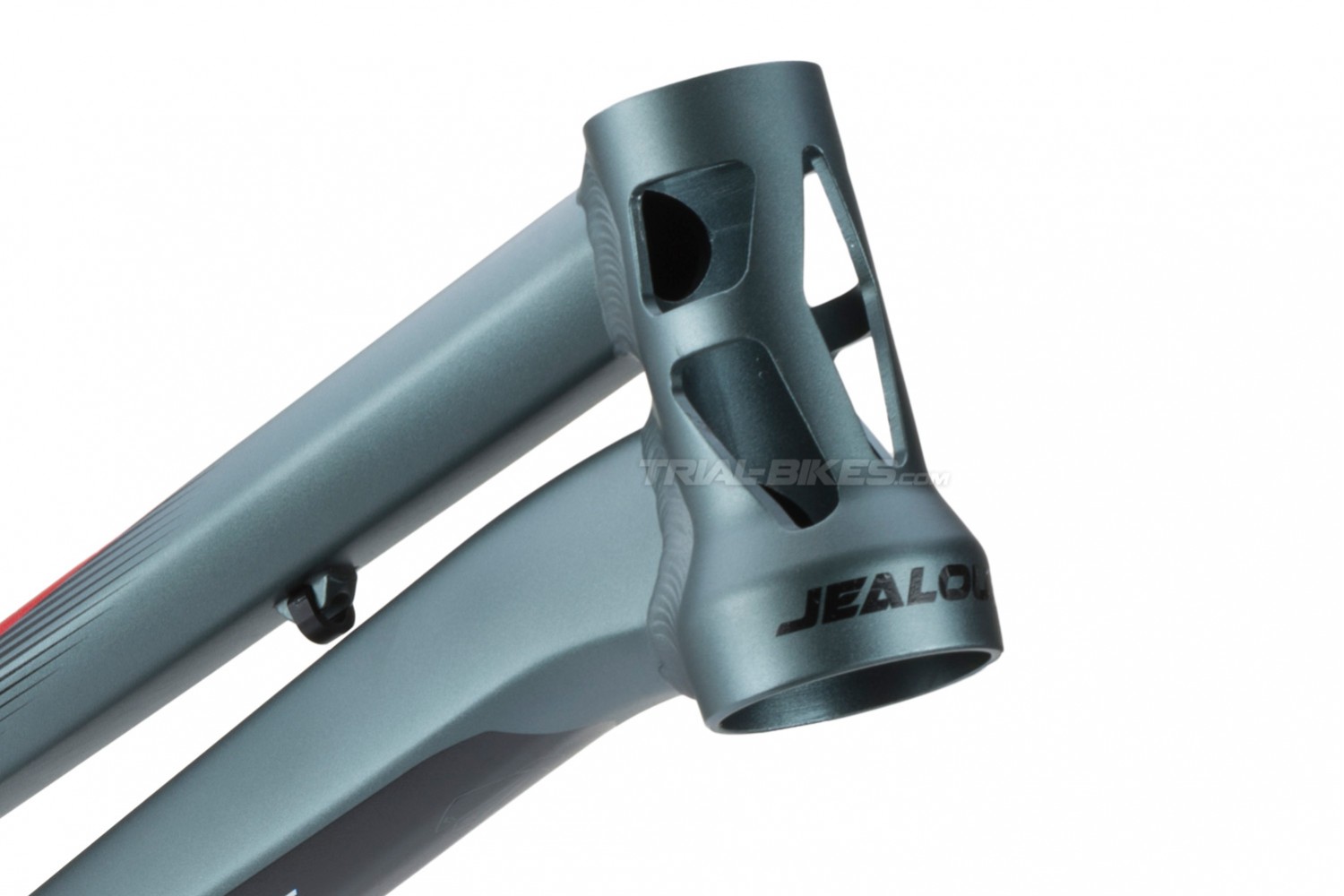

- 1 1/8” – 1.5” tapered, 125mm long head tube, with multiple holes that help remove any excess material.
- The main tubes have variable curvature and thickness in order to achieve minimal weight with the highest strength possible.
- Triangular twin seat tube design, the stiffest possible configuration.
- The left seat tube has a hose guide with bolt on the inside.

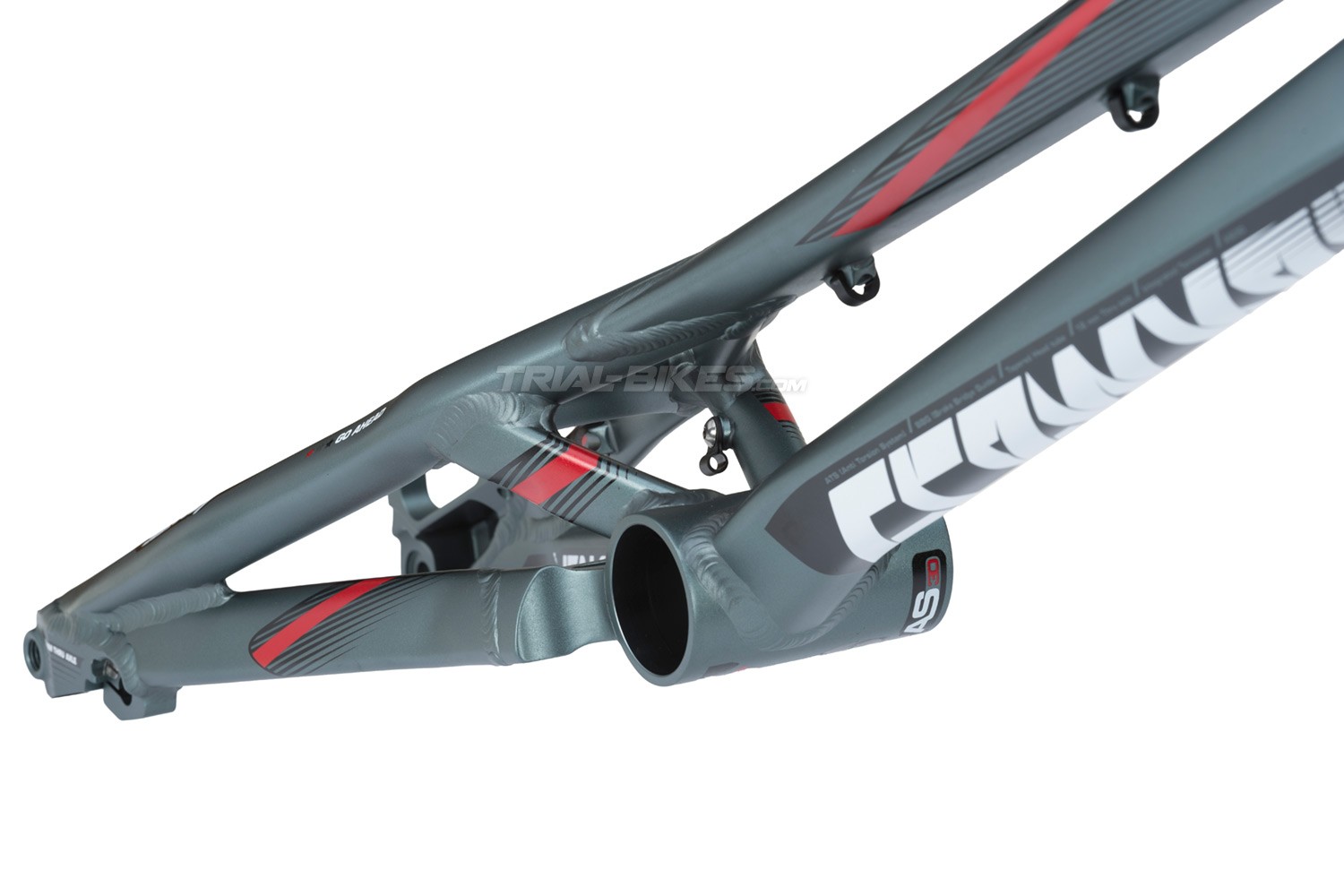

- The BB tube is compatible with 91mm wide Press Fit BBs, and it’s welded asymmetrically to the down tube in order to maximize stiffness when pedalling.
- Moreover, it’s integrated into a robust joint with for the chain stays to prevent cracking.
- Does not have any bashplate mounts.
- The seat stays are joined together and to the twin seat tubes, which increases stiffness exponentially.
- Their contoured design optimizes stiffness and allows for enough tyre clearance.

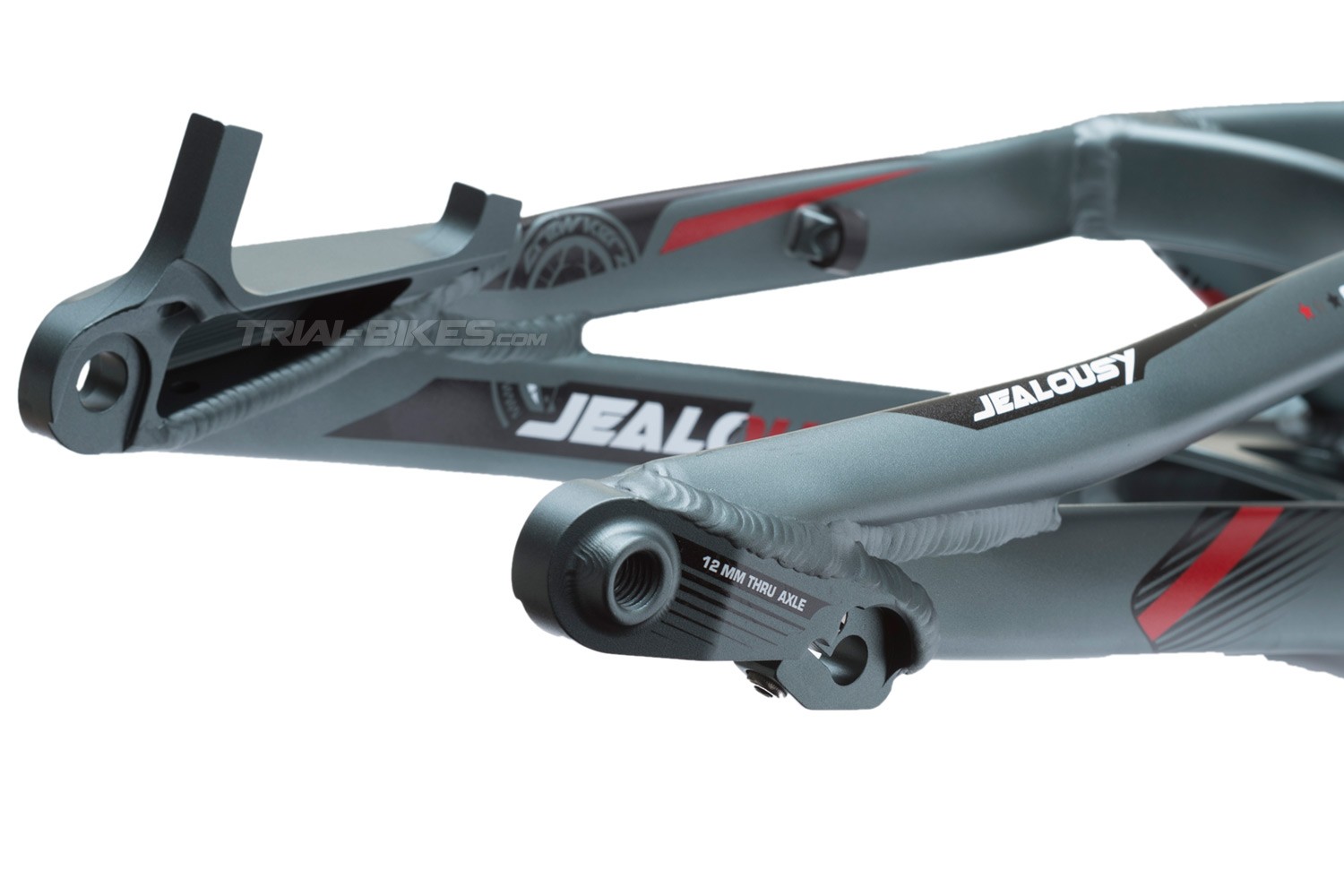

- The right dropout is machined in a very robust piece that also includes chain tensioner mounts for Crewkerz, Clean or similar sprung tensioners.

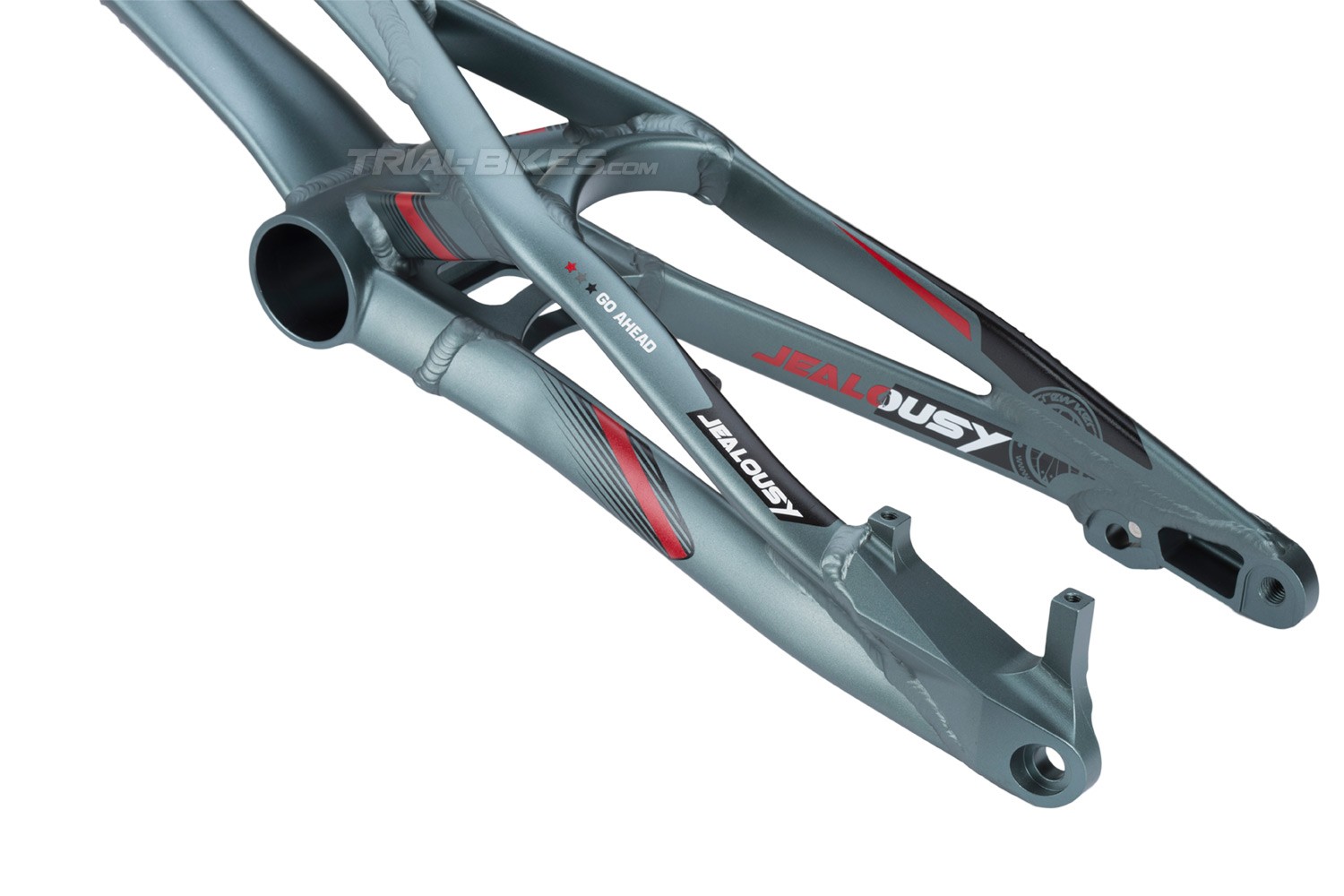

- The left dropout is machined in a solid piece that also features a sturdy Post Mount disc brake mount, much stronger than other brands’ welded brake mounts.
- Dropouts are spaced at 135mm and designed for a 12mm diameter rear thru-axle.
The 7 Compatibility Keys
Below you can find the main details you need to consider when building the bike around this frame:
- 1) Headset. Compatible with 1 1/8” – 1,5” tapered forks. If you’d like to use a 1 1/8” diameter fork, you must install an adaptor for the bottom cup, available on our website.
- 2) Bashplate. This frame does not have any bashplate mounts. Therefore, installing a bashring is recommended.
- 3) Bottom Bracket. Compatible with 91mm wide AS30 BBs like Crewkerz’s or Clean’s Press Fit 3P crankset.
- 4) Rear Brake. This frame has Post Mount rear disc brake mounts, so be sure to use a rear brake of that type. Post Mount brake calipers sit onto the brake mounts, instead of sideways (as is the case on IS calipers).
- 5) Chain tensioner. A Crewkerz, Clean or similar sprung tensioner must be used.
- 6) Rear hub. A 12mm thru-axle rear hub with 135mm spacing must be used. In case you’d like to install a hub with 129mm spacing, you’d need to add a pair of 3mm spacers.
Also, since this frame only has disc brake mounts, the rear hub must have disc brake mounts too.
- 7) Fork. The steerer tube on your fork must be long enough so that at least 2mm of it remain above the top bolt of your stem’s steerer tube clamp.
To ensure this, you must add the length of the headtube (125mm for this frame), plus the cups bits that sit outside the headtube, plus the headset spacers (if any) and/or dust cover sitting under the stem, plus the length of your stem’s steerer tube clamp. Once you’ve done this, you’ll be ready to know if your fork is long enough so that at least 2mm of it remain above the top bolt of your stem’s steerer tube clamp.
Geometry
- Dropouts spacing: 135mm
- Bottom bracket shell: 91mm
- Head tube: 1 1/8’’ – 1,5” tapered, 125mm long
- Wheelbase: 1010mm
- Chain stay length: 350mm
- BB Rise: +95mm
- Head Angle: 72º
Colour
- Anodized grey, with white, red and black Crewkerz Jealousy graphics.
Weight
- 1.613Kg
Additional information
This frame comes with a 1 year warranty covering manufacturing and materials defects. Damage incurred from inadequate use, collisions and impacts with obstacles will have a negative effect on the outcome of any guarantee claim.
BRAKE MOUNTS | Post Mount Disc |
TYPE OF HEADSET | Tapered 1 1/8 - 1.5" |
Hello,
Thank you for the message!
You can install any 1 1/8” – 1.5” internal tapered headset, like this one: http://bit.ly/CleanX2Headset.
The BB must be an AS30 system, we recommend Crewkerz’s own or Clean X2’s: http://bit.ly/CleanX2Crankset.
The rear hub must have 135mm spacing and a 12mm thru-axle. Right now, only Crewkerz’s own rear hub has these specifications. It’s available here: http://bit.ly/CrewkerzRearHub.
And if you need any further assistance, just let us know!
Thanks again.
