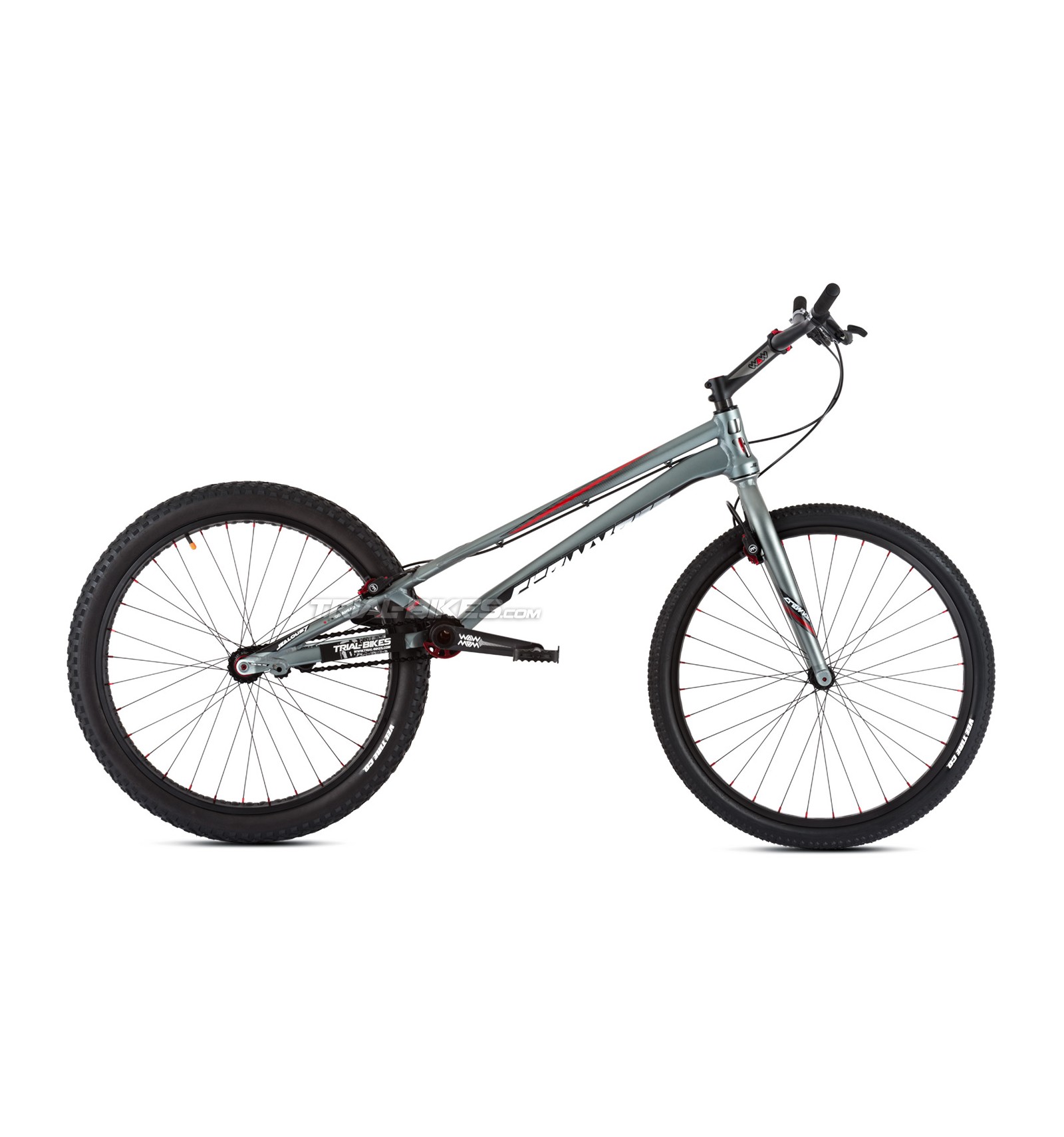

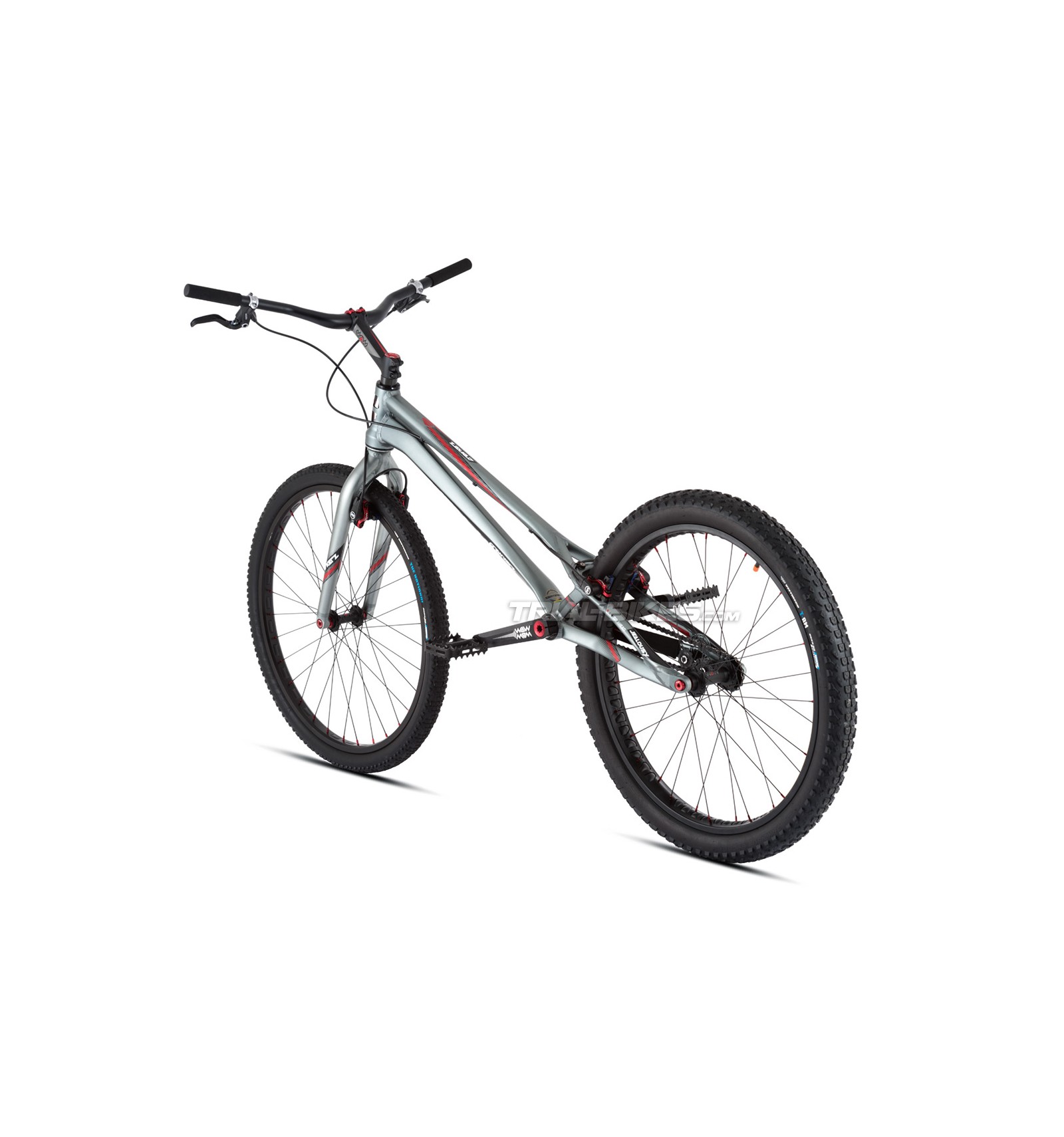

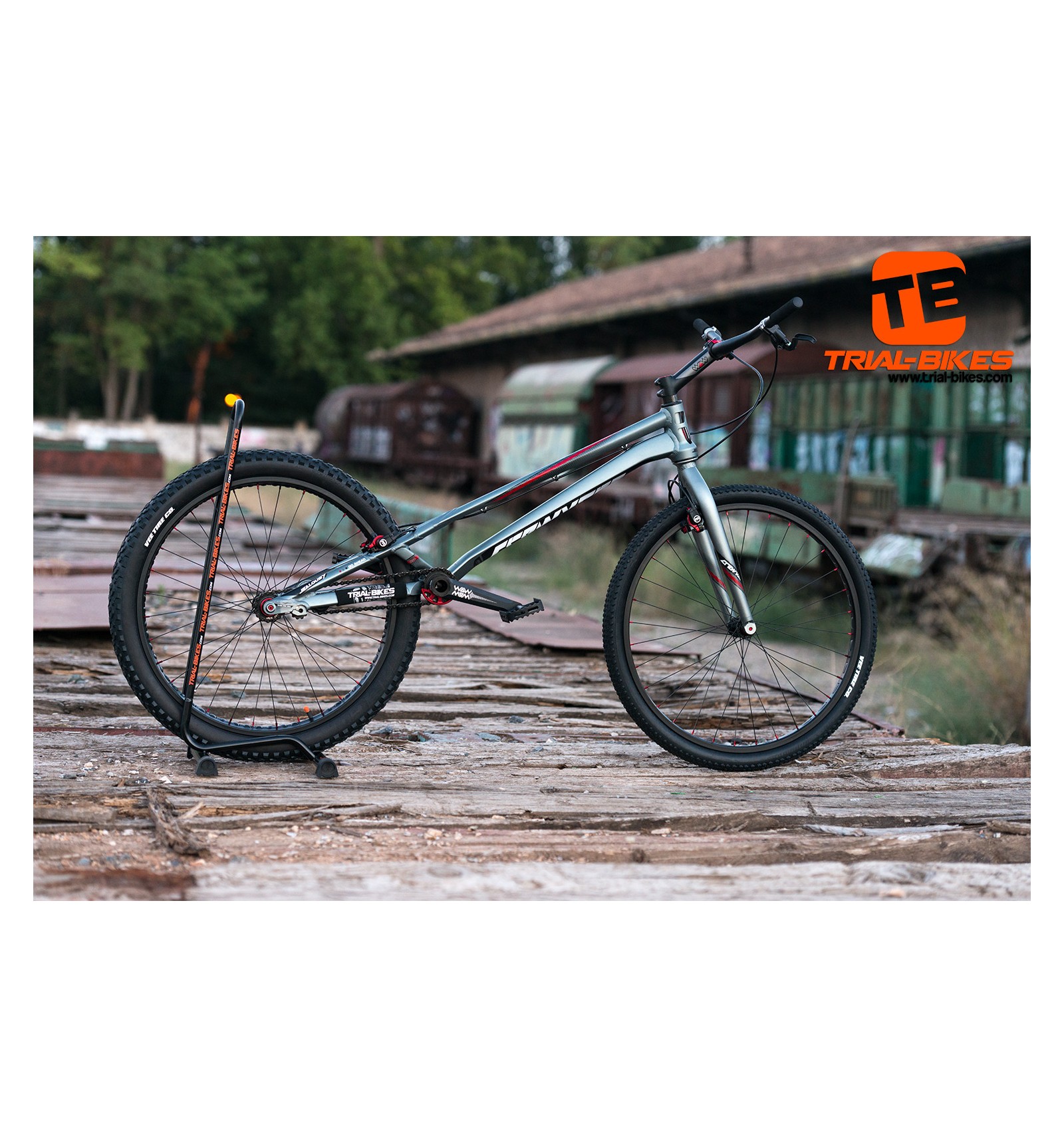

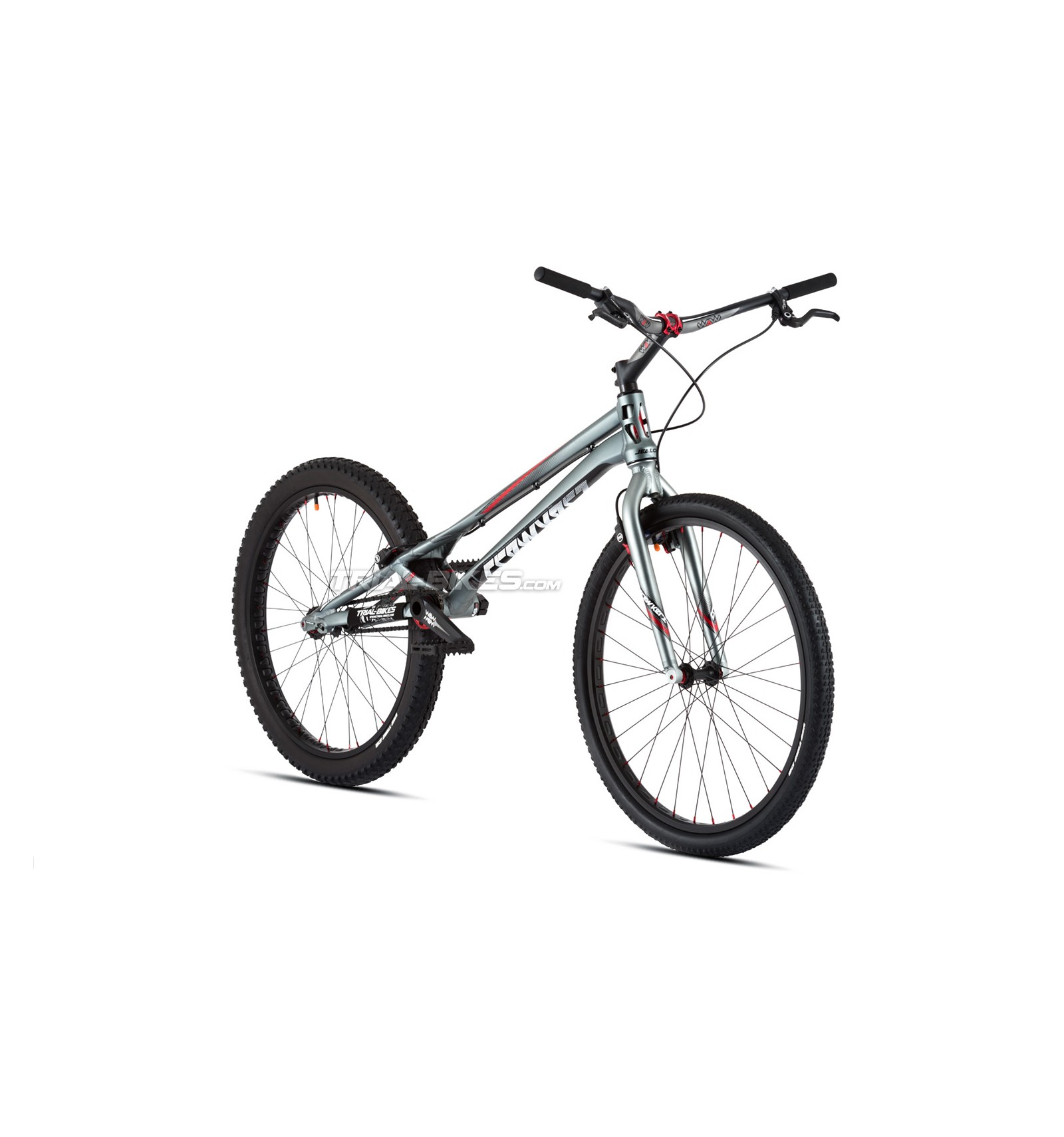

Crewkerz Jealousy 26'' Bike

The new Crewkerz Jealousy 26’’ is the bike developed by 26’’ UCI World Champion Jack Carthy! This is a super high quality bike, with multiple latest-generation technical innovations and exclusive details that make it stand out from the rest. Moreover, it’s built with top of the range components, like the AS-30 WAW bottom bracket, bolt-through axles on both wheels, tapered headset, minimalist 2-wheel sprung tensioner and much more!

Frame and fork
- Frame: Crewkerz Jealousy 26’’, made from aluminium alloy, for tapered 1 1/8’’ – 1.5’’ fork, with reinforced 4-bolt rim brake mounts and 12mm bolt-through rear wheel axle
- Forks: Crewkerz Jealousy 26’’ tapered 1 1/8’’ – 1.5’’, made from aluminium alloy, with reinforced 4-bolt rim brake mounts and 9mm bolt-through front wheel axle

Wheels
- Front hub: Crewkerz Jealousy, with 9mm bolt-through axle, 32 spoke holes, without rotor mounts, 100mm spacing, anodized black
- Rear hub: Crewkerz Jealousy, with 9mm bolt-through axle, 32 spoke holes, without rotor mounts, 135mm spacing, anodized black
- Chain tensioner: Crewkerz Jealousy integrated, with two 11T jockey wheels made of plastic, black
- Front rim: Crewkerz 26’’, single wall, 32mm wide, 32 spoke holes, anodized black
- Rear rim: Crewkerz 26’’, single wall, 47mm wide, 32 spoke holes, anodized black
- Spokes: Crewkerz, black
- Spoke nipples: Crewkerz, anodized red
- Rim tape: Crewkerz, black
- Front inner tube: Maxxis
- Rear inner tube: Maxxis
- Front tyre: Vee Tire The National – WAW Edition 26’’x2.0’’
- Rear tyre: Vee Tire Trax AM – WAW Edition 26’’x2.5’’

Brakes
- Front brake: Magura HS33 2014
- Rear brake: Magura HS33 2014

- Rim brake pads: Crewkerz WAW Blue
- Brake clamps: Crewkerz WAW

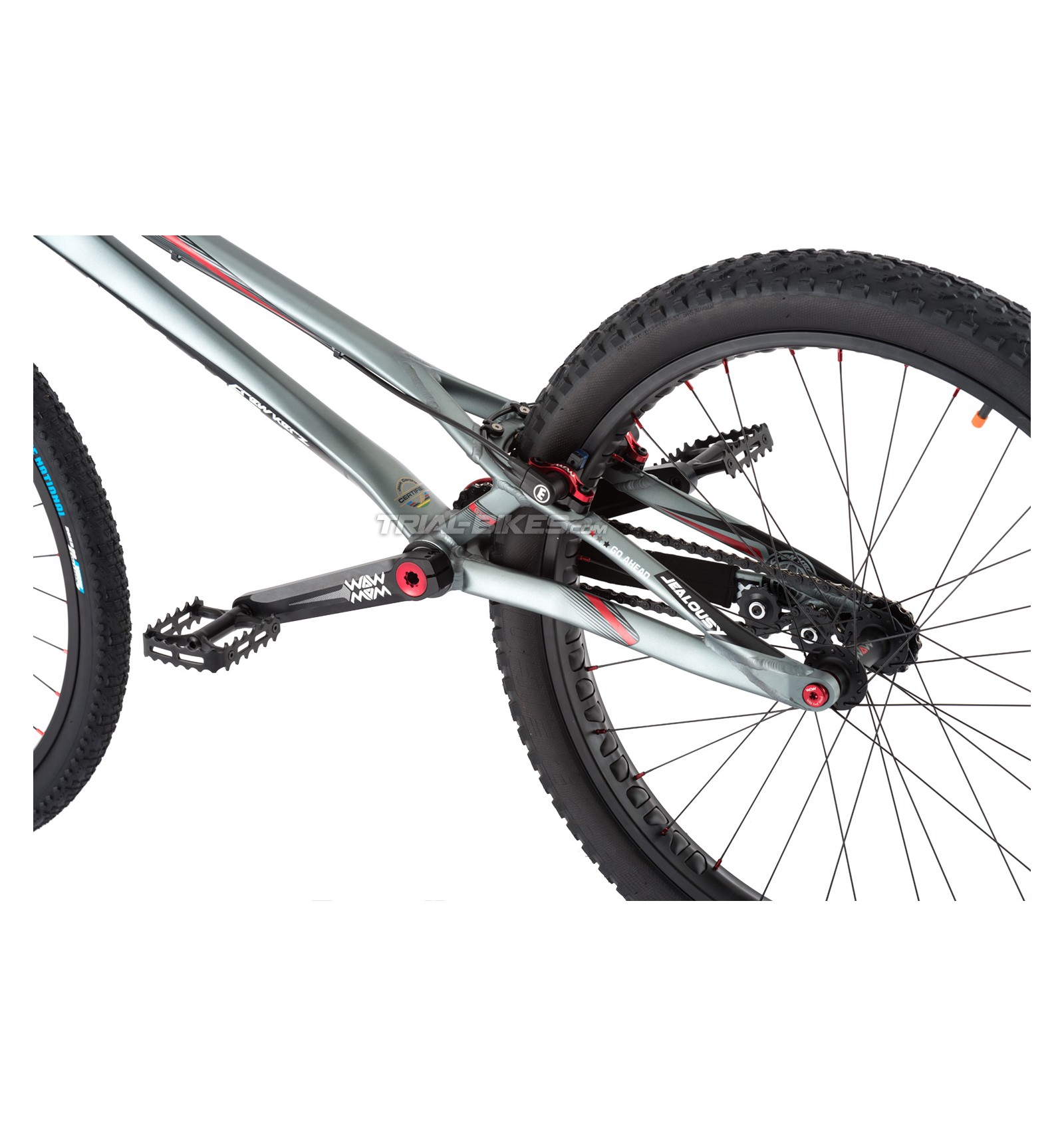

Drivetrain
- Crankset: Crewkerz WAW 3-piece set, AS-30 type BB, made of CNC machined 7075-T6 alloy. 175mm long cranks, for Cassette Shimano HG-type freewheel, available in black with white Crewkerz graphics
- Freewheel: Crewkerz WAW 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth, black
- Chain: KMC Z610HX
- Rear sprocket: Crewkerz 15T splined, made from 7075-T6 aluminium alloy, anodized black
- Pedals: Crewkerz single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashring: Crewkerz WAW, anodized red

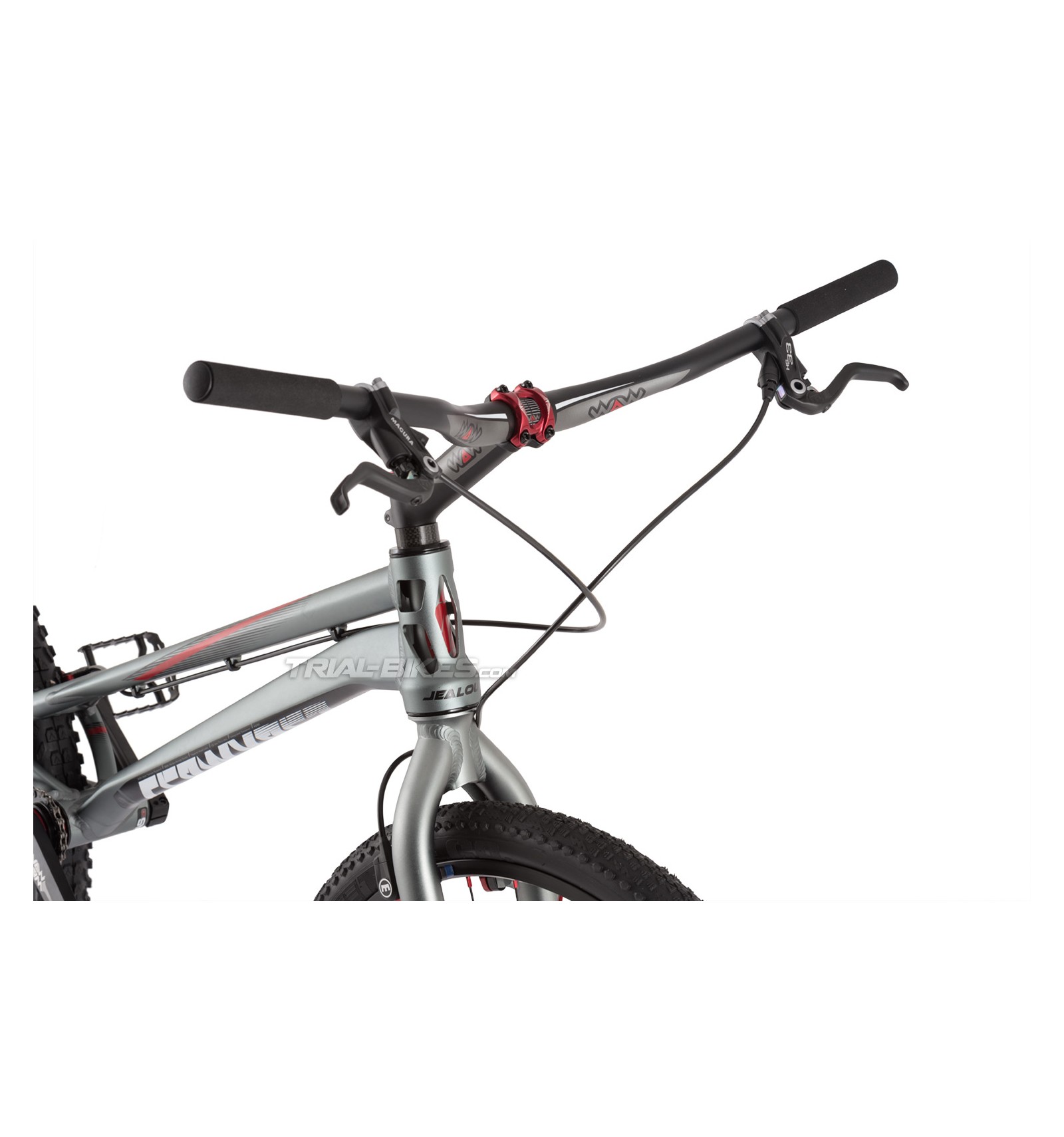

Steering
- Headset: Crewkerz Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized black
- Stem: Crewkerz WAW 145mm x 25º, 31.8mm Oversized handlebar diameter, black with grey and red WAW graphics
- Grips: Crewkerz foam, black
- Handlebar: Crewkerz WAW 103mm aluminium, 720mm long, 31.8mm Oversized handlebar diameter, black with grey and red Crewkerz graphics

Geometry:
- Wheelbase: 1085mm
- Chainstay length: 380mm
- Bottom bracket rise: +65mm
- Head angle: 72º

Weight
- 8.9Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.

This bike is partially set up at our workshop, so the customer will only have to set both the front wheel and the headset up.
