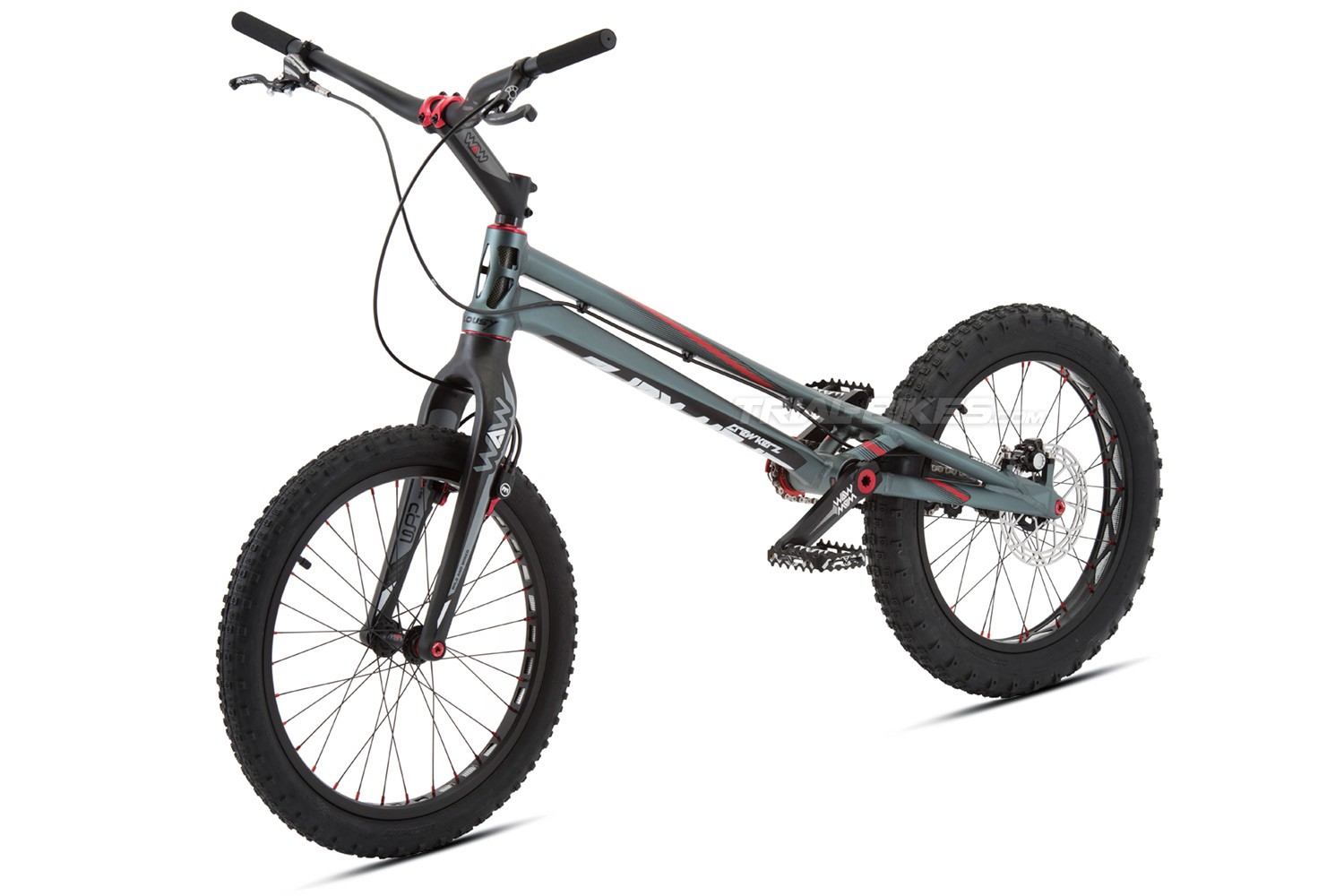

Crewkerz Jealousy TB 20" Bike

Crewkerz Jealousy TB 20" Bike

New Crewkerz Jealousy TB 20” trials bike, carefully built at TrialBikes with high-end parts! Featuring the new Crewkerz Jealousy frame and Crewkerz carbon fork with state-of-the-art technology and the pioneering front and rear thru-axles. And this is accompanied by a rear Hope Tech 3 Trial Zone disc brake, Sapim Laser double-butted spokes, Crewkerz’s AS30 crankset…

There are the two options available:
· Option 1: Without brakes.
· Option 2: With a Trialtech Sport HS front rim brake and Hope Tech 3 Trial Zone rear disc brake.

Check the part list below:

Frame and fork
- Frame: Crewkerz Jealousy 20” 1 1/8” – 1.5” tapered, with Post Mount disc brake mounts
- Forks: Crewkerz Carbon 20”, with 1 1/8” – 1.5” tapered steerer tube and 4-bolt rim brake mounts

Wheels

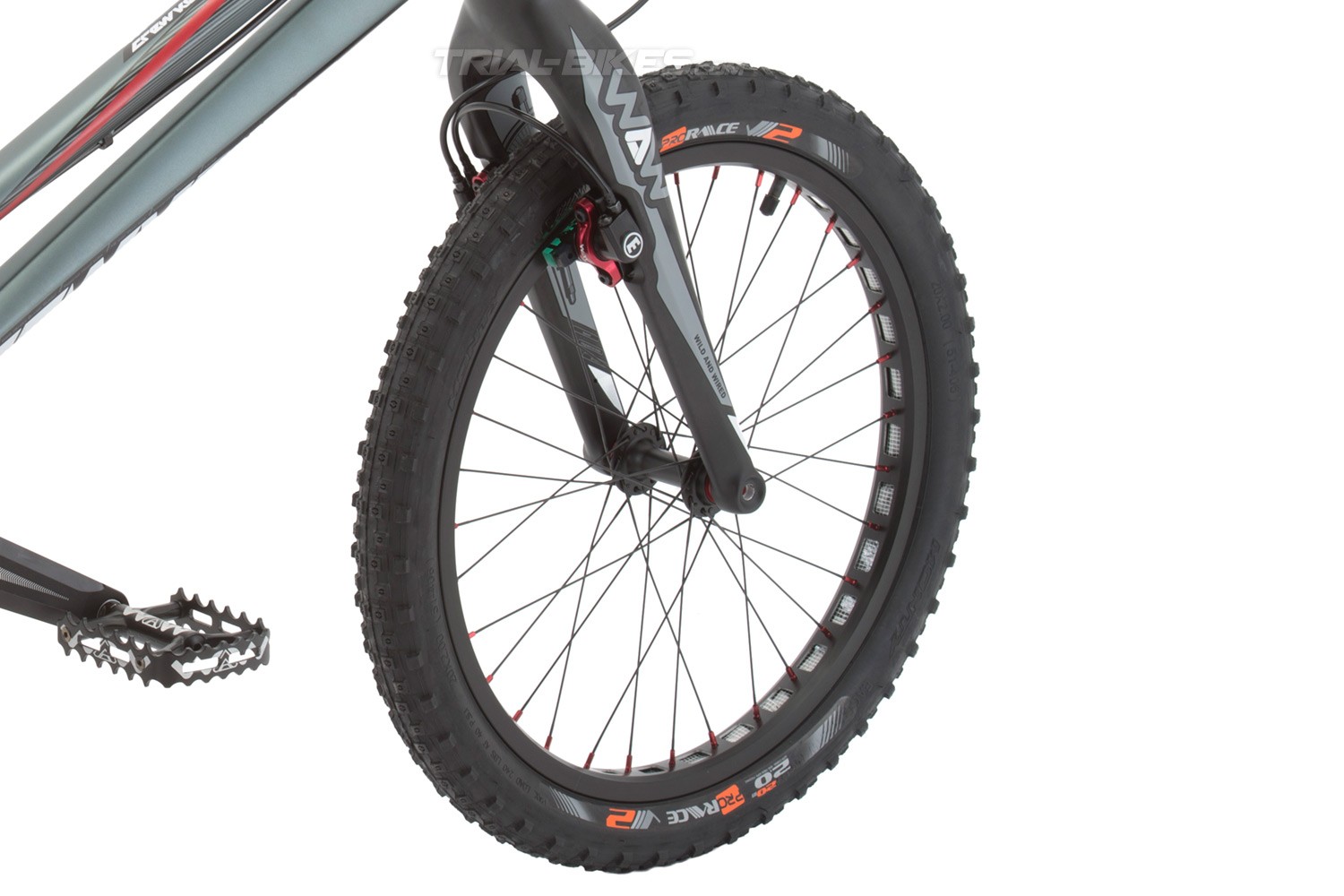

- Front hub: Crewkerz Waw 100mm HS 32H, with 9mm thru-axle

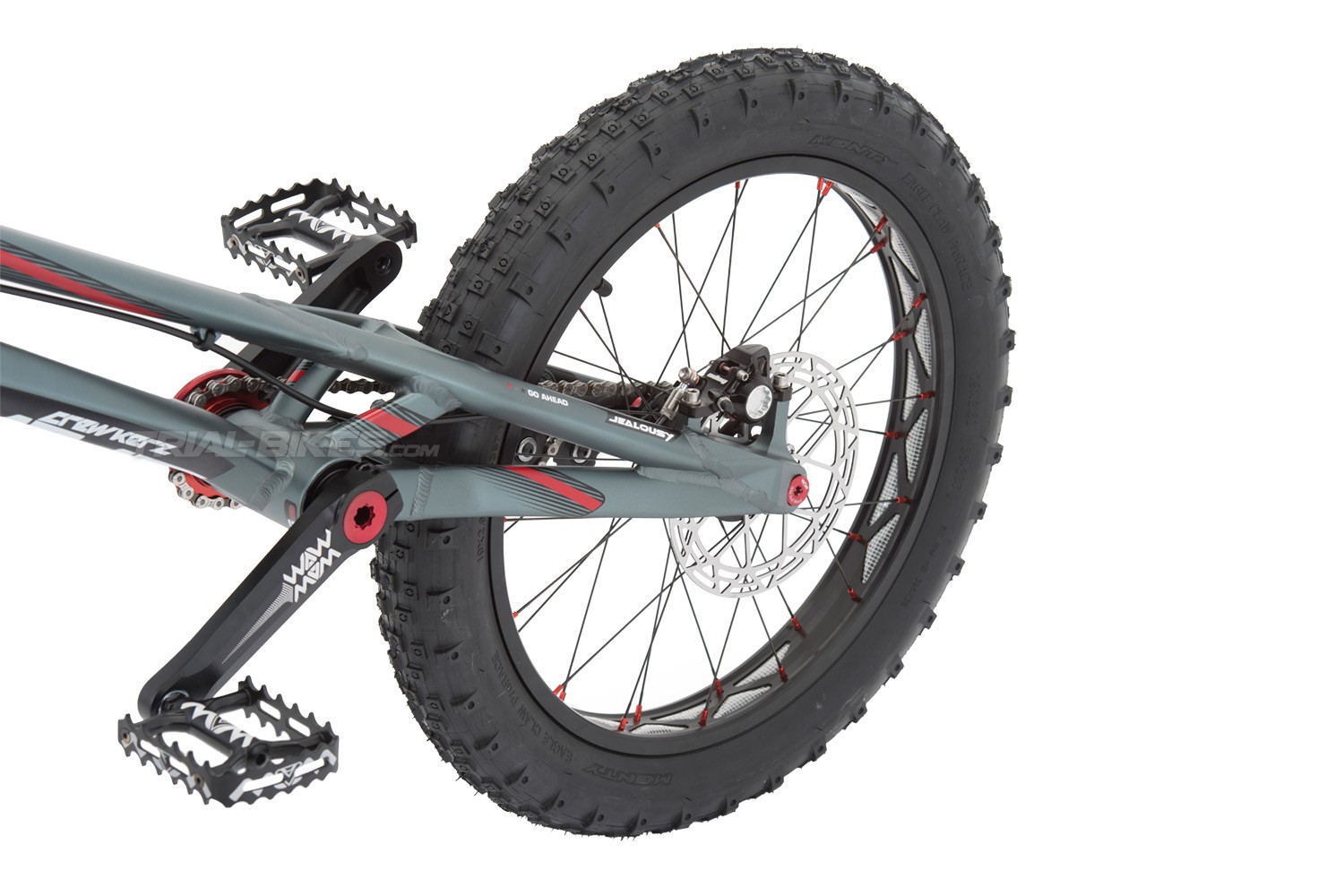

- Rear hub: Crewkerz Waw 135mm Disc 32H, with 12mm thru-axle
- Chain tensioner: Crewkerz Integrated, with two 11T plastic wheels
- Front rim: Crewkerz 20”, 31mm wide, 32 spoke holes
- Rear rim: Clean 19” T19, 47mm wide, 32 spoke holes
- Spokes: Sapim Laser double-butted
- Spoke nipples: Sapim 14G Alu Polyax, anodized red
- Rim tape: TrialBikes Reinforced Ultralight
- Front inner tube: Jitsie Race Ultralight 20”
- Rear inner tube: Jitsie Race Ultralight 20”
- Front tyre: Monty Pro Race V2 20”x2.00”
- Rear tyre: Monty Pro Race V2 19”x2.60”

Brakes
- Front brake: Trialtech Sport HS rim brake
- Rear brake: Hope Tech 3 Trial Zone Post Mount, black

- Front brake pads: Coustellier 10mm
- Front brake clamps: Crewkerz WAW, anodized red
- Rear rotor: Clean X2 162.5mm

Drivetrain
- Crankset: Crewkerz WAW AS30 crankset, CNC machined from 7075-T6 aluminium alloy. Comes with 160mm cranks and Shimano HG splines, black
- Bottom bracket: Trialtech SL Titanium ISIS 128mm
- Freewheel: Clean X2 135.9 splined, with 18 teeth, red
- Chain: KMC Z8S
- Rear sprocket: Crewkerz 12T splined, made of steel
- Pedals: Crewkerz WAW Single-cage 7075-T6
- Bashring: Crewkerz WAW, anodized red

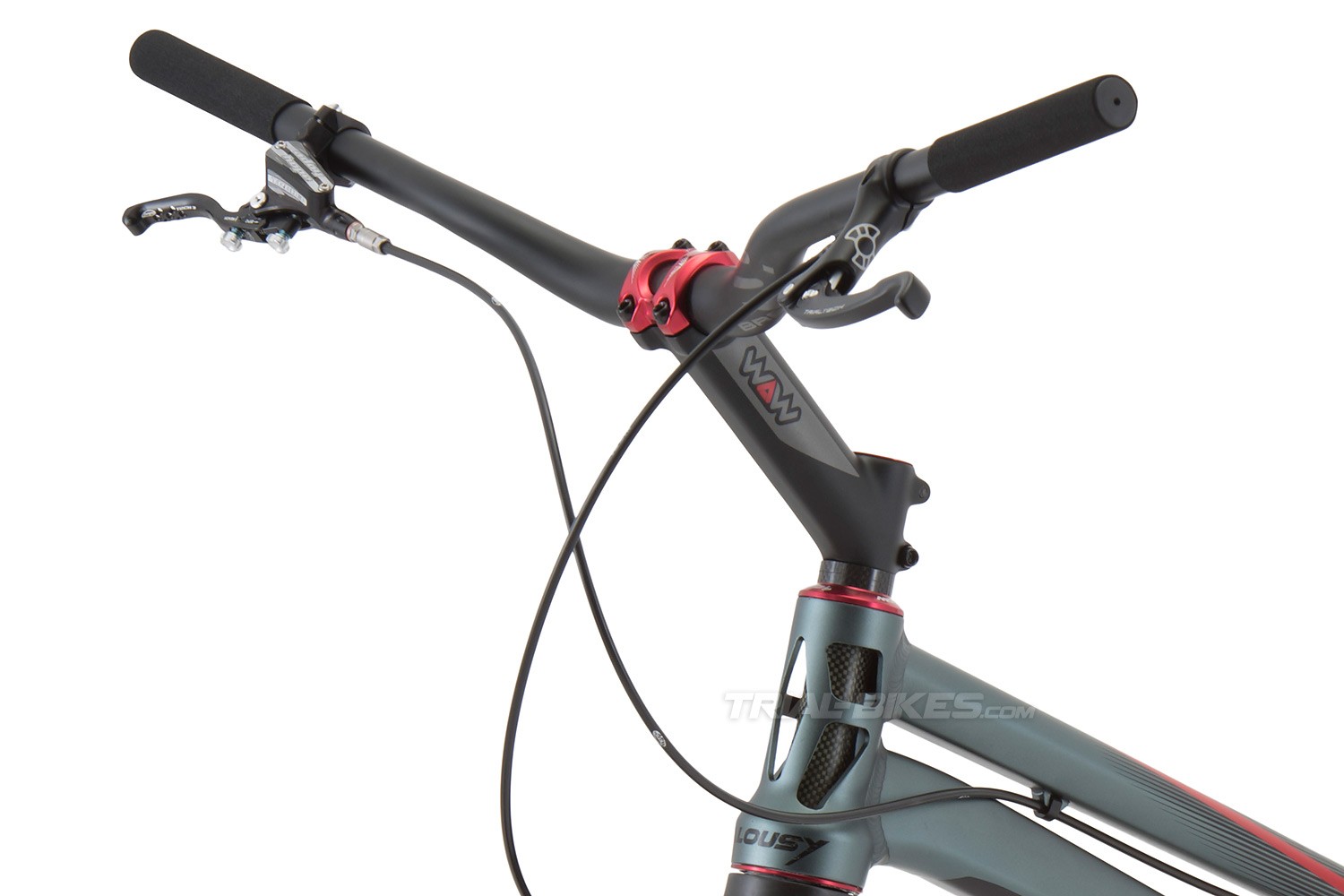

Steering
- Headset: Clean X2 Internal Tapered 1 1/8” – 1.5”, anodized red
- Stem: Crewkerz WAW 150mm x 35º
- Top cap: Crewkerz WAW, anodized red
- Grips: TrialBikes super-thin foam, black

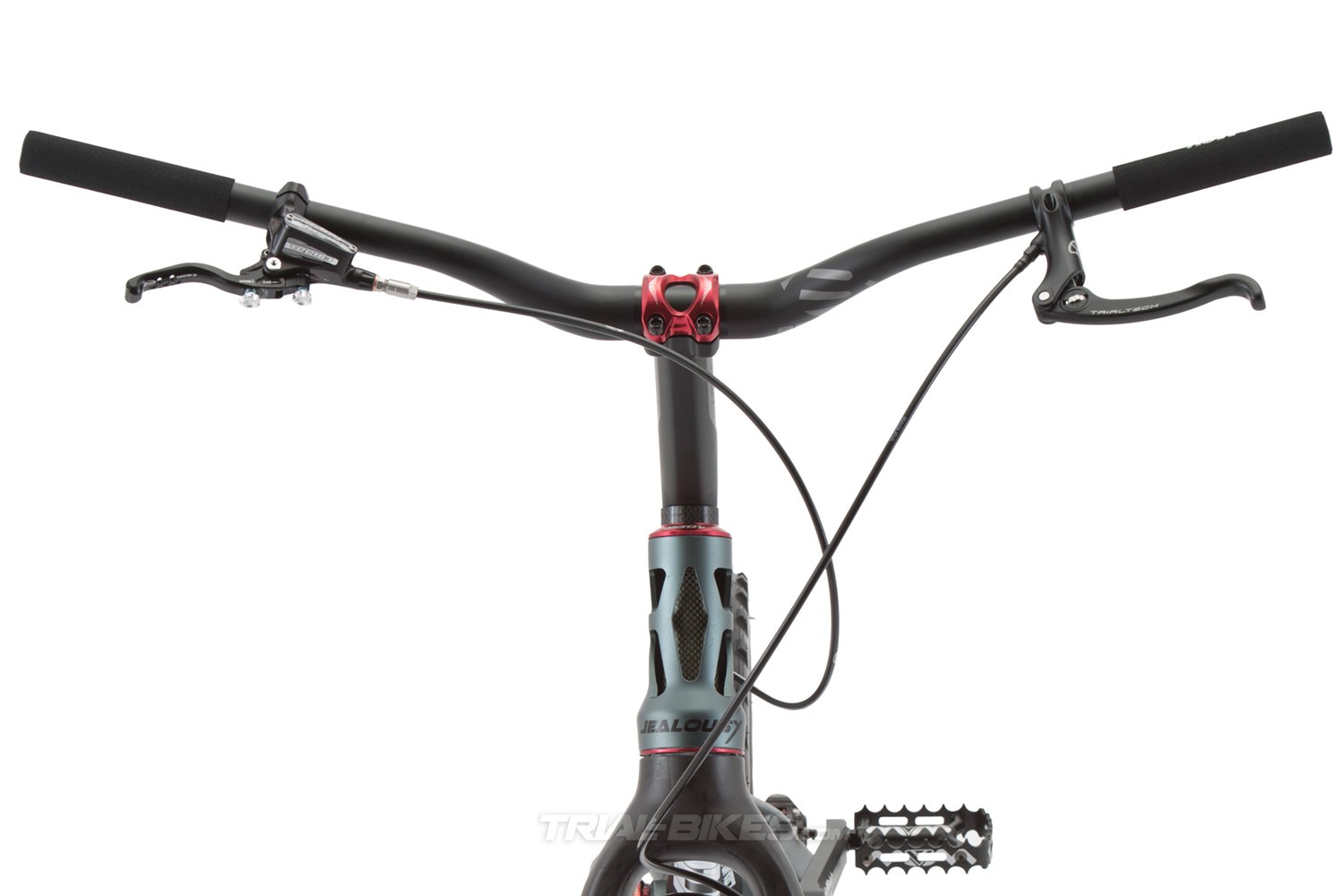

- Handlebar: Breeth Carbon (black/grey version, 720mm long, 105mm rise, 7º backsweep and 11º upsweep).

Geometry
- Wheelbase: 1010mm
- Chainstay length: 350mm
- Bottom bracket rise: +95mm
- Head angle: 72º

Weight
- 7.580Kg

Additional information:
The parts listed may be subject to change. Any changes on the setup will be notified to the customer before delivering the bike, and the replacement part will be of the same or superior quality to the one listed above.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com .

Watch the video below to see the key points of this new bike:
