Crewkerz Sprocket Splined

Crewkerz Sprocket Splined

Description and materials
- High quality splined sprocket manufactured by the renowned French trials brand Crewkerz.
- Features Shimano HG splines (sprocket is pressed onto the hub’s or crank’s splines, without a thread).
- Made of high-strength steel to cope with chain stress.
- Two sizes available:
· 12 teeth (12T, usual choice for 20” bikes).
· 14 teeth (14T, usual choice for 24” and kids bikes).
· 15 teeth (15T, usual choice for 26” bikes).
- 7 mm wide (both sizes), with the teeth on the centered.
- Sold individually.

Compatible with:
- Cranks and hubs with Shimano HG splines.
- 1/8” or 3/32” wide chains.

Dimensions
- Number of teeth: 12 (12T), 14 (14T) or 15 (15T)
- Base width: 7 mm (both versions)
- Teeth position: on the edge (12T) and centered (15T).

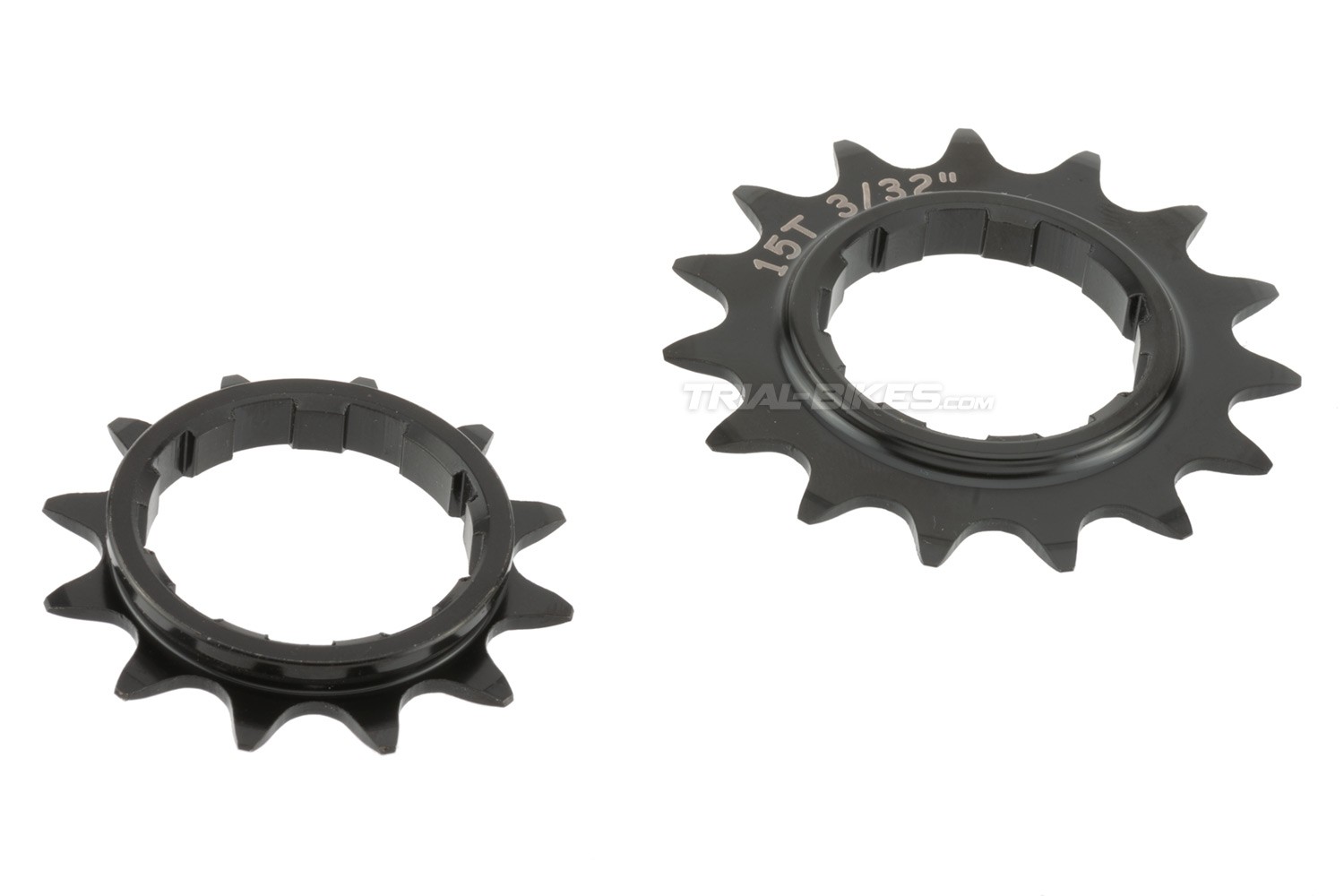

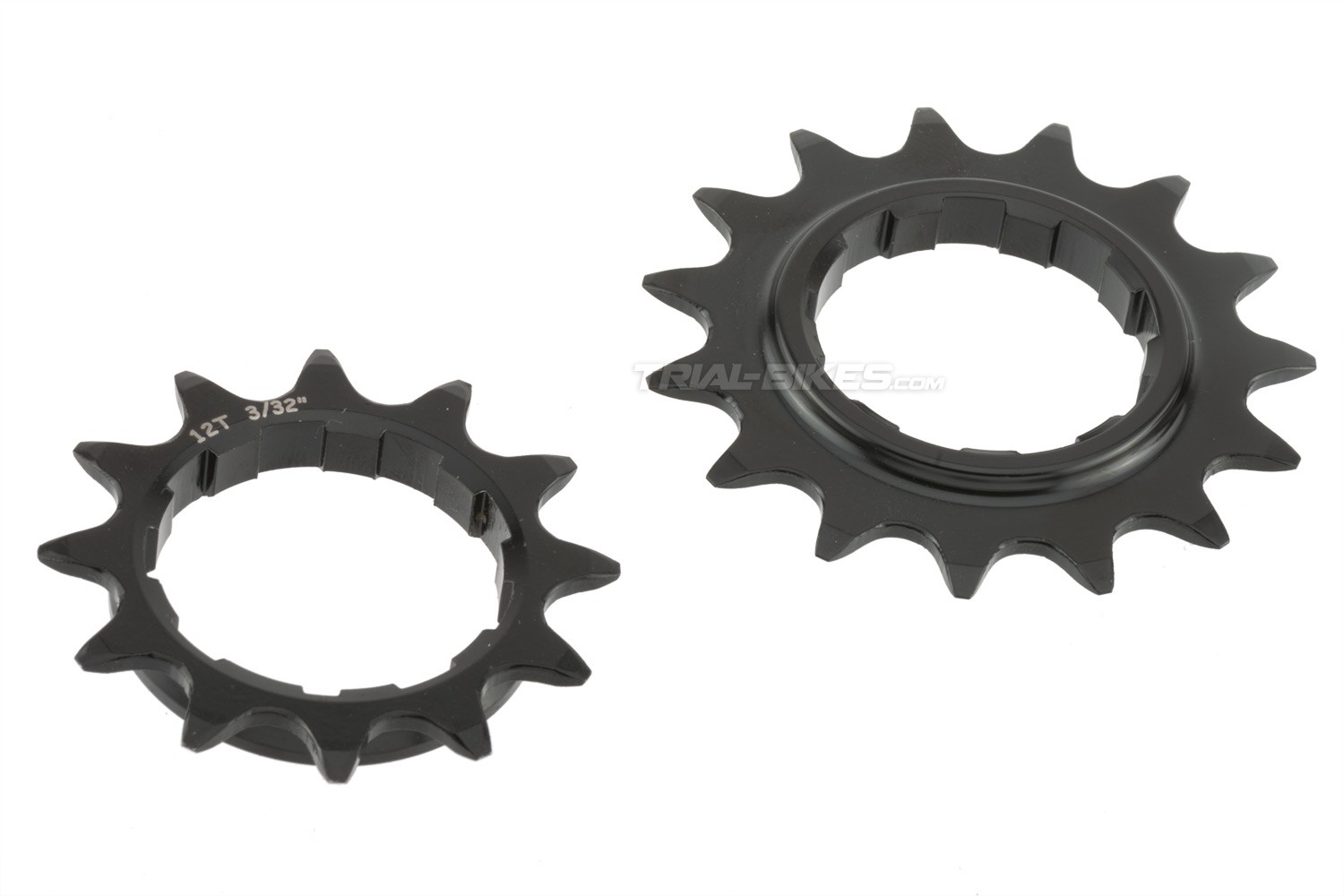

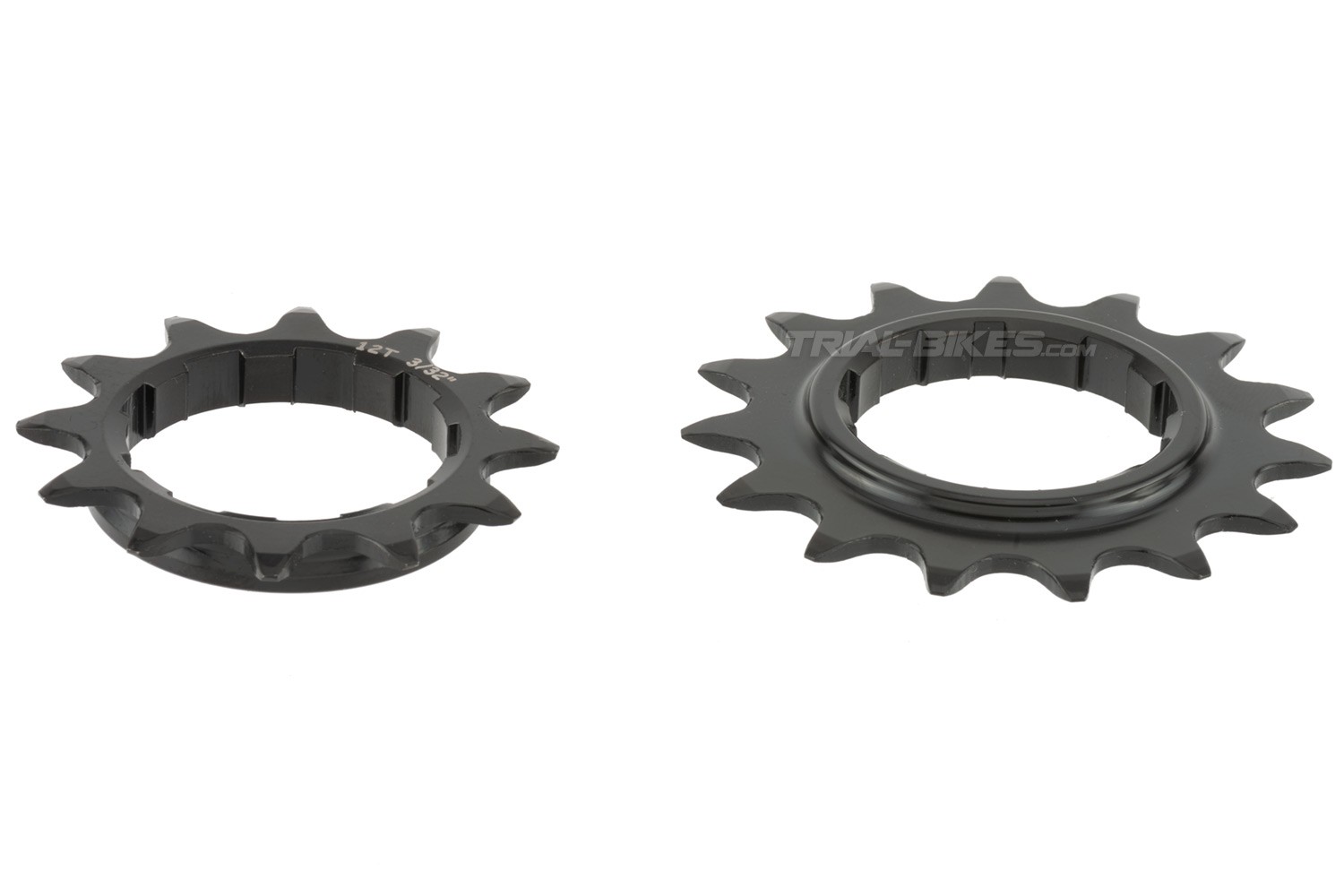

Note: The 12-tooth version has the teeth aligned in the center, not at the ends as shown in the image.

Color
- Black, with white laser etched graphics

Weight
- 26.72 g (12T) and 44.84 g (15T)
