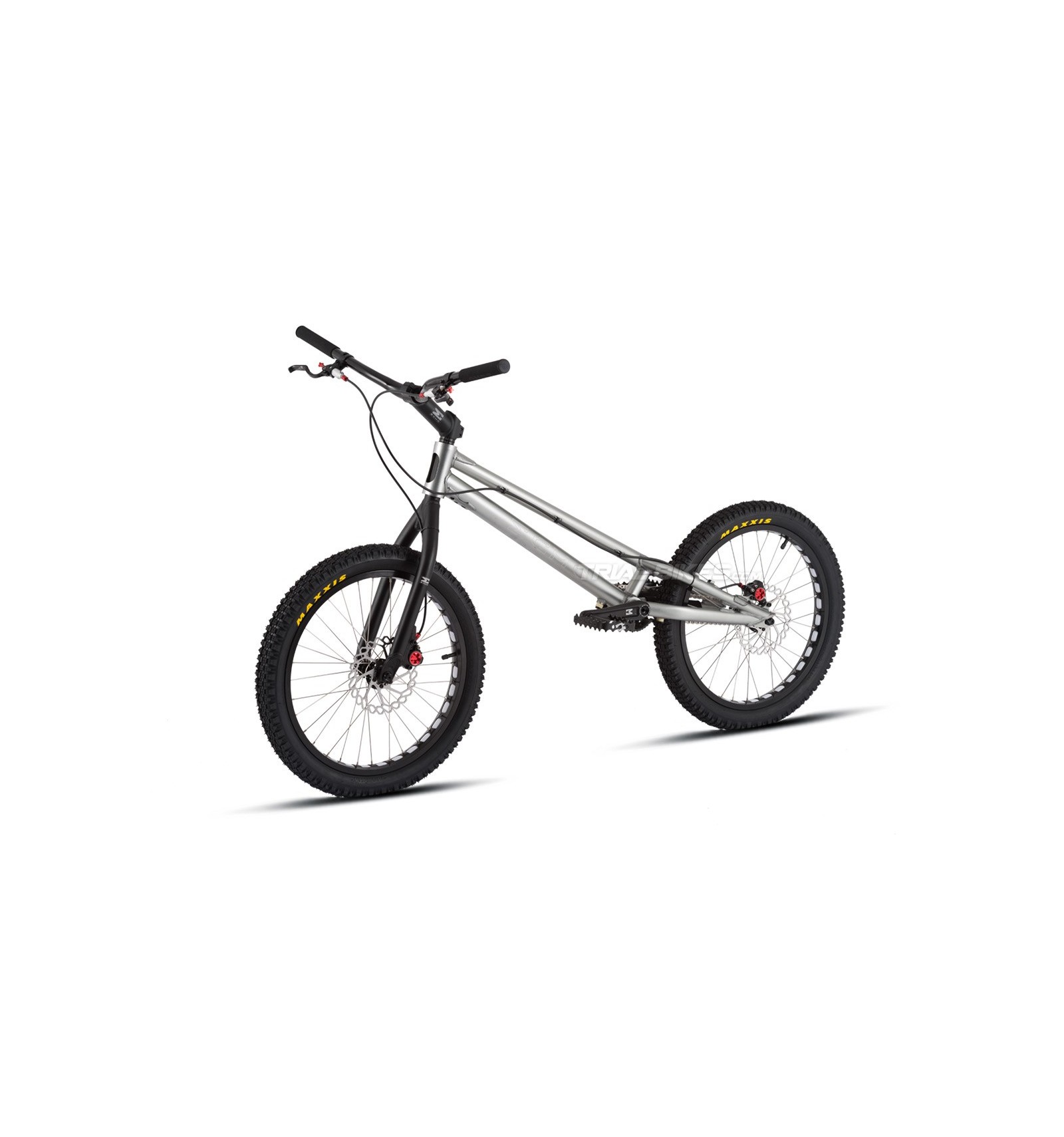

Echo don’t forget the young riders, and that’s why they created this special bike: the Echo Kids 20” bike. Now, it’s available with the new Echo TR components, like the new Echo TR 2016 disc brakes, Echo TR Forged 115mm stem, Echo SL 20” single-wall rims… and all of this with the ideal geometry for riders up to 1.60m (5ft 3”) tall!
This product is no longer in stock
Echo don’t forget the young riders, and that’s why they created this special bike: the Echo Kids 20” bike. Now, it’s available with the new Echo TR components, like the new Echo TR 2016 disc brakes, Echo TR Forged 115mm stem, Echo SL 20” single-wall rims… and all of this with the ideal geometry for riders up to 1.60m (5ft 3”) tall!
Frame and fork
- Frame: Echo Kids Disc 20”, made from 6061-T6 aluminium alloy, with IS disc brake and HS mounts
- Forks: Echo Urban 20”, made of aluminium, with IS disc brake mounts
Wheels

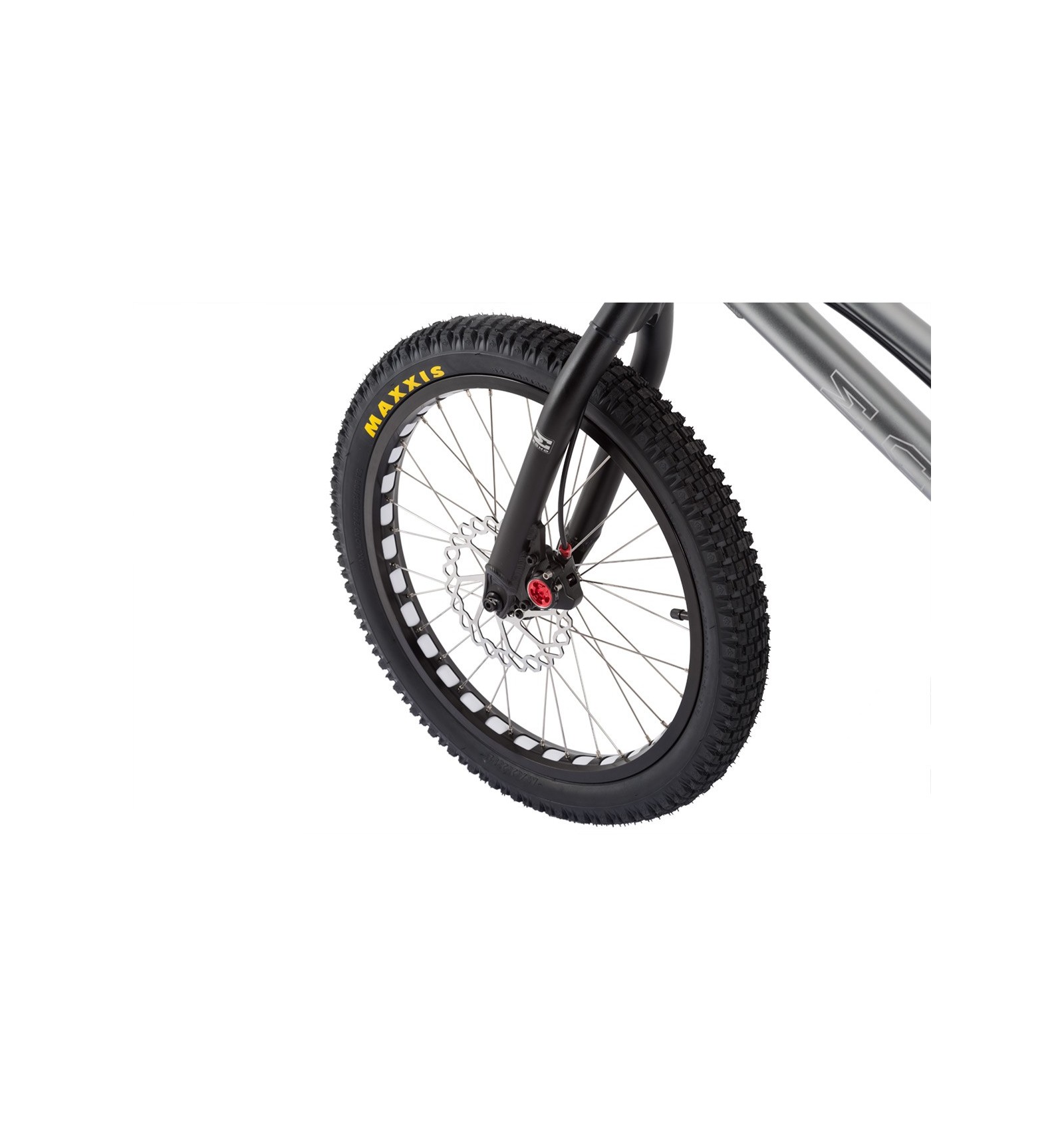

- Front hub: Echo 32 spoke holes, with rotor mounts, 100mm spacing, anodized black

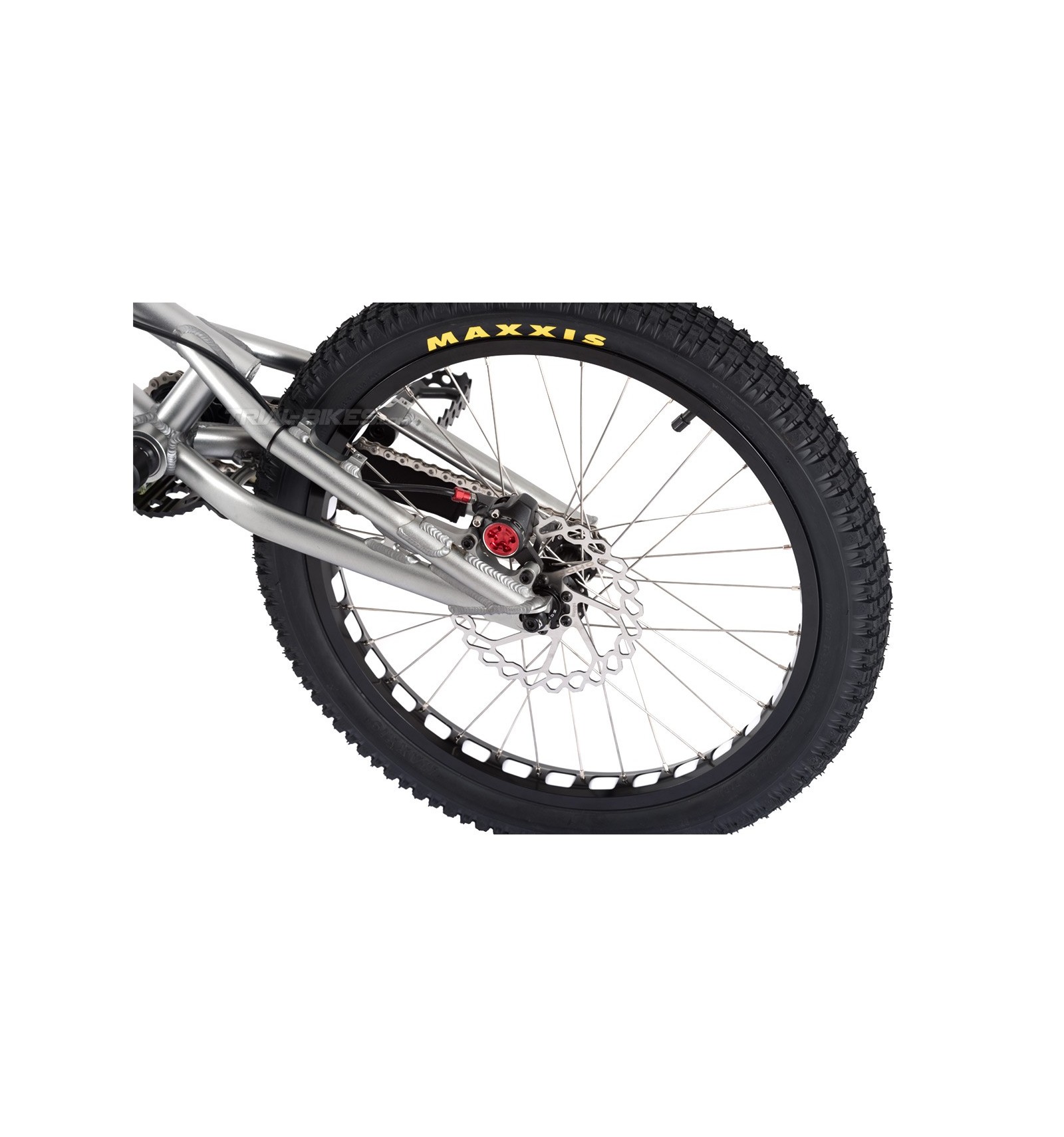

- Rear hub: Echo 32 spoke holes, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Echo integrated
- Front rim: Echo SL 20”, single wall, 38mm wide, 32 spoke holes, anodized black
- Rear rim: Echo SL 20”, single wall, 38mm wide, 32 spoke holes, anodized black
- Spokes: Echo Double Butted, black
- Rim tape: Echo, white
- Front inner tube: Echo
- Rear inner tube: Echo
- Front tyre: Maxxis Creepy Crawler 20”x2.0”
- Rear tyre: Maxxis Creepy Crawler 20”x2.0”
Brakes
- Front brake: Echo TR Disc 2016 IS
- Rear brake: Echo TR Disc 2016 IS
- Rotors: Echo 160mm
Drivetrain
- Cranks: Echo TR 6061-T6 CNC, 160mm, ISIS, anodized black
- Bottom Bracket: Echo Spanish, 124mm long, ISIS
- Freewheel: Echo TR Splined 108.9 18T, black
- Chain: KMC 610HX, silver
- Rear sprocket: Echo 12T Screw-On, made of steel, silver
- Pedals: Echo TR single cage, anodized black
- Bashplate: Echo bashplate, anodized silver

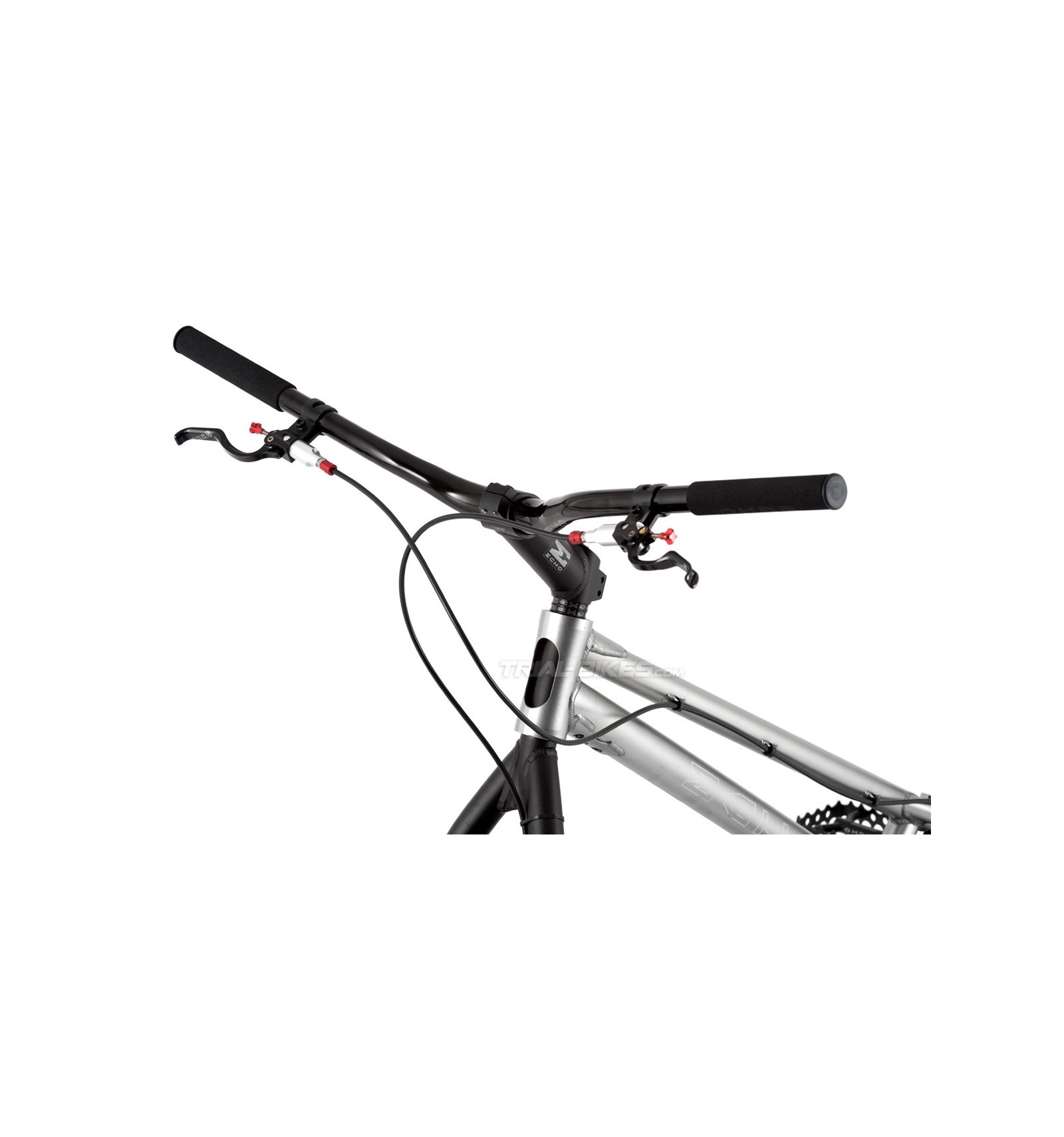

Steering
- Headset: Echo Internal 1 1/8”, with sealed bearings
- Stem: Echo TR, 115mm x 30º, 31.8mm Oversized handlebar diameter, black with silver Echo graphics
- Grips: Echo foam, black
- Handlebar: Echo 7075-T6, 740mm long, 31.8mm Oversized handlebar diameter, black finish with white Echo graphics
Geometry:
- Wheelbase: 965mm
- Chainstay length: 350mm
- Bottom bracket rise: +67mm
- Head angle: 72º
Weight
- 8.120Kg
Additional information:
Some pictures may not match the item described, so please read the description carefully.
SIZE | 20" |
WEIGHT | 8.120 |
RIDER HEIGHT | 140cm-160cm |
FRONT BRAKE | Disc |
REAR BRAKE | Disc |
