Description and materials
- New edition of Echo’s highest quality disc brake: the Echo SL 2017 Post Mount disc brake.
- The latest update is the brake lever, which has been completely redesigned in order to improve its performance while also achieve minimum weight.
- The caliper has also been updated, and it now has Post Mount disc brake mounts.
- Both the brake lever and caliper have been CNC machined from 6061-T6 aluminium alloy.
- The handlebar clamp only uses 1 bolt in order to get the neatest, lightest design.

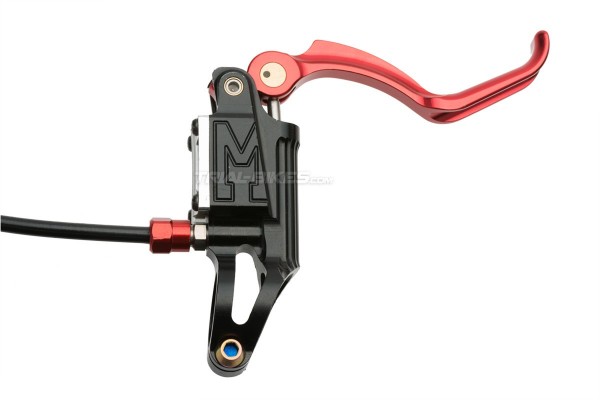

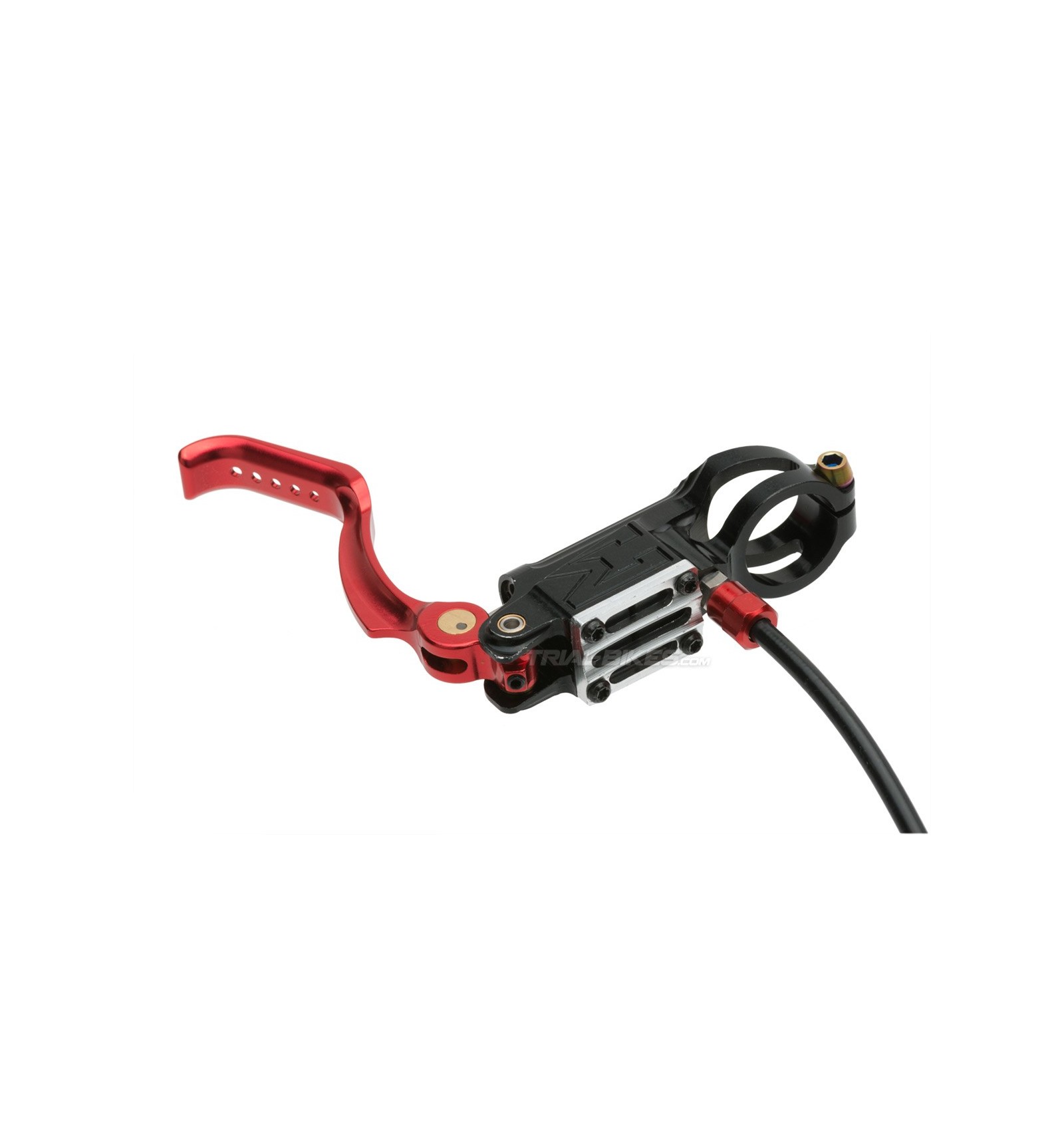

- Exclusive Echo SL brake lever, 8,5cm long, with a new, optimized shape that is more ergonomic and efficient.
- Reinforced PVC brake hose, 850mm long (front version) and 1500mm long (rear version), strong and lightweight.
- The bite point can be adjusted thanks to the Allen-key bolt located on the lever blade.
- Post Mount disc brake mounts are compatible with most Post Mount frames/forks available.

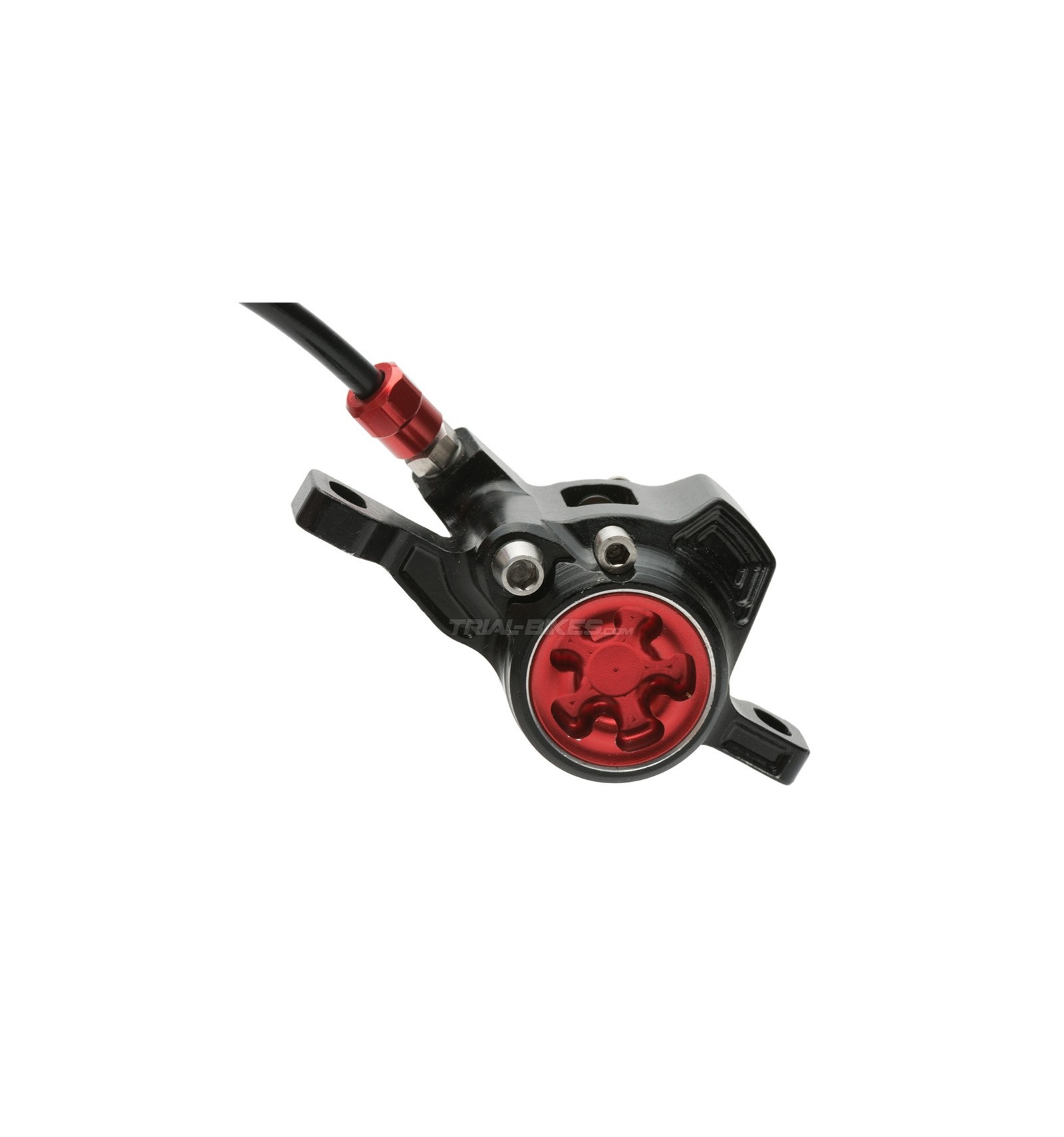

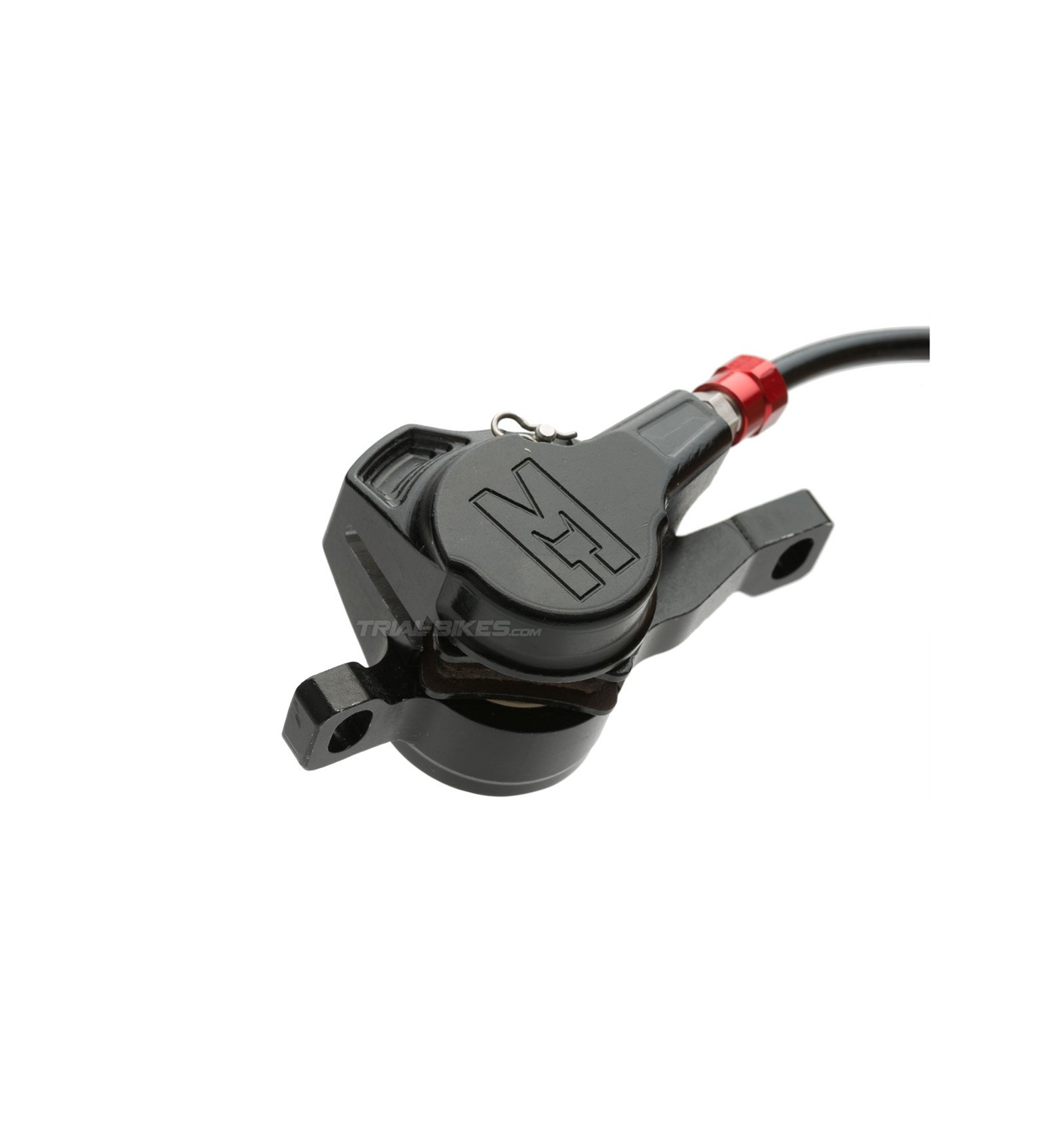

- The caliper has 2 magnetized 25mm pistons that ensure a powerful, reliable braking performance.
- The brake is supplied with Echo brake pads and 160mm rotor, with all necessary bolts for installation (made of high quality titanium).
- The brake comes bled and ready to install on the bike.
Â
Compatibility
- Compatible with Hope, Jitsie and similar brake pads.
- Compatible with most Post Mount frames and forks.
- In case you need to bleed the brake, mineral oil must be used. You mustn’t use DOT fluid or any other fluid.
Includes

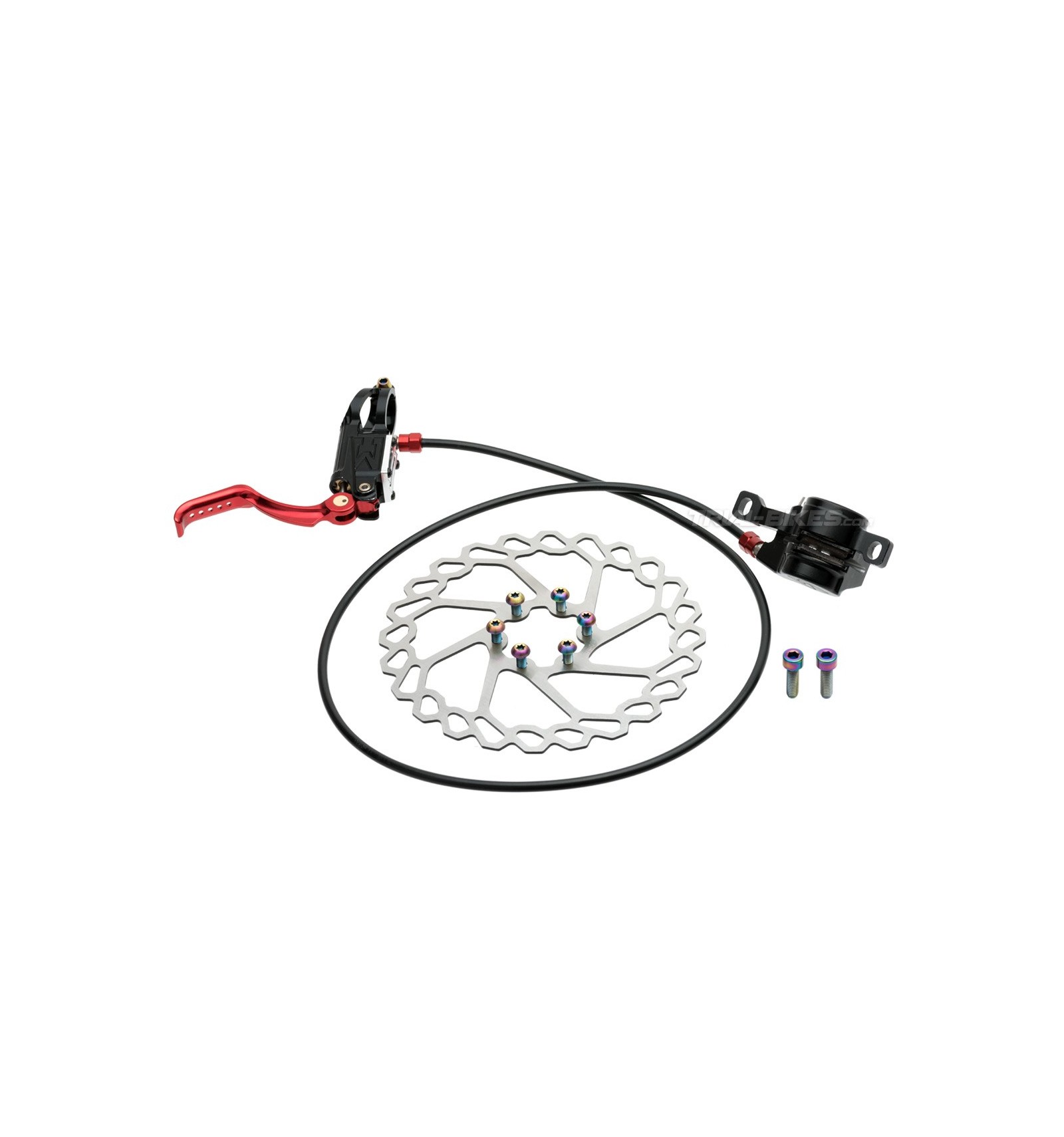

- Echo SL 2017 Post Mount disc brake, with:
              · Reinforced PVC brake hose, 850mm long (front brake) or 1500mm long rear)
              · Echo disc brake pads, exclusively designed for bike trials
              · Echo 160mm disc brake rotor
              · 6x M5x10mm titanium bolts for the rotor
              · 2x M6x20mm titanium bolts for the caliper, with 2 washers
Finishes
- Anodized black lever body and caliper.
- Anodized red lever blade, bore cap and hose ends.
- Rainbow titanium bolts.
Â
Weight
- 230,58g (front) and 244g (rear) + 108,68g (160mm rotor and bolts)
| WEIGHT | 0.230 |
| TYPE | Post Mount |
| OPTION | Right Hand |
| OPTION | Left Hand |
Hello Karol,
Thank you for your comment!
You can bleed this brake the same way as a Hope disc brake but using mineral oil only. Never use DOT brake fluid with this brake.
Let us know if you need any further help!
Thanks again.
