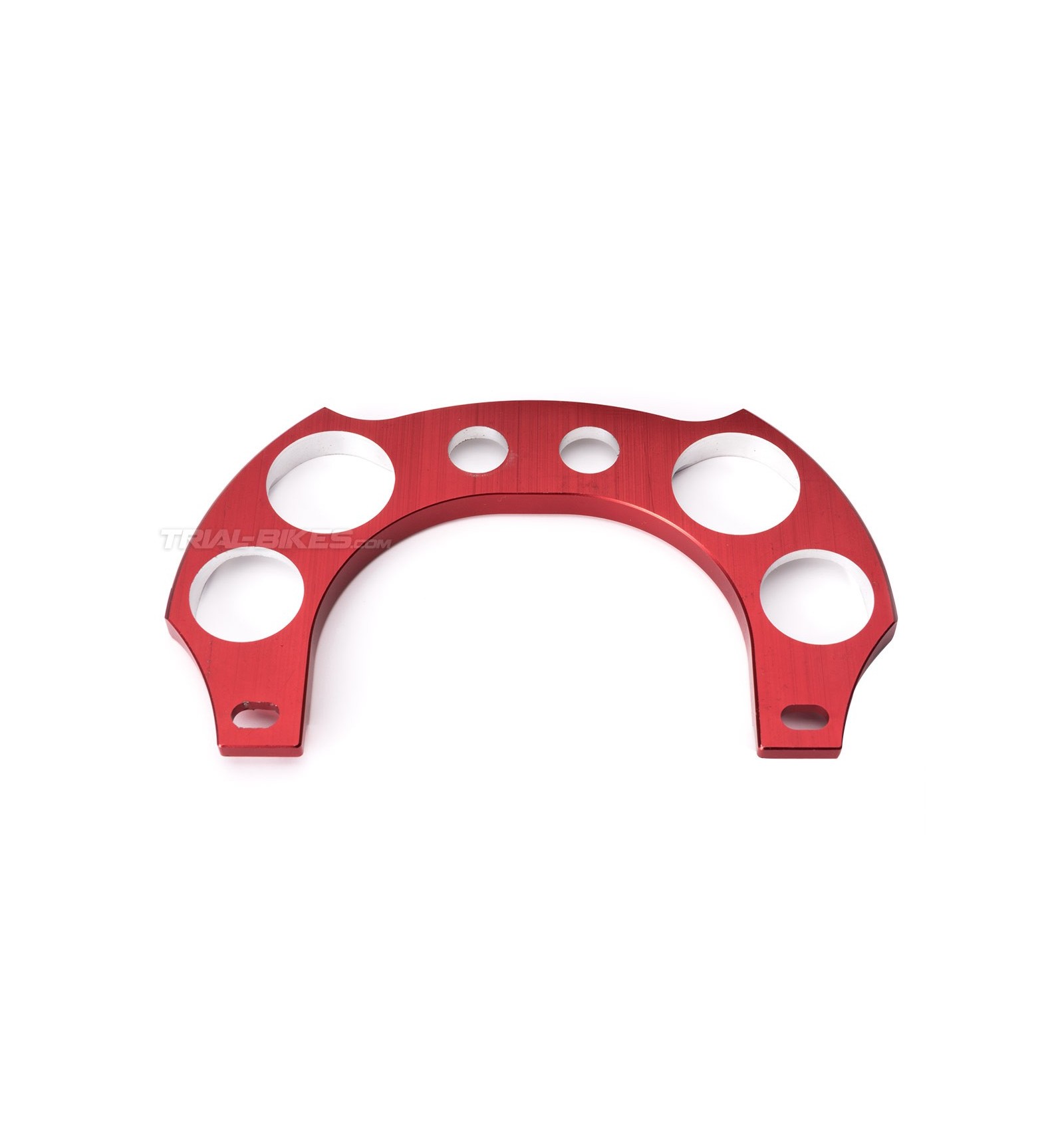

Echo SL Brake Booster

Description and materials
- New Echo SL brake booster, designed to increase the frame rigidity when braking, therefore improving the feeling and braking performance.
- Made from high quality CNC 6061 T6 aluminium.
- Echo exclusive design features 6 large different-sized holes, which help reduce weight without compromising its stiffness.
- Wide profile to protect cross-over pipes on HS33 brakes from being hit.
- Suitable for all frames with 95-102mm brake mounts spacing.
- 50mm vertical clearance from the top bolt hole to make sure it fits on almost all 20", 24” and 26" wheels.

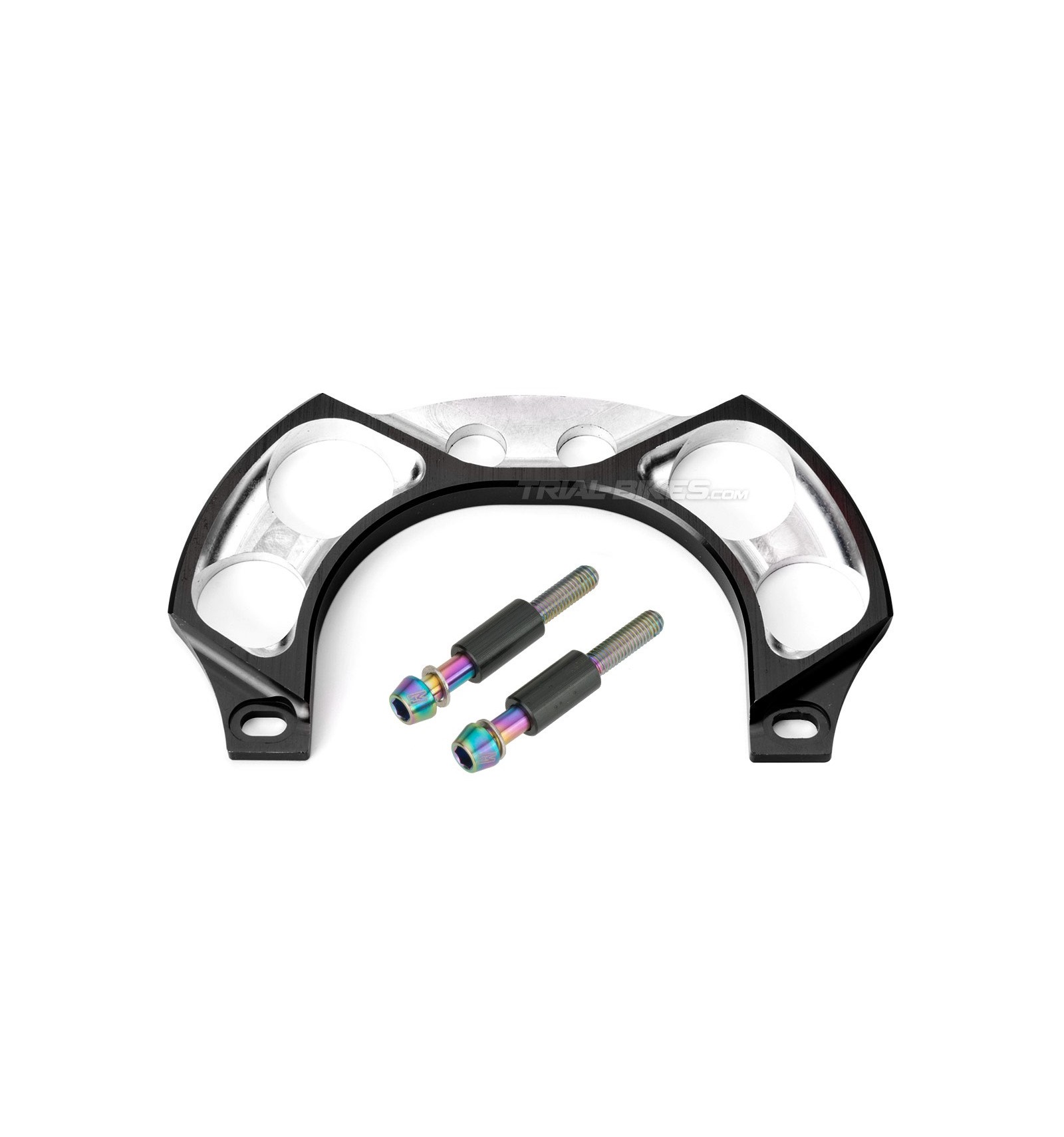

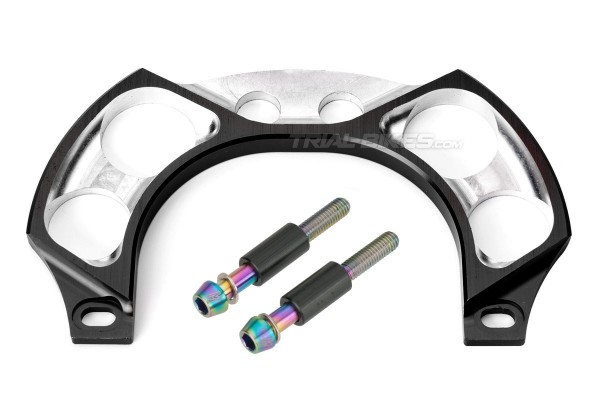

- Supplied with high quality titanium bolts and aluminium spacers, ready to fit.
- Please note: the titanium bolts included are designed to fit Echo SL brake clamps so they are 40mm long; therefore, if you will be using other brake clamps, other longer bolts might be needed.
- Not suitable for the 2.7” Monty tyres.
- 3 different finishes available: in anodized black, red or silver.

Dimensions
- Maximum spacing between bolts: 102mm
- Vertical clearance: 50mm

Finishes
- Anodised red, silver or black.
- Silver laser etched Echo graphics

Weight
- 48.1g (+ bolts and spacers at 9.9g)

Additional Information
To make sure this brake booster fits your frame, you can measure the brake mounts spacing with a ruler or a caliber. In case this spacing is between 95mm and 102mm, this brake booster will fit perfectly.
