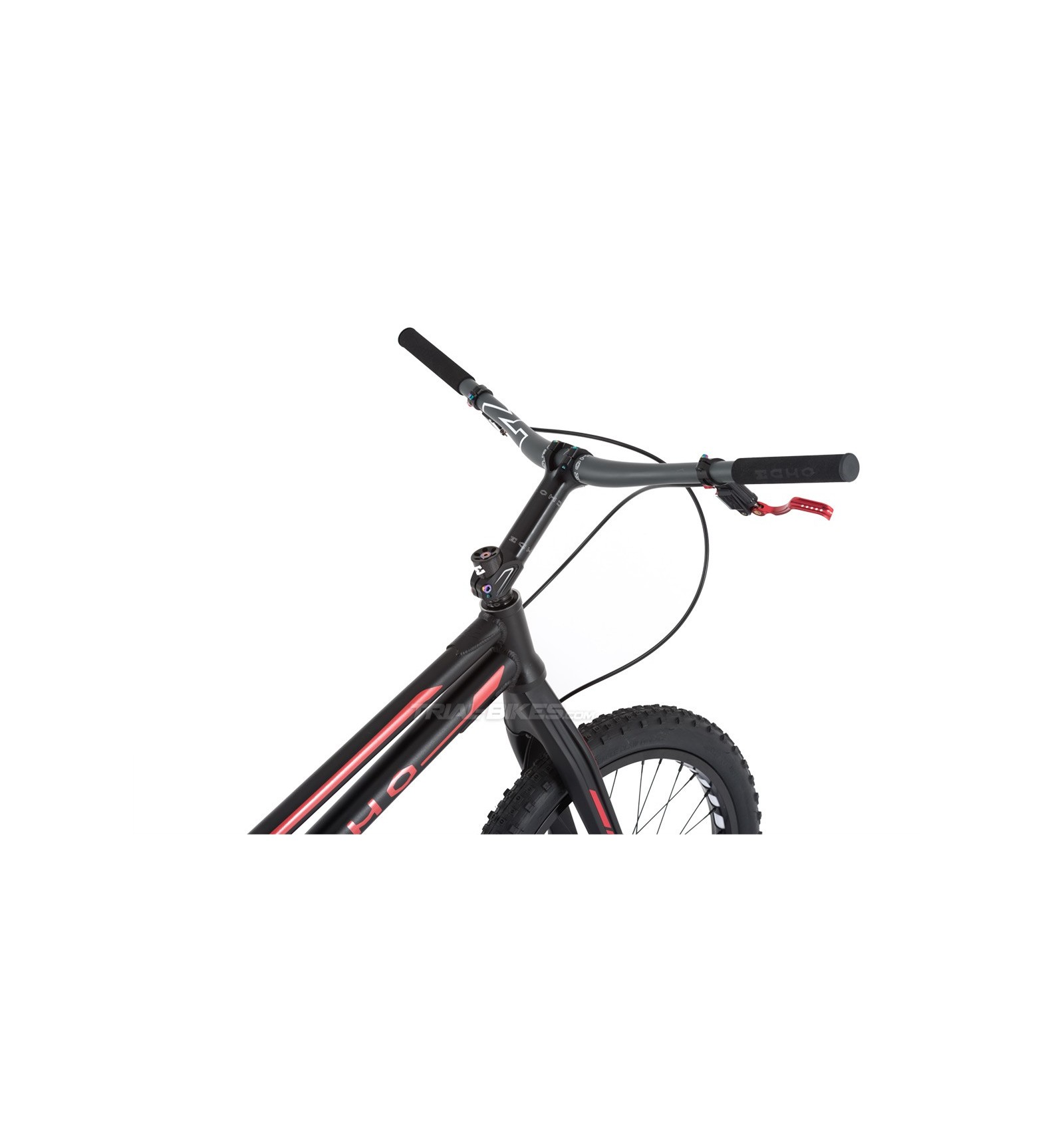

Echo Ti Pro 20'' Bike

The new Echo Ti Pro 20” bike is the highest-quality bike that Echo have ever produced. In fact it’s built with the new Echo Tapered carbon fork, ultra-light titanium bolts, Echo carbon handlebar, titanium freewheel, titanium pedals, butted spokes, the new Echo SL 2016 disc brakes, titanium bottom bracket… This build is really hard to improve!

Note: this bike’s stickers are supplied but not installed, therefore you can install them as you prefer.

Frame and fork
- Frame: Echo Ti Pro 20”, made from 6061-T6 aluminium alloy, with IS disc brake mounts
- Forks: Echo Carbon 20” tapered 1 1/8” – 1.5”, made of carbon fibre, with Post Mount disc brake mounts

Wheels
- Front hub: Echo 32 spoke holes, with rotor mounts, 100mm spacing, anodized black
- Rear hub: Echo 32 spoke holes, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Echo integrated
- Front rim: Echo SL 20”, single wall, 38mm wide, 32 spoke holes, anodized black
- Rear rim: Echo SL 19”, single wall, 45mm wide, 32 spoke holes, anodized black
- Spokes: Echo Double Butted, black
- Rim tape: Echo, white
- Front inner tube: Echo
- Rear inner tube: Echo
- Front tyre: Monty Pro Race 20”x2.00”
- Rear tyre: Monty Pro Race 19”x2.60”

Brakes
- Front brake: Echo SL Disc 2016 Post Mount
- Rear brake: Echo SL Disc 2016 Post Mount (with a Post Mount-IS adaptor for the frame)
- Rotors: Echo 160mm

Drivetrain
- Cranks: Echo SL Splined 7075-T6 CNC, 160mm, ISIS, Echo Splines, anodized black
- Bottom Bracket: Echo SL Spanish Titanium, 124mm long, ISIS
- Freewheel: Echo SL Titanium Splined 108.9 18T, Echo Splines, gold
- Chain: KMC Z610HX, silver
- Rear sprocket: Echo Titanium 12T Splined, Echo Splined, gold
- Pedals: Echo SL Titanium single cage, anodized black
- Bashplate: Echo bashplate, with titanium bolts, anodized black

Steering
- Headset: Echo Integrated Tapered 1 1/8”-1.5”, without cups, with sealed bearings
- Stem: Echo SL 7075-T6 CNC, 158mm x 30º, 31.8mm Oversized handlebar diameter, black with silver Echo graphics
Note: the stem is installed with Echo’s oblique carbon adaptor, using a flat top cap.
- Grips: Echo foam, black
- Handlebar: Echo SL Carbon, 720mm long, 31.8mm Oversized handlebar diameter, black finish with white Echo graphics

Geometry:
- Wheelbase: 1000mm (995mm measured by TrialBikes)
- Chainstay length: 350mm
- Bottom bracket rise: +86mm
- Head angle: 72º

Weight
- 7.30Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.

(MORE PICTURES SOON)
