Description and materials
This product is no longer in stock
Description and materials

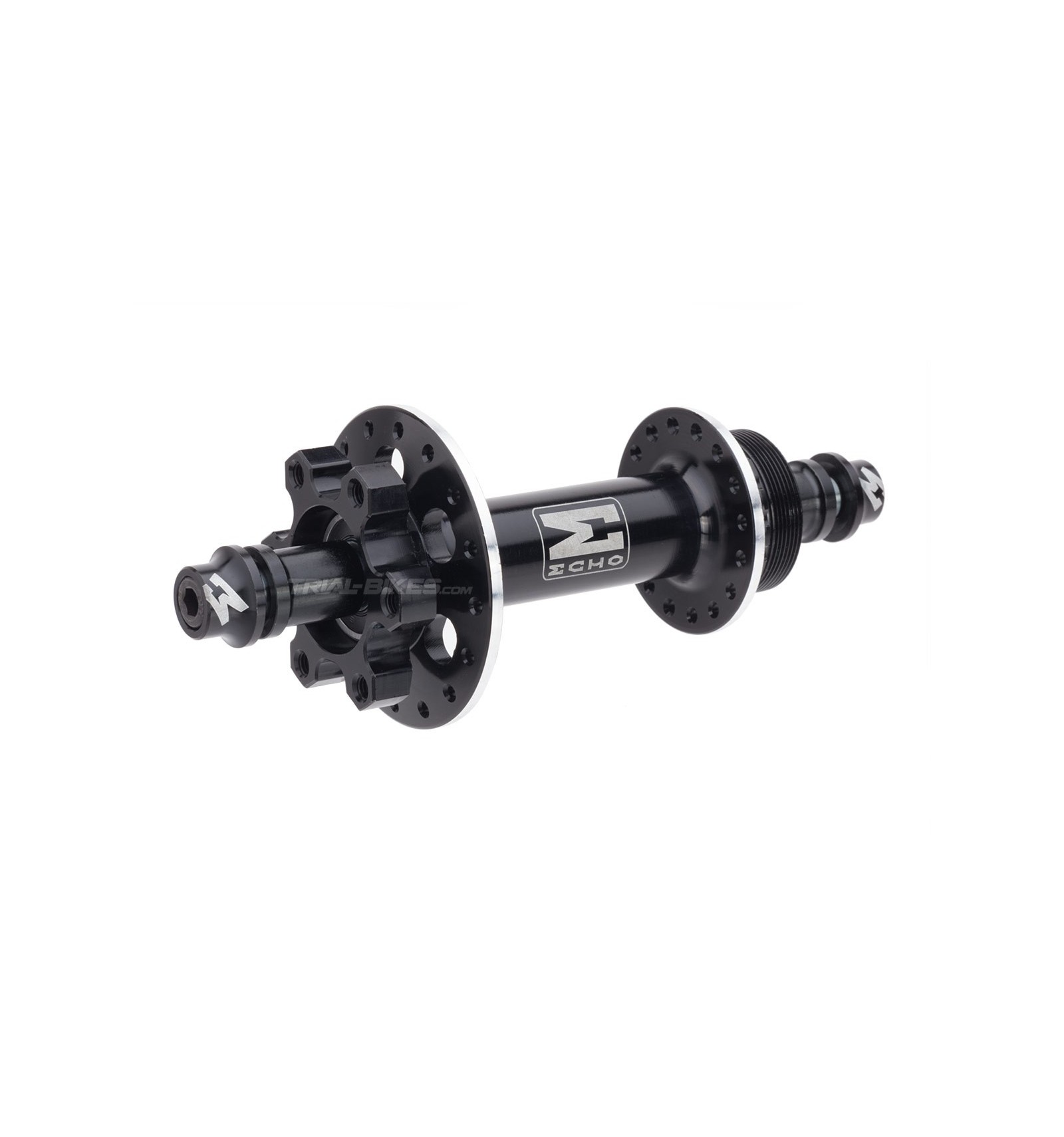

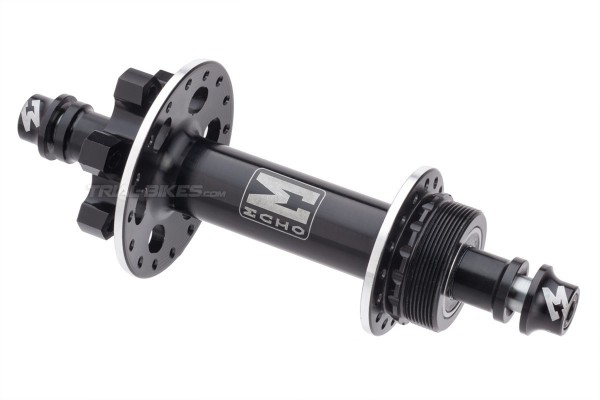

- New high quality Echo TR rear disc hub.
- Hub shell is mechanized from 2014 aluminium.
- Ø 10mm, 135mm long Aluminium 7075-T6 axle, suitable for the new Zoo! and Echo frames, which feature an integrated chain tensioner.
- 6-Bolt IS (International Standard) bolt mounts.
- Sealed bearings keep out all the mud and water, and offer a smooth running.
- Standard 1,37 "x 24 tpi thread, suitable for screw-on sprockets.
- M6x25mm Bolts and washers included.
- 32 holes only.
- Sprocket and snail cams not included.
- Note: the spacing on this hub is 135mm instead of the usual 129mm. This is due to Echo frames having an integrated tensioner and not needing 3mm snail cams.
- Suitable for other frames by shortening 3mm each spacer in order to use 3mm snail cams.
- Available en black.
Sizes
- Length: 135mm spacing
- 32 holes
Finishes
- Anodised black
- Washers in orange.
- Grey laser etched Echo logo
Weight
- 234g (+ bolts and washers at 21g).
Additional information
Make sure your rim has 32 holes to fit this hub. If you have any questions, contact us.
WEIGHT | 0.234 |
COLOR | Black |
BRAKE MOUNTS | Disc |
