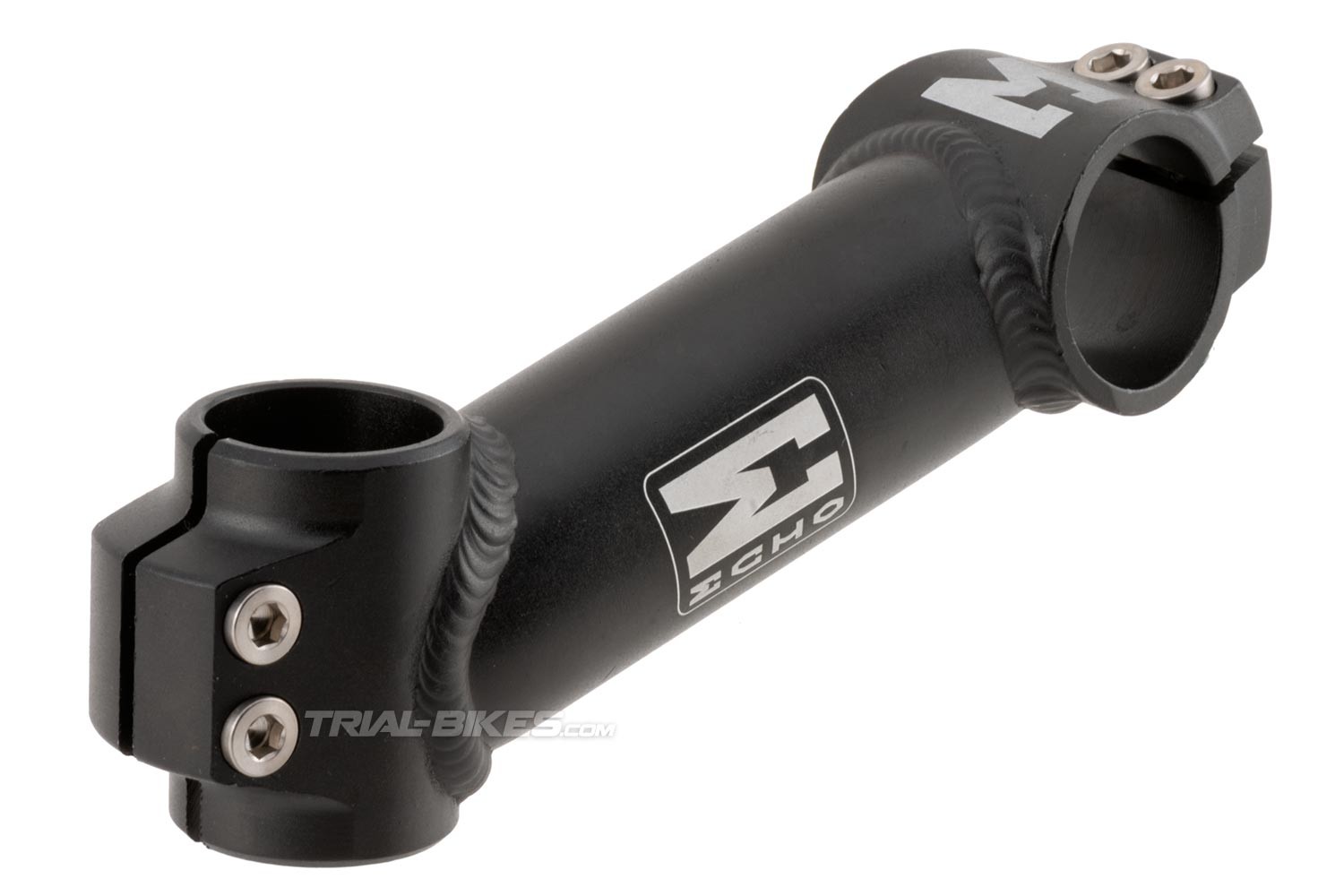

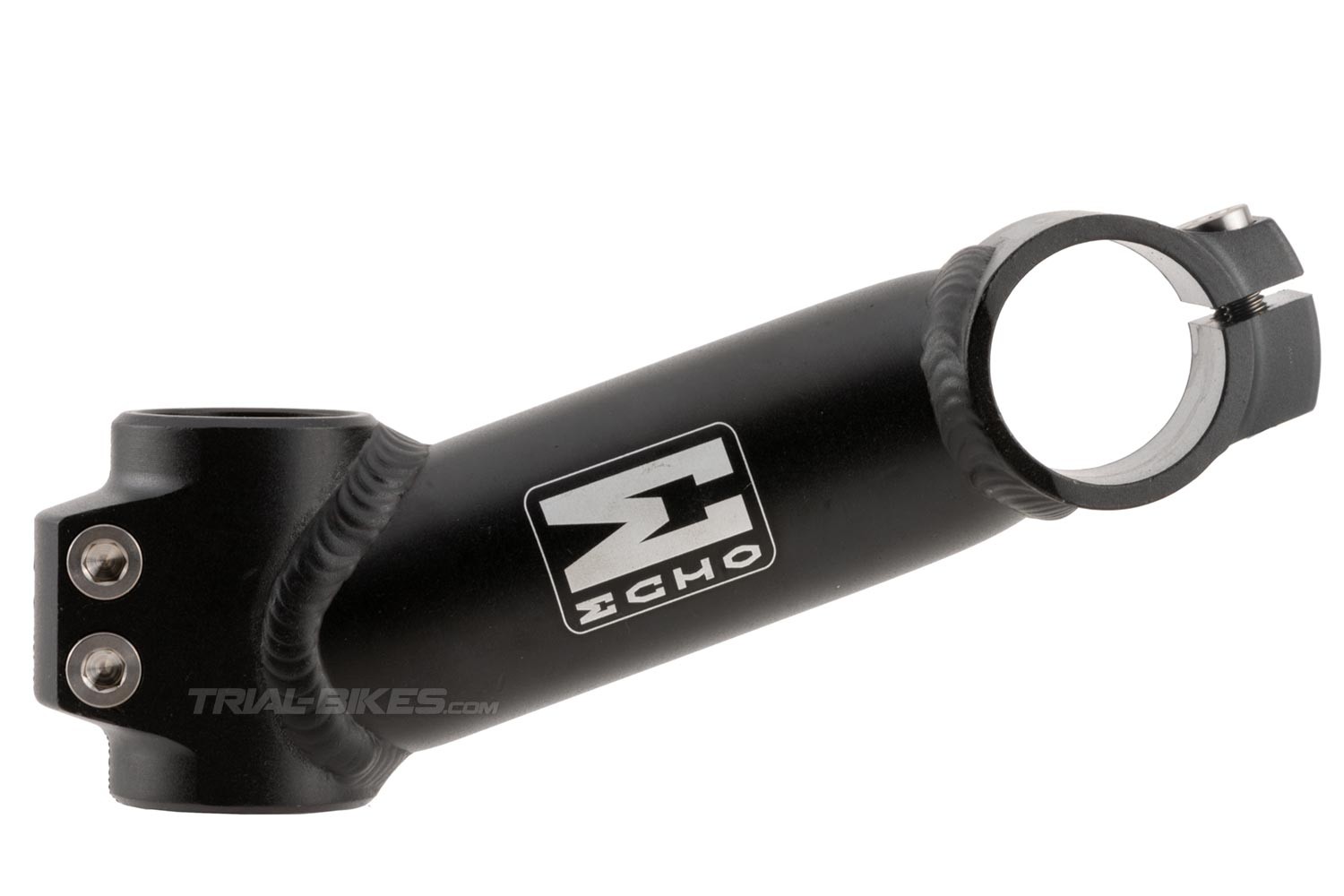

Echo TR Flat Stem

Echo TR Flat Stem

Description and materials
- Echo TR Flat stem, available in a wide range of sizes.
- Exclusive Echo TR design, with both the handlebar and steerer tube clamps machined from a single piece of high quality aluminium, then welded to the central tube.
- Features a flat steerer clamp to give  52mm tall.
- One-piece handlebar clamp, which only needs 2 bolts to ensure the bar stays in place.
- 2 different sizes available: 120mm x 20º and 125mm x 25º.
- Suitable for most Ø31.8mm Oversized handlebars.
- Supplied without a CNC-machined top cap.
- Includes all necessary bolts (2x steerer tube clamp (M6x23mm), 2x handlebar clamp (M6x23mm).
- Available in sand blasted black only, with grey laser etched Echo logo.

Length
- 2 different sizes available: 120mm x 20º and 125mm x 25º.
- Handlebar diameter: Ø 31.8mm (Oversized)

Finishes
- Available in sand blasted black only, with grey laser etched Echo logo

Weight
- 210.96g (120mmx20º)
- 211.32g (115mmx25º)

Important tip for a right setup
- Due to the bar clamps design, it’s recommended to insert a coin into each slot, then screw the bolts upside down to slowly open the slots and ease the handlebar setup. Please note! It’s very important to alternate each bolt to avoid the clamps from splitting, which would void the guarantee immediately.
