Echo TR ISIS Cranks Expand

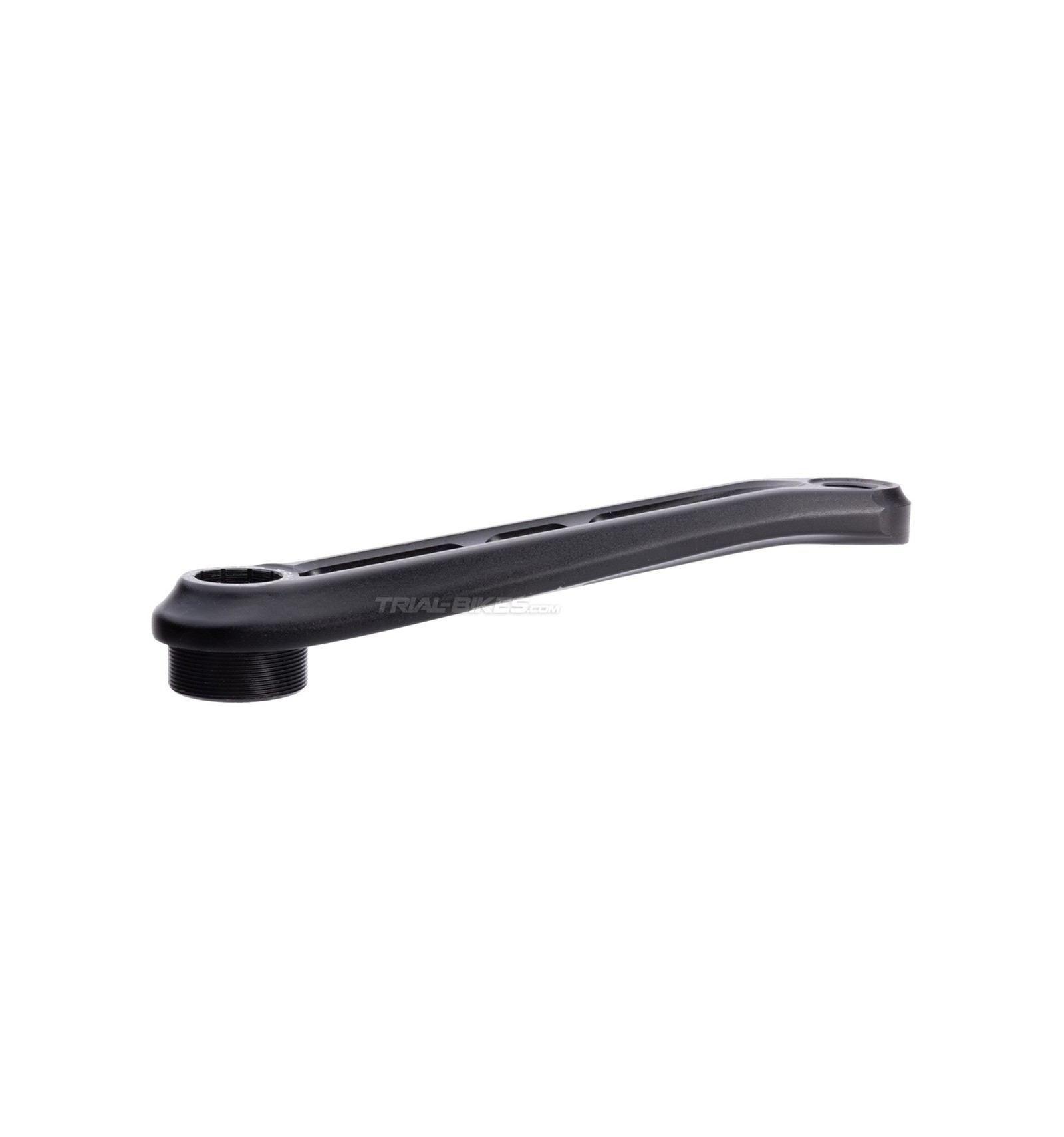

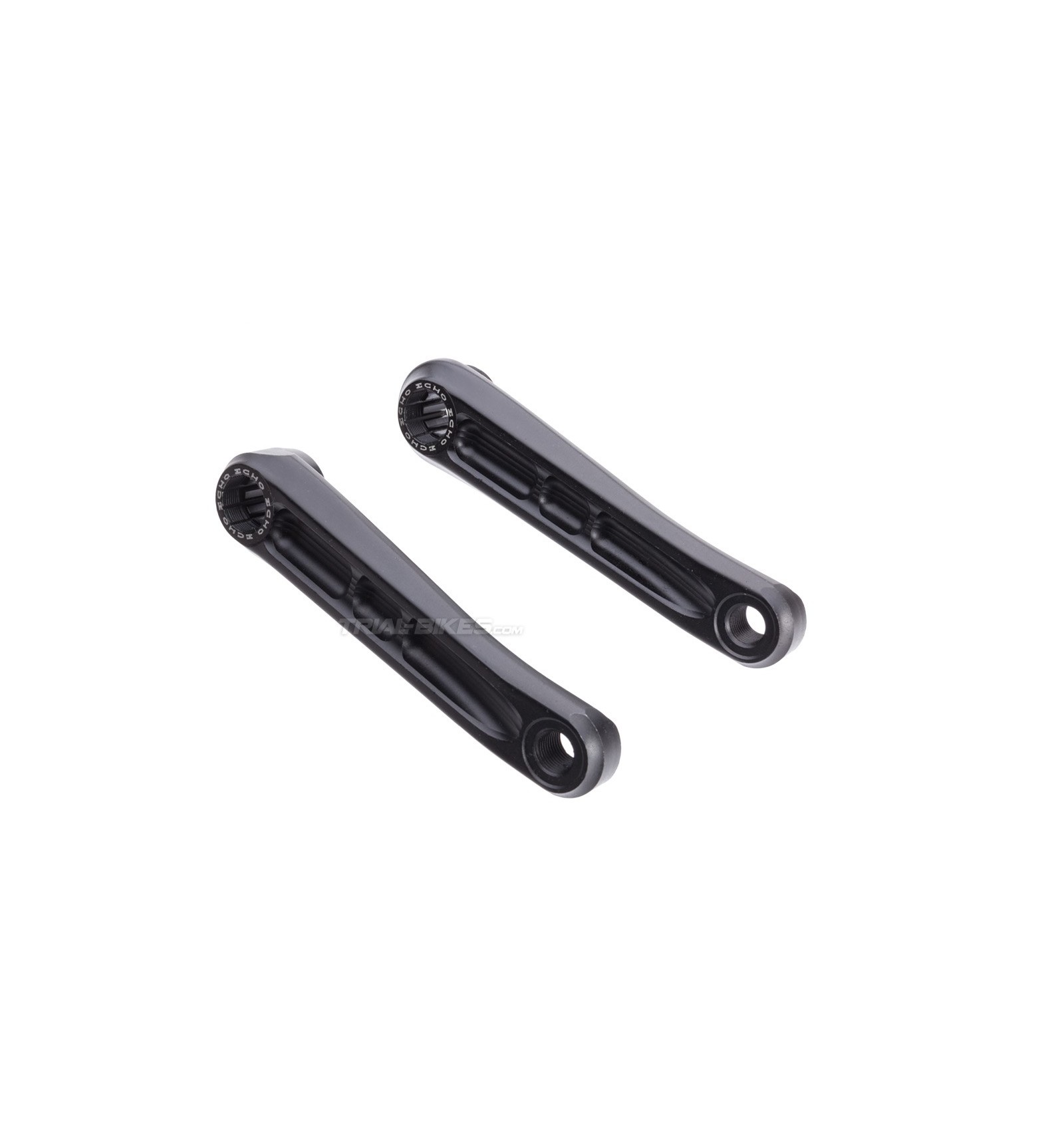

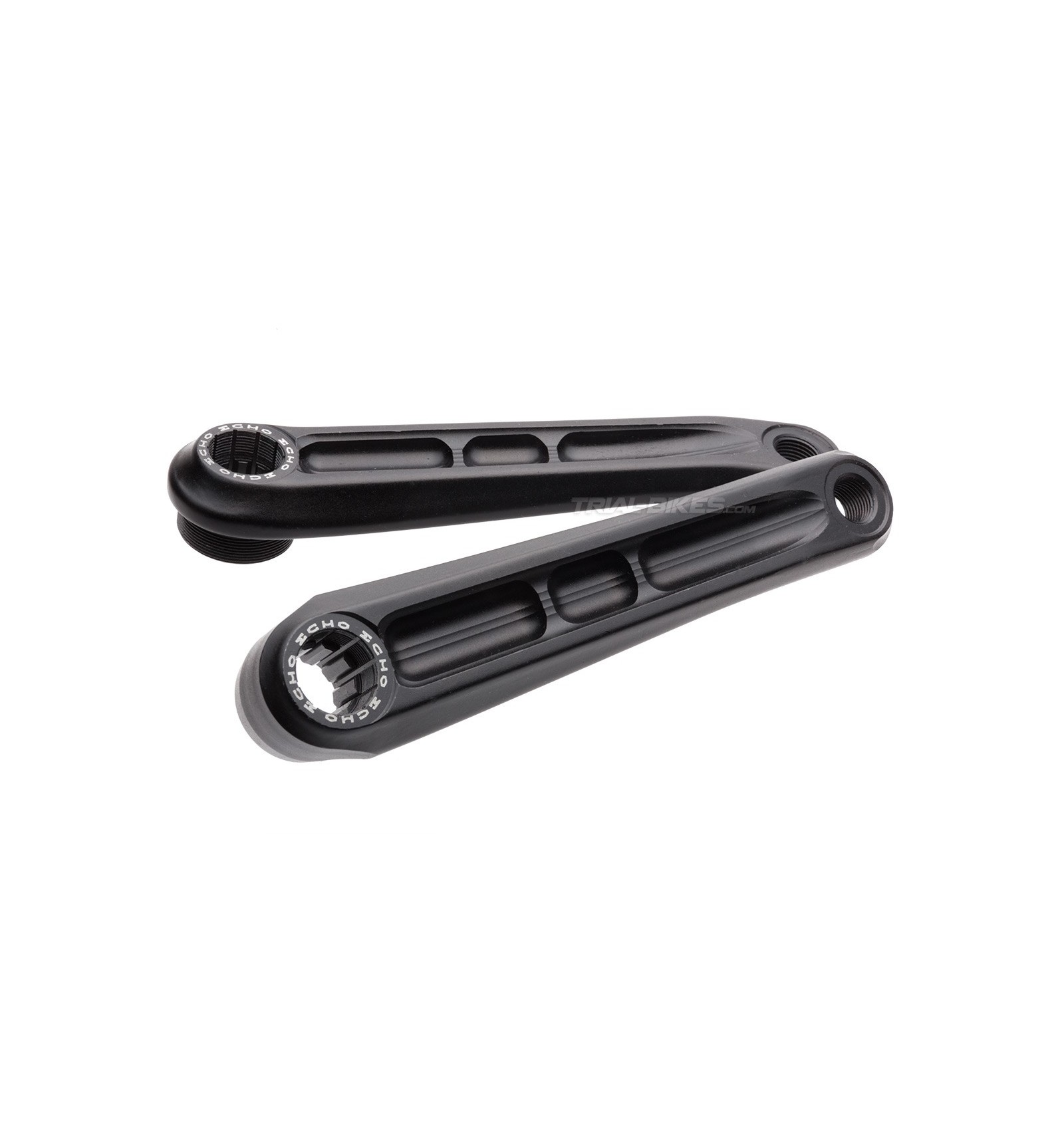

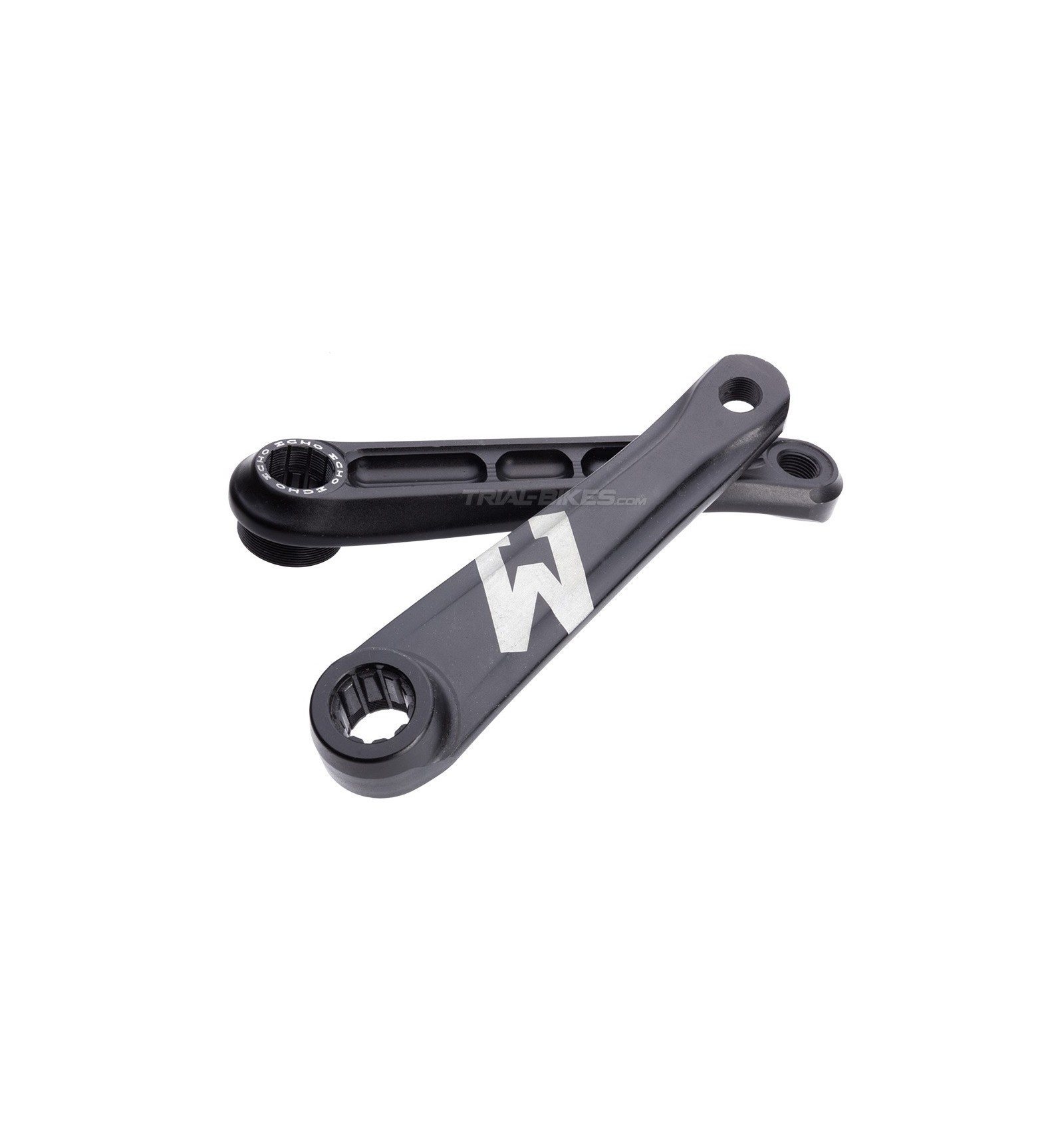

Echo TR ISIS Cranks

ECHO ECHO

New

Description and materials

More details

This product is no longer in stock

56,20€

Length .
 160mm

Ask a question

Description and materials
- Popular Echo TR ISIS cranks, specifically designed for Biketrials by Asian manufacturer Echo.
- Designed with superior strength and stiffness, with a tough rib at the back of the arm, which makes these cranks reliable and durable.
- Mechanized from a single piece of high-quality 6061-T6 aluminium alloy.
- Suitable for all ISIS bottom brackets.
- CNC mechanized standard 1.37”x 24tpi thread, suitable for most screw-on freewheels and sprockets.
- Wide threaded section (13mm) to be able to run a bashring together with the freewheel/sprocket..
- Large recesses at the front of the arms help save unnecessary weight without compromising overall strength.
- Note: these cranks are supplied with a 5mm spacer that must be inserted between the freewheel and crank in case you don't use a bashring.
- Available in sand blasted black only, with grey laser etched Echo logo at the back of the arm.
- Available in 160 or 170mm.

Sizes
- 160 or 170mm long
- Offset: 36mm

Finishes
- Available in sand blasted black only, with grey laser etched Echo logo at the back of the arm.

Weight
- 460g (160mm), 477g (170mm).

Additional information
- Please bear in mind that there must be at least 7mm of thread in contact between freewheel and crank. Furthermore, a 1.37” freewheel/sprocket must be used with a maximum internal diameter of 33.8mm (and not the 1.375” ones). Not following these instructions may lead to thread damage (which won’t be covered under warranty).

WEIGHT 0.460
LENGTH 170mm
LENGTH 160mm
